Astra Hybrid330

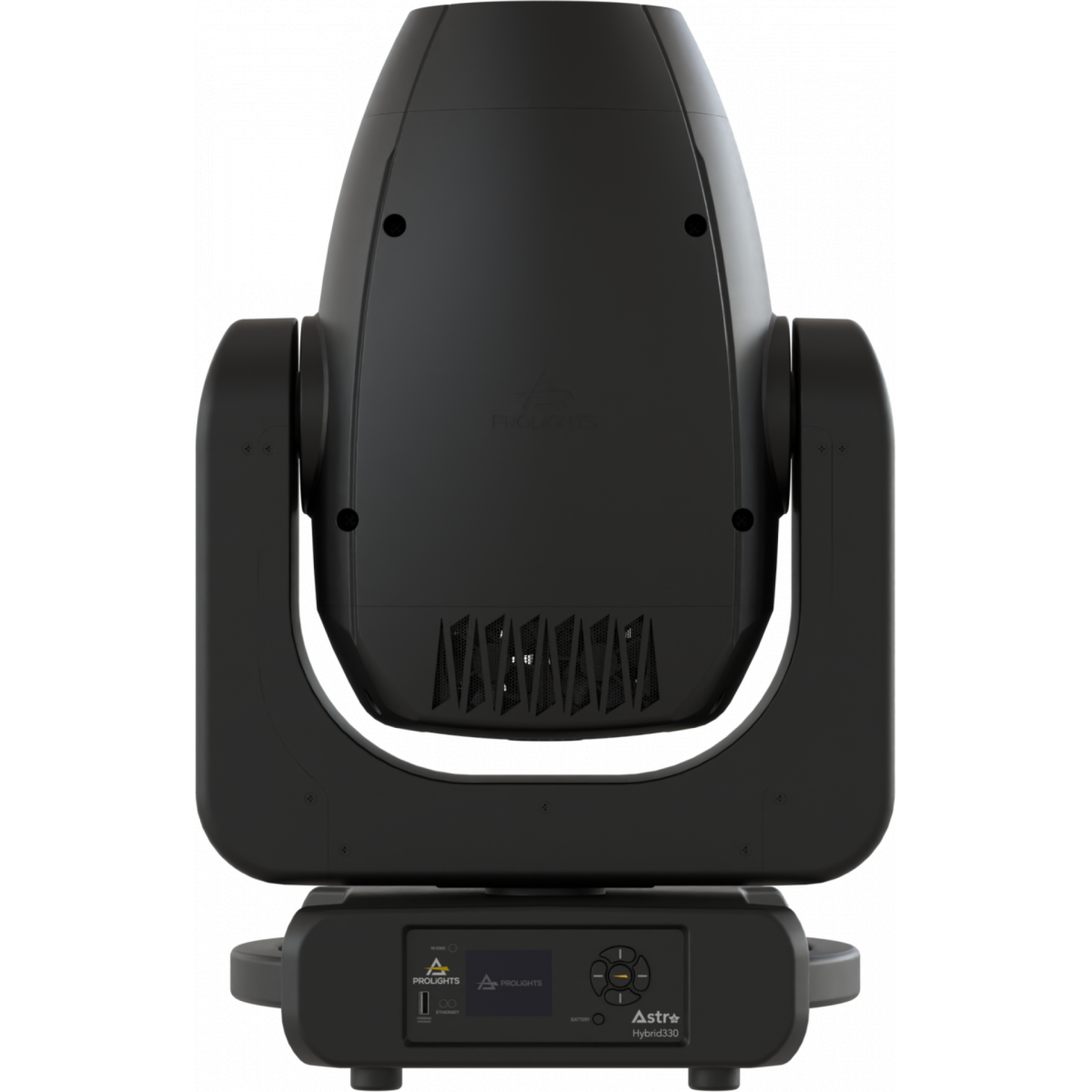

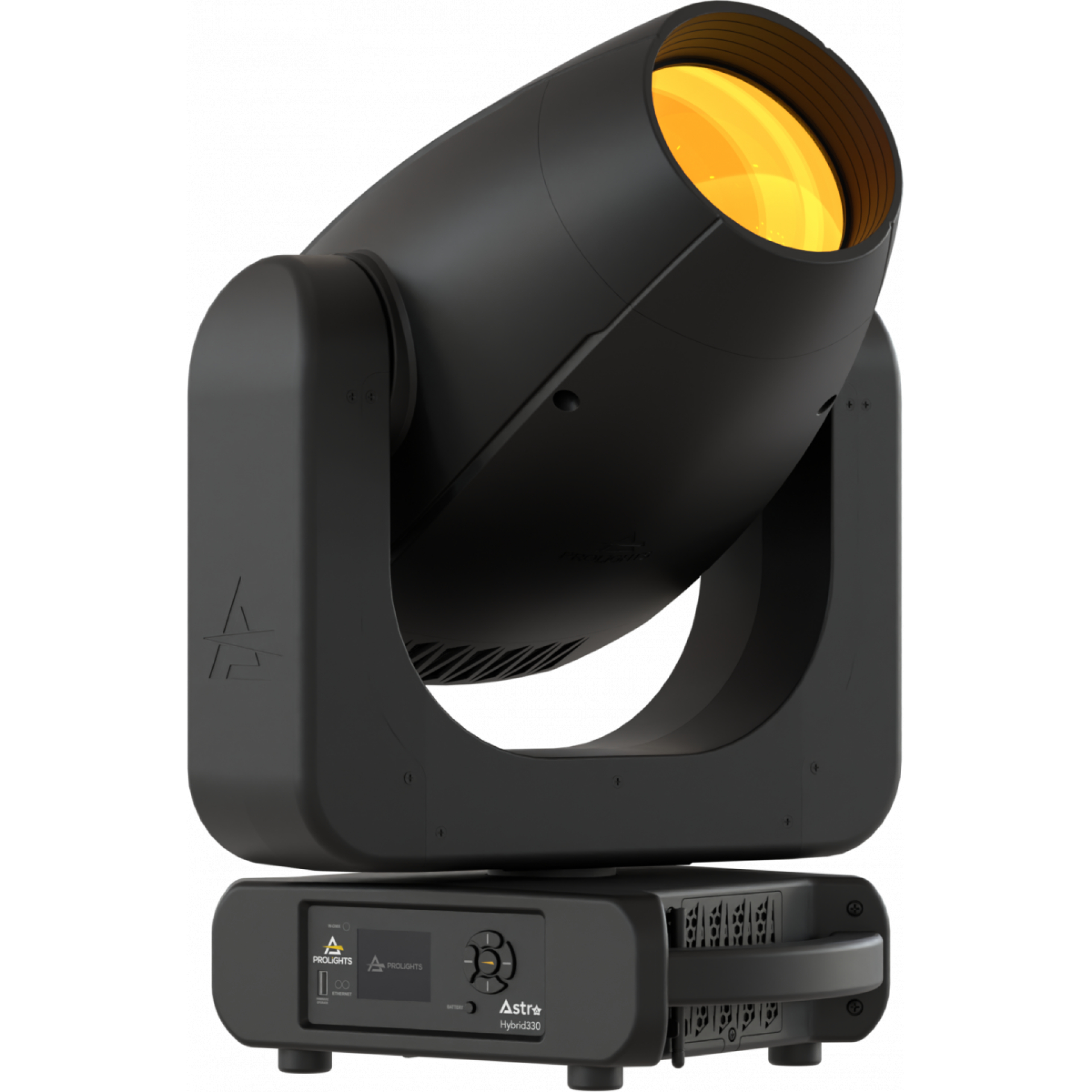

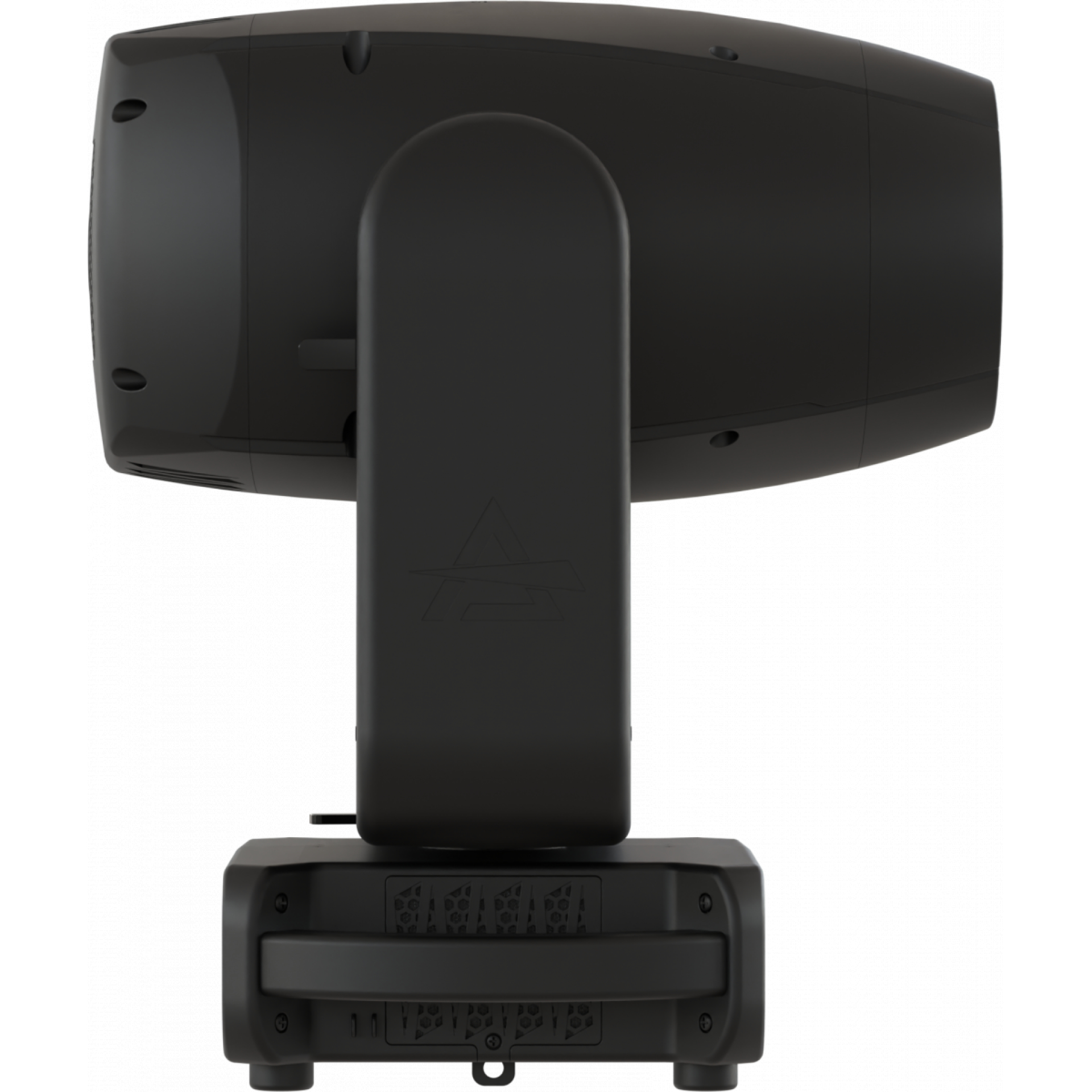

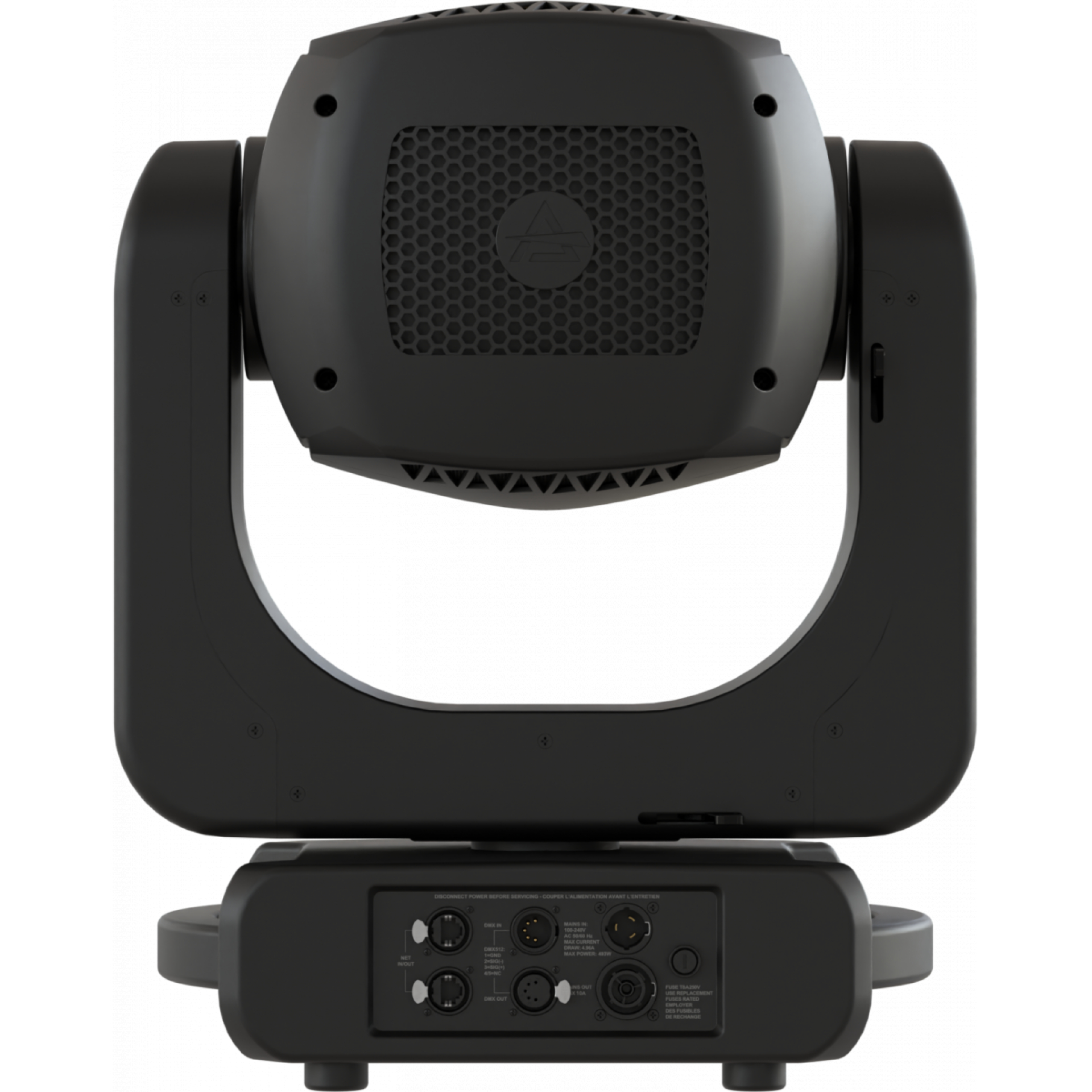

PROLIGHTS Astra Hybrid330
PROLIGHTS Astra Hybrid330
PROLIGHTS Astra Hybrid330
PROLIGHTS Astra Hybrid330
PROLIGHTS Astra Hybrid330
PROLIGHTS Astra Hybrid330
PROLIGHTS Astra Hybrid330

Astra Hybrid330

PROASTRAHYB330

Key Features:

  • Source: 330W high-power white LED
  • Linear zoom ranging from 3.5° to 52°
  • CMY colour system on 3 gradually fading colour wheels
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Hybrid330

The PROLIGHTS Astra Hybrid330 is an ultra-compact LED hybrid moving head with phenomenal power for its size and delivers a stunning set of visual effects.

The PROLIGHTS Astra Hybrid330 optical system ranges linearly from 3.5° to 52°, and it’s equipped with a large 140mm front lens featuring both an high intensity beam and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category. The extensive feature set of the Astra Hybrid330 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.

  • Source: 330W high-power white LED

    CCT: 7.000

    Luminous flux: (3,5°) 8,158 lm - (52°) 11,684lm

    Lux: (3,5°) 97,996 lx - (52°) 1,566lx @ 5m full

    Source life expectancy: > 30.000hr

    Zoom: 3.5° - 52° motorised linear zoom

    Lens diameter: 140mm / 5.51''

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised

  • Colour mixing: CMY colour system on 3 gradually fading colour wheels

    CCT: on wheel 2,400K and 3,200K

    Colour wheel: 9 dichroic filters on 3 independent colour wheels

    Colour wheel: High CRI colour filters

    Control Resolution: 16-bit dimmer

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 8 rotating gobos + open, interchangeable, indexing

    Gobo size: outer: 20mm - image: 16mm - thickness: up to 3mm

    Fixed gobos: 11 fixed gobos + open

    FX generator: 2 prisms overlap for spectacular aerial effects

    Circular prism: 8f with bi-directional rotation, indexing

    Linear prism: 6f with bi-directional rotation, indexing

    Frost: linear 0 - 100% frost filter

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX

    DMX channels: 29 channel

    Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: LCD high resolution colour display with autoflip

    Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included or via USB pen drive

    Other: Ethernet pass through in case of PSU or Master PCB failure

Astra Hybrid330 - Downloads
PROLIGHTS Astra Hybrid330
Download
