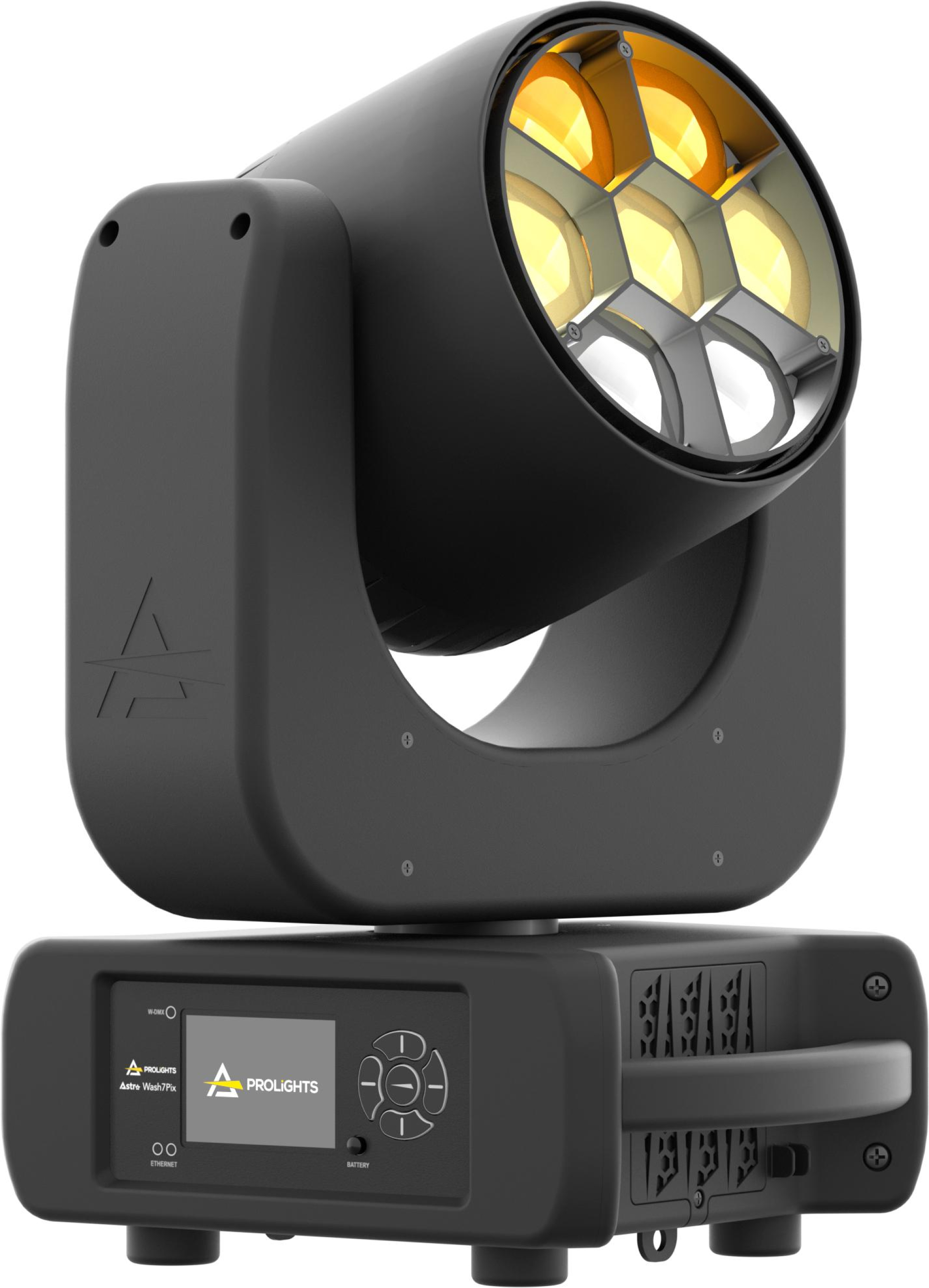

The versatile PROLIGHTS Astra Wash range of LED moving wash lights offers advanced creative effect possibilities.

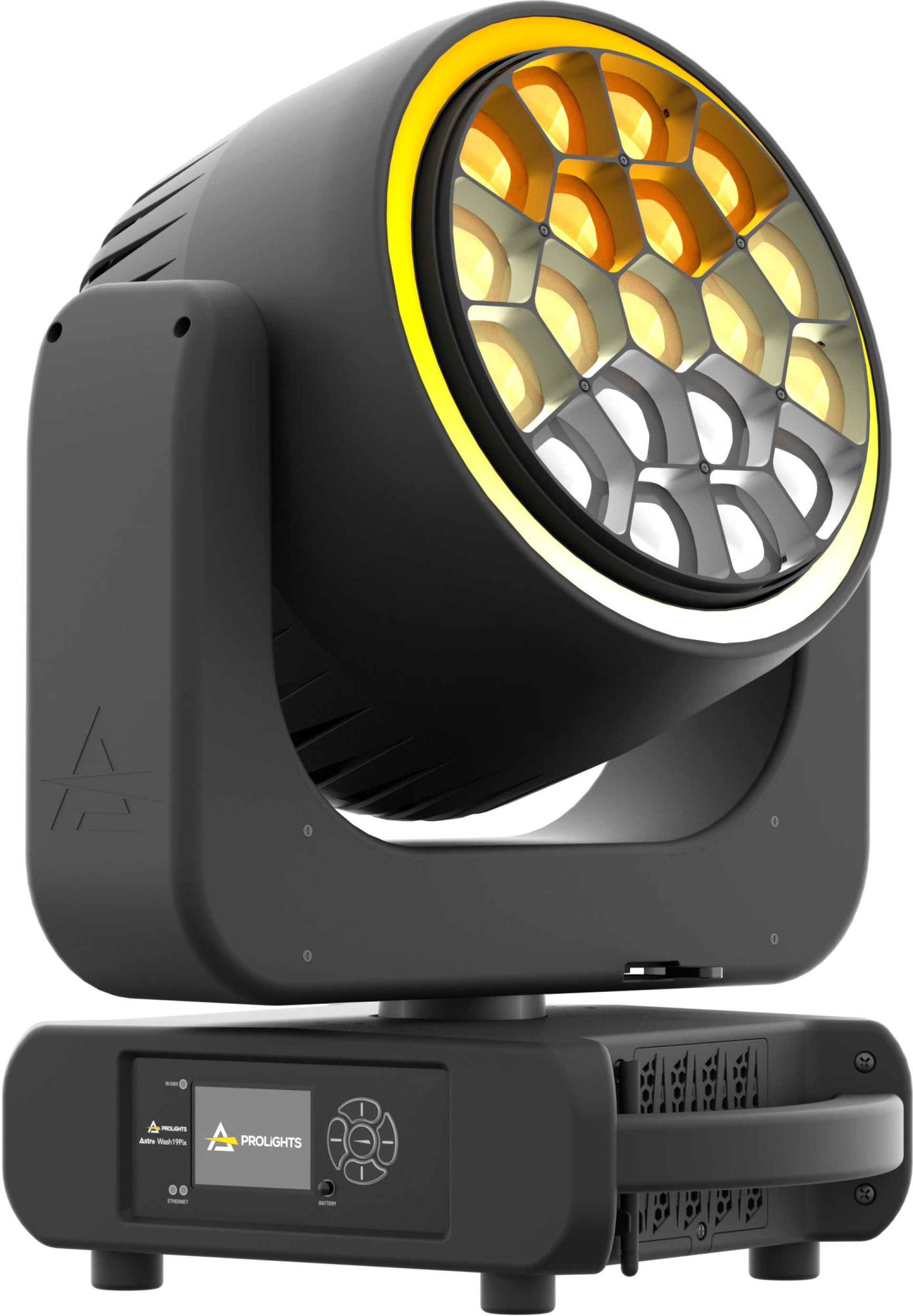

The PROLIGHTS Astra Wash LED moving wash range is based on a 40W Osram RGBW LED light source, plus the exterior pixel ring. This unit features an extremely high-efficiency optical system capable of zooming from 4° to 56° (7Pix) / 4° to 54° (19Pix), making this luminaire extremely versatile for any application.
The Astra Wash range is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN and RDM.
Precise white CTC
Multiple FXs and colour features
Source RGBW Osram Ostar LEDs:

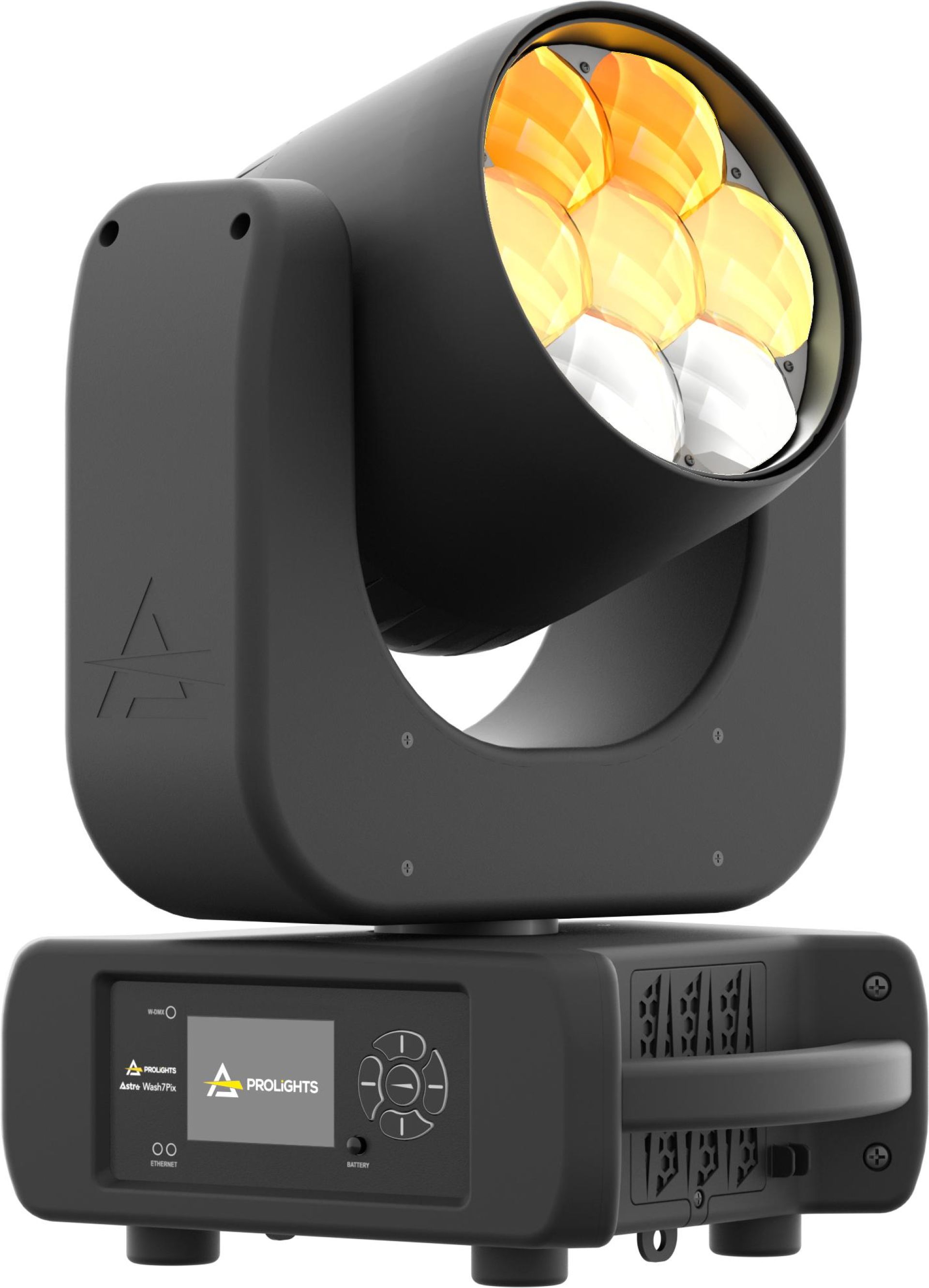

7x40W (7Pix)

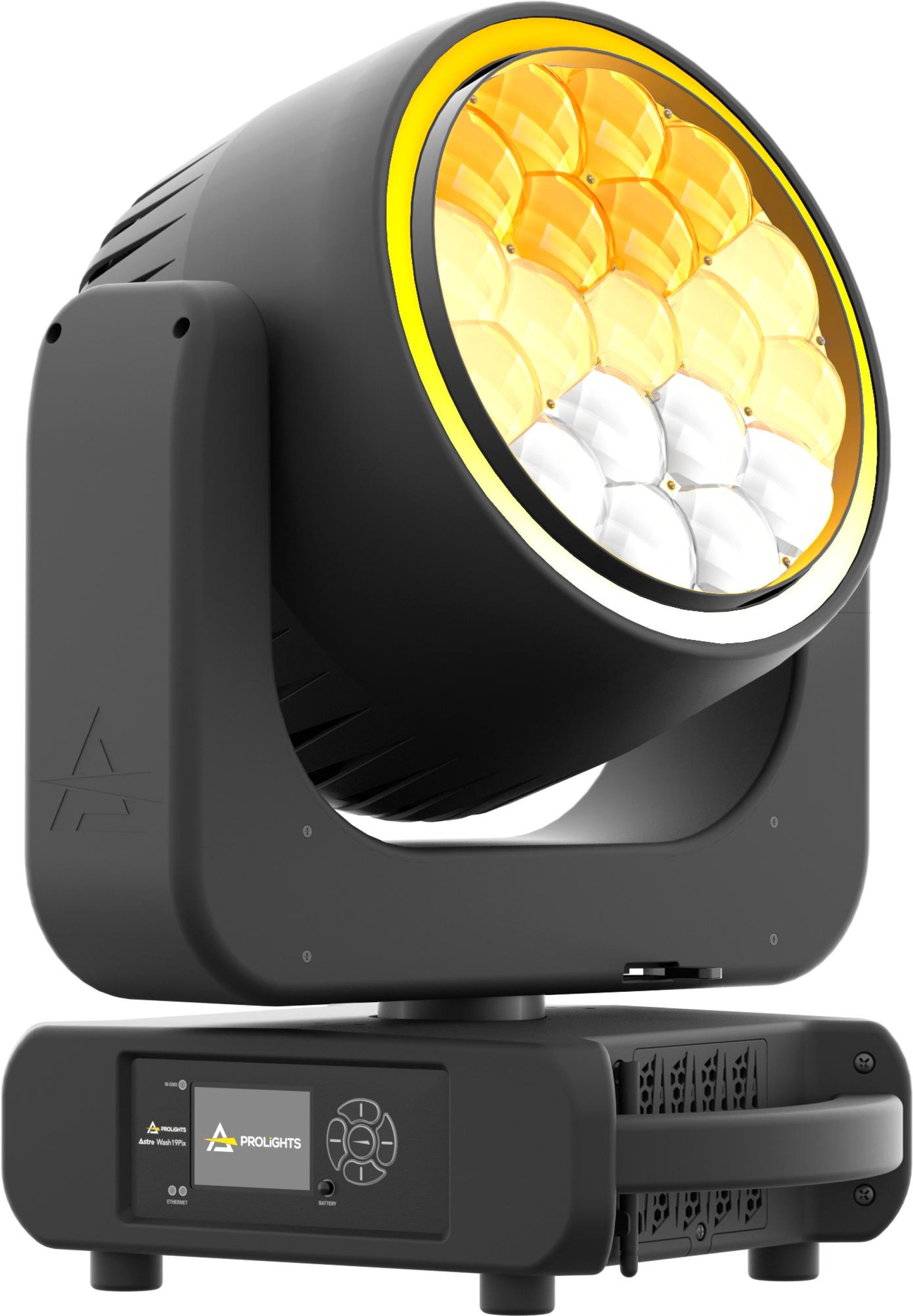

19x40W (19Pix)

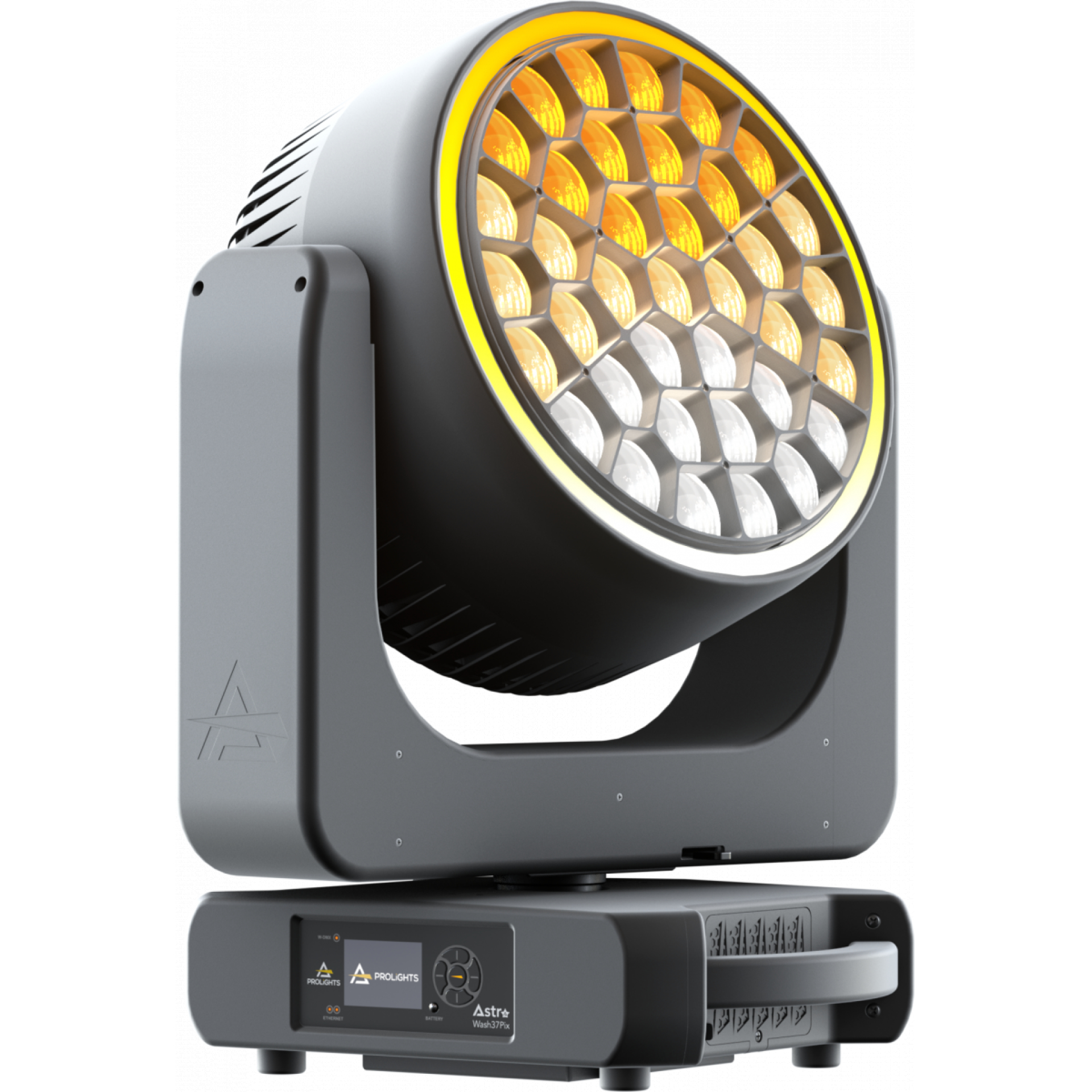

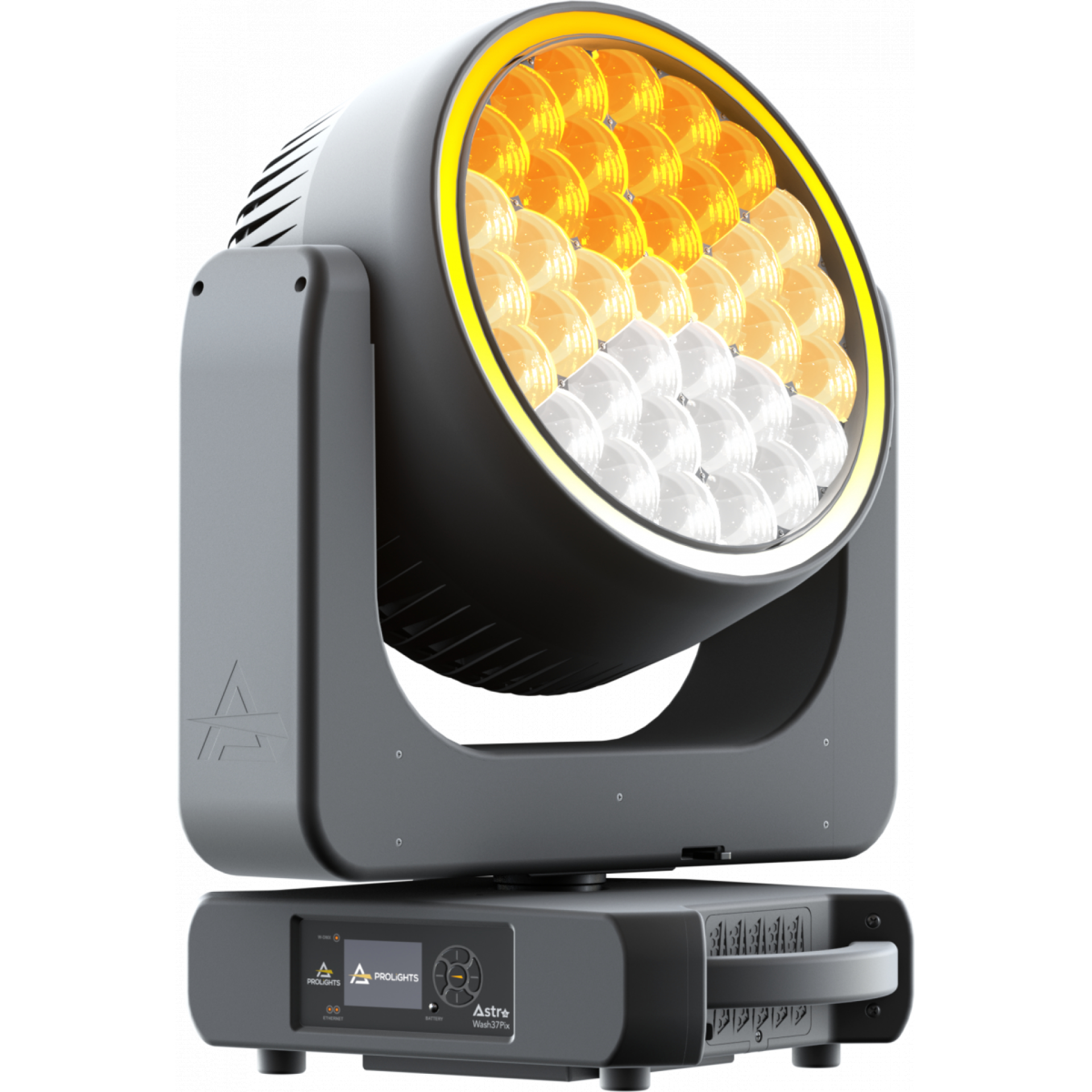

37x40W (37Pix)
Source life expectancy: > 50,000 hr
Lens type: honeycomb gapless plano-convex optics
Zoom: 4° - 56° motorised linear zoom (7Pix)
Zoom: 4° - 54° motorised linear zoom (19Pix & 37Pix)
Additional optics: diffuser on outer pixel ring (19Pix & 37Pix)
Colour mixing: RGBW / FC
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2,800 K ~ 10,000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed
Control Resolution: 16-bit dimmer
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours (7Pix)
Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours (19Pix & 37Pix)
Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
Pixel control: OFF, ring and pixel2pixel selectable options
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
