Pixie WashXB

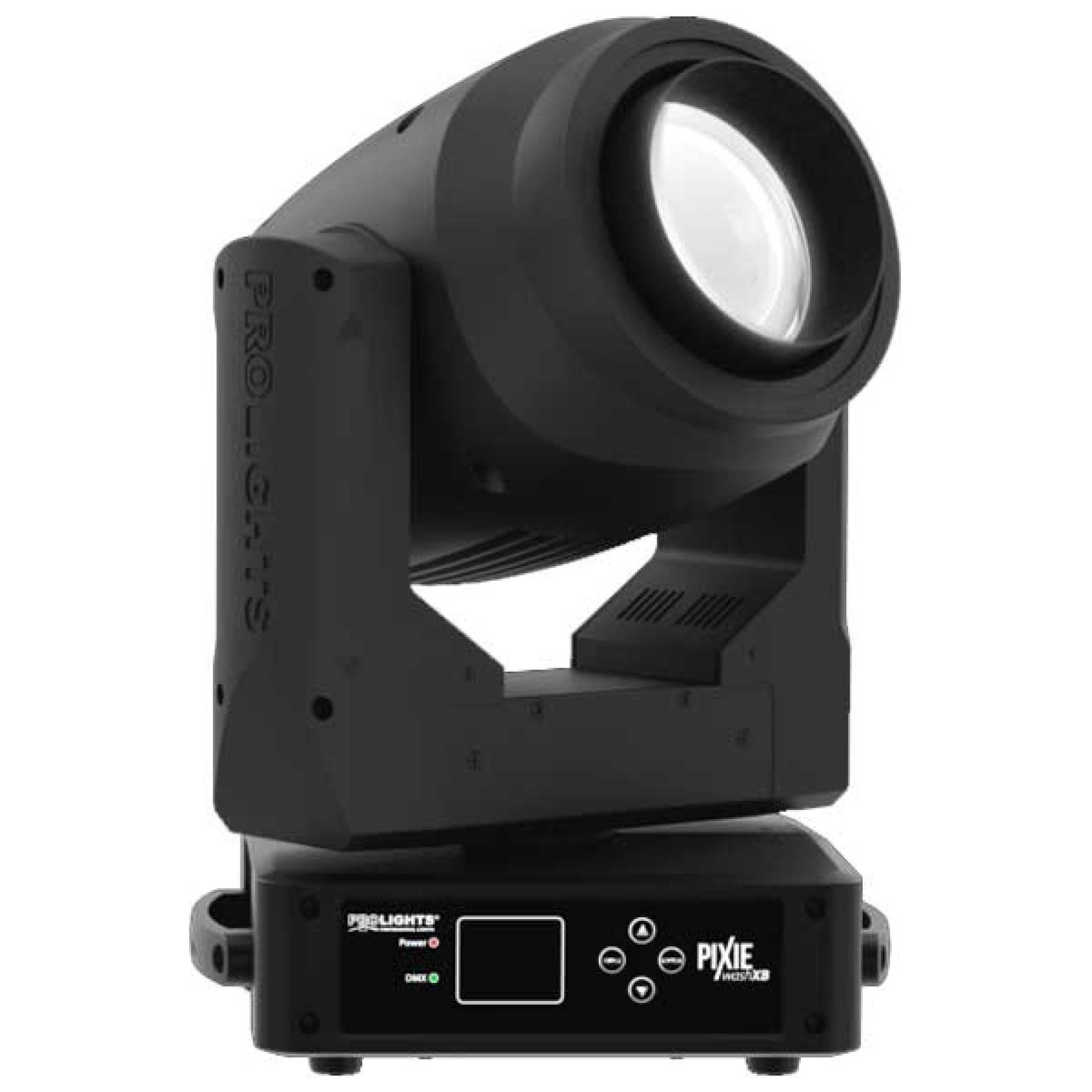

PROLIGHTS Pixie WashXB

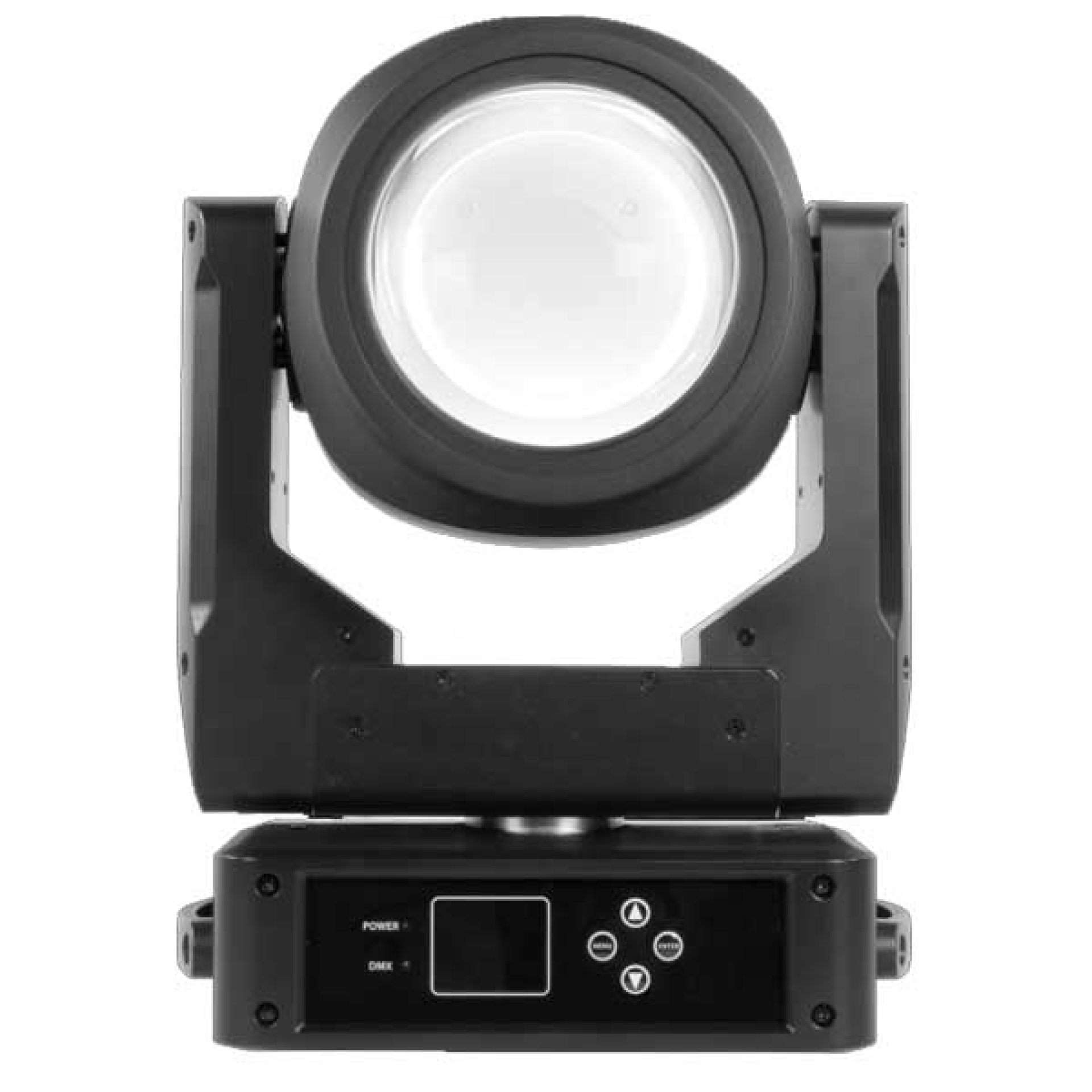

PROLIGHTS Pixie WashXB - front

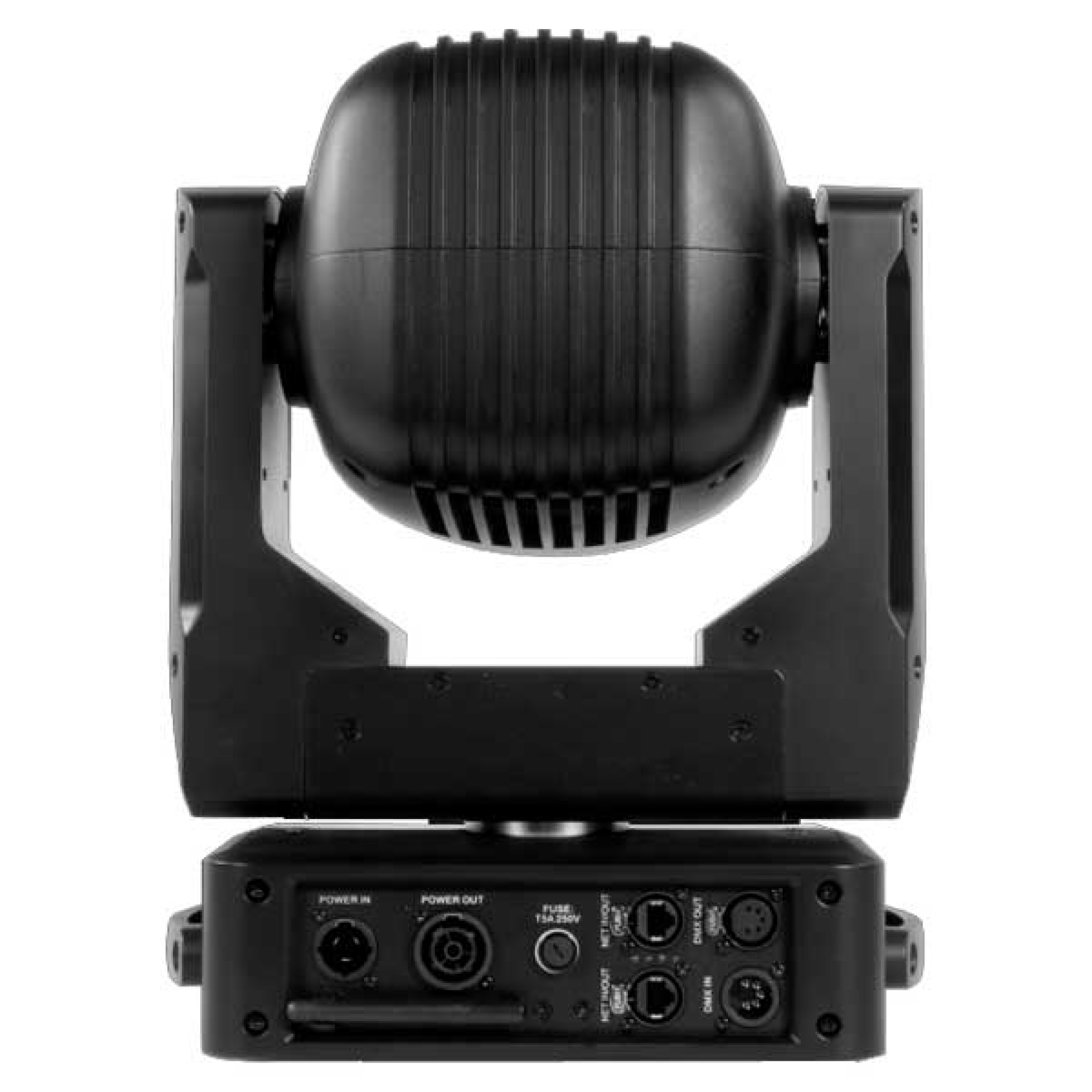

PROLIGHTS Pixie WashXB - back

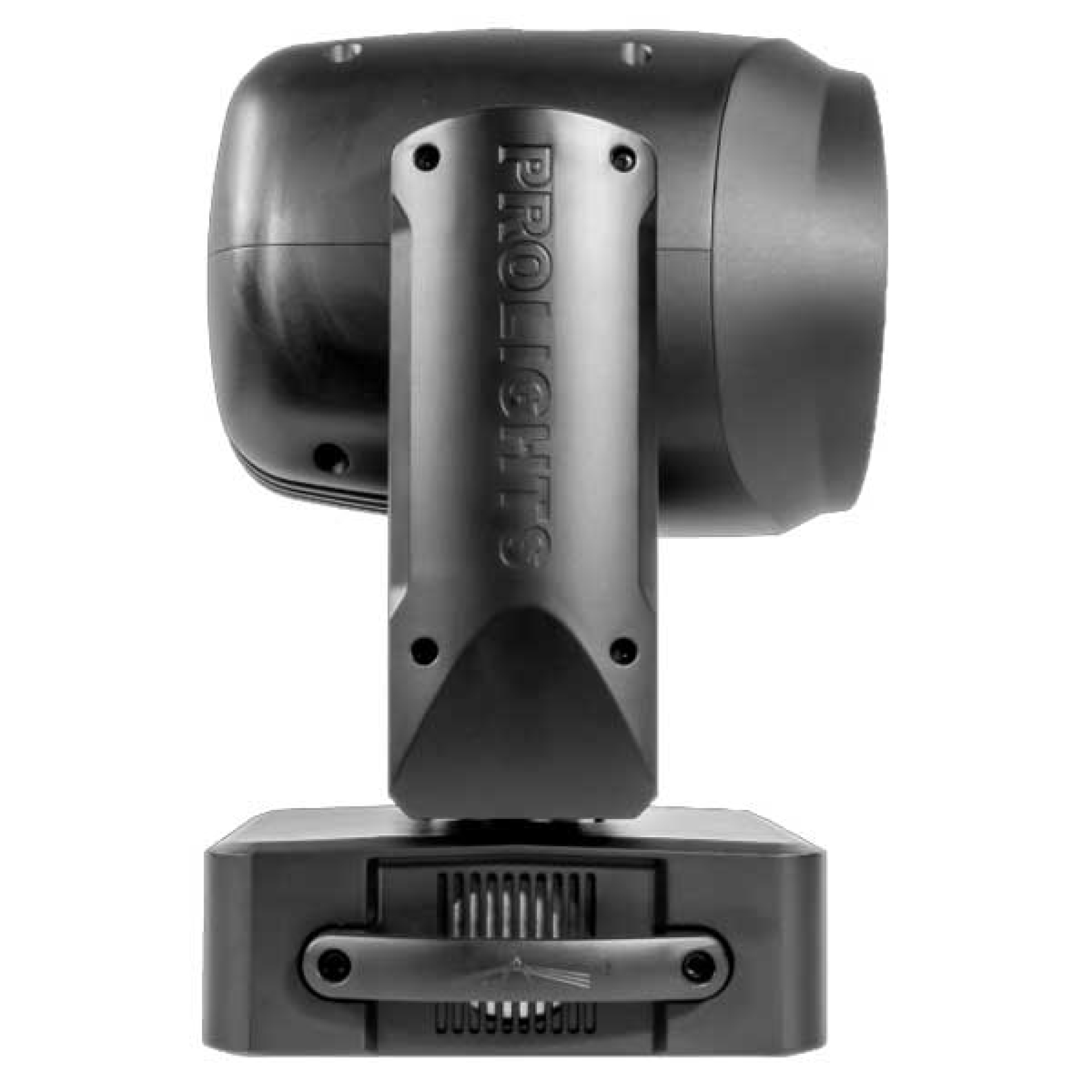

PROLIGHTS Pixie WashXB - side

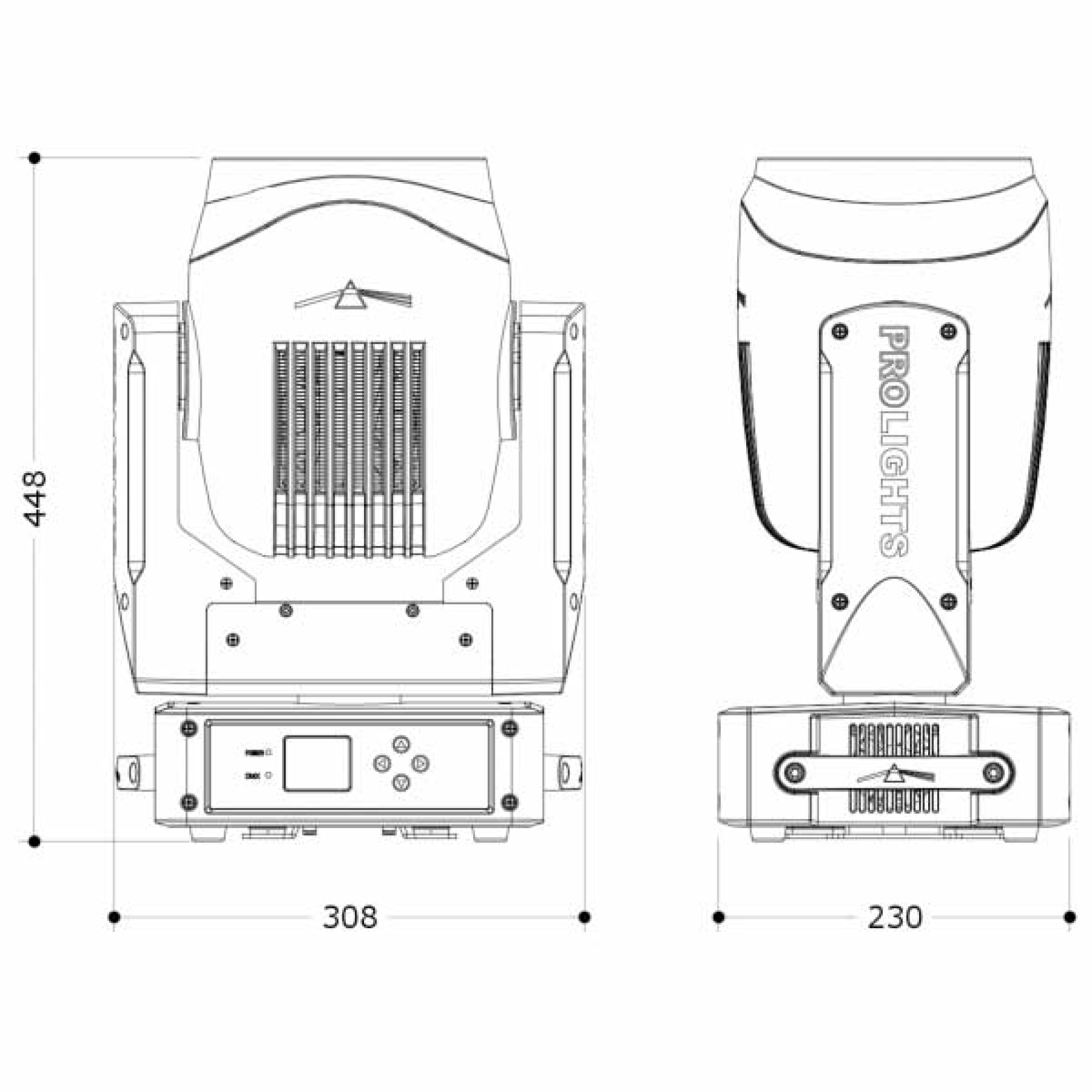

PROLIGHTS Pixie WashXB - line drawing
PROLIGHTS Pixie WashXB - front
PROLIGHTS Pixie WashXB - back
PROLIGHTS Pixie WashXB - side
PROLIGHTS Pixie WashXB - line drawing

Pixie WashXB

PROPIXIEWASHXB

Key Features:

  • 280W proprietary RGB + warm white LED delivering high CRI, TLCI, TM30 values
  • 6 to 45 linear zoom with superior evenness
  • Art-net and WDMX on-board
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Pixie WashXB

The PROLIGHTS Pixie WashXB is a single source LED moving washlight with an extensive zoom range. Featuring a proprietary RGB+WW LED source, it offers both a powerful output as well as a high CRI for illuminating people and objects.

The Pixie WashXB reinvents the concept of the moving LED wash light, bringing together the classic styling of a traditional wash luminaire and applying the very latest innovations in the field of LED technology. The large frontal plano-convex lens delivers a stunning level of brightness and an exceptional zoom range with a 1:8 ratio, combined with a proprietary 280W RGB and warm white LED module delivering a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning.

Pixie WashXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being compact, fast and silent, the fixture offers unprecedented flexibility and is ideal for use in theatres, TV, corporate and festivals.

  • Source: 280W RGB + warm white

    CT: 6,500K

    CRI: >92

    R9: >94

    Luminous flux: (6°) 3,670 lm – (45°) 3,795lm

    Lux: (6°) 29,900 lux – (45°) 1,590lux @ 3m full

    Lux: (6°) 10,764 lux – (45°) 572lux @ 5m full

    Source life expectancy: 70,000 hr

    Other: TM-30-15RF/RG: 90/99 – TLCI: >85

    Zoom: 6° – 45° motorised linear zoom

    Field angle: 11° – 43°

    Lens diameter: 125mm

    Lens type: high-quality glass lens optics

  • Colour mixing: RGB+warm white

    CTC: CTC control through independent DMX channel and amber shift activation by DMX

    White presets: 2,800K-10,000K

    Colour wheel: virtual colour wheel with presets

    Macros: several pre-build macros with adjustable speed

  • Protocols: DMX512, RDM, Art-Net,W-DMX

    DMX channels: 15 / 18 / 22 channel

    W-DMX: included, wireless solution receiver

    RDM: RDM ready for fixture remote monitor and settings

    Display: LCD high resolution colour display with autoflip

    Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
