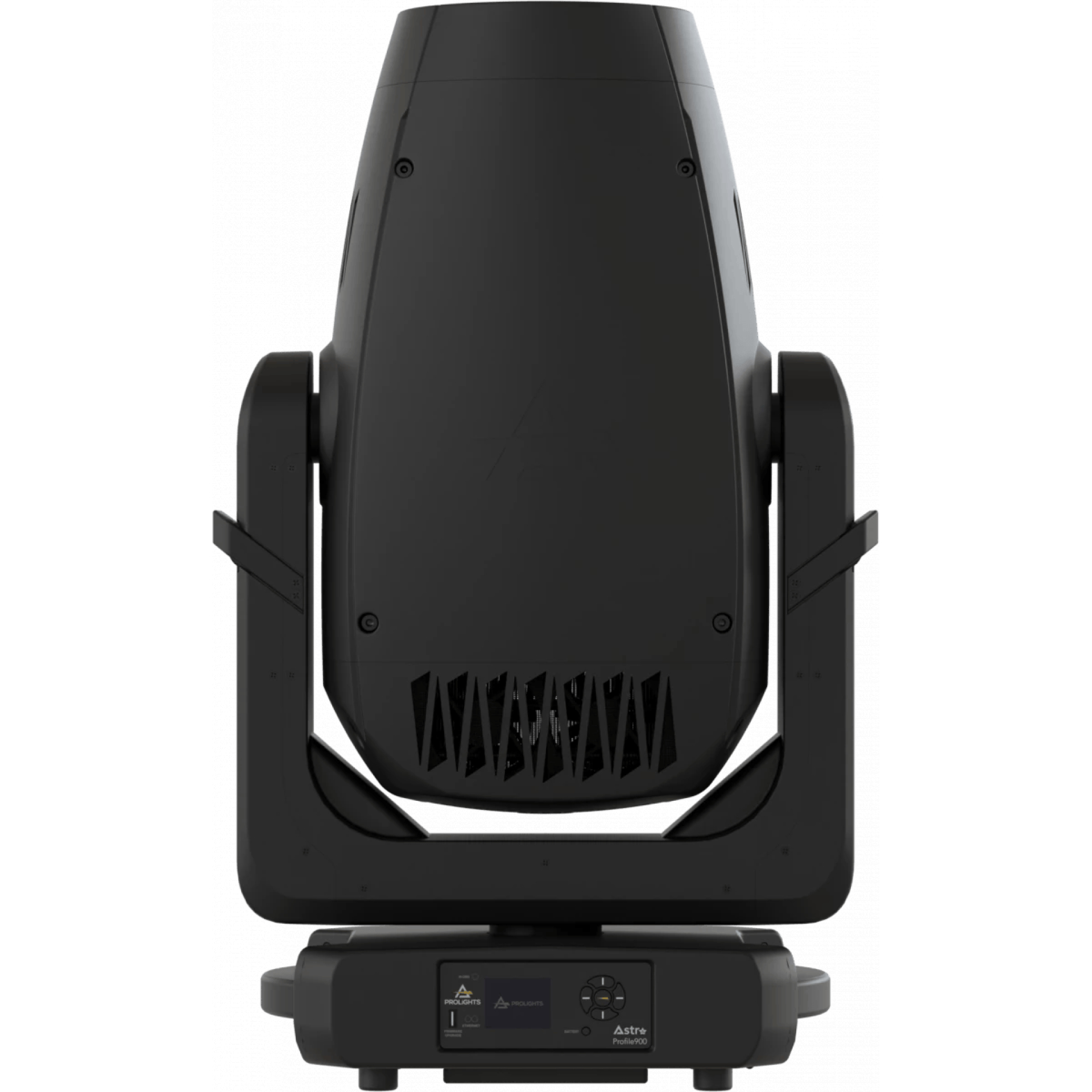

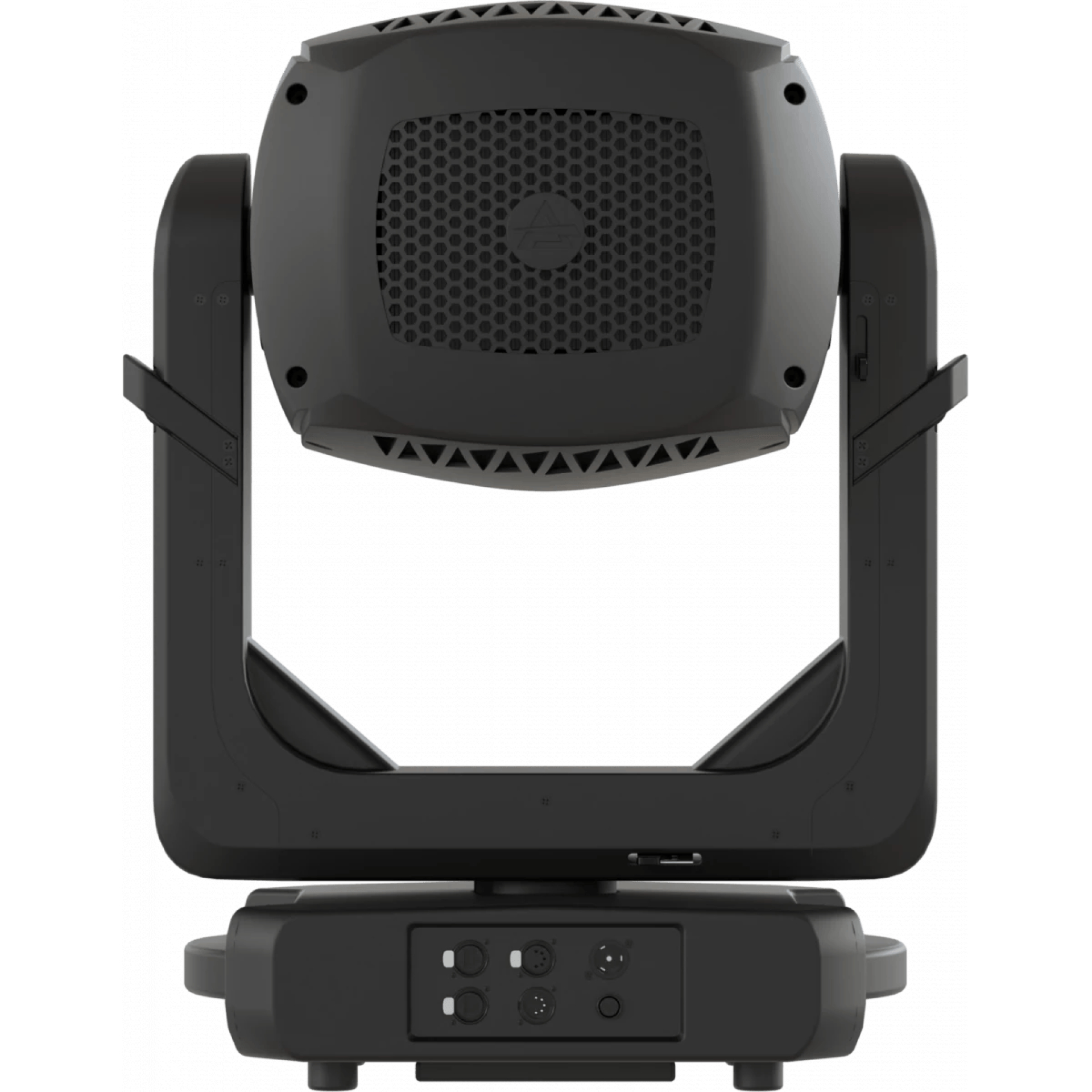

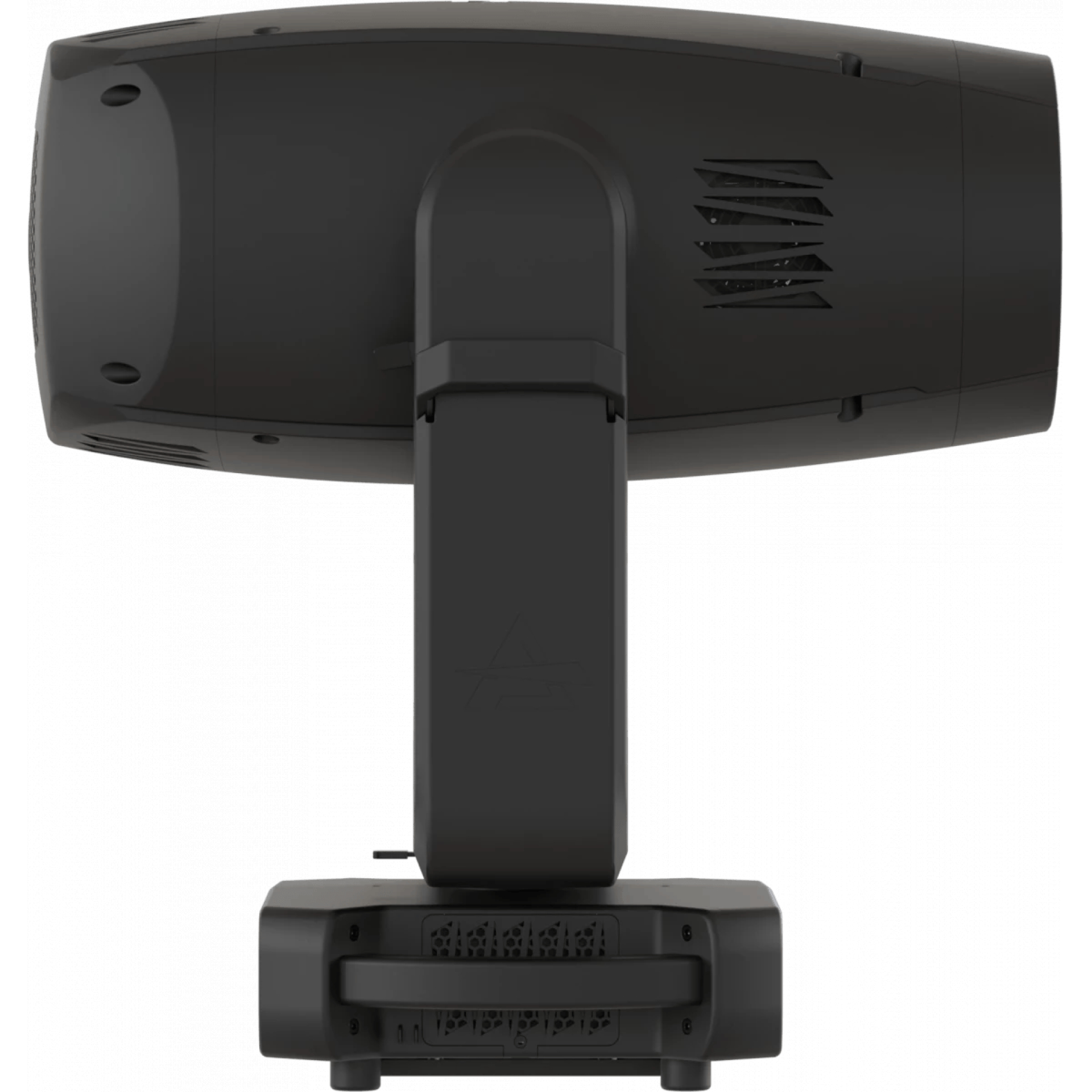

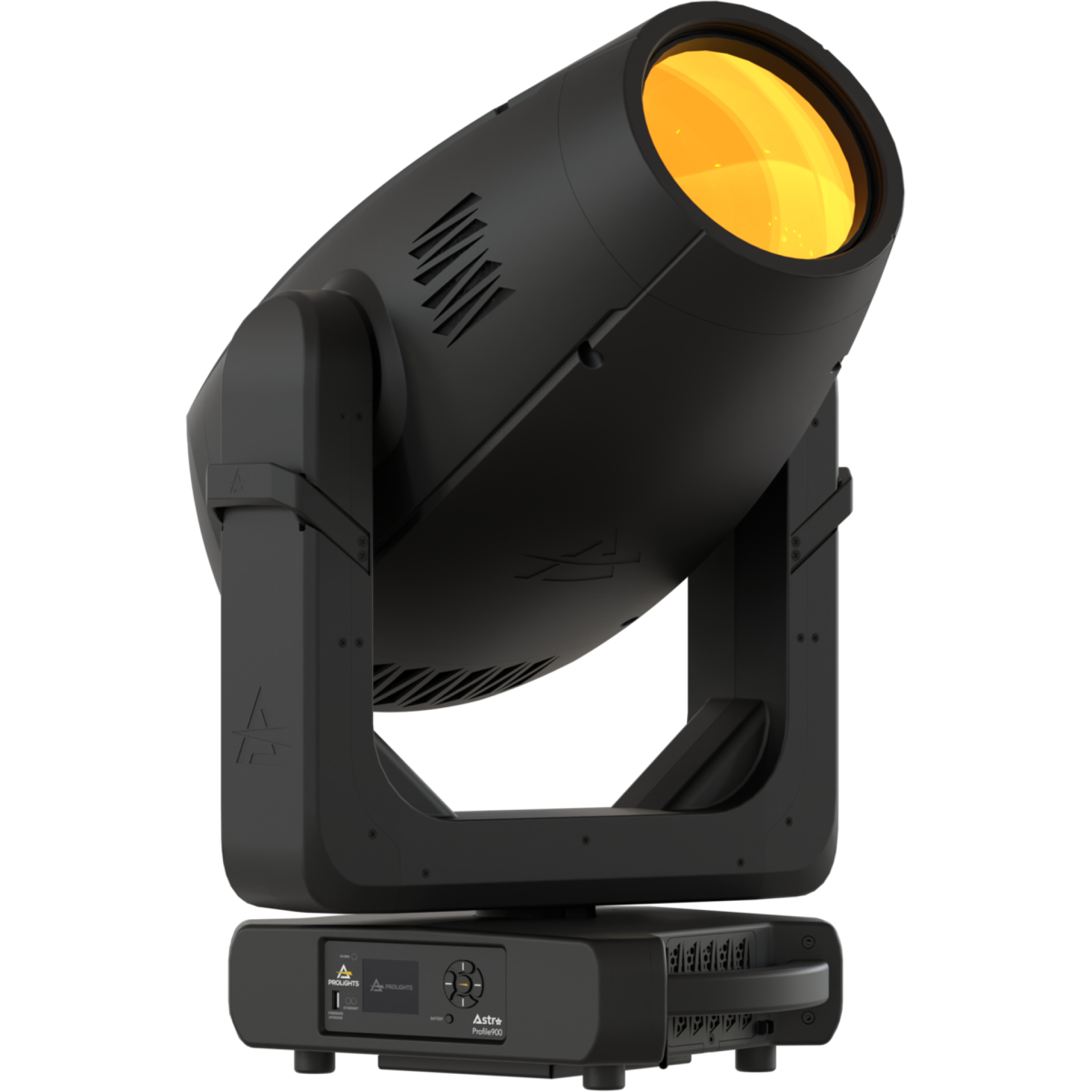

The Astra Profile900 is a flagship, high-power profile moving head designed for large-scale live productions, studios, and theatres.
Powered by a 900W LED source, it delivers an impressive 43,000-lumen output (as measured by photogoniometer), making it an exceptional key light for any major production.
Its large 185mm front lens and versatile 5°-52° zoom range ensure outstanding performance at virtually any distance. The new MotiOs motion ecosystem enhances speed, precision, and responsiveness across pan, tilt, internal wheels, and framing modules, setting a new standard in motion control.
For precise colour control, the Astra Profile900 features linear CMY+CTO mixing and a colour wheel with a high-CRI filter, delivering vibrant tones and balanced whites. Additional highlights include dual rotating gobo wheels, an animation wheel, a four-layer framing system, dual prisms, dual frost filters, and iris—making it adaptable to a wide variety of production needs.
Source: 1000W White LED (driven @900W)
CCT: 7.000K
Luminous flux: (5,5°) 23'816 lm - (52°) 42'919 lm
Lux: (5,5°) 126'304 lx - (52°) 3'060lx @5 m
CRI: > 70 (CCT 6.000K and CRI > 90 with filter on color wheel)
Source life expectancy: > 20,000hr
Zoom range: 5,4° - 52° motorised linear zoom
Lens diameter: 185mm / 7.28''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised
Colour mixing: linear CMY
CCT: linear CTO correction 2,700K ~ 7,000K
Colour wheel: open + 5,600K high CRI filter + 7 colour filters
Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: animation wheel with CW and CCW rotation
