Astra Profile900HQ

Astra Profile900HQ

Key Features:

  • 900W 6000K White LED source with CRI 96Ra
  • 185mm front lens with a 5°-52° zoom
  • MotiOs enhances motion speed, precision, and responsiveness across motorized features
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

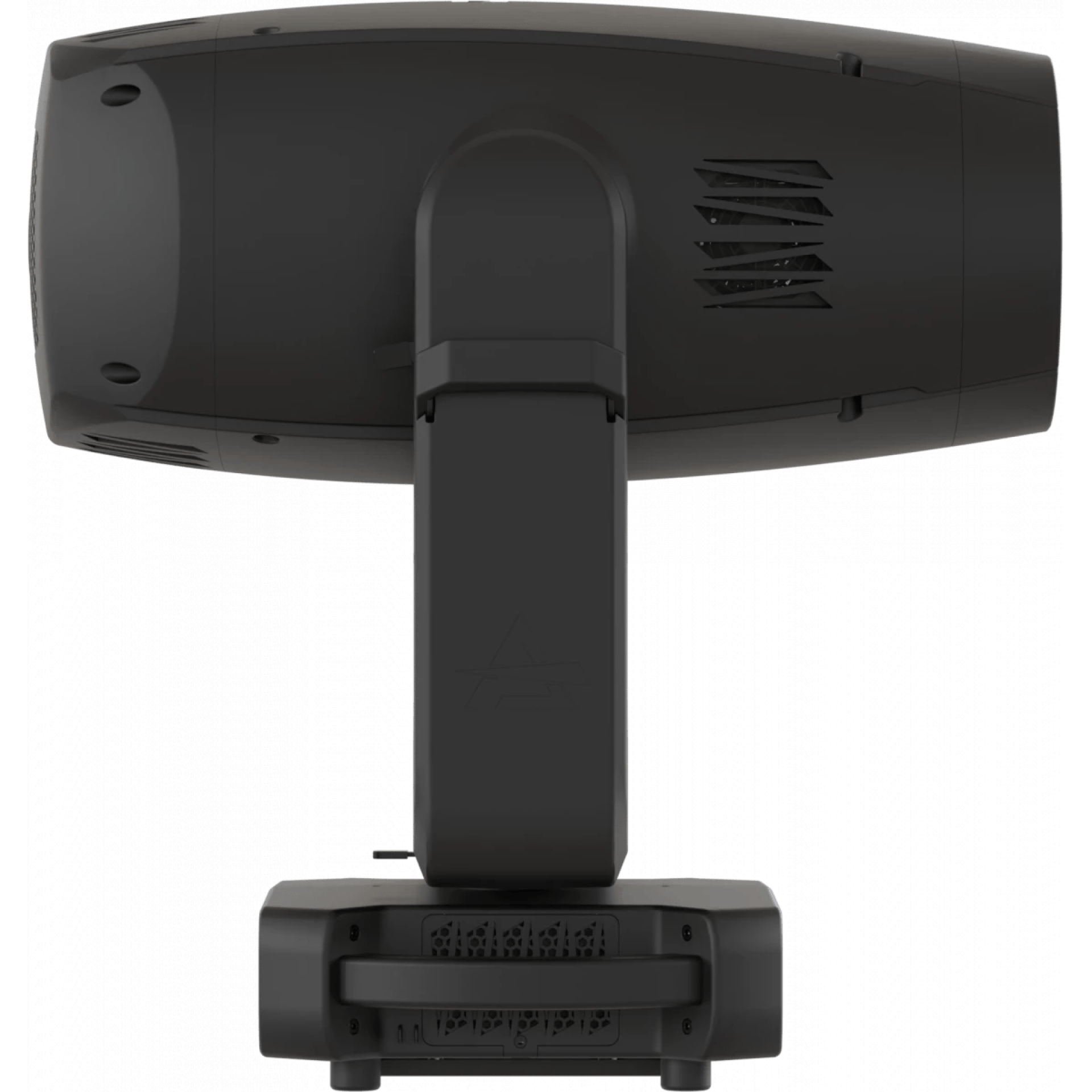

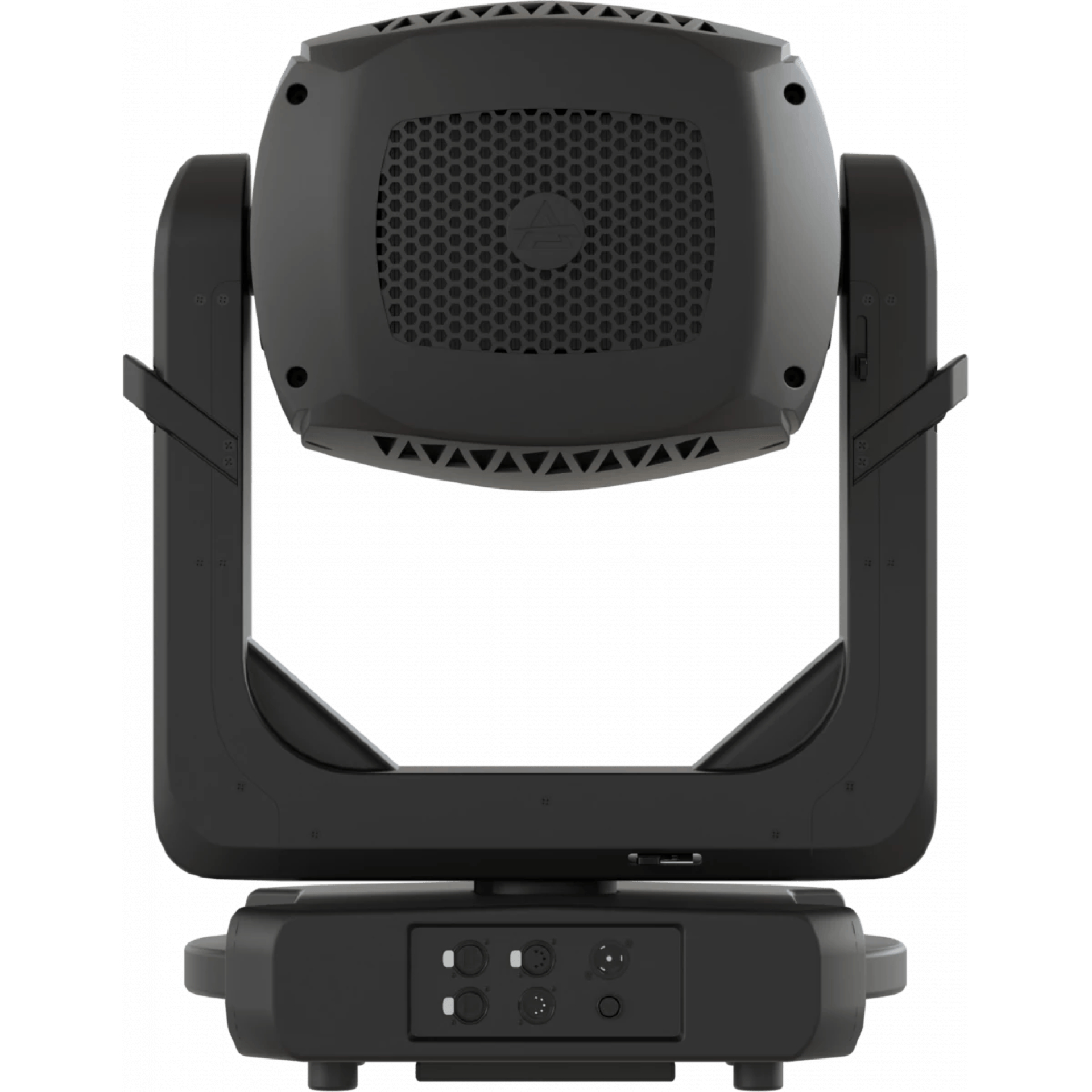

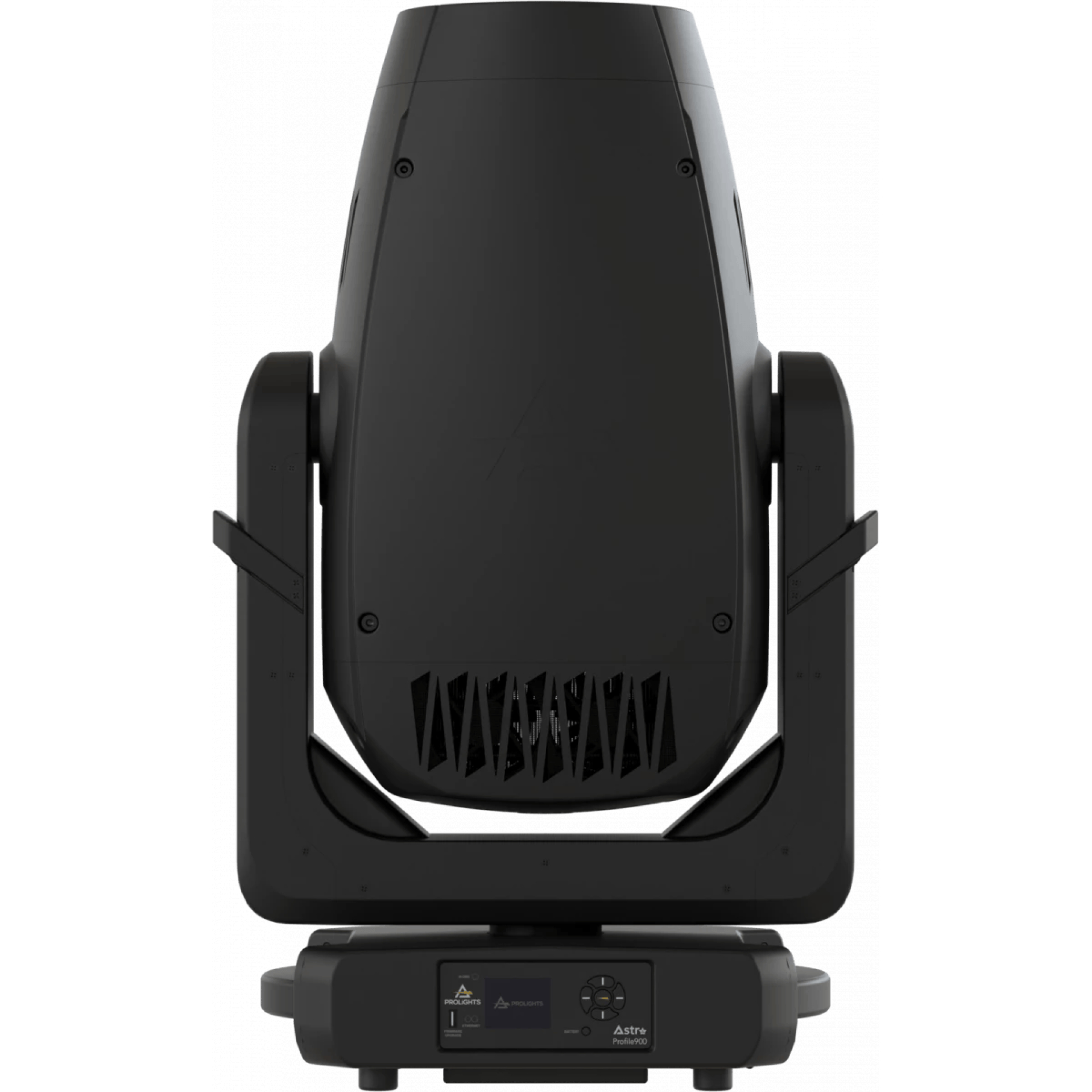

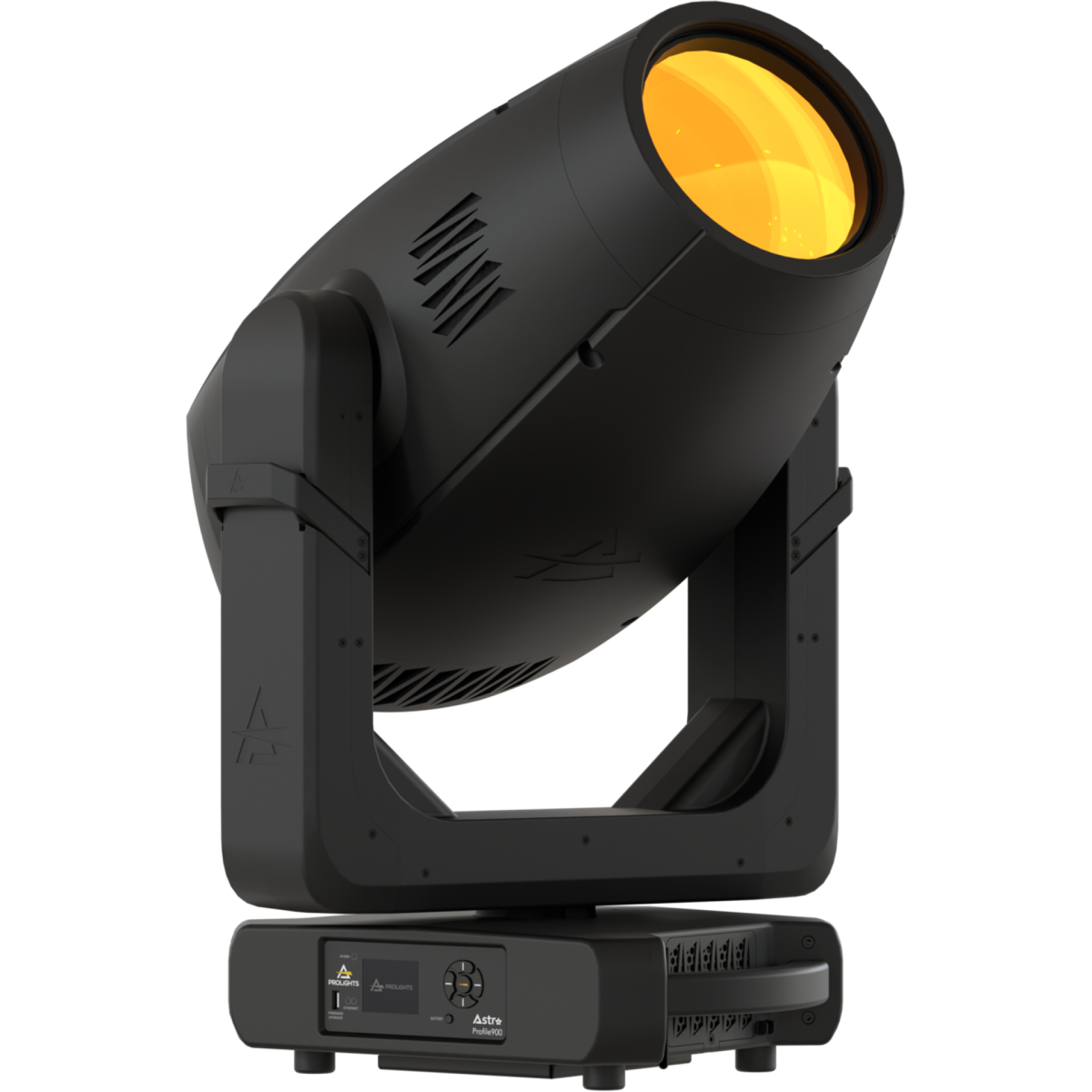

Astra Profile900HQ

The Astra Profile900HQ is the flagship, high-quality profile moving head designed for large-scale theatre, TV & Film production.

Powered by a 900W LED source with CRI 96, it delivers a bright and perfectly balanced 6000K White, making it an exceptional key light for any major production.

Its large 185mm front lens and versatile 5°-52° zoom range ensure outstanding performance at virtually any distance. The new MotiOs motion ecosystem enhances speed, precision, and responsiveness across pan, tilt, internal wheels, and framing modules, setting a new standard in motion control.

For precise colour control, the Astra Profile900 features linear CMY+CTO mixing and a colour wheel, delivering high output saturated colours and balanced whites. Additional highlights include dual rotating gobo wheels, an animation wheel, a four-layer framing system, dual prisms, dual frost filters, and iris—making it adaptable to a wide variety of production needs

  • Source: 900W White LED

    CCT: 6.000K

    Luminous flux: (5,4°) 13'969 lm - (med) 25'941 lm - (52°) 25'311 lm

    Lux: (5,4°) 74'135 lx - (med) 9'836 lx - (52°) 1'659lx @5 m

    CRI: 96

    Source life expectancy: > 20,000hr

    Zoom range: 5,4° - 52° motorised linear zoom

    Lens diameter: 185mm / 7.28''

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised 16-bit control with focus tracking

  • Colour mixing: linear CMY

    CCT: linear CTO correction 2,700K ~ 6,000K

    Colour wheel: open + 6 colour filters

    Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 7 rotating gobos + open, interchangeable, indexing

    Gobo size: outer: 30 mm - image: 25 mm - thickness: up to 3 mm

    Rotating gobos: 7 rotating gobos + open, interchangeable, indexing

    Gobo size: outer: 30 mm - image: 25 mm - thickness: up to 3 mm

    FX generator: 2 prisms overlap for spectacular aerial effects

    Circular prism: 4f with bi-directional rotation, indexing

    Linear prism: 6f with bi-directional rotation, indexing

    Frost: dual frost filter, soft-edge and heavy (one interchangeable)

    Iris: 5 - 100% motorised iris

  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX

    DMX channels: 46channel

    Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic user interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive

    EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.

Astra Profile900HQ - Downloads
Download

You might like...

PROLIGHTS Astra Hybrid330
Product - LIGHTING
Astra Hybrid330
    • Source: 330W high-power white LED
    • Linear zoom ranging from 3.5° to 52°
    • CMY colour system on 3 gradually fading colour wheels
Find out more

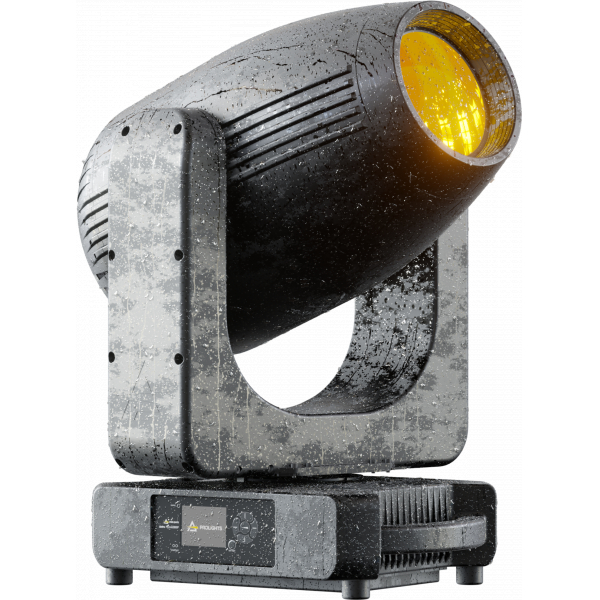

Prolights Astra Profile600IP
Product - LIGHTING
Astra Profile600IP
    • 7° to 62° linear zoom
    • 4-layer motorised framing shutters
    • IP65 LED moving profile with a 600W long life LED source (6,500K)
Find out more

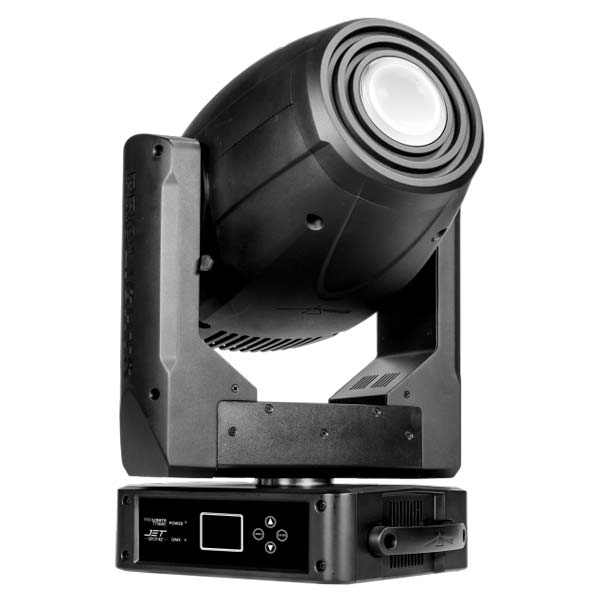

PROLIGHTS JetSpot4Z LED Moving Spot Light
