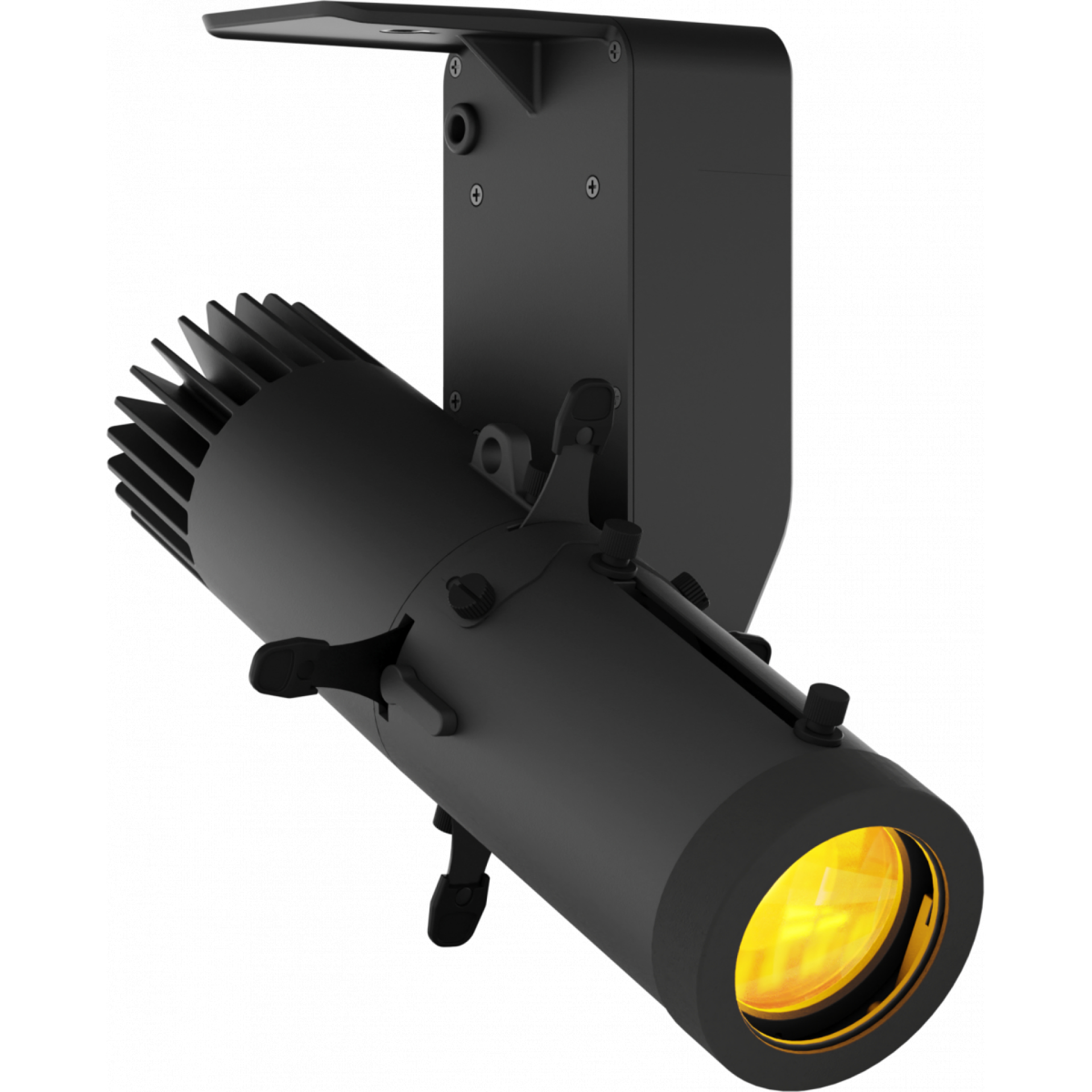

PROLIGHTS EclDisplay DAT - black body

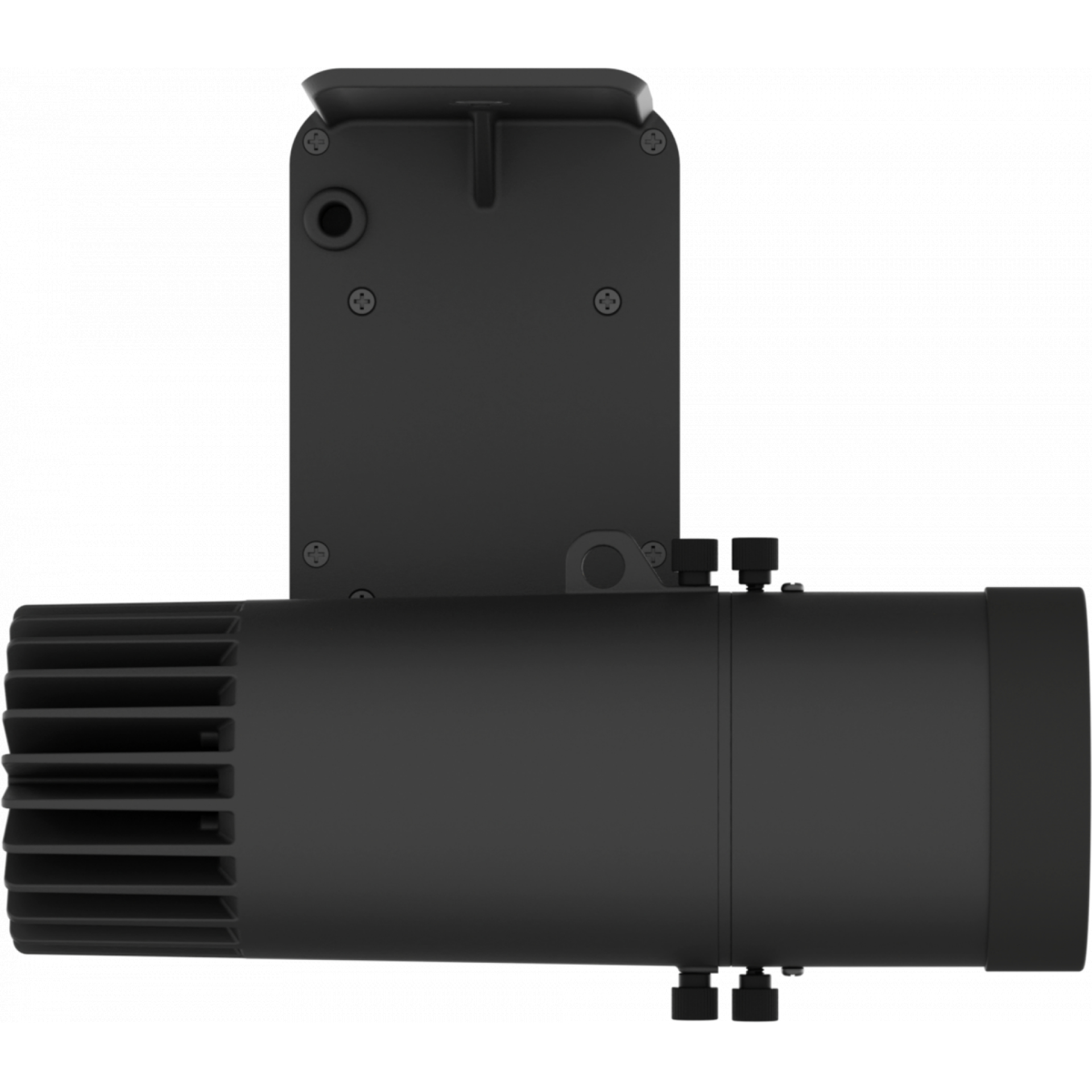

PROLIGHTS EclDisplay DAT - black body - side

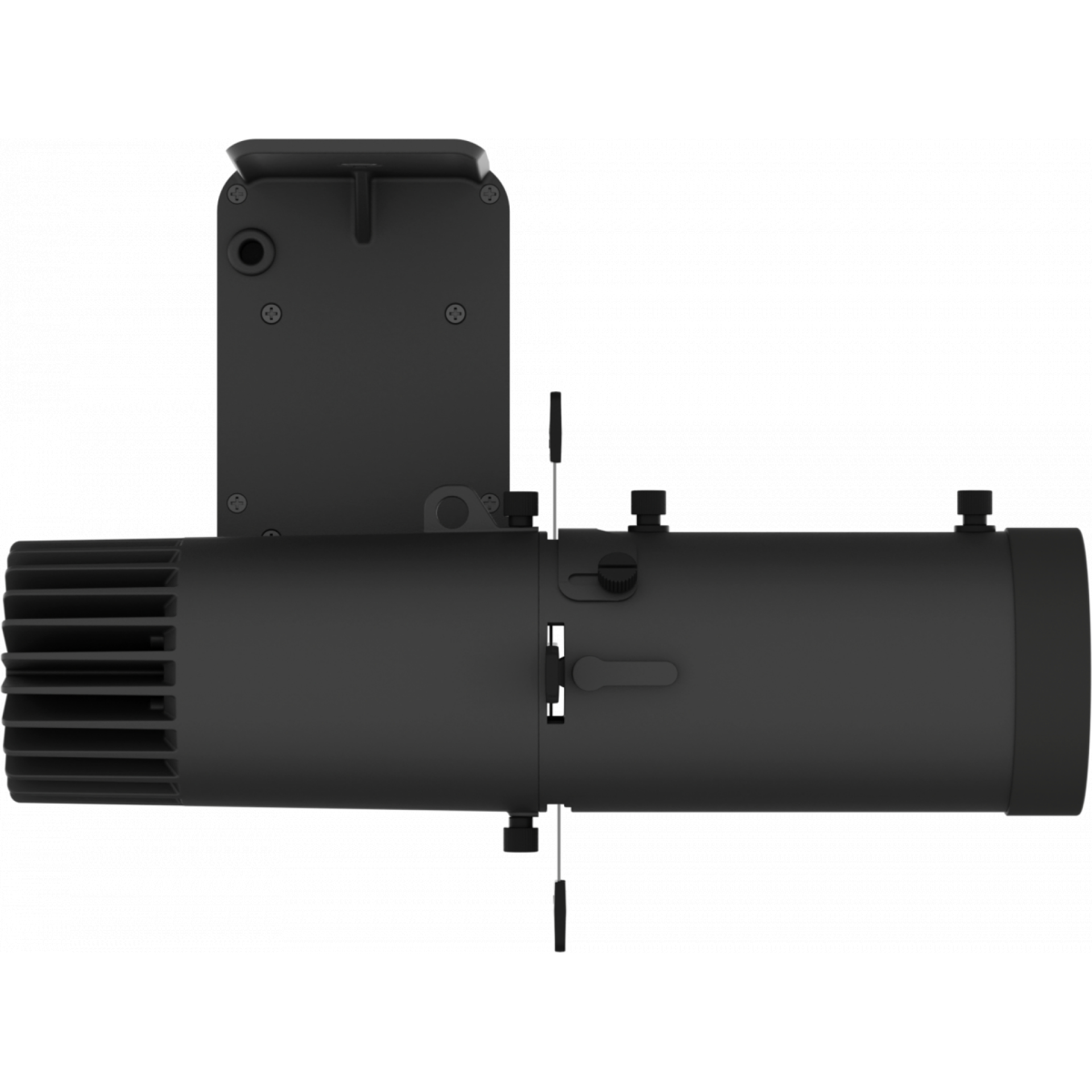

PROLIGHTS EclDisplay DAT - black body - side long

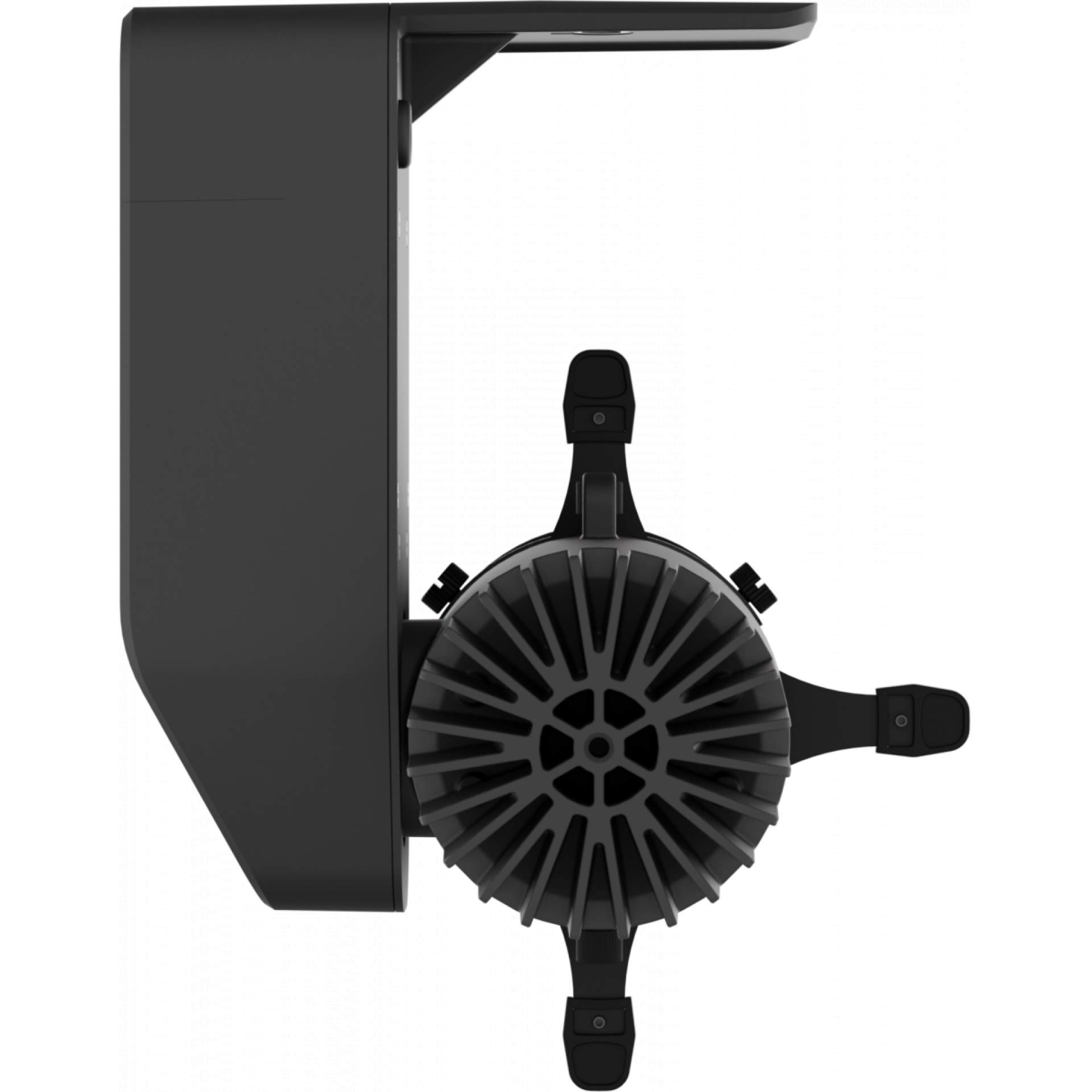

PROLIGHTS EclDisplay DAT - black body - back

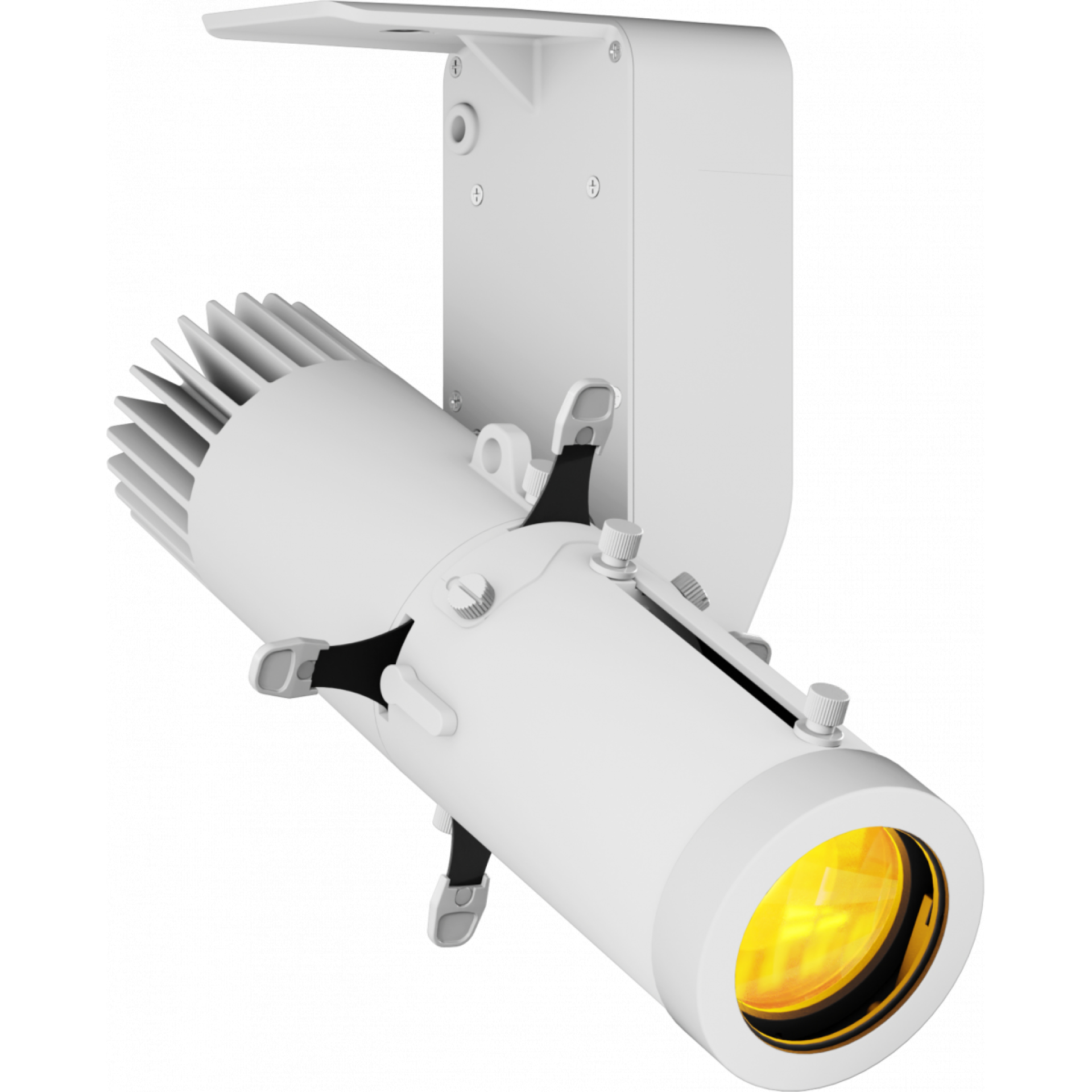

PROLIGHTS EclDisplay DAT - white body

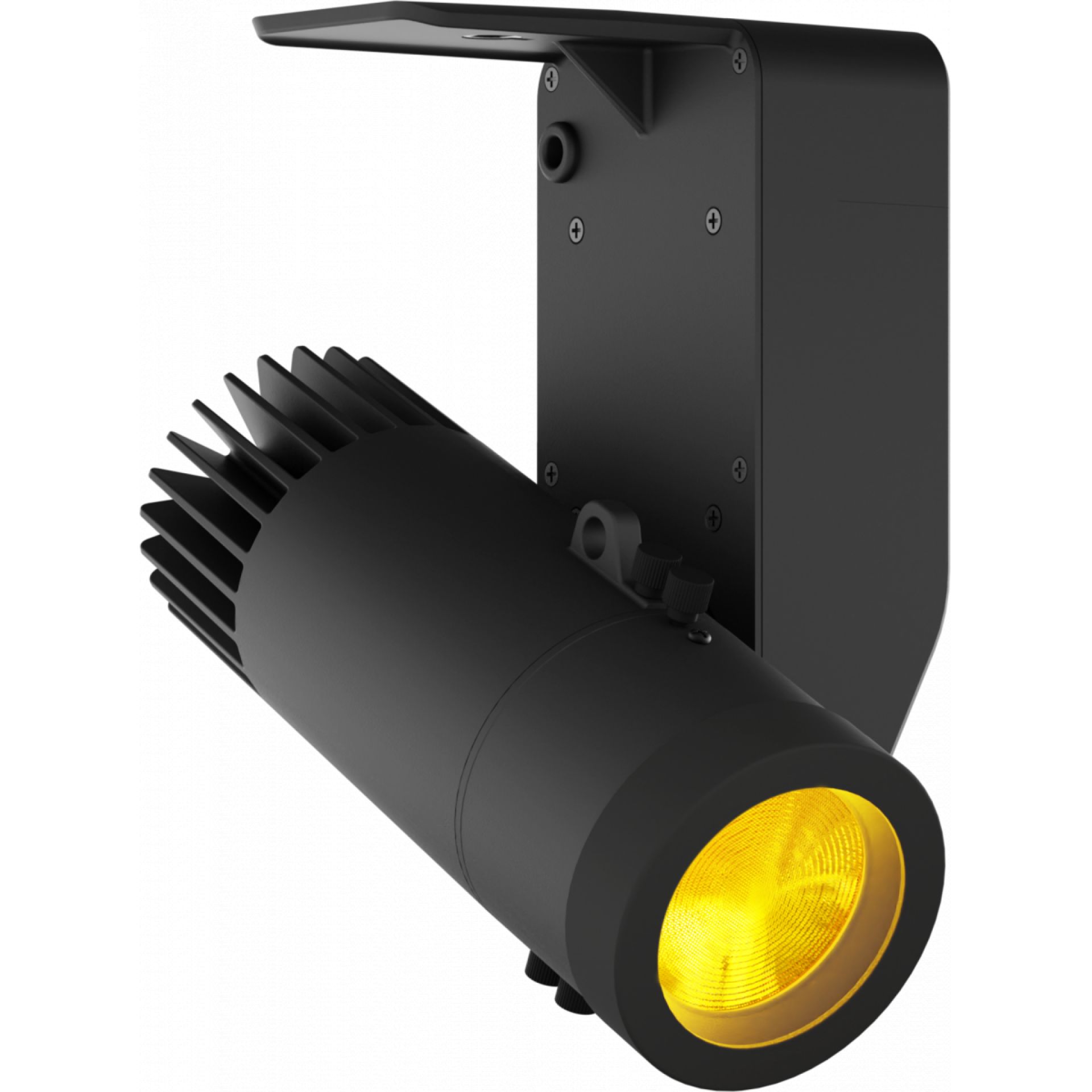

PROLIGHTS EclDisplay DAT - black body - plain front
PROLIGHTS EclDisplay DAT - black body - side
PROLIGHTS EclDisplay DAT - black body - side long
PROLIGHTS EclDisplay DAT - black body - back
PROLIGHTS EclDisplay DAT - white body
PROLIGHTS EclDisplay DAT - black body - plain front

EclDisplay DAT Range

Key Features:

  • Data control through RDM, DMX, DALI and local knob dimming
  • Multiple lens options: zoomable profile or wash optics
  • Body colour available in black, white and custom RAL
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclDisplay DAT Range

The PROLIGHTS EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.

Product Variants

PROLIGHTS EclDisplay DAT - black body - plain front
EclDisplay DATWhite
  • LED: 25W white
  • Colour temperature: 5,600K

Enquiry Form

PROLIGHTS EclDisplay DAT - black body - plain front
EclDisplay DATWhite
  • LED: 25W white
  • Colour temperature: 4,000K

Enquiry Form

PROLIGHTS EclDisplay DAT - black body - plain front
EclDisplay DATWhite
  • LED: 25W white
  • Colour temperature: 3,000K

Enquiry Form

PROLIGHTS EclDisplay DAT - black body - plain front
EclDisplay DATWhite
  • LED: 25W white
  • Colour temperature: 2,700K

Enquiry Form

PROLIGHTS EclDisplay DAT - black body - plain front
EclDisplay DATFC
  • LED: 40W white

Enquiry Form

The EclDisplay DAT range can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI and local knob dimming control.

  • Source: available in 40W RGB + Warm White LED and 25W White COB LED

    Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)

    Zoom: (wash lens – optional) 15° ~ 30° or 25° ~ 50° – (profile lens – optional) 20° ~ 40°

    Body: aluminium die-casting

    Body colour: RAL 9004 or RAL 9010

    Dimmer: linear 0 ~ 100% electronic dimmer

    Strobe / shutter: 1 – 30Hz, electronic

    LED Control: flicker free operation

    Mains power supply: 100-240V – 50/60Hz

    Operating Temperature: -10° ~ +45°

    IP rating: 20
