EclMiniProfile Range

Key Features:

  • Fixed 3,200K (TU) or 5,600K (DY) high CRI sources
  • Lens options include fixed 19°, 26°, 36°, 50°
  • Compact form factor with stylish design
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclMiniProfile Range

The PROLIGHTS EclMiniProfile LED range feature a compact design with a sharp beam, interchangeable lenses and full shuttering, making them ideal for commercial or product lighting. They are easy to use, have precise optics, sharp image projection and a bright, even projection.

Product Variants

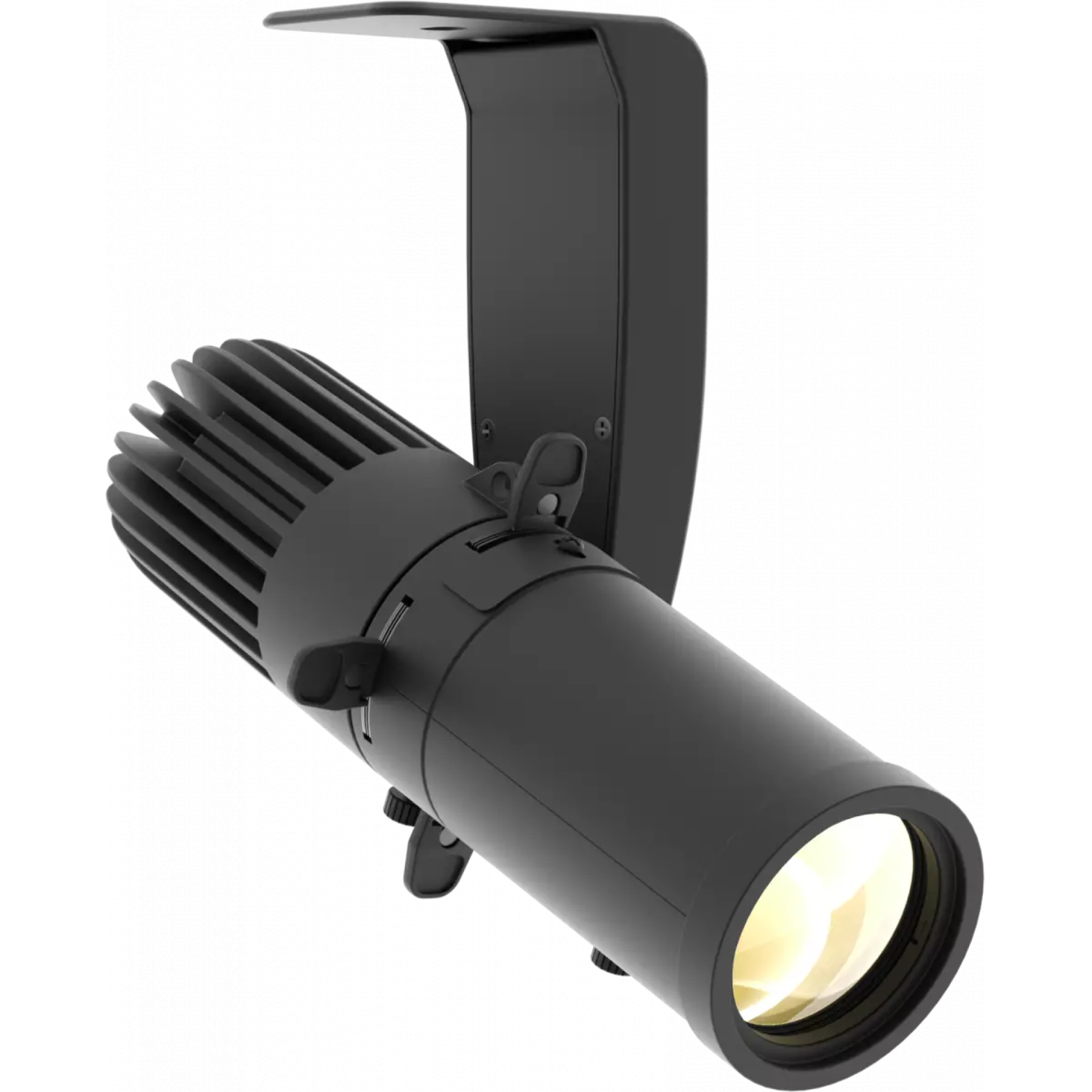

PROLIGHTS EclMiniProfile TU
EclMiniProfile TU
  • Colour temperature: 3000K Warm white
  • 28W CREE LED

Enquiry Form

PROLIGHTS EclMiniProfile DY
EclMiniProfile DY
  • Colour temperature: 5700K Coldwhite
  • 28W CREE LED

Enquiry Form

  • Source: 28W CREE LED

    CCT: (TU) 3,000K; (DY) 5,700K

    Luminous flux: (TU) (19°) 563lm; (26°) 554lm; (36°) 582lm; (50°) 552lm @ full

    Luminous flux: (DY) (19°) 731lm; (26°) 729lm; (36°) 743lm; (50°) 693lm @ full

    Lux: (TU) (19°) 330 lx; (26°) 180lx; (36°) 96lx; (50°) 51lx @ 5m full

    Lux: (DY) (19°) 397lx; (26°) 212lx; (36°) 107lx; (50°) 52lx @ 5m full

    CRI: (TU) >92; (DY) >80

    Source life expectancy: > 50,000hr (L70B10 @Ta 25° C / 77° F)

    Beam angle: optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50°

    Lens type: high-quality glass lens optics

  • Fixed gobos: gobo holder Included in optics

    Gobo size: E, outer: 37.3mm; image: 24mm; thickness: 1.1mm

    Manual mode: manual adjustment of dimmer and strobe

EclMiniProfile Range - Variant Downloads

You might like...

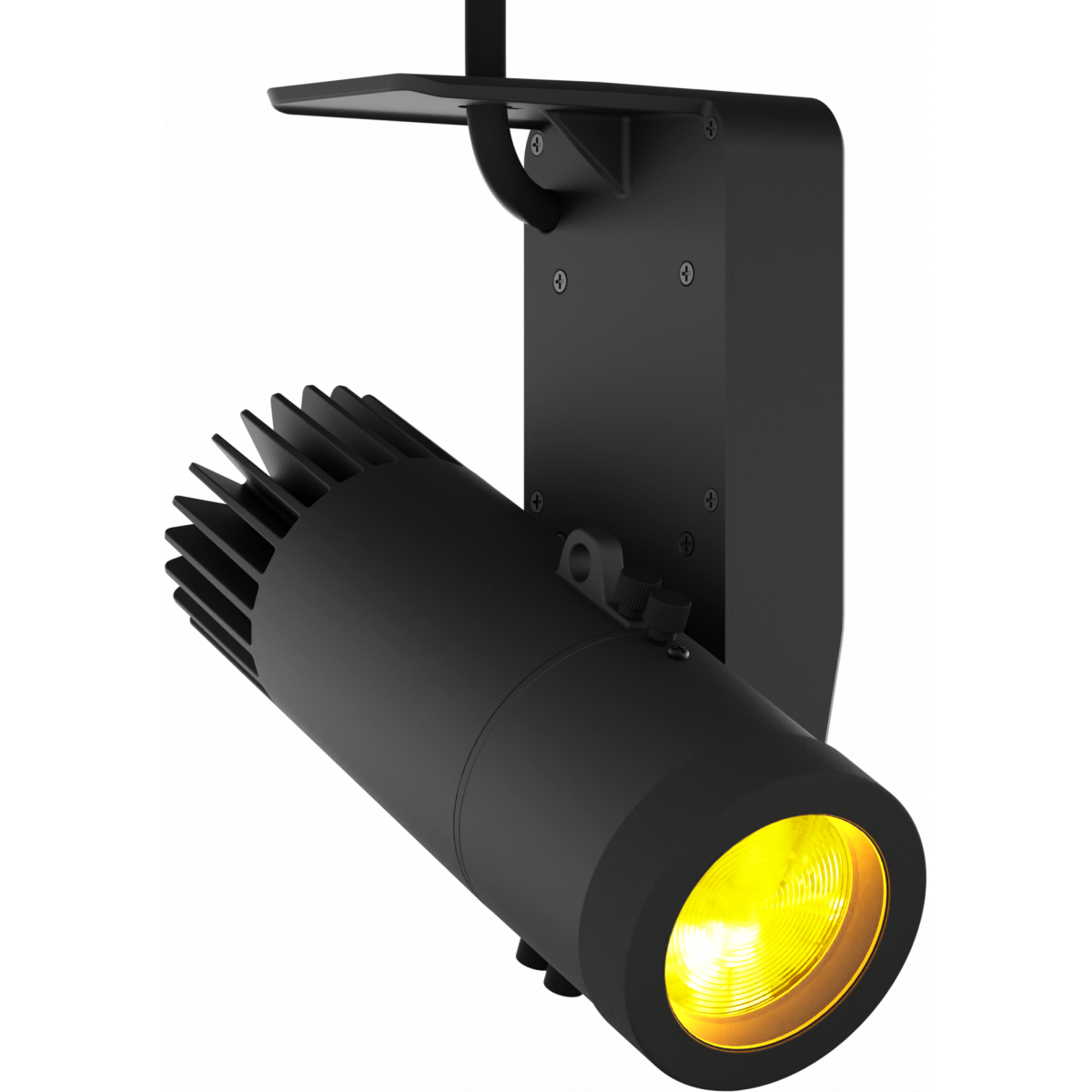

PROLIGHTS EclDisplay CC - black body - plain front
Product - LIGHTING
EclDisplay CC Range
    • Constant current version for connection to external PSU and driver
    • Multiple lens options: zoomable profile or wash optics
    • Body colour available in black, white and custom RAL
Find out more

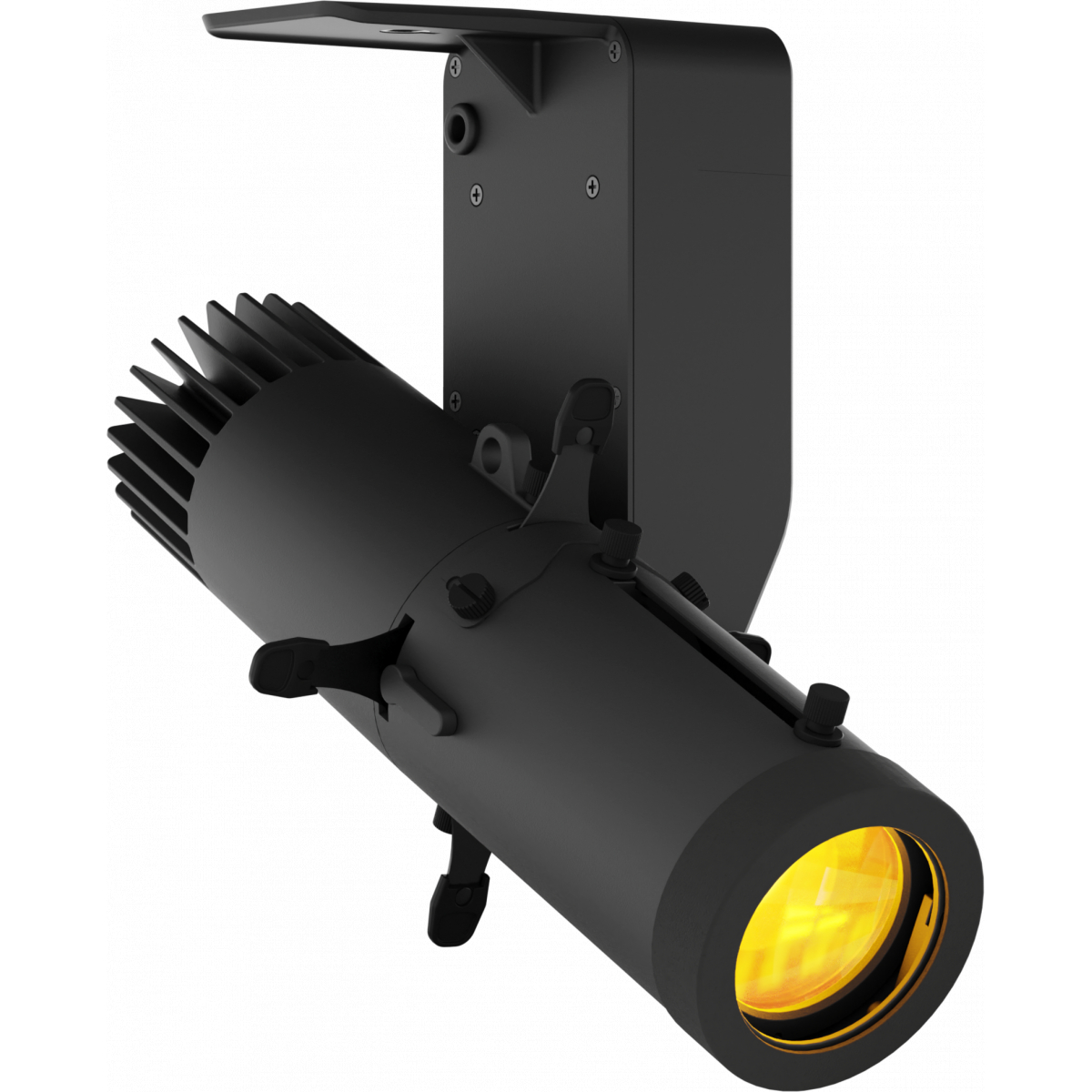

PROLIGHTS EclDisplay DAT - black body
Product - LIGHTING
EclDisplay DAT Range
    • Data control through RDM, DMX, DALI and local knob dimming
    • Multiple lens options: zoomable profile or wash optics
    • Body colour available in black, white and custom RAL
Find out more

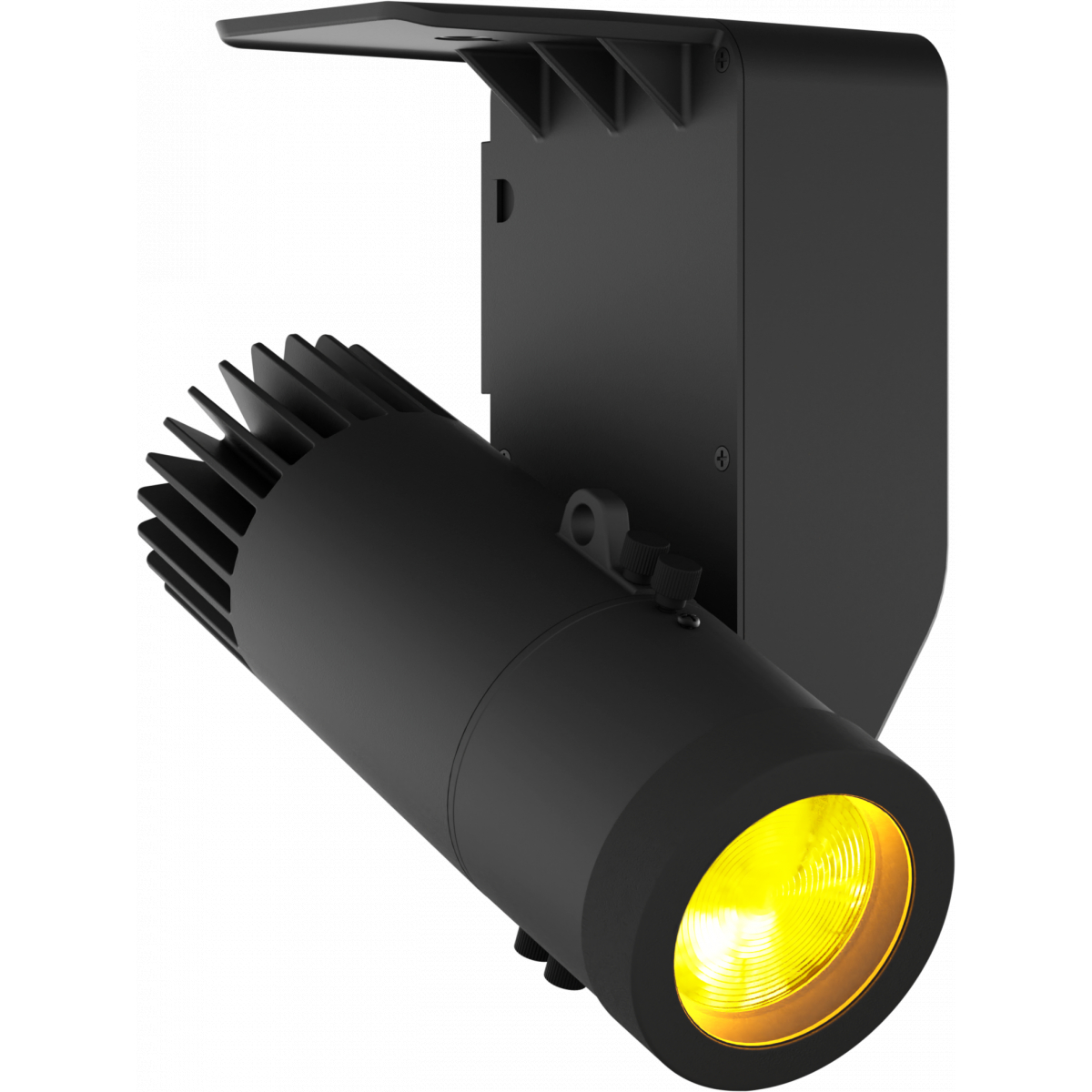

PROLIGHTS EclDisplay UN - black body - plain front
