EclFresnel 2K Range

Key Features:

  • TU (3,200K), DY (5,600K) and TW (2,800K-10,000K) versions available with HD dimming
  • Fresnel zoom lens
  • Silent operation for studio and stage use
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel 2K Range

The PROLIGHTS EclFresnel 2K range is an LED replacement for a standard 2K tungsten Fresnel. Featuring the output characteristics of a traditional Fresnel luminaire with zoom, functional barn doors and an LED engine that focuses on outstanding colour rendition.

Product Variants

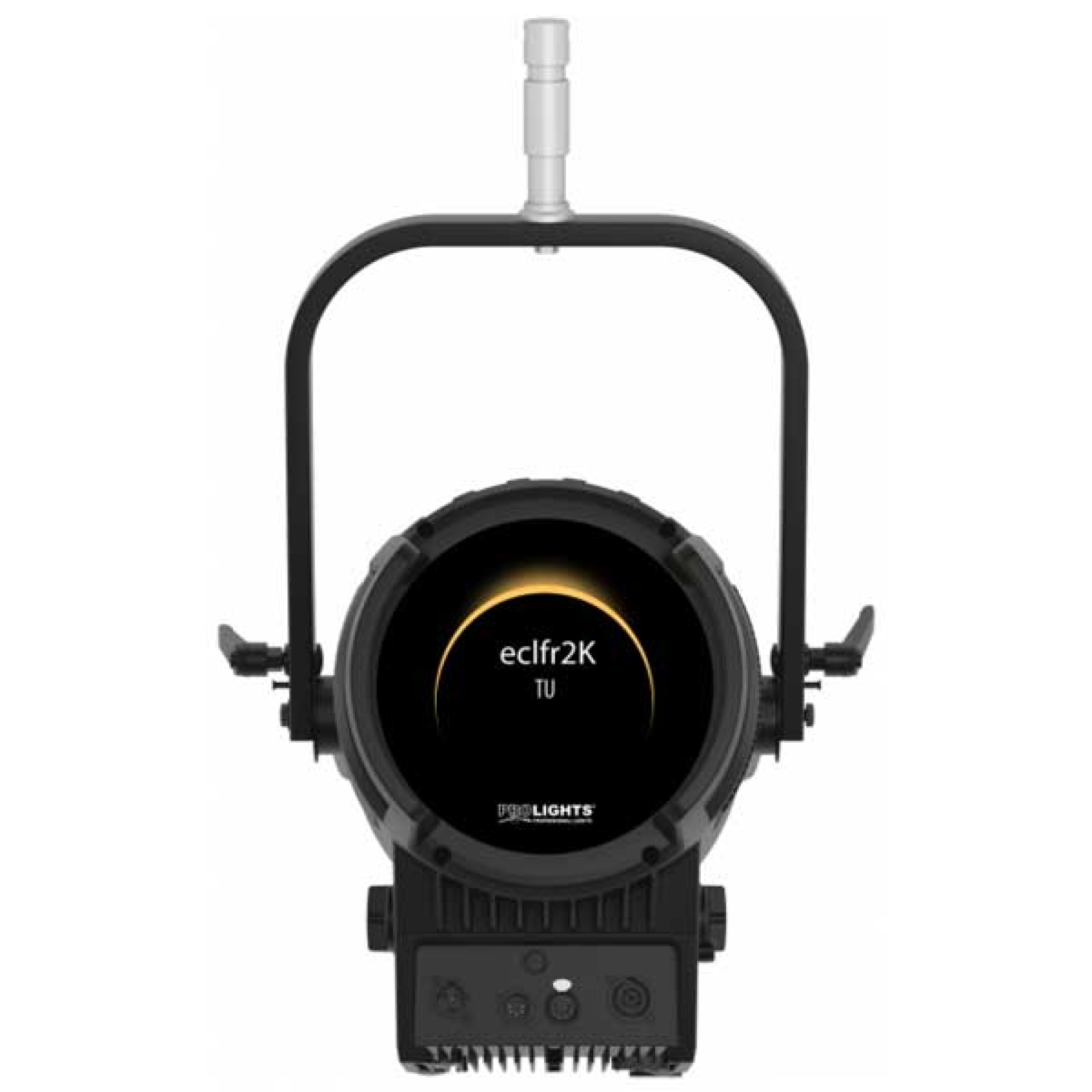

PROLIGHTS EclFresnel 2K TU Back
EclFresnel 2K LED Fresnel
  • Colour Temperature: 3,200K
  • 15° to 47° Zoom
  • Pole Op version available (PROECLFR2KPTU)

Enquiry Form

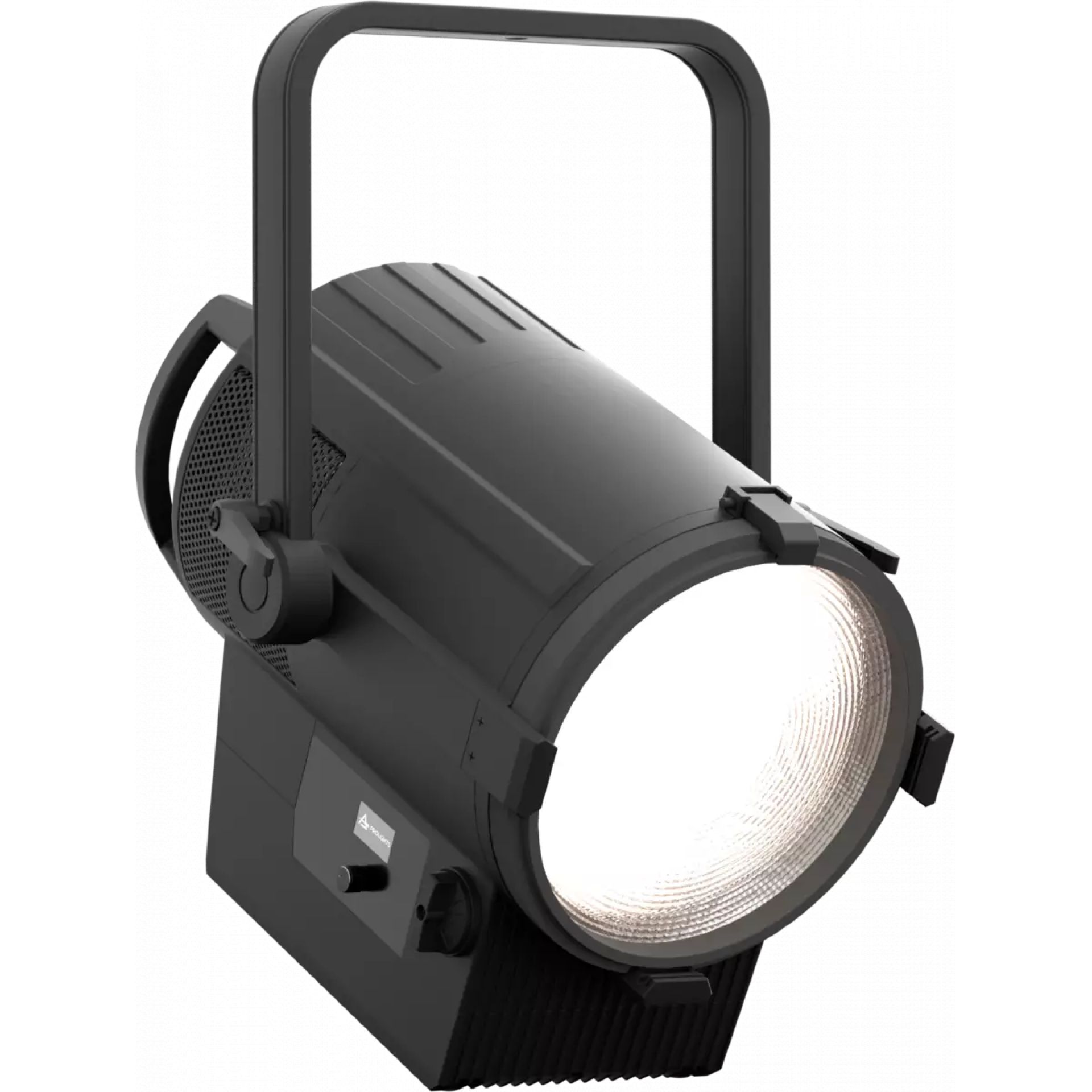

PROLIGHTS EclFresnel 2K DY Back
EclFresnel 2K LED Fresnel
  • Colour Temperature: 5,600K
  • 15° to 47° Zoom
  • Pole Op version available (PROECLFR2KPDY)

Enquiry Form

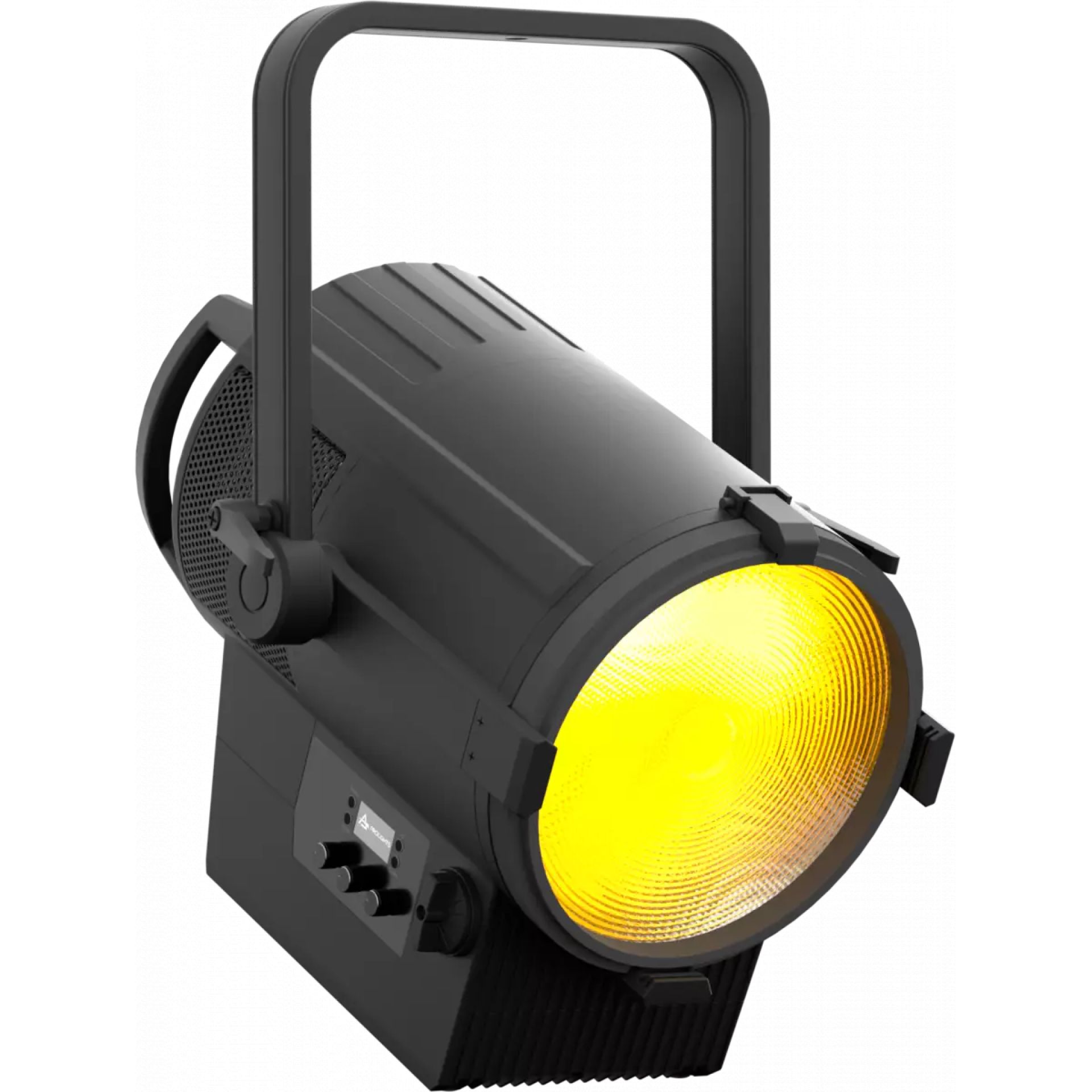

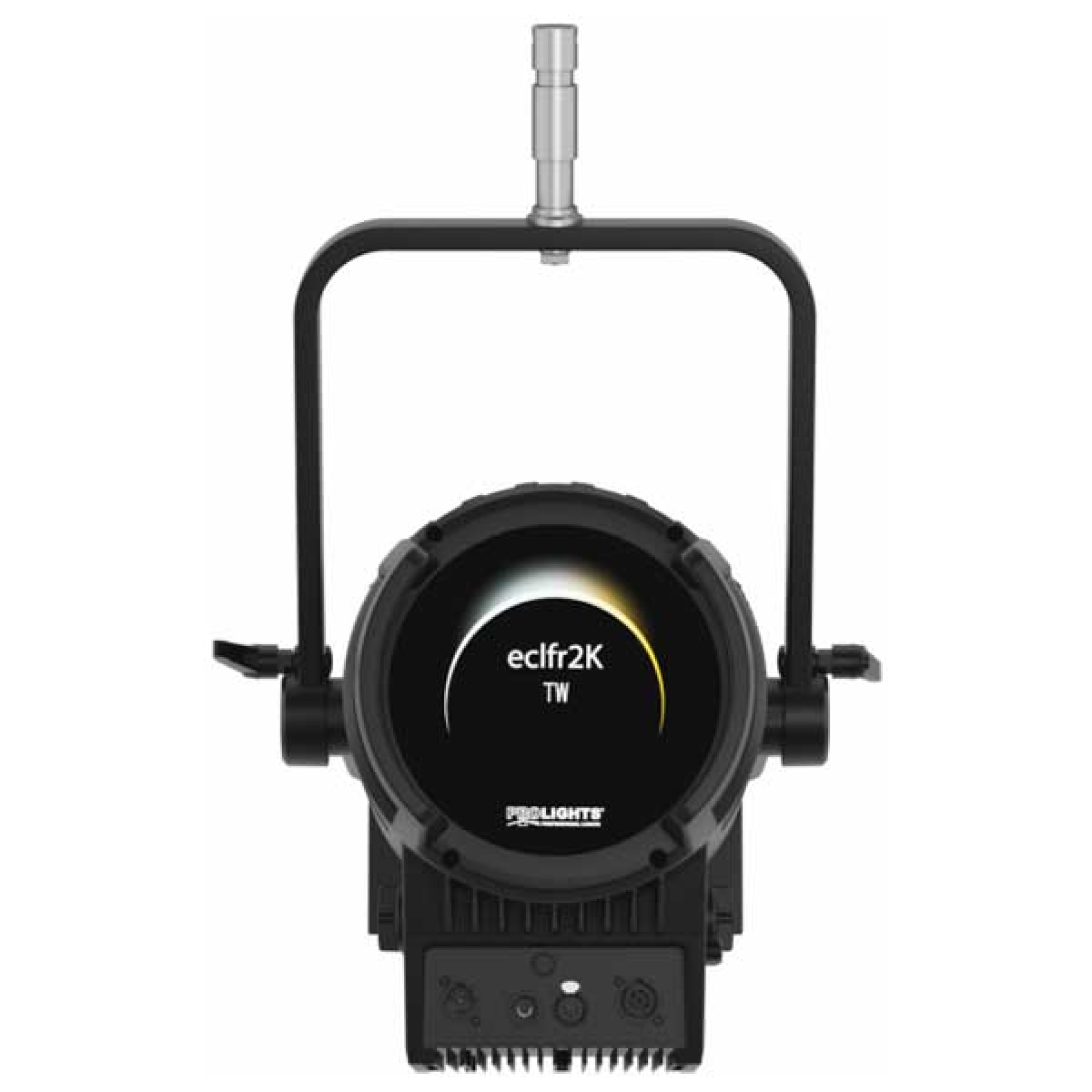

PROLIGHTS EclFresnel 2KTW
EclFresnel 2K LED Fresnel
  • 6 colour: red, orange, green, royal blue, blue, lime
  • 17° to 52° Zoom
  • Pole Op version available (PROECLFR2KPTW)

Enquiry Form

  • Source: 500W high-power white LED (TU/DY)

    Source: 500W 6 colour LED (red, orange, green, royal blue, blue, lime) (TW)

    CCT: (TU) 3,200K; (DY) 5,600K

    CCT: (TW) 2,800K – 10.000K

    Luminous flux: (TU) (15°) 20,256 lm; (47°) 26,126 lm @ full

    Luminous flux: (DY) (15°) 26,255 lm; (45°) 32,428 lm @ full

    Luminous flux: (TW) (17°) 10,100 lm; (52°) 13,400 lm @ full

    Lux: (TU) (15°) 9,047 lx; (47°) 1,770lx @ 5m full

    Lux: (DY) (15°) 11,975 lx; (47°) 2,306lx @ 5m full

    Lux: (TW) (17°) 3,864 lx; (52°) 710lx @ 5m full

    CRI: (TU) >94; (DY) >91

    CRI: (TW) 89 @ 3,200K; 90.7 @ 5,600K

    Source life expectancy: >50,000 hr

    Zoom: 15° – 47° half peak angle (TU & DY)

    Zoom: 17° – 52° half peak angle (TW)

    Lens diameter: 250mm

    Lens type: Fresnel zoom lens

    Other: spigot, barn door and gel frame included

  • Colour mixing: warm white

    Macros: several pre-build macros with adjustable speed

    Static colour mode: selection of static dimmer

    Manual colour mode: manual adjust of dimmer through menu and knob

    Auto mode: built-in programs with execution speed adjustment

  • Colour mixing: 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)

    CCT: CCT control, + / – green correction, tungsten emulation

    White presets: 2,800K – 10,000K

    Colour wheel: virtual colour wheel with macros

    Macros: several pre-built macros with adjustable speed

    Static mode: selection of static colour

    Manual mode: manual adjustment of intensity, CT, colour correction from knob

    Auto mode: built-in programs with execution speed adjustment

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, rotary knob

    DMX channels: 1 / 2-1 / 2-2 / 3 / 5 channel (TU &DY)

    DMX channels: 1 / 2 / 5-1 / 5-2 / 7-1 / 7-2 / 8 / 9 / 12 / 13 / 16 / 19 / 21 channel (TW)

    RDM: RDM ready for fixture remote monitor and settings

    Display: graphic user interface

    Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

    Master/slave: for synchronised operation of more units linked in a chain

    Other: 16bit control of dimmer

EclFresnel 2K Range - Variant Downloads
