EclFresnel CT+MIP Fresnel

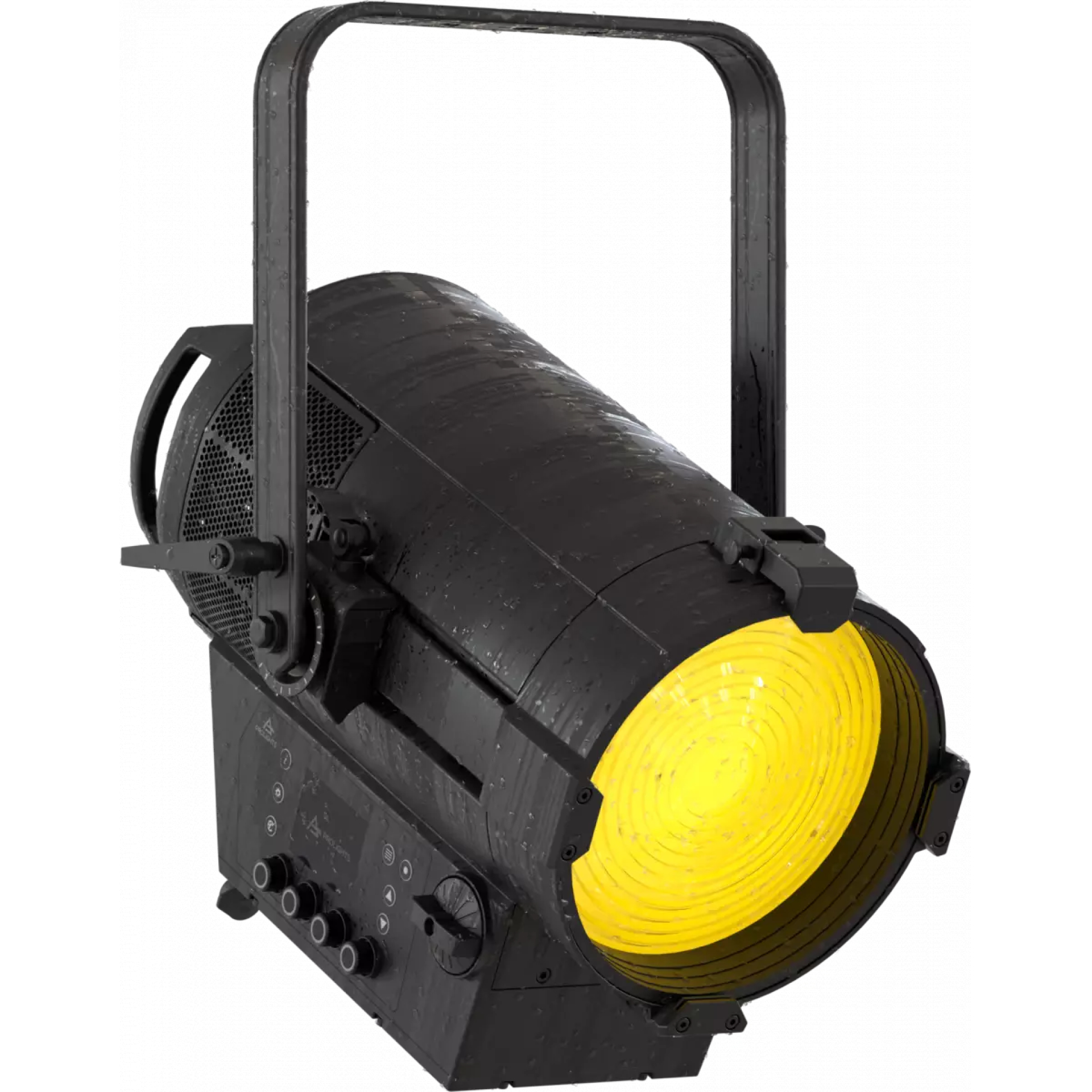

PROLIGHTS EclFresnel CT+MIP - front

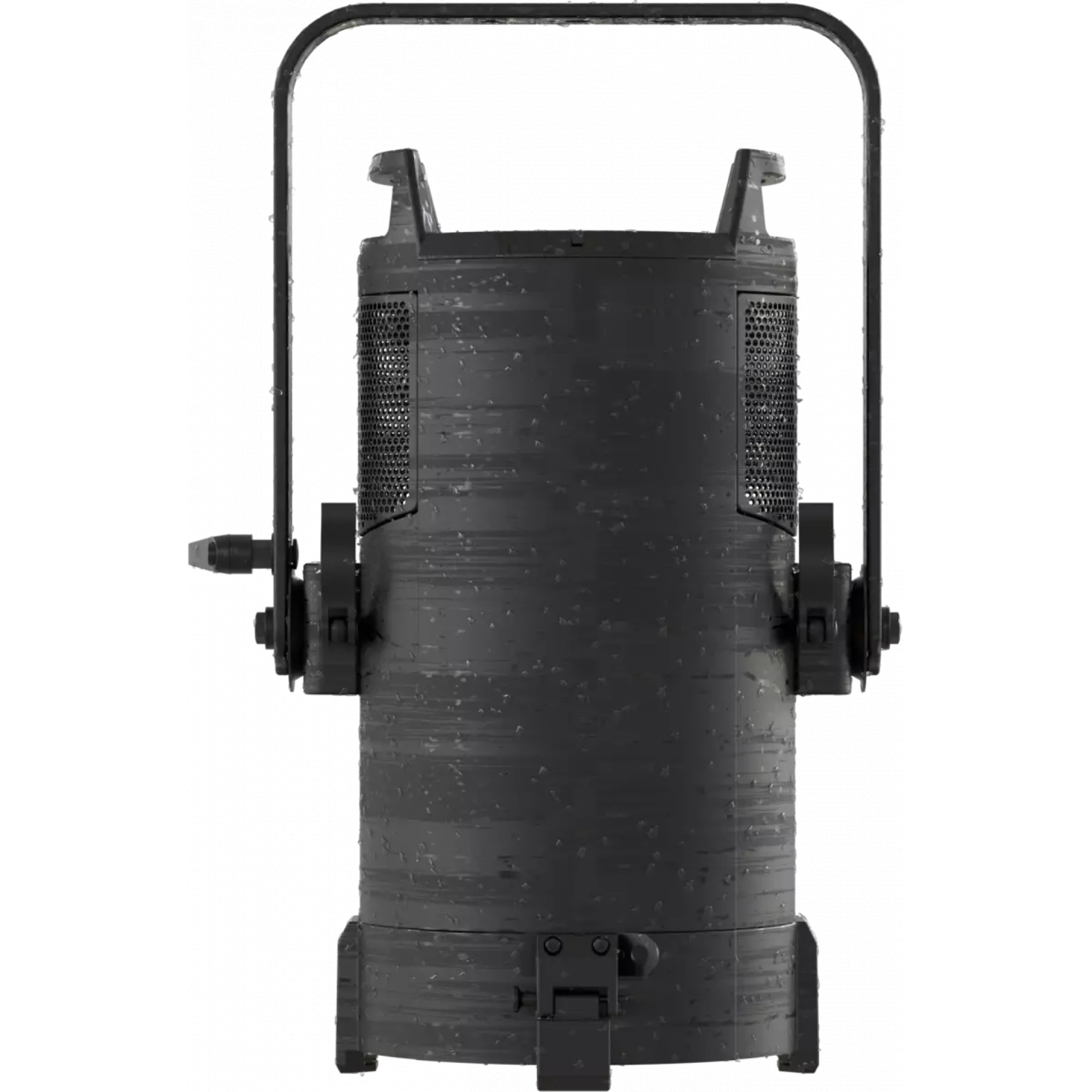

PROLIGHTS EclFresnel CT+MIP - top

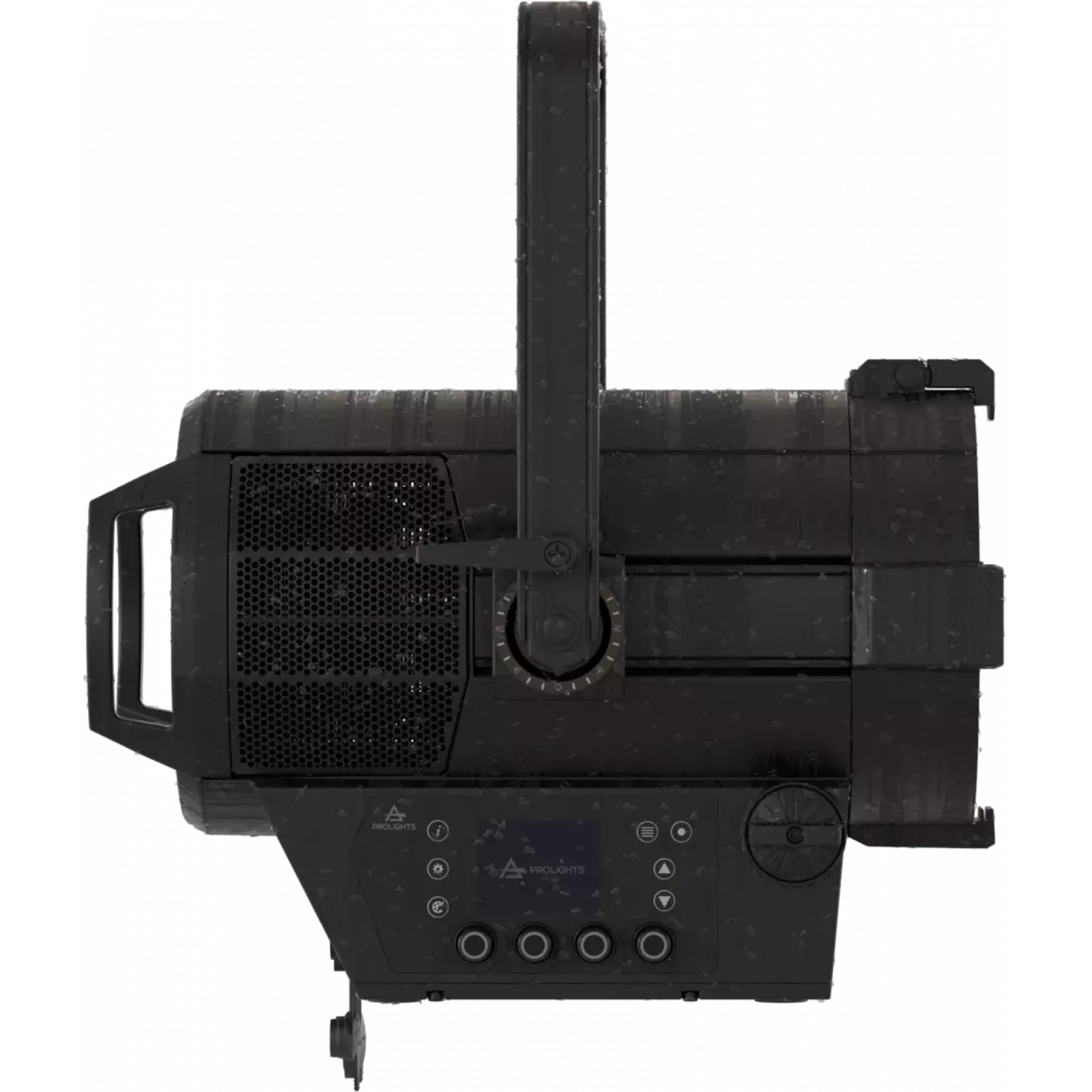

PROLIGHTS EclFresnel CT+MIP - side

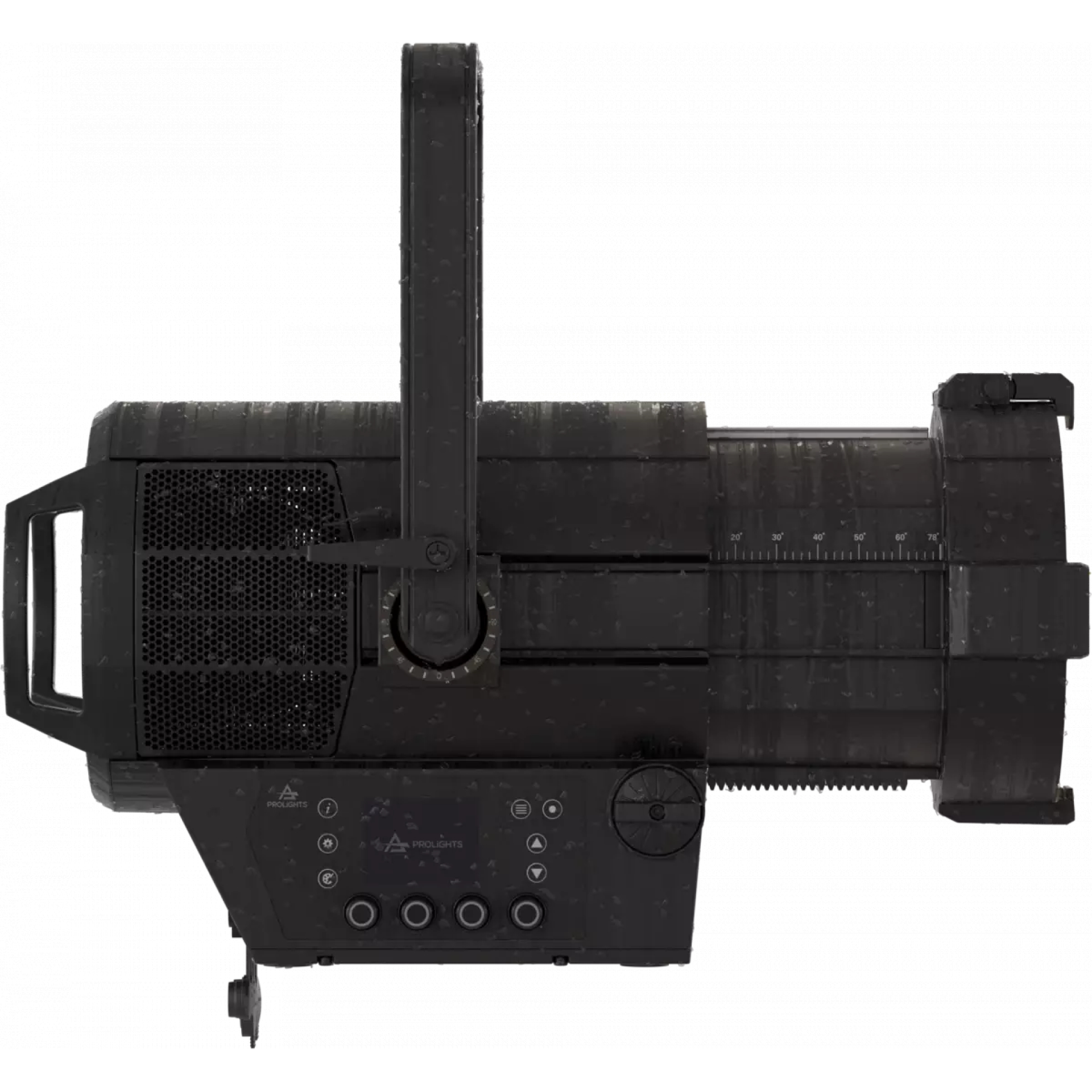

PROLIGHTS EclFresnel CT+MIP - side zoom

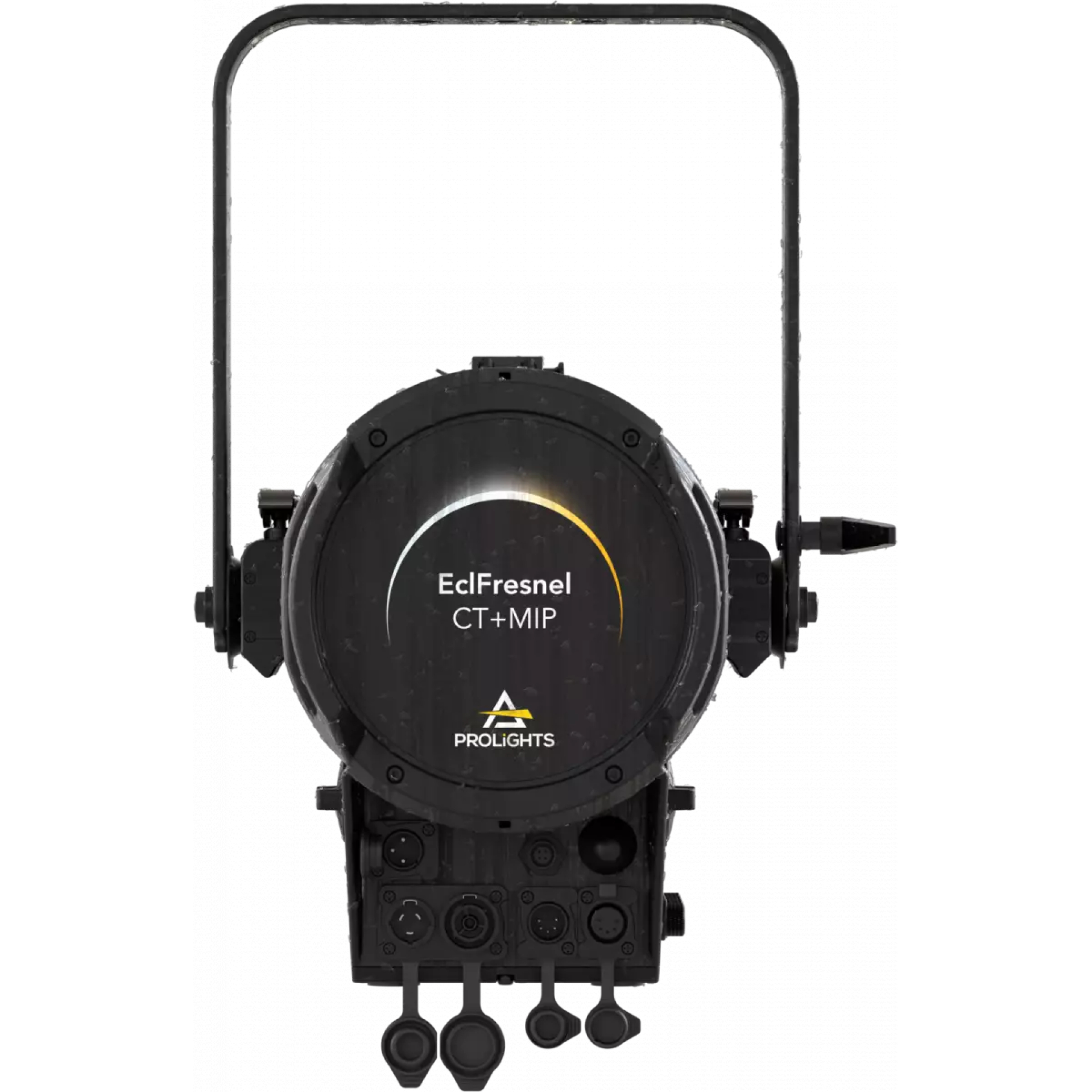

PROLIGHTS EclFresnel CT+MIP - back

PROLIGHTS EclFresnel CT+MIP - top

PROLIGHTS EclFresnel CT+MIP - side

PROLIGHTS EclFresnel CT+MIP - side zoom

PROLIGHTS EclFresnel CT+MIP - back

EclFresnel CT+MIP Fresnel

PROECLFRCTPMIPBK

Key Features:

350W IP65 6 colour LED Fresnel with 200mm/8'' glass lens

9-80° manual zoom system

High quality CCT reproduction and advanced colour control

New UI with 2.8'' display and 4 backlit pushable encoder

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel CT+MIP Fresnel

EclFresnel CT+MIP is a 350W LED Fresnel, engineered with a new 6 colour light source and a 200mm / 8'' glass Fresnel lens. IP65 rated, the unit is both water and dust resistant.

The newly designed optical system allows for a greater zoom range from 9° to 80°.

The Spektra calibrated light source delivers consistency and a higher luminous flux in both colour and white.

The EclFresnel CT+ range has a new UI offering an enhanced user experience when it comes to the control of the light. It has a more intuitive stand alone operation through a larger display, backlight encoders and features advanced wired and wireless connectivity.

Its silent operation means it is a workhorse fixture for the broadcast, film and theatre sectors.

Source: 350W 6 colour LEDs source

Luminous flux: (9.4°) 3,867lm; (80.8°) 9,827lm @ 4,000K

Lux: (9.4°) 5,706 lx; (80.8°) 451lx @ 5m @ 4,000K

CRI: 97 @ 3,200K; 96.8 @ 5,600K

Source life expectancy: > 50,000hr

Zoom: 9.4° - 80.8° manual

Lens diameter: 200mm / 8''

Lens type: Fresnel glass lens with AR coating

Glass Fresnel lens providing a classic light fall-off

Additional optics: PC lens available as accessory

Other: spigot, barndoor and gel frame included

Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset

Colour mixing: 6 colour LEDs source

CCT: Linear CCT adjustment from 1,800K - 20,000K

Protocols: DMX512, RDM, CRMX

Stand alone: 4 pushable RGB backlit encoder

Wireless control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (LumenRadio) and W-DMX (Wireless DMX), Bluetooth capable

RDM: RDM for remote monitoring and settings

Display: 2.8'' colour display

Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO) not included

Master/Slave: for synchronised operation of more units linked in a chain

EclFresnel CT+MIP Fresnel - Downloads

PROLIGHTS EclFresnel CT+MIP Spec Sheet
