EclFresnel CT+SIP Fresnel

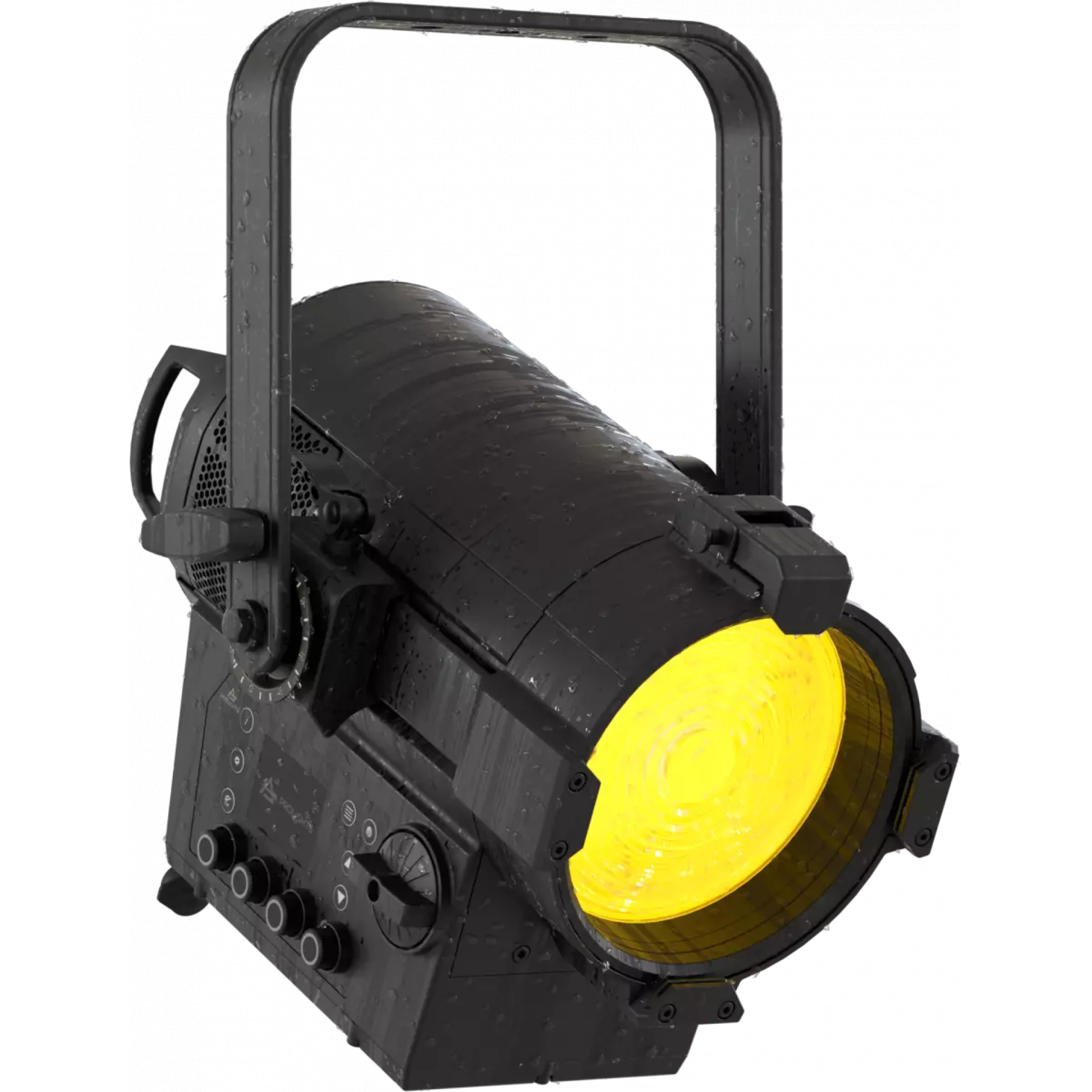

PROLIGHTS EclFresnel CT+SIP - front

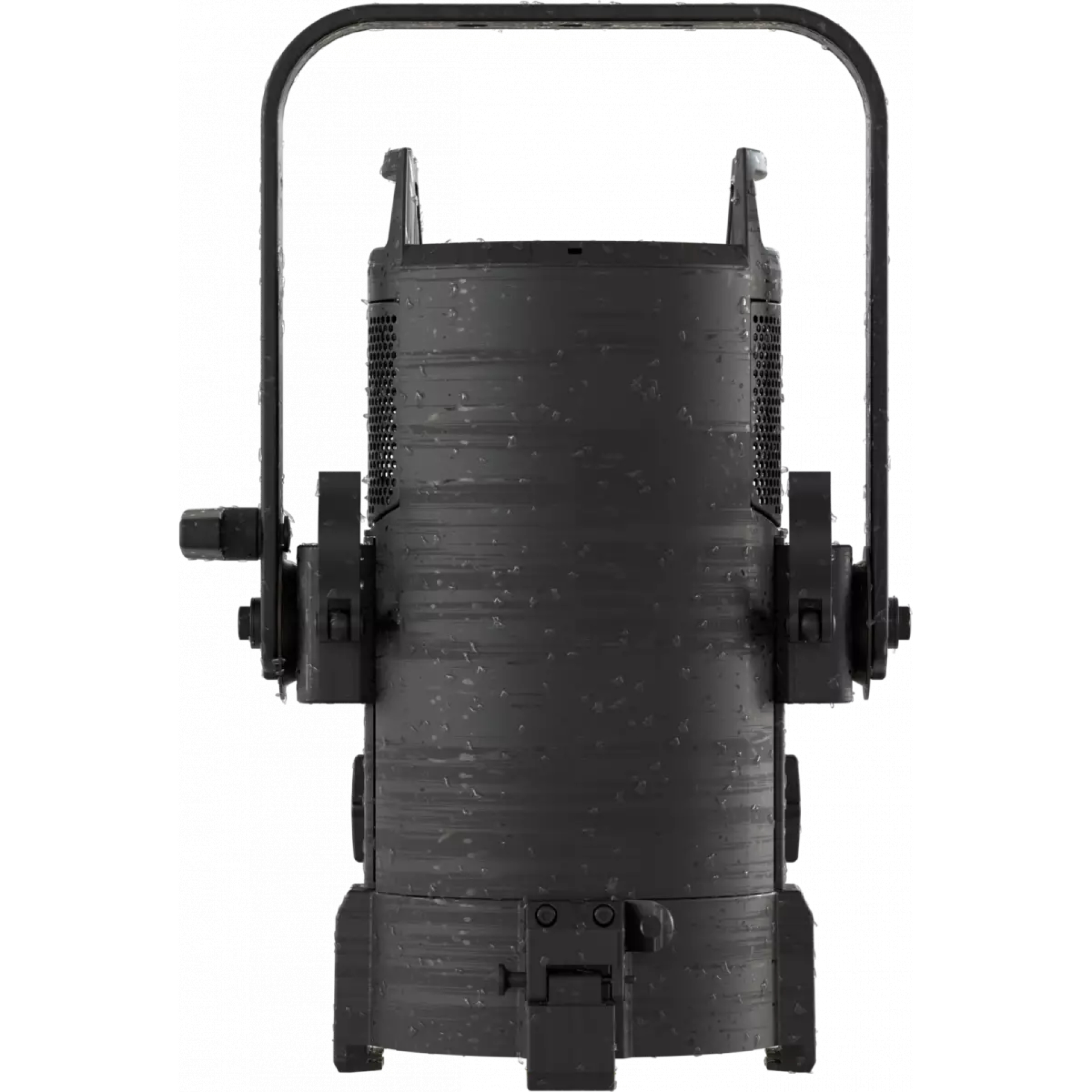

PROLIGHTS EclFresnel CT+SIP - top

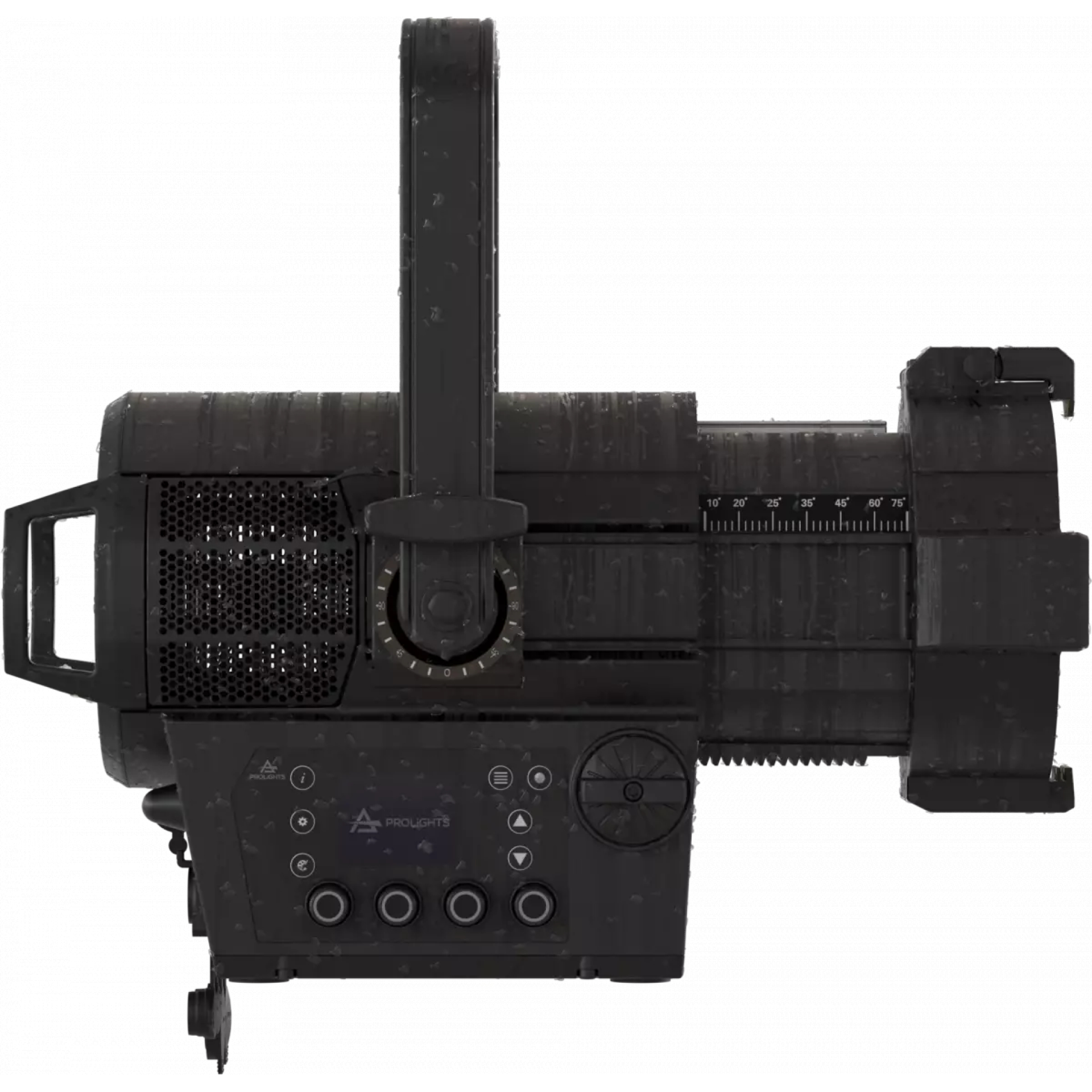

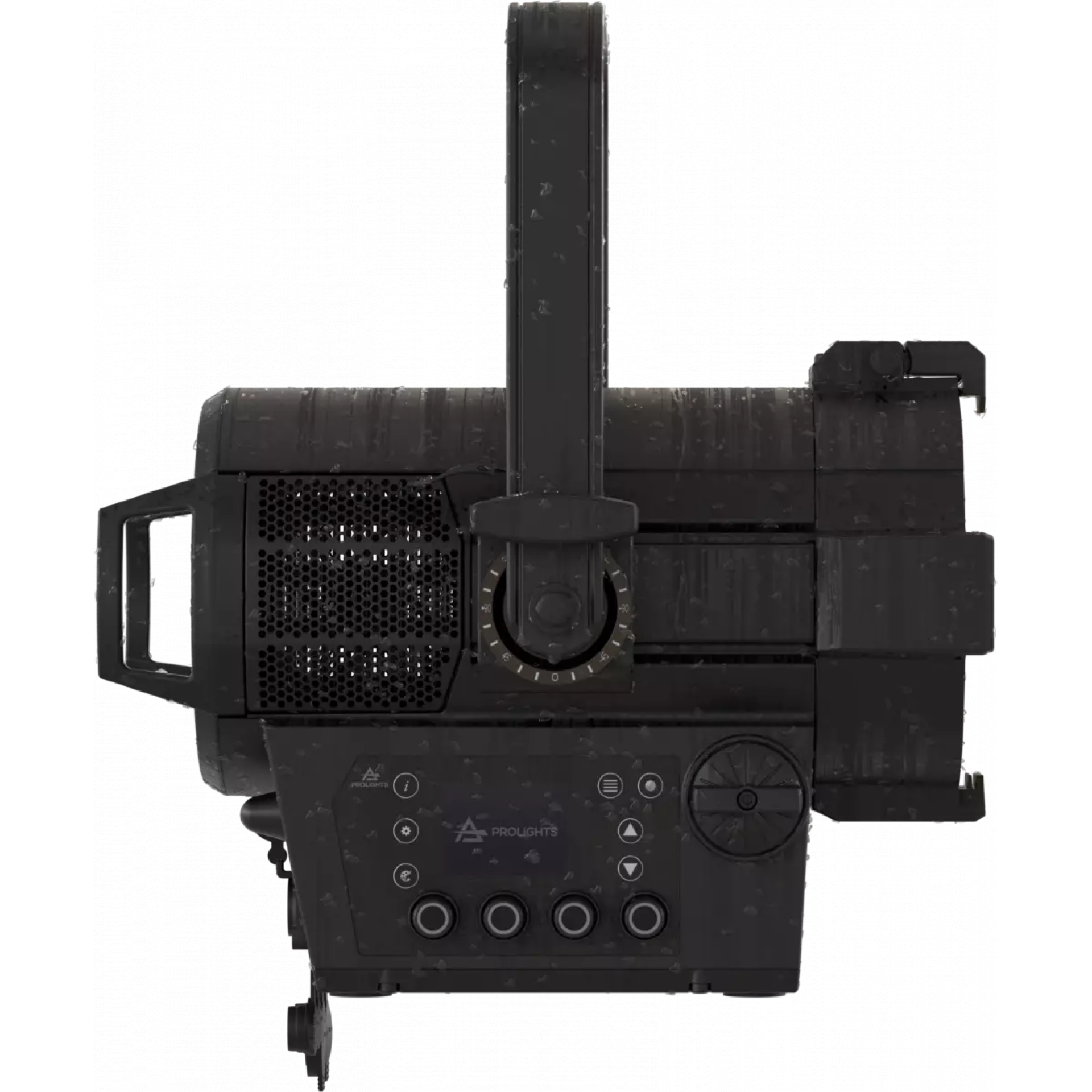

PROLIGHTS EclFresnel CT+SIP - side
PROLIGHTS EclFresnel CT+SIP - side zoom

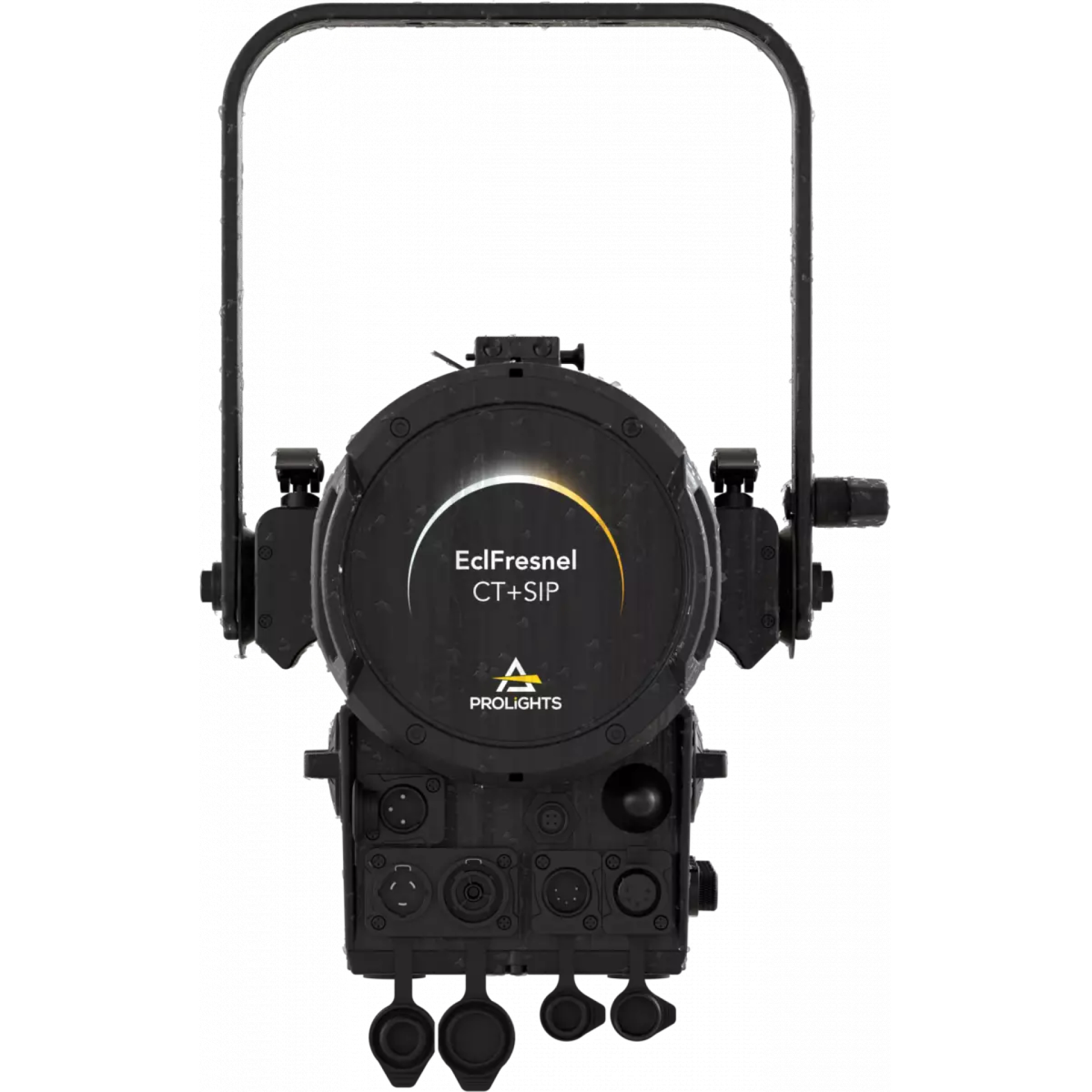

PROLIGHTS EclFresnel CT+SIP - back
PROLIGHTS EclFresnel CT+SIP - top
PROLIGHTS EclFresnel CT+SIP - side
PROLIGHTS EclFresnel CT+SIP - side zoom
PROLIGHTS EclFresnel CT+SIP - back

EclFresnel CT+SIP Fresnel

PROECLFRCTPSIPBK

Key Features:

  • 200W IP65 6 colour LED Fresnel with 150mm/6'' glass lens
  • 9-73° manual zoom system
  • High quality CCT reproduction and advanced colour control
  • New UI with 2.4'' display and 4 backlit pushable encoder
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel CT+SIP Fresnel

EclFresnel CT+SIP is a 200W LED Fresnel, engineered with a new 6 colour light source and a 150mm / 6'' glass Fresnel lens. IP65 rated, the unit is both water and dust resistant.

The newly designed optical system allows for a greater zoom range from 9° to 73°.

The Spektra calibrated light source delivers consistency and a higher luminous flux in both colour and white.

The EclFresnel CT+ range has a new UI offering an enhanced user experience when it comes to the control of the light. It has a more intuitive stand alone operation through a larger display, backlight encoders and features advanced wired and wireless connectivity.

Its silent operation means it is a workhorse fixture for the broadcast, film and theatre sectors.

  • Source: 200W 6 colour LEDs source

    Luminous flux: (9.7°) 1,922lm; (73.5°) 4,795lm @ 4,000K

    Lux: (9.7°) 2,270lx; (73.5°) 286lx @ 5m @ 4,000K

    CRI: 96.6 @ 3,200K; 97 @ 5,600K

    Source life expectancy: > 50,000hr

    Zoom: 9.7° - 73.5° manual

    Lens diameter: 150mm / 6''

    Lens type: Fresnel glass lens with AR coating

    Glass Fresnel lens providing a classic light fall-off

    Additional optics: PC lens available as accessory

    Other: spigot, barndoor and gel frame included

  • Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset

    Colour mixing: 6 colour LEDs source

    CCT: Linear CCT adjustment from 1,800K - 20,000K

  • Protocols: DMX512, RDM, CRMX

    Stand alone: 4 pushable RGB backlit encoder

    Wireless control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (LumenRadio) and W-DMX (Wireless DMX), Bluetooth capable

    RDM: RDM for remote monitoring and settings

    Display: 2.4'' colour display

    Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO) not included

    Master/Slave: for synchronised operation of more units linked in a chain

EclFresnel CT+SIP Fresnel - Downloads
PROLIGHTS EclFresnel CT+SIP Spec Sheet
Download
