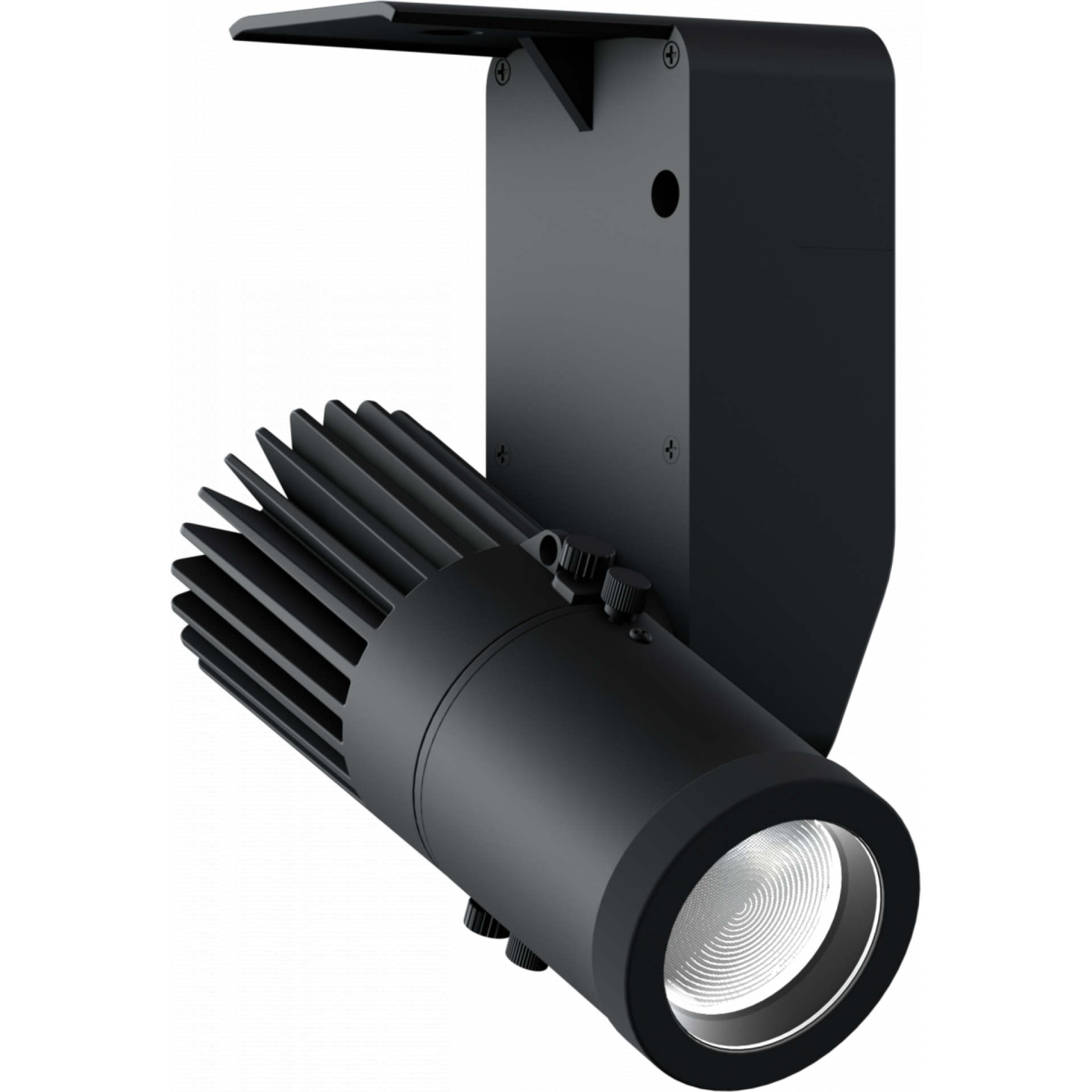

PROLIGHTS EclMini DAT - Daylight white

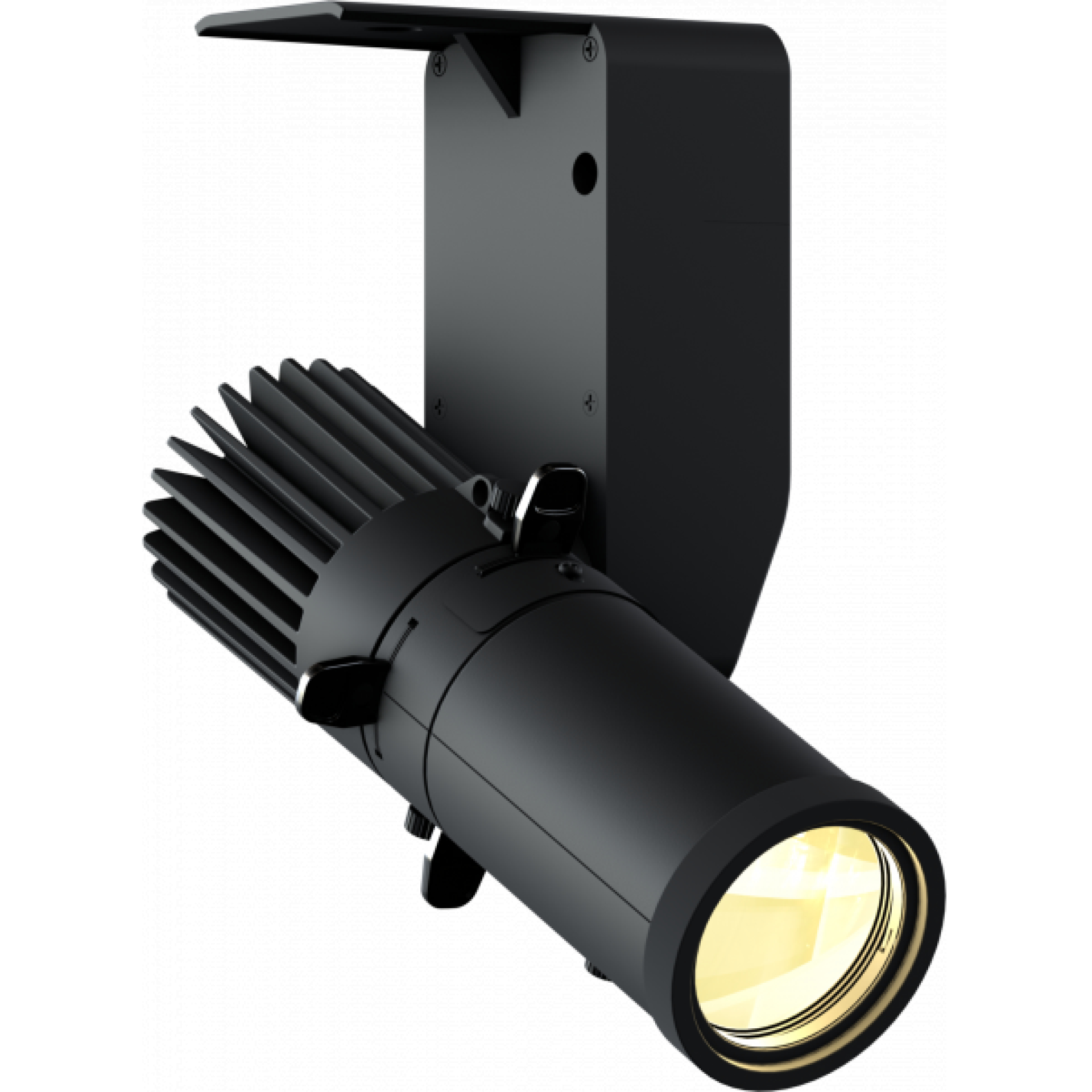

PROLIGHTS EclMini DAT - tungsten white

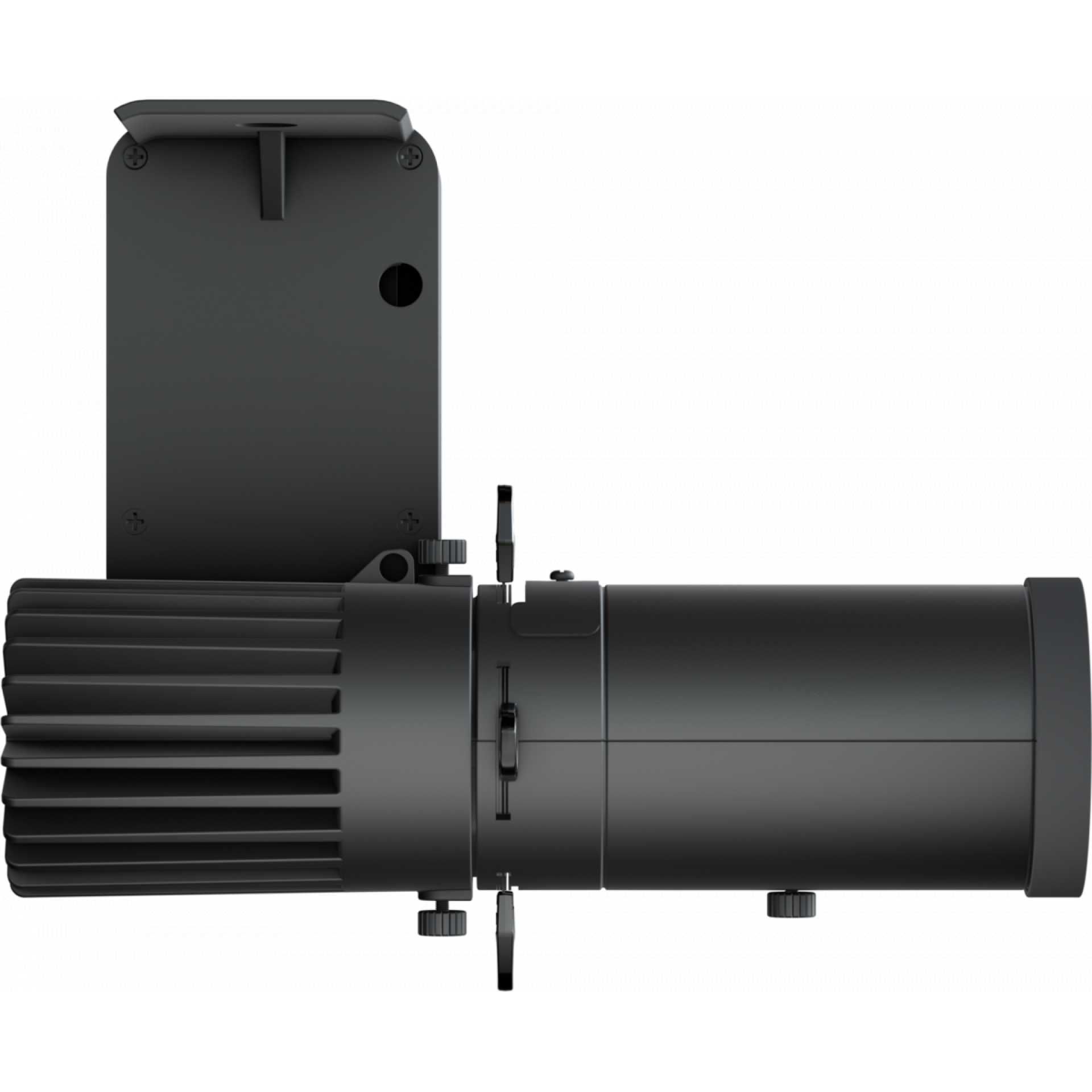

PROLIGHTS EclMini DAT - side

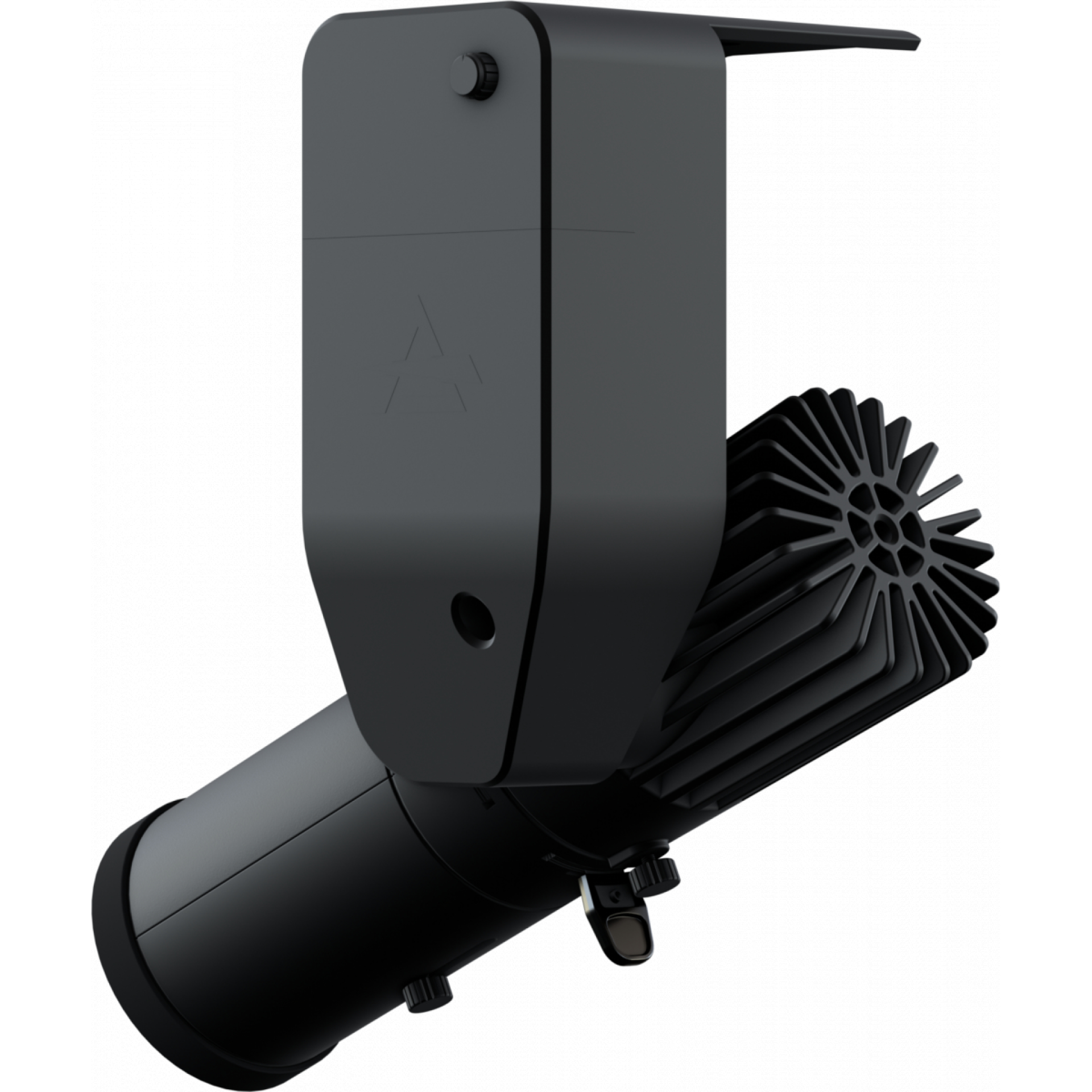

PROLIGHTS EclMini DAT - back view
PROLIGHTS EclMini DAT - tungsten white
PROLIGHTS EclMini DAT - side
PROLIGHTS EclMini DAT - back view

EclMini DAT

Key Features:

  • 18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
  • Data control through RDM, DMX, DALI Type 6 and local knob dimming
  • Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15°-30° or 25°-50° wash optics
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclMini DAT

The PROLIGHTS EclMini DAT is part of the ultra-compact, low profile LED spotlight range. These fixtures are perfect for galleries, retail or any hospitality venue.

The EclMini DAT is configurable and addressed through RDM and includes a broad set of on-board control options: DMX, DALI Type 6 or local knob dimming control. The fixture includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it truly a multi-purpose fixture.

  • Source: 18W White COB LED

    CCT: 2,700K; 3,000K; 4,000K; 5.600K

    Luminous flux: (3,000K) (19°) 1,134lm; (26°) 1,130lm; (36°) 1,144lm; (50°) 1,105lm @ full

    Luminous flux: (5,600K) (19°) 1,230lm; (26°) 1,250lm; (36°) 1,251 lm; (50°) 1,212lm @ full

    CRI: 93 @ 2,700K; 92 @ 3,000K; 89 @ 4,000K; 93 @ 5,600K

    Source life expectancy: > 50,000 hr (L70B10 @Ta 25° C / 77° F)

    Optics: (profile lens – optional) 19°, 26°, 36°, 50°

    Zoom: (wash lens – optional) 15° ~ 30° or 25° ~ 50°

    Other: 360° lens rotation – optional 360° rotating barndoors and gel frame holder

    Other: (profile lens – optional) gobo holder size E, outer: 37.3mm; image: 24mm; thickness: 1.1mm

    Control Resolution: 16-bit dimmer

    Static mode: selection of static dimmer

    Manual mode: manual adjustment of dimmer and strobe

    Auto mode: built-in programs with execution speed adjustment

EclMini DAT - Downloads
PROLIGHTS EclMini DAT Spec Sheet
Download
