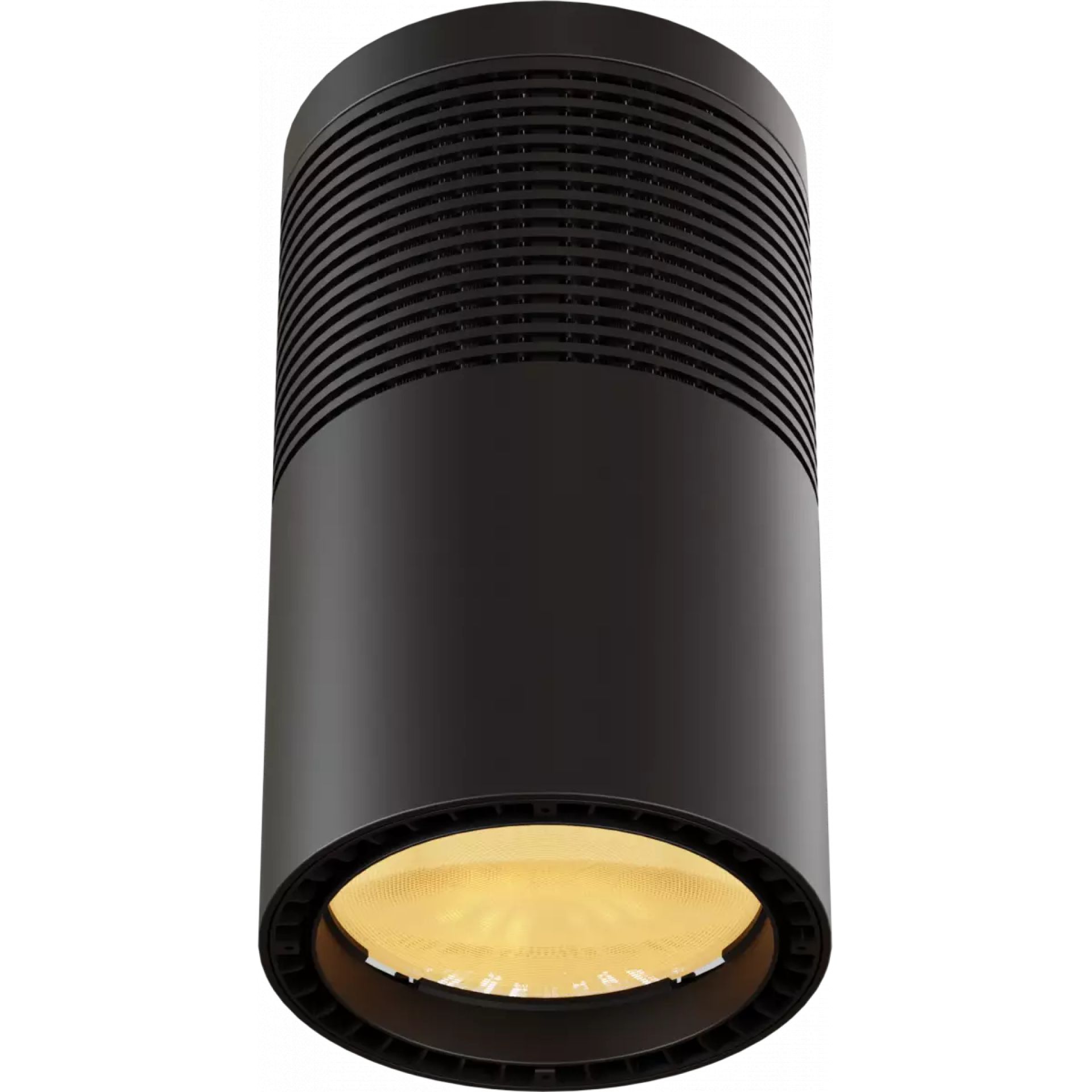

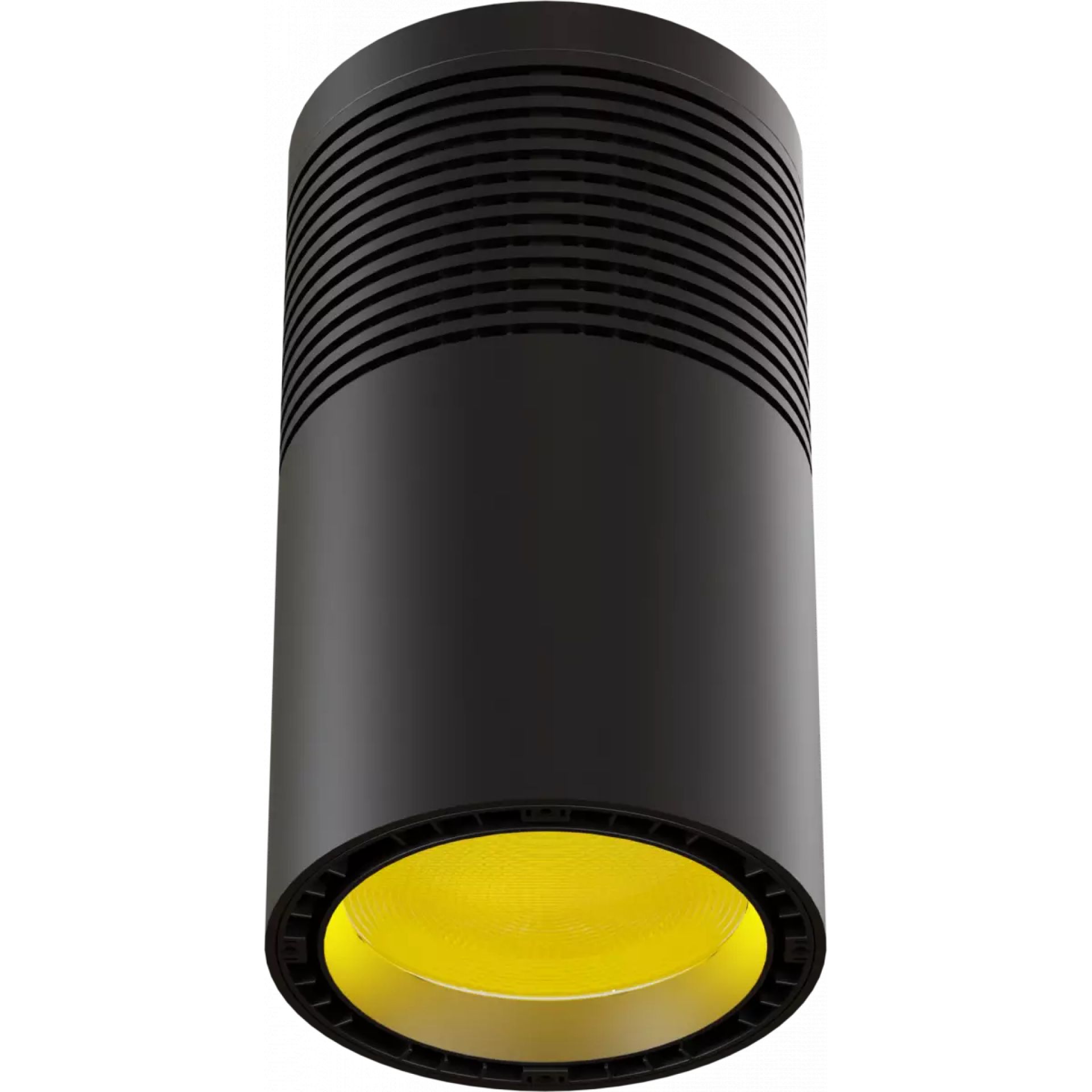

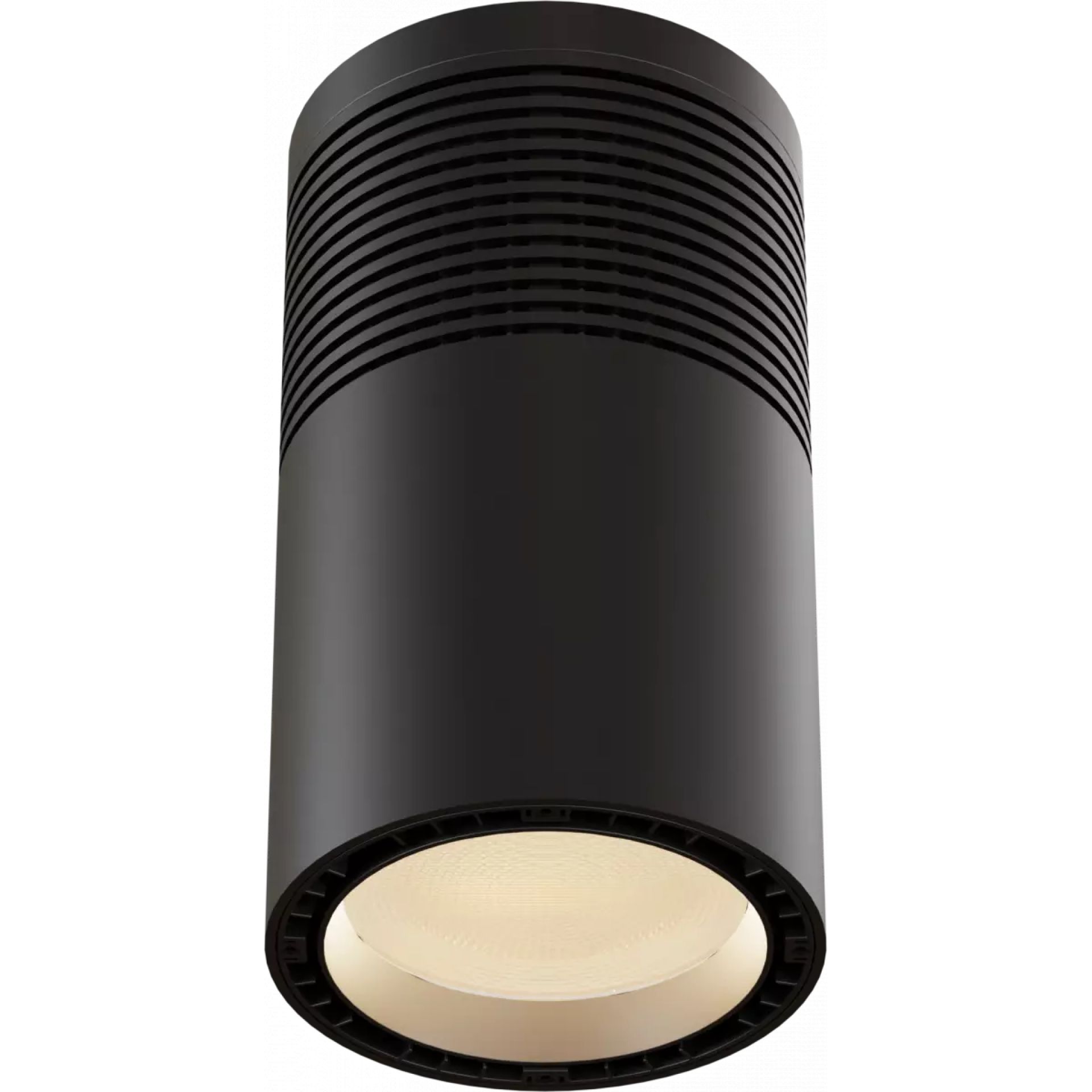

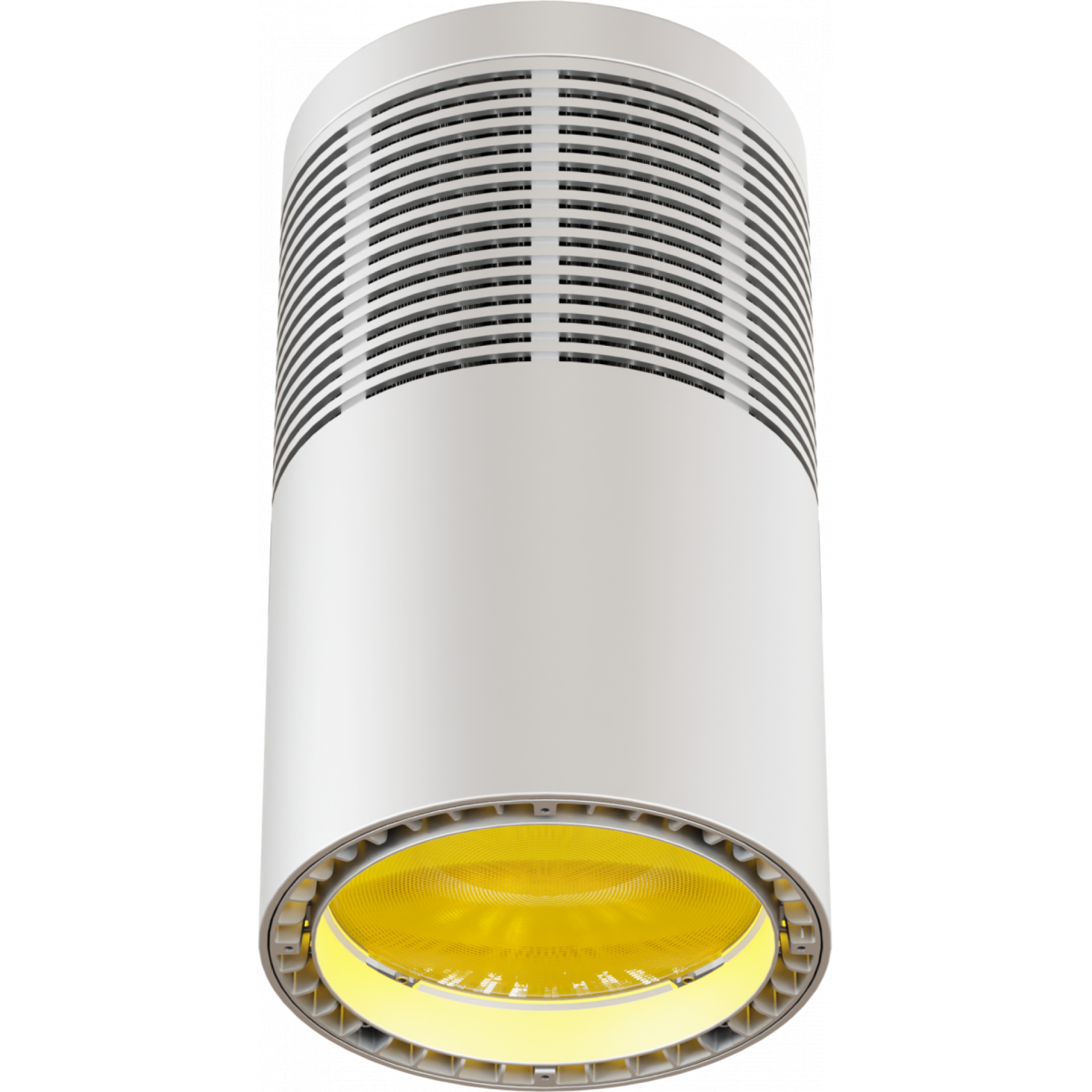

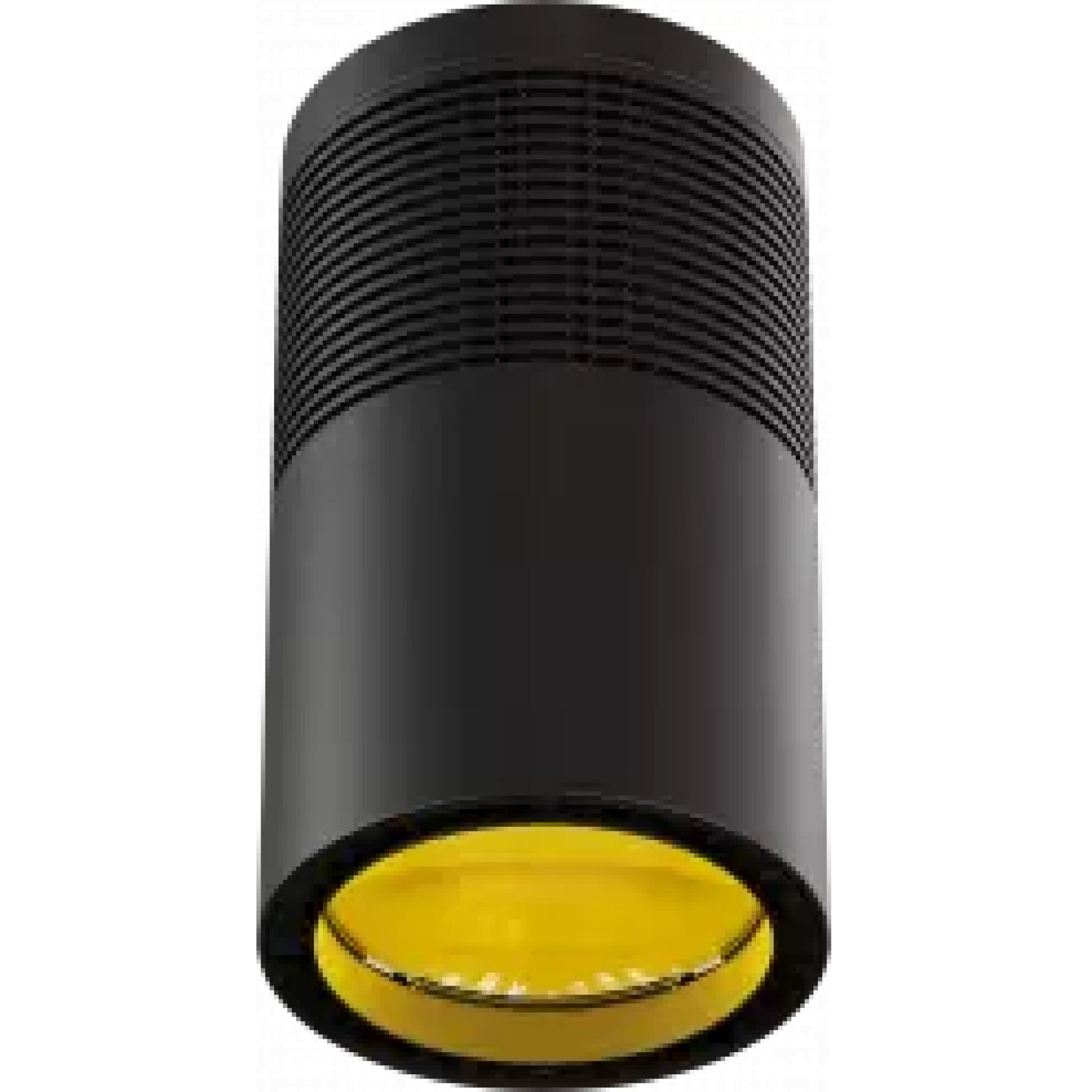

The PROLIGHTS EclPendant House Light Range is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly. This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.

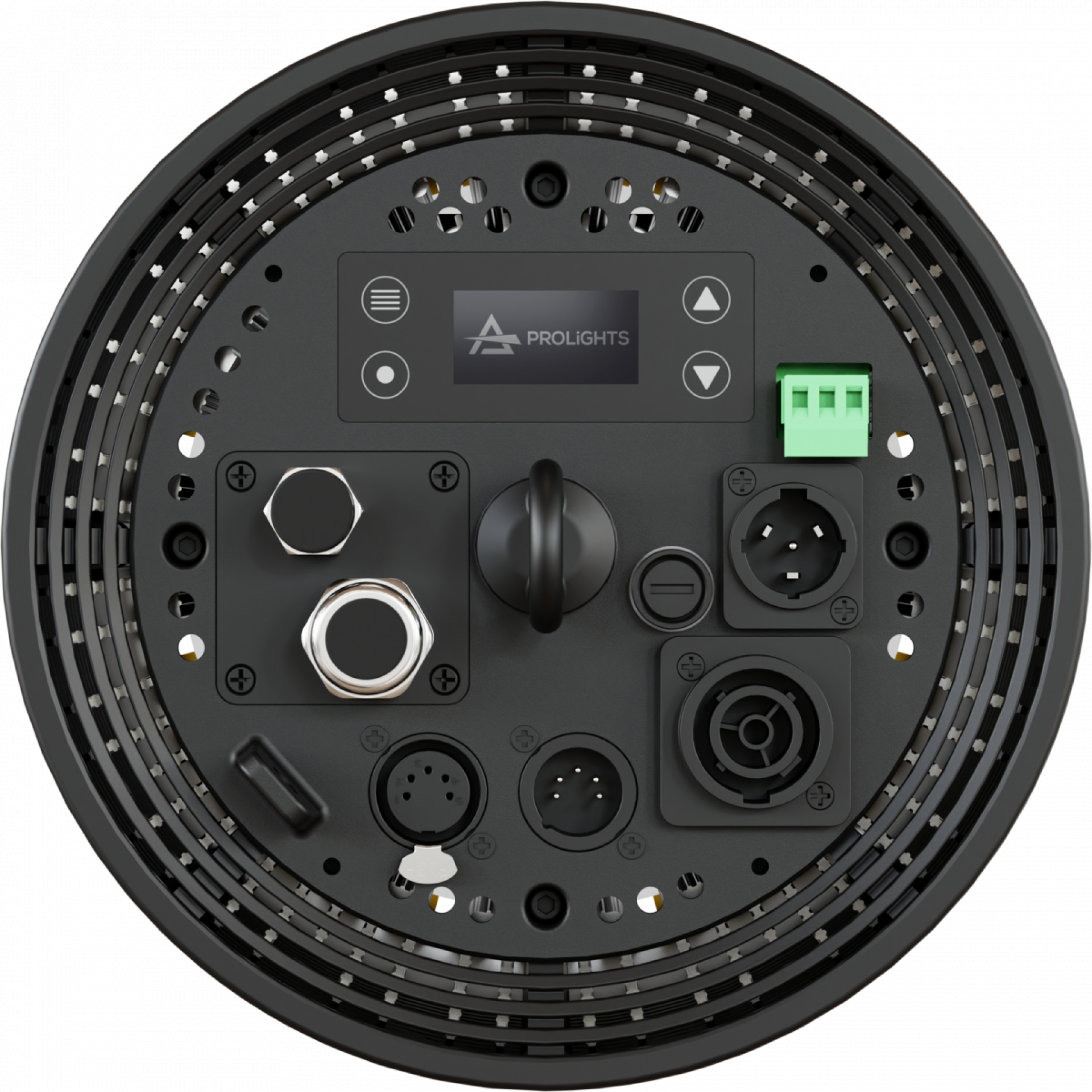

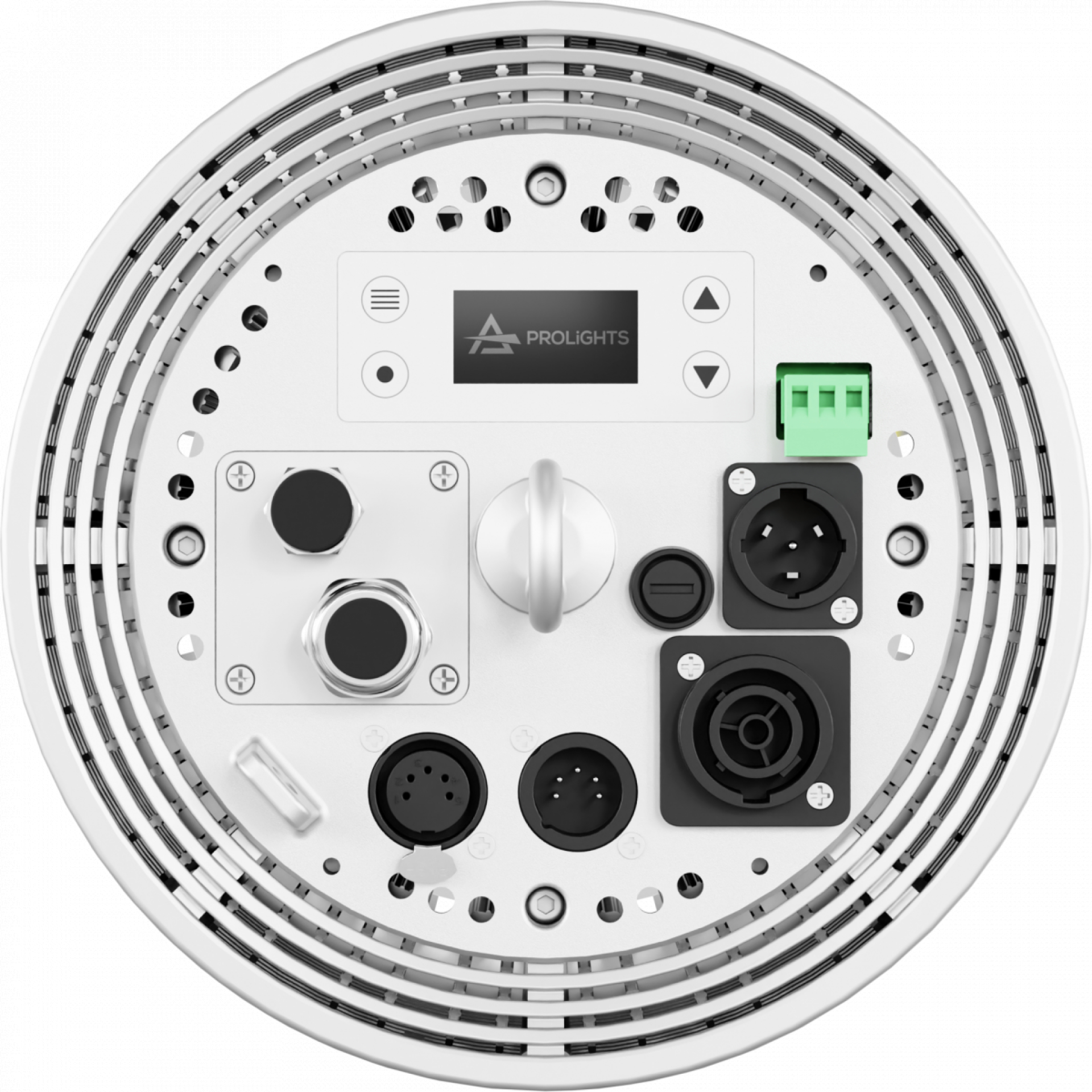

The EclPendant House Light Range was made for several uses – its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It’s also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections. The optics and accessories are all easily changeable.
Luminous flux: (TU) 11,233lm; (NW) 14,165lm; (DY) 13,646lm @ full
Luminous flux: (Jr TU) 6,948lm; (Jr NW) 7,401lm; (Jr DY) 7,706lm @ full
Luminous flux: (FC) 10,168lm @ full
Luminous flux: (JrFC) 5,099lm @ full
Lux: (TU) 2,761lx; (NW) 2,92 lx; (DY) 3,181lx @ 5m full
Lux: (Jr TU) 1,372lx: (Jr NW) 1,524lx; (Jr DY) 1,600lx @ 5m full
Lux: (FC) 1,757lx @ 5m full
Lux: (JrFC) 794lx @ 5m full
Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)
Beam angle: 20°
Field angle: 40°
Lens diameter: 157mm (FC / TU / NW / DY); 122mm (JrFC / Jr TU / Jr NW / Jr DY)
Lens type: Fresnel lens
Colour mixing: RGB + Warm White (FC & JrFC)
CCT: CCT control, + / - green correction, tungsten emulation (FC & JrFC)
Colour wheel: gel filters included (FC & JrFC)
Macros: several pre-built macros with adjustable speed (FC & JrFC)
Static mode: selection of static dimmer, colors and color temperature
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Protocols: DALI Type8, DMX512, RDM, CRMX
DMX channels: UNO / DUO / Basic / Standard / Extendedchannel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Other: 16bit control of dimmer and colour
