Jade

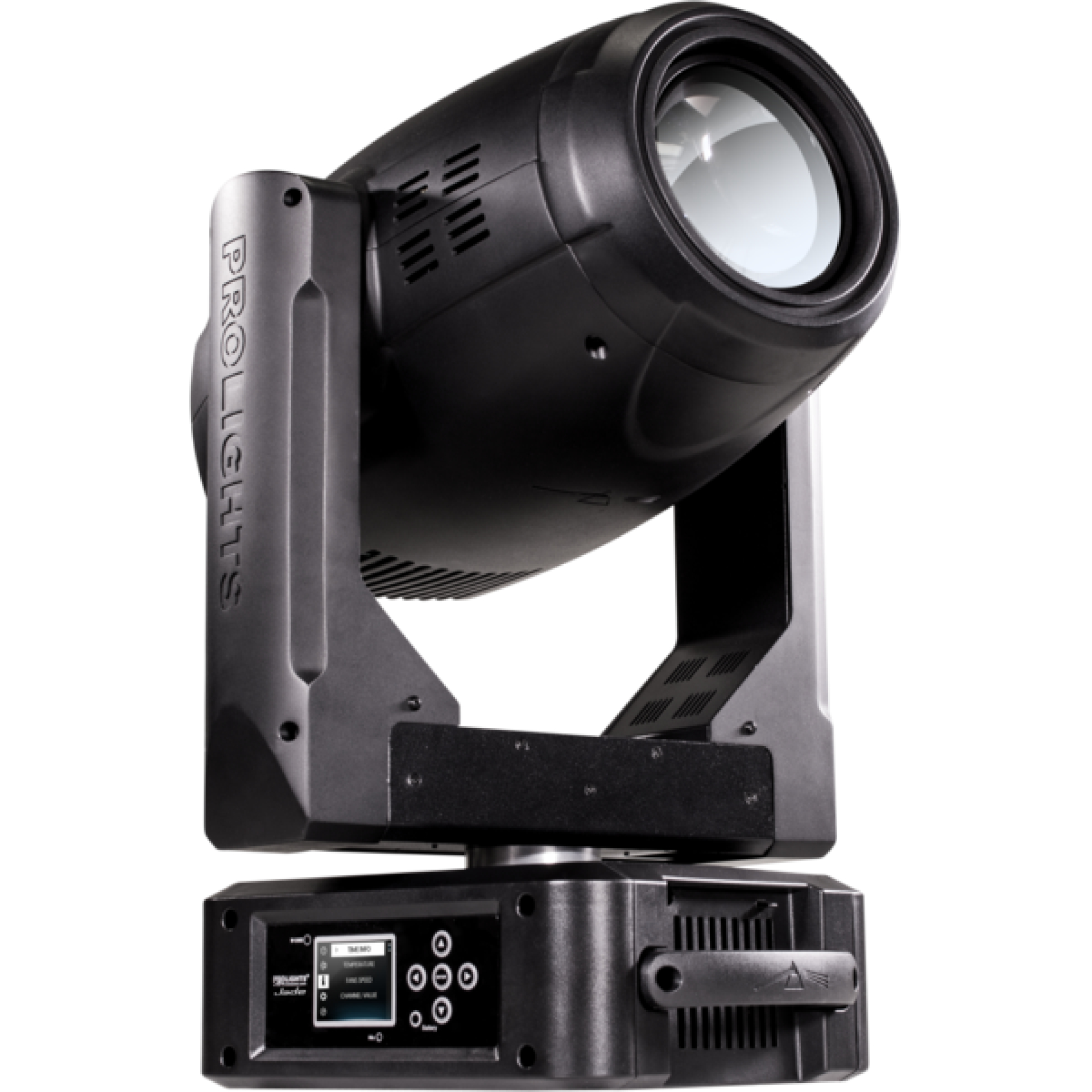

PROLIGHTS JADE Moving Hybrid Luminaire

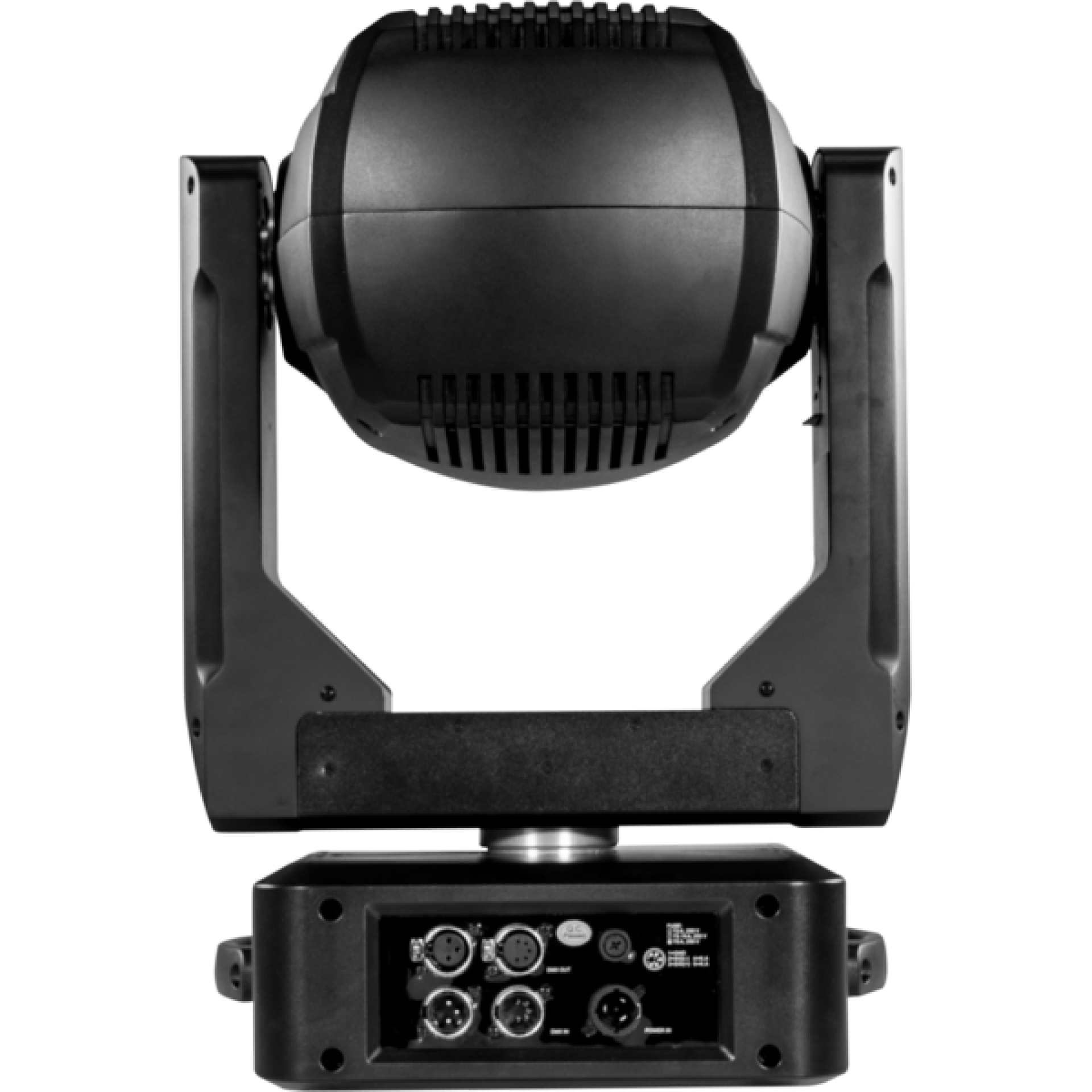

PROLIGHTS JADE Moving Hybrid Luminaire - rear

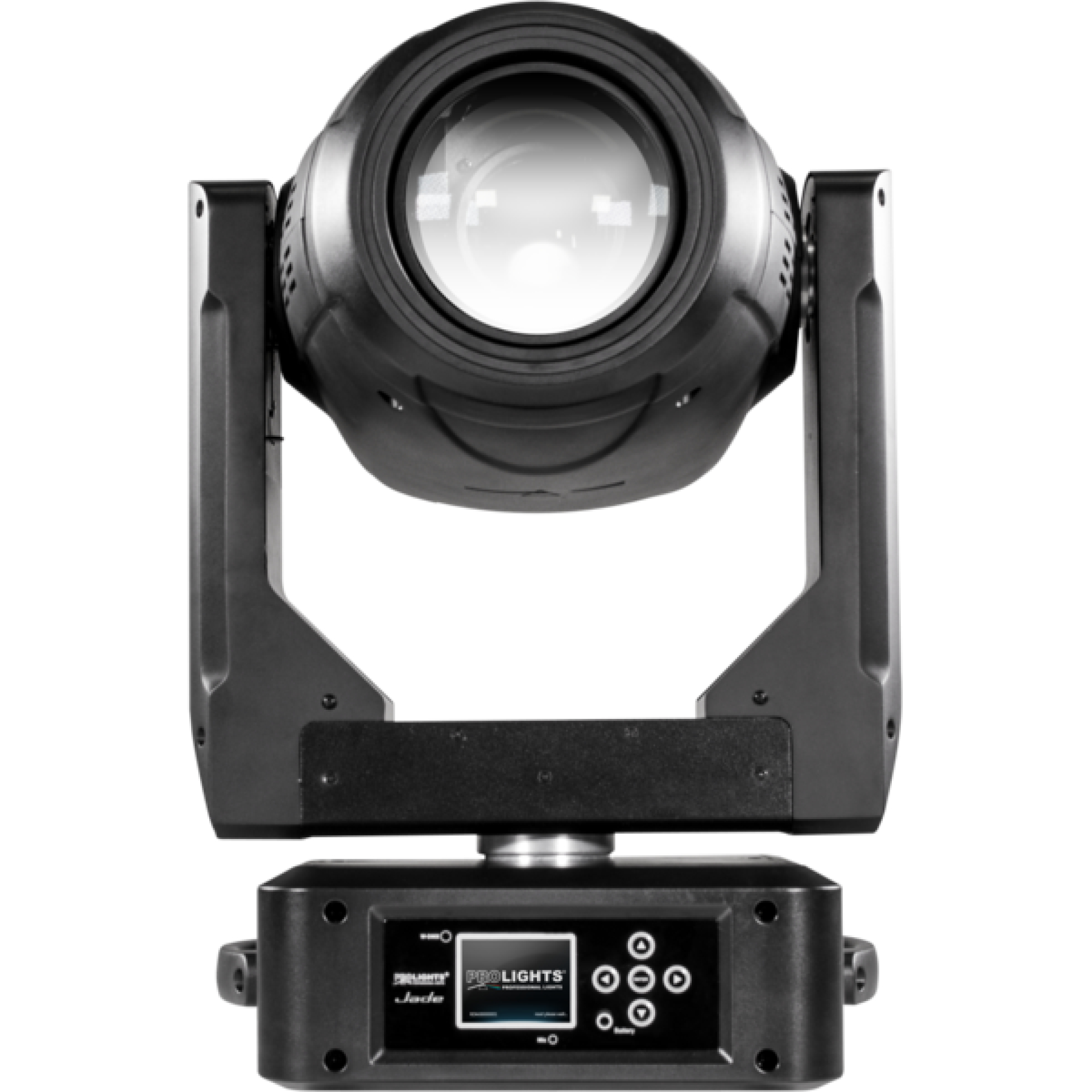

PROLIGHTS JADE Moving Hybrid Luminaire - front
PROLIGHTS JADE Moving Hybrid Luminaire - rear
PROLIGHTS JADE Moving Hybrid Luminaire - front

Jade

PROJADE

Key Features:

  • Massive 2° to 23° zoom range with beam and spot modes
  • 13 position colour wheel including CTC filters
  • Extensive effects including rotating gobo wheel, static gobo wheel, dual prisms and linear frost
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Jade

The PROLIGHTS Jade moving hybrid luminaire delivers a full designers toolkit in a single, compact fixture. Harnessing the power of its 280W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot all from a single unit.

Jade is a hybrid moving light delivering a full toolkit for designers in a single, compact fixture. Harnessing the power of the 280W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.

  • Source: 280W S Osram Sirius HRI

    CCT: 7,800

    Luminous flux: 8,866lm

    Lux: (1.5°) 288,031lx @ 5m full

    Lux: (4.5°) 42,264lx @ 5m

    Source life expectancy: 2,000hr

    Zoom: beam: 2° - 10° / spot: 5.5° - 23° motorised linear zoom

    Lens diameter: 117mm / 4.61''

    Lens type: high-quality glass lens optics

    Additional optics: heat filter to switch from beam to spot modes

    Focus: motorised with auto-focus

  • CCT: on wheel 2,500K and 3,200K + CTB

    Colour wheel: 13 colour filters

    Macros: linear, half colours, colour bounce

    Rotating gobos: 9 rotating gobos + open, interchangeable

    Gobo size: outer: 15.7mm; image: 12mm; thickness: 1.1 mm

    Fixed gobos: 14 fixed gobos + open

    Circular prism: 8f with bi-directional rotation, indexing

    Linear prism: 6f with bi-directional rotation, indexing

    Frost: frost unit to soften the beam edge

  • Protocols: DMX512, RDM, W-DMX

    DMX channels: 14 / 16 / 22 / 23 channel

    Wireless control: included, wireless solution receiver

    RDM: RDM for remote monitoring and settings

    Display: LCD high resolution colour display

    Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included

    Hibernation: power safe mode when lost DMX
