LumiPix Range

Key Features:

  • Linear batten with RGBAW-UV LED’s
  • Individual pixel control
  • Onboard effects
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

LumiPix Range

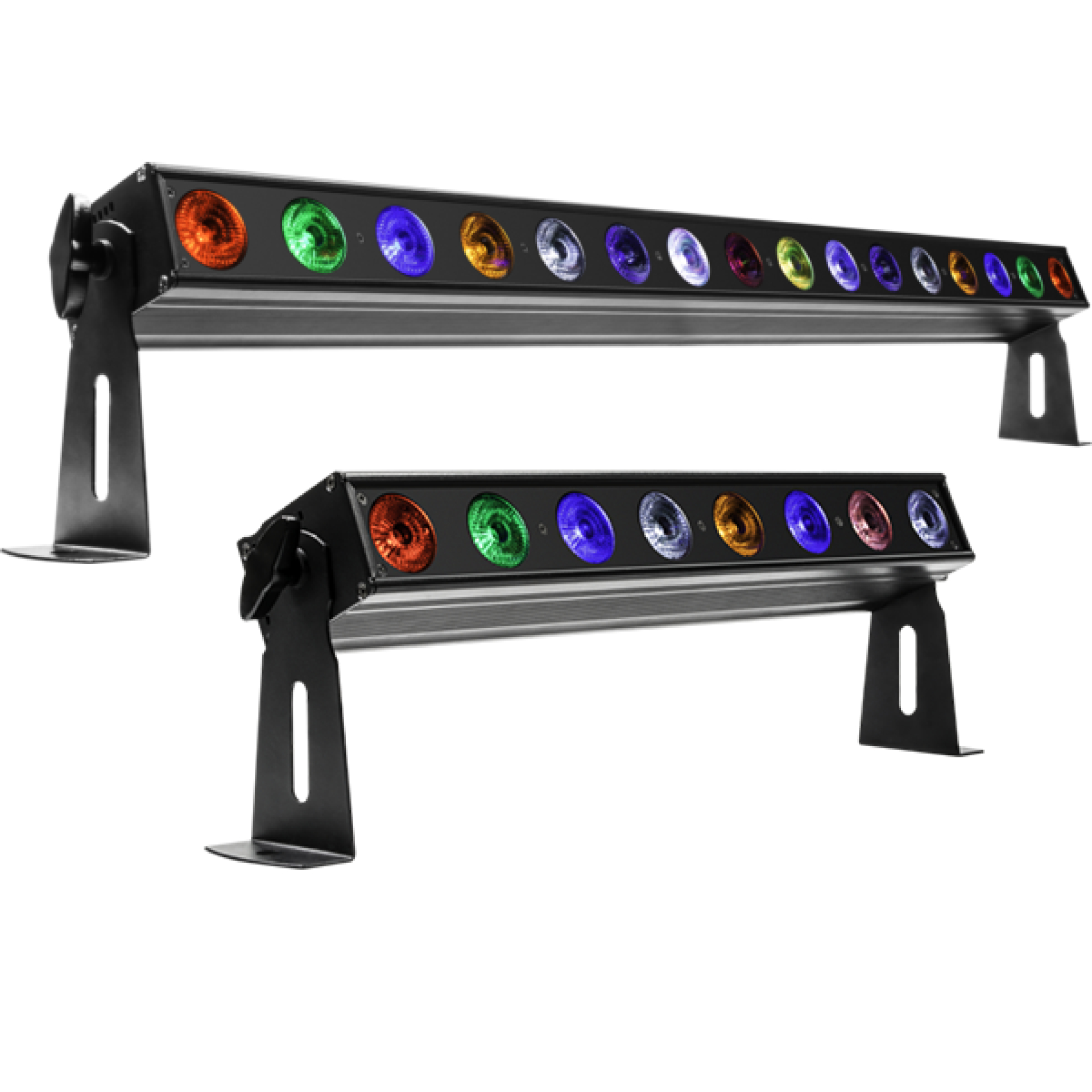

PROLIGHTS LumiPix is a linear LED batten range designed for professional use, employing an innovative optic system combined with a the new light source which perform a colour mixing of 6 primary colours, RGBWAP Full Colour, giving unprecedented chromatic performance.

Product Variants

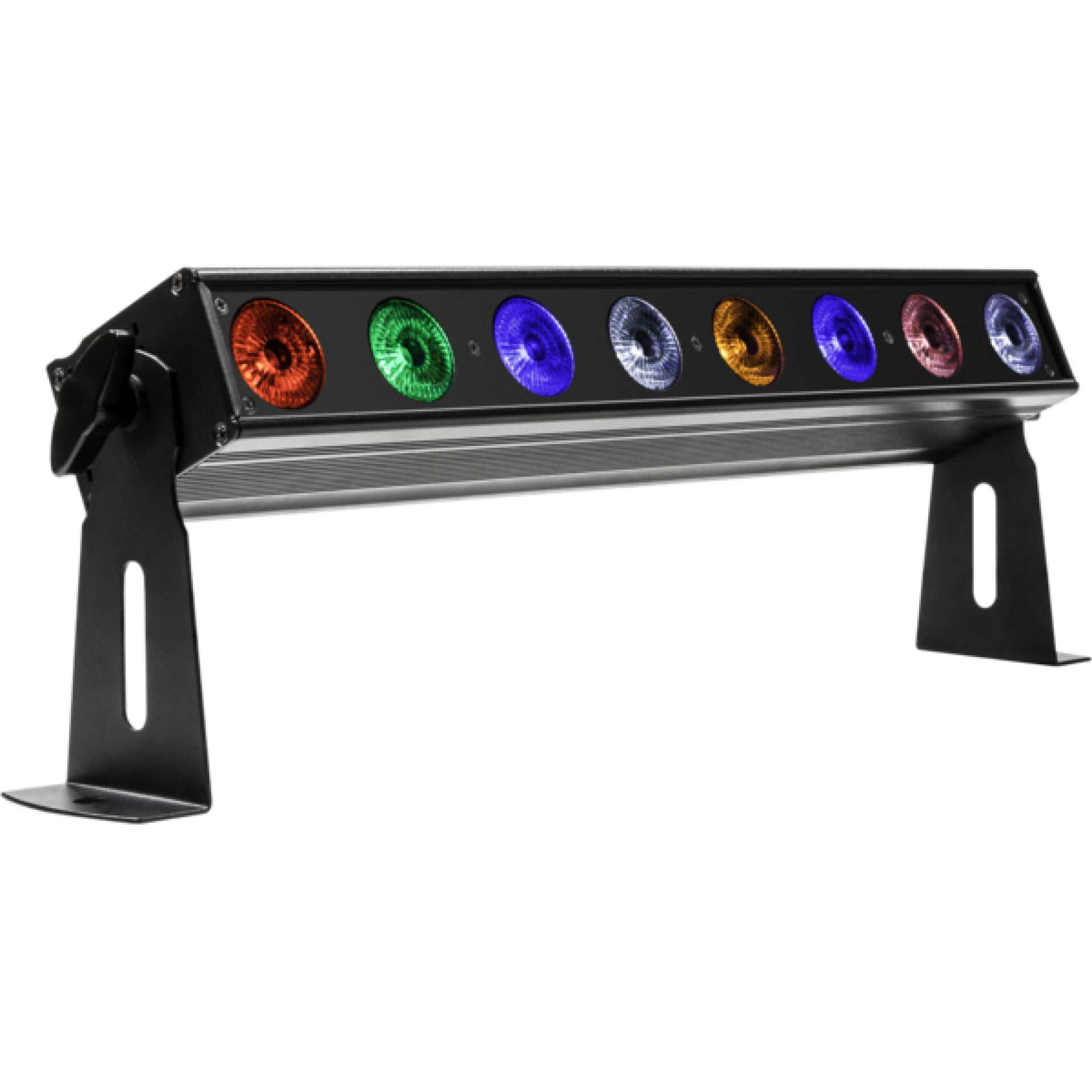

PROLIGHTS LumiPix 8H
LumiPix 8H
  • 8x12W RGBWAP-UV LEDs

Enquiry Form

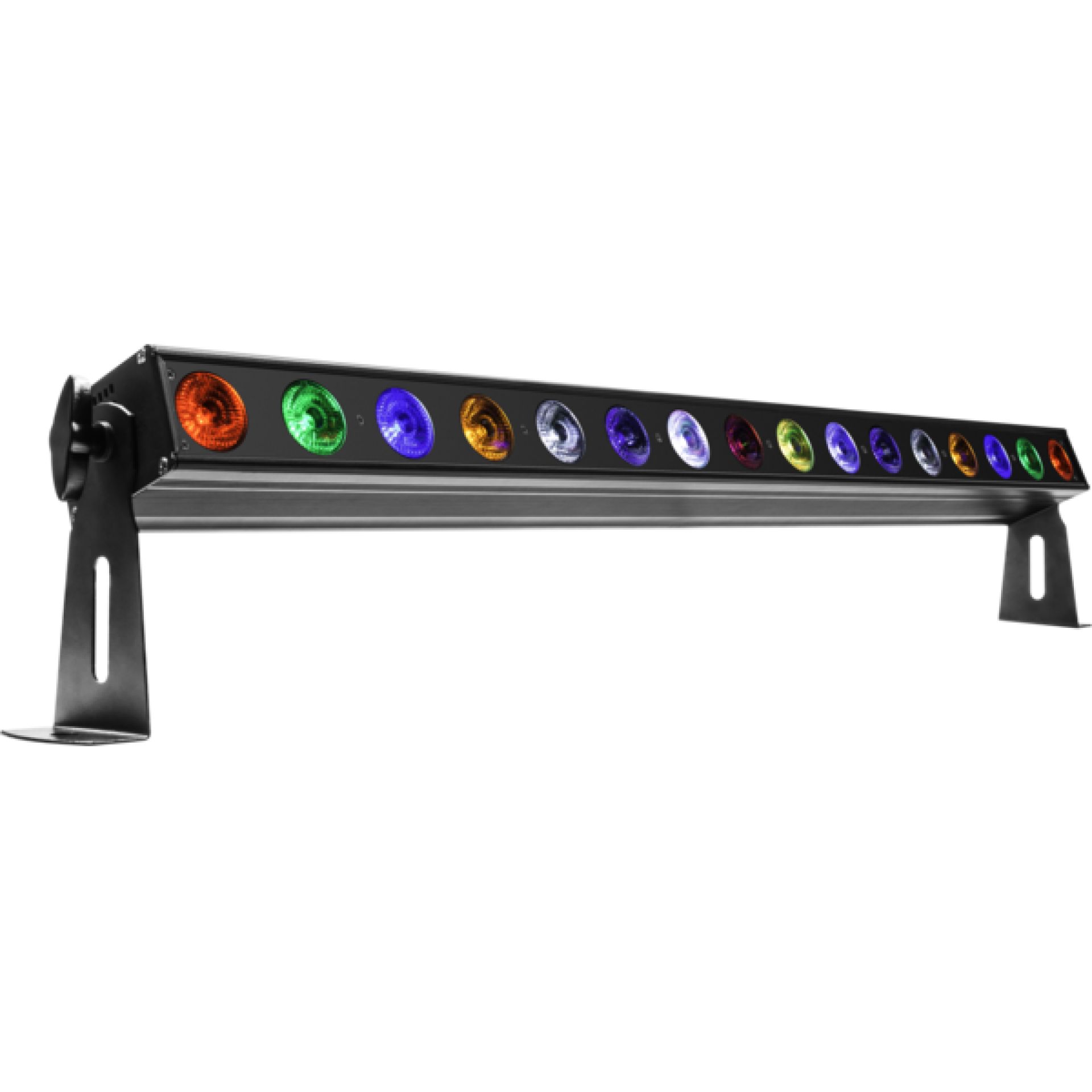

PROLIGHTS LumiPix 16H
LumiPix 16H
  • 16x12W RGBWAP-UV LEDs

Enquiry Form

The super-slim design, along with its extreme colour precision and light output, make LumiPix a flexible and versatile solution for every kind of application or venue.

  • Source: 8x12W RGBWAP LEDs (LumiPix 8) 16x12W RGBWAP LEDs (LumiPix 16)

    Luminous flux: 3,408lm

    Lux: (15°) 19,86lux @ 3m full

    Source life expectancy: >50,000hr

    Beam angle: 22°

    Field angle: 36°

    Lens diameter: 42mm

    Additional optics: 25° and 45° (optional)

  • Colour mixing: RGBWAP/FC

    White presets: 3,200-10,000K

    Colour wheel: virtual colour wheel with presets

    Macros: several pre-build pixel macros with adjustable speed

    Static colour mode: selection of static colour

    Manual colour mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512

    DMX channels: 3/6/8/12/96/101ch

    Pixel control: Pixel2Pixel control

    Display: LCD display

    Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain

LumiPix Range - Variant Downloads
