Lumipix 15IP

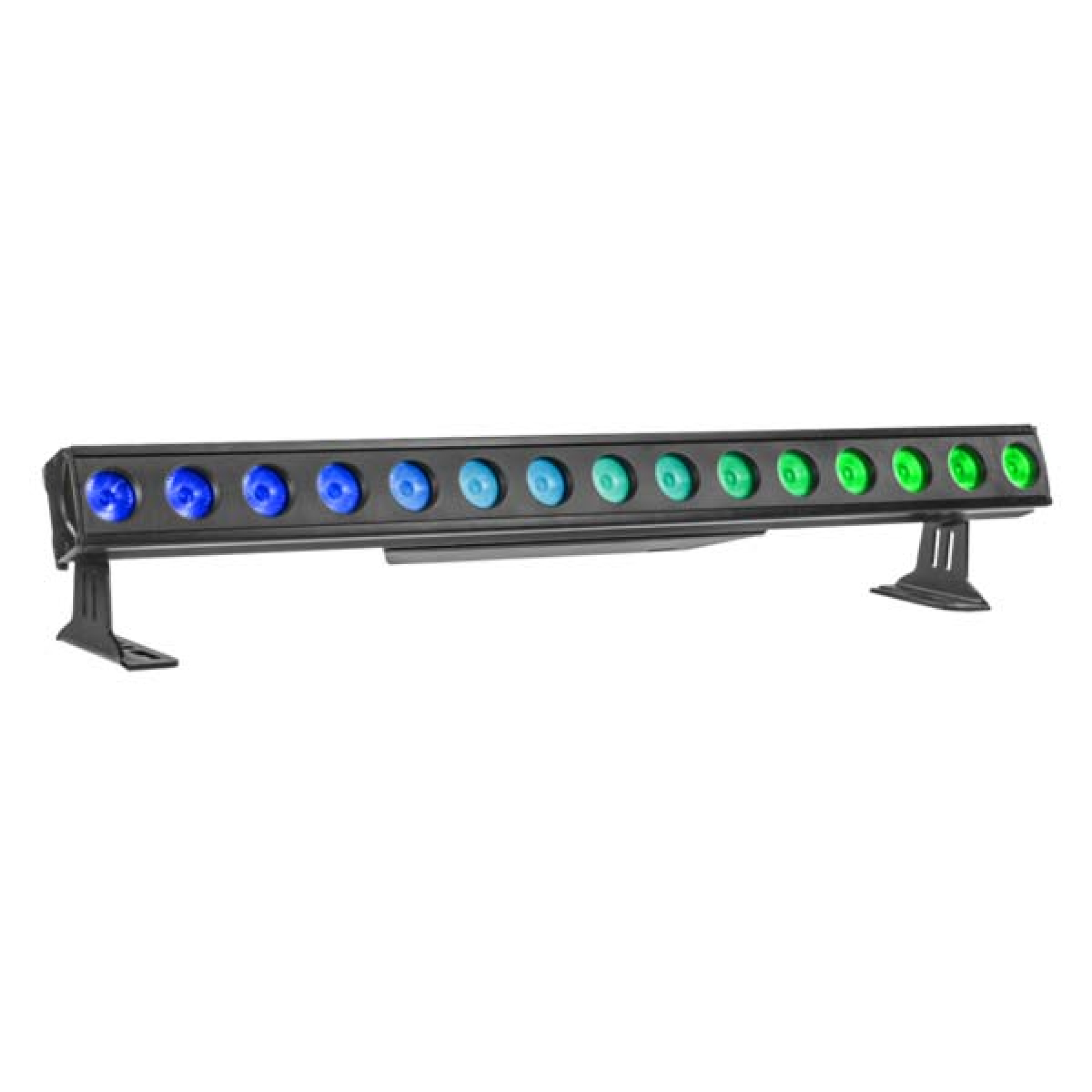

PROLIGHTS Lumipix 15IP

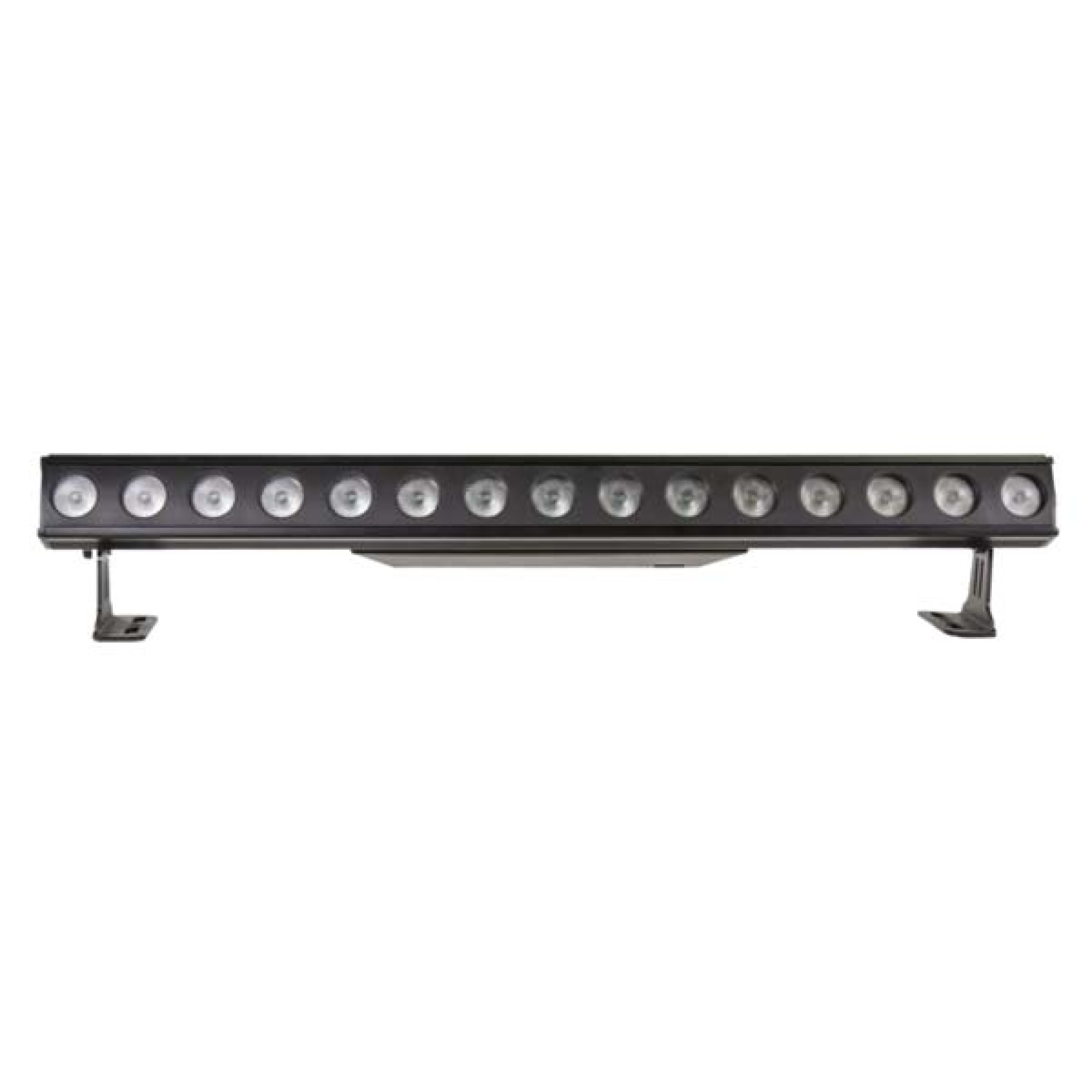

PROLIGHTS Lumipix 15IP - front off

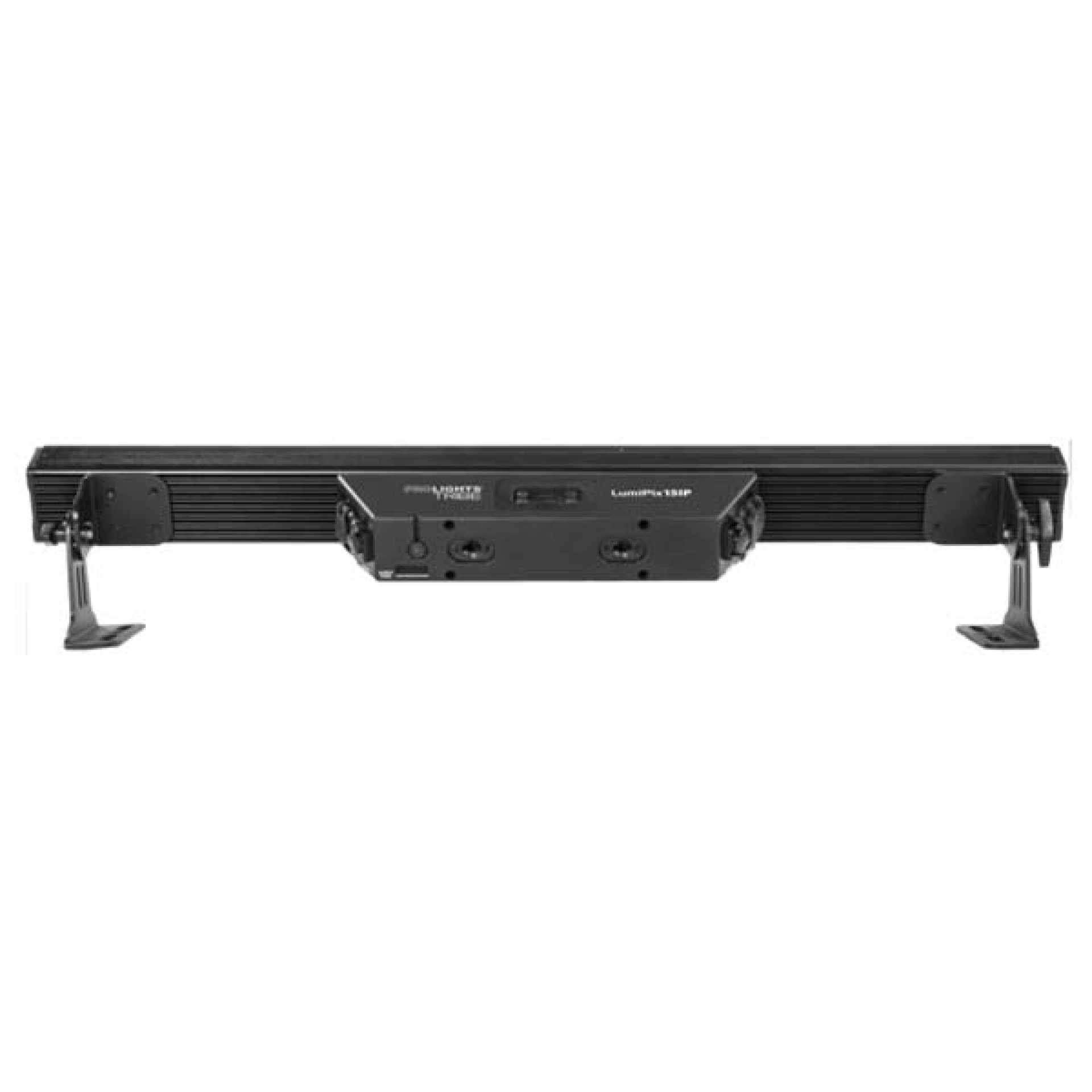

PROLIGHTS Lumipix 15IP - back
PROLIGHTS Lumipix 15IP - front off
PROLIGHTS Lumipix 15IP - back

Lumipix 15IP

PROLUMIPIX15IP

Key Features:

  • LED batten with 15 individually controllable RGBW LEDs
  • IP65 rating
  • Powerful, even output
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Lumipix 15IP

The PROLIGHTS Lumipix 15IP is an IP65 rated LED batten featuring 15 bright, individually controllable RGBW pixels in a rugged housing.

The Lumipix 15IP is a tour-ready LED pixel batten conceived to be fully versatile and perform outdoors, delivering advanced brightness and colour mixing by offering individual pixel control of each cell. The robust die-cast aluminium structure with omega quick lock socket on the bracket and the waterproof power and signal connector make Lumipix 15IP suitable for the most demanding environments.

  • Source: 15x10W RGBW LEDs

    Luminous flux: 3,587lm

    Lux: 4,771lux @ 3m full

    Source life expectancy: >30,000 hr

    Beam angle: 16°

    Field angle: 30°

    Additional optics: magnetic frost holder on board

  • Colour mixing: RGBW/FC

    CTC: CTC control through independent DMX channel

    White presets: 2800-10,000K

    Colour wheel: virtual colour wheel with presets

    Macros: several pre-build pixel macros with adjustable speed

    Pixel patterns: preprogrammed dynamic and static patterns

    FX generator: adjustable foreground/background colour, index, speed, direction

    Static colour mode: selection of static colour

    Manual colour mode: manual adjustment of colour

  • Protocols: DMX512

    DMX channels: 4/6/10/60/65ch

    Pixel control: Pixel2Pixel control

    W-DMX: included, Wireless Solution receiver

    Display: black OLED high resolution display

    Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

    Master/slave: for synchronised operation of more units linked in a chain

Lumipix 15IP - Downloads
Lumipix15ip_A4_DATASHEET_EN.pdf
Download

You might like...

PROLIGHTS LumiPix XB100
Product - LIGHTING
LumiPix XB Range
    • IP65, pixel-controlled LED linear fixture, available in 18 pixels and 9 pixels
    • 20W RGB+WW led source, delivering high CRI (>90), advanced colour control and effects generator
    • DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)
Find out more

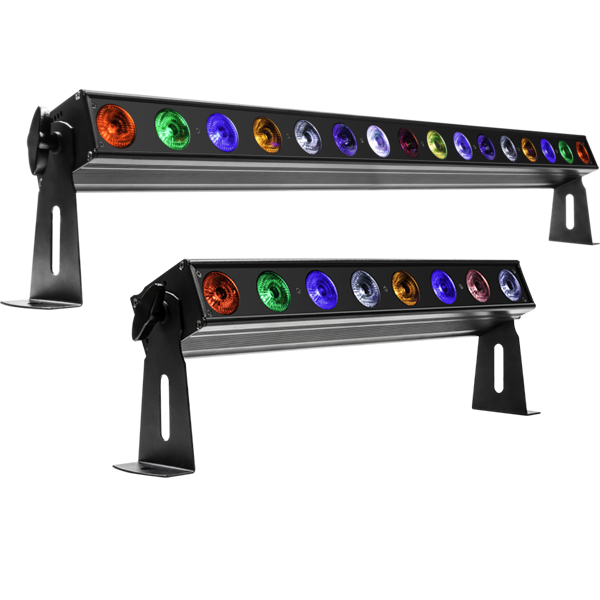

PROLIGHTS LumiPix LED Battens
Product - LIGHTING
LumiPix Range
    • Linear batten with RGBAW-UV LED’s
    • Individual pixel control
    • Onboard effects
Find out more

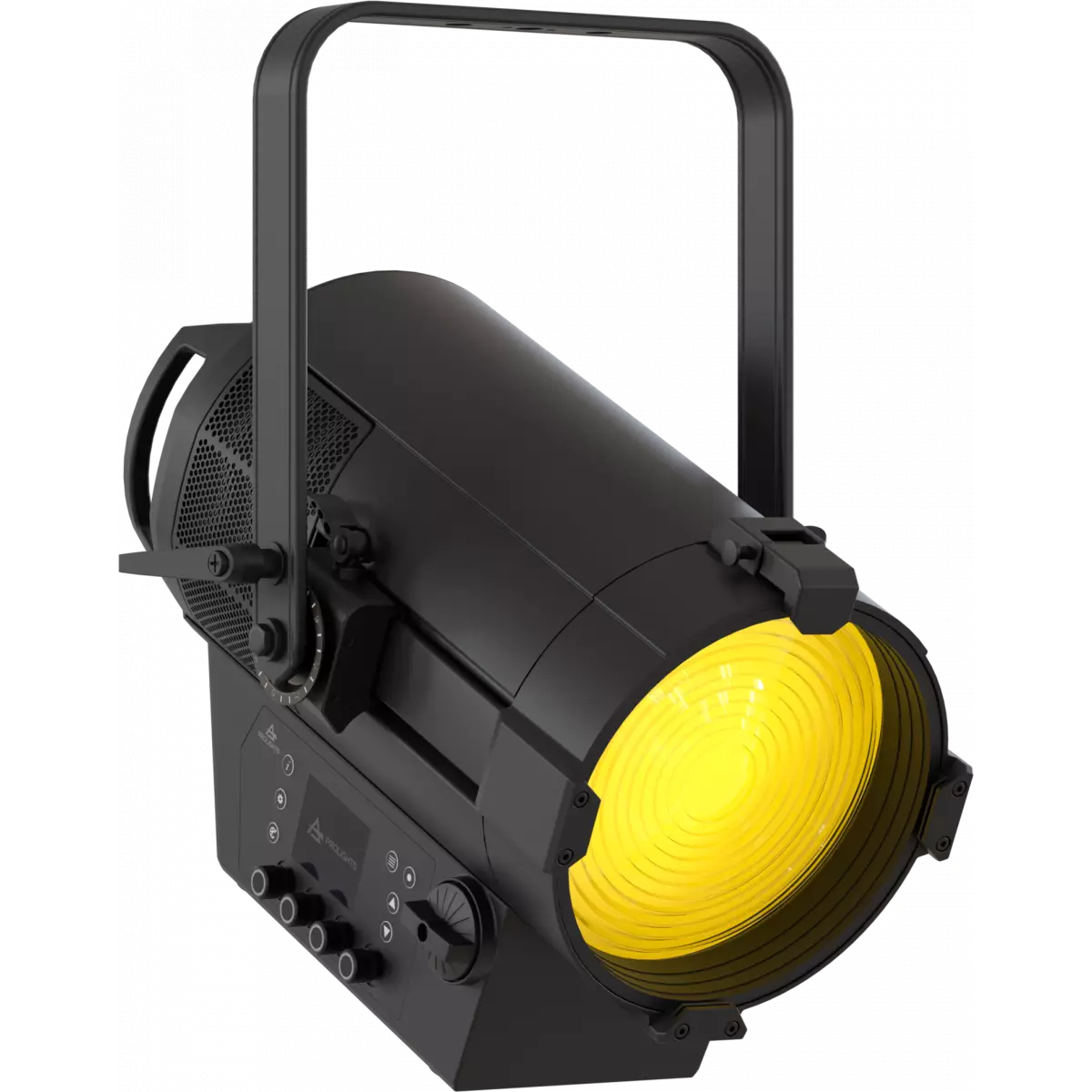

PROLIGHTS EclFresnel CT+M - front
