Arc Roof Structure

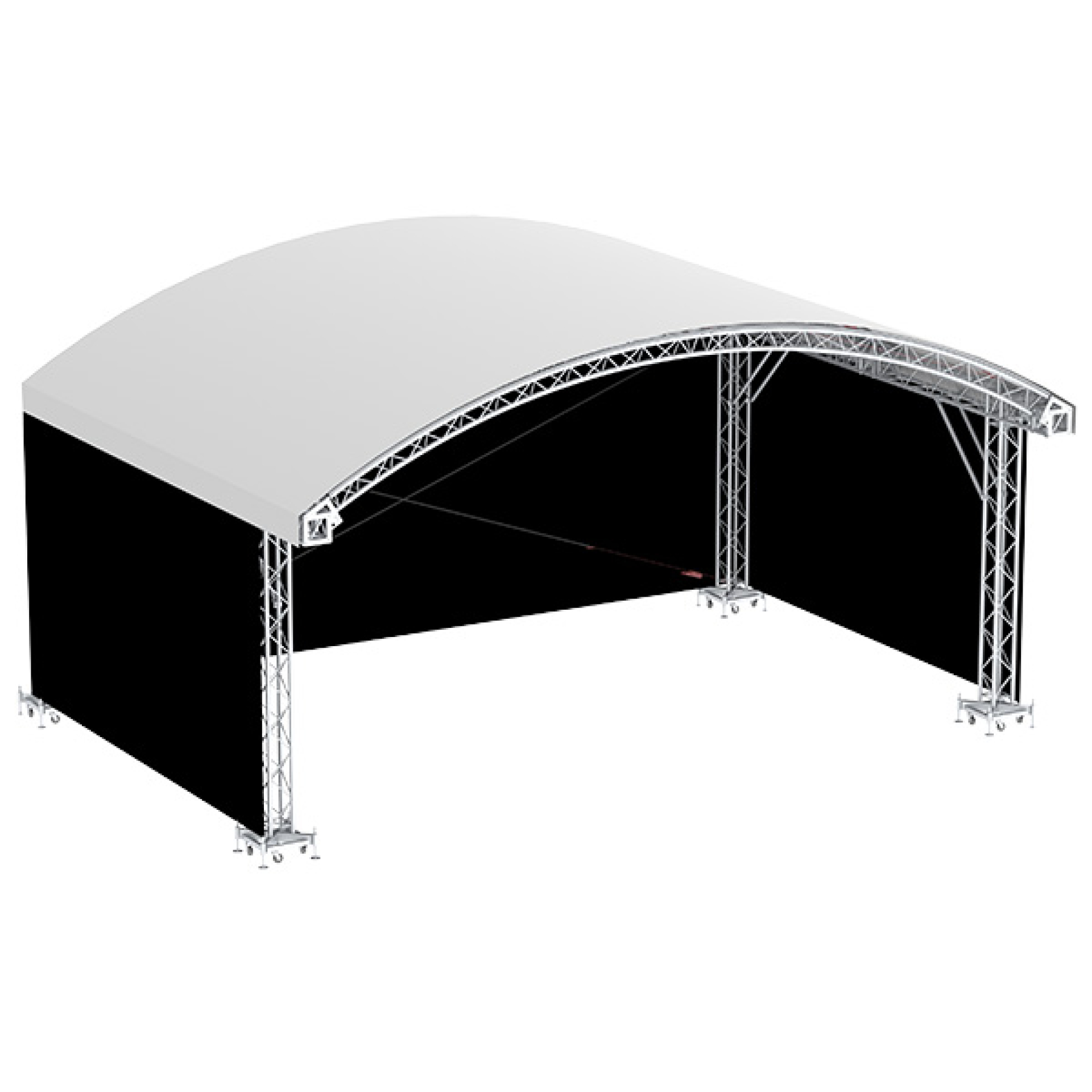

Sixty82 Arc Roof 8x6m
Sixty82 Arc Roof 8x6m

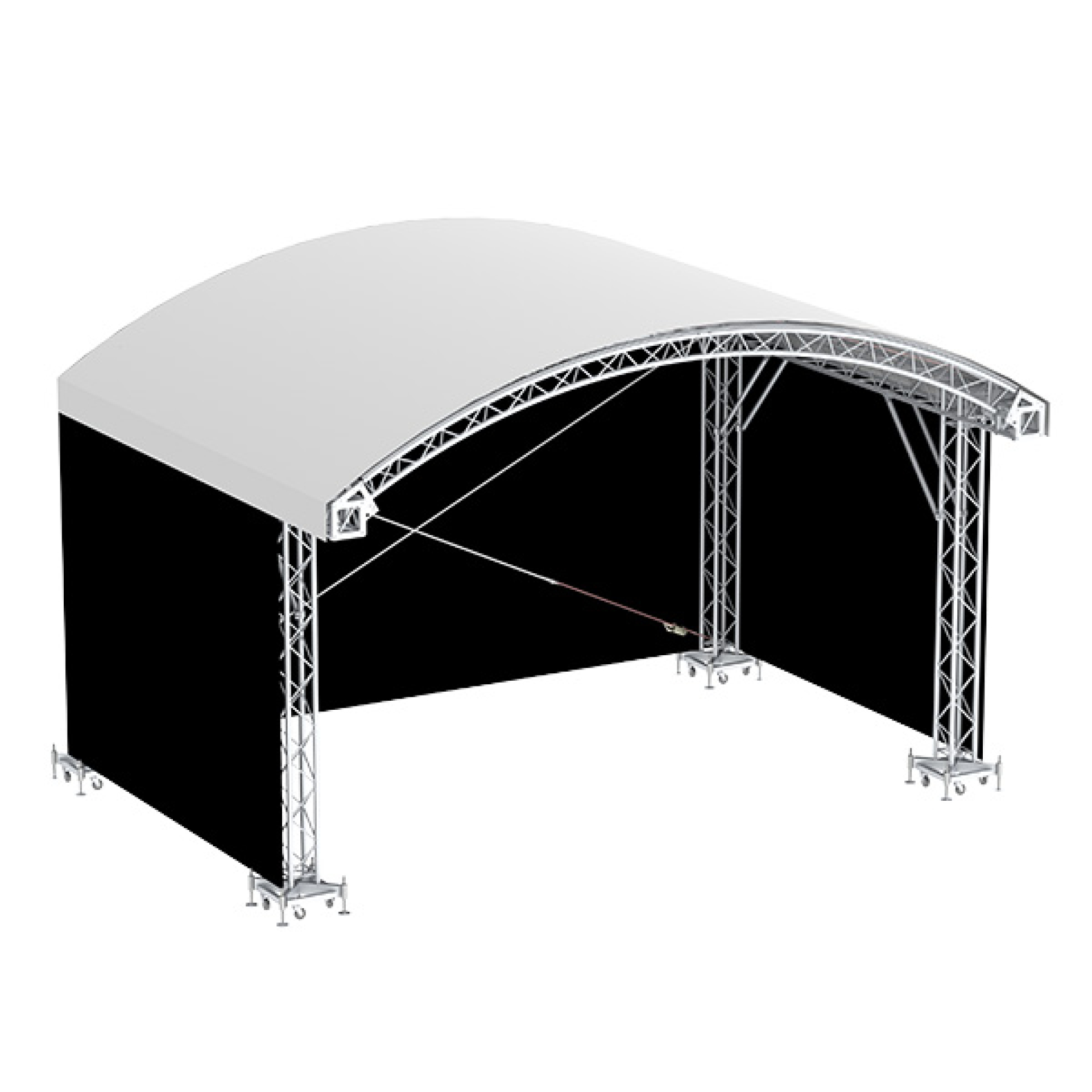

Sixty82 Arc Roof 6x4

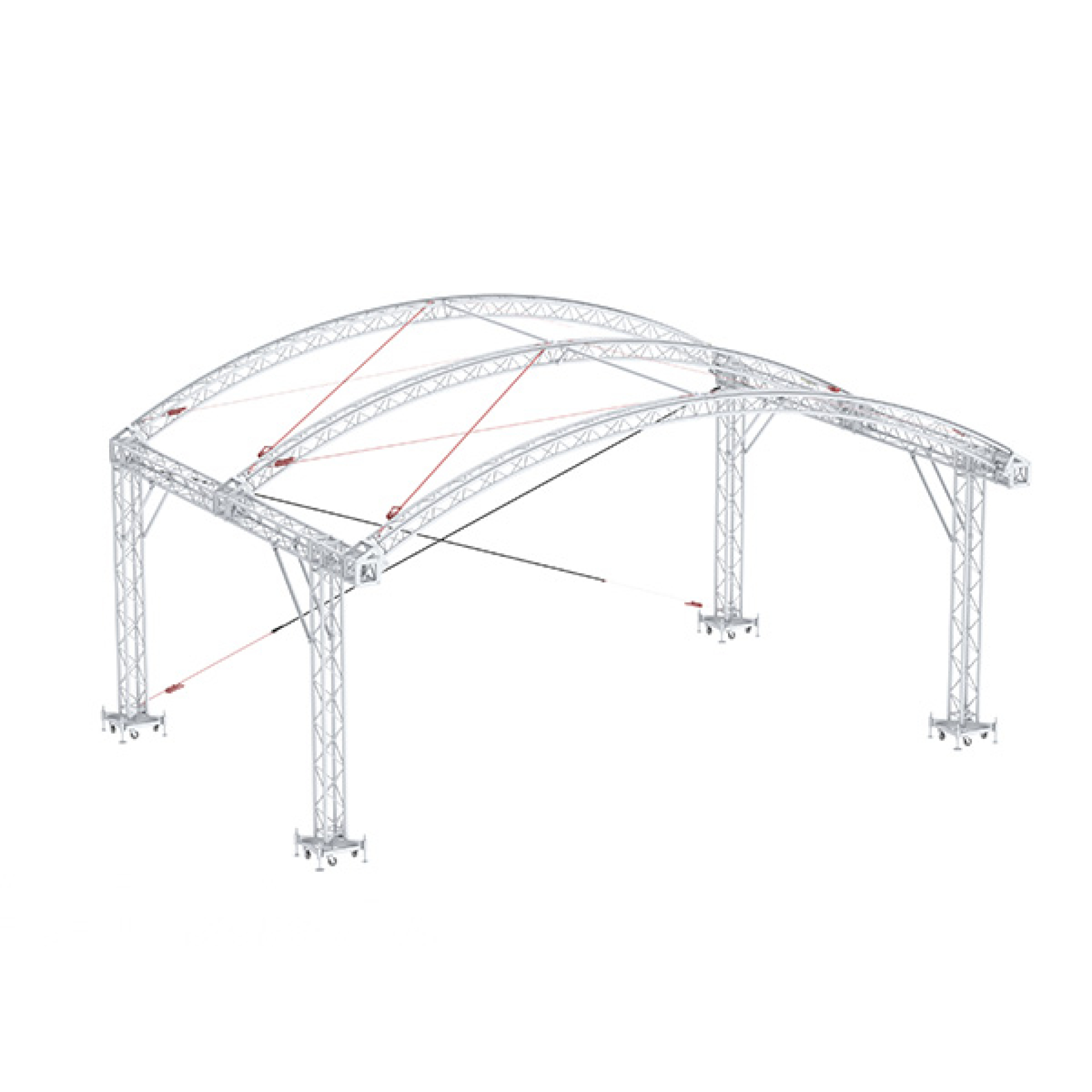

Sixty82 Arc Roof 8x6m
Sixty82 Arc Roof 6x4

Arc Roof Structure

Key Features:

  • High loading compared to size
  • Competitively priced
  • Structurally calculated and proven concept
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Arc Roof Structure


The SIXTY82 Arc Roof Structure is available in 6x4m and 8x6m sizes, is high loading, easily set-up by hand and contains no side guy wires.

Product Variants

8×6 metre specifications
  • Loading capacity UDL: 2441kg
  • Loading capacity front cantilever: 2x 250kg
  • Self-weight incl. wall canopies: 682kg
  • Dimensions inside for stage platform: 8x6m

Enquiry Form

6×4 metre specifications
  • Loading capacity UDL: 2100kg
  • Loading capacity front cantilever: 2x 250kg
  • Self-weight incl. wall canopies: 610kg
  • Dimensions inside for stage platform: 6x4m

Enquiry Form

  • Versatile contemporary roof structure based on standard trusses

    No obstructing guy wires in the sides

    Bespoke corners can be combined with Model M tower sleeve

    Competitively priced

    High loading in comparision to size

    Easy set-up by hand or material lifts

    Structurally calculated and proven concept

    Full aluminium structure

    Many options for staging or substructure

    Complies with European Standards for Temporary structures

    Max peak gust wind speed in-service: 20 m/s (measured at 10m height)

    Max peak gust wind speed out-of-service: 28 m/s

    Max peak gust wind during erecting: 10 m/s

    Ballast: Depends on configuration

    Trusses used: M29S / M29T

  • Standard canopy colour: grey/ black

    Optional : transparent or other colours

    Optional side wings

    Staging: several options are possible such as aluminium scaffolding system StageFrame82.

Arc Roof Structure - Downloads
SIXTY82 Arc Roof 8x6 Cutsheet
SIXTY82 Arc Roof 10x8 Cutsheet
Arc Roof Structure - Variant Downloads

You might like...

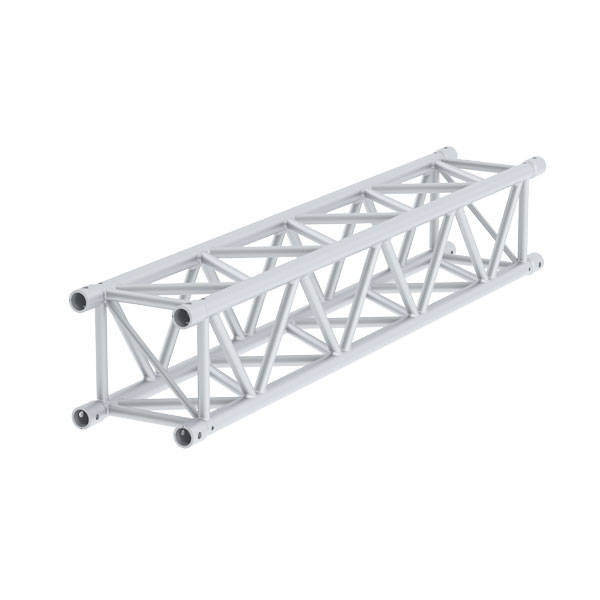

Sixty82 L35 Truss Square Length 200cm Sixty82 logo
Product - RIGGING
L35 High Load Truss
    • RFID tracked - integrated SIXTYTag, enabling RFID product tracking and traceability
    • All corners standard with 48.3 x 3mm main chords
    • Innovative industry leaders in the design and manufacture of trussing and staging systems

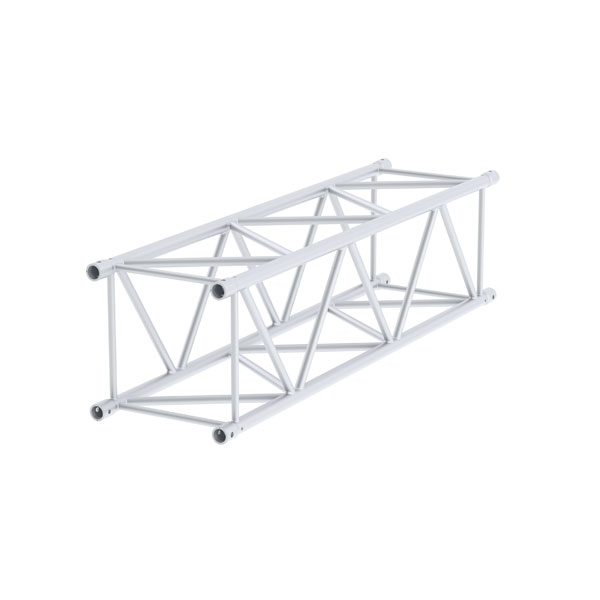

Sixty82 L52 Truss Square Length 200cm Sixty82 logo
