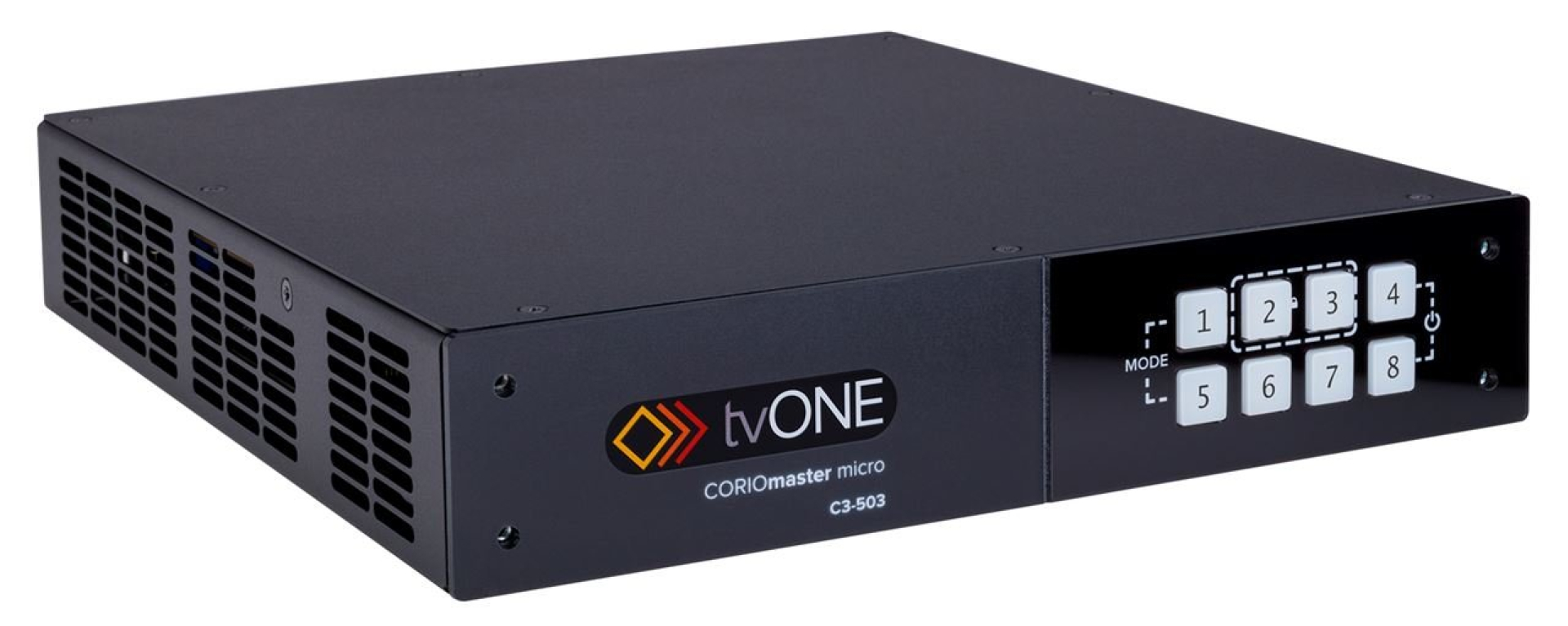

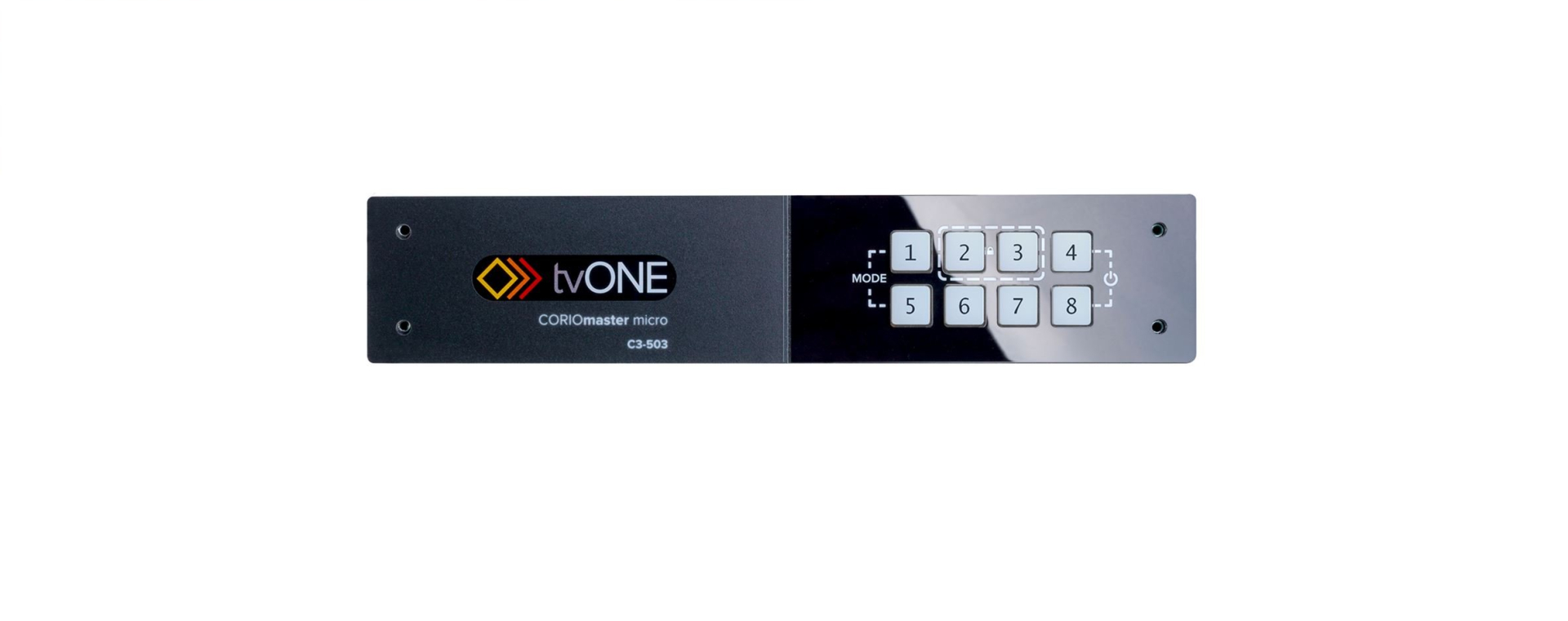

tvONE CORIOmaster micro Video Wall Processor-front

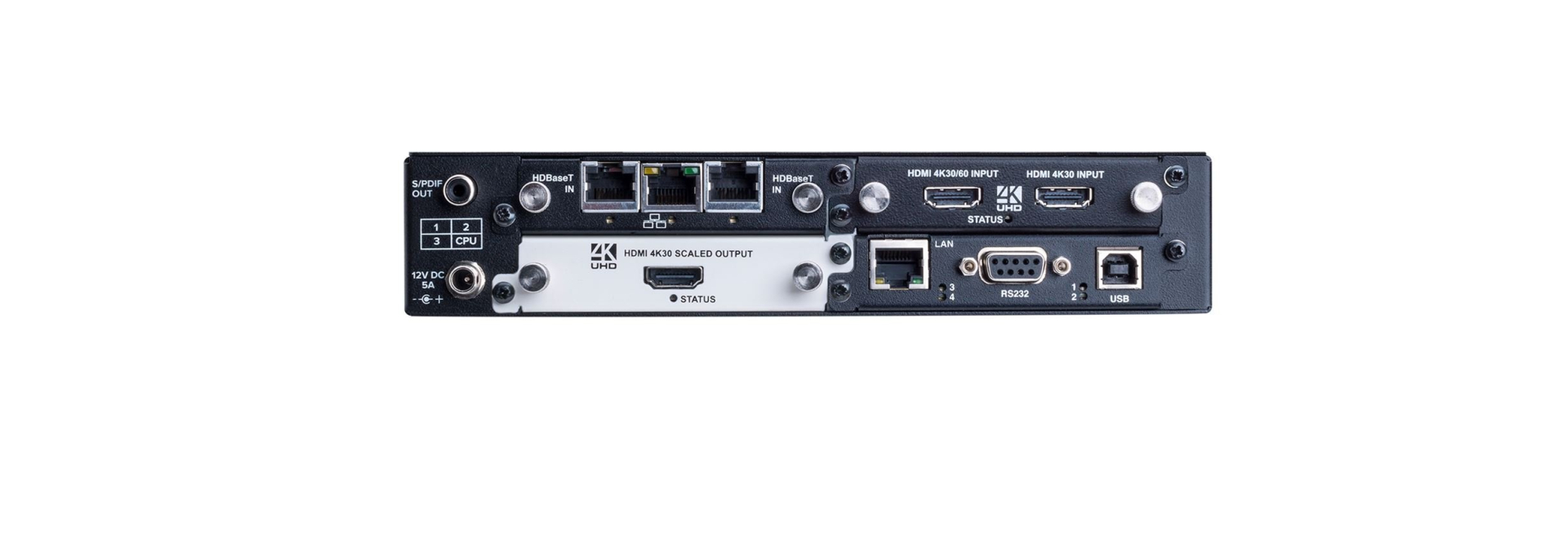

tvONE CORIOmaster micro Video Wall Processor-rear
tvONE CORIOmaster micro Video Wall Processor-front
tvONE CORIOmaster micro Video Wall Processor-rear

CORIOmaster micro

Key Features:

  • Ultra Compact, Half Width 1RU Processor
  • Quad HDMI Input Module
  • Low Latency Streams below 300ms
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

CORIOmaster micro

The tvONE CORIOmaster micro is an ultra-compact, half-width 1RU video wall processor with an Integrated front button panel for up to 8 inputs or up to 8 outputs in 1080p environments with optional 4K connectivity.

CORIOmaster micro is a powerful, efficient approach to building large video display systems. Multiple video windows can be positioned on LED, display based video walls or projector edge blends, displaying any of the sources connected to CORIOmaster. Windows can be visually transitioned into position, resized or rotated to any proportion allowing designers to achieve striking visual effects. Each system can support up to 2 separate video canvasses.

CORIOgrapher, the control software for the CORIOmaster series of processors, is a simple, easy-to-use design interface that enables window, source positioning and transition effects. This dynamic feature is easily managed through presets in CORIOgrapher or by simple commands executed by third party control systems. 50 presets can be saved permanently in the system.

  • Quad HDMI Input Module: Double the number of system inputs for up to 8 sources on a single CORIOmaster micro (half 1RU).

    Quad HDMI Output Module: Create expansive display set up with up to 8 outputs in CORIOmaster micro (half 1RU).

    Dual HDMI output HD resolution Keying module – add icons, layer data feeds and areas of interest.

    Synchronized playback – Optional mode for dual 4K streaming and media input module allow synchronized playback of up to 8 HD clips.

    Low latency IP mode – view an incoming IP stream from a live source with a typical latency below 300ms in this mode.

    FTP workflows – Receive media files over the network and store them for playback.

    AES Decryption – Decode IP streams that have been encrypted using the AES CBC standard using 128 or 256-bit key length

    EDID manager – Easily manage system default EDID’s and upload new EDID’s.

    Custom resolution management – Increased storage for up to 20 custom resolutions.

    New look CORIOgrapher – Design and control your video walls quickly and easily.
