Yamaha DM3 Digital Mixers

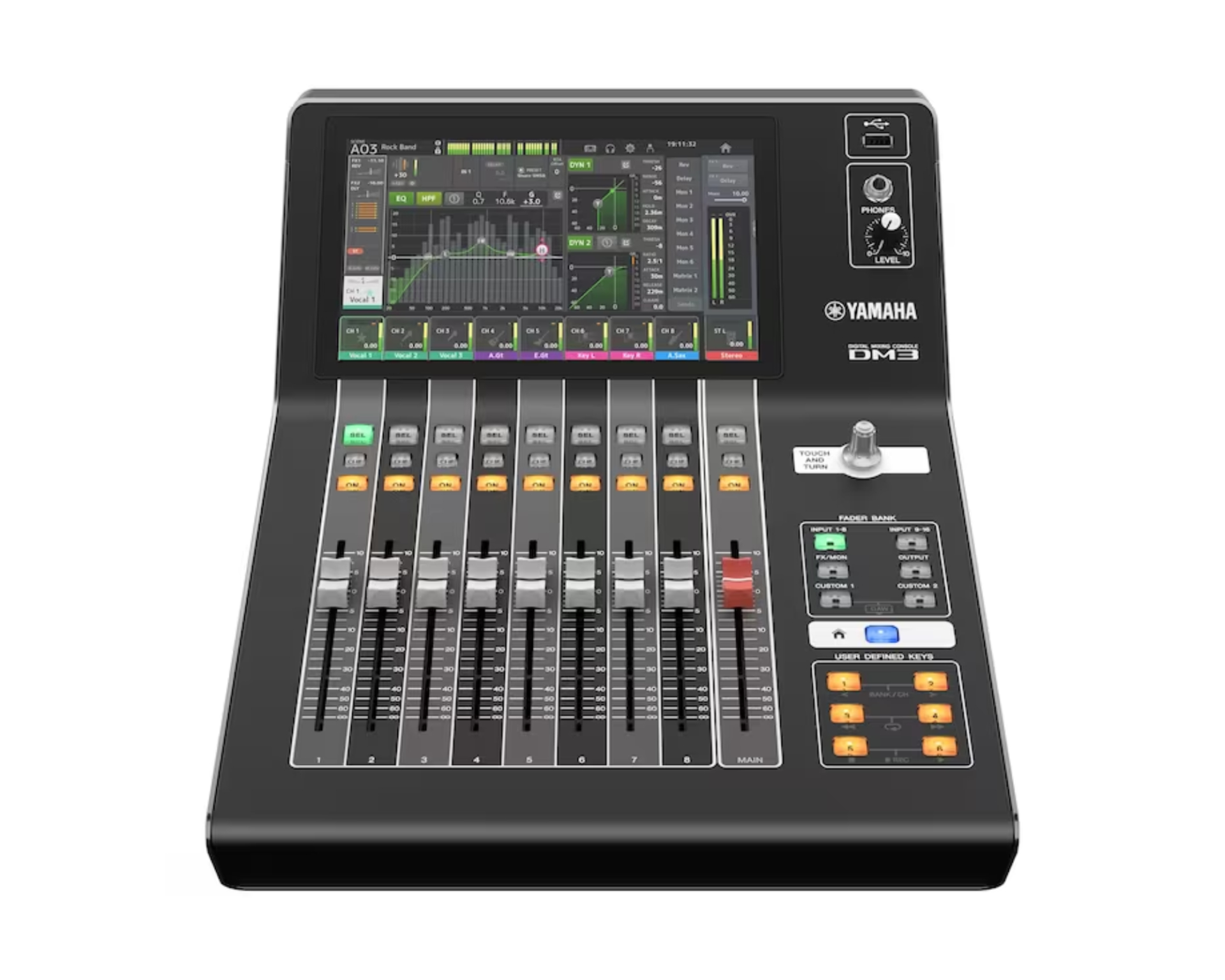

Yamaha DM3 Dante Digital Mixing Console
Yamaha DM3 Standard Mixing Console
Yamaha DM3 Dante Digital Mixer - rear
Yamaha DM3 Standard Mixing Console
Yamaha DM3 Dante Digital Mixer - rear

Yamaha DM3 Digital Mixers

Key Features:

  • QuickPro presets for fast setup.
  • Two high-quality multi-effects processors.
  • Scene presets to increase speed of setup.
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Yamaha DM3 Digital Mixers

The Yamaha DM3 Digital Mixer Series comprises two models, the DM3 Standard and the DM3 Dante — the first compact console to be fully compatible with Dante technology, allowing for faster and easier setup with multiple devices. Both consoles feature a multi-language user interface that can be configured to make operation simple and trouble-free for users with different backgrounds and varying skill levels.

Product Variants

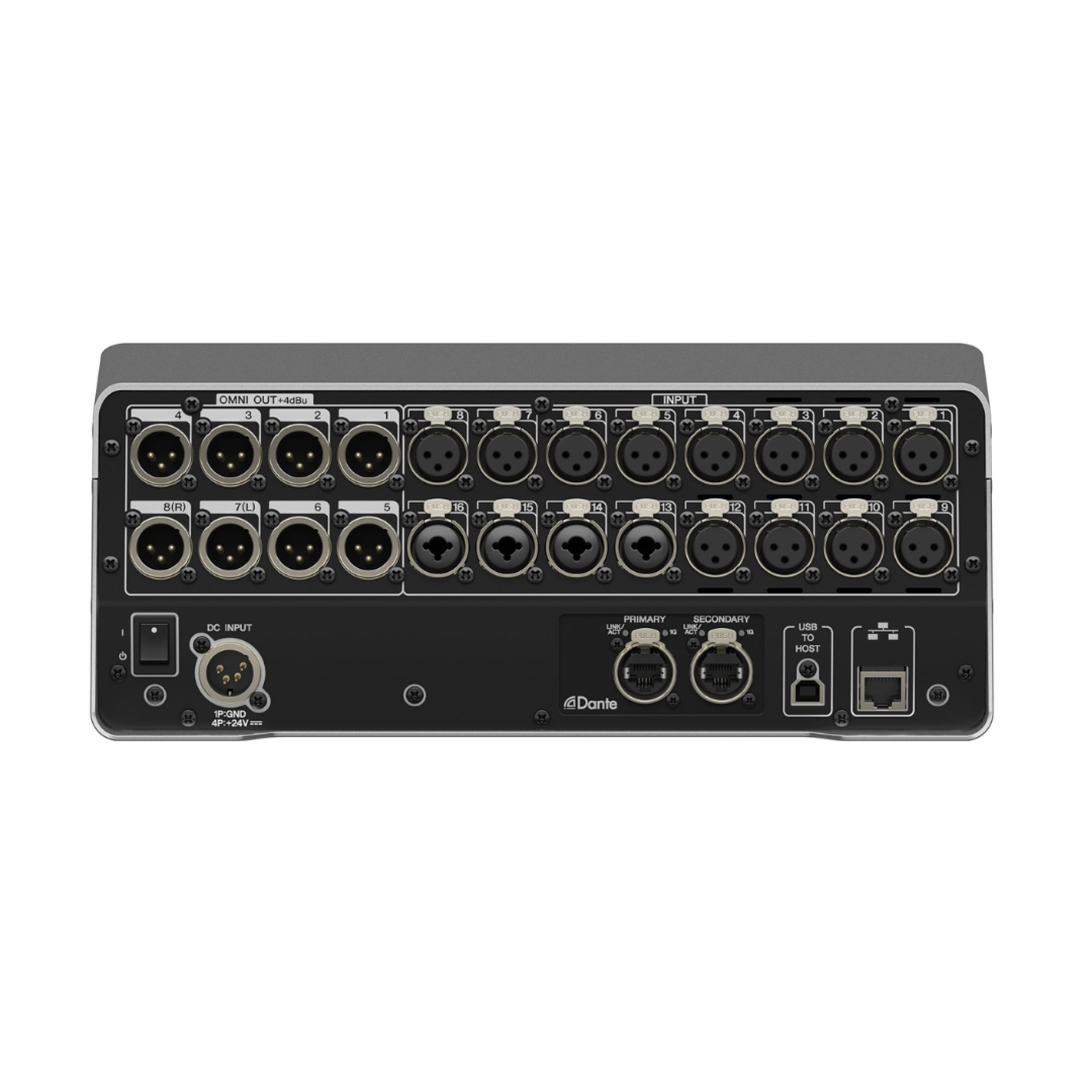

Yamaha DM3 Dante Digital Mixer - rear
DM3 Dante Digital Mixer
  • 8 + 1 fader configuration
  • 9-inch multi-touch screen
  • Input mixing channels: 16 mono + 1 stereo + 2 FX return
  • Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
  • Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
  • Dante: 16 inputs, and 16 outputs
  • USB: 18 inputs, and 18 outputs
  • 18 Effects, and GEQ on Mix 1-6 and Stereo channels
  • Sampling rate: 48kHz/96kHz

Enquiry Form

Yamaha DM3 Standard Mixing Console
DM3 Standard Digital Mixer
  • 8 + 1 fader configuration
  • 9-inch multi-touch screen
  • Input mixing channels: 16 mono + 1 stereo + 2 FX return
  • Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
  • Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
  • USB: 18 inputs, and 18 outputs
  • 18 Effects, and GEQ on Mix 1-6 and Stereo channels
  • Sampling rate: 48kHz/96kHz

Enquiry Form

Yamaha DM3 Digital Mixers

The word “compact” is often associated with limitations, and in the sound reinforcement world, often implies compromises in functionality, connectivity, or sound quality, and sometimes all three. Until now choosing a compact console has almost invariably been a matter of what you’re willing to sacrifice to get the capabilities you need in the space you have. The new DM3 series of mixing consoles shatters this stereotype, offering superb sound quality, fast and easy setup and operation, and professional-level features for live sound, streaming, and live or home recording and music production—a combination unmatched in any other mixing console this size. In an ever-changing world that constantly presents new challenges as well as opportunities, DM3 mixing consoles give you the power and flexibility to do more with than you ever imagined with a compact digital console.

Lightweight construction for supreme portability

Thanks to precise structural design and material selection, the DM3 Series combines a light weight of only 6.5 kg with a robust housing that can stand up to the rigors of touring.

The most compact Dante-compatible console

Yamaha’s most compact Dante-compatible mixer, the DM3 delivers high-quality 96kHz sound using 16 analog inputs and eight outputs with low latency, and matches perfectly with the Tio1608-D I/O Rack for simpler, faster system setup.

*There are two models in the DM3 Series, the Dante equipped DM3 and the DM3 Standard, which does not feature Dante.

Effects to enhance the creativity of sound engineers

The DM3 Series comes equipped with two high-quality multi-effects processors featuring eighteen types of high-grade effects including the REV HD and REV R3— the first of its kind in Yamaha mixers— offer sound engineers the freedom to craft a sound that accurately reflects their own sonic sensibilities.

Yamaha DM3 Digital Mixers - Variant Downloads
