The Yamaha DM7 series is a versatile digital mixer that combines unparalleled sound quality with seamless operation and expandability that affords users a comfortable yet creative engineering workflow while providing audiences with a memorable sonic experience.
Product Variants

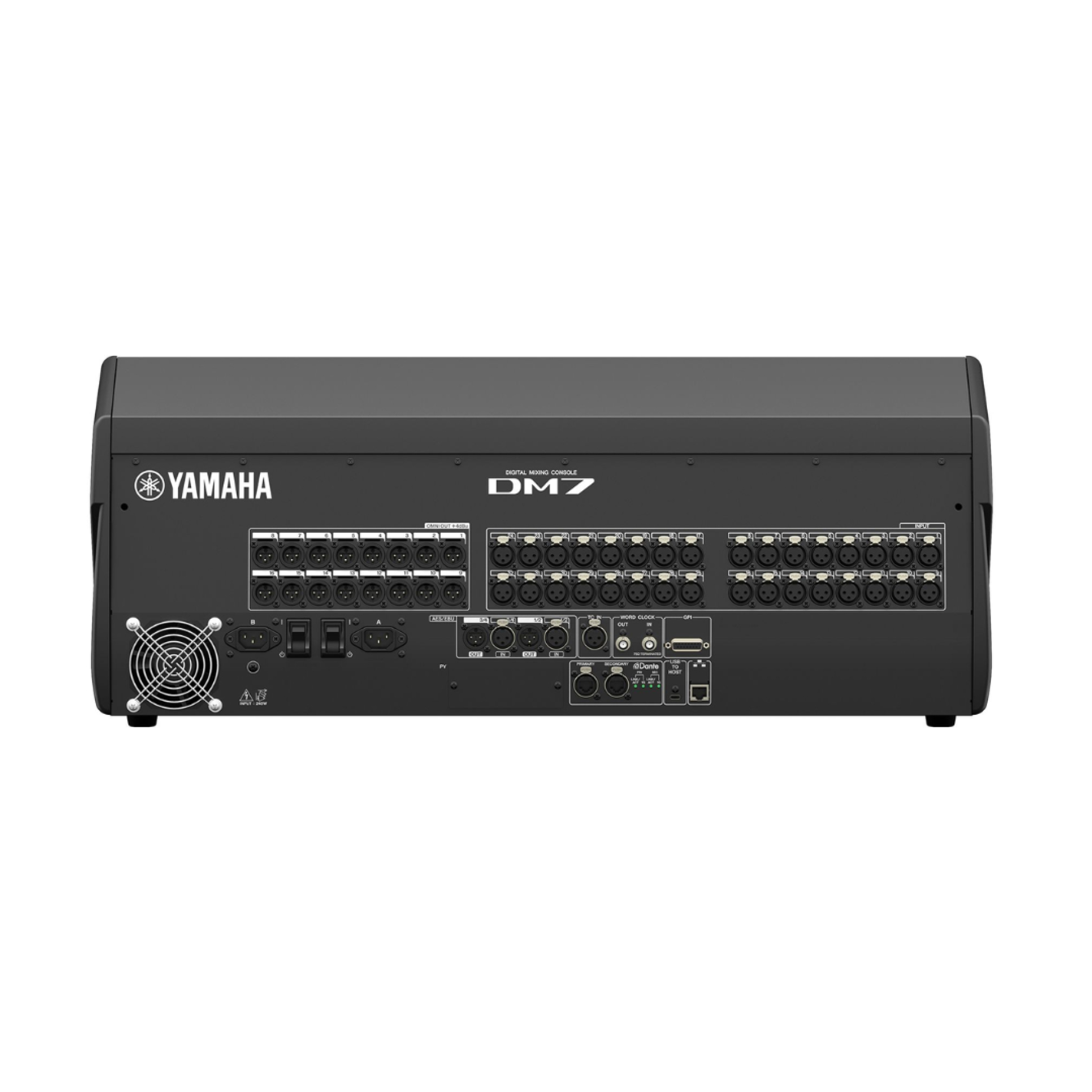

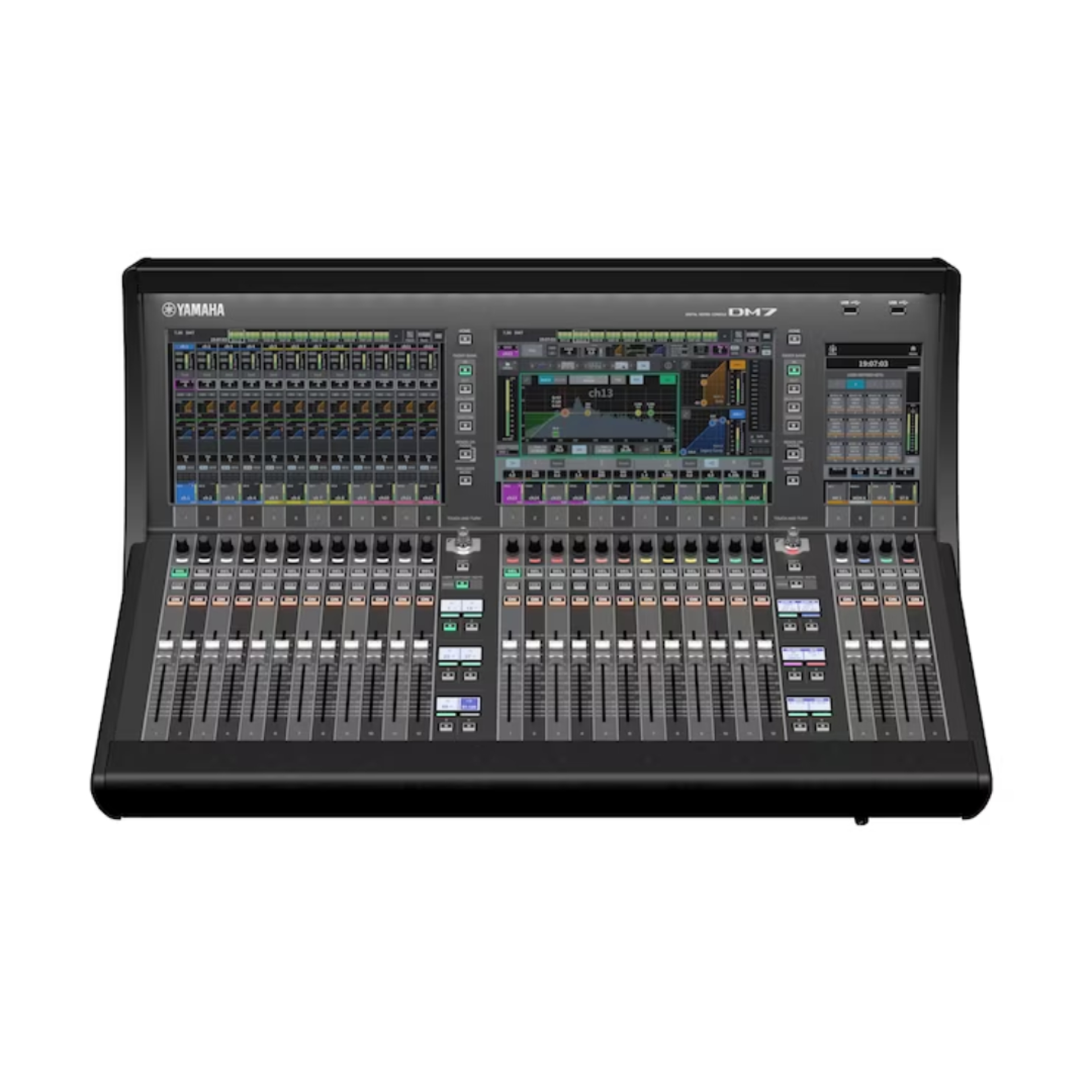

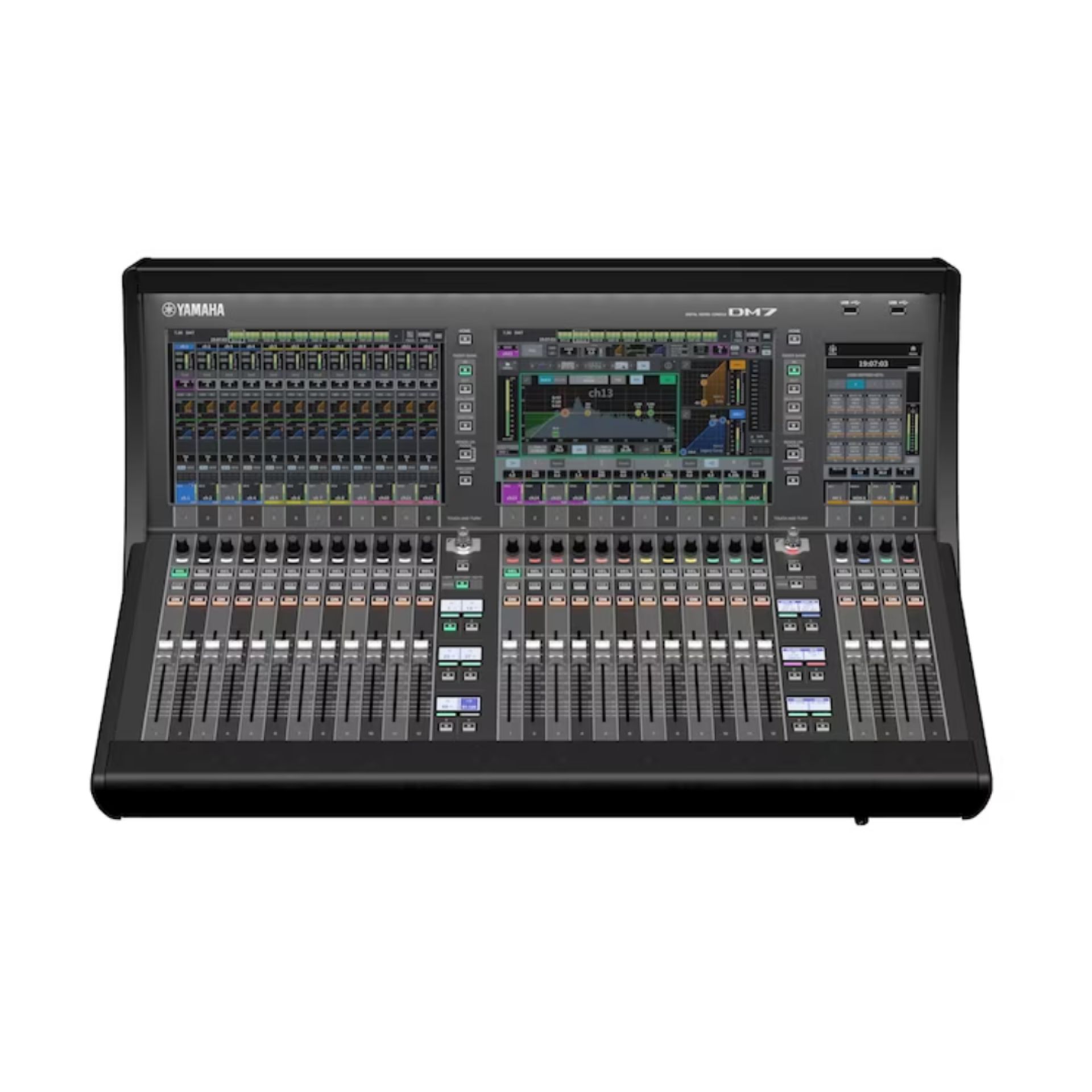

DM7 Digital Mixer
Input mixing channels: 120 mono
Buses: 48 Mix + 12 Matrix + 2 Stereo
Display: 12.1″ multi-touch screen x 2, 7″ multi-touch screen x 1
Faders: 28 (12 + 12 + 4)
Analog I/O: 32 inputs / 16 outputs
Dante: 144 in / 144 out
AES/EBU: 2 in / 2 out (with SRC)
Slot: PY Slot x 1
USB Audio Interface: 18 in / 18 out
Power supply: Redundant power supply built-in
Power consumption: 240 W
Dimensions (W x H x D): 793 mm x 324 mm x 564 mm (31.3″ x 12.8″ x 22.2″)
Net Weight: 23.5 kg (51.8 lb)
Enquiry Form

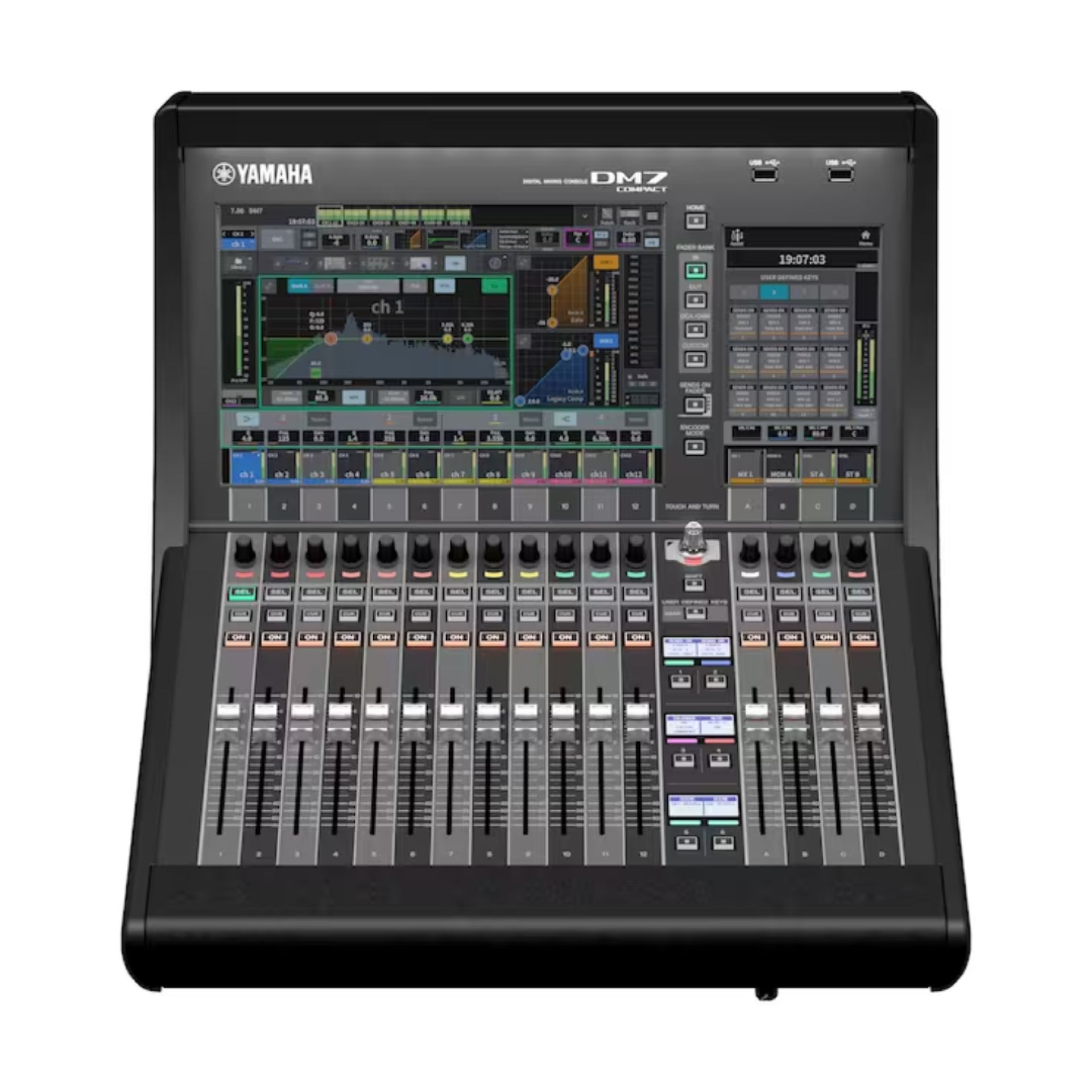

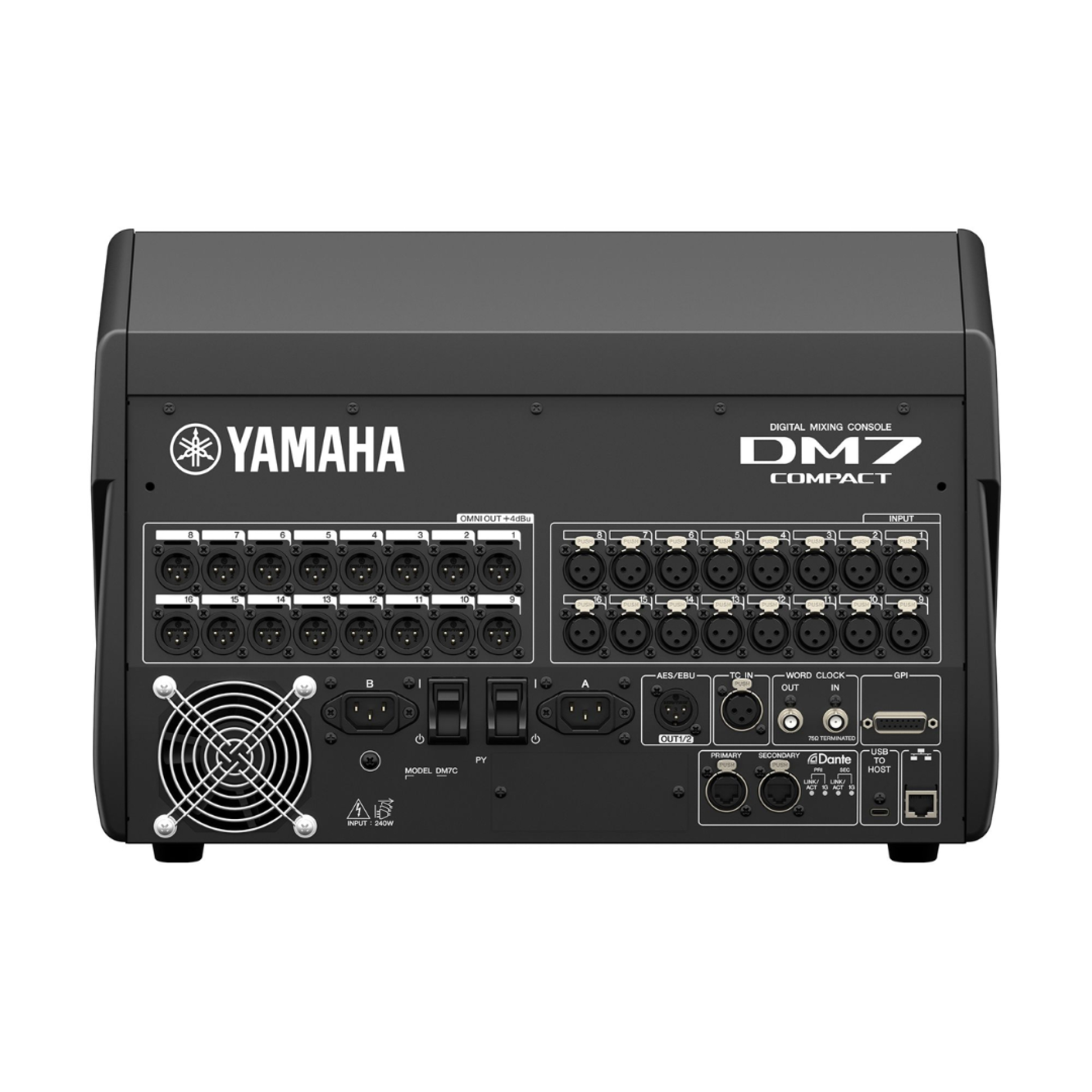

DM7 Compact Digital Mixer
Input mixing channels: 72 mono
Buses: 48 Mix + 12 Matrix + 2 Stereo
Display: 12.1″ multi-touch screen x 1, 7″ multitouch screen x 1
Faders: 16 (12 + 4)
Analog I/O: 16 inputs / 16 outputs
Dante: 144 in / 144 out
AES/EBU: 1 out
Slot: PY Slot x 1
USB Audio Interface: 18 in / 18 out
Power supply: Redundant power supply built-in
Power consumption: 240 W
Dimensions (W x H x D): 468 mm x 324 mm x 564 mm (18.5″ x 12.8″ x 22.2″)
Net Weight: 16.5 kg (36.4 lb)
Enquiry Form

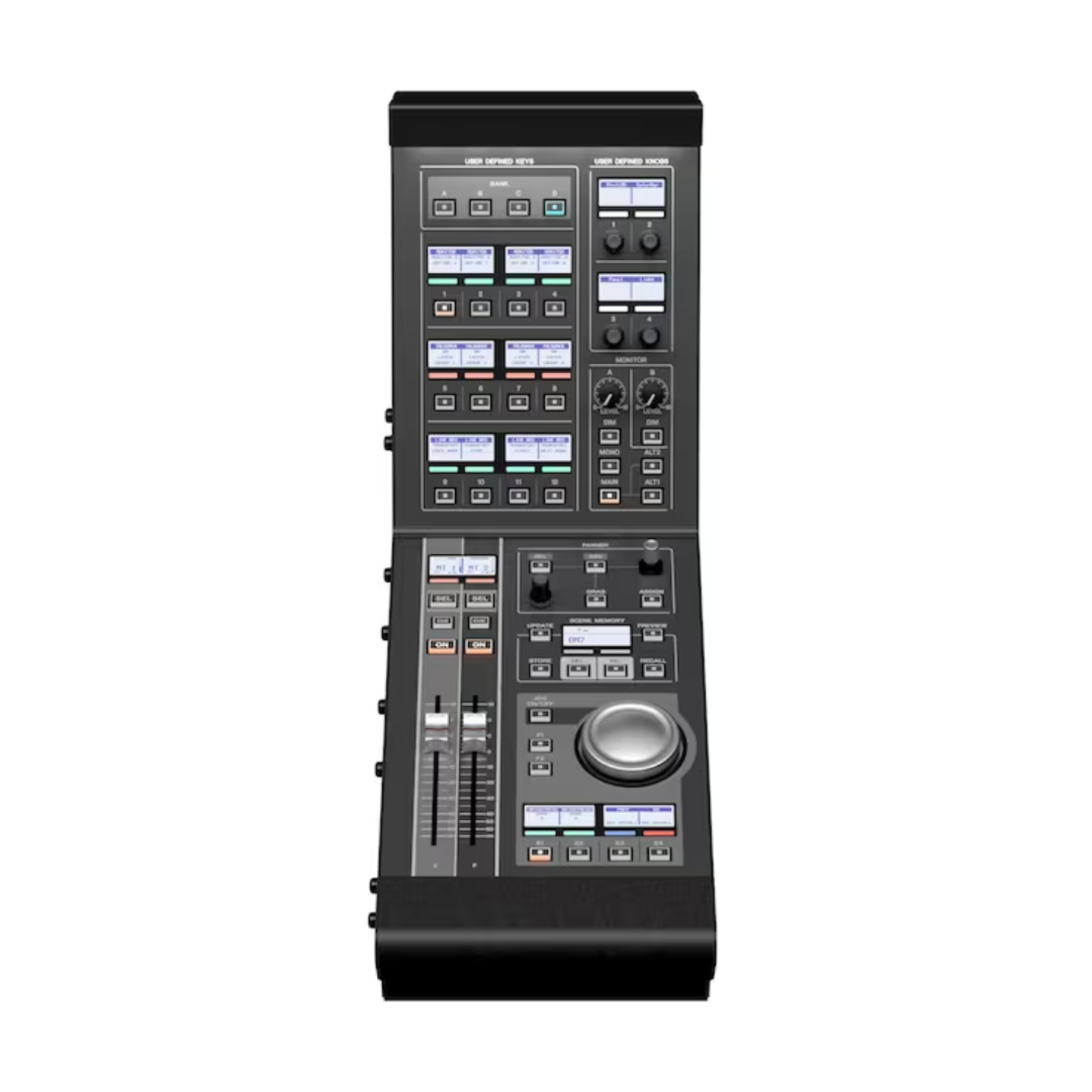

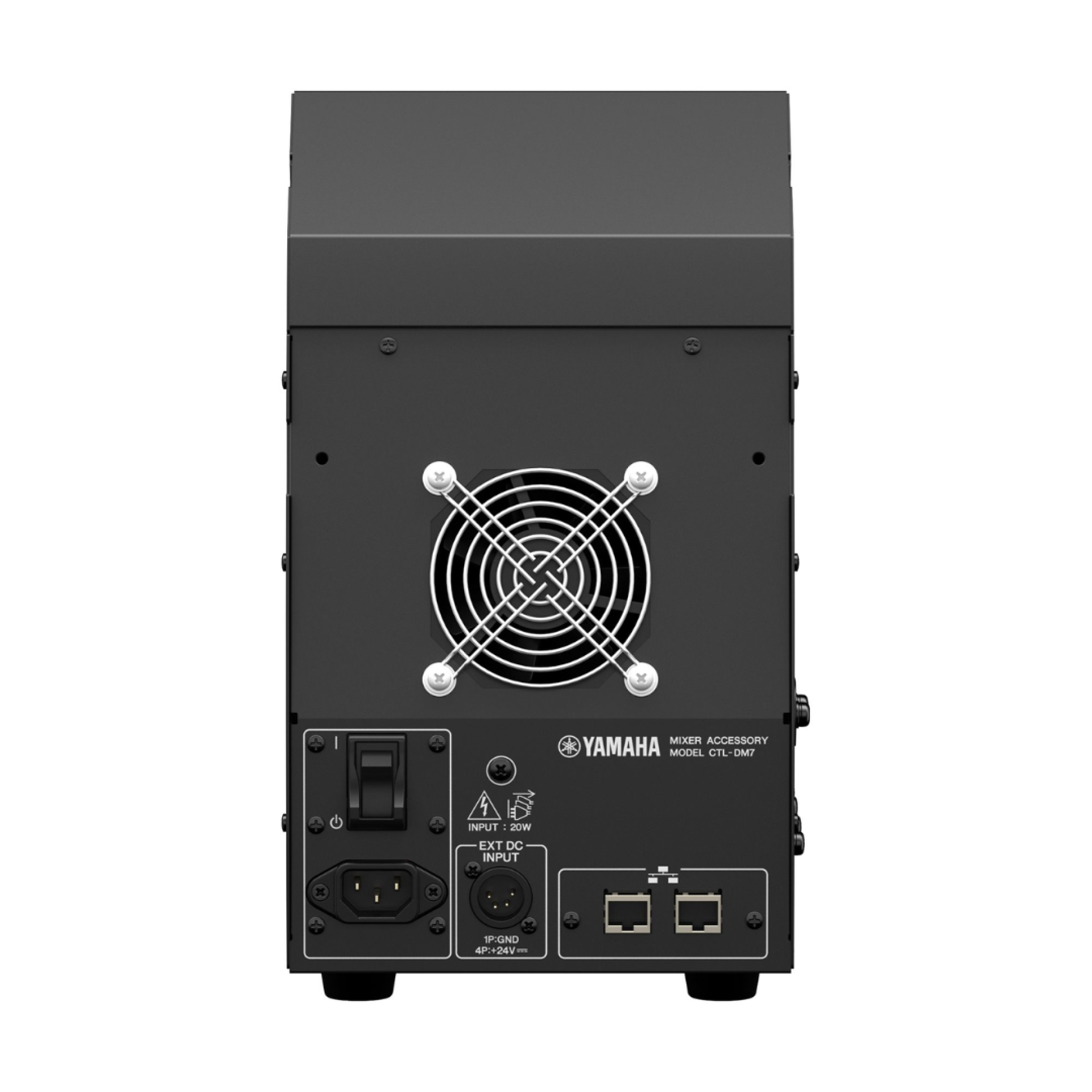

DM7 Control Expansion Controller
Faders: 2
User Defined Keys: 16
User Defined Knobs: 4
Scene Memory Keys: Update, Preview, Store, Recall, Inc, and Dec
Monitor Control for Monitor A/B
Panner: 1
Jog Wheel: 1
Power supply: AC INPUT and EXT DC INPUT for power supply redundancy
Power consumption: 20 W
Dimensions (W x H x D): 191 mm x 323 mm x 562 mm (7.6″ x 12.8″ x 22.2″)
Net Weight: 7 kg (15.5 lb)
Enquiry Form
With its comprehensive suite of mixing tools and flexible expansion options, the DM7 series has you covered in any environment that requires top-quality sound, and gives you the capability to meet the ever-changing demands of an expansive range of mixing applications.
Throughout Yamaha’s long history of developing state-of-the-art digital mixers, there is one concept that we have consistently adhered too— the ideal starting point for sound creation is a totally natural, or “transparent” sound. This concept of natural sound is exemplified by the DM7 series high-end input section, producing a high-fidelity, uncoloured sound that serves as the engineer’s canvass to colour, shape, and recreate, using the DM7 series built-in plug-ins, EQ, and dynamics. All in all, the DM7 series has evolved in every aspect to help engineers create their ideal sound.
Off to a solid start
It all starts with your sound, and if the input section of your mixer is compromised or lacking in any way, your mix isn’t likely to meet your, or your audience’s expectations. To meet our own very strict standard of sound quality, the inputs of Yamaha consoles and I/Os are meticulously designed and constructed. We take every aspect of the initial input stage into consideration in order to achieve our signature “transparent sound”, from the individual components, power supply, and grounding, to the circuit layout, and mechanical structure of the inputs.
In addition, the DM7 series supports sample rates up to 96kHz for superior, high-resolution sound quality.
Powerful Channel Strip
The DM7 series Channel Strip is equipped with numerous advanced functions for convenient, intuitive sound creation. In addition to the Channel EQ inherited from the RIVAGE PM, the newly added FET Limiter and Diode Bridge Compressor offer expanded dynamics control, while the new “History” function combines with the existing comps and gates for easier and more precise dynamics adjustment than ever. The “Mix Balance” parameter is yet another new function that allows you to easily mix the original sound with a compressed sound and apply parallel compression. In addition, the order of EQ and Dynamics 2 can now be changed to suit your creative preferences, further expanding the range of sound creation.
The DM7 series also features the Dan Dugan automatic mixer with up to 64 channels in the channel strip as a standard feature. In cooperation with Dan Dugan Sound Design, a US company renowned for its proprietary algorithm-based automatic microphone mixer, the automatic mixer function can be conveniently accessed from the channel strip without the need for EQ RACK resources.
The input meters now also include a histogram display to help adjust HA levels.
