Midas DL16 Stage Box
Midas DL16 Stage Box
Midas DL16 Stage Box
Midas DL16 Stage Box
Midas DL16 Stage Box
Midas DL16 Stage Box

Midas DL16 Stage Box

£ 475.00

Ex-VAT

6 Available

Condition:

  • As New
  • Boxed
  • 12 Month Warranty

Shipping is to UK only. Export customers, please call for more info.

Or call us today on

+44 (0)1494 446000

Midas DL16 Stage Box

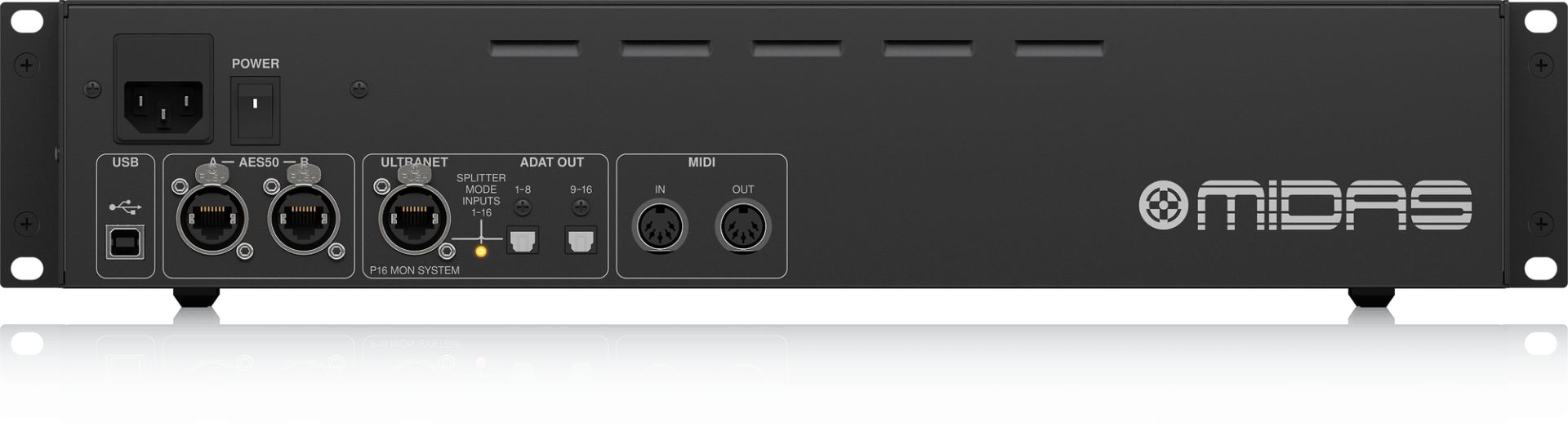

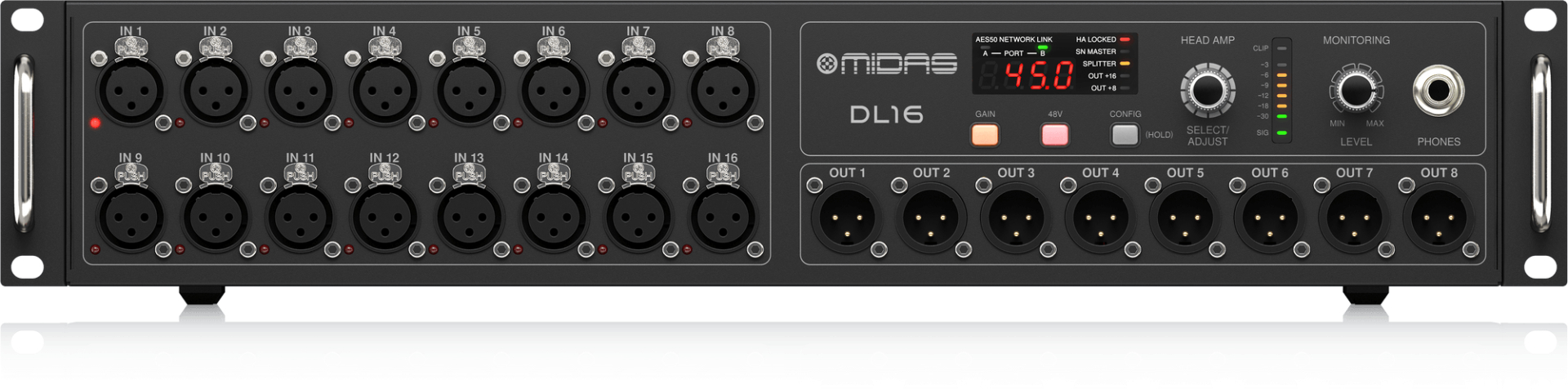

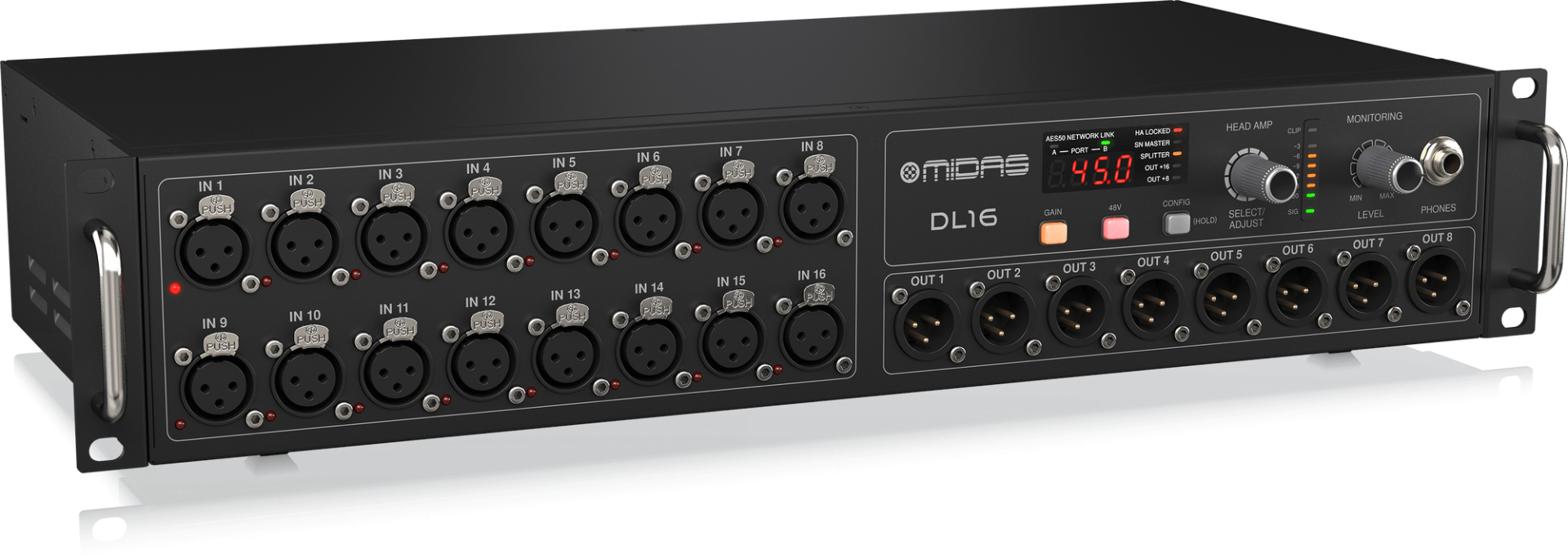

The Midas DL16 is a 16 Input, 8 Output Stage Box with 16 Midas Microphone Preamplifiers, ULTRANET and ADAT Interfaces.

If your application calls for more inputs, or just want to keep your cable runs short and tidy, putting a DL16 at stage front and another behind the drum riser provides an additional 16 inputs for drum and guitar/bass amp mic’ing. The best part – all it takes is a single CAT5 cable per stage box.

  • 16 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power

    8 electronically balanced low impedance line level outputs

    ULTRANET personal monitoring system connectivity for in-ear applications

    Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability

    Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes-no merger or router required

    Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK connectors

    Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

    All settings programmable from front panel controls or console

    Status indicator LEDs on front panel

    Headphones output assignable to any of the inputs or outputs for on-stage monitoring

    MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices

    Features Neutrik etherCON AES50 and ULTRANET network ports

    Rugged 2U rackmount chassis for durability in portable applications

    Auto-ranging universal switch-mode power supply
