Astra Blade100IP

Astra Blade100IP

PROASTRABLADE100IP

Key Features:

IP65 motorized 100cm Led batten with TIlt and zoom control

16x40W RGB+WW LEDs with two variable white linear LED strips on both sides, pixel control

Zoom from 4° to 40°

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

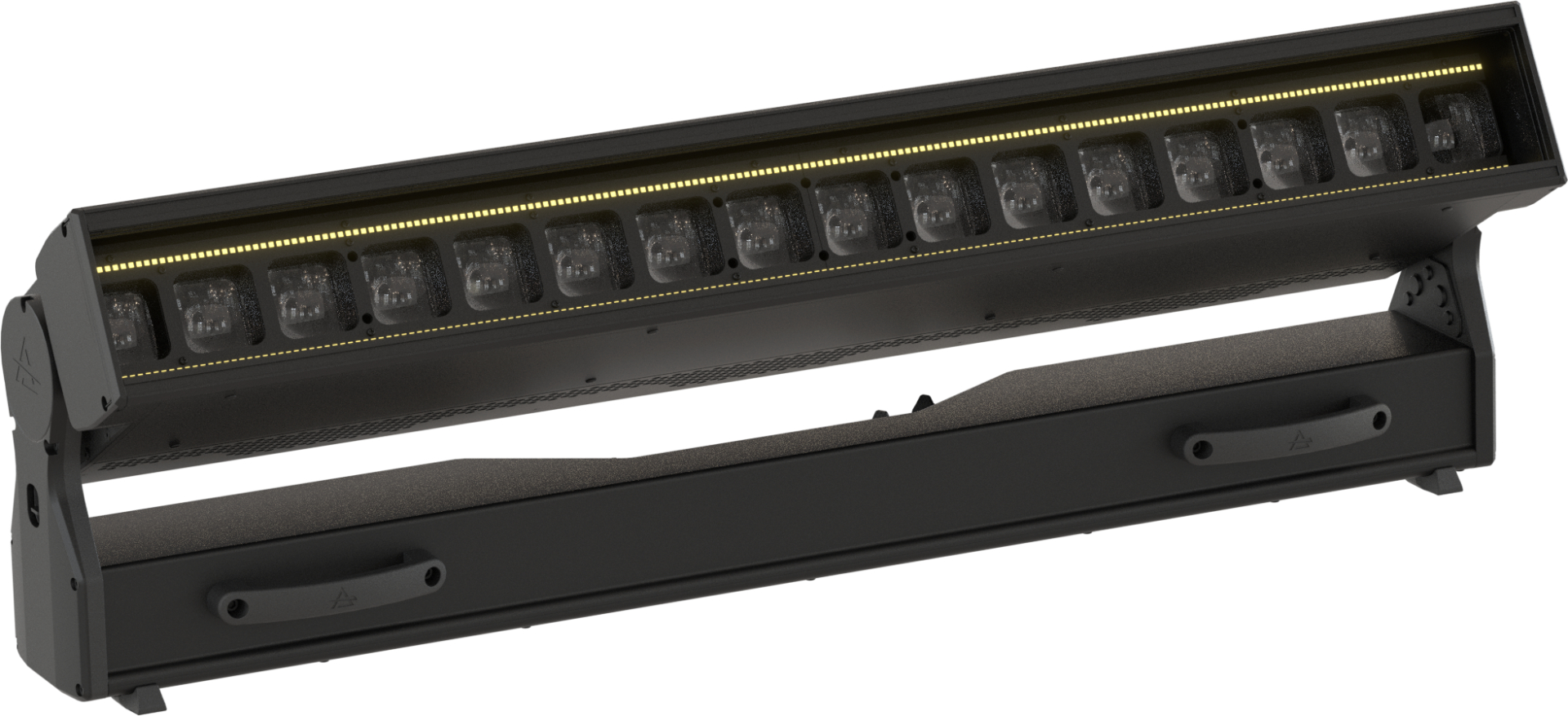

Astra Blade100IP

IP65 motorized linear batten with 16x40W RGB+WW LEDs with two variable white pixel linear LED strips on both sides and zoom 4°-40°

The Astra Blade100IP is an IP65 rated, linear motorized LED batten, featuring high output through 16 x 40W RGB+WW LEDs and two variable white pixel linear LED strips on both sides, a wide zoom range, and control through the powerful PROLIGHTS Spektra OS algorithm that reproduces perfect white spectrums with high colour rendering.

The new squared lens design maximizes lumen efficiency and provides a bright curtain of light at its narrowest angle of just 4°, while delivering smooth and homogeneous washes at its widest 40° wash when zoomed out.

Astra Blade100IP offers motorized tilt and individual pixel control across the 16 emitters and 32 sectors for your side strips, as well as both wired and wireless CRMX operations or through multi-protocol ethernet support.

The water and dustproof design ensures enhanced reliability for any indoor or outdoor stages, making it virtually maintenance-free.

Source: 16x40W RGBW Osram Ostar LEDs

Luminous flux: (4,5°) 12'028 lm - (43,6°) 14'054 @Full

Lux: (4,5°) 50'695 lx - (43,6°) 2'156lx @5 m full

Other: 2 VW linear LED strips with 32 individual sections (16 sections on the top + 16 sections on the bottom)

Source life expectancy: > 50.000 hrs

Zoom range: 4,5° - 43,6° motorised linear zoom

Lens diameter: square 50x50mm / 0''x1.97''

Lens type: high-quality glass lens optics

Colour control: CCT, RGBW, HSI, Colour Macros

CCT: CCT control, + / - green correction, tungsten emulation

Colour wheel: virtual colour wheel with macros

Macros: several pre-built pixel macros with adjustable speed

Control Resolution: 16-bit dimmer, colours

Pixel patterns: pre-programmed dynamic and static patterns

FX generator: adjustable foreground/background colour, index, speed, direction

Static mode: selection of static dimmer, colors and color temperature

Manual mode: manual adjustment of colour

Protocols: DMX512, RDM, ArtNet, sACN, CRMX

Pixel control: 16 px (main) + 32 px (strips) pixel2pixel control

Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

RDM: RDM for remote monitoring and settings

Display: LCD high resolution colour display with autoflip

Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)

Master/Slave: for synchronised operation of more units linked in a chain

EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
