Astra Hybrid330IP

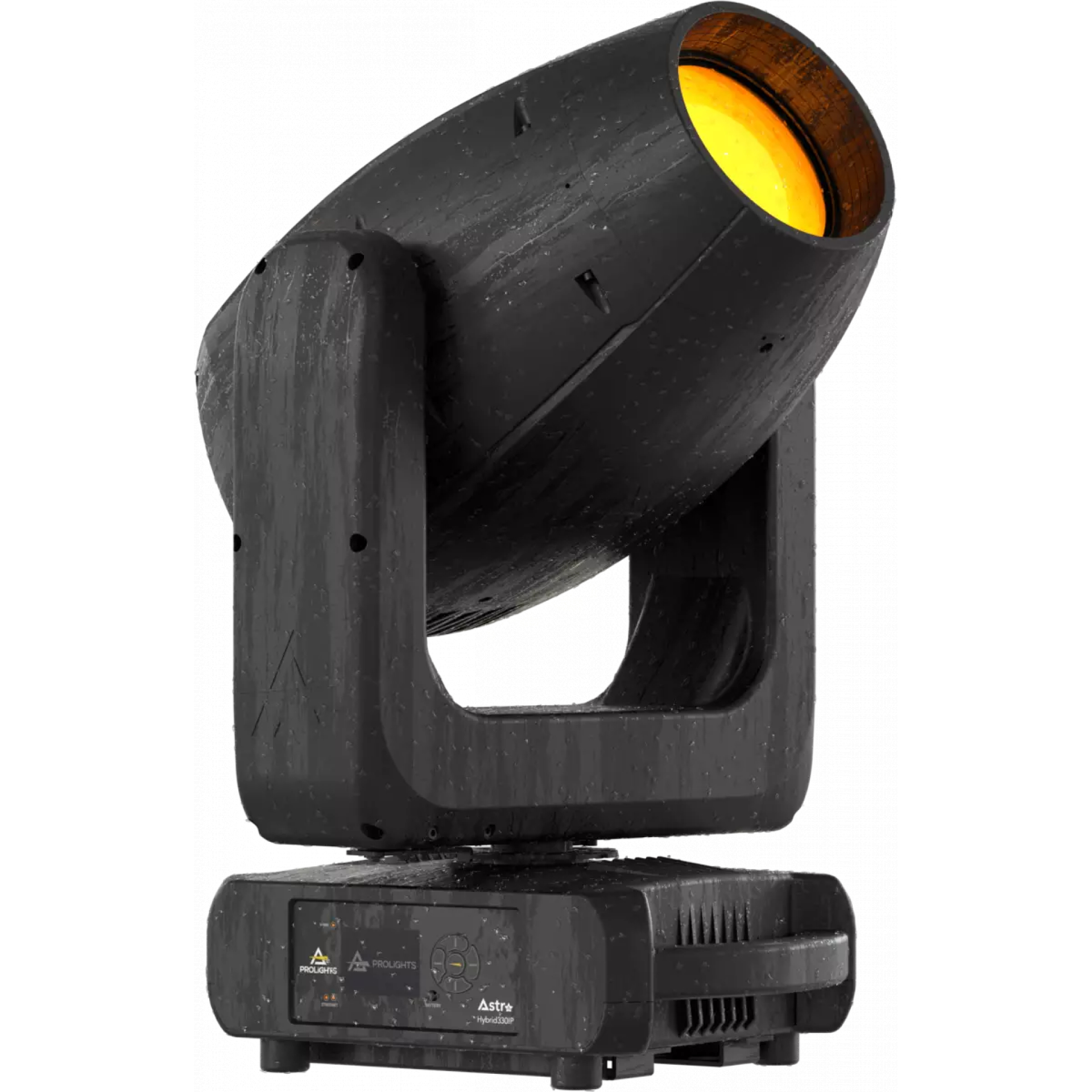

PROLIGHTS Astra Hybrid330IP

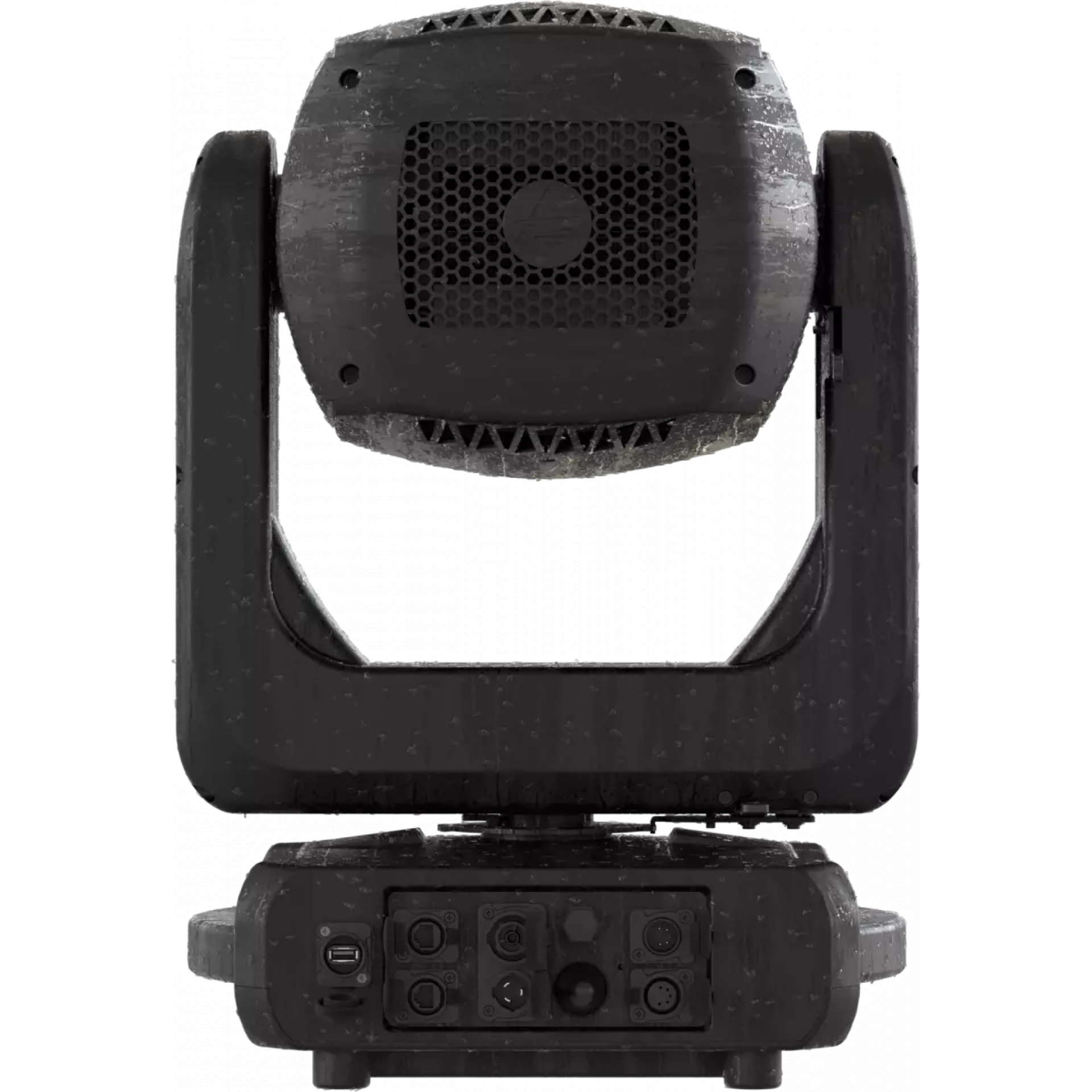

PROLIGHTS Astra Hybrid330IP - Rear
PROLIGHTS Astra Hybrid330IP - side

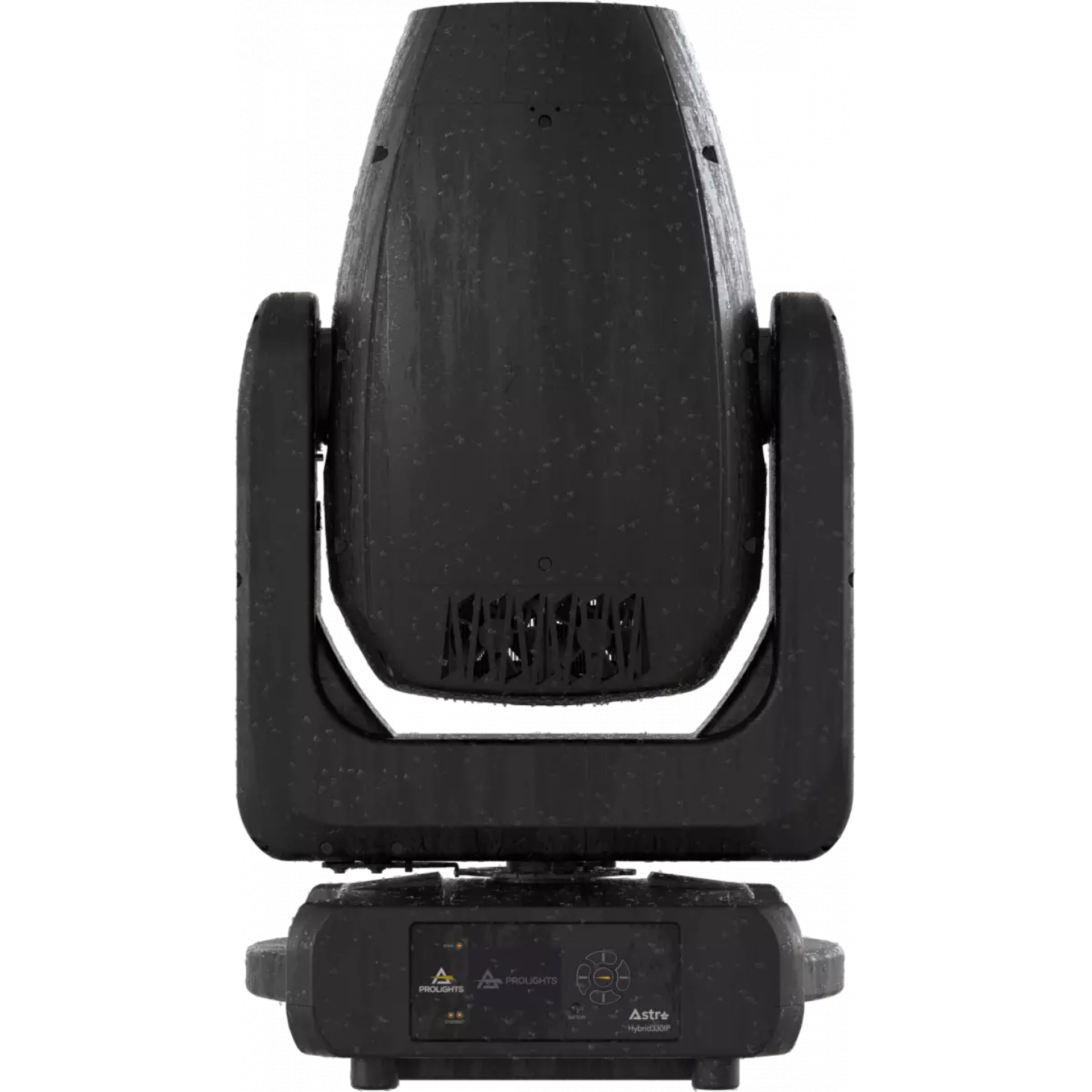

PROLIGHTS Astra Hybrid330IP Top
PROLIGHTS Astra Hybrid330IP - Rear
PROLIGHTS Astra Hybrid330IP - side
PROLIGHTS Astra Hybrid330IP Top

Astra Hybrid330IP

PROASTRAHYB330IP

Key Features:

  • IP65 hybrid moving light with 330W LED source
  • Linear zoom ranging from 3° to 50°
  • 25 kg
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Hybrid330IP

The PROLIGHTS Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

Equipped with a 330W LED, this lightweight unit weighs only 25kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

Key features of the PROLIGHTS Astra Hybrid330IP include linear CMY colour mixing, three colour wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

  • Source: 330W high-power white LED

    CCT: 7,000

    Luminous flux: (3°) 8,493lm; (50°) 15,272lm

    Lux: (3°) 114,701lx; (50°) 1,882lx @ 5m full

    Source life expectancy: > 30,000 hr

    Zoom: 3° - 50° motorised linear zoom

    Lens diameter: 140mm / 5.51''

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised

  • Colour mixing: CMY colour system on 3 gradually fading colour wheels

    CCT: on wheel 2,400K and 3,200K

    Colour wheel: 9 dichroic filters on 3 independent colour wheels

    Colour wheel: High CRI colour filters

    Control Resolution: 16-bit dimmer

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 8 rotating gobos + open, interchangeable, indexing

    Gobo size: outer: 20mm; image: 16mm; thickness: up to 3mm

    Fixed gobos: 11 fixed gobos + open

    FX generator: 2 prisms overlap for spectacular aerial effects

    Circular prism: 8f with bi-directional rotation, indexing

    Linear prism: 6f with bi-directional rotation, indexing

    Frost: linear 0 - 100% frost filter

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX

    DMX channels: 29 channel

    Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: LCD high resolution colour display with autoflip

    Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included or via USB pen drive

    Other: Ethernet pass through in case of PSU or Master PCB failure

Astra Hybrid330IP - Downloads
PROLIGHTS Astra Hybrid330IP Spec Sheet
Download
