Astra Hybrid420
PROLIGHTS Astra Hybrid 420 - front
PROLIGHTS Astra Hybrid 420 - pointing
PROLIGHTS Astra Hybrid 420 - side
PROLIGHTS Astra Hybrid 420 - back
PROLIGHTS Astra Hybrid 420 - pointing
PROLIGHTS Astra Hybrid 420 - side
PROLIGHTS Astra Hybrid 420 - back

Astra Hybrid420

PROASTRAHYB420

Key Features:

  • 420W USHIO NSL421 lamp
  • Linear zoom ranging from 2.7° to 40°
  • Linear CMY, animation wheel, 2 gobo wheels, 3 colour wheels, 2 overlapping prisms
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Hybrid420

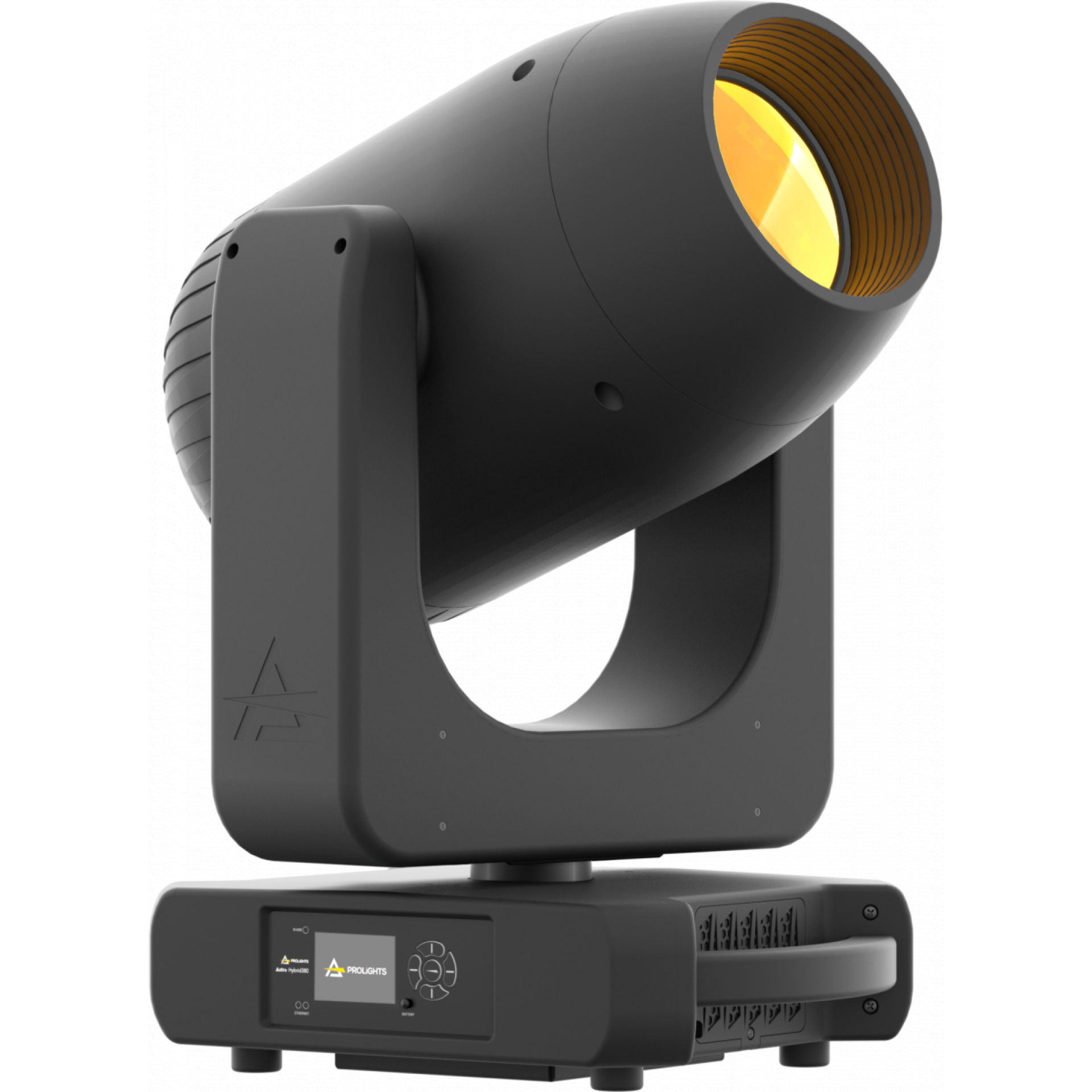

The PROLIGHTS Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.

The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it’s equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.

The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.

  • Source: 420W USHIO NSL421

    CCT: 7.000

    Luminous flux: 35,815lm

    Lux: (2.7°) 99,284lx - (40°) 281lx @15m

    Source life expectancy: 6.000hr

    Zoom: 2.7° - 40° motorised linear zoom

    Lens diameter: 153mm / 6.02''

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised

  • Colour mixing: CMY colour system on 3 gradually fading colour wheels

    CCT: on wheel 2,500K and 3,200K + CTB

    Colour wheel: 15 dichroic filters on 3 independent colour wheels

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 9 rotating gobos + open, interchangeable, indexing

    Gobo size: outer: 15.9mm - image: 12mm - thickness: 1.1mm

    Fixed gobos: 18 fixed gobos + open

    FX generator: 2 prisms overlap for spectacular aerial effects

    Circular prism: 8 f and 4f with bi-directional rotation, indexing

    Frost: linear 0 - 100% frost filter

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX

    DMX channels: 30 channel

    Wireless control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: LCD high resolution colour display with autoflip

    Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOX2) not included

    Other: 16bit control of dimmer

Astra Hybrid420 - Downloads
Astra Hybrid420 Spec sheet
Download
