Audio-Technica 5000 Series Wireless Microphone Systems
Audio-Technica 5000 Series Wireless Microphone Systems-1
Audio-Technica 5000 Series Wireless Microphone Systems-1

Audio-Technica 5000 Series Wireless Microphone Systems

Key Features:

  • 230 MHz UHF tuning bandwidth
  • Optimized for the highest-quality audio with dual-compander circuitry
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Audio-Technica 5000 Series Wireless Microphone Systems

Audio-Technica 5000 Series Wireless Microphone Systems. Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, this wireless system provides incredible audio quality and proven, critically acclaimed performance for musicians and artists, broadcasters, and presenters worldwide.

Maximum Versatility

The dual-channel receiver provides a tuning bandwidth of 230 MHz, giving you an expansive capacity to operate in today’s congested UHF environment.

Unmatched Audio Quality

The 5000 Series is optimized for the highest-quality audio with dual-compander circuitry that processes high and low frequencies separately.

  • Dual-channel receiver provides 230 MHz UHF tuning bandwidth (DG1 470-700 MHz) for maximum versatility in an ever-congested RF environment

    Antenna cascade output allows 8 receivers to be connected so that a single pair of antennas can feed up to 16 channels of wireless. These connectors also provide a simple RF cable check feature to aid in RF troubleshooting

    Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference

    Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered

    Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality

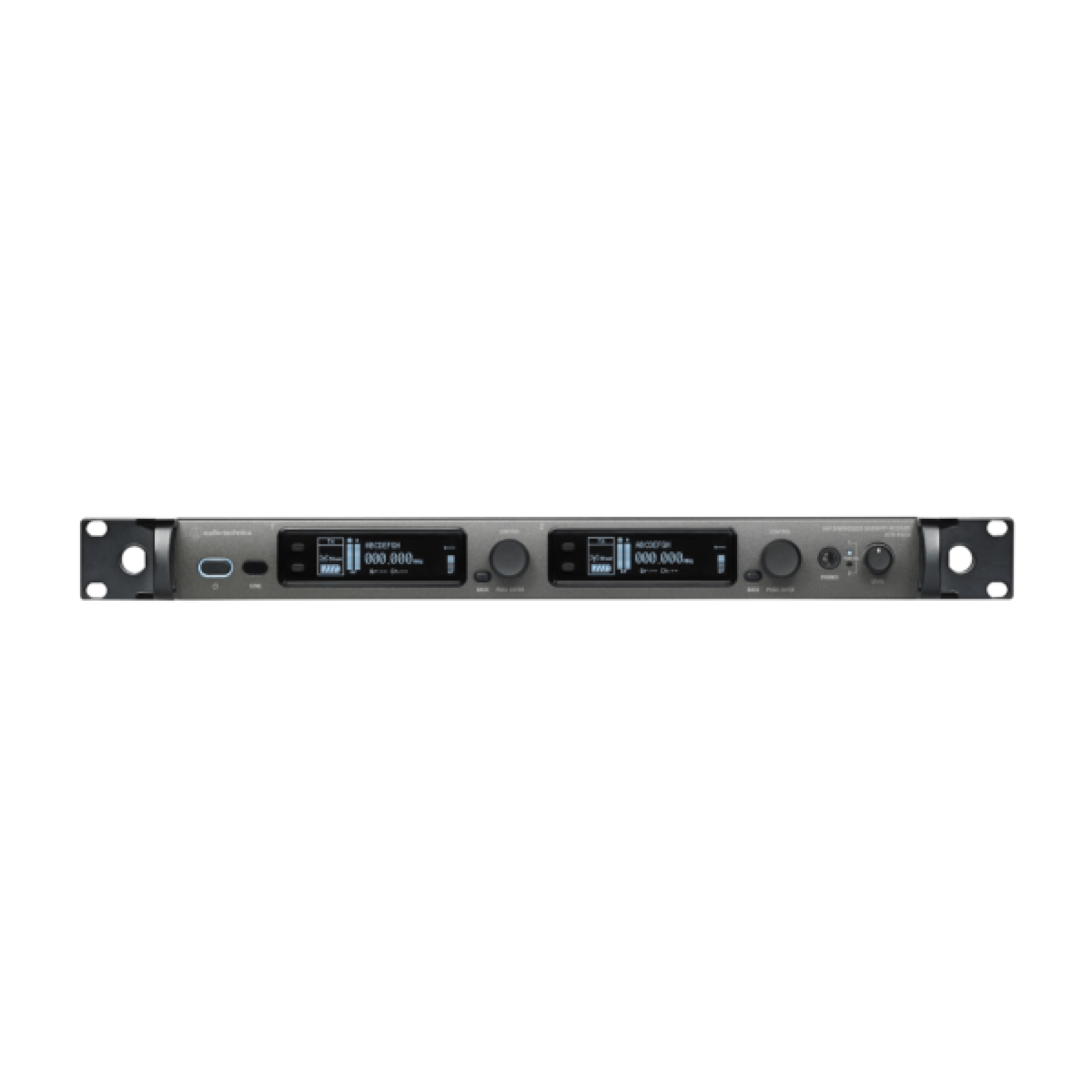

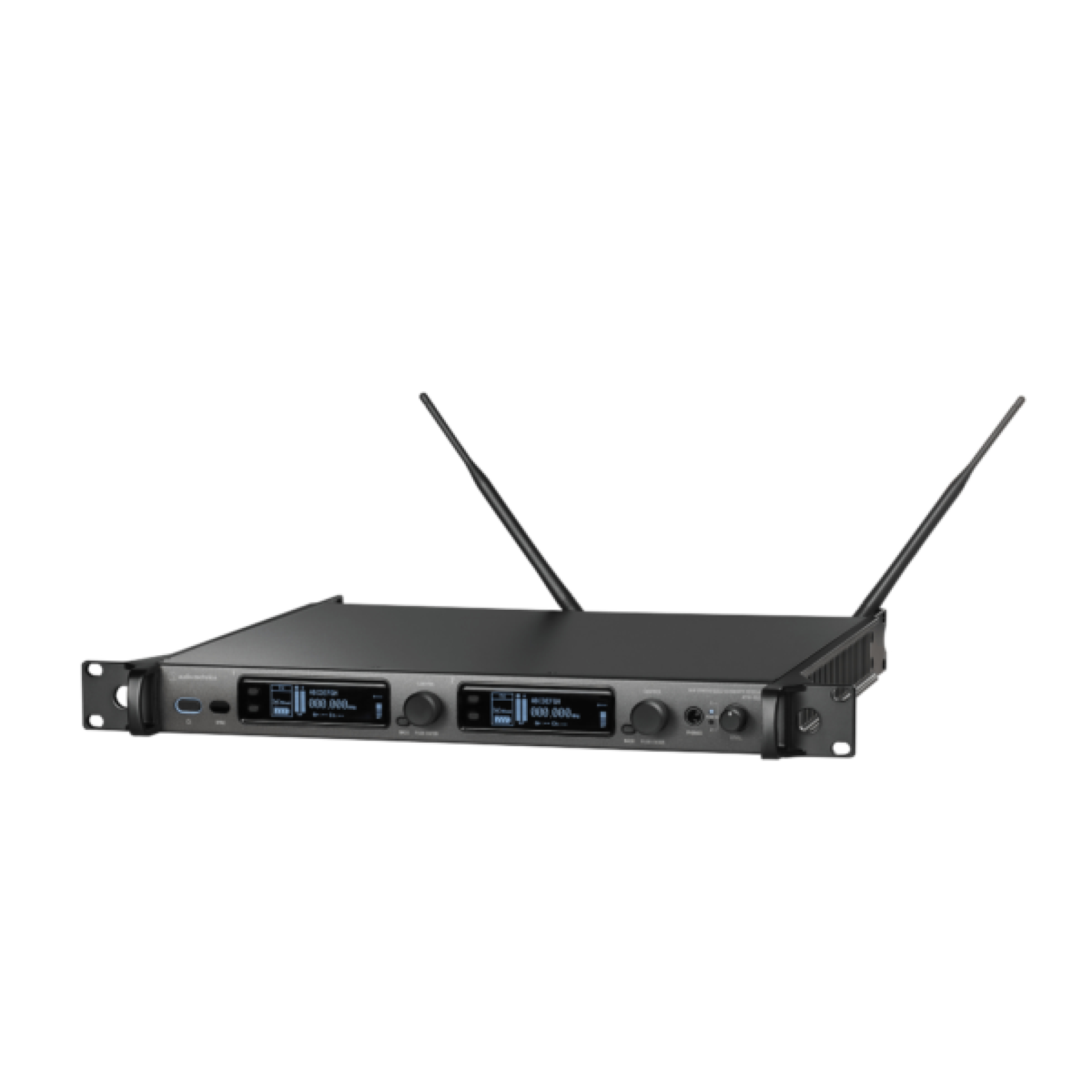

    The full-rack receiver chassis holds two independent receivers, and offers antenna power, frequency scan and IR sync functionality, a ground-lift switch, and a front-panel headphone jack

    Dual-mode, highly visible OLED receiver screen can switch between standard view or a performance view that highlights key metering

    Receiver is available with two balanced XLR outputs (ATW-R5220) or with two balanced XLR outputs and a Dante output (ATW-R5220DAN)

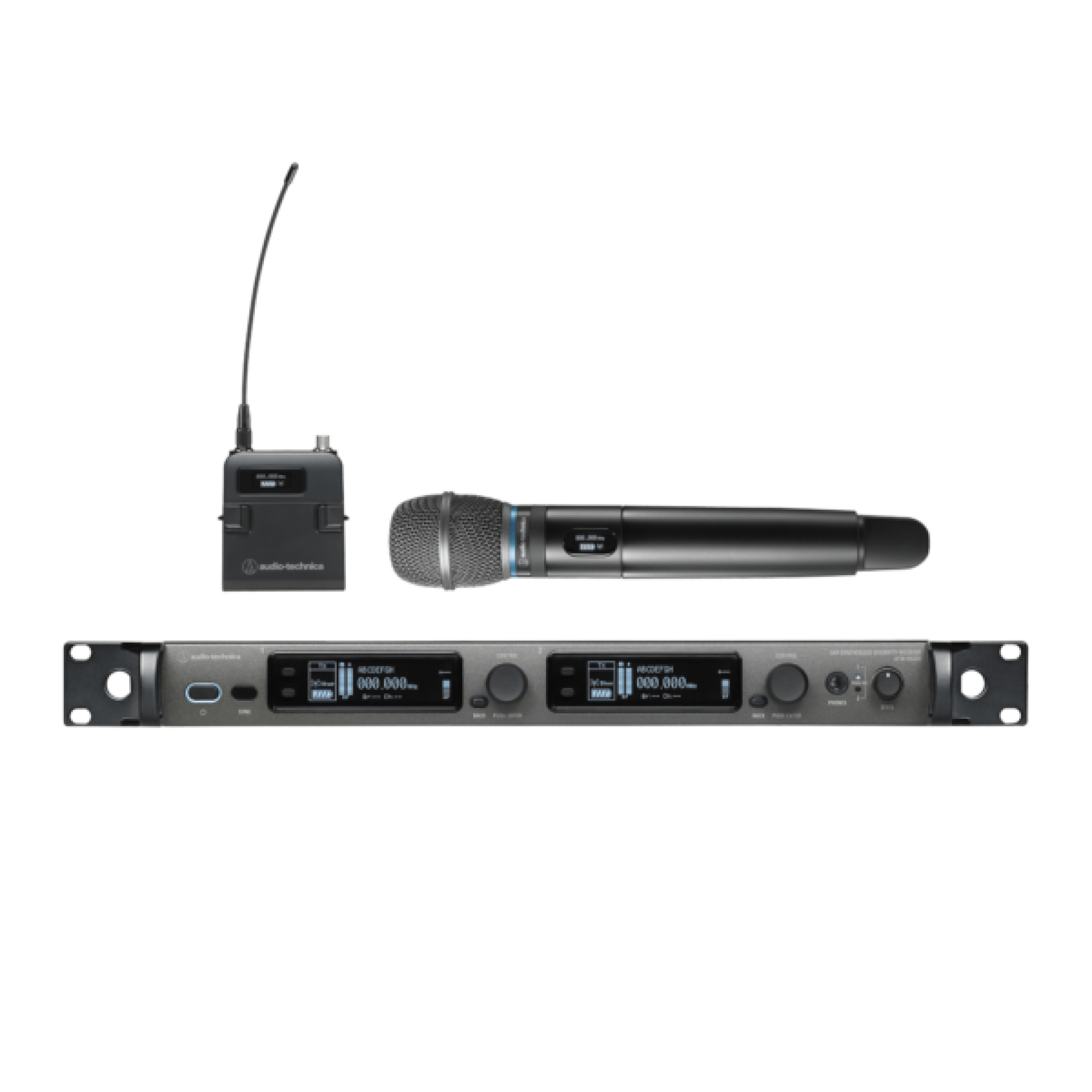

    Both transmitters are available in two bands – DE1 (470–590 MHz) and EG1 (580–700 MHz) – and offer rugged, ergonomic metal bodies, highly visible OLED displays, programmable features, soft-touch controls, and switchable 2/10/50 mW RF power

    Handheld transmitter features a high-pass filter and accepts six interchangeable microphone capsules (based on best-selling Audio-Technica models) that use industry-standard thread mount and provide low-handling noise

    New rugged cH-style connector on body-pack transmitter provides a secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector

    Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display

    Wireless network monitoring and control software

    5000 Series components are offered individually – not as preconfigured systems – for greater flexibility
