Electro-Voice EKX Subwoofers

Electro-Voice EKX Subwoofers

Key Features:

QuickSmartDSP

Cardioid Control Technology

Intelligent Thermal Management

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Electro-Voice EKX Subwoofers

Electro-Voice EKX Subwoofers are available in 15 and 18-inch versions, passive and active.

EKX combines renowned EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians, DJs and small-to-medium live, club, and installed sound applications.

Product Variants

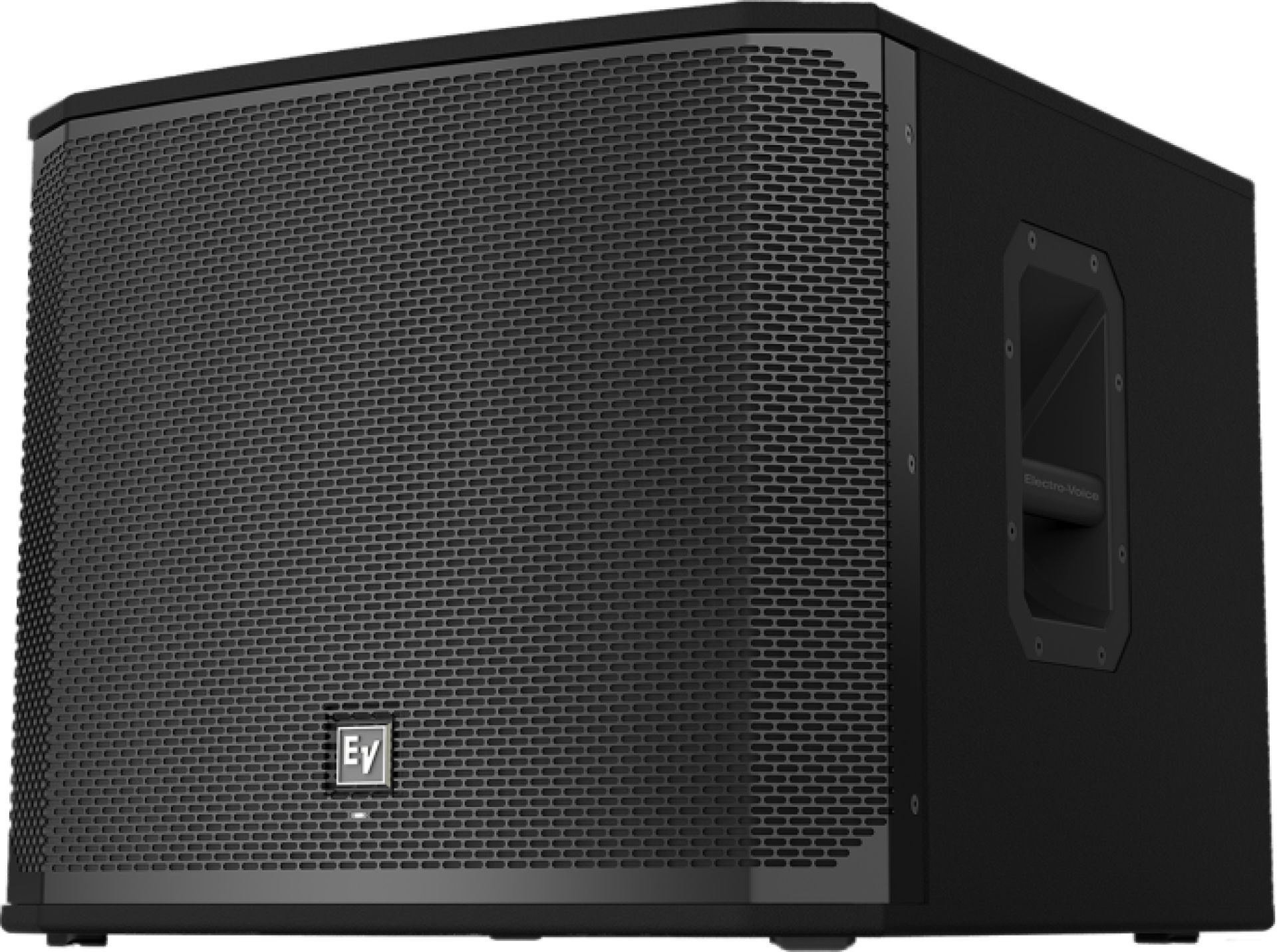

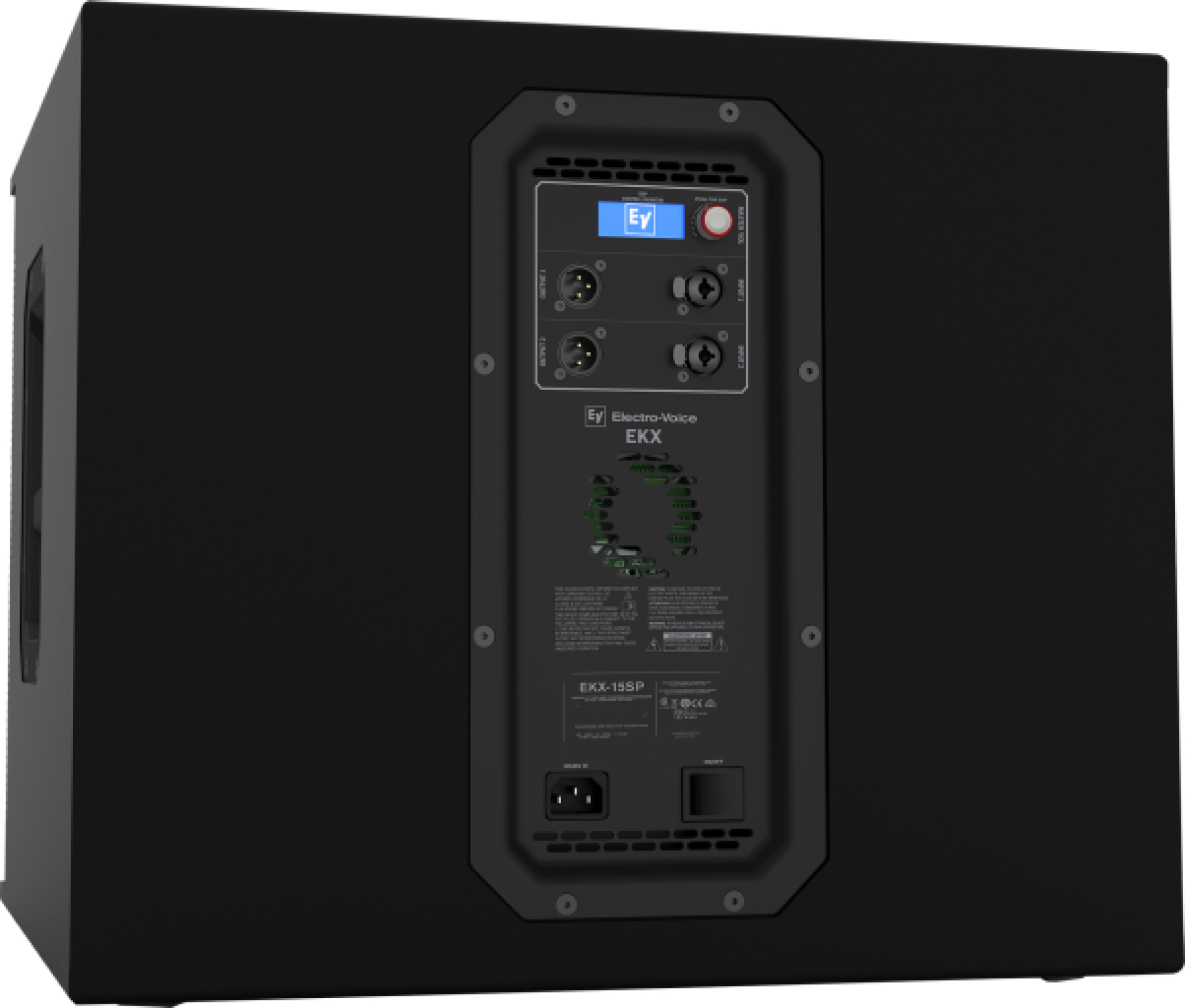

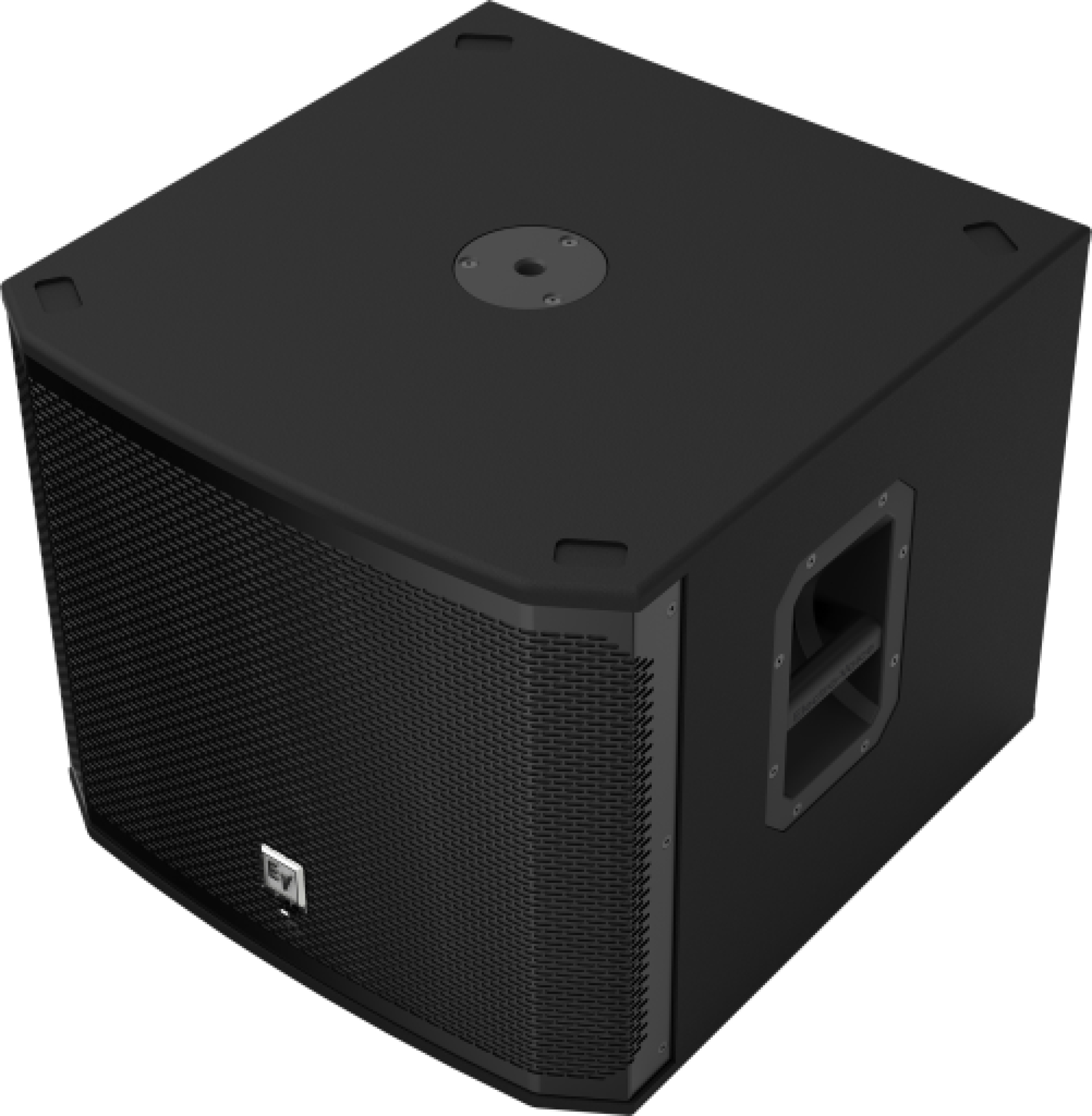

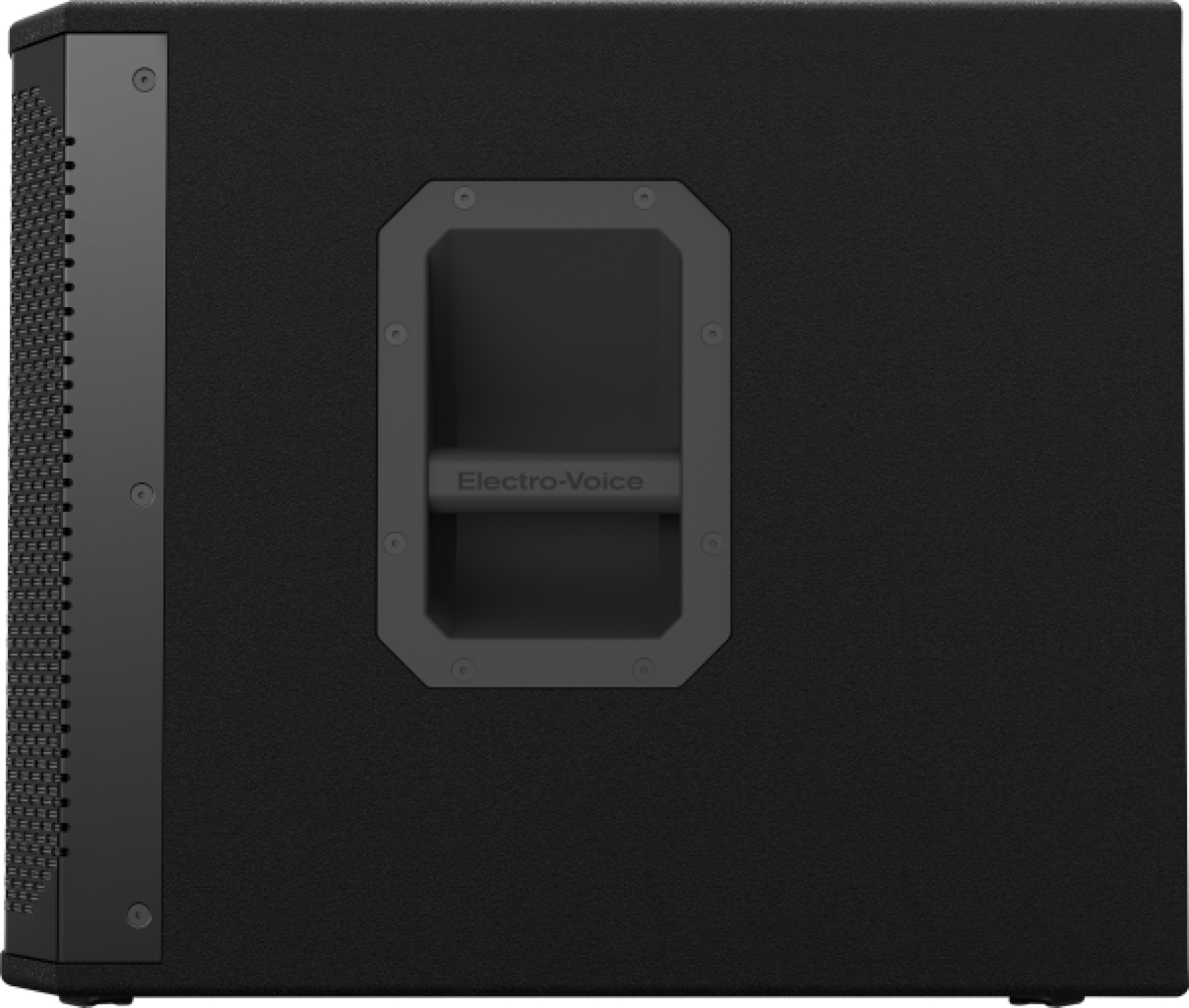

EKX-15SP

Frequency Response (-3 dB) 45 Hz - 150 Hz¹
Frequency Range (-10 dB) 40 Hz - 180 Hz¹
Maximum SPL 133 dB peak²
Power Rating 1300 W
LF Transducer EVS-15C 381 mm (15 in)
Low Pass Frequency Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz
Connectors (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat
Dimensions (H x W x D) 455 in x 530 mm x 551 mm (18 in x 21 in x 22 in)
Net Weight 26.2 kg (57.7 lb)
Available in passive

Enquiry Form

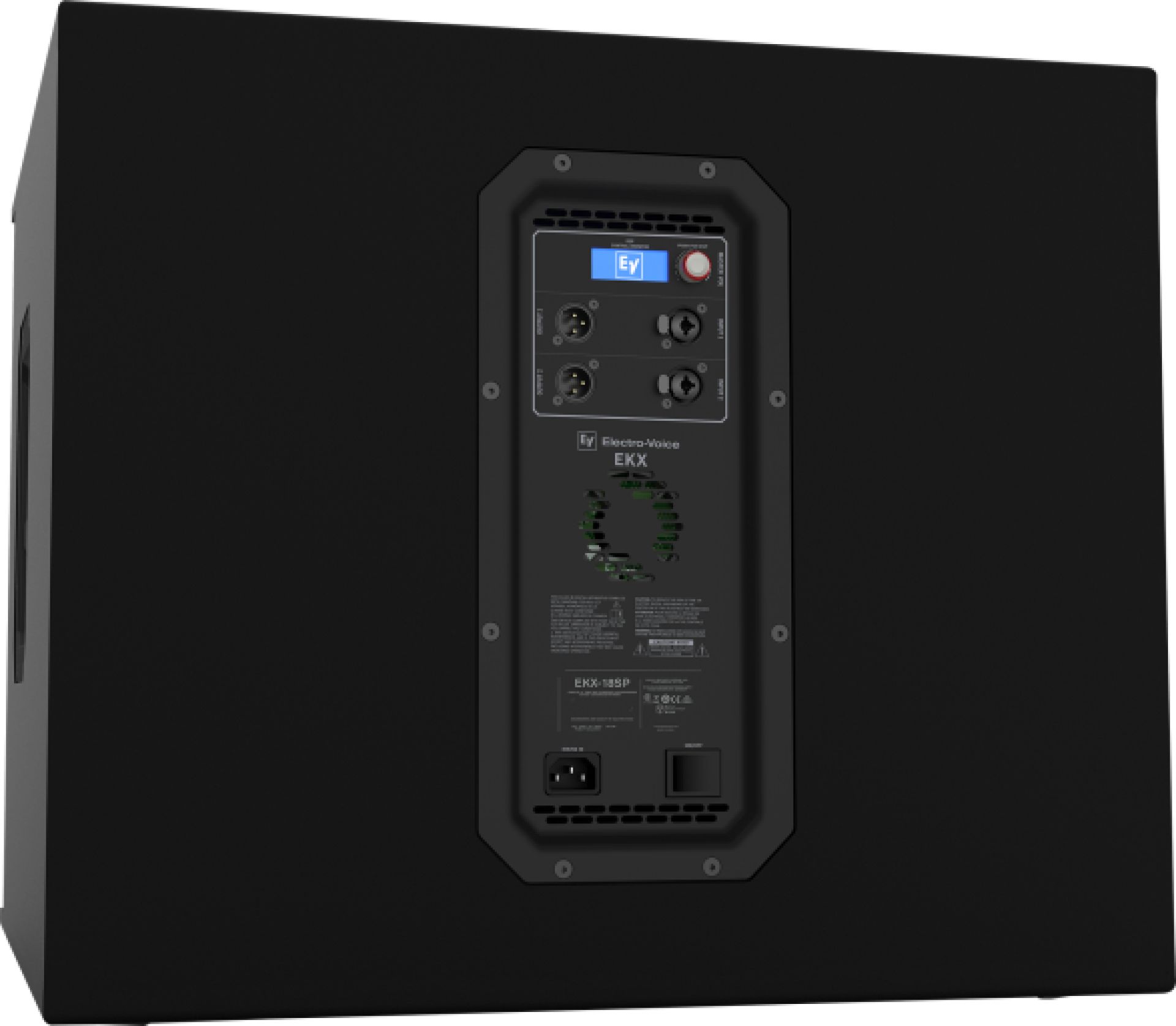

EKX-18SP

Frequency Response (-3 dB) 40 Hz - 150 Hz¹
Frequency Range (-10 dB) 35 Hz - 180 Hz¹
Maximum SPL 134 dB peak²
Power Rating 1300 W
LF Transducer EVS-18C 457 mm (18 in)
Low Pass Frequency Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz
Connectors (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat
Dimensions (H x W x D) 520 mm x 606 mm x 612 mm (20 in x 24 in x 24 in)
Net Weight 32.8 kg (72.4 lb)
Available in passive

Enquiry Form

QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
High-efficiency 1300 W Class D power amplifier delivers up to 133 dB peak SPL on the EKX-15SP utilizing high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two on the 18SP). M20 threaded pole mount plate.
