Electro-Voice ELX200 Subwoofers
ELX200-12SP
ELX200-12SP
ELX200-18SP
ELX200-12SP
ELX200-18SP

Electro-Voice ELX200 Subwoofers

Key Features:

  • EV QuickSmart Mobile application
  • QuickSmartDSP
  • Ideal for portable and installed applications
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Electro-Voice ELX200 Subwoofers

Electro-Voice ELX200 subwoofers come in active and passive versions, black or white and 12 and 18-inch.

Product Variants

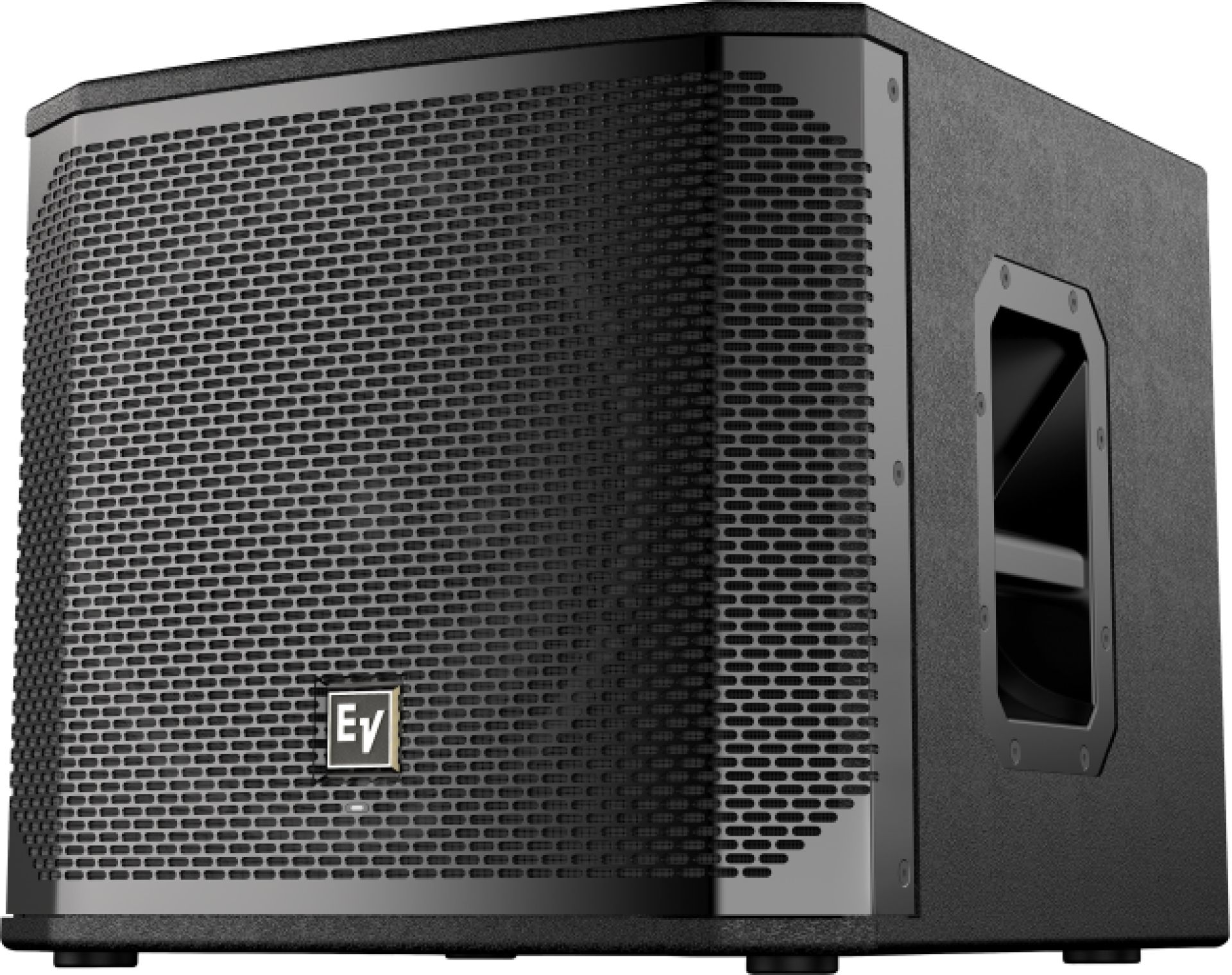

ELX200-12SP
ELX200-12SP
  • Frequency response (-3 dB) 49 Hz - 135 Hz¹
  • Frequency range (-10 dB) 41 Hz - 165 Hz¹
  • Maximum SPL 129 dB²
  • Power rating 1200 W
  • LF transducer EVS-12L 300 mm (12 in)
  • Low-Pass frequency Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz

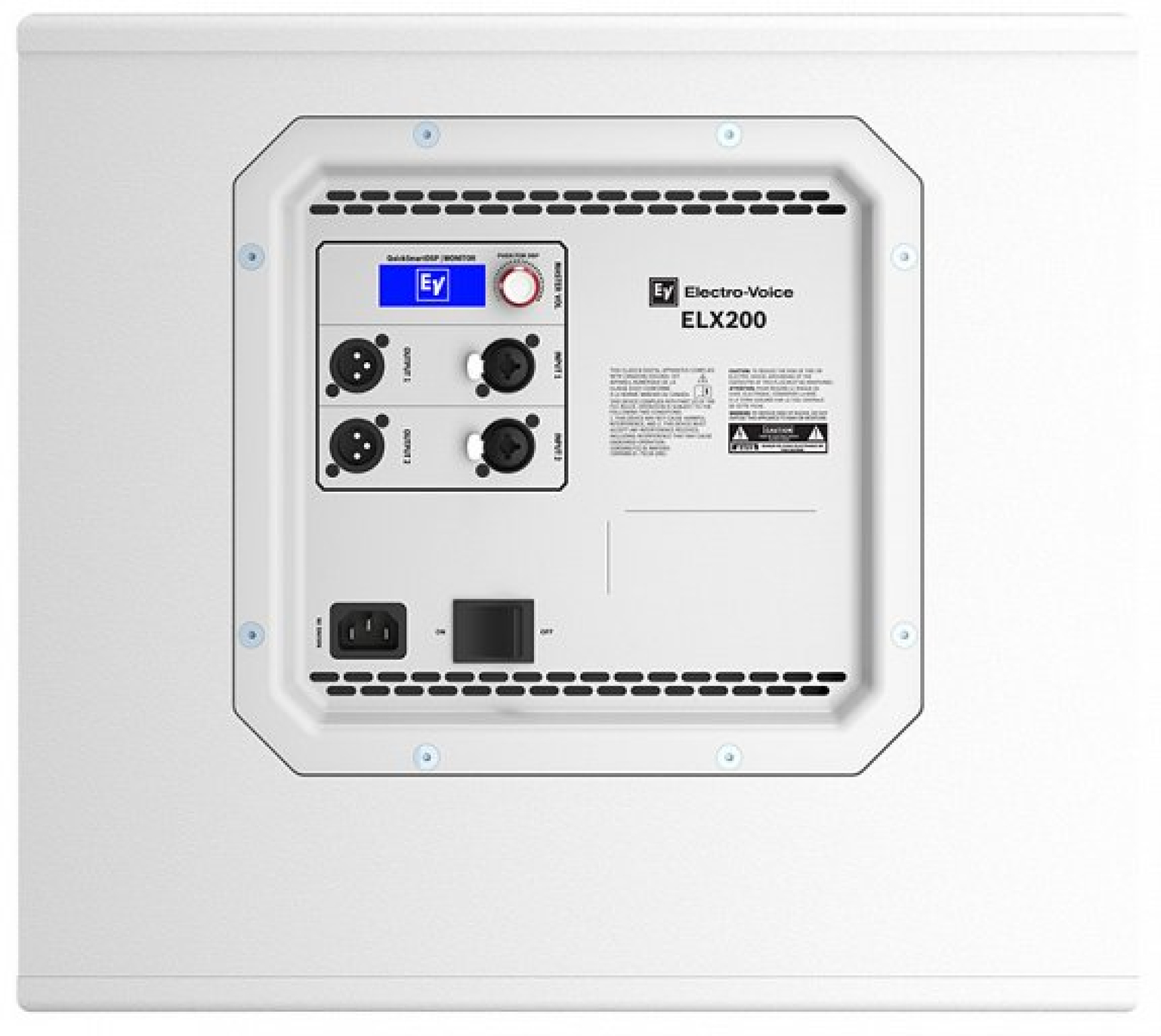

  • Connectors (2) XLR/TRS combo jacks and (2) XLR link outputs
  • Enclosure 15 mm plywood with EVCoat
  • Grille 18 AWG steel with powdercoat
  • Colour Black or White
  • Dimensions (H x W x D) 397 mm x 445 mm x 457 mm (16.7 in x 17.6 in x 18.0 in)
  • Net weight 19.1 kg (42.2 lb)
  • Available in passive - ELX200-12S

Enquiry Form

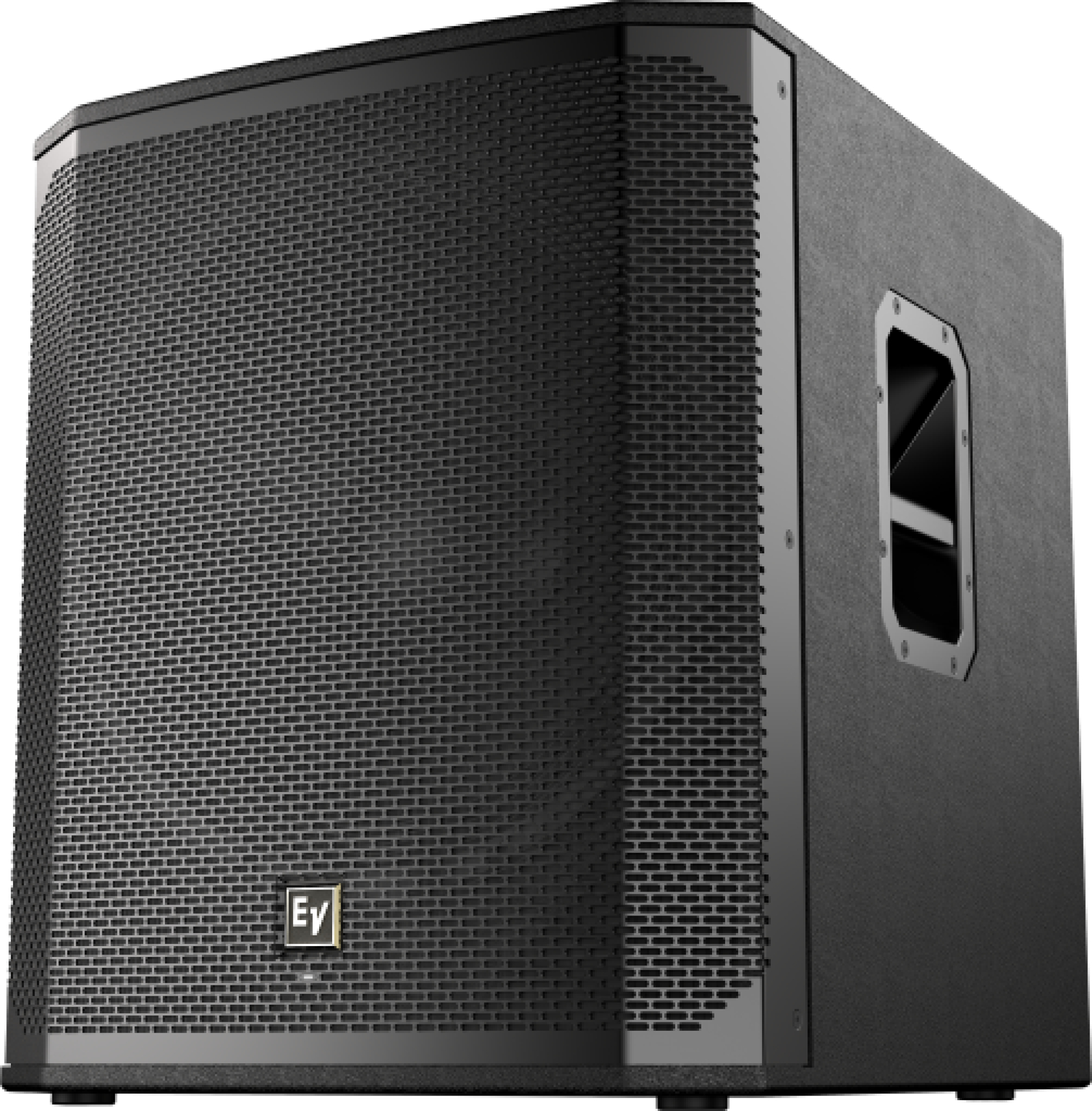

ELX200-18SP
ELX200-18SP
  • Frequency response (-3 dB) 47 Hz - 105 Hz¹
  • Frequency range (-10 dB) 40 Hz - 145 Hz¹
  • Maximum SPL 132 dB²
  • Power rating 1200 W
  • LF transducer EVS-18L 457 mm (18 in)
  • Low-Pass frequency Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz
  • Connectors (2) XLR/TRS combo jacks and (2) XLR link outputs
  • Enclosure 15 mm plywood with EVCoat
  • Grille 18 AWG steel with powdercoat
  • Colour Black or White
  • Dimensions (H x W x D) 600 mm x 507 mm x 574 mm (23.7 in x 20.0 in x 22.6 in)
  • Net weight 29.0 kg (64 lb)
  • Available in passive - ELX200-18S

Enquiry Form

Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

Features

Electro-Voice ELX200 Subwoofers - Variant Downloads

You might like...

Electro-Voice ELX200 Electro-Voice
Product - AUDIO
Electro-Voice ELX200 Portable Speakers
    • QuickSmart Mobile App
    • QuickSmartDSP
    • Three M10 Threaded Mounting Points
Find out more
EKX-15SP Electro-Voice
Product - AUDIO
Electro-Voice EKX Subwoofers
    • QuickSmartDSP
    • Cardioid Control Technology
    • Intelligent Thermal Management
Find out more
Electro-Voice EKX Portable Loudspeakers Electro-Voice
Product - AUDIO
Electro-Voice EKX Portable Loudspeakers
    • QuickSmartDSP
    • Intelligent Thermal Management
    • EV-Patented Signal Synchronized Transducers
Find out more

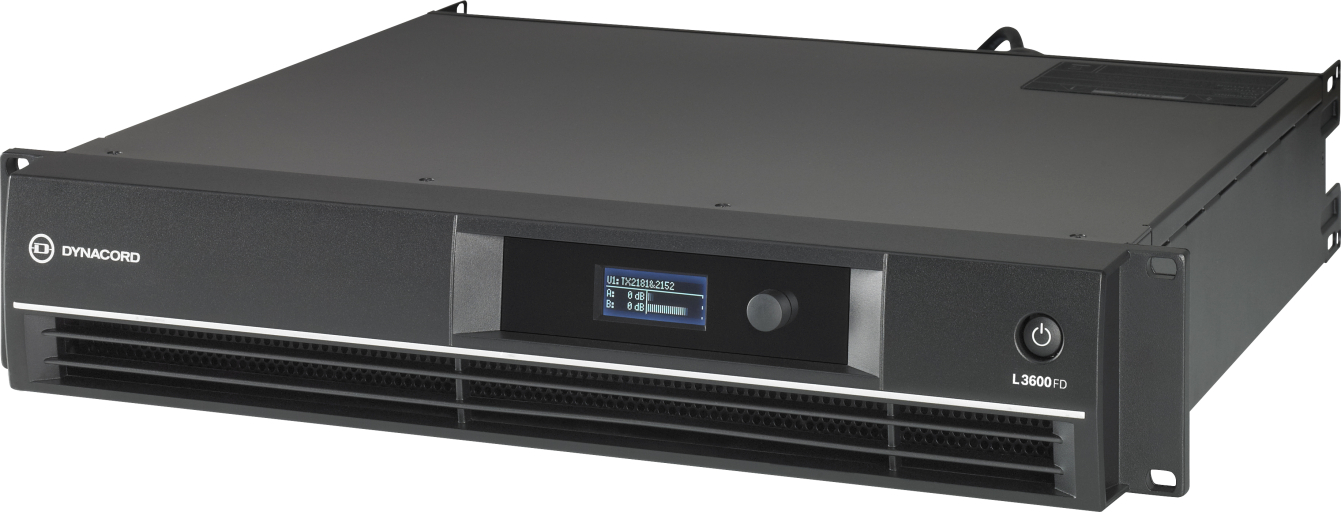

L3600FD Dynacord Professional Audio Engineering
