Electro-Voice ELX200 Portable Speakers

Electro-Voice ELX200 Portable Speakers

Key Features:

QuickSmart Mobile App

QuickSmartDSP

Three M10 Threaded Mounting Points

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

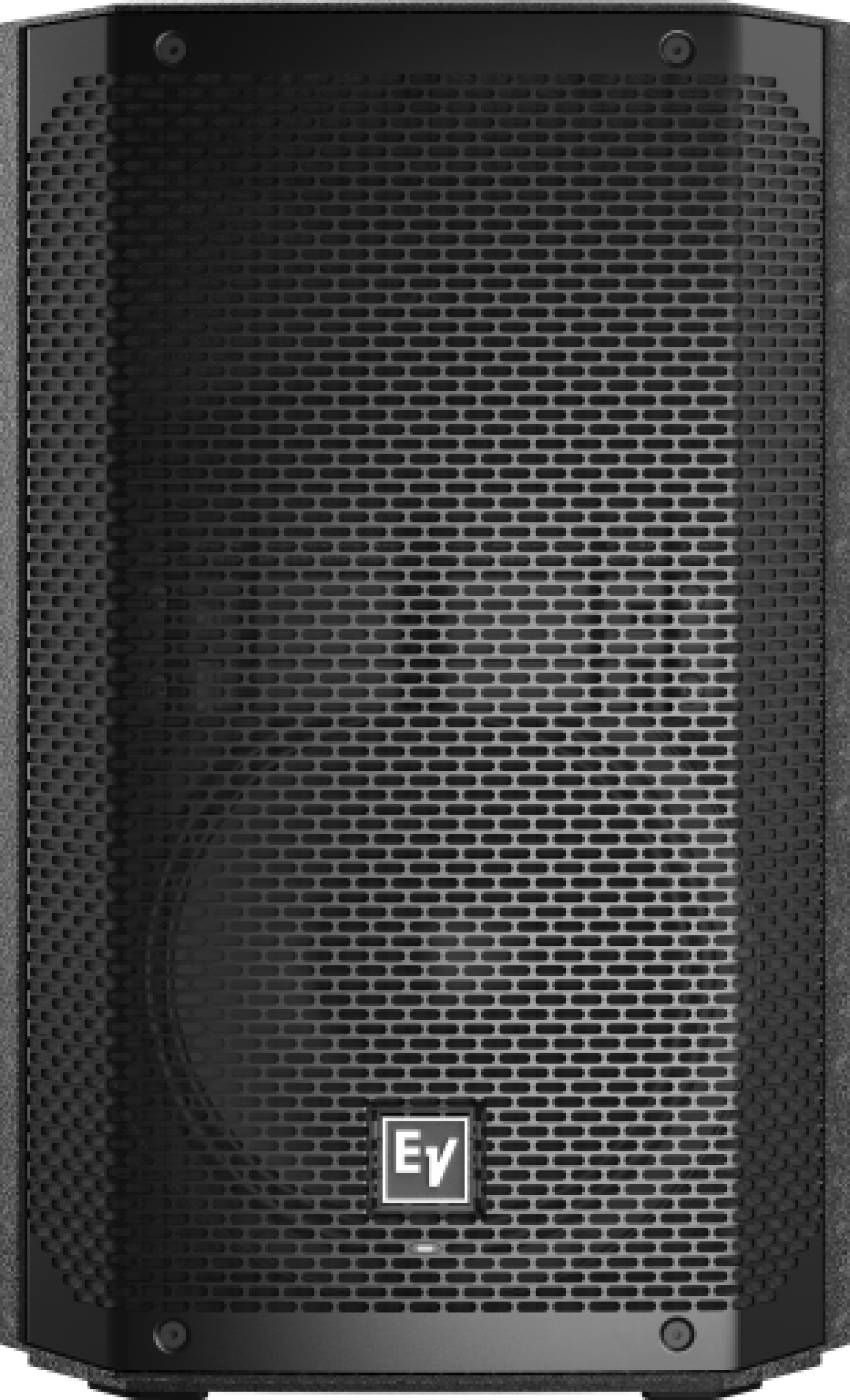

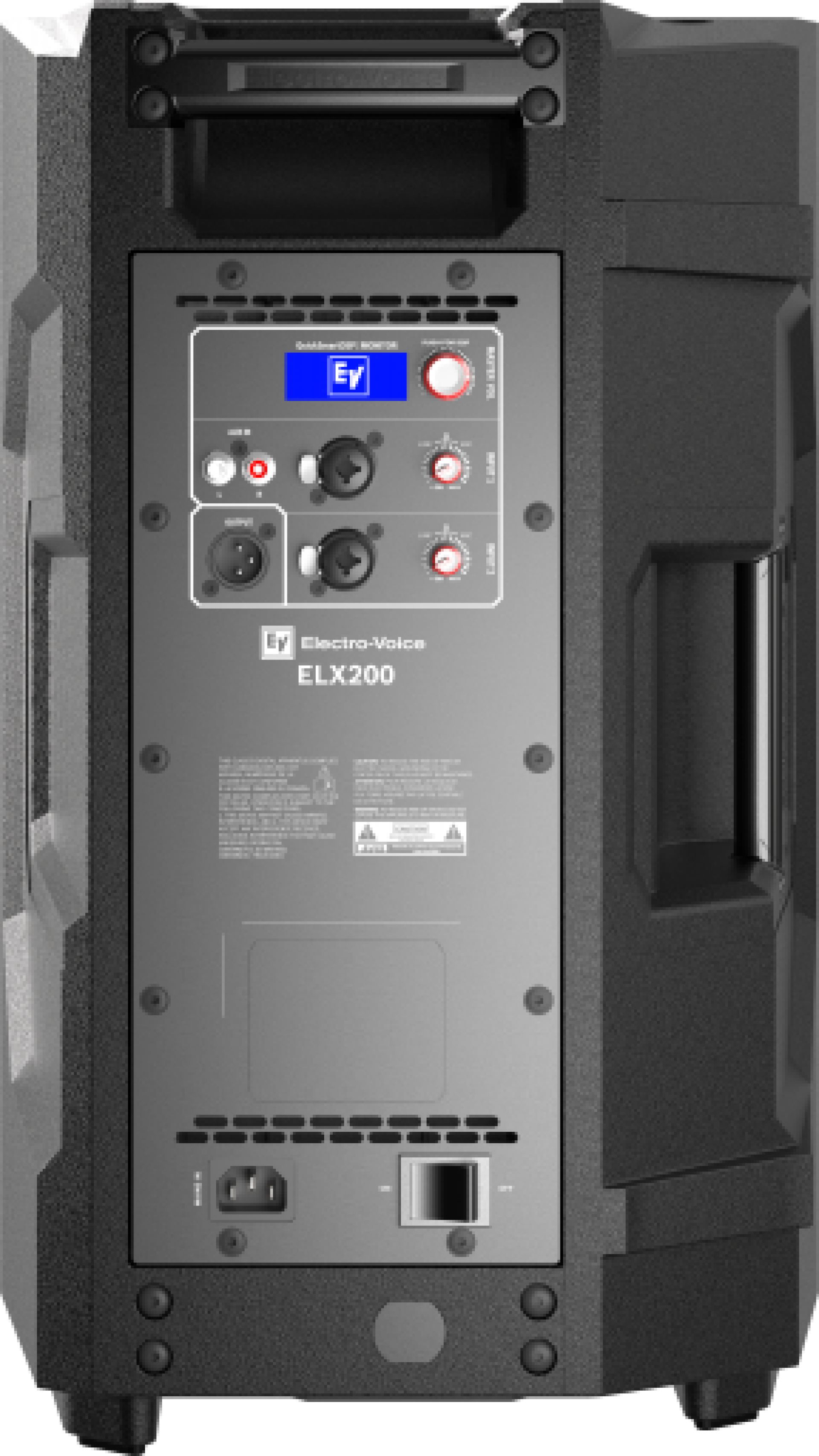

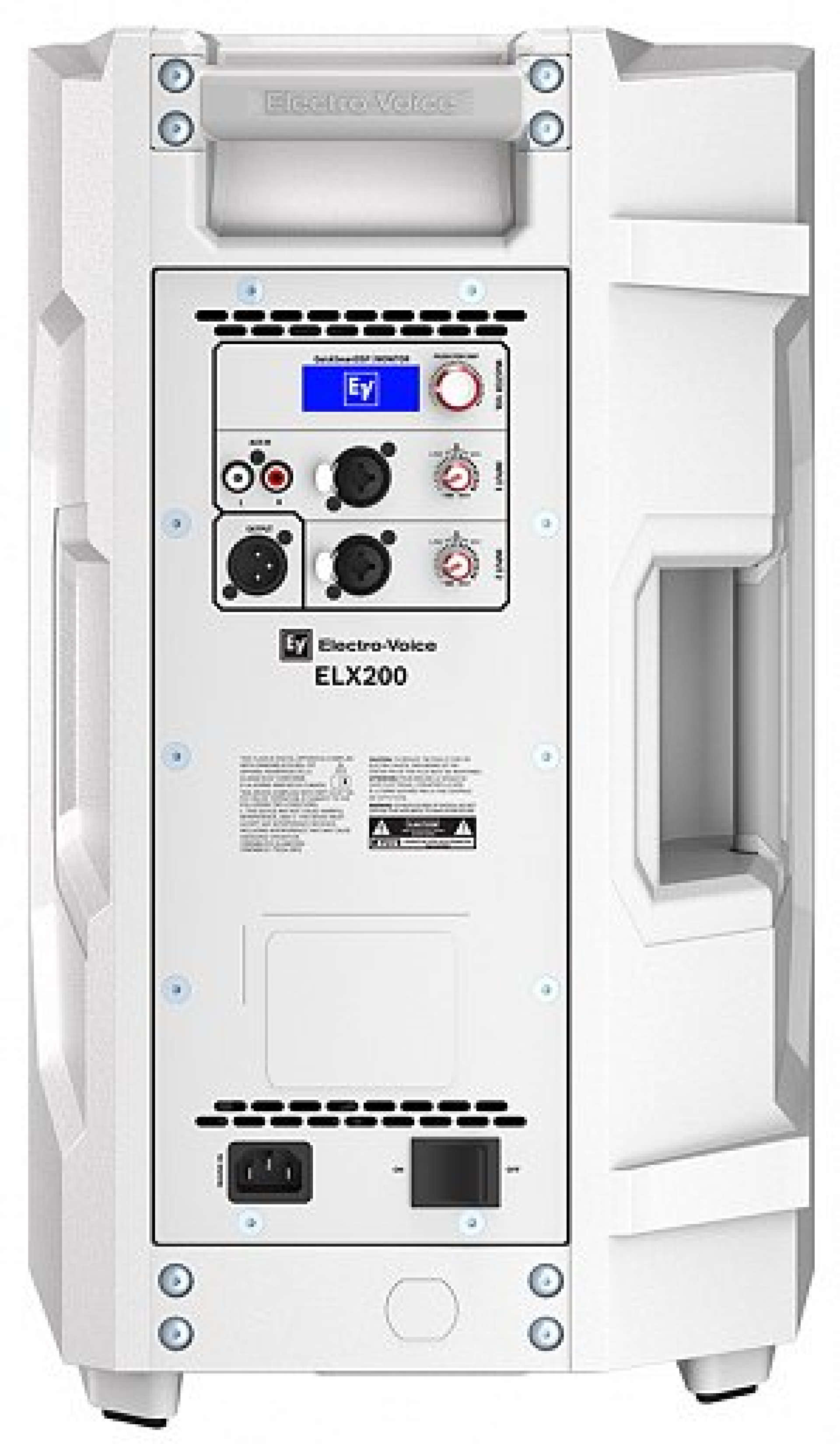

Electro-Voice ELX200 Portable Speakers

Electro-Voice ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.

Product Variants

ELX200-10P

Frequency response (-3 dB) 59 Hz -18 kHz¹
Frequency range (-10 dB) 53 Hz - 20 kHz¹
Maximum SPL 130 dB2
Coverage (H x V) 90˚ x 60˚
Power rating 1200 W
LF transducer EVS-10M 254 mm (10 in)
HF transducer DH-1L 1-inch titanium compression driver
Crossover frequency 1800 Hz
Connectors (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Enclosure Polypropylene
Grille 18 AWG steel with powdercoat
Suspension (3) M10 suspension points
Colour Black or White
Passive version available

Enquiry Form

ELX200-12P

Frequency response (-3 dB) 57 Hz - 16 kHz¹
Frequency range (-10 dB) 51 Hz - 20 kHz¹
Maximum SPL 130 dB²
Coverage (H x V) 90° x 60°
Power rating 1200 W
LF transducer EVS-12M 300 mm (12 in)
HF transducer DH-1L 1-inch titanium compression driver
Crossover frequency 1700 Hz
Connectors (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Enclosure Polypropylene
Grille 18 AWG steel with powdercoat
Suspension (3) M10 suspension points
Colour Black or White
Passive version available

Enquiry Form

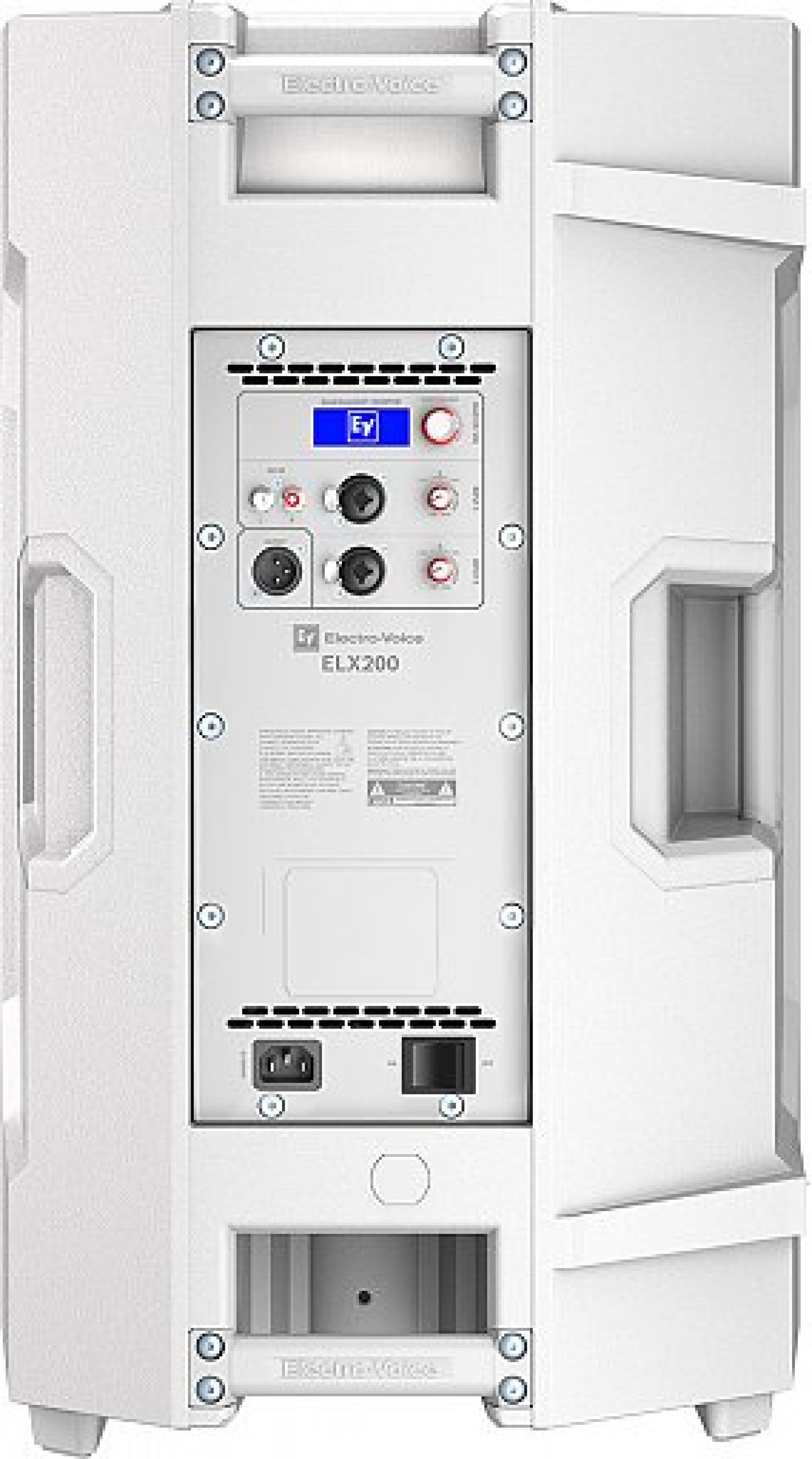

ELX200-15P

Frequency response (-3 dB) 55 Hz - 16 kHz¹
Frequency range (-10 dB) 48 Hz - 19 kHz¹
Maximum SPL 132 dB2
Coverage (H x V) 90° x 60°
Power rating 1200 W
LF transducer EVS-15M 381 mm (15 in)
HF transducer DH-1L 1-inch titanium compression driver
Crossover frequency 1600 Hz
Connectors (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Enclosure Polypropylene
Grille 18 AWG steel with powdercoat
Suspension (3) M10 suspension points
Colour Black or White
Passive version available

Enquiry Form

Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
High-efficiency 1200 W Class-D power amplifier delivers up to 130 dB peak SPL utilizing transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.
