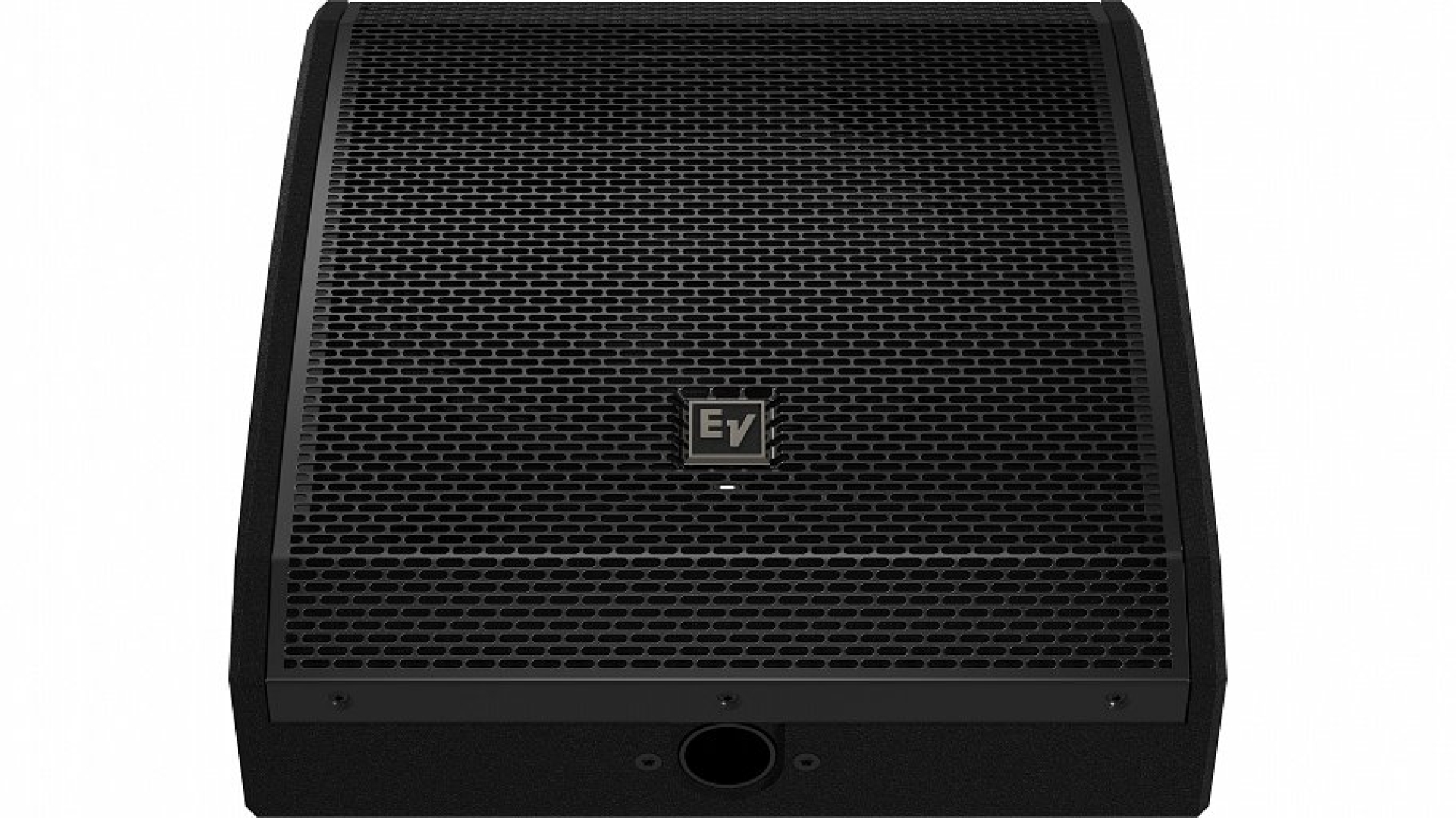

Electro-Voice PXM-12MP
Electro-Voice PXM-12MP Powered Monitor
Electro-Voice PXM-12MP Powered Monitor
PXM-12MP
Electro-Voice PXM-12MP Powered Monitor
PXM-12MP

Electro-Voice PXM-12MP

Key Features:

  • Multi-functional monitoring system
  • Acoustically optimized 55° monitor floor angle
  • QuickSmartDSP
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Electro-Voice PXM-12MP

The Electro-Voice PXM-12MP is a dedicated portable loudspeaker system designed to provide musicians, DJs, and audio engineers convenient and powerful monitoring and playback functionality.

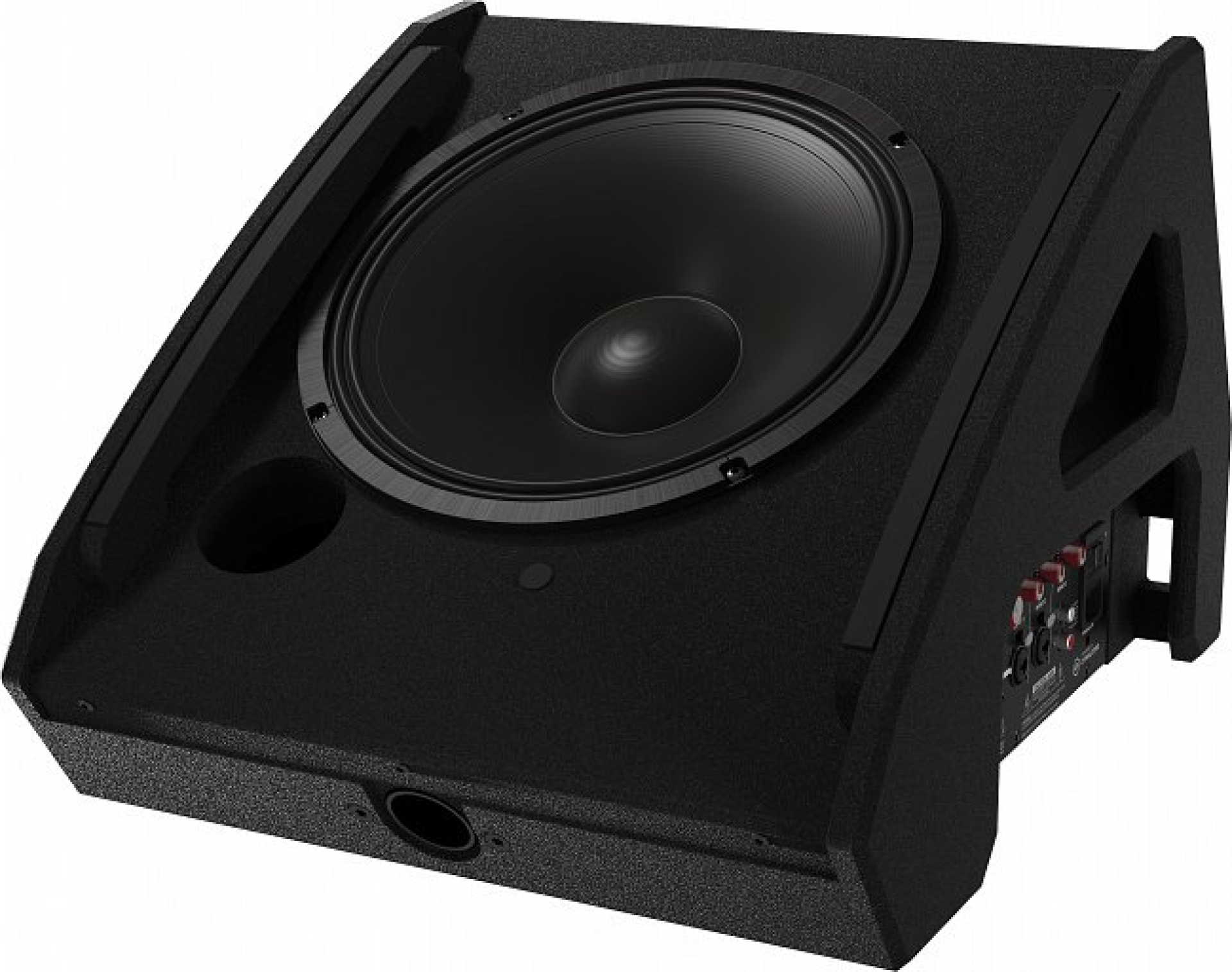

By providing a symmetrical 90° x 90° coverage pattern facilitated by a 12” / 1.75” coaxial driver, users can experience solid, consistent coverage, which ensures that their mix can be heard clearly without constraining them to a limited part of the stage. The 55° monitoring angle enables users to stand as close or as far away from the system as necessary without sacrificing audio intelligibility. An integrated pole mount at the front allows for additional applications such fills, delays, or a main PA. With a dedicated subwoofer and the adjustable subwoofer matching LPFs of the PXM-12MP, a full 3-way system can be configured to create an extremely compact main PA.

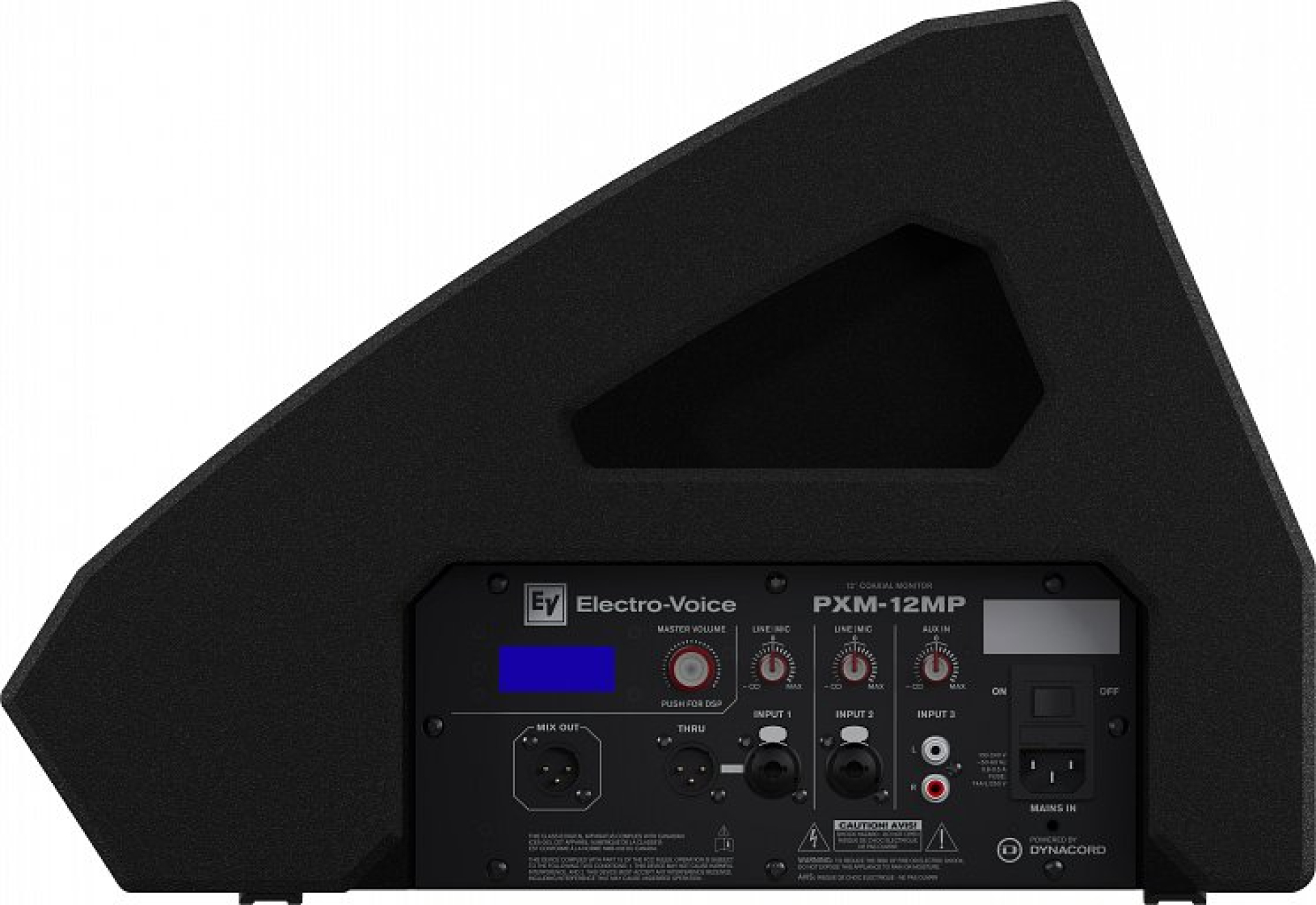

The integrated mixing section provides 3 input channels: 2x XLR / ¼” combination connectors and a stereo RCA input. The DSP offers 4 EQ presets, high and low shelving, parametric midrange EQs, adjustable low-cut filters, a tunable feedback notch filter, and recallable user settings. The Class-D 700W amplifier provides enough power to satisfy the most demanding monitoring requirements, and system protection and limitations designed by Electro-Voice ensure that the PXM-12MP will play loudly and consistently even at the edge of its specifications.

  • Multi-functional monitoring system that is useable as a floor wedge or as a mains PA.

    Acoustically optimized 55° monitor floor angle

    QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.

    GUITARCAB setting makes it easy for guitarists to dial in their signature tone.

    700 W Class-D power amplifier designed by Dynacord delivers up to 129 dB peak SPL utilizing transducers by EV.

    System reliability verified with over 500 hours of abuse and endurance testing.

  • Frequency response (-3 dB) 64 Hz - 20 kHz

    Frequency range (-10 dB) 53 Hz - 20 kHz

    Monitor Angle 55°

    Maximum SPL 129 dB

    Coverage (H x V) 90˚ x 90˚

    Amplifier Rating 700 W

    LF Channel Rating 500 W

    HF Channel Rating 200 W

    Crossover frequency 1.6 kHz

    Transducer CXCA2128-1NA 12” / 1.75” 2-way coaxial

    Connectors 2x XLR/TRS combo input

    1x Stereo RCA input

    1x XLR THRU input

    Enclosure 15 mm Plywood

    Grille Steel with black powder coat

    Color Black

    Dimensions (H x W x D) mm (in) 334 mm x 409 mm x 484 mm (13.1 in x 16.1 in x 19.0 in)

    Net weight 13.5 kg (29.8 lb)

    Shipping weight 15.6 kg (34.3 lb)

    Power consumption 100 - 240 V AC, 50 - 60 Hz, 0.8 - 0.5 A

Electro-Voice PXM-12MP - Downloads
Electro-Voice PXM-12MP - Datasheet
Download

You might like...

ELX200-12SP Electro-Voice
Product - AUDIO
Electro-Voice ELX200 Subwoofers
    • EV QuickSmart Mobile application
    • QuickSmartDSP
    • Ideal for portable and installed applications
Find out more
Electro-Voice ELX200 Electro-Voice
Product - AUDIO
Electro-Voice ELX200 Portable Speakers
    • QuickSmart Mobile App
    • QuickSmartDSP
    • Three M10 Threaded Mounting Points
Find out more

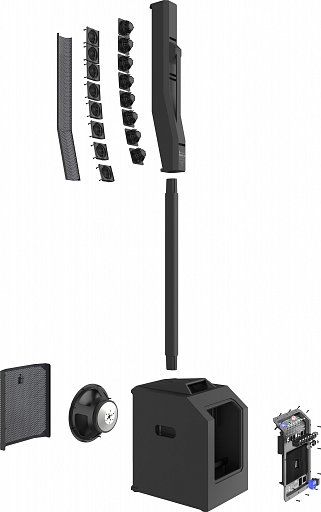

Electro-Voice Evolve Portable Column Systems Electro-Voice
