GammaPix 48T

GammaPix 48T

GammaPix 48T1X1WF

Key Features:

  • Black frame & white face LEDs
  • Refresh rate of 3.840 Hz
  • Built in curve mechanics for +10° / -10° concave & convex
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

GammaPix 48T

PROLGHTS is pleased to introduce GammaPix series, the budget-friendly series of rental LED screens is apt for touring, corporate, and installation applications, without compromising quality.

Product Variants

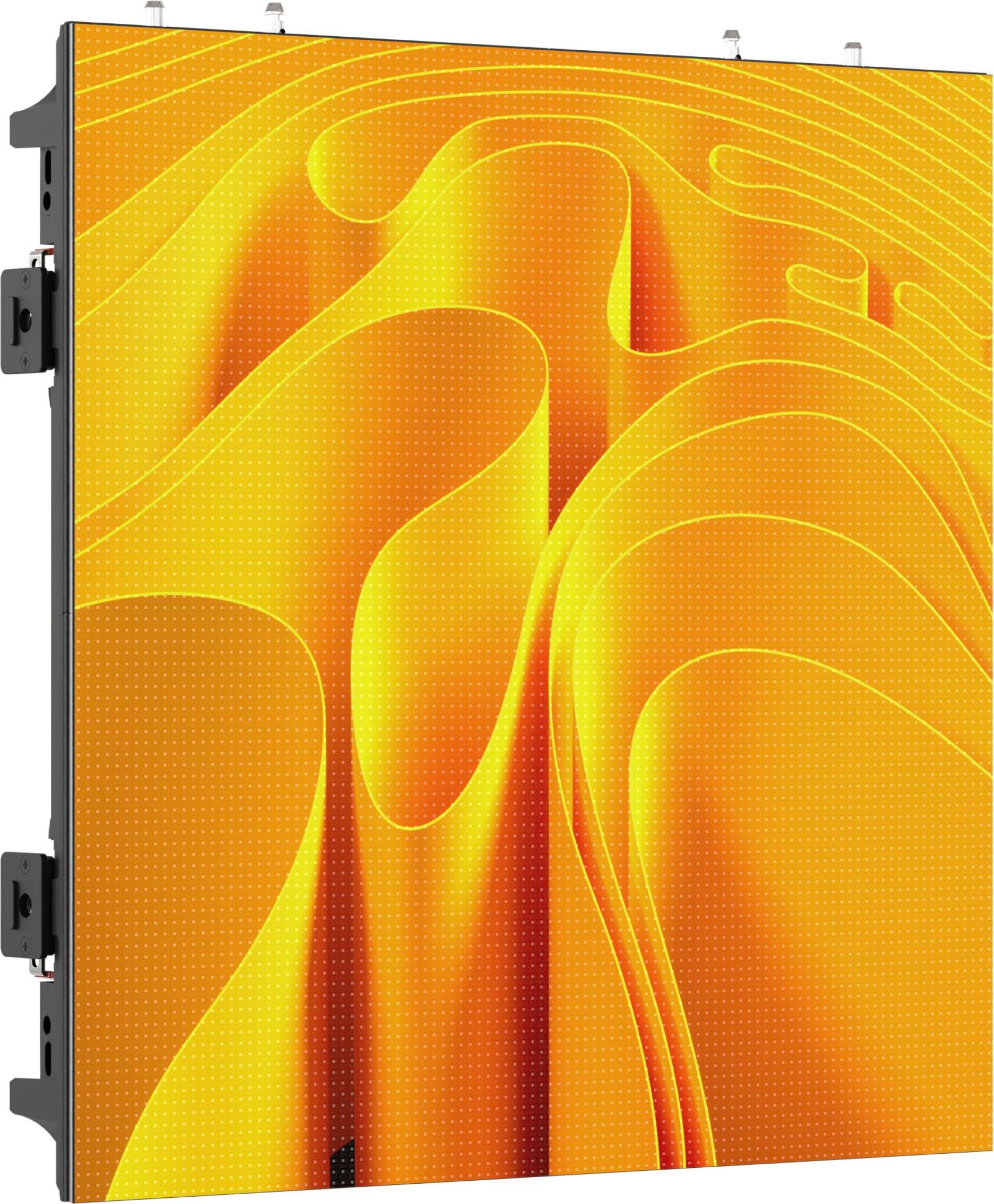

GammaPix 48T1X1WF
  • 50x50cm tile

Enquiry Form

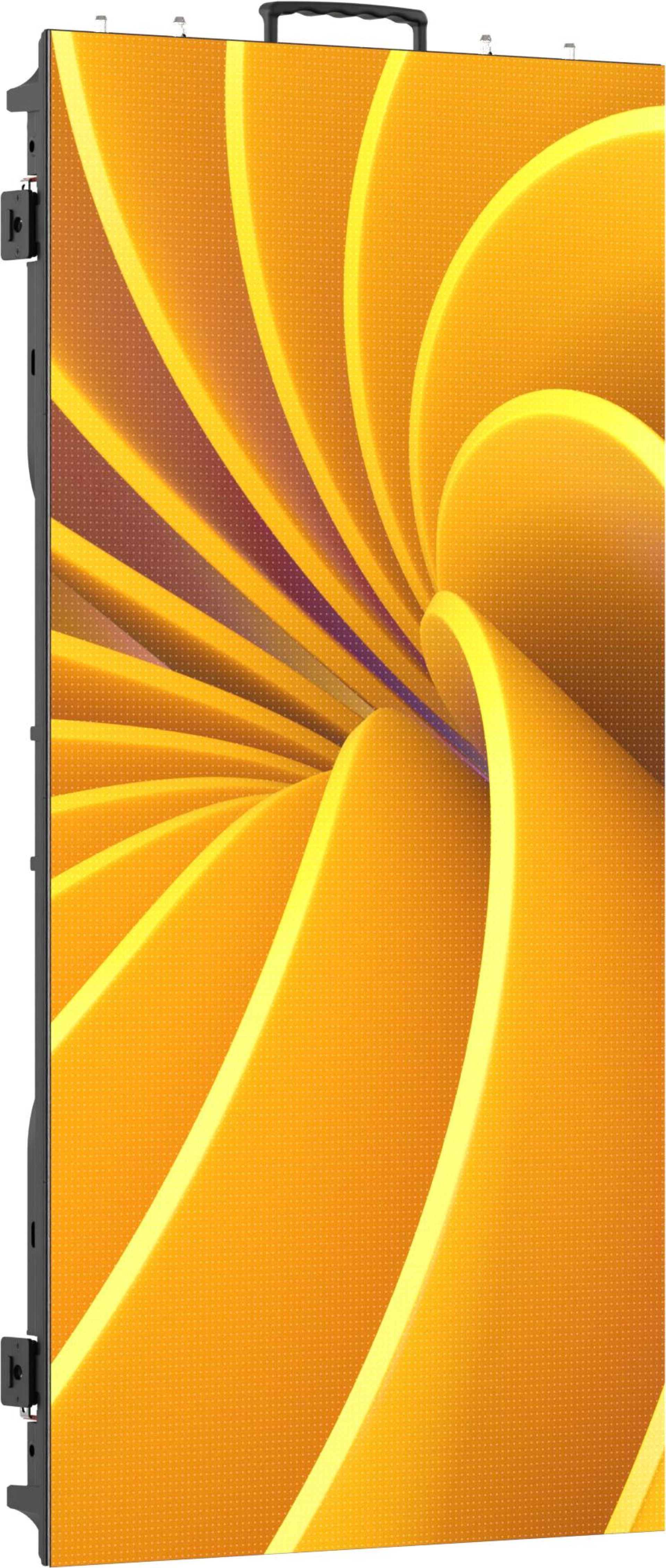

GammaPix 48T1X2WF
  • 50x100cm tile

Enquiry Form

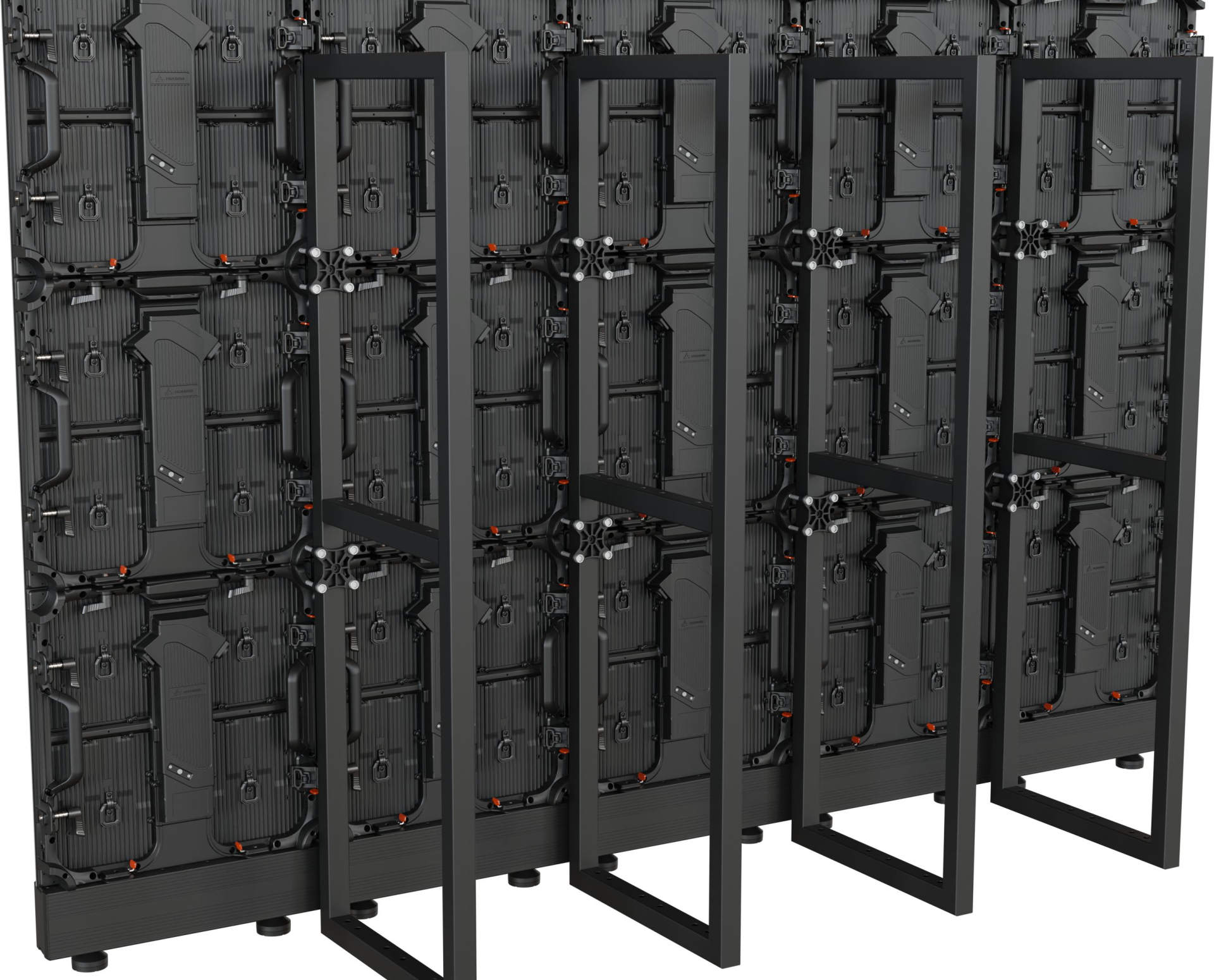

GammaPix 48T is a rental LED screen for outdoor use with a 4,8 mm pixel pitch, designed to meet requirements for touring, events and install applications. This series is available in both 50x50cm and 50x100cm tiles, mechanically compatible in order to assemble a large surface of screen in a shorter time.

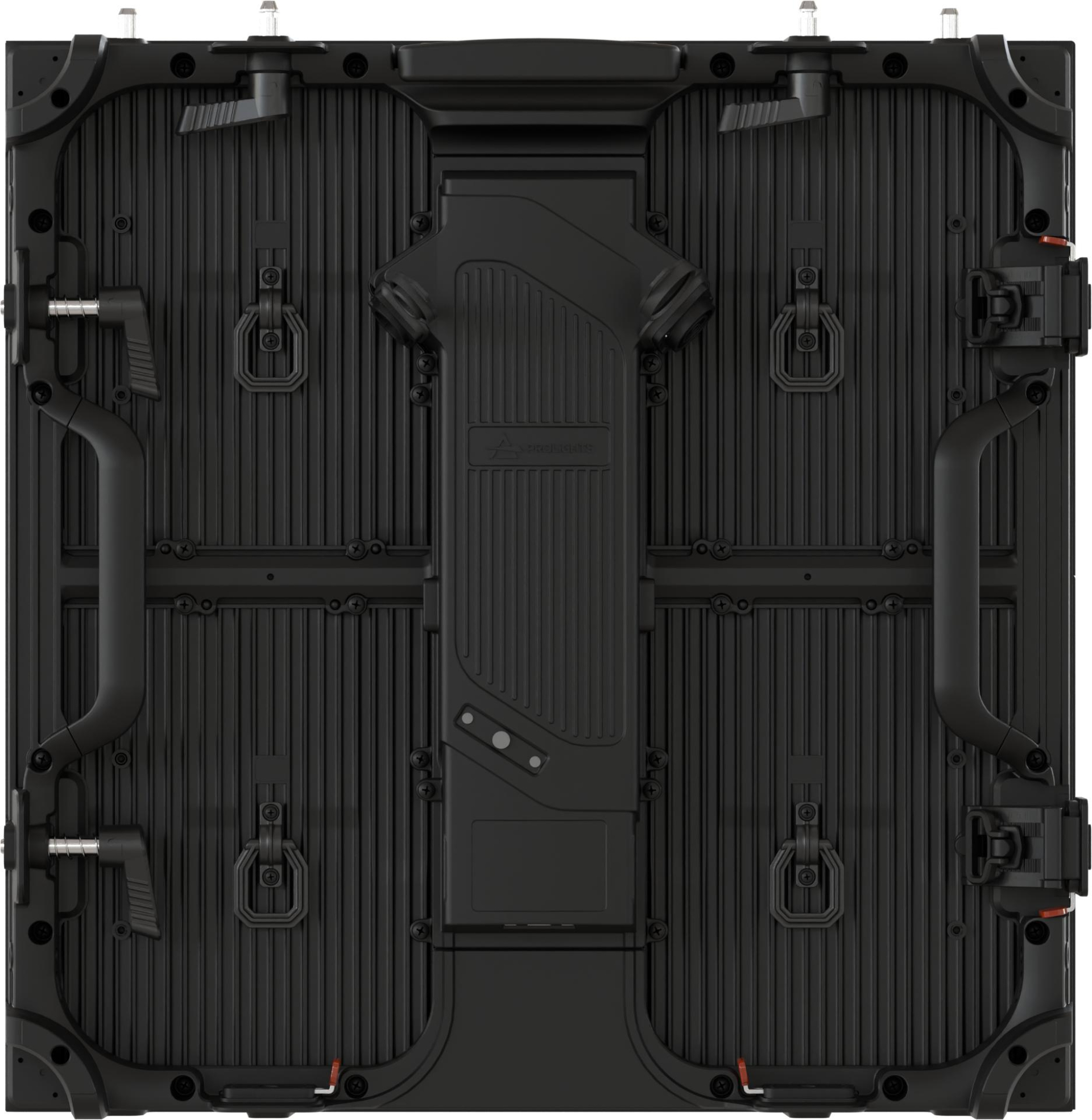

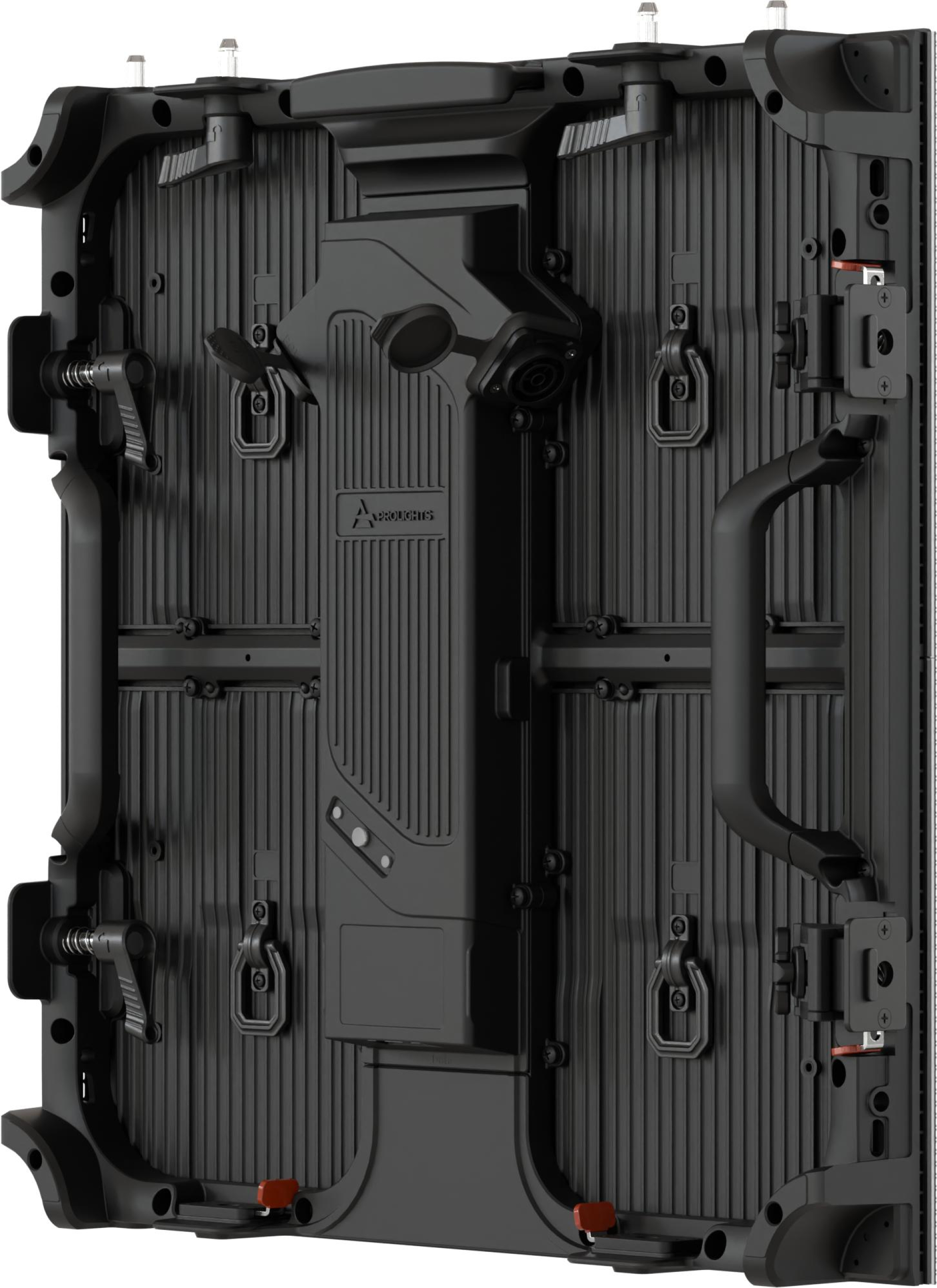

The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as scratch protection of the lamp face, flip corner shield and bottom protection.

GammaPix 48T tiles have on board curve mechanics allowing both concave and convex precise installation of  +10° / -10° each tile and the weight has been reduced down to 6,4 kg (50x50cm tiles) and 11,4 kg (50x100 tiles).

The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.

  • Single person installation, auto lock design, scratch protection and flip corner shield

    LED source: Nationstar SMD1921 black frame and white face

    Pixel pitch: 4.8mm / 0.19''

    Module resolution: 52x52pixels

    Luminous flux: 3.500nit

    Vertical viewing angle: 120°

    Horizontal viewing angle: 140°

    LED density: 43.264LED/sqm

    LED avg life span: 100.000

    Outdoor - IP rating: IP65/IP54 (front and rear)

GammaPix 48T - Variant Downloads
