GigaCore 16i

GigaCore 16i

Key Features:

  • 4 x independent SFP+ ports & 12 x 1Gbps RJ45 copper ports.
  • PoE: PoE ++ Optional (up to 450W)
  • Robust yet silent design
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

GigaCore 16i

10 Gigabit Ethernet switch, dedicated to professional AV integration and installations.

Product Variants

GigaCore 16i-12x1G-4x10G(SFP+)

Enquiry Form

GigaCore 16i-12x1G-4x10G(SFP+)-PoE++

Enquiry Form

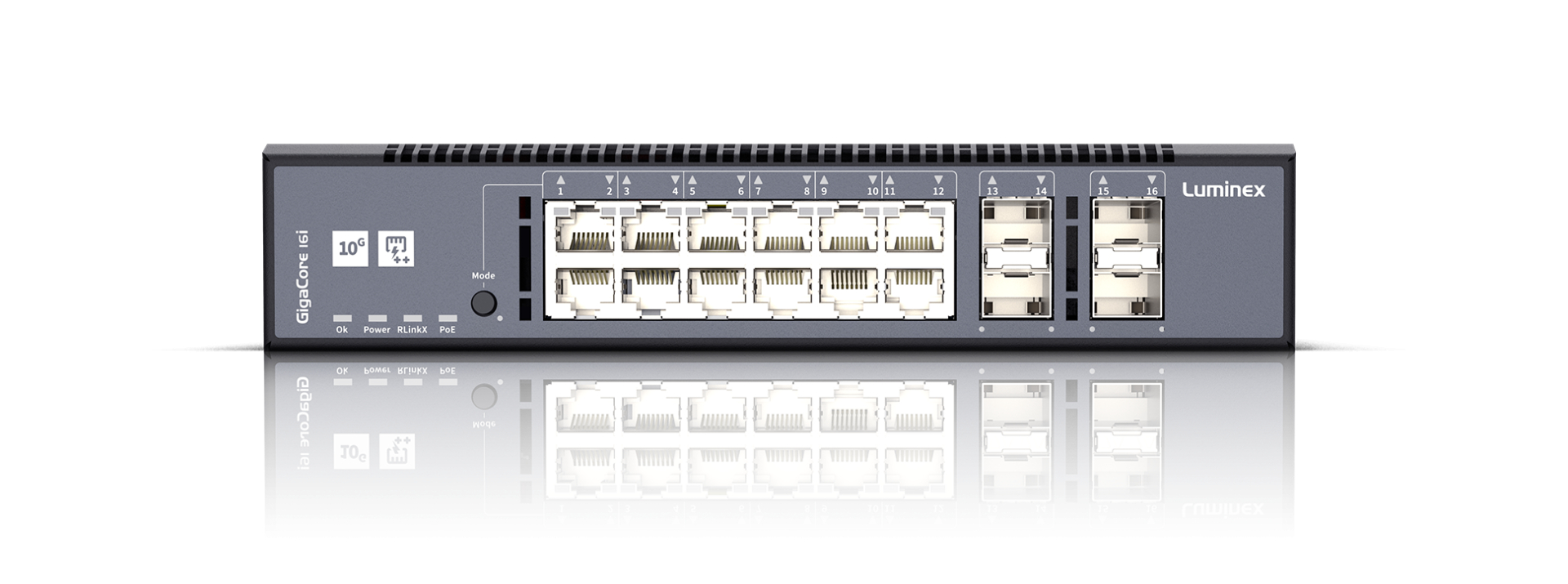

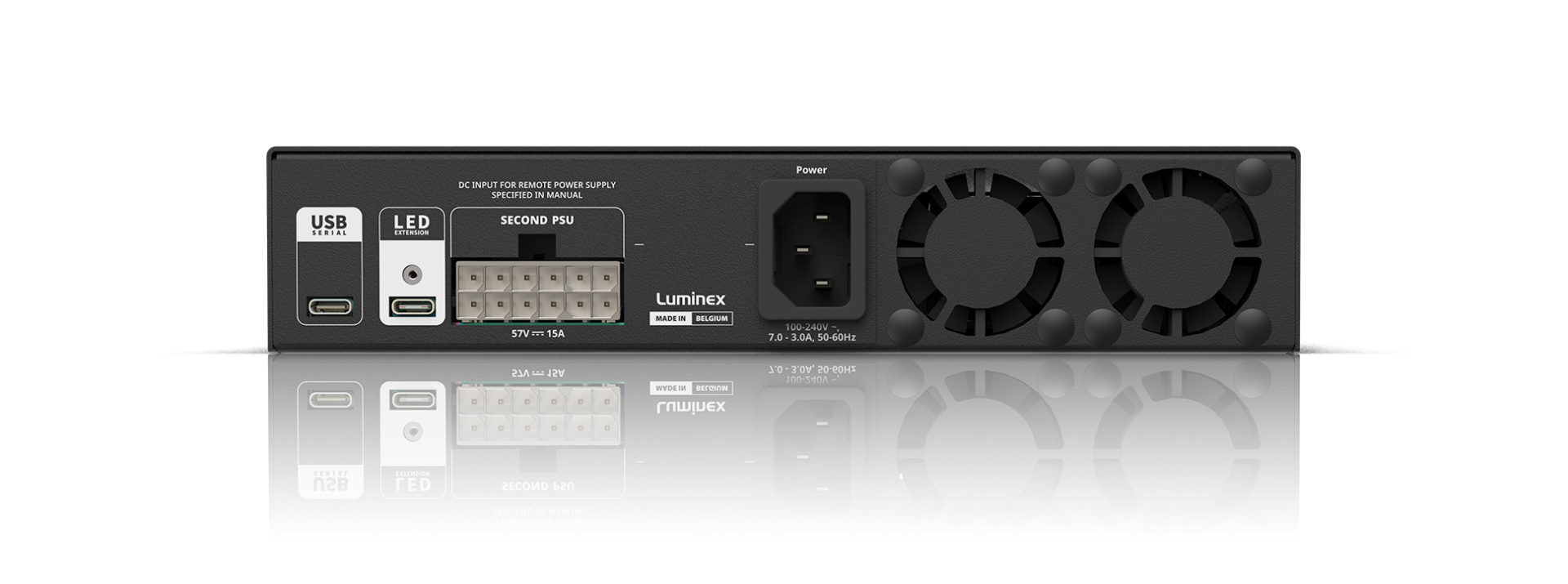

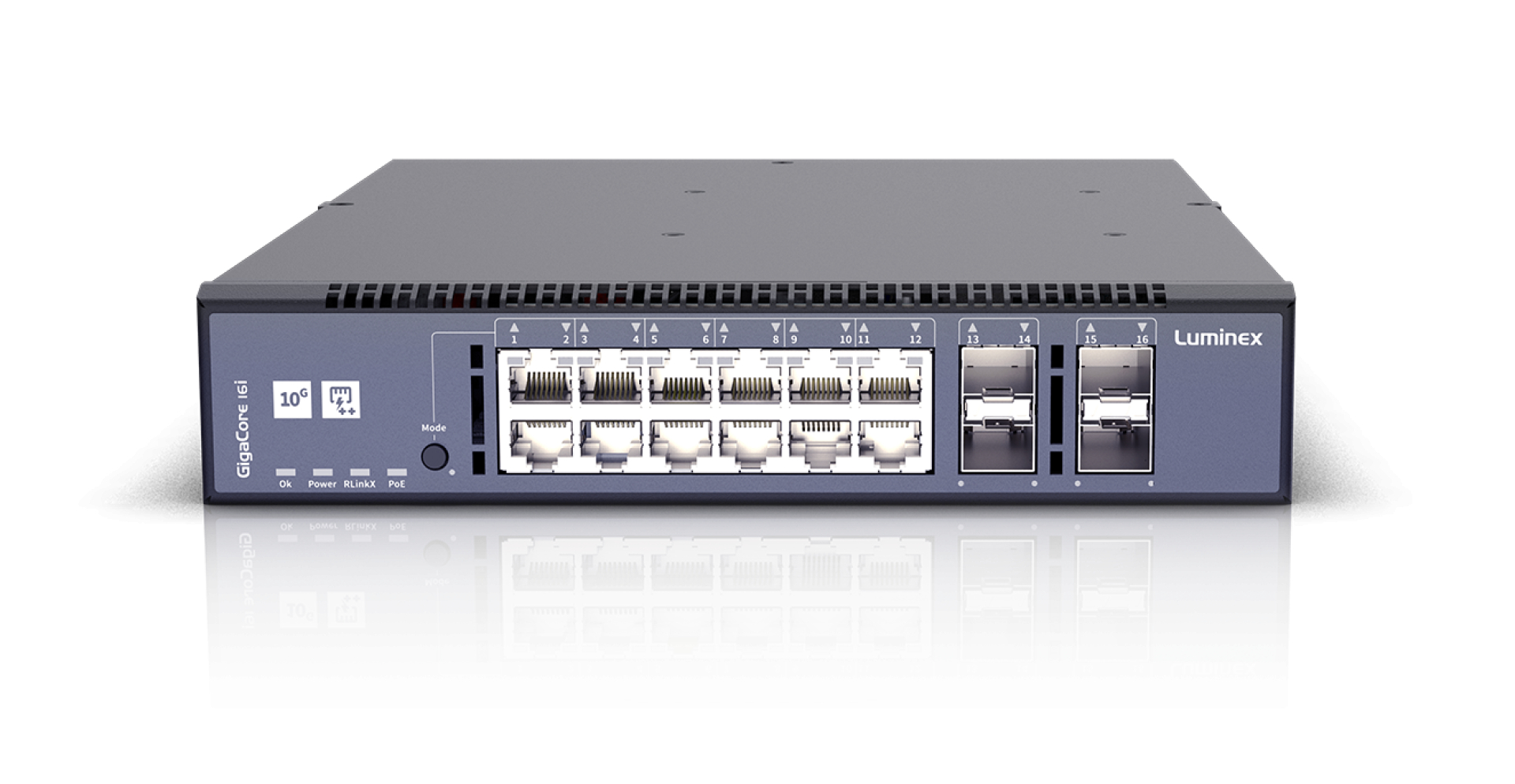

GigaCore 16i is a 10 Gigabit Ethernet switch in a ½ 19” package, dedicated to AV integration and installations where there are specific requirements to available space and mounting.

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and many more.

  • RLinkX (Link redundancy): Yes

    Groups (VLAN segmentation): Yes

    MultiLinkX (Link aggregation): Yes (With future FW upgrade)

    Profile manager: Yes

    Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage

    MAC address table: 16384 entries

    Address learning / Aging: Self learning, Auto aging

    Switching throughput 64 Byte: 77318Mpps

    Switching capacity: 104Gbps

    Jumbo frames: MTU up to 12000

    IGMP support: Yes (V1/V2/V3)

    IGMP snooping: Yes, enabled by default

    Port sensing: Auto negotiation

    Auto crossover: MDI / MDIX

    Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

GigaCore 16i - Downloads
Download
GigaCore 16i - Variant Downloads
