GigaCore 10i

GigaCore 10i

Key Features:

  • PoE: PoE ++ Optional (up to 150W)
  • AV validated for real applications
  • Robust yet silent design
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

GigaCore 10i

GigaCore 10i is a 10Gb Network switch for converged AV networks

Product Variants

GigaCore 10i-8x1G-2x10G(SFP+) (LU0100089-10G)

Enquiry Form

GigaCore 10i-8x1G-2x10G(SFP+)-PoE++ (LU0100089-10G-POE)

Enquiry Form

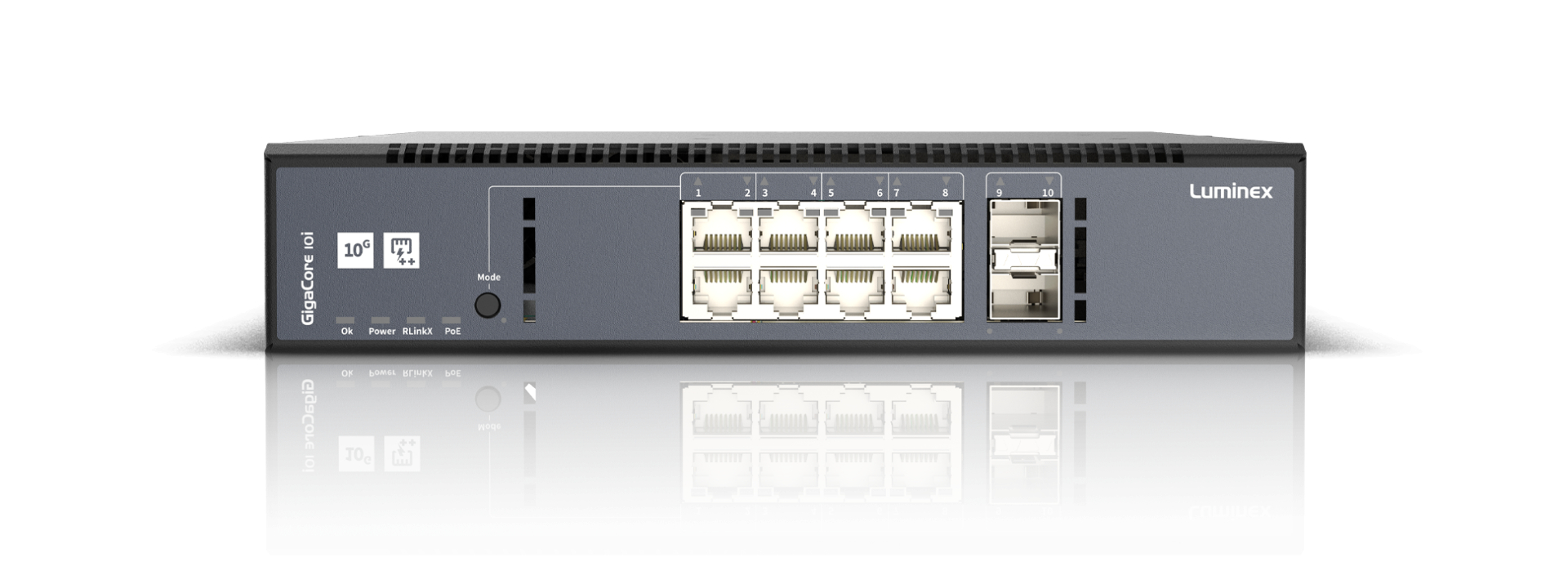

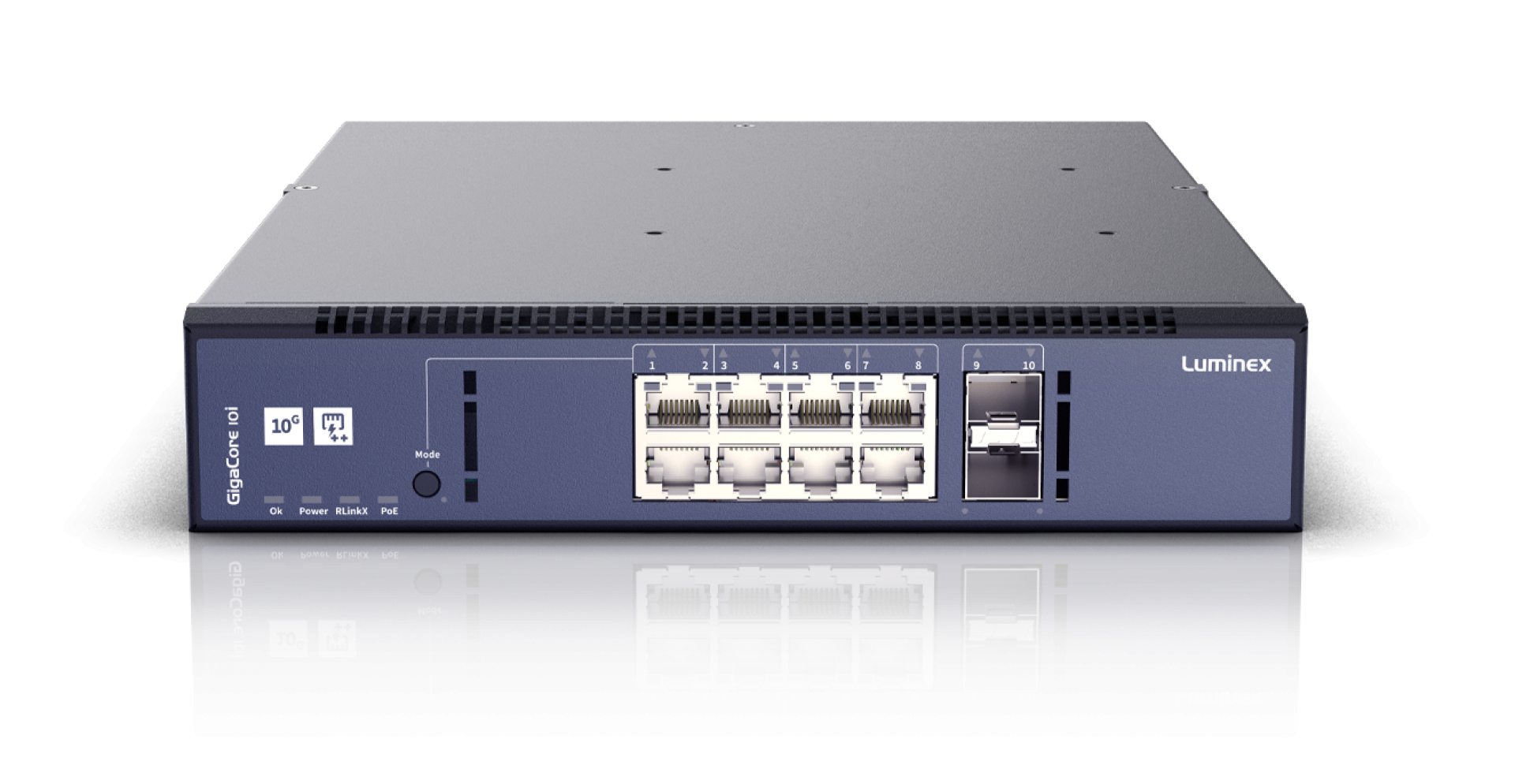

GigaCore 10i is a 10 Gigabit Ethernet switch in a ½ 19” package, dedicated to AV integration and installations where there are specific requirements to available space and mounting

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and many more.

  • Most suitable applications: Installations

    PoE: PoE ++ Optional (up to 180W)

    RLinkX (Link redundancy): Yes

    Groups (VLAN segmentation): Yes

    MultiLinkX (Link aggregation): Yes (With future FW upgrade)

    Profile manager: Yes

    Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage

    MAC address table: 16384 entries

    Address learning / Aging: Self learning, Auto aging

    Switching throughput 64 Byte: 41667Mpps

    Switching capacity: 56Gbps

    Jumbo frames: MTU up to 12000

    IGMP support: Yes (V1/V2/V3)

    IGMP snooping: Yes, enabled by default

    Port sensing: Auto negotiation

    Auto crossover: MDI / MDIX

    Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

    Ethernet connectivity: 8 x RJ45 connectors (1Gbps))

    Fiber connectivity: 2 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)

    Ethernet port speed: 1Gbps
