HaluPix Duo

HaluPix Duo

Key Features:

  • 500W IP65 dual layer LED matrix panel
  • 441x RGBWW pixels
  • 49x 2700K beams
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

HaluPix Duo

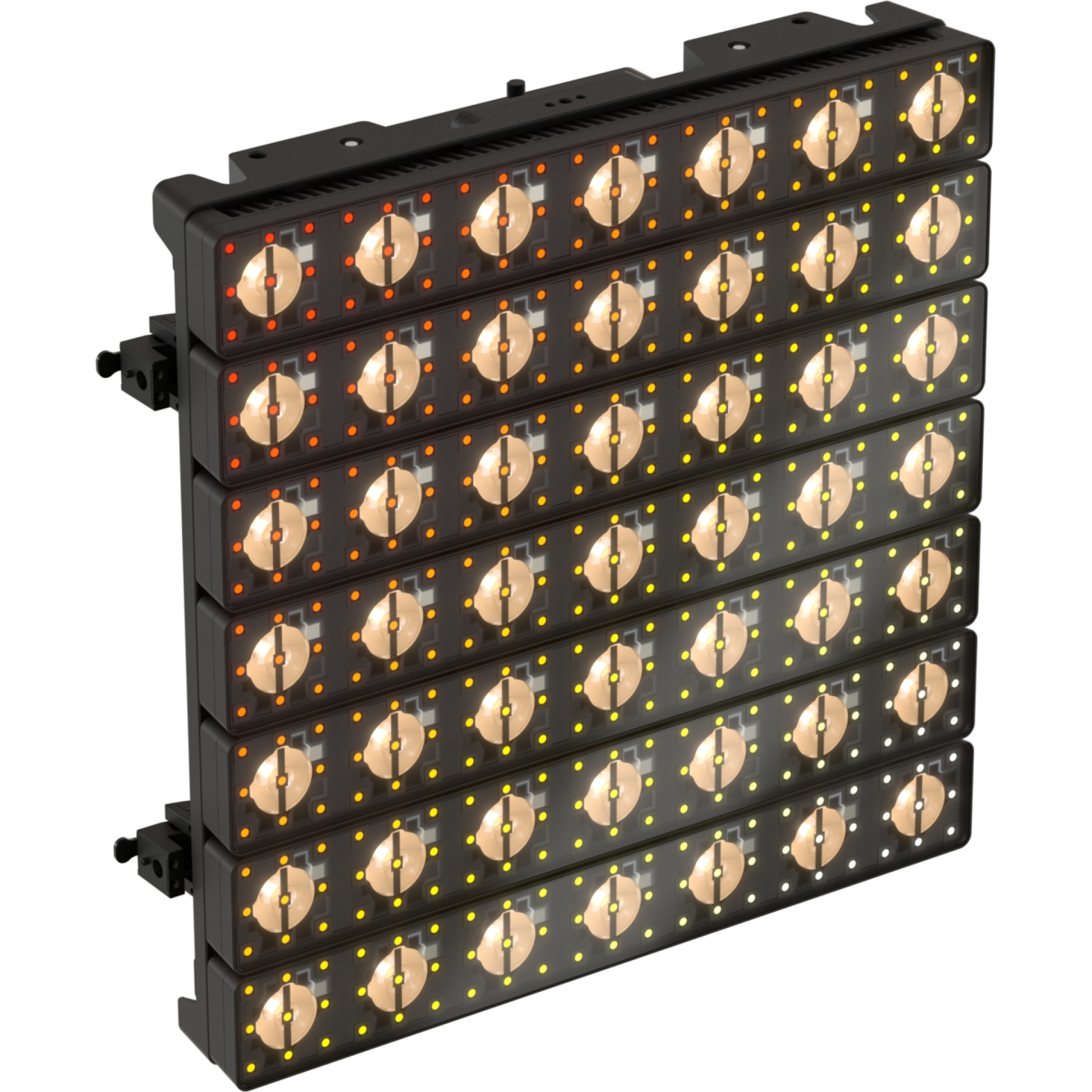

The HaluPix DUO is a dual layer LED matrix that seamlessly integrates lighting and video capabilities into a modular design.

This twin-source unit offers high-power, long-throw white beams alongside high-brightness video and strobe features, with full pixel-level control. This integration facilitates diverse and dynamic lighting setups, suitable for a variety of professional stages and TV applications.

Each unit of HaluPix DUO is a 50x50cm (20x20 inches) building block. It comprises two distinct layers of light sources: 441 (21x21) RGB+WW pixels with a 120° beam spread, and 49 (7x7) WarmWhite 4° beam sources. The total power draw is 500W, which can be distributed between either or both groups of light sources according to user preference. Additionally, each emitter is individually pixel controllable, enabling the display of video content on either one or both sources. This offers exceptional brightness and unmatched colors.

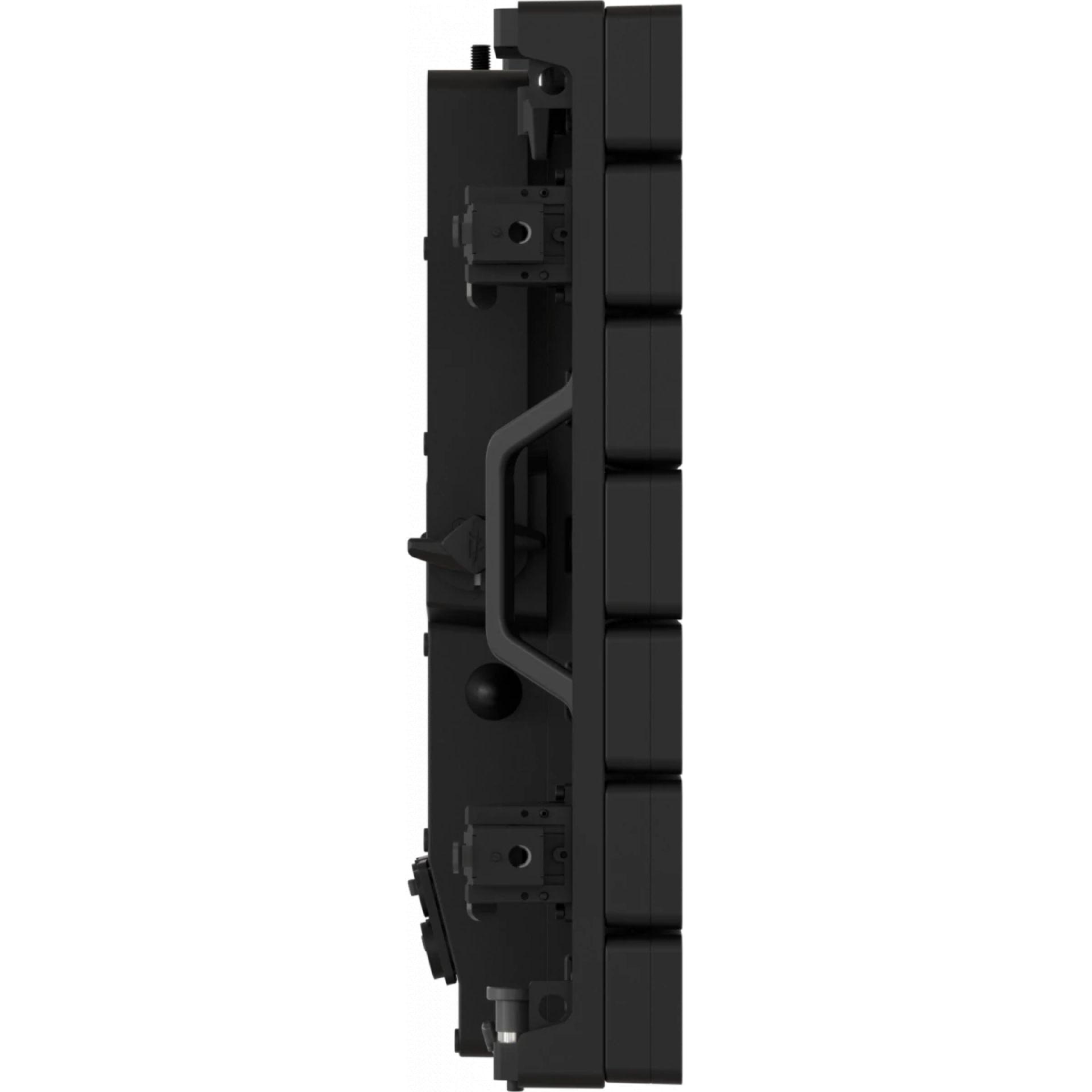

The modular frame of HaluPix DUO, akin to LED tile structures, allows seamless interlocking of multiple units. This maintains a consistent pixel pitch across both source groups when using several devices. The frame is designed for versatility, supporting various configurations such as flat or curved, hanging or ground stacking.

HaluPix DUO also excels as an all-weather lighting solution. Its IP65-rated design ensures reliability and durability in both indoor and outdoor applications, protecting against water and dust.

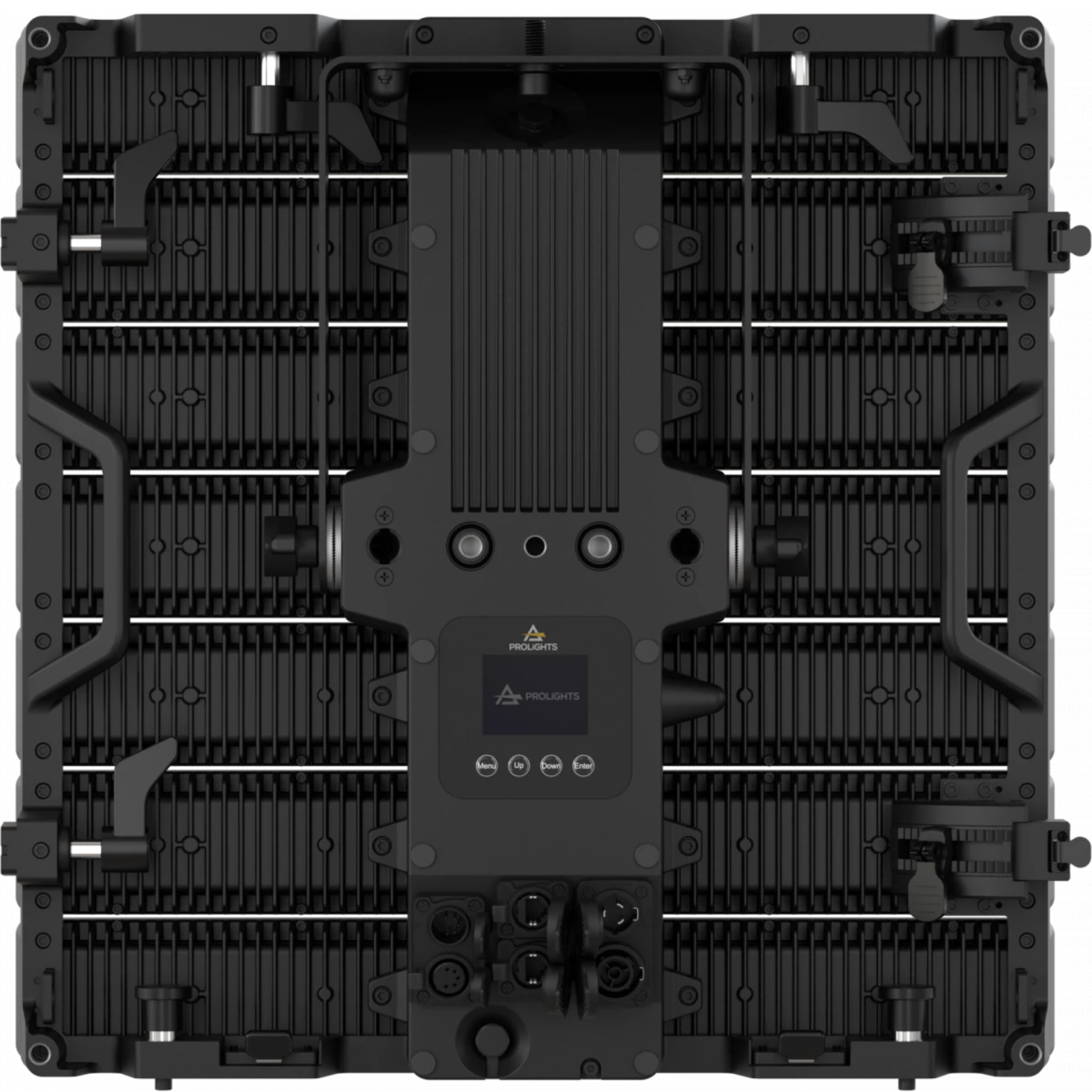

In terms of connectivity, HaluPix DUO comes with an integrated power supply and user interface. It supports a variety of lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering unparalleled flexibility for any setup.

  • Source: 4x12W RGBW LEDs

    Luminous flux: 11'388 lm (total) @Full

    Luminous flux: 7'391 lm (beam layer) | 12'555 lm (pixel layer) @Full

    Lux: 2,064lux @ 3m

    Lux: (beam layer) 51'268 lx | (pixel layer) 173lx @5 m full

    Source life expectancy: >50,000hr

    Beam angle: (beam layer) 3,6°; (pixel layer) 116°

    Field angle: (beam layer) 6,8°; (pixel layer) 155°

  • Colour mixing: (beam layer) Warm White (2700K), (pixel layer) RGB + Warm White

    Colour wheel: virtual colour wheel with macros

    Macros: several pre-built pixel macros with adjustable speed

    Control Resolution: 16-bit dimmer, colours

    Static mode: selection of static dimmer, colors and color temperature

    Manual colour mode: manual adjustment of colour

    FX generator: adjustable foreground/background colour, index, speed, direction

  • Protocols: DMX512, RDM, ArtNet, RDMnet, sACN, CRMX

    DMX channels: from 12 channels to 1855channel

    Pixel control: pixel2pixel control

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via Ethernet (Art-Net with DMX-Workshop)

    Master/Slave: for synchronised operation of more units linked in a chain

    EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
