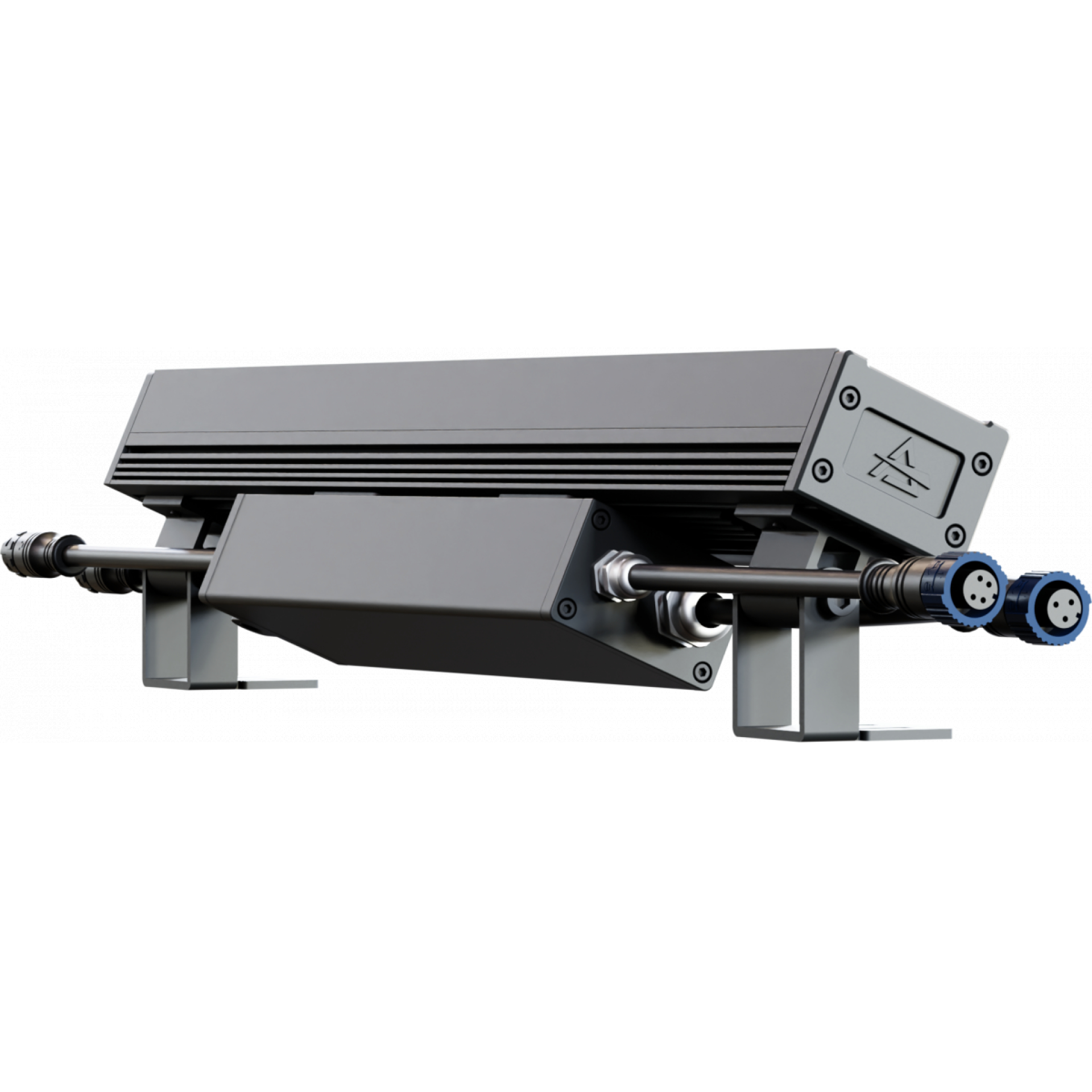

ArcShine M9 Back Right View
ArcShine M9 back left view

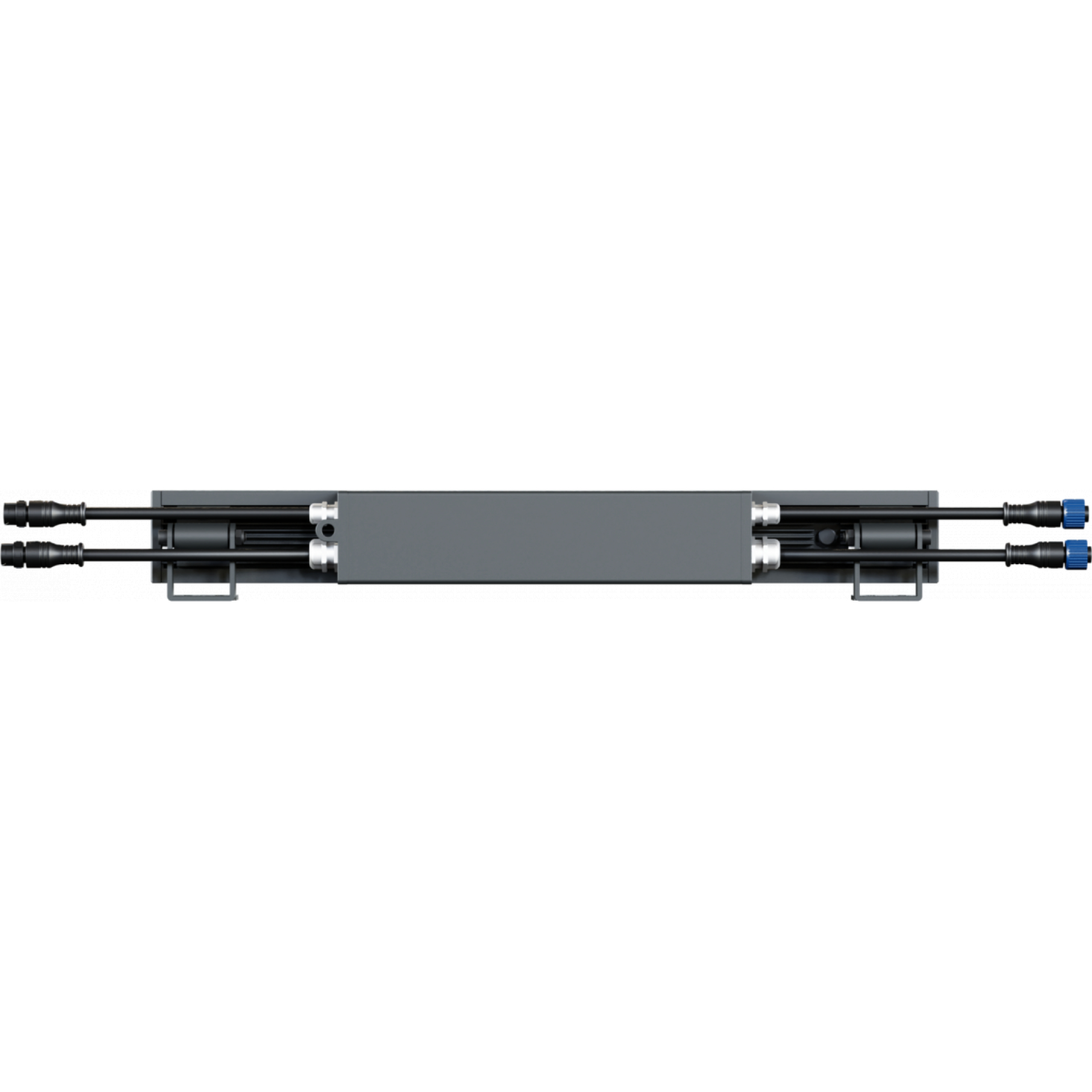

ArcShine M9 back view

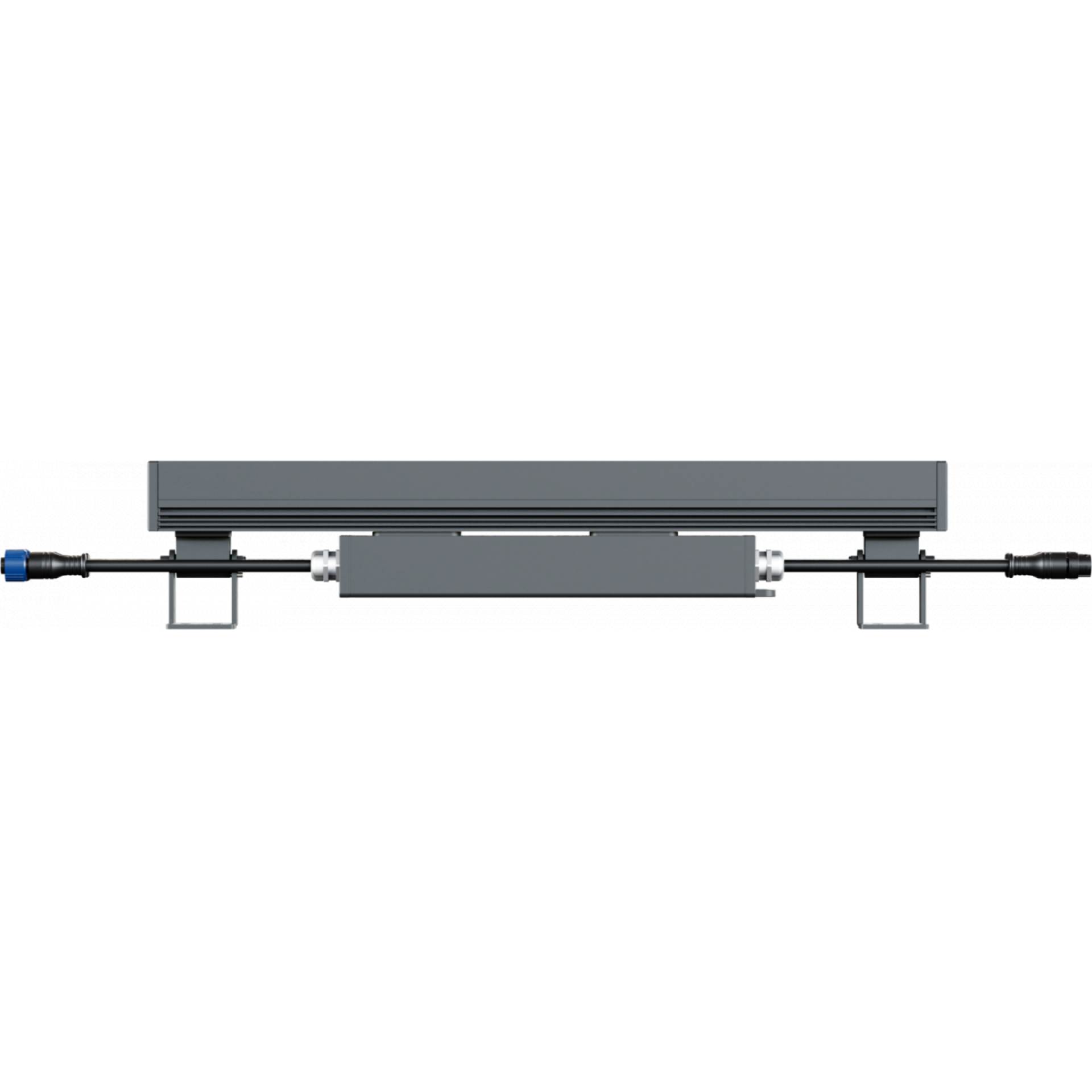

ArcShine M9 top view
ArcShine S9FC
ArcShine S9VW

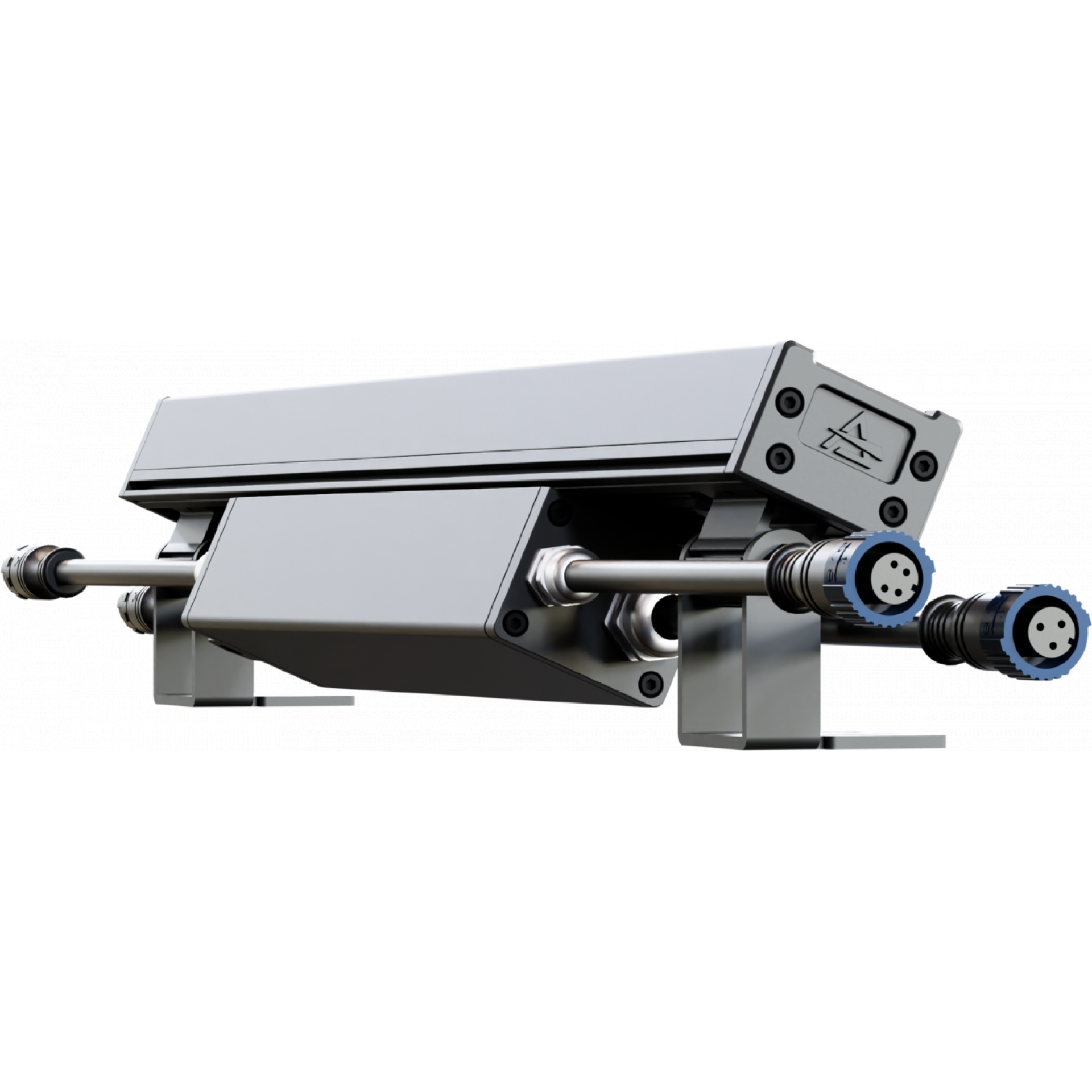

ArcShine S9 back right view
ArcShine S9 back left view

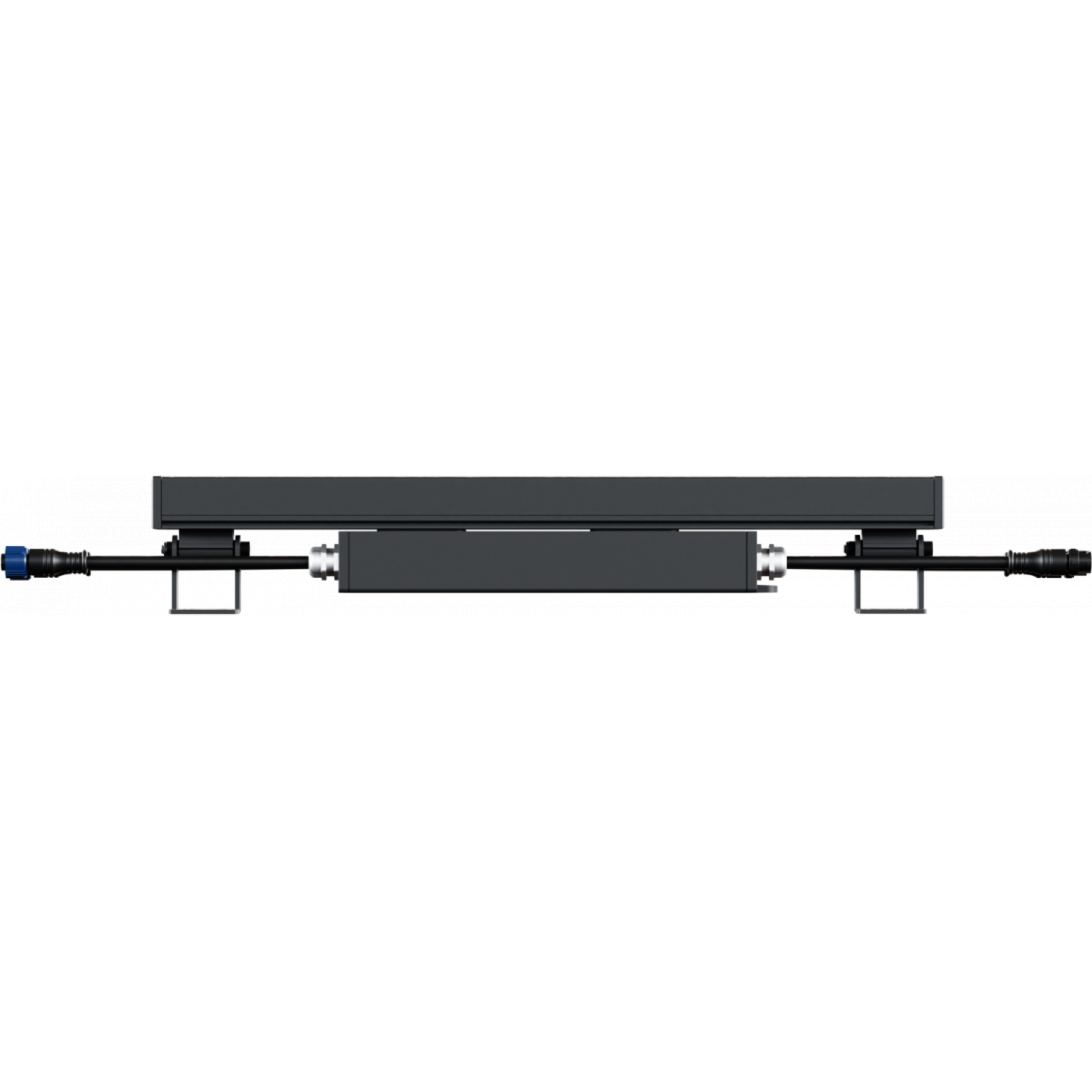

ArcShine S9 top view
ArcShine M18FC
ArcShine S9 back view
ArcShine M18VW

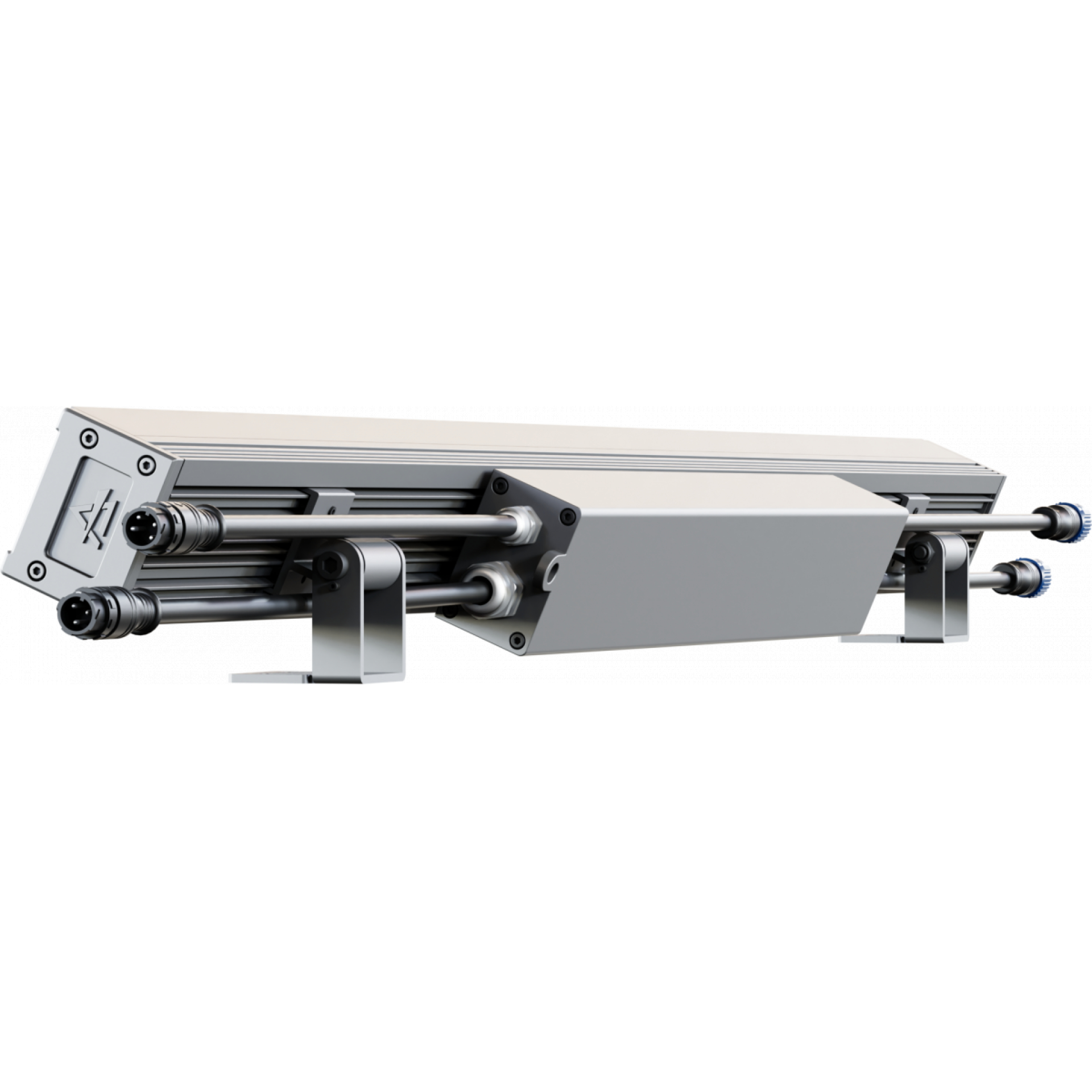

ArcShine M18 back left view

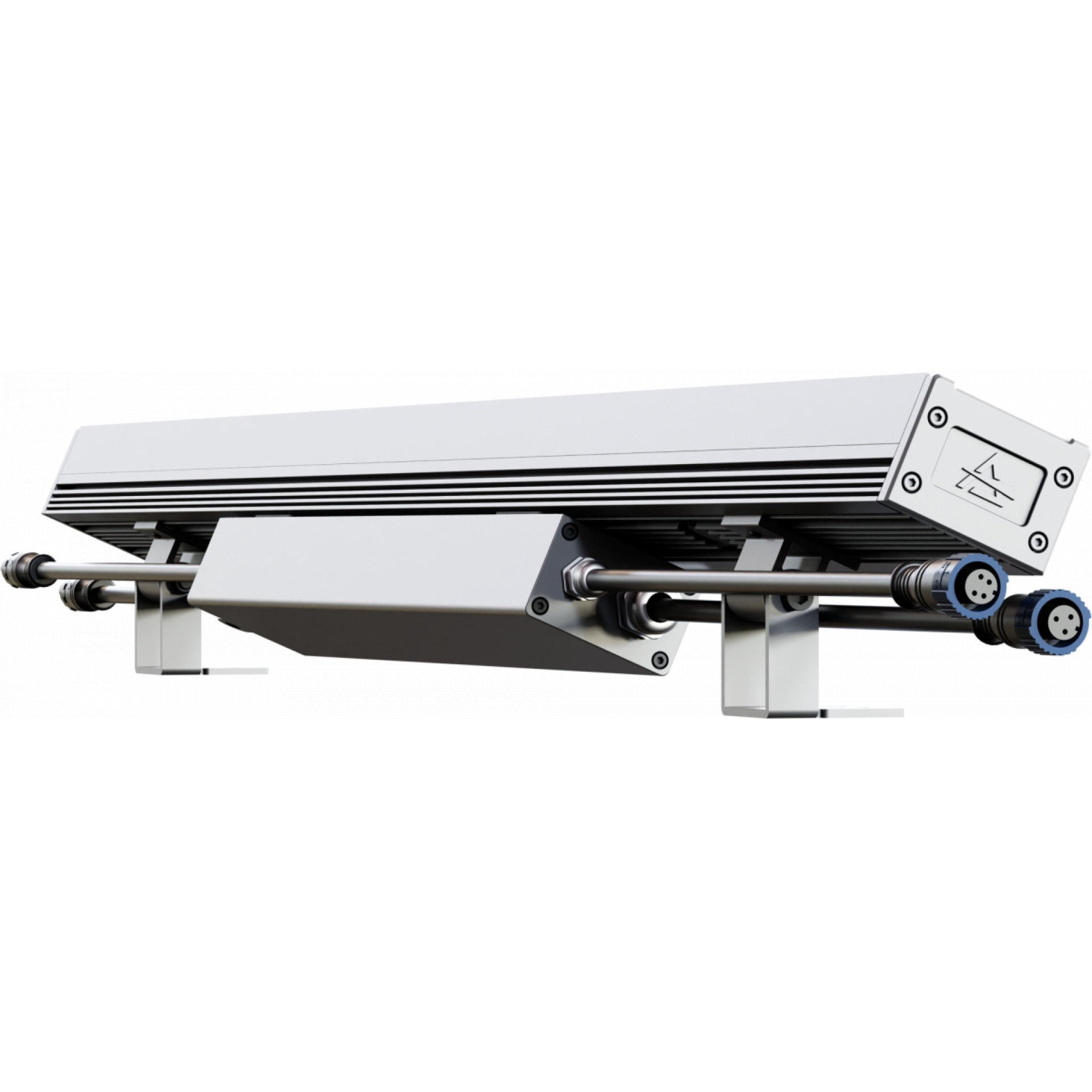

ArcShine M18 back right view
ArcShine M18 back view
ArcShine M18 top view
ArcShine S18FC
ArcShine S18VW
ArcShine S18 back left view

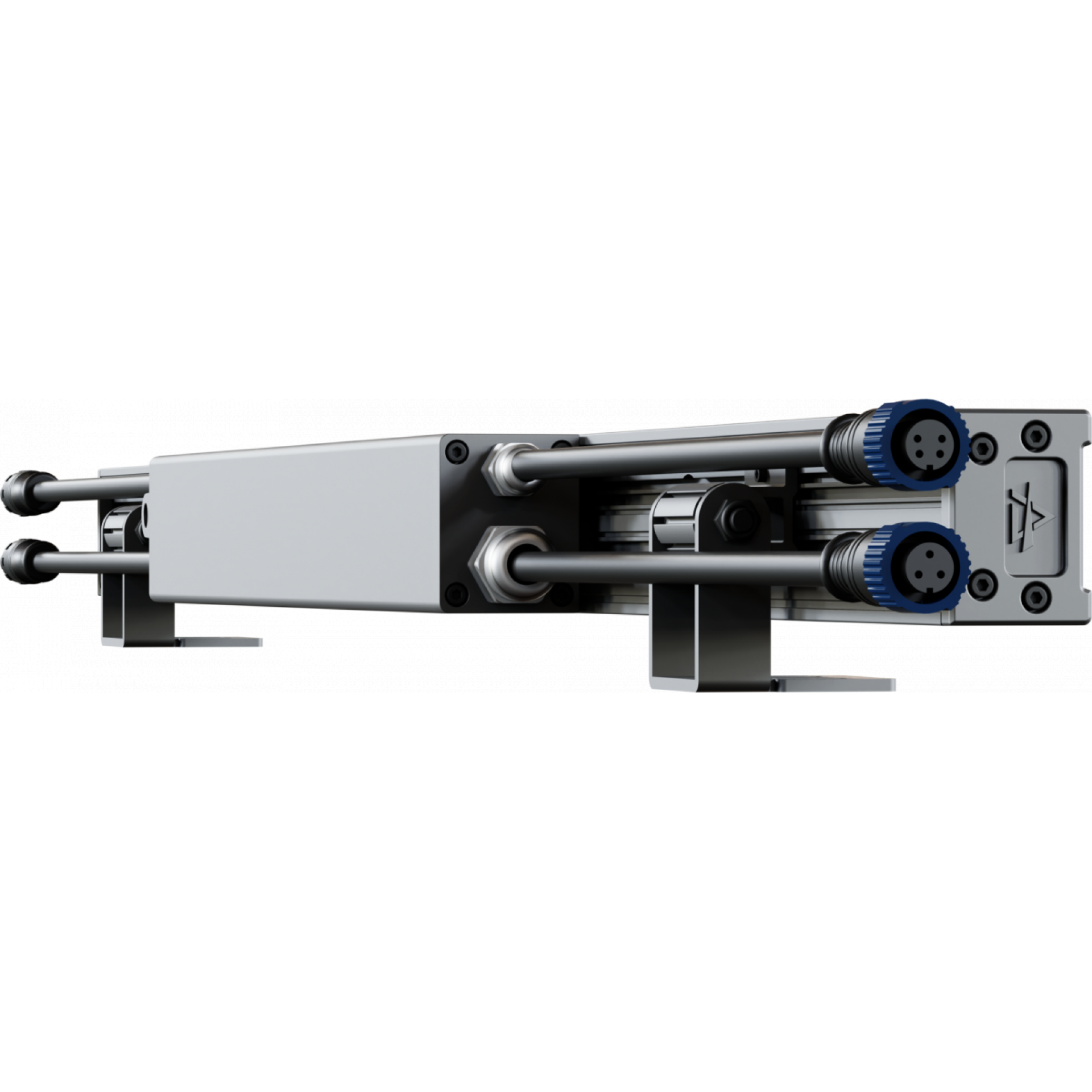

ArcShine S18 back right view

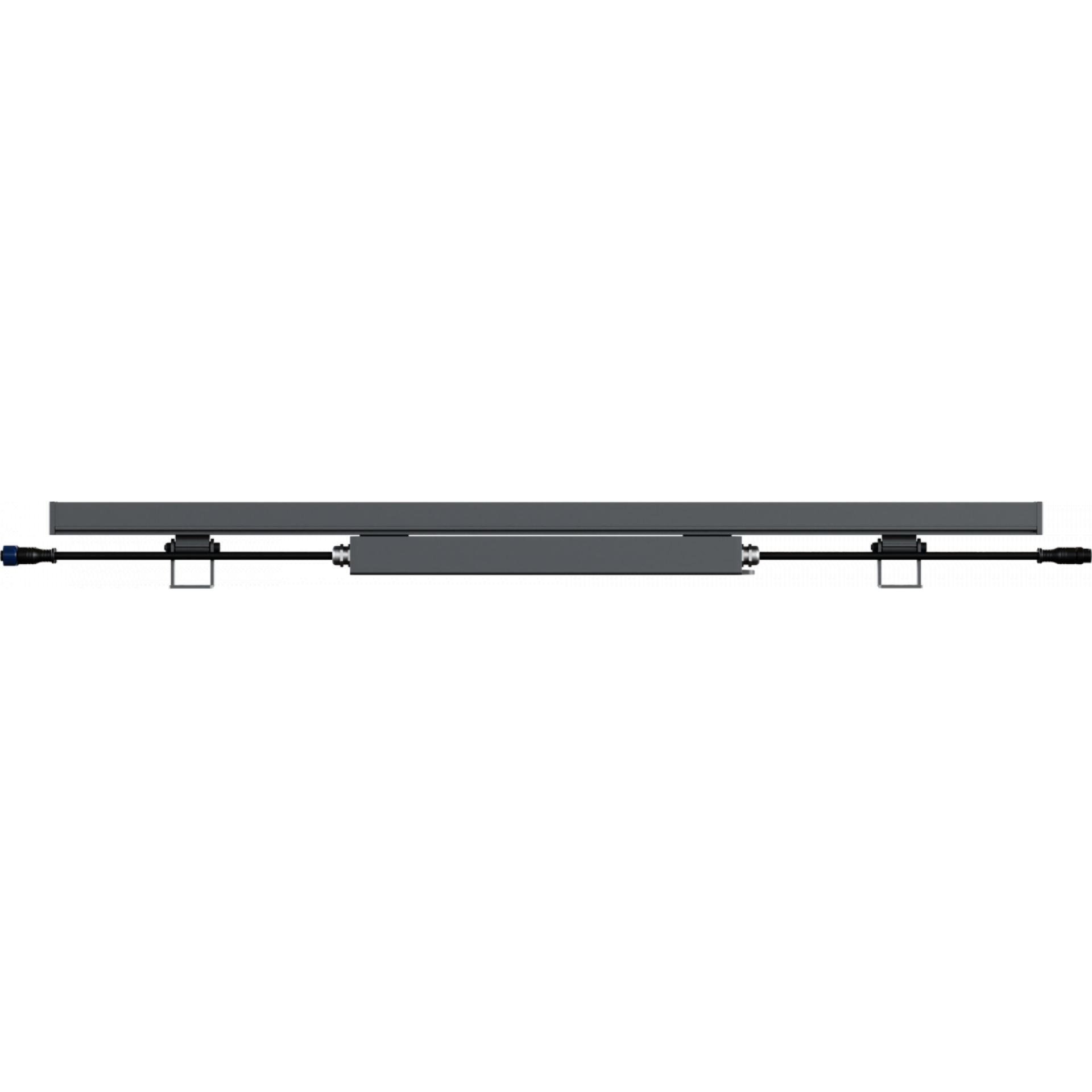

ArcShine S18 top view

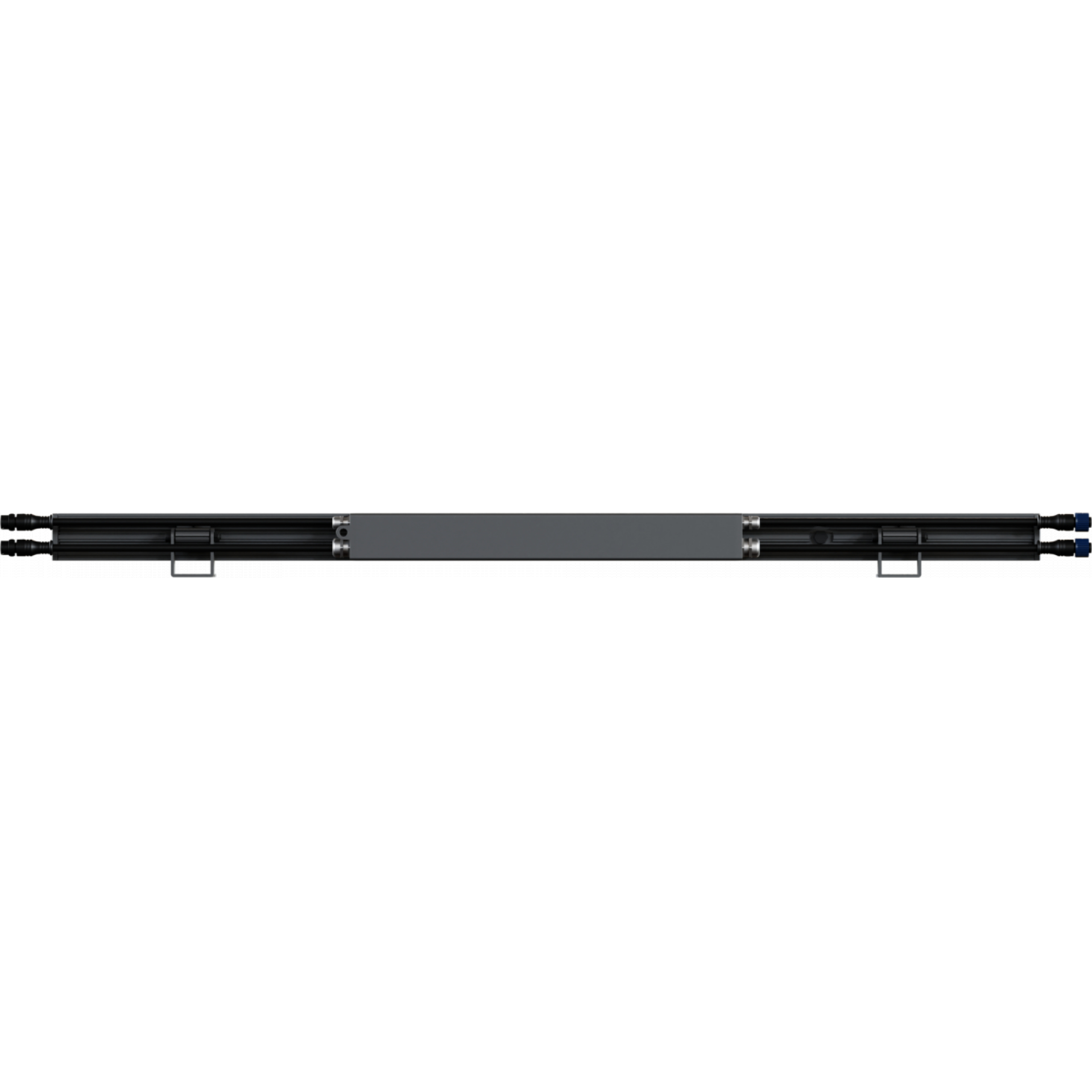

ArcShine S18 back view
ArcShine M9FC
ArcShine M9VW
ArcShine M9 Back Right View
ArcShine M9 back left view
ArcShine M9 back view
ArcShine M9 top view
ArcShine S9FC
ArcShine S9VW
ArcShine S9 back right view
ArcShine S9 back left view
ArcShine S9 top view
ArcShine M18FC
ArcShine S9 back view
ArcShine M18VW
ArcShine M18 back left view
ArcShine M18 back right view
ArcShine M18 back view
ArcShine M18 top view
ArcShine S18FC
ArcShine S18VW
ArcShine S18 back left view
ArcShine S18 back right view
ArcShine S18 top view
ArcShine S18 back view

ArcShine Range

Key Features:

  • Optional holographic symmetric and elliptical filters available
  • IP66
  • RGB + Warm White or Variable White
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

ArcShine Range

The PROLIGHTS ArcShine range are a series of linear IP66 LED fixtures designed for interior and exterior applications, including flood lighting, wall washing and accent lighting.

Product Variants

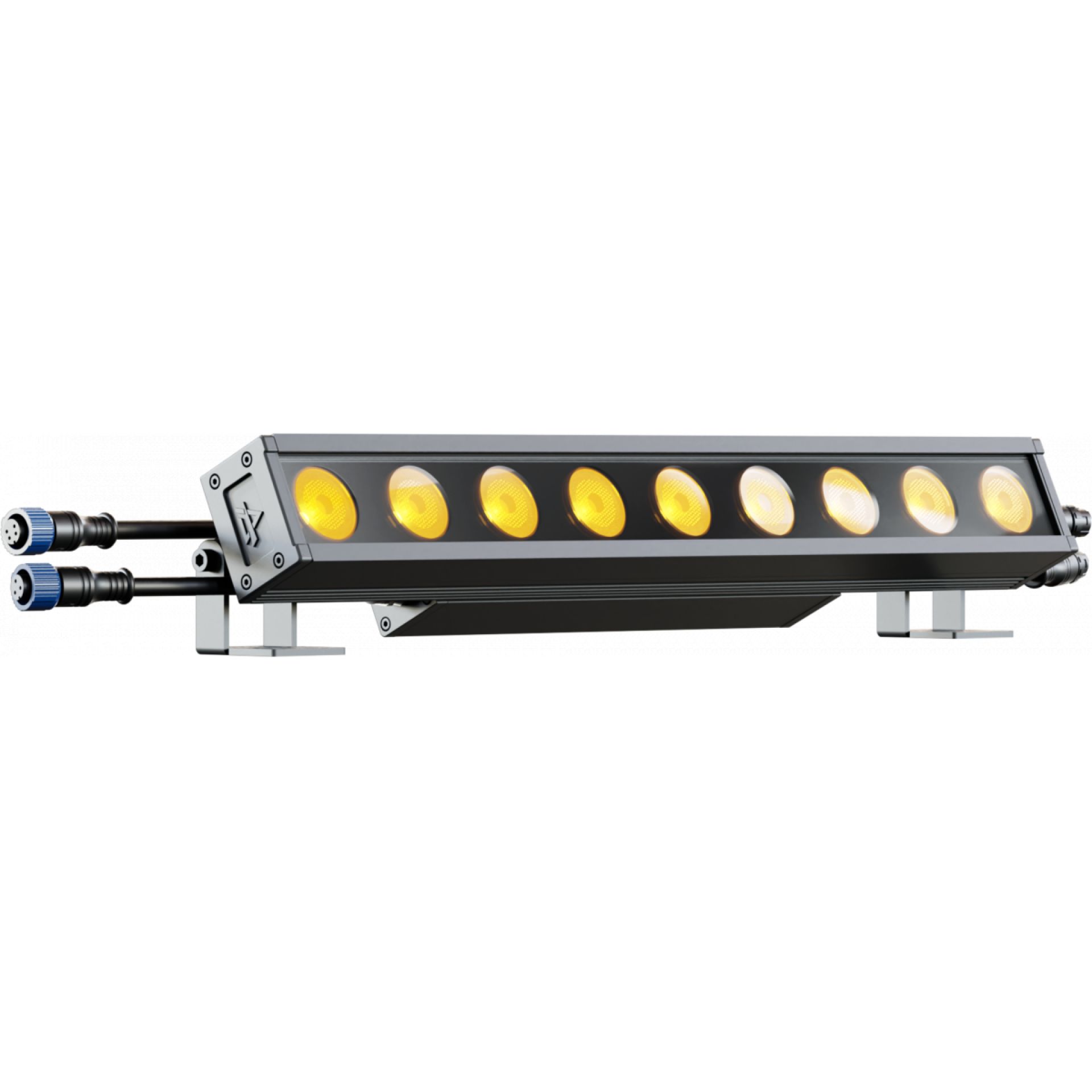

ArcShine M9FC
ArcShine M9FC
  • RGB + Warm White
  • 9 x 4W LEDs
  • Beam angle: 8°
  • Length: 50cm
  • IP66

Enquiry Form

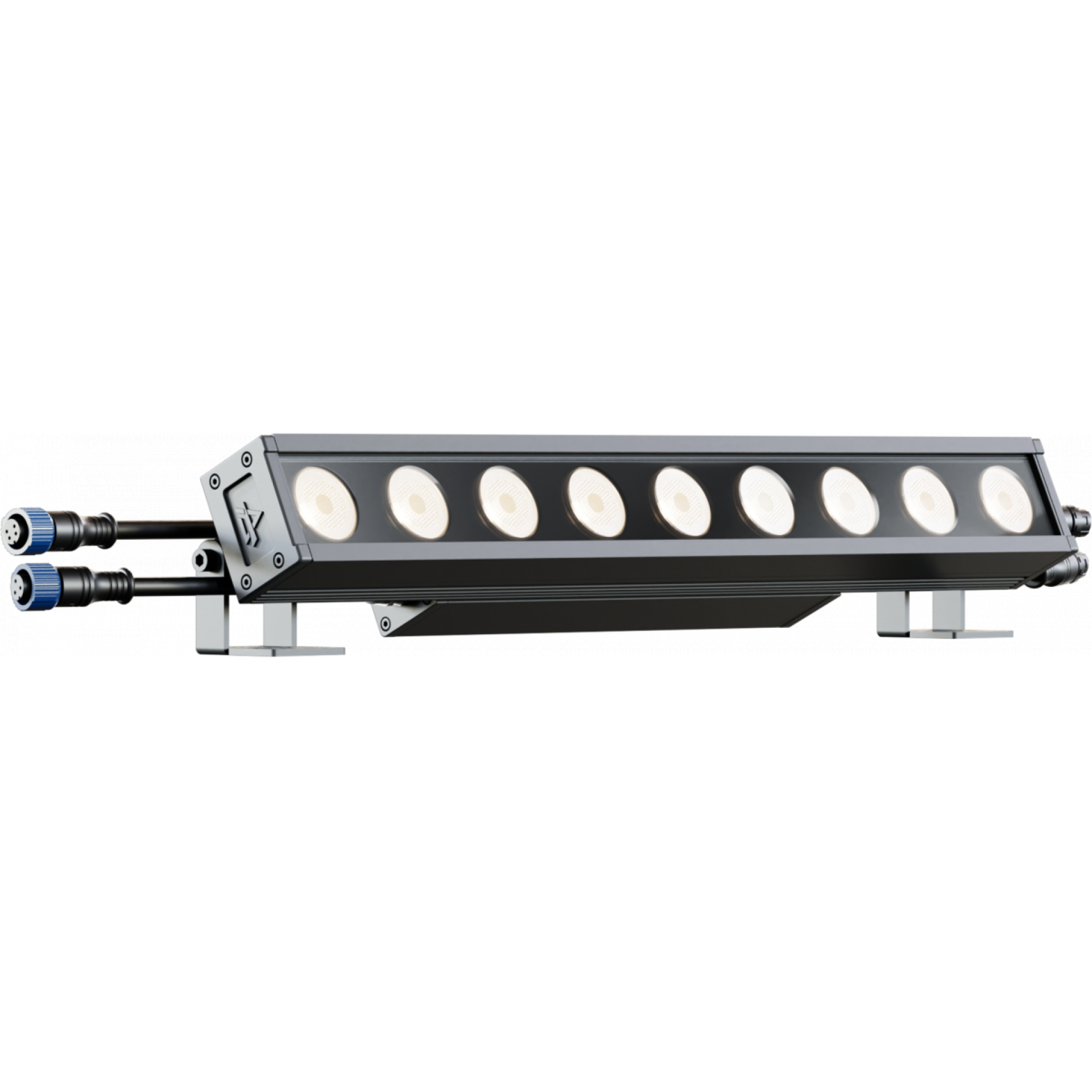

ArcShine M9VW
ArcShine M9VW
  • Variable white
  • 9 x 4W LEDs
  • Beam angle: 8°
  • Length: 50cm
  • IP66

Enquiry Form

ArcShine S9FC
ArcShine S9FC
  • RGB + Warm White
  • 9 x 2W LEDs
  • Beam angle: 15°
  • Length: 50cm
  • IP66

Enquiry Form

ArcShine S9VW
ArcShine S9VW
  • Variable white
  • 9 x 2W LEDs
  • Beam angle: 15°
  • Length: 50cm
  • IP66

Enquiry Form

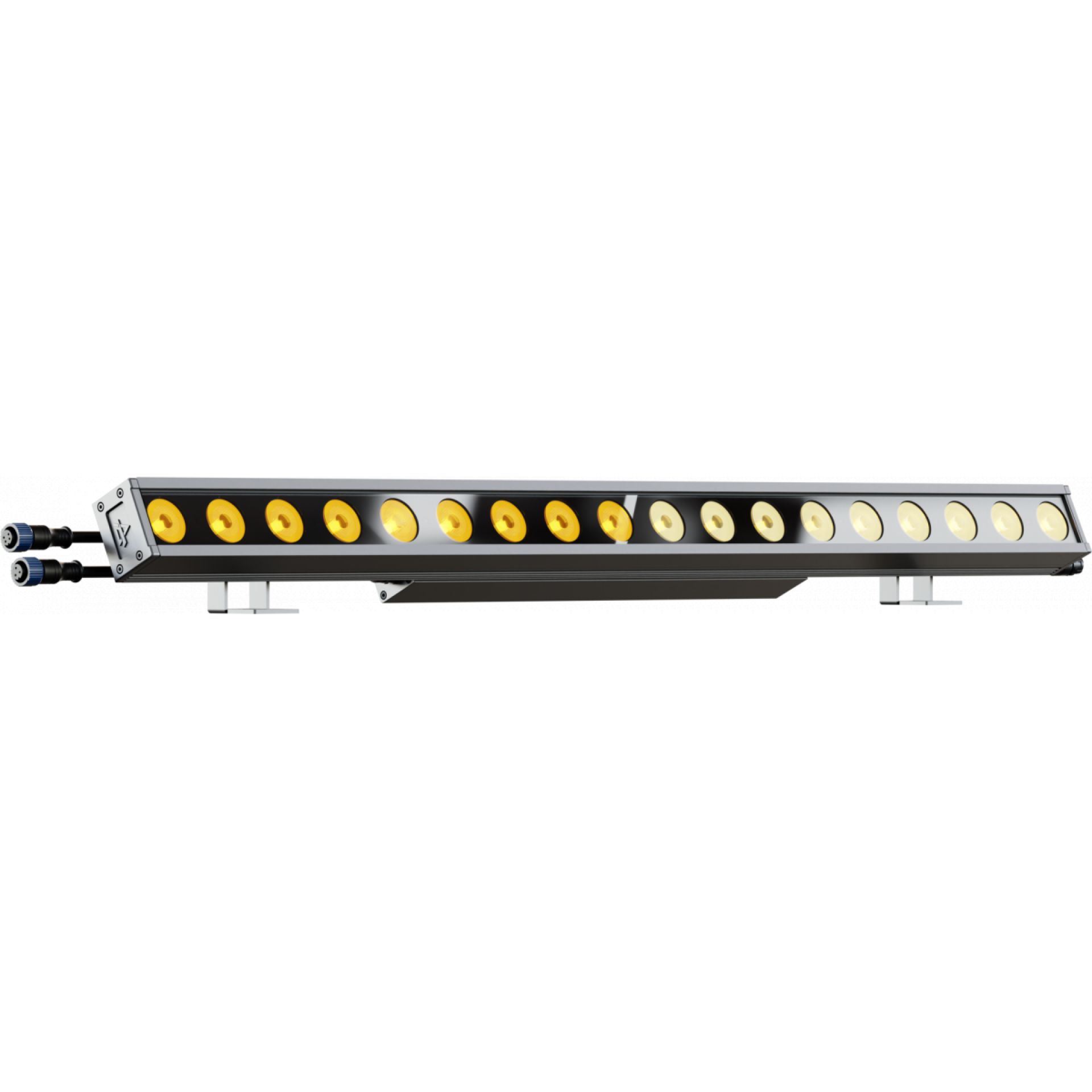

ArcShine M18FC
ArcShine M18FC
  • RGB + Warm White
  • 18 x 4W LEDs
  • Beam angle: 8°
  • Length: 100cm
  • IP66

Enquiry Form

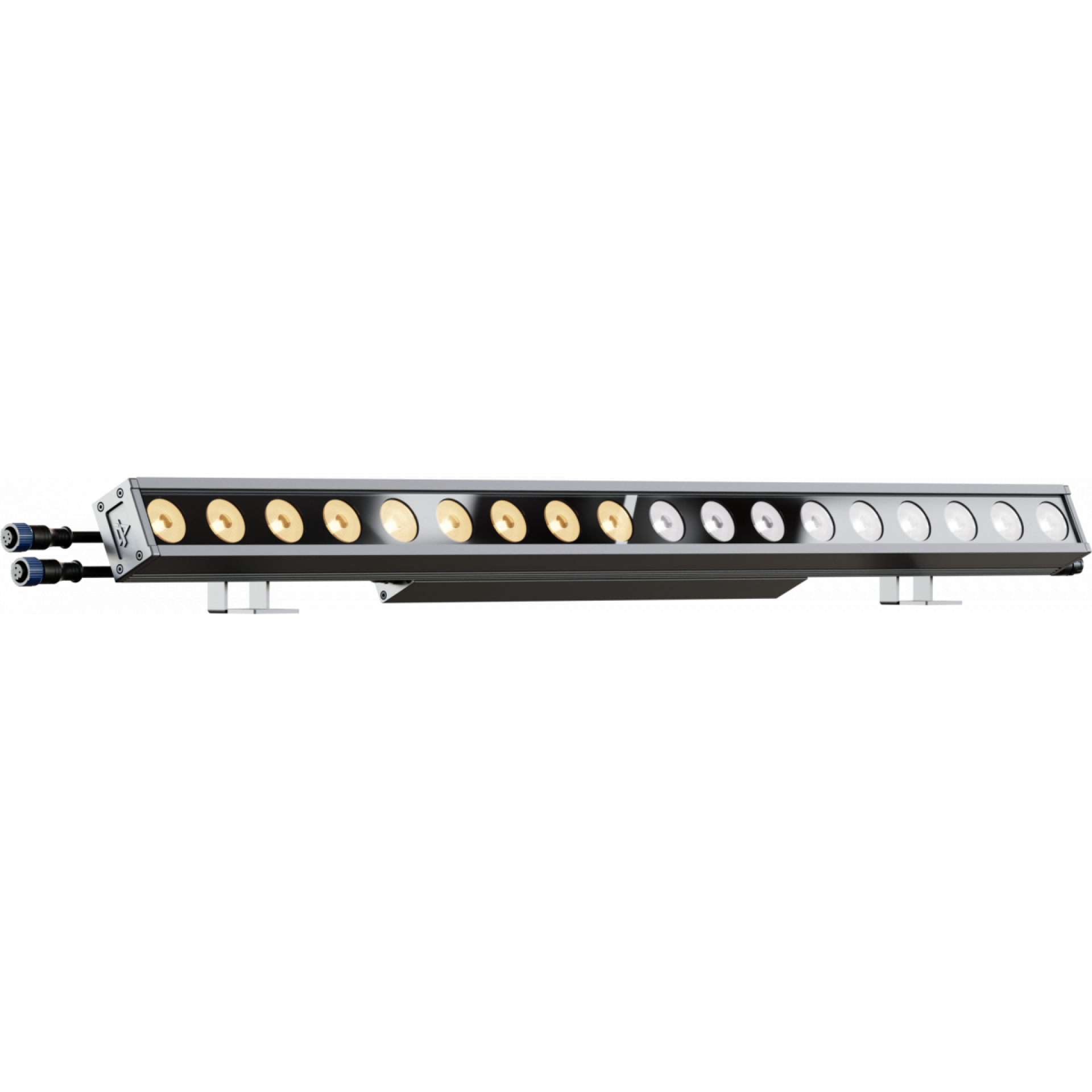

ArcShine M18VW
ArcShine M18VW
  • Variable white
  • 18 x 4W LEDs
  • Beam angle: 8°
  • Length: 100cm
  • IP66

Enquiry Form

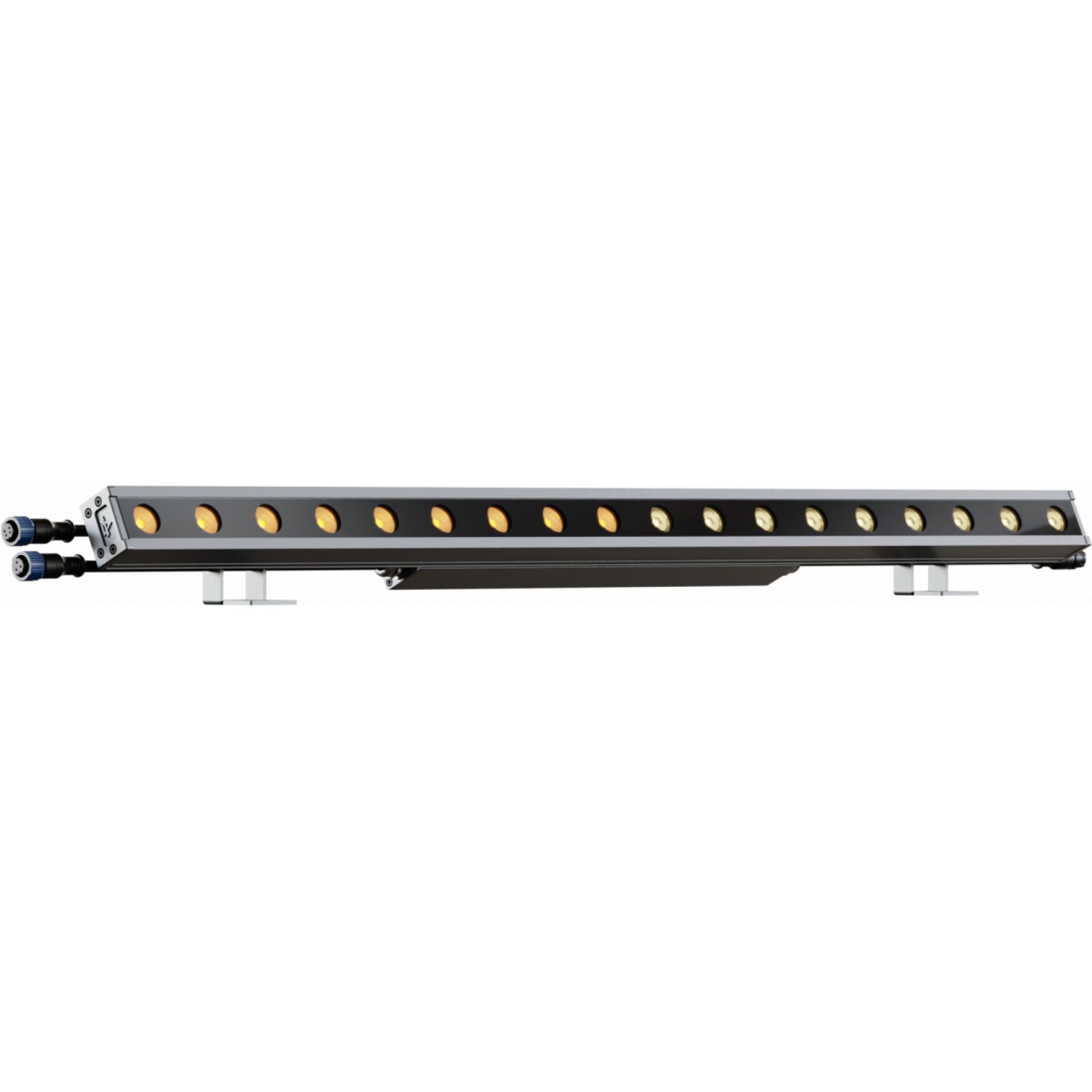

ArcShine S18FC
ArcShine S18FC
  • RGB + Warm White
  • 18 x 2W LEDs
  • Beam angle: 15°
  • Length: 100cm
  • IP66

Enquiry Form

ArcShine S18VW
ArcShine S18VW
  • Variable white
  • 18 x 2W LEDs
  • Beam angle: 15°
  • Length: 100cm
  • IP66

Enquiry Form

There are two sizes available in the ArcShine range, an 18 LED 1m version and the other with 9 LEDs at 0.5m in length. The fixtures are either RGB + Warm White colour mixing or variable white. These are split again into two beam angle versions, the M range with 8 degrees and the S range with 15 degrees.

The ArcShine range has an on-board power supply and DMX/RDM control, with the 1m version controllable in two sections.

The aluminium body is die-cast and comes with tempered glass making them ideal for outdoor architectural use.

  • M range beam angle: 8°

    S range beam angle: 15°

    Optional holographic symmetric and elliptical filters: 20°; 40°; 60°; 10°x60°; 30°x60°

    Tilt angle: manual 180°

  • Colour mixing: RGB + Warm White

    CCT: CCT control through dedicated DMX channel

    Colour wheel: virtual colour wheel with macros

    Macros: built-in white presets

  • Colour mixing: Variable White

    CCT: CCT control through dedicated DMX channel

    Macros: built-in white presets

  • Protocols: DMX512, RDM

    Stand alone: available through DATAMASTER external coder (not included)

    DMX channels FC: 1 / 2 / 5 / 9 / 12 / 14 channel

    DMX channels VW: 1 / 2 / 5 / 9 channel

    RDM for remote monitoring and settings

    Display: user interface through DATAMASTER external coder (not included)

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain

    Other: 16bit control of dimmer and colour

ArcShine Range - Variant Downloads

You might like...

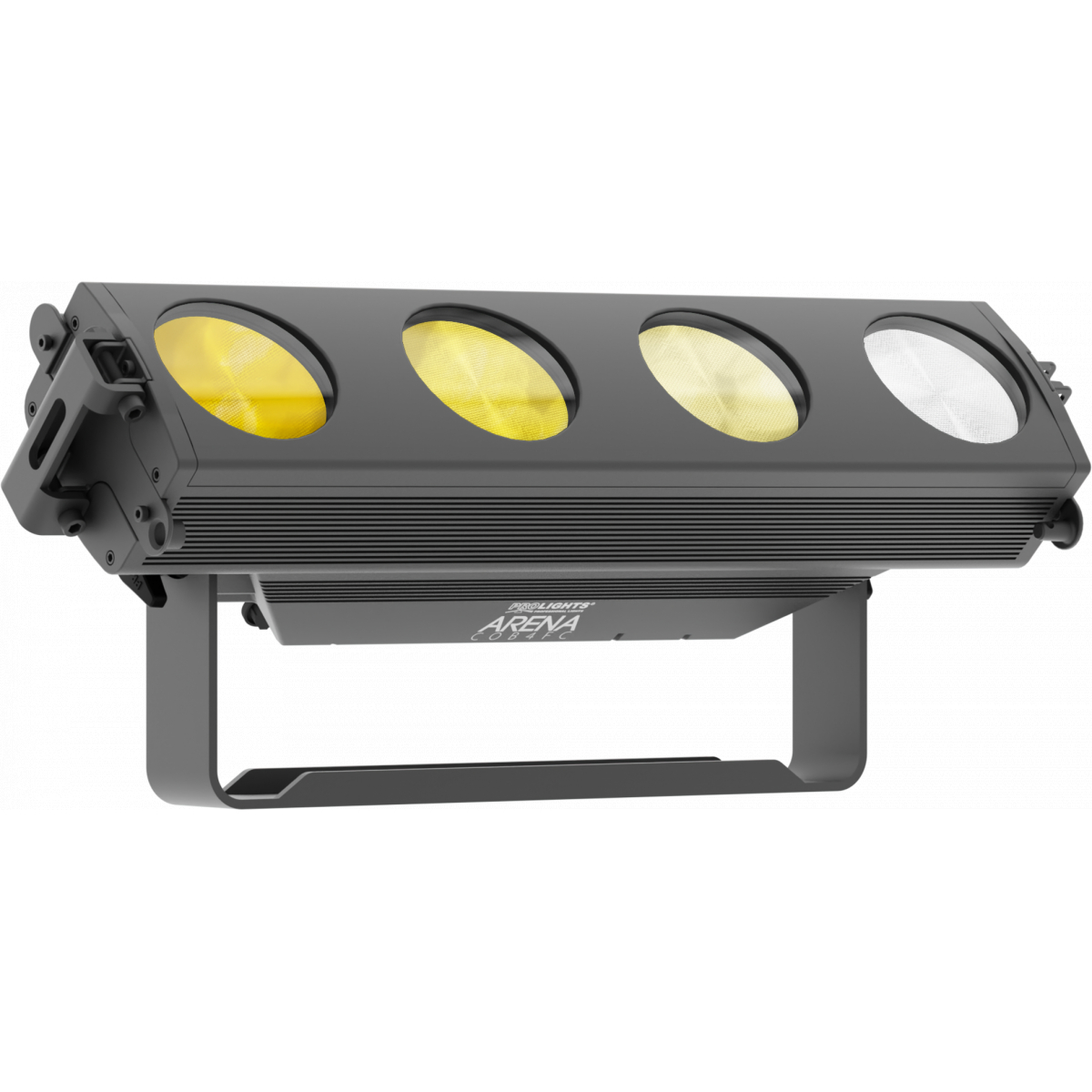

PROLIGHTS ArenaCob 4FC
