EclCyclorama 050

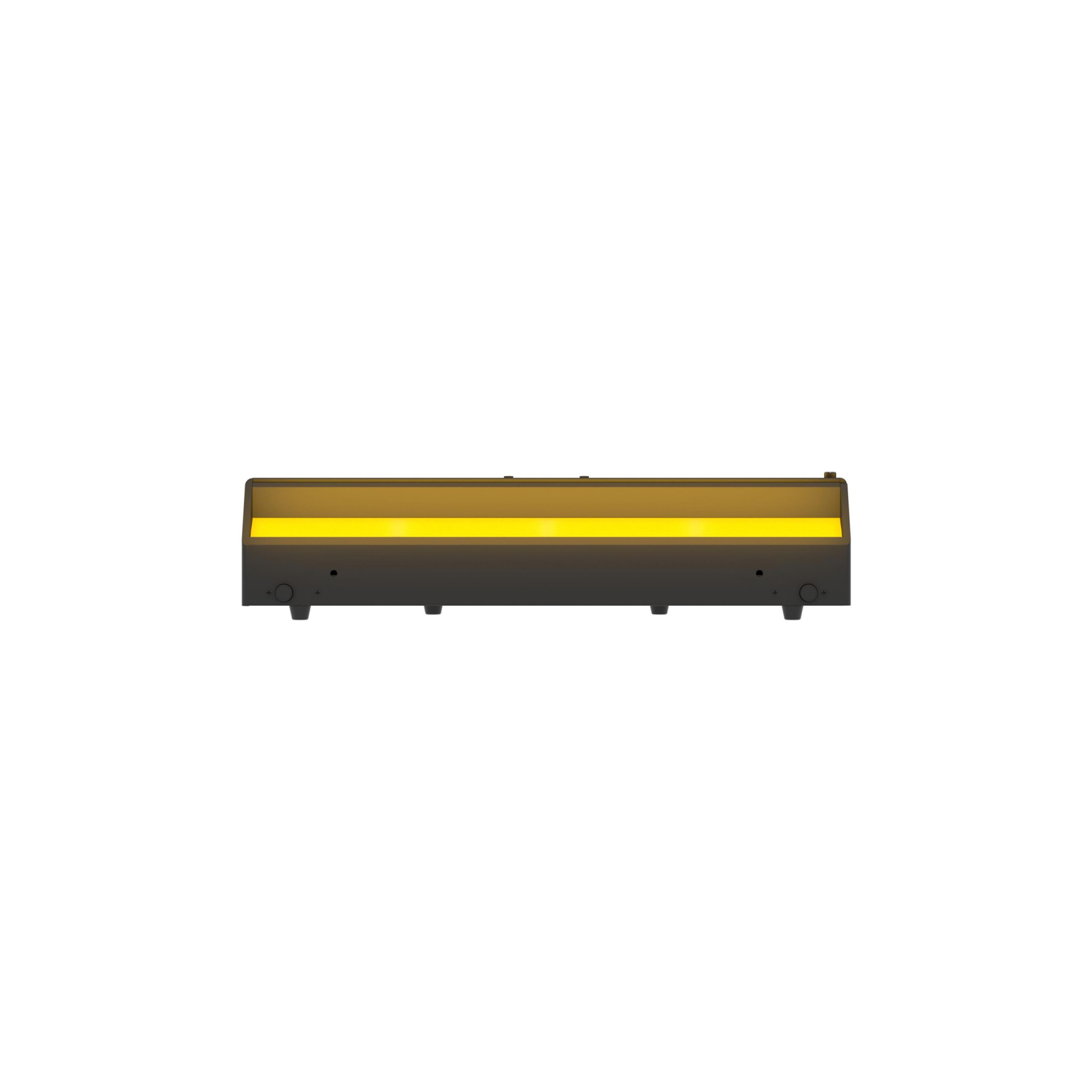

PROLIGHTS EclEcyclorama 050

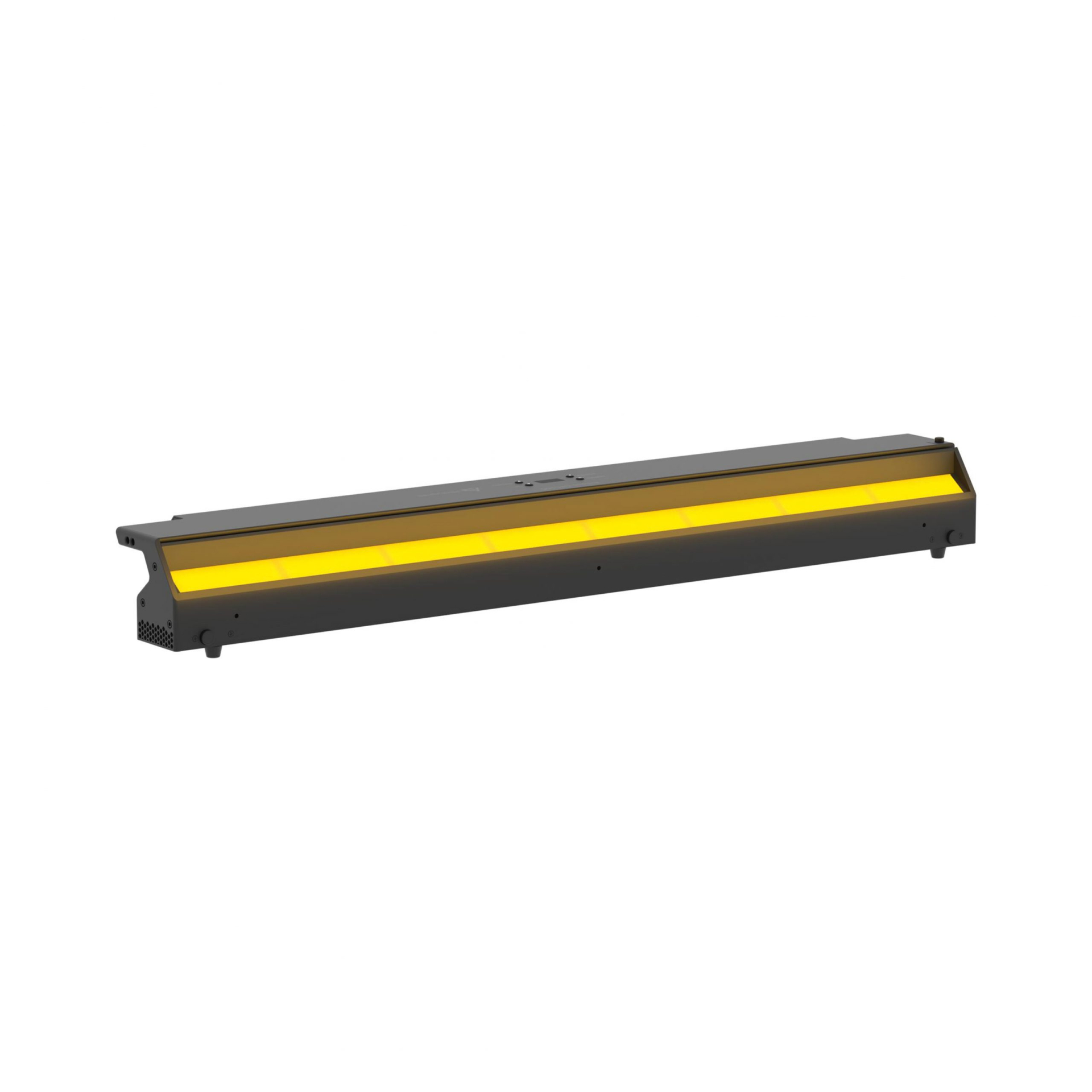

PROLIGHTS EclEcyclorama 100 - angled

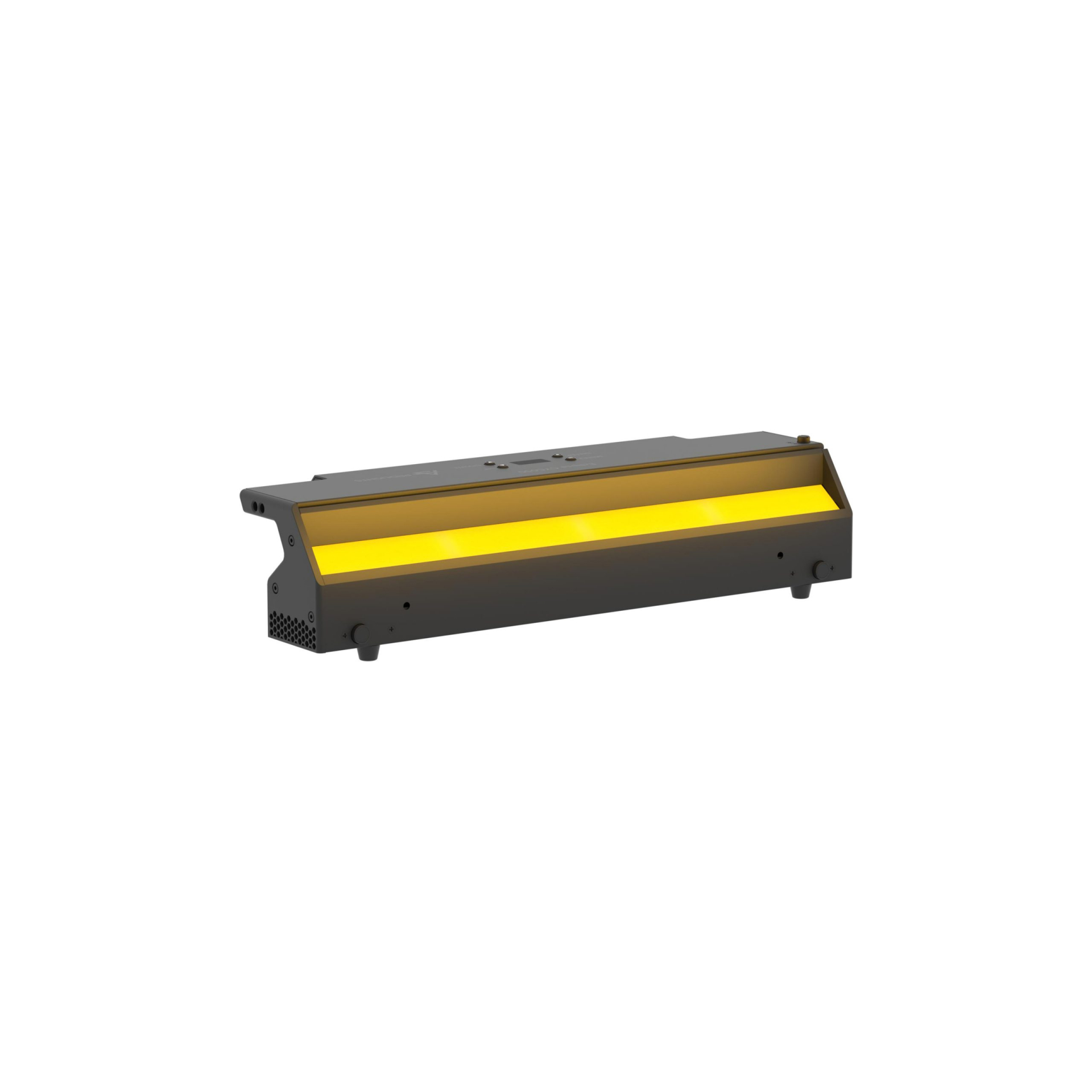

PROLIGHTS EclEcyclorama 050 - angled
PROLIGHTS EclEcyclorama 100 - angled
PROLIGHTS EclEcyclorama 050 - angled

EclCyclorama 050

PROECLCYC050

Key Features:

  • RGB + warm white colour systems allows high quality of whites (CRI 93 @3,200K) and bright colours
  • Slim design, with only 12cm height for easy implementation in the front or at the back of the stage
  • Wide asymmetric beam angle to allow flexible installation at modular distances between fixtures
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclCyclorama 050

The PROLIGHTS EclCyclorama 050 is a 170W soft-edge, linear cyclorama and floodlight in a surprisingly low profile form factor with RGB + warm white colour mixing.

The fixture is equipped with a custom and calibrated RGB+warm white LED source, capable of delivering a linear and high quality reproduction of the entire spectrum with high CRI, TLCI and TM30 performances.

The optical system has been designed to offer a very wide asymmetric beam angle, and is capable of a superior lumen efficiency. This makes the PROLIGHTS EclCyclorama range a very flexible solution, suitable for applications where fixtures are either connected to each other or separated by a considerable distance, with no dark-edge or uniformity gaps.

The fixture is extremely user friendly and offers a multitude of control possibilities, those being DMX, RDM, Artnet and Wireless DMX.

  • Source: 170W RGB + Warm White

    Luminous flux: (with 40°x80° filter on board) 13'896lm @full

    Lux: @ 1m to wall and 1.5m height @ full (with standard filter) 625lx

    Lux: @ 1m to wall and 1.5m height @ full (with 40° filter) 1,530lx

    Lux: @ 1m to wall and 1.5m height @ full (with 10°x60° filter) 1,590lx

    Lux: @ 1m to wall and 1.5m height @ full (with 30°x60° filter) 1,690lx

    CRI: 93 @3,200K; 91 @5,600K

    R9: 91 @3,200K; 95 @5,600K

    TLCI: 87 @5,600K

    TM30 Rf: 88.8 @ 5,600K

    TM30 Rg: 107.4 @ 5,600K

    Source life expectancy: > 50,000hr

    Beam angle: (VxH) 40°x80°

  • Colour mixing: RGB + Warm White

    CCT: CCT control, + / - green correction, tungsten emulation

    White presets: 2,800K - 10,000K

    Colour wheel: virtual colour wheel with macros

    Control Resolution: 16-bit dimmer, colours

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX

    Wireless control: included, wireless solution receiver

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
