EclExpo Flood150VW

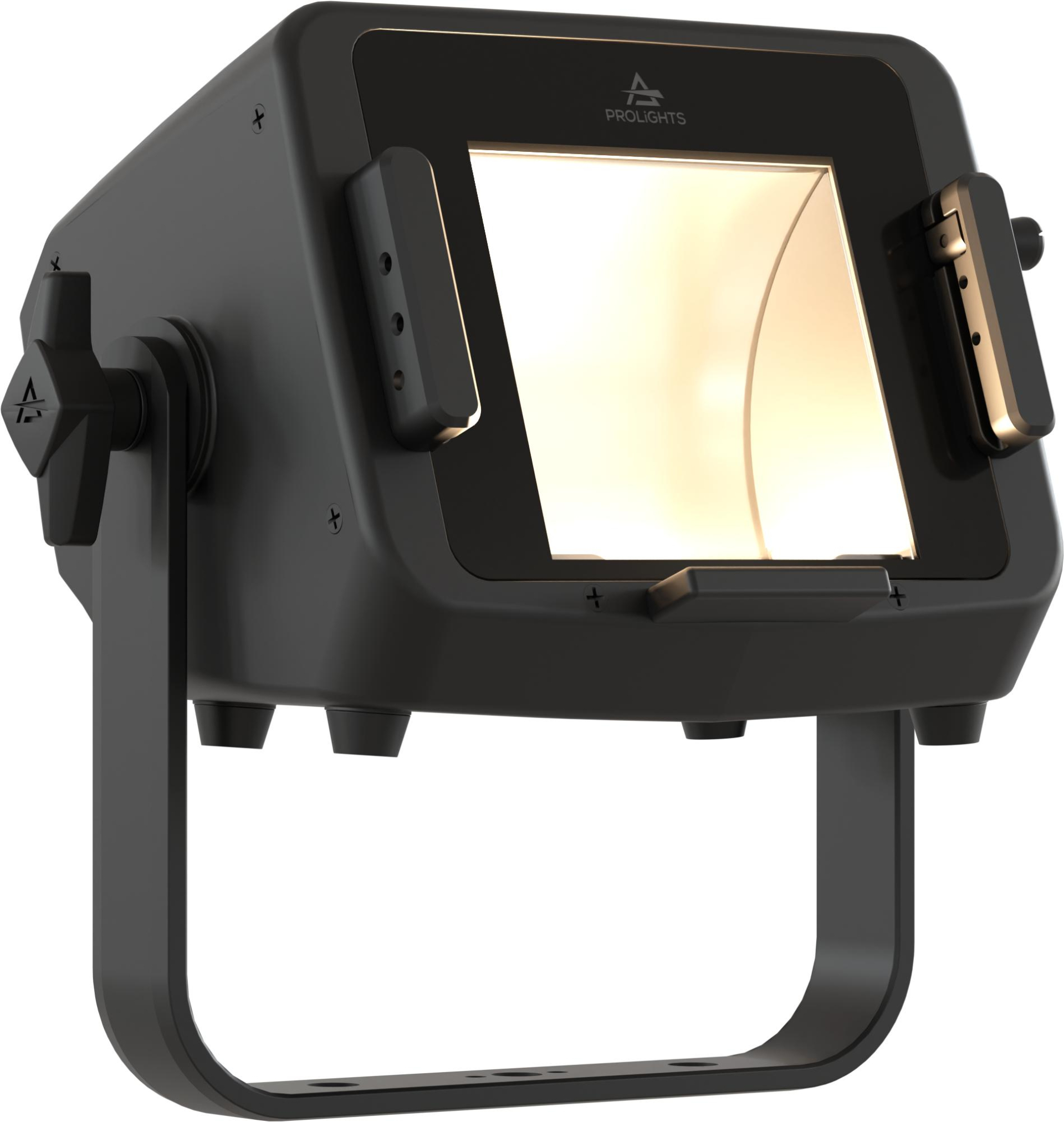

PROLIGHTS EclExpo Flood150VW - yoke

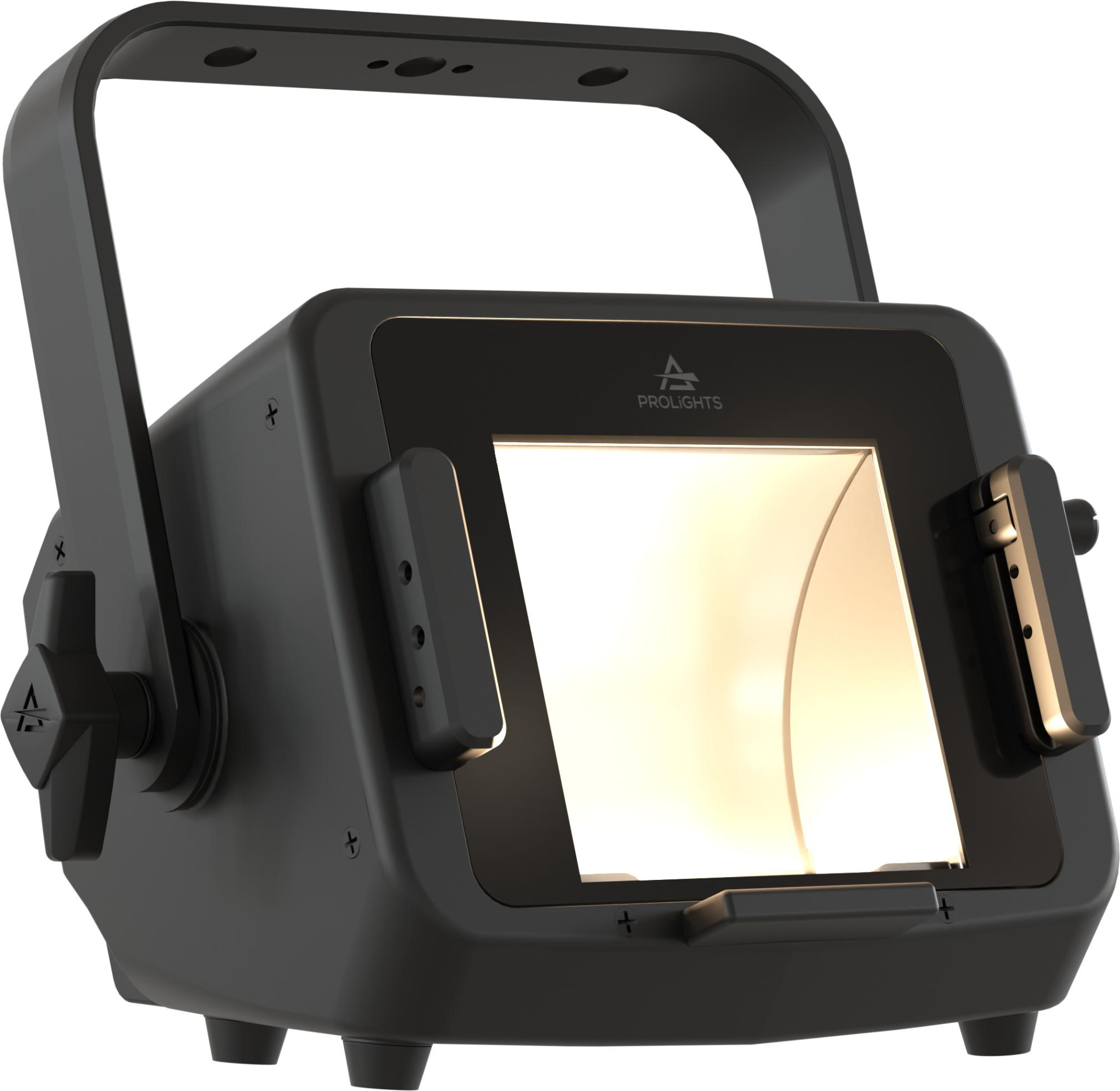

PROLIGHTS EclExpo Flood150VW

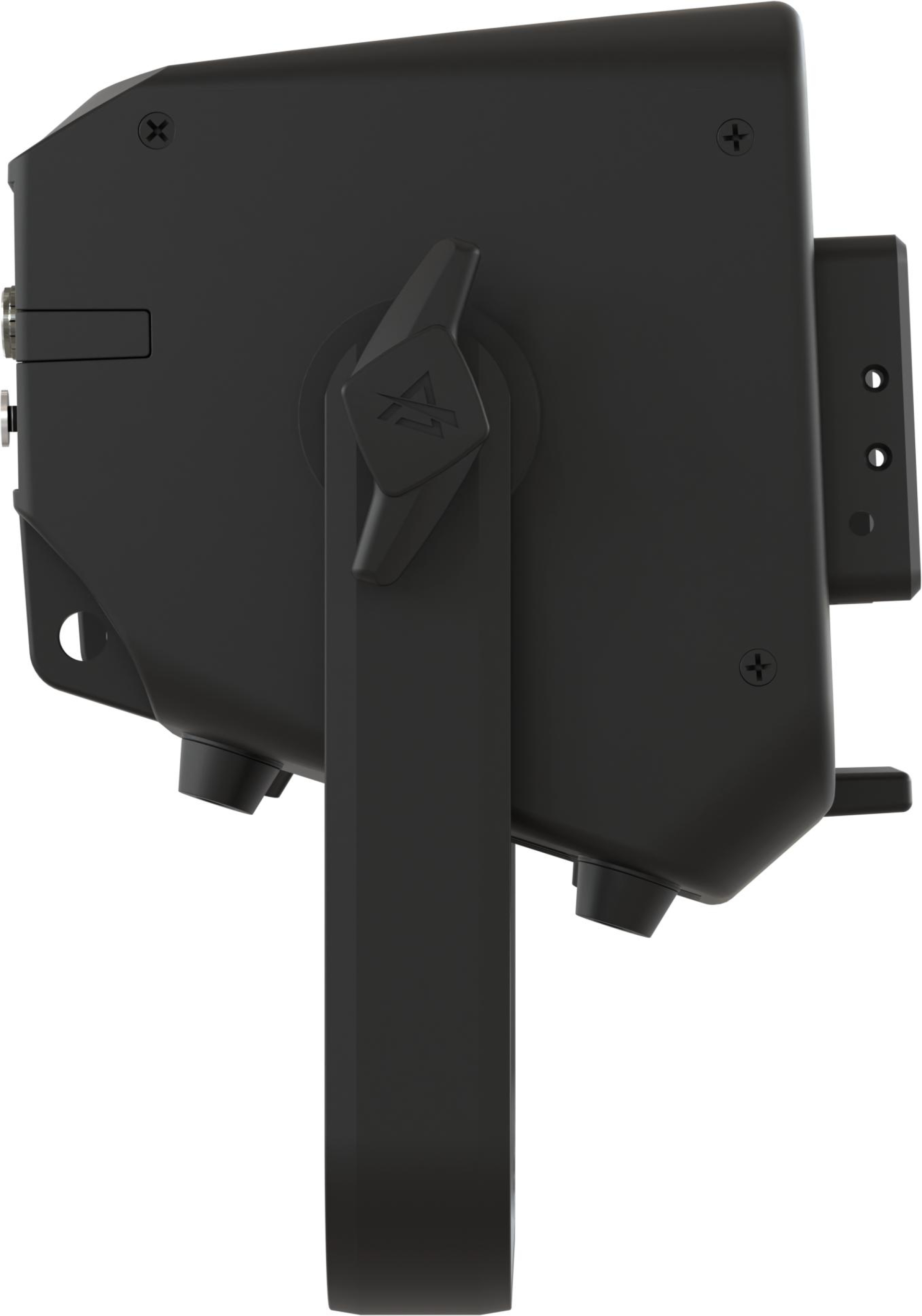

PROLIGHTS EclExpo Flood150 - side

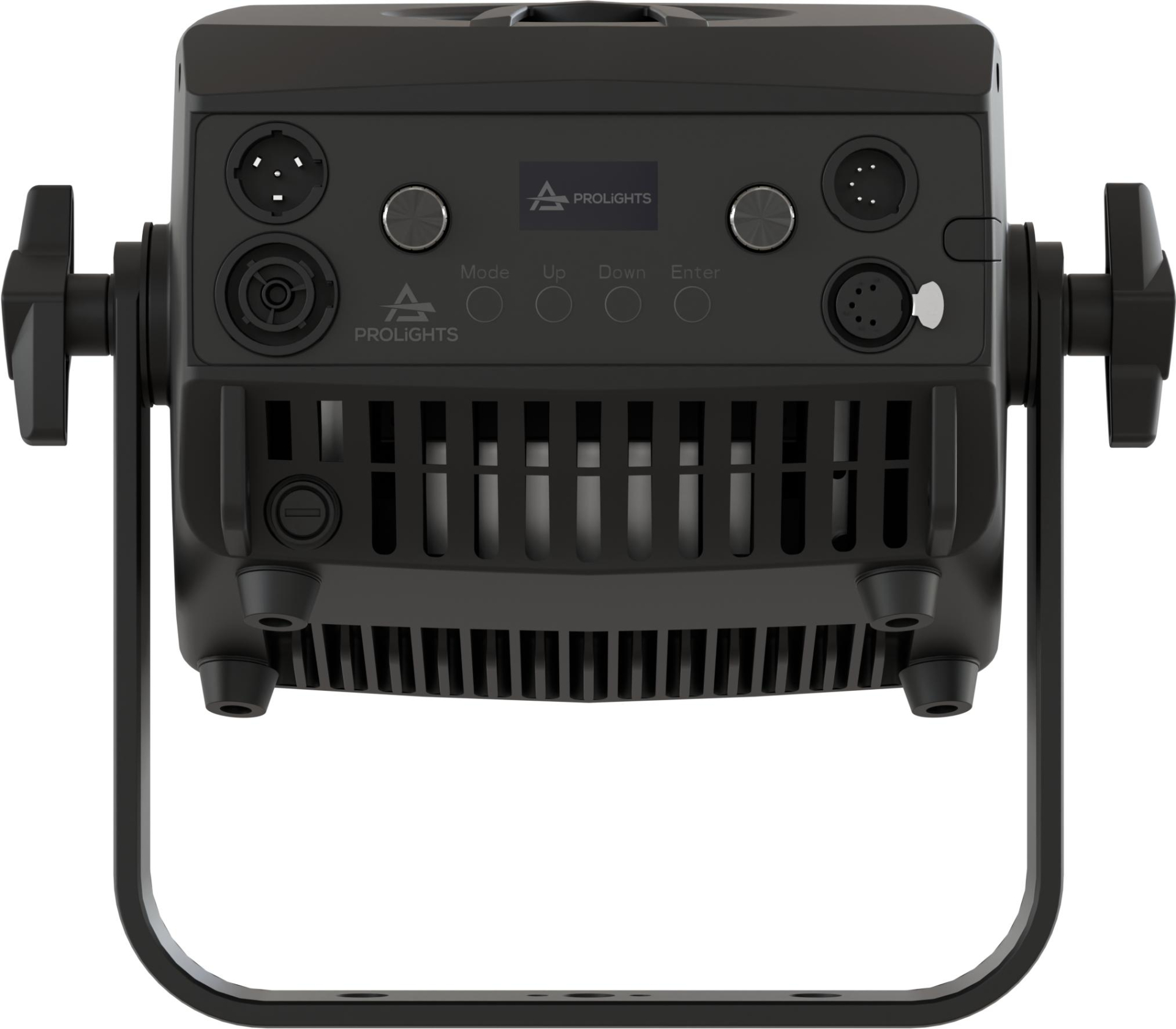

PROLIGHTS EclExpo Flood150 - Back
PROLIGHTS EclExpo Flood150VW
PROLIGHTS EclExpo Flood150 - side
PROLIGHTS EclExpo Flood150 - Back

EclExpo Flood150VW

PROECLEXPOFL150VW

Key Features:

  • 150W Variable White LED source, from 2,700K to 6,500K
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
  • XLR 5pin in/through for DMX/RDM control and communication
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclExpo Flood150VW

The PROLIGHTS EclExpo Flood150VW is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theatres, or as a work light.

Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

  • Source: 150W Variable White LED

    CCT: 2.700 K – 6.500 K

    Luminous flux: @2.700K 6’956 lm; @6.500K 9’733 lm; @full 8’598lm

    Lux: @2.700K 72 lx; @6.500K 99 lx; @full 91lx @5 m

    CRI: 95,1 @2.700 K; 95,3 @6.500 K; 94.4 @full

    R9: 95 @2.700 K; 88.4 @6.500 K; 80,7 @full

    TLCI: 97 @2.700 K; 96 @6.500 K; 98 @full

    TM30 Rf: > 94 @2.700 K; > 90 @6.500 K; > 92 @full

    TM30 Rg: < 101 @2.700 K; < 99 @6.500 K; < 102 @full

    Source life expectancy: > 20.000 h

    Optics: asymmetrical beam reflector in pure aluminium 99,6%

    Beam angle: (H) 100° x (V) 60°

  • Colour mixing: tunable white

    CCT: CCT control through dedicated DMX channel

    White presets: 2.700 K – 6.500K

    Colour wheel: built-in white presets

    Control Resolution: 16-bit dimmer

    Static mode: selection of static dimmer and color temperature

    Manual mode: manual adjustment of intensity and CT from knob

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, CRMX

    Stand Alone: 2 rotatory knobs

    DMX channels: 1 / 2 / 3 / 5 / 11 channel

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
