Key Features:

  • 300W Variable White LED source, from 2,700K to 6,500K
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
  • XLR 5 pin in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclExpo Flood300VW

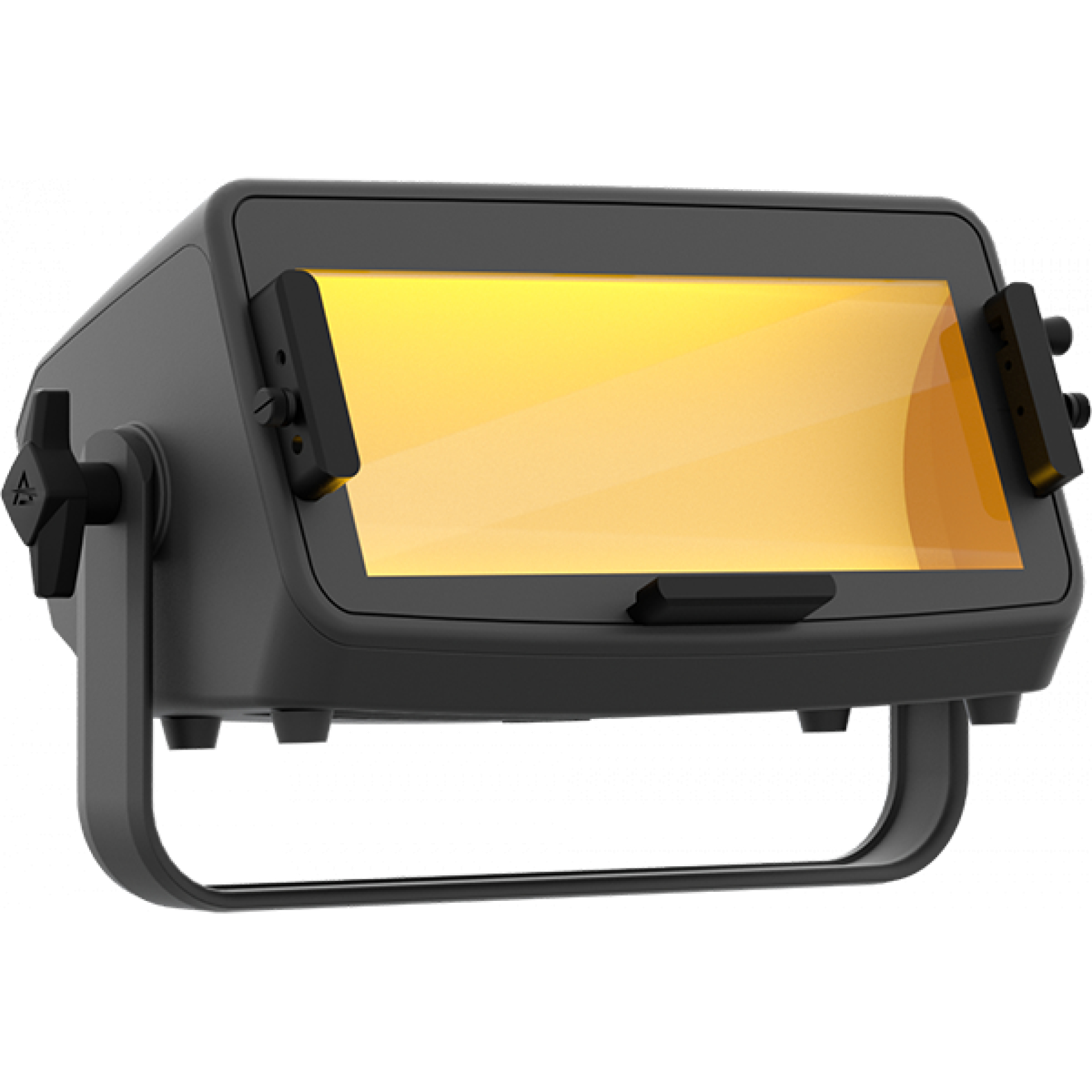

The PROLIGHTS EclExpo Flood300VW is a variable white LED floodlight designed as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric luminaires for exhibitions and showrooms.

The PROLIGHTS EclExpo Flood300VW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

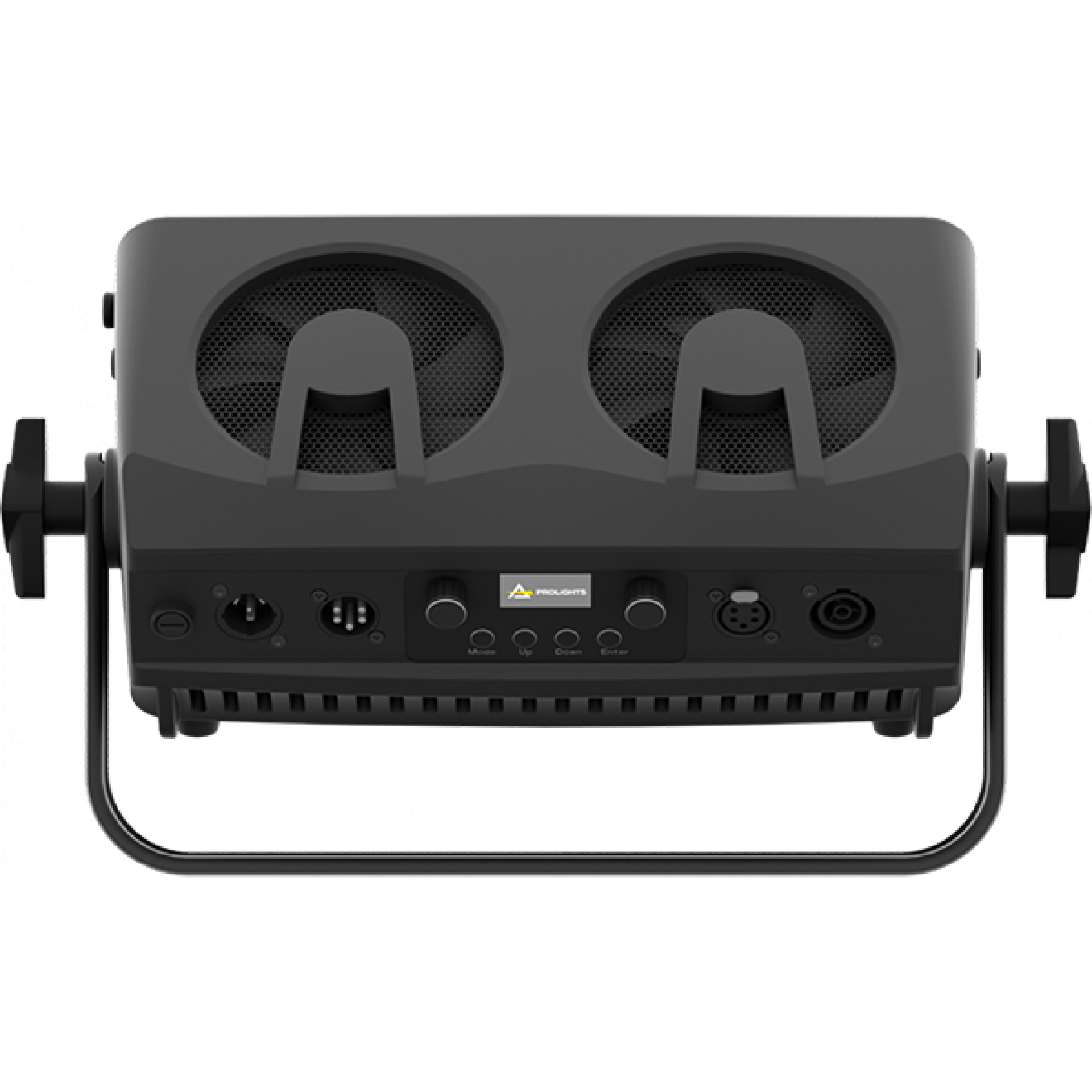

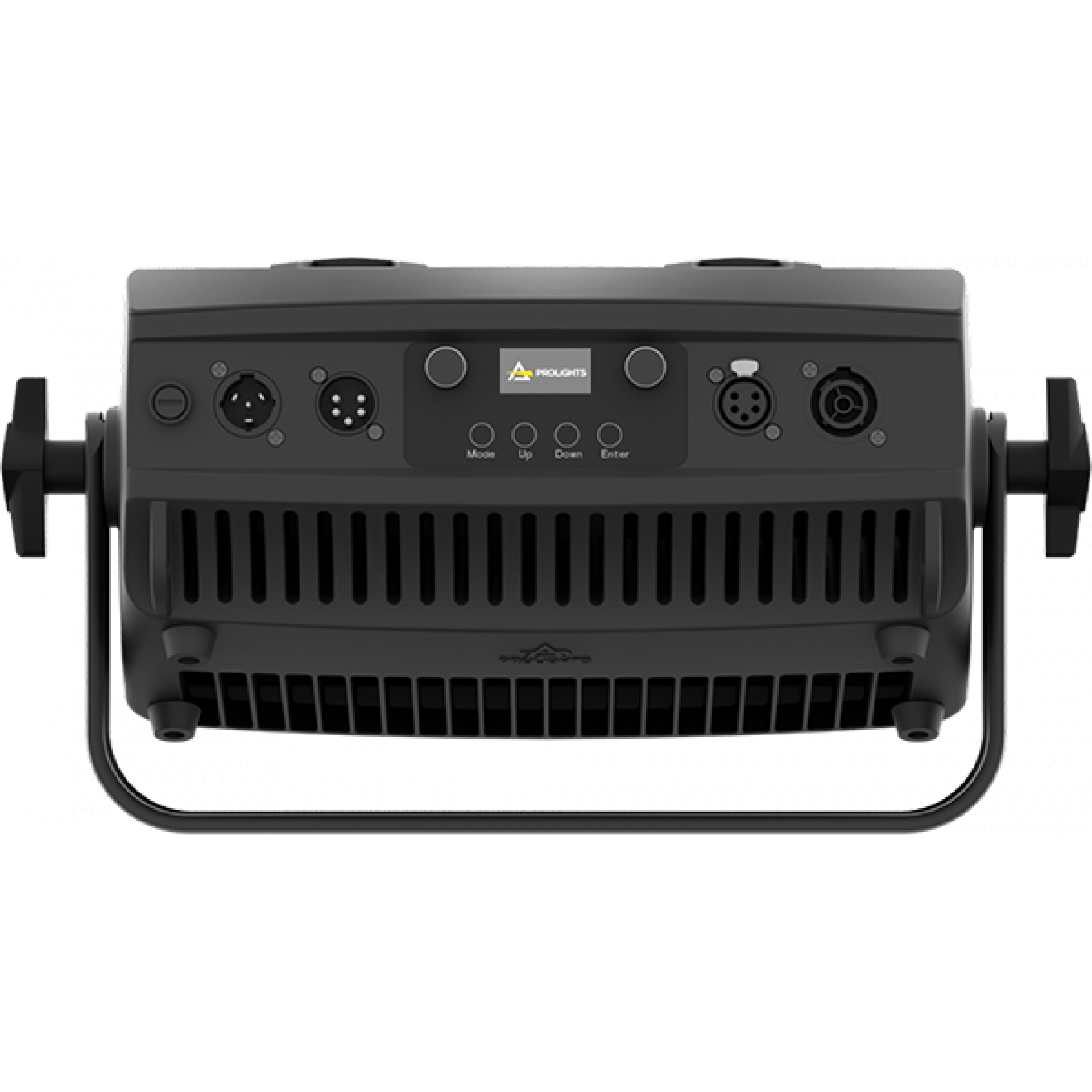

This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT and dimmer settings.

Its unique design and performance set a new standard for exhibition floodlights.

  • Source: 300W Variable White LED

    CCT: 2,700K - 6,500K

    Luminous flux: @ 2,700K 7,690lm; @ 6,500K 10,877lm; @ full 13,044lm

    Lux: @2,700K 72lx; @ 6.500K 101lx; @ full 121lx @ 5m

    CRI: 97.7 @ 2,700K; 95.6 @ 6,500K; 94.9 @ full

    R9: 84.9 @ 2,700K; 86.7 @ 6,500K; 82.8 @ full

    TLCI: 97 @ 2,700K; 97 @ 6,500K; 97 @ full

    TM30 Rf: > 95 @ 2,700K; > 91 @ 6,500K; > 92 @ full

    TM30 Rg: < 102 @ 2,700K; < 102 @6,500K; < 104 @ full

    Source life expectancy: > 20,000hr

    Optics: asymmetrical beam reflector in pure aluminium 99.6%

    Beam angle: (H) 100° x (V) 60°

  • Colour mixing: tunable white

    CCT: CCT control through dedicated DMX channel

    White presets: 2,700K - 6,500K

    Colour wheel: built-in white presets

    Control Resolution: 16-bit dimmer

    Static mode: selection of static dimmer and color temperature

    Manual mode: manual adjustment of intensity and CT from knob

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, CRMX

    Stand Alone: 2 rotatory knobs

    DMX channels: 1 / 2 / 3 / 5 / 11 channel

    Wireless control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain
