EclExpo Flood150FC

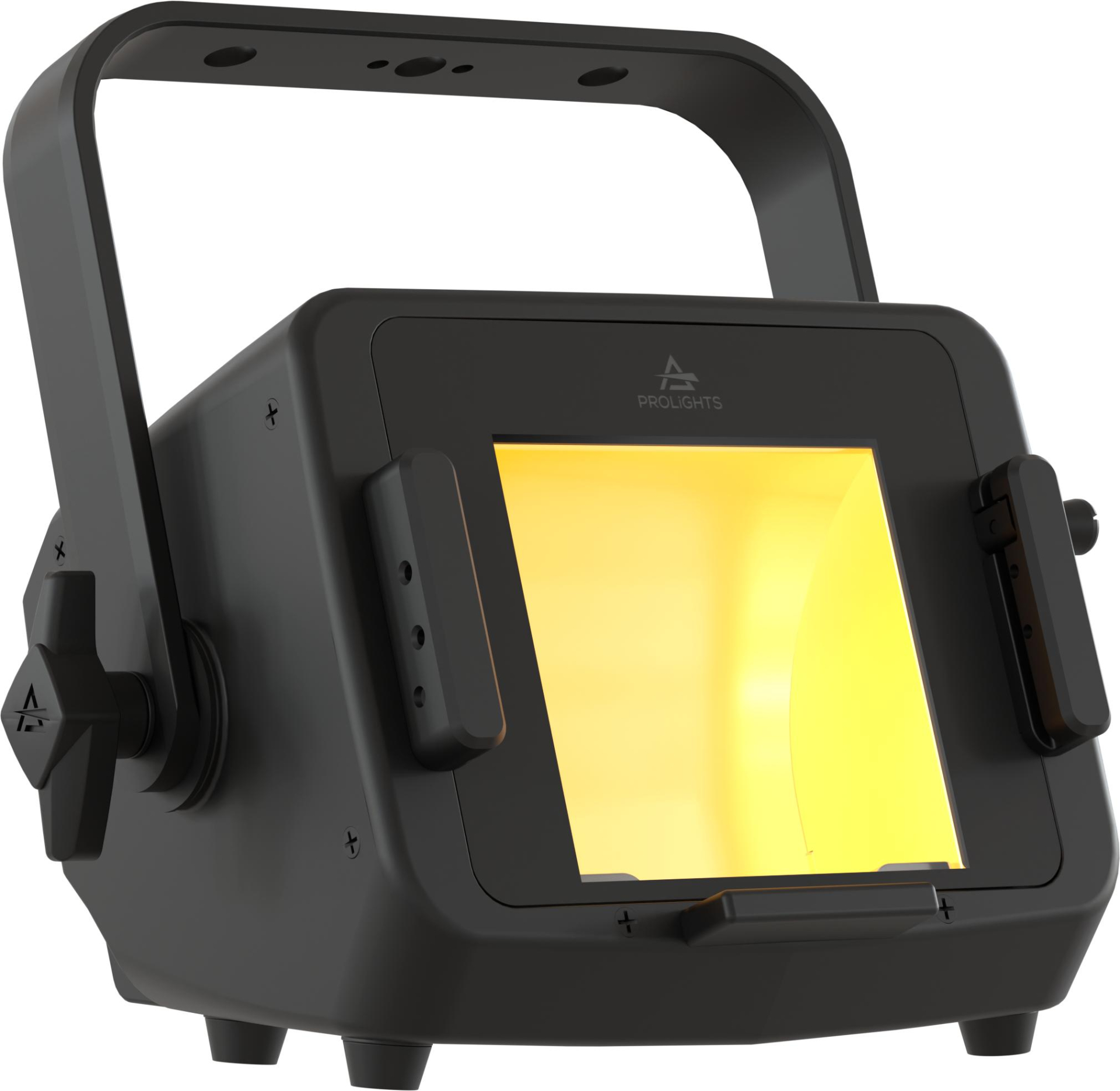

PROLIGHTS EclExpo Flood150FC

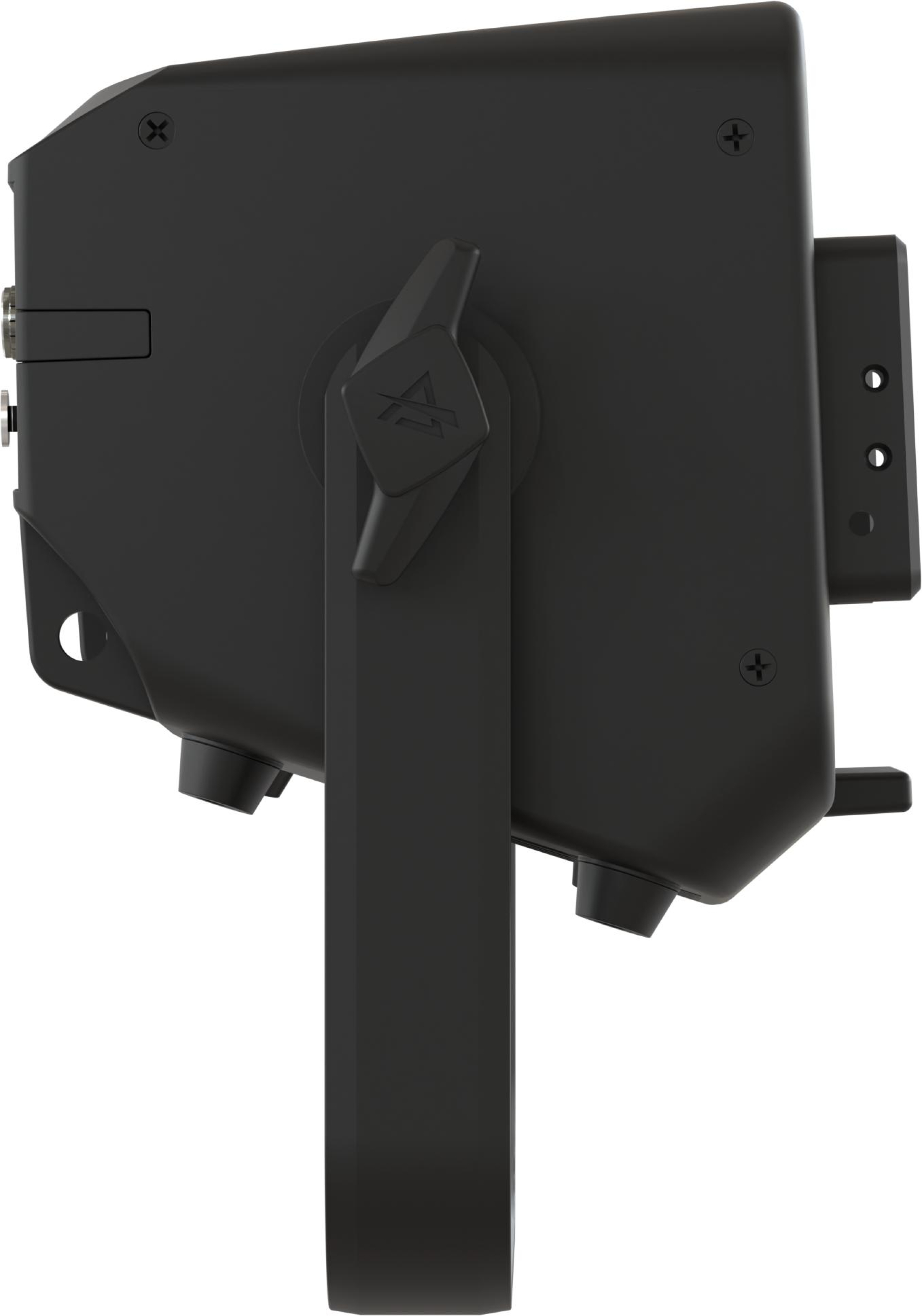

PROLIGHTS EclExpo Flood150 - side
PROLIGHTS EclExpo Flood150 - Back
PROLIGHTS EclExpo Flood150 - side
PROLIGHTS EclExpo Flood150 - Back

EclExpo Flood150FC

PROECLEXPOFL150FC

Key Features:

  • 150W calibrated RGB+WarmWhite source
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
  • XLR 5pin in/through for DMX/RDM control and communication
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclExpo Flood150FC

The PROLIGHTS EclExpo Flood150FC is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theatres, or as a work light.

Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

  • 150W calibrated RGB+WarmWhite source, with high CRI and TM30

    Asymmetric beam angle of 100° (horizontal) x 60° (vertical)

    Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

  • 150W calibrated RGB+WarmWhite source, with high CRI and TM30

    Asymmetric beam angle of 100° (horizontal) x 60° (vertical)

    Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

    Optics: asymmetrical beam reflector in pure aluminium 99,6%

    Beam angle: (H) 100° x (V) 60°

    Additional optics: 5° smooth filter on-board

  • Colour mixing: RGB + Warm White

    CCT: CCT control, + / – green correction, tungsten emulation

    White presets: 2.800 K – 10.000K

    Colour wheel: built-in white presets

    Control Resolution: 16-bit dimmer

    Static mode: selection of static dimmer, colors and color temperature

    Manual mode: manual adjustment of intensity, CT, colour correction from knob

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, CRMX

    Stand Alone: 2 rotatory knobs

    DMX channels: 1/2/5/9/10/12/18channel

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

EclExpo Flood150FC - Downloads
PROLIGHTS EclExpo Flood150FC Spec Sheet
Download
