EclExpo Flood300FC

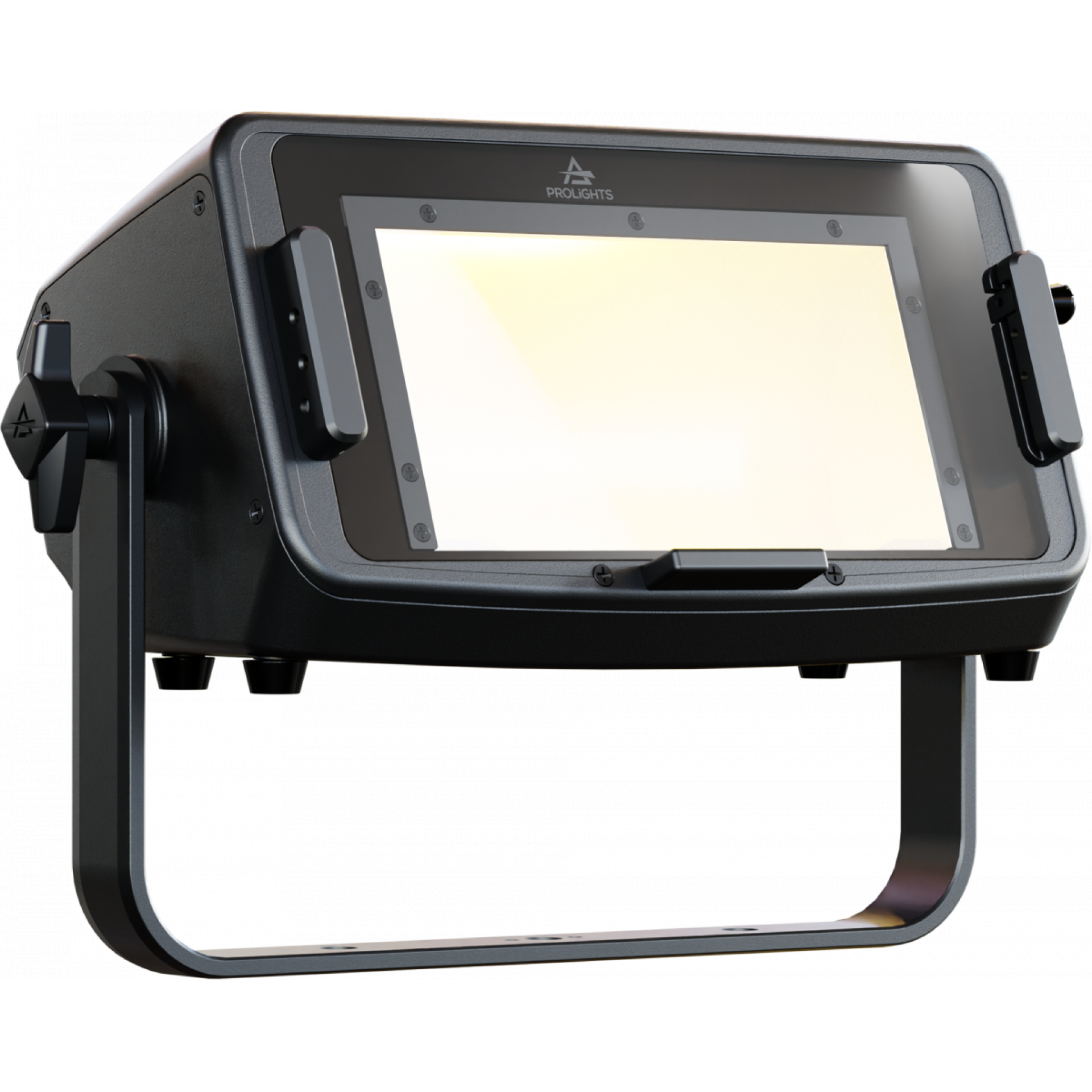

PROLIGHTS EclExpo Flood300FC - yoke down

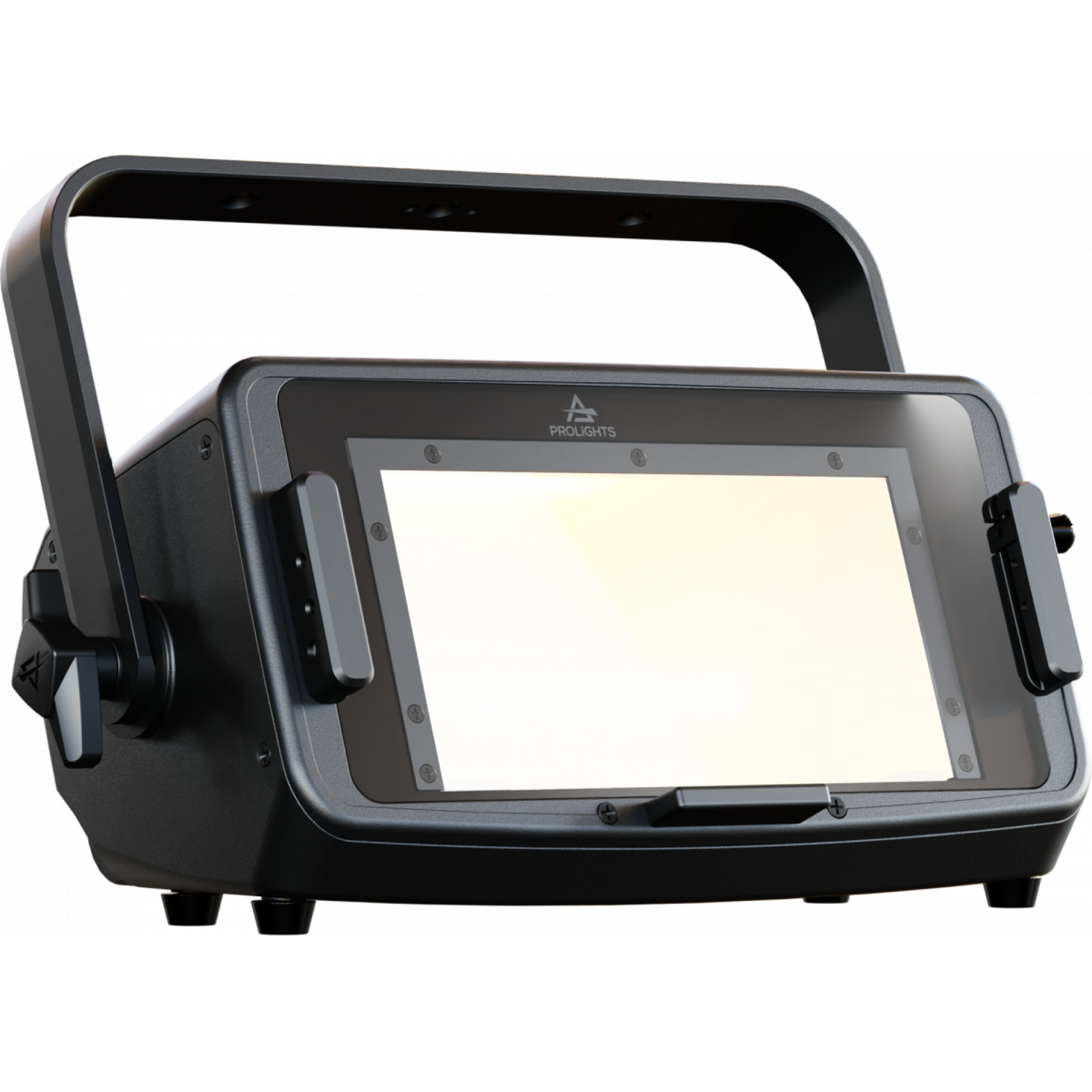

PROLIGHTS EclExpo Flood300FC

PROLIGHTS EclExpo Flood300FC

PROLIGHTS EclExpo Flood300FC

PROLIGHTS EclExpo Flood300FC

PROLIGHTS EclExpo Flood300FC

PROLIGHTS EclExpo Flood300FC

PROLIGHTS EclExpo Flood300FC

PROLIGHTS EclExpo Flood300FC

EclExpo Flood300FC

Key Features:

300W RGB + Warm White LED

Asymmetrical beam reflector in pure aluminium 99.6%

XLR5 in/through for DMX/RDM control and communication

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclExpo Flood300FC

The PROLIGHTS EclExpo Flood300FC is a full spectrum high power LED floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

The EclExpo Flood300FC has a calibrated 300W RGB + Warm White LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for exhibition floodlights.

Source: 300W RGB + Warm White LED

Luminous flux: 10,197lm @ 3,200K

Lux: 119lx @ 5m

CRI: 93.6 @ 5,600K

R9: 95.2 @ 5,600K

TLCI: 93 @ 5,600K

TM30 Rf: 91.7 @ 5,600K

TM30 Rg: 105,3 @ 5,600K

Source life expectancy: > 20,000hr

Optics: asymmetrical beam reflector in pure aluminium 99.6%

Beam angle: (H) 100° x (V) 60°

Additional optics: 5° smooth filter on-board

Colour mixing: RGB + Warm White

CCT: CCT control, + / - green correction, tungsten emulation

White presets: 2,800K - 10,000K

Colour wheel: built-in white presets

Control Resolution: 16-bit dimmer

Static mode: selection of static dimmer, colors and color temperature

Manual mode: manual adjustment of intensity, CT, colour correction from knob

Auto mode: built-in programs with execution speed adjustment

Protocols: DMX512, RDM, CRMX

Stand Alone: 2 rotatory knobs

DMX channels: 1/2/5/9/10/12/18 channel

Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

RDM: RDM for remote monitoring and settings

Display: Graphic User Interface

Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

Master/Slave: for synchronised operation of more units linked in a chain

EclExpo Flood300FC - Downloads

Eclexpo flood300fc spec sheet
