EclProfile CT+HP

EclProfile CT+HP

Key Features:

  • 450W 6 colors LED ellipsoidal
  • Spektra Os for High quality CCT reproduction and advanced color control
  • New UI with 2.4'' display and 4 backlit pushable encoder
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

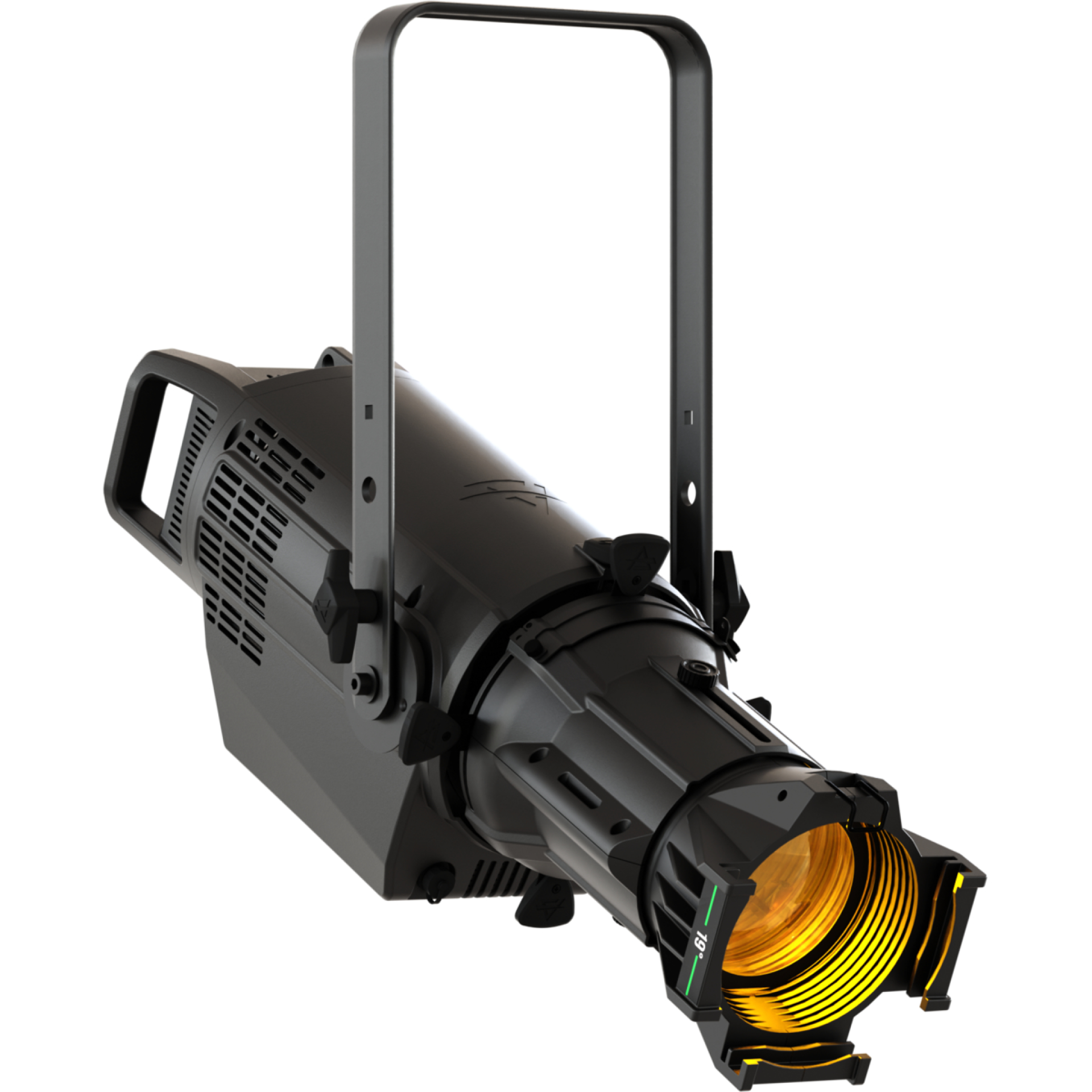

EclProfile CT+HP

The EclProfile CT+HP elevates the benchmark in LED ellipsoidals by delivering 450 Watts of fixture power, effectively doubling its lumen output to an impressive 14,000 lumens.

Retaining the renowned 6-color LED engine of the CT+ series, it offers superior colour rendering for unparalleled light quality. Specifically designed for longer throw distances and higher hanging positions, the CT+HP is the ideal replacement for traditional HPL 750W and 2kW tungsten fixtures, excelling in large venues such as theatres, studios, and auditoriums.

The latest generation of Spektra OS equips the EclProfile CT+HP with cutting-edge UI and control features. Seamlessly aligned with the PROLIGHTS ecosystem, it offers advanced colour mixing, precision CCT reproduction, and user-friendly operation. The enhanced 2.4-inch display, complemented by four RGB backlit, pushable encoders, ensures a streamlined user experience. This innovation delivers intuitive control across multiple operating modes, ensuring consistency and efficiency for professionals

Despite its increased output, the fixture maintains the compact dimensions of its predecessor, offering compatibility with industry-standard fixed-angle and zoomable lenses, including the PRL and PRLZ lenses. This ensures seamless integration with existing inventories, making it a versatile and cost-effective solution for diverse lighting needs.

  • Source: 450W 6 colour LEDs source

    Luminous flux: 14'000 lm

    CRI: up to 96

    R9: up to 97

    Source life expectancy: > 50,000hr

    Lens type: high-quality glass lens optics

    Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°

    Focus: manual

  • Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset

    CCT: CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation

    Colour wheel: LEE filter emulation and RGB / HSI / CMY input mode selectable

    Gobo size: B, outer: 86mm; image: 64.5mm; thickness: 1.1mm

    Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, CRMX

    Stand Alone: 4 pushable RGB backlit encoder

    DMX channels: from 1 channel to 30channel

    Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) through dedicated software

    Master/Slave: for synchronised operation of more units linked in a chain

EclProfile CT+HP - Downloads
Download

You might like...
Product - LIGHTING
EclProfile CT+HPIP
    • IP65 450W 6 colors LED ellipsoidal
    • Spektra Os for High quality CCT reproduction and advanced color control
    • New UI with 2.4'' display and 4 backlit pushable encoder
Find out more

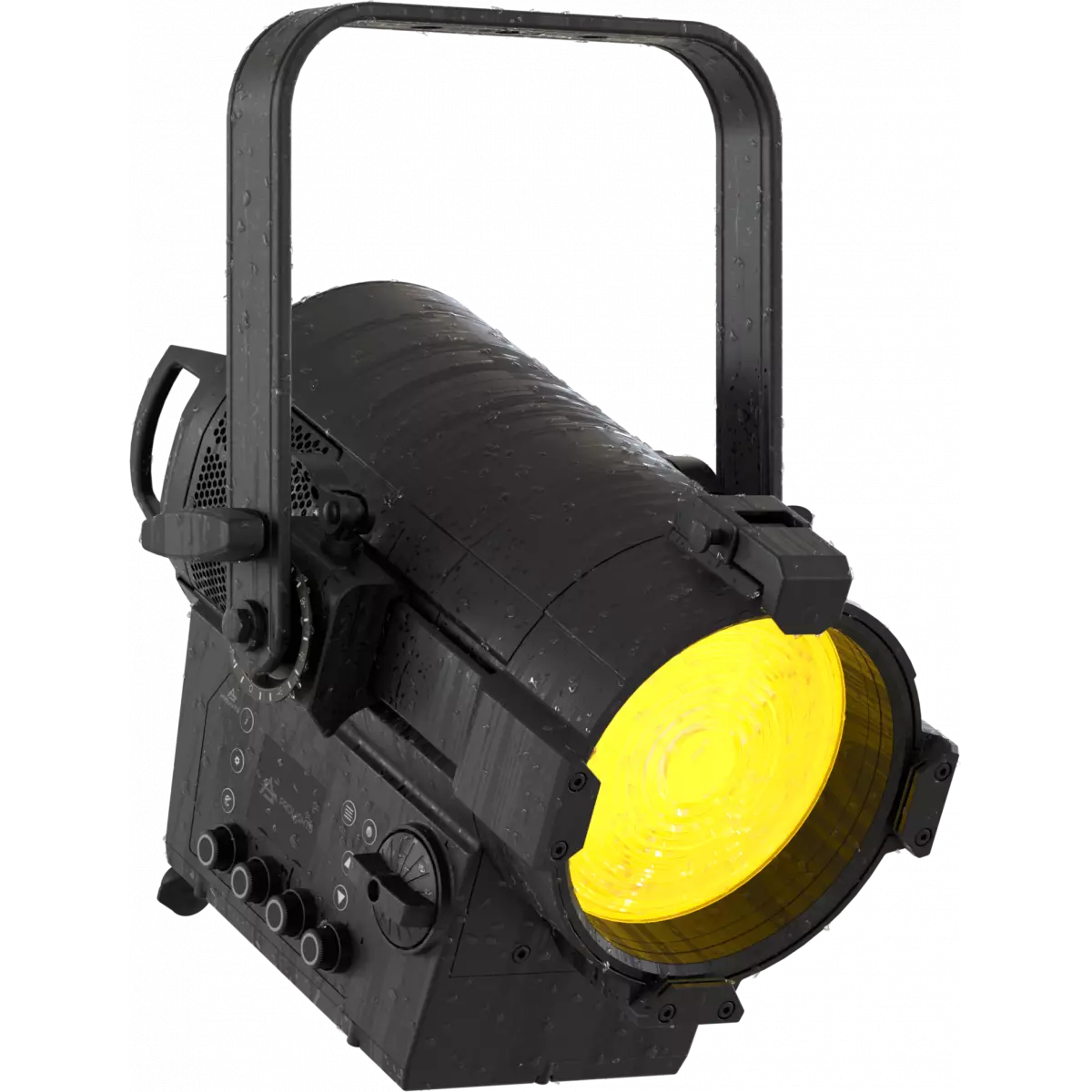

PROLIGHTS EclFresnel CT+SIP - front
Product - LIGHTING
EclFresnel CT+SIP Fresnel
    • 200W IP65 6 colour LED Fresnel with 150mm/6'' glass lens
    • 9-73° manual zoom system
    • High quality CCT reproduction and advanced colour control
    • New UI with 2.4'' display and 4 backlit pushable encoder
Find out more

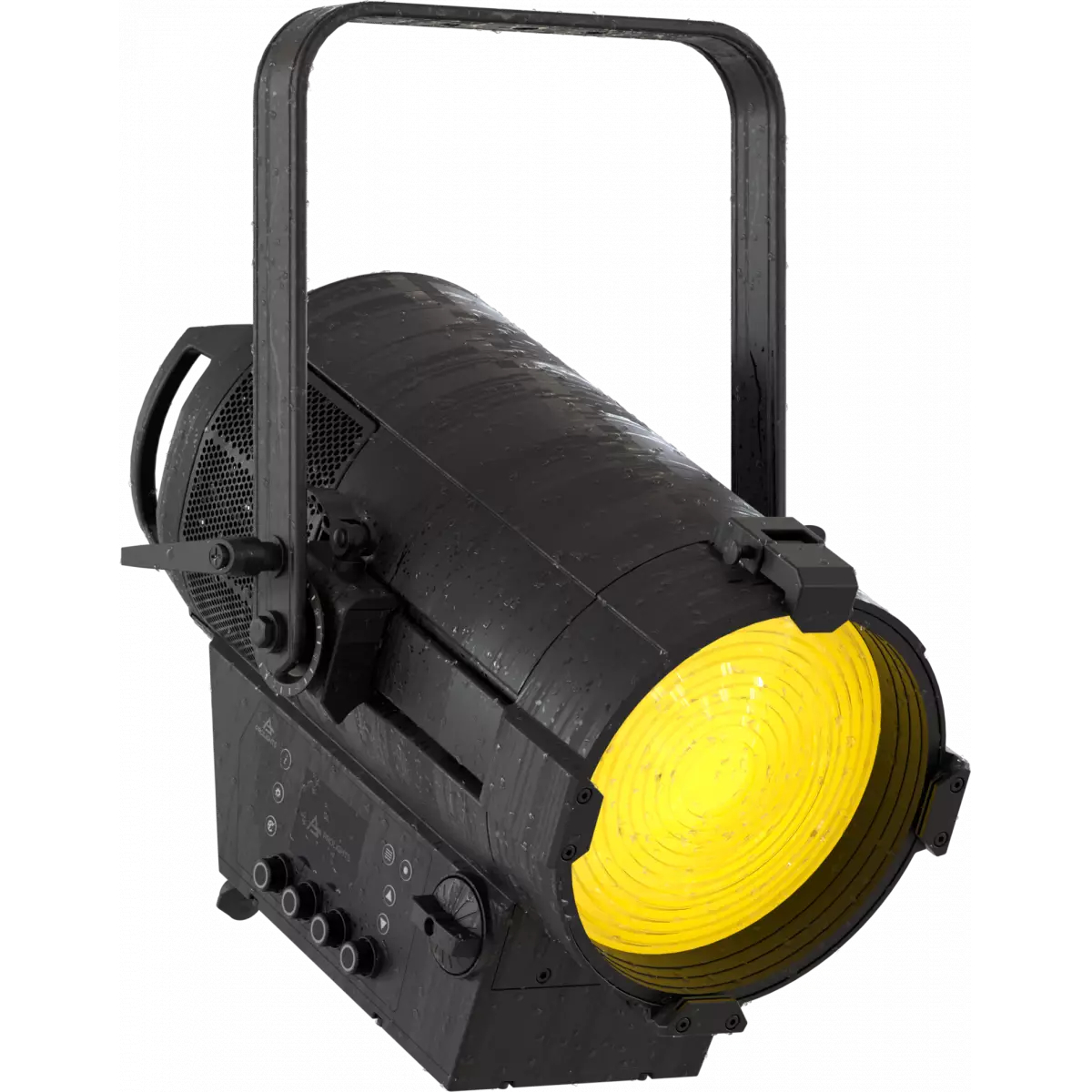

PROLIGHTS EclFresnel CT+MIP - front
