EclProfile CT+ Range

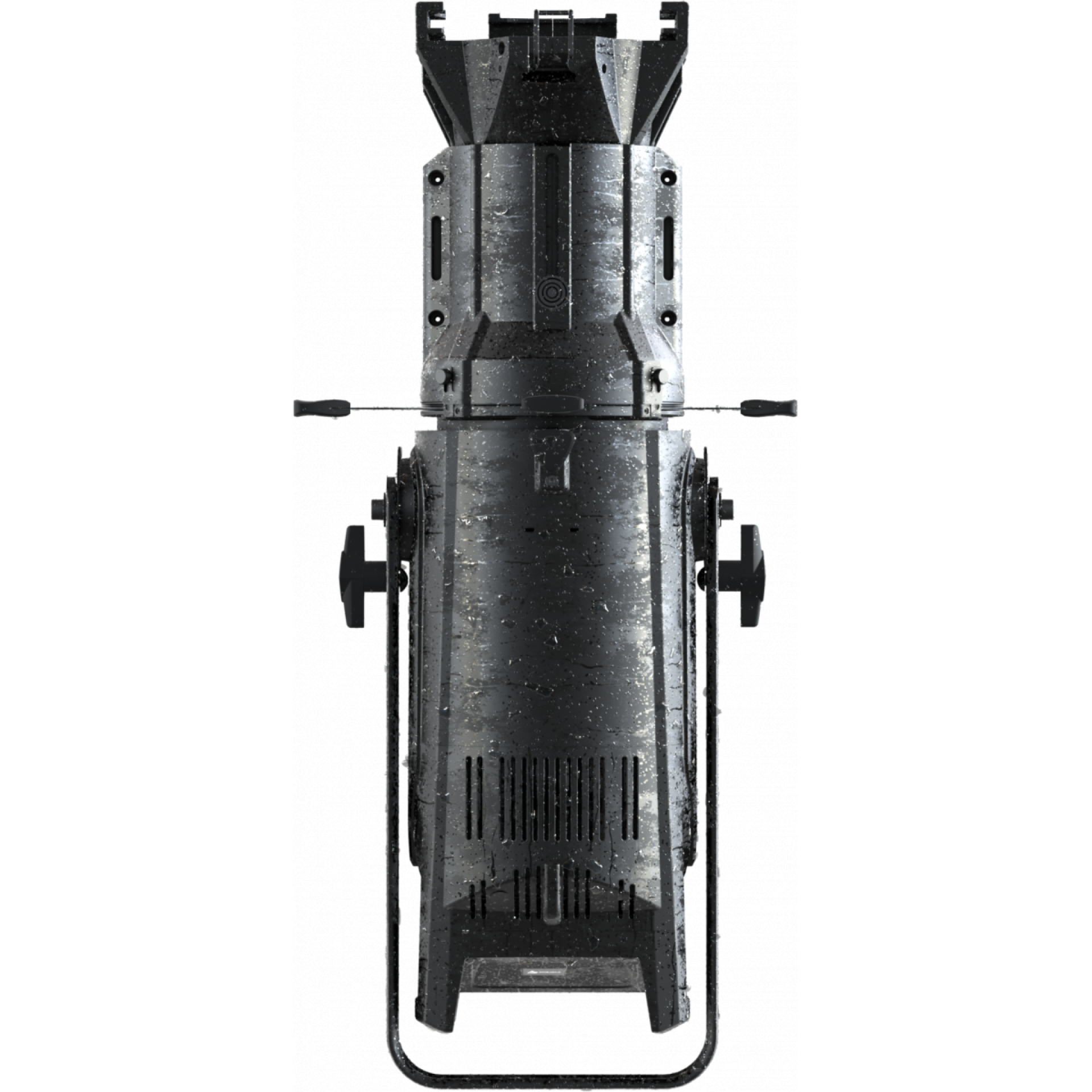

PROLIGHTS EclProfile CT+ IP - pointing up

EclProfile CT+ Range

Key Features:

Linear white CCT from 2,800K to 10,000K with CRI up to 97

RGB / CMY / HSI 3 ch colours control of the six colours LED array

Industry standard colour gels matching, tungsten emulation on dimming, tint control (+/- green)

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclProfile CT+ Range

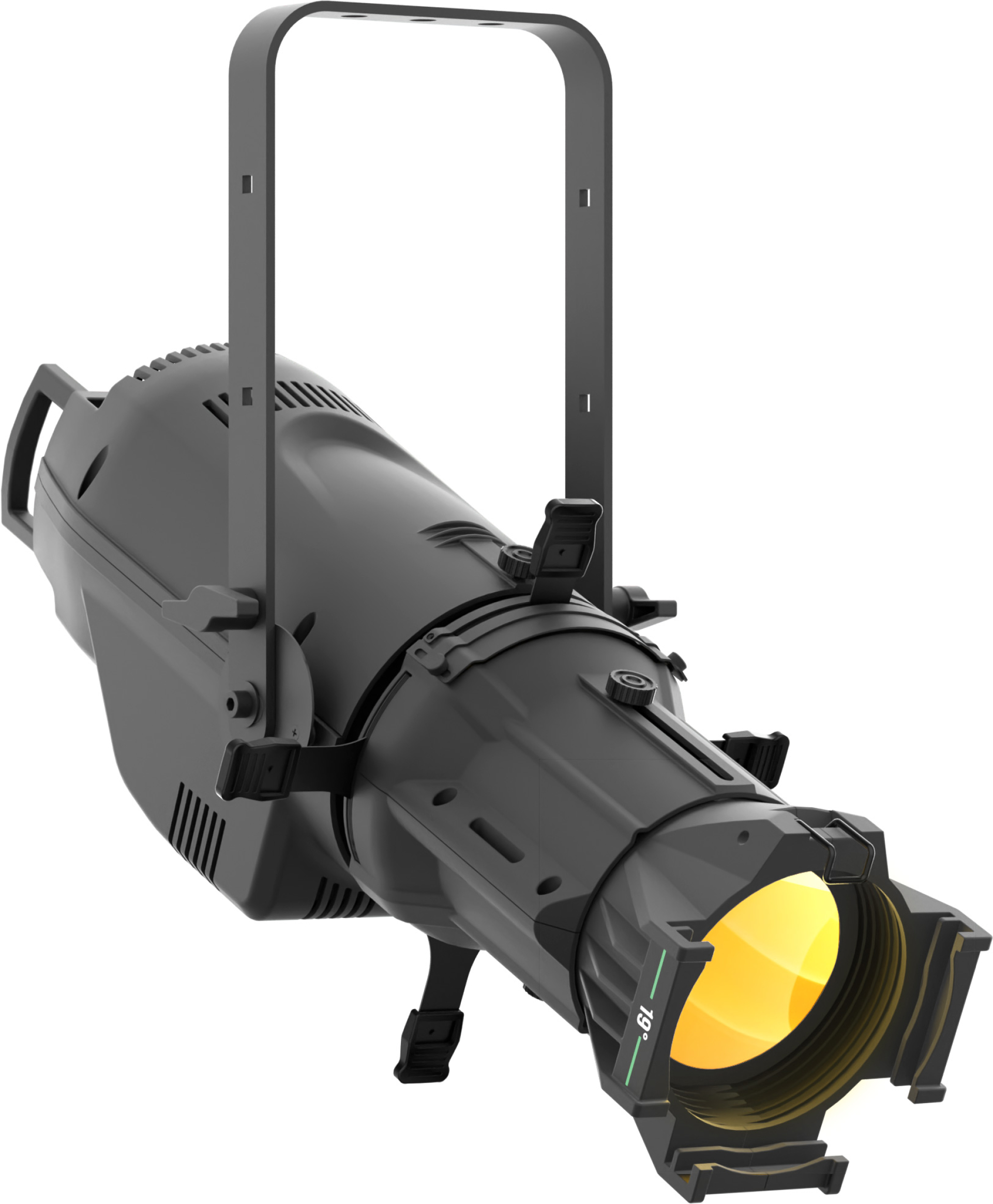

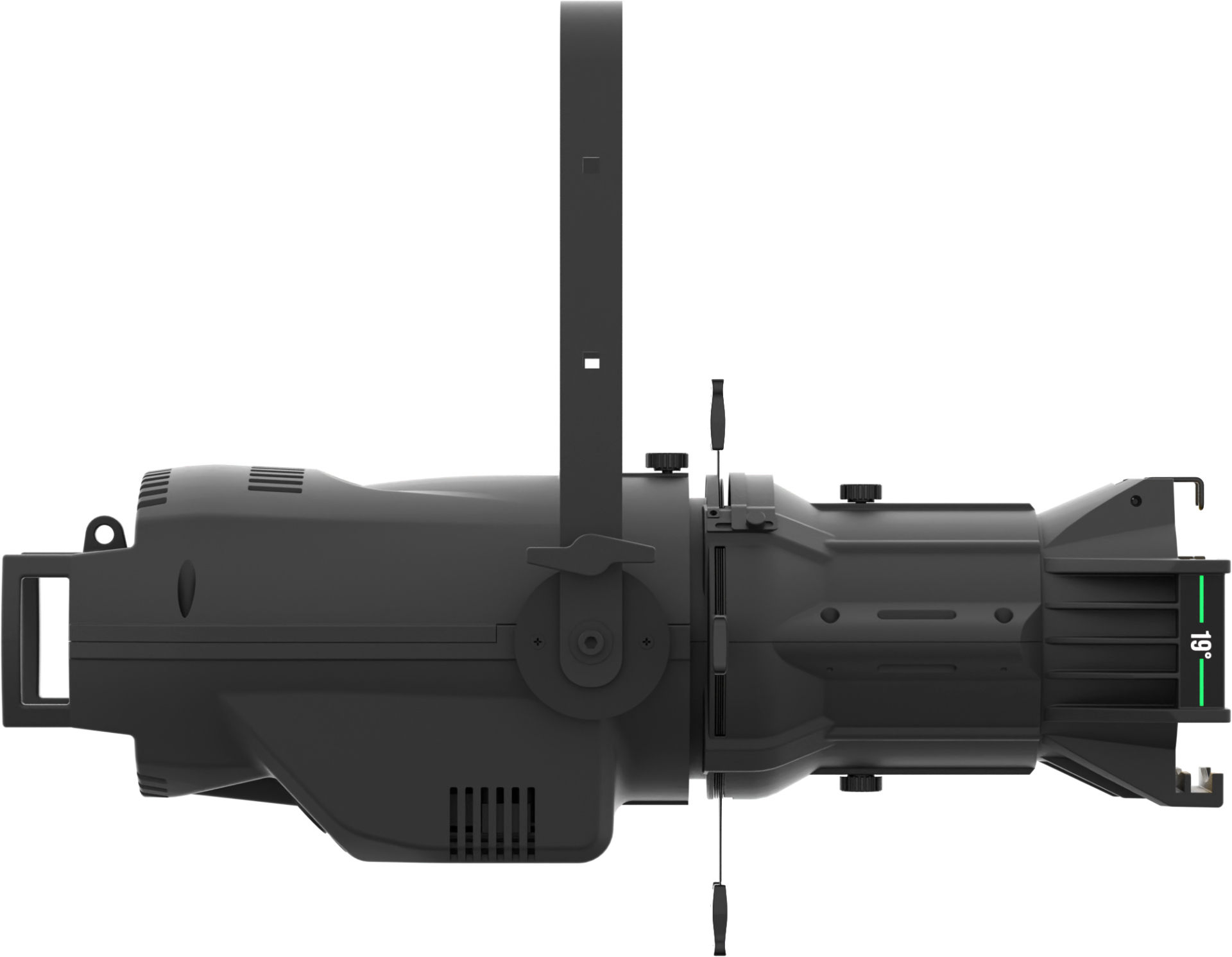

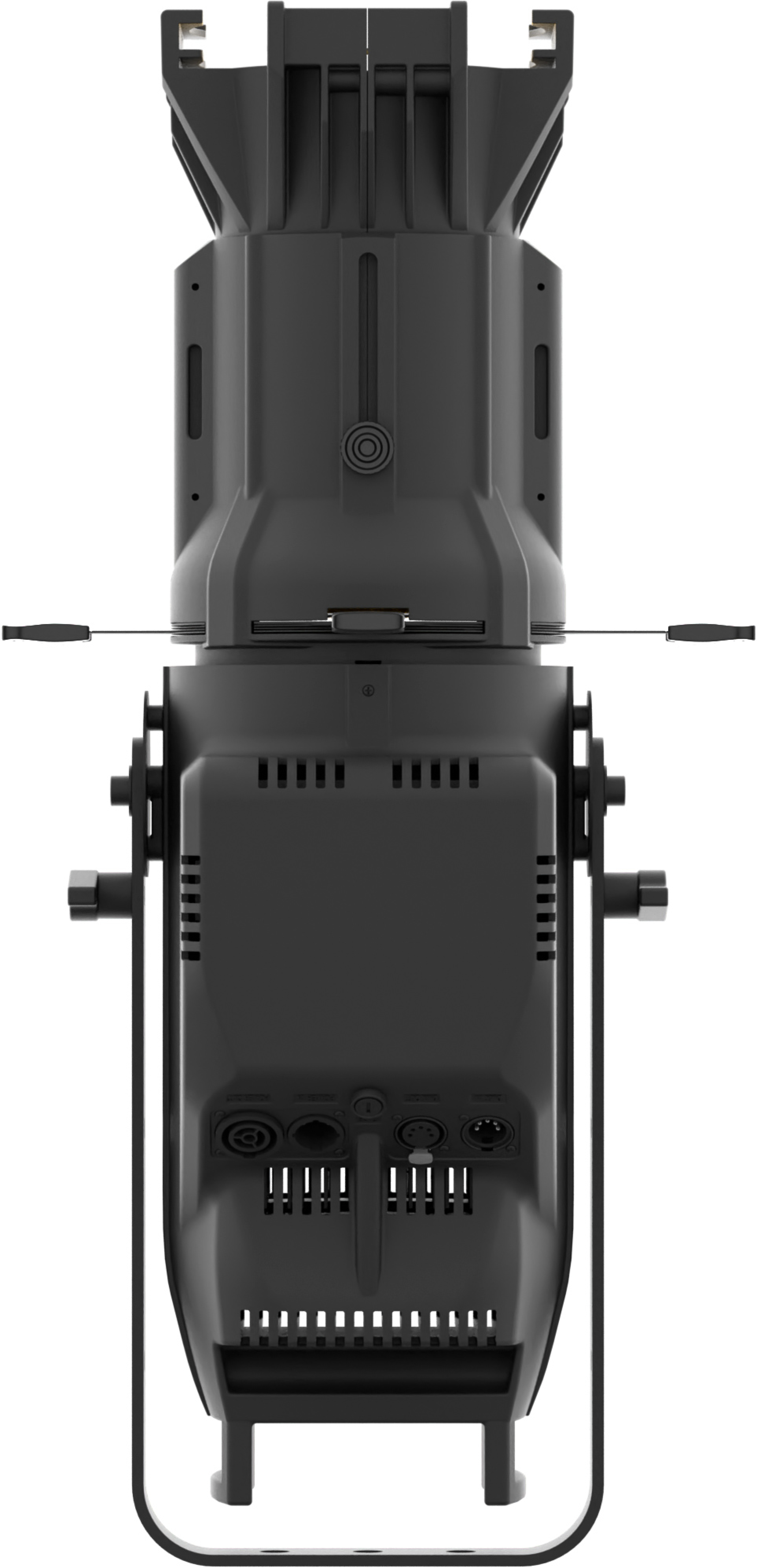

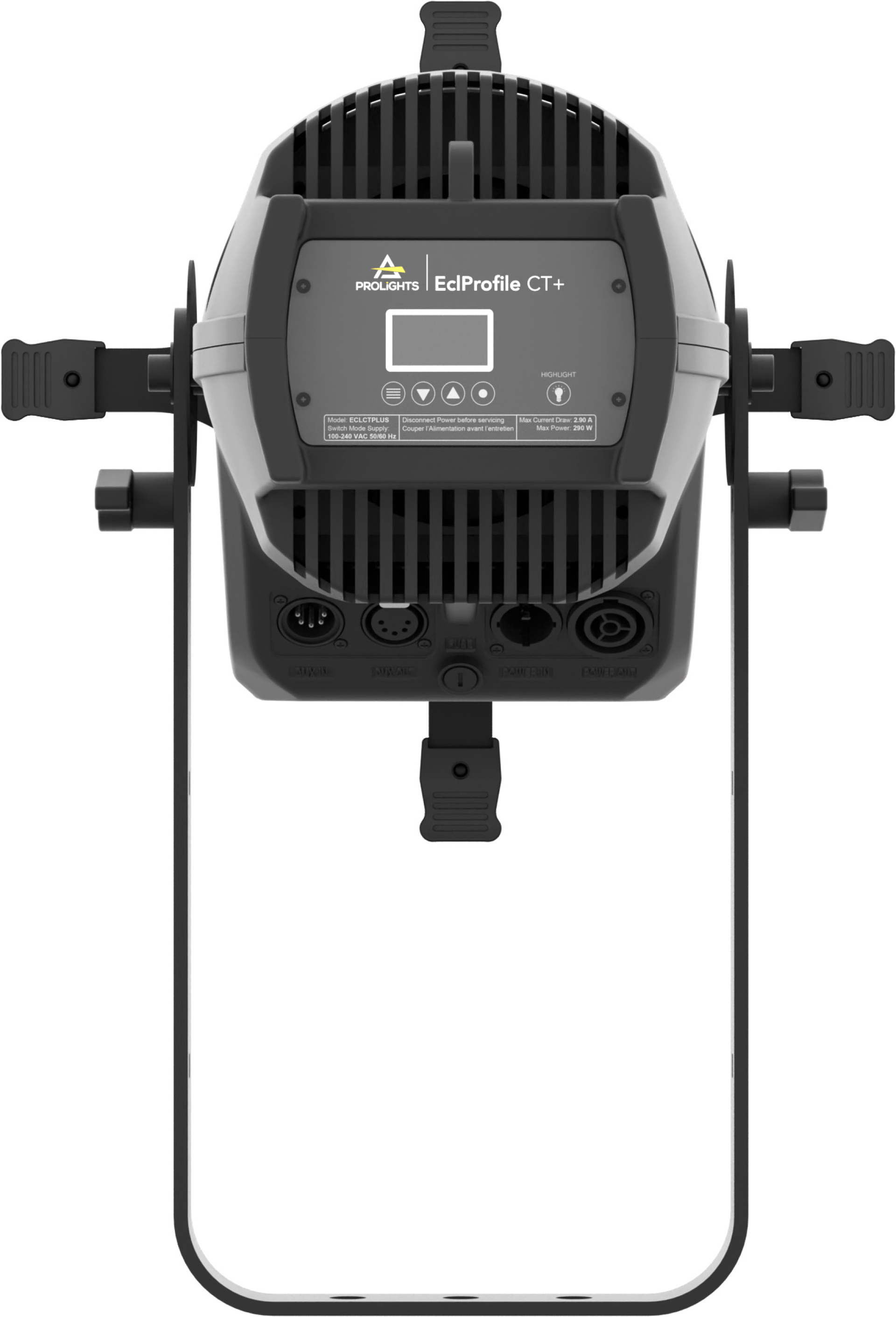

The PROLIGHTS EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal that is designed to reach the finest quality of light for white tones and colour spectrum.

Product Variants

EclProfile CT+

IP20
96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)

Enquiry Form

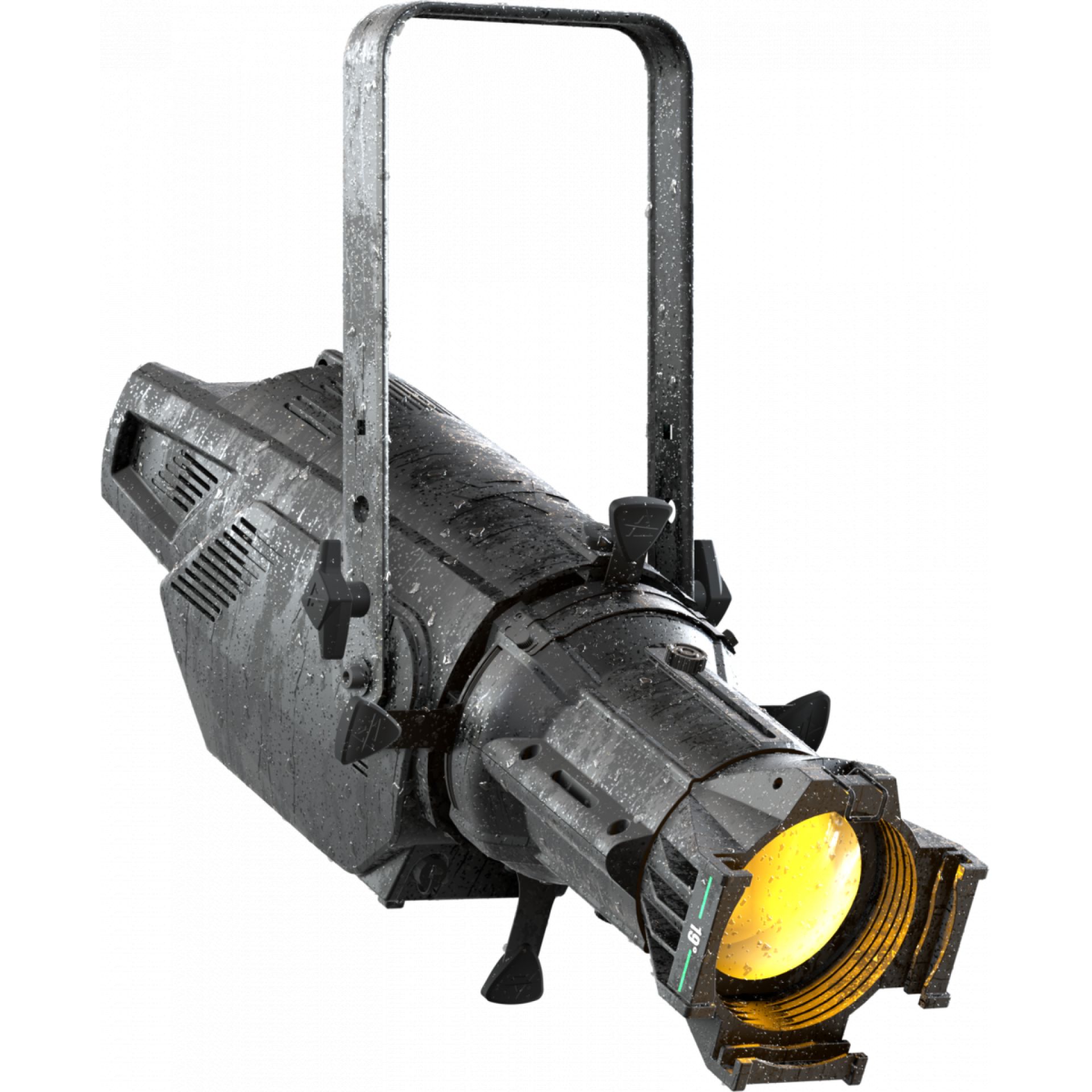

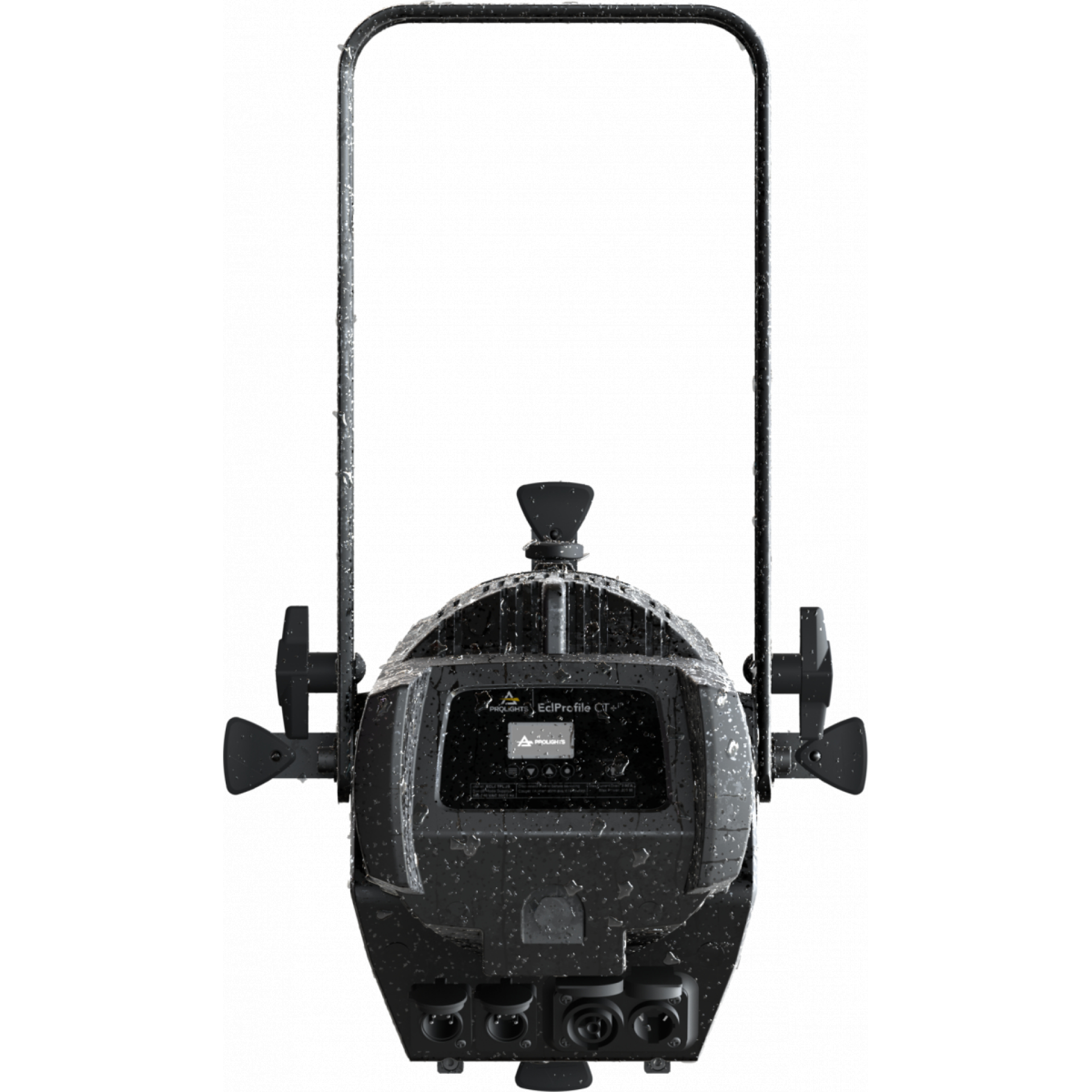

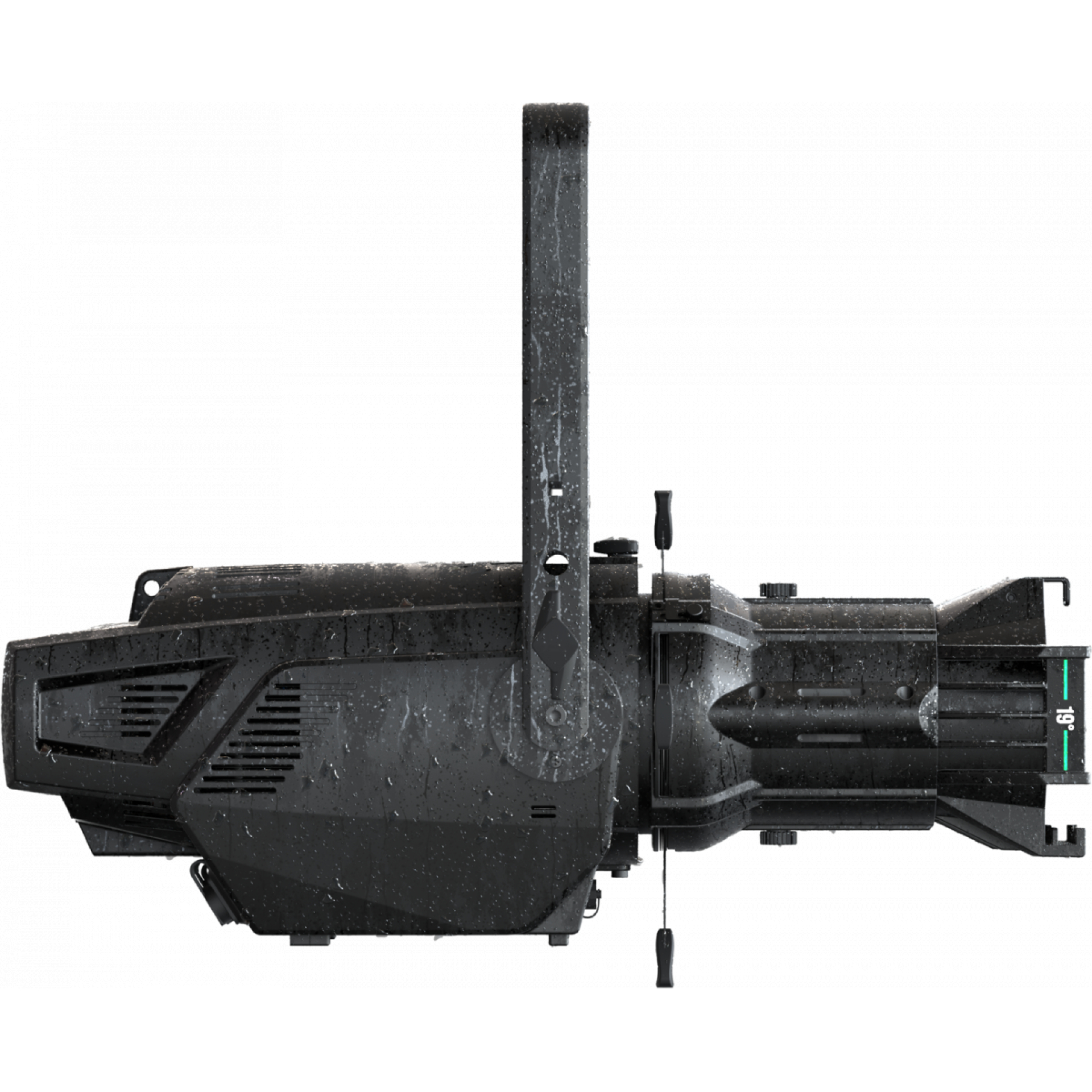

EclProfile CT+ IP

IP20
96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)

Enquiry Form

Source: 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)

CCT: @ full 5,000K

Luminous flux: (5°) 3,805lm; (10°) 4,790lm; (14°) 5,047lm; (19°) 5,380lm; (26°) 6,681lm; (36°) 6,814lm; (50°) 5,773lm; (70°) 7,430lm @ full

Luminous flux: (zoom 15°-30°) (min angle) 5,290lm; (max angle) 6,664lm; (zoom 25°-50°) (min angle) 7,042lm; (max angle) 9,817lm @ full

Lux: (5°) 14,638lx; (10°) 8,663lx; (14°) 3,812lx; (19°) 2,530lx; (26°) 1,759lx; (36°) 810lx; (50°) 474lx; (70°) 306lx @ 5m full

Lux: (zoom 15°-30°) (min angle) 3,502lx; (max angle) 1,800lx; (zoom 25°-50°) (min angle) 2,608lx; (max angle) 974lx @ 5m full

CRI: 93.7 @ 3,200K; 97.6 @ 5,600K

Source life expectancy: > 50,000hr

Lens type: high-quality glass lens optics

Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°

Focus: manual

Colour mixing: RGB, Royal Blue, Mint, PC Amber

CCT: CCT control, + / - green correction, tungsten emulation

White presets: 2,800K ~ 10,000K

Colour wheel: colour gels matching and RGB / HSI / CMY selectable colour mode (CT+)

Colour wheel: LEE filter emulation and RGB / HSI / CMY input mode selectable (CT+ IP)

Gobo size: B, outer: 86mm; image: 64.5mm; thickness: 1.1mm

Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours
