EclProfile FW Range

Key Features:

  • 3,200K (TU) and 5,600K (DY) versions available
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30)
  • Silent operation and compatible with industry standard accessories
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclProfile FW Range

The PROLIGHTS EclProfile FW is the full white version of the new generation of EclProfile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants.

Product Variants

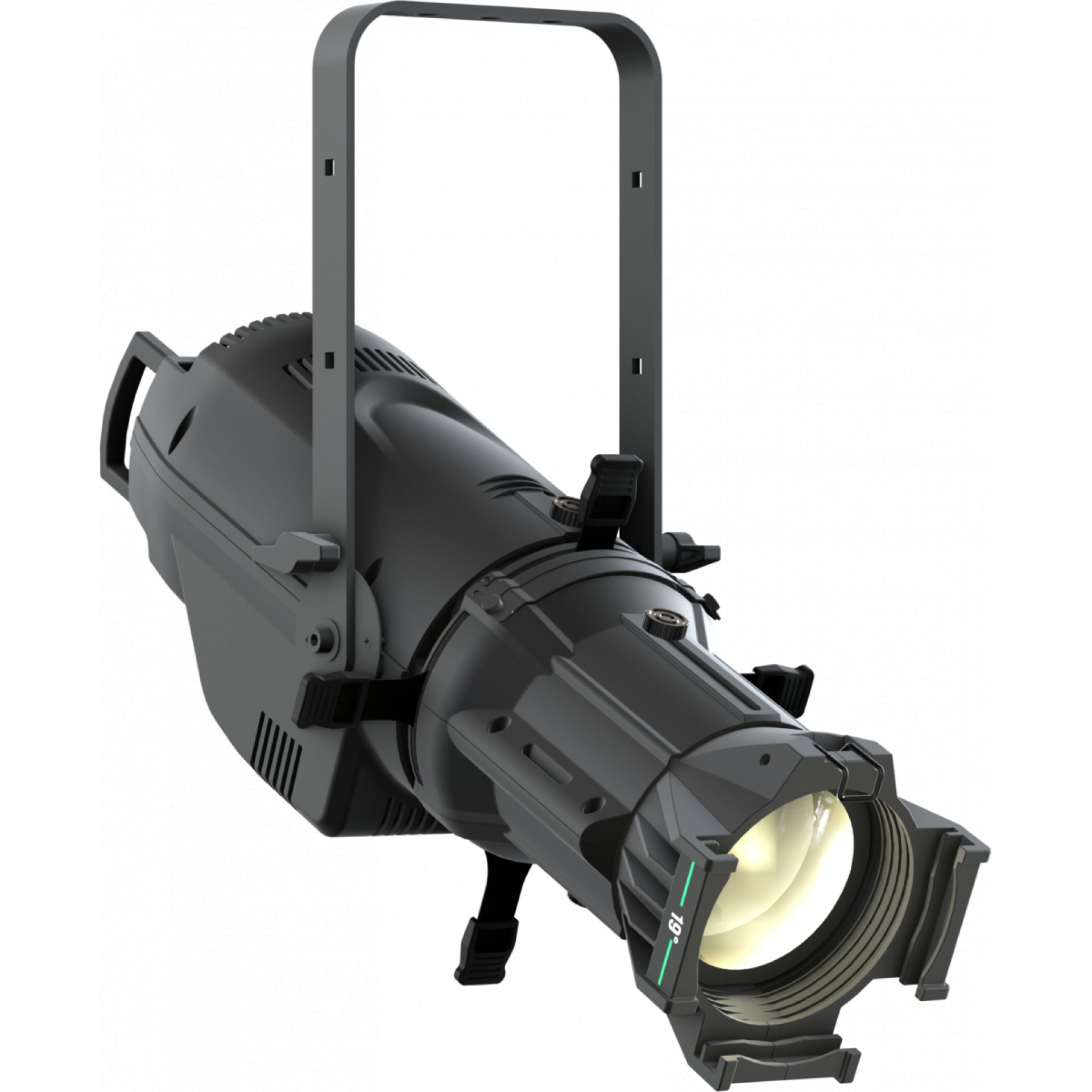

PROLIGHTS EclProfile FW - front - TU
PROLIGHTS EclProfile FW
  • Tungsten 3,200K

Enquiry Form

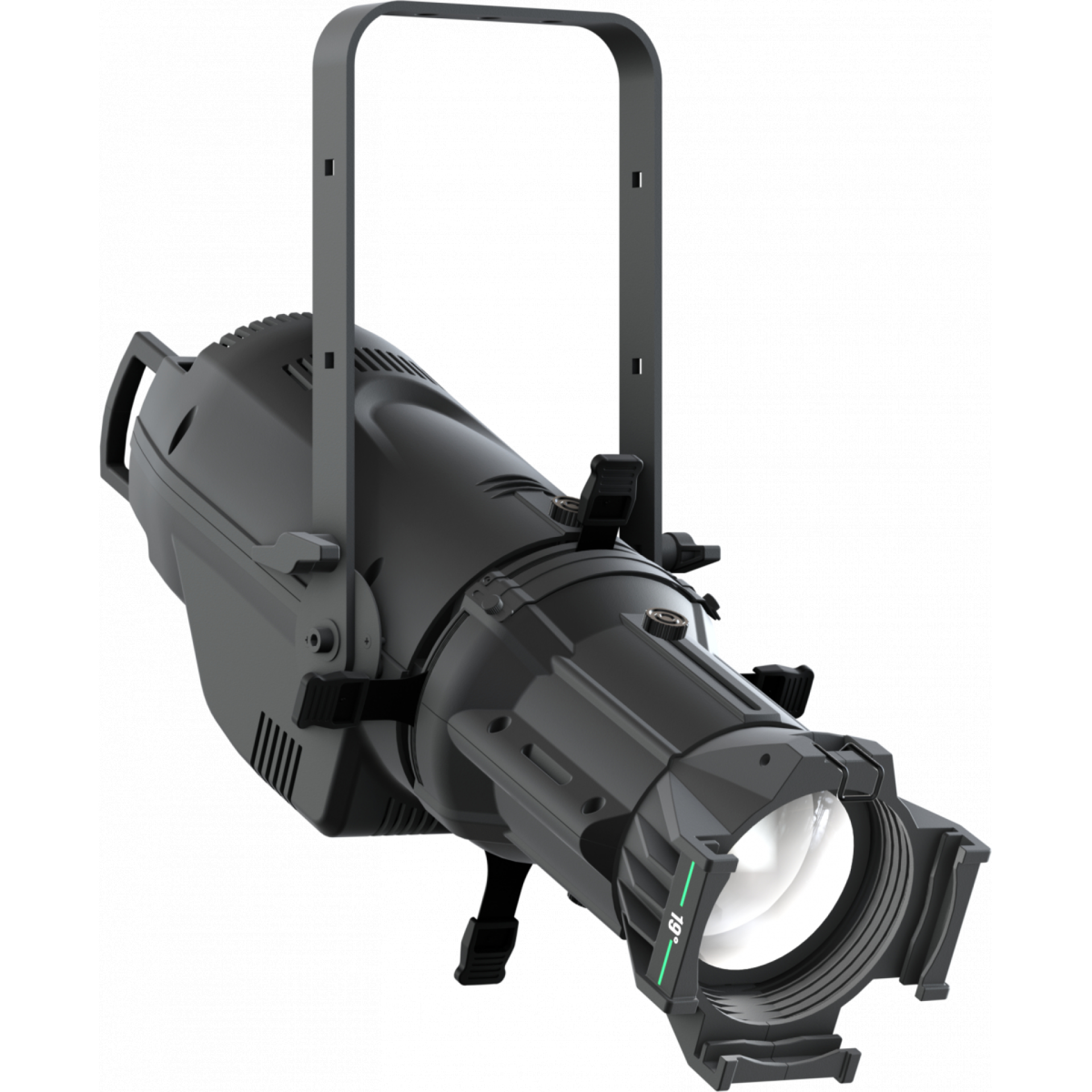

PROLIGHTS EclProfile FW - front - DY
PROLIGHTS EclProfile FW
  • Daylight 5,600K

Enquiry Form

  • Source: 91x3W high-power white LED

    CCT: (TU) 3,200K; (DY) 5,600K

    Luminous flux (TU): 5° – 6,662lm; 10° – 8,005lm; 14° – 7,283lm; 19° – 8,704lm; 26° – 8,944lm; 36° – 8,996lm; 50° – 8,286lm; 70°- 9,670lm @ full

    Luminous flux (DY): 5° – 7,231lm; 10° – 8,828lm; 14° – 8,061lm; 19° – 7,664lm; 26° – 9,826lm; 36° – 9,707lm; 50° – 9,017lm; 70° – 11,708lm @ full

    Lux (TU): 5° – 30,529lx; 10° – 14,813lx; 14° – 7,197lx; 19° – 4,218lx; 26° – 2,459lx; 36° – 1,323lx; 50° – 680lx; 70° – 419lx @ 5m full

    Lux (DY): 5° – 35,955lx; 10° – 16,083lx; 14° – 7,894lx; 19° – 4,626lx; 26° – 2,722lx; 36° – 1,450lx; 50° – 766lx; 70° – 494lx @ 5m full

    CRI: (TU) >98; (DY) >97

    Source life expectancy: > 50,000hr

    Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: manual

  • Colour mixing: static white

    Dynamic Effects

    Shutter system: 3 layers blades system and fast rehabilitation of blade in case of out of frame blade

    Gobo size: B, outer: 86mm – image: 64.5mm – thickness: 1.1mm

    Static mode: selection of static dimmer

    Manual mode: manual adjustment of dimmer and strobe

    Auto mode: built-in programs with execution speed adjustment

    Special features: HIGH mode, AUTO mode and SILENT mode fan management

  • Protocols: DMX512, RDM

    DMX channels: 1 / 2 / 3 / 4channel

    RDM: RDM for remote monitoring and settings

    Display: graphic user interface

    Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included

    Master/slave: for synchronised operation of more units linked in a chain

EclProfile FW Range - Variant Downloads
