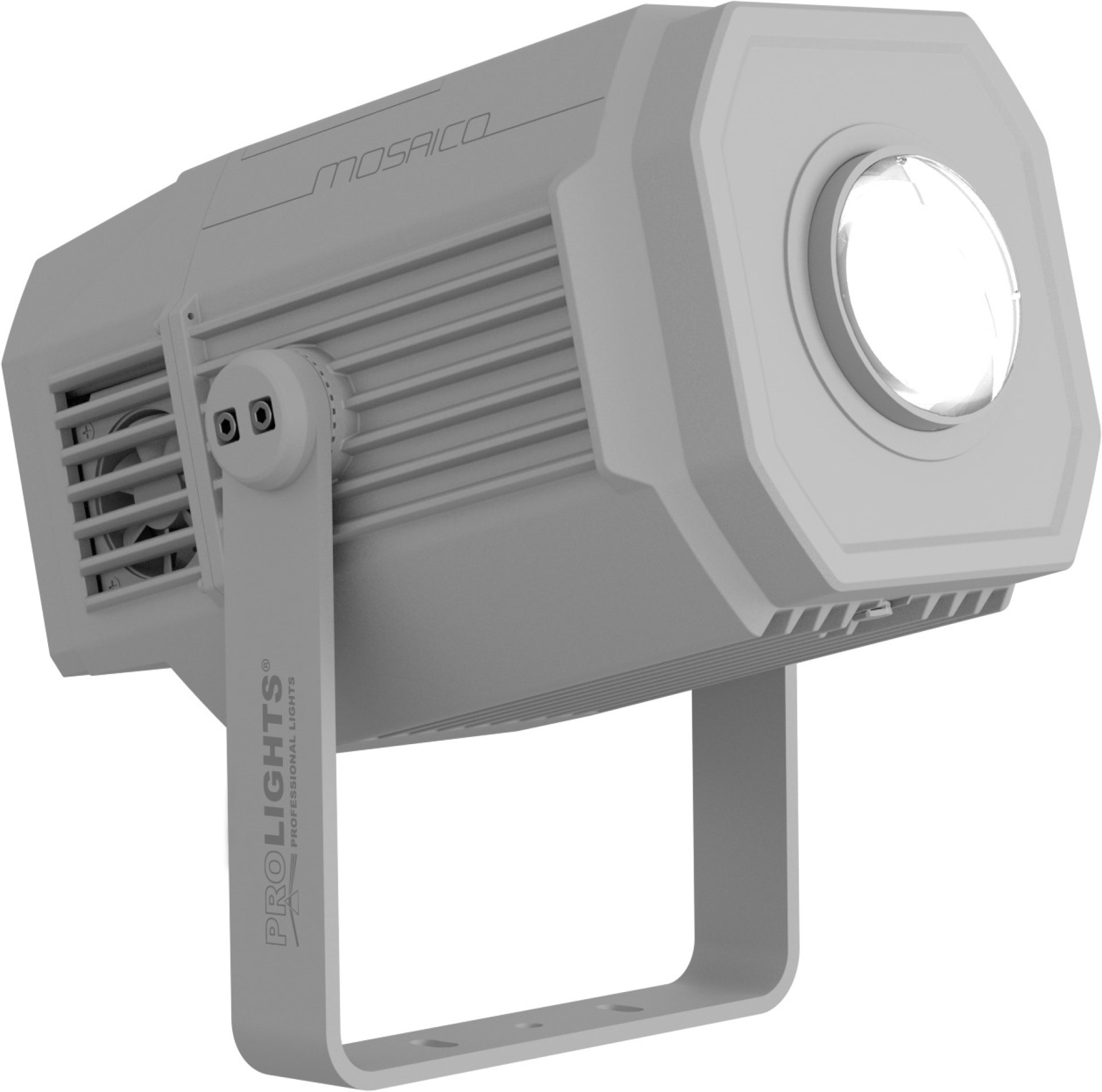

PROLIGHTS Mosaico LED Image Projector

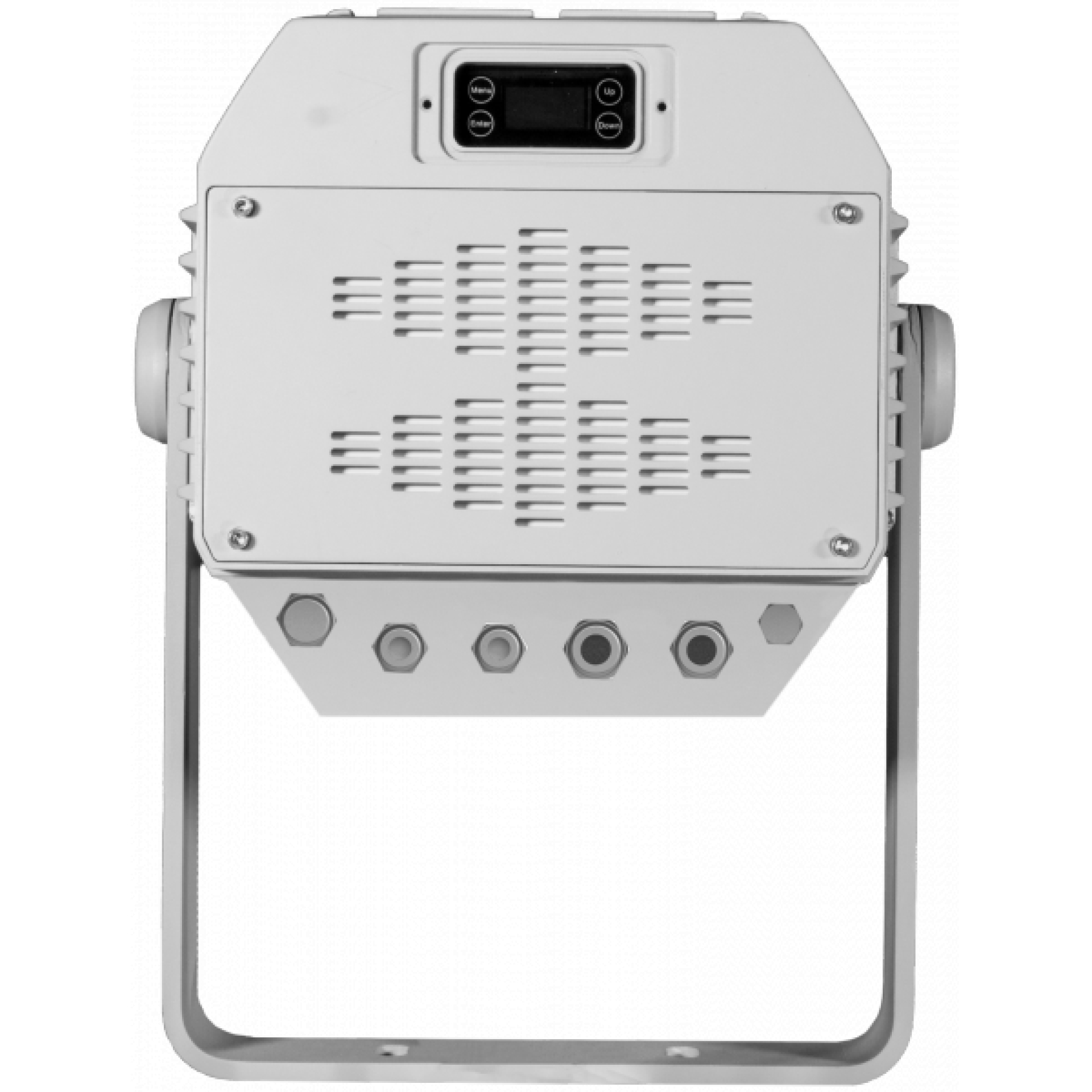

PROLIGHTS Mosaico LED Image Projector - rear view

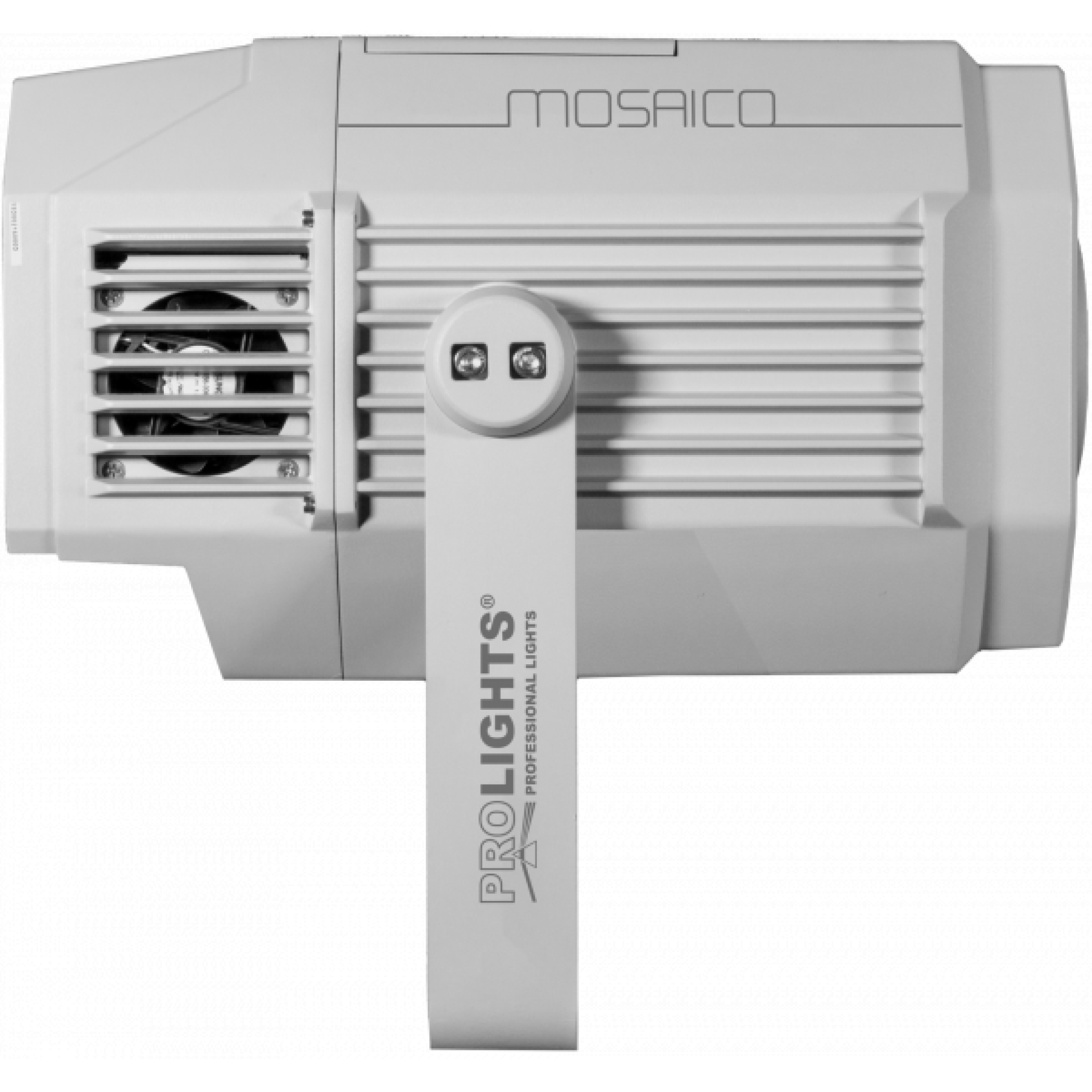

PROLIGHTS Mosaico LED Image Projector - side view

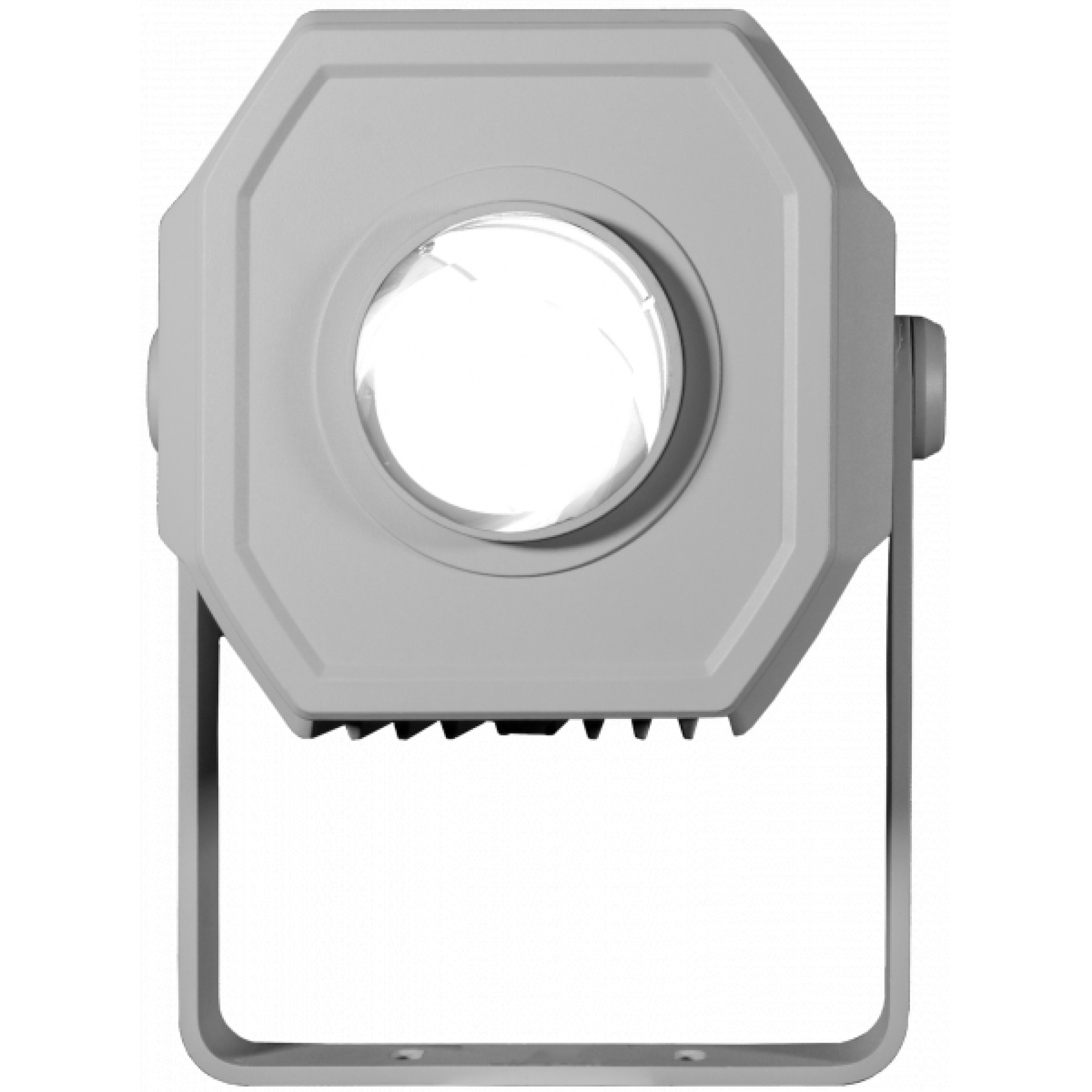

PROLIGHTS Mosaico LED Image Projector - front view
PROLIGHTS Mosaico LED Image Projector - rear view
PROLIGHTS Mosaico LED Image Projector - side view
PROLIGHTS Mosaico LED Image Projector - front view

Mosaico

PROMOSAICO

Key Features:

  • IP66 construction
  • Powerful output with flat field and sharp optics
  • 10° to 45° zoom for flexible image projection
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Mosaico

The PROLIGHTS Mosaico IP66 LED gobo projector is a powerful luminaire for projecting images onto buildings and landscapes, featuring a massive zoom, colour and animation wheels.

Mosaico is a powerful outdoor LED projection fixture. Its outstanding output of 11,388 lumens means it is a comparable replacement for the 1200 HID fixtures. The on-board effects allows for a more creative imagination and the zoomable optics makes it truly versatile for both near and long-throw installations.

  • IP66 waterproof housing for long lasting installation with minimal maintenance

    Beam angle zooming from 10° to 45° empowers a flexible use and opens to a new level of effects

    Extremely bright with over 11,388 lumens, crisp and with 5 layers of effects for limitless combinations

    Source: 250W high power white LED

    CT: 7,300K

    CRI: 75 Ra

    Luminous flux: 11,388lm

    Lux: (10°) 14,028 lux – (45°) 11,46lux @ 5m

    Source life expectancy: >20,000hr

    Zoom: 10~45° motorised linear zoom

    Lens diameter: 109mm

    Lens type: HQ glass lens optics

    Focus: motorised

  • Colour wheel: 2×7 (14 total) dichroic filters+open

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 7 rotating gobos+open, interchangeable, indexing

    Gobo size: gobo Ø 26.9 mm – img Ø 24 mm – 1.1 mm

    Circular prism: 3f with bi-directional rotation, indexing

    Frost: linear 0-100% frost filter

    Iris: 0~100% motorised linear iris

  • Protocols: DMX512, RDM

    W-DMX: included, Wireless Solution receiver

    RDM: RDM ready for fixture remote monitor and settings

    Display: black OLED touch display

    Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

You might like...

PROLIGHTS Mosaico FX100FC - grey
Product - LIGHTING
Mosaico FX100FC
    • 100W RGBW / FC LED
    • 15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized
    • DMX, CRMX Wireless and local stand alone control
Find out more
PROLIGHTS Mosaico L
Product - LIGHTING
Mosaico L
    • IP66 for long-lasting installations, with minimal maintenance needed
    • 7°- 49° linear zoom system, for both near and long throw installation
    • 300W White LED engine (8,000K), with up to 11,700 lumen output
Find out more

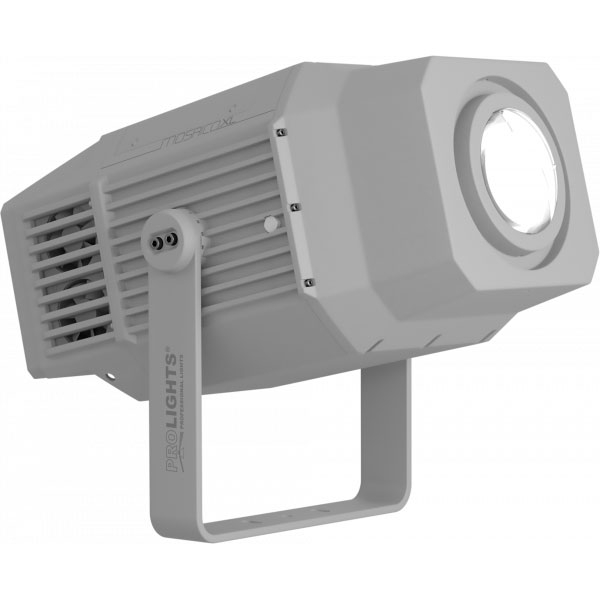

PROLIGHTS Mosaico XL
Product - LIGHTING
Mosaico XL
    • IP66 construction
    • 540W White LED engine with 6,000K CT delivering 14,500 lumens output
    • Extensive feature set
Find out more
PROLIGHTS Mosaico FX100 Black
Product - LIGHTING
Mosaico FX100
    • 100W high-power white LED
    • 15°, 30°, 50° and 70° available optics (not included), Image or Effects optimised
    • DMX, CRMX Wireless and local stand alone control
Find out more

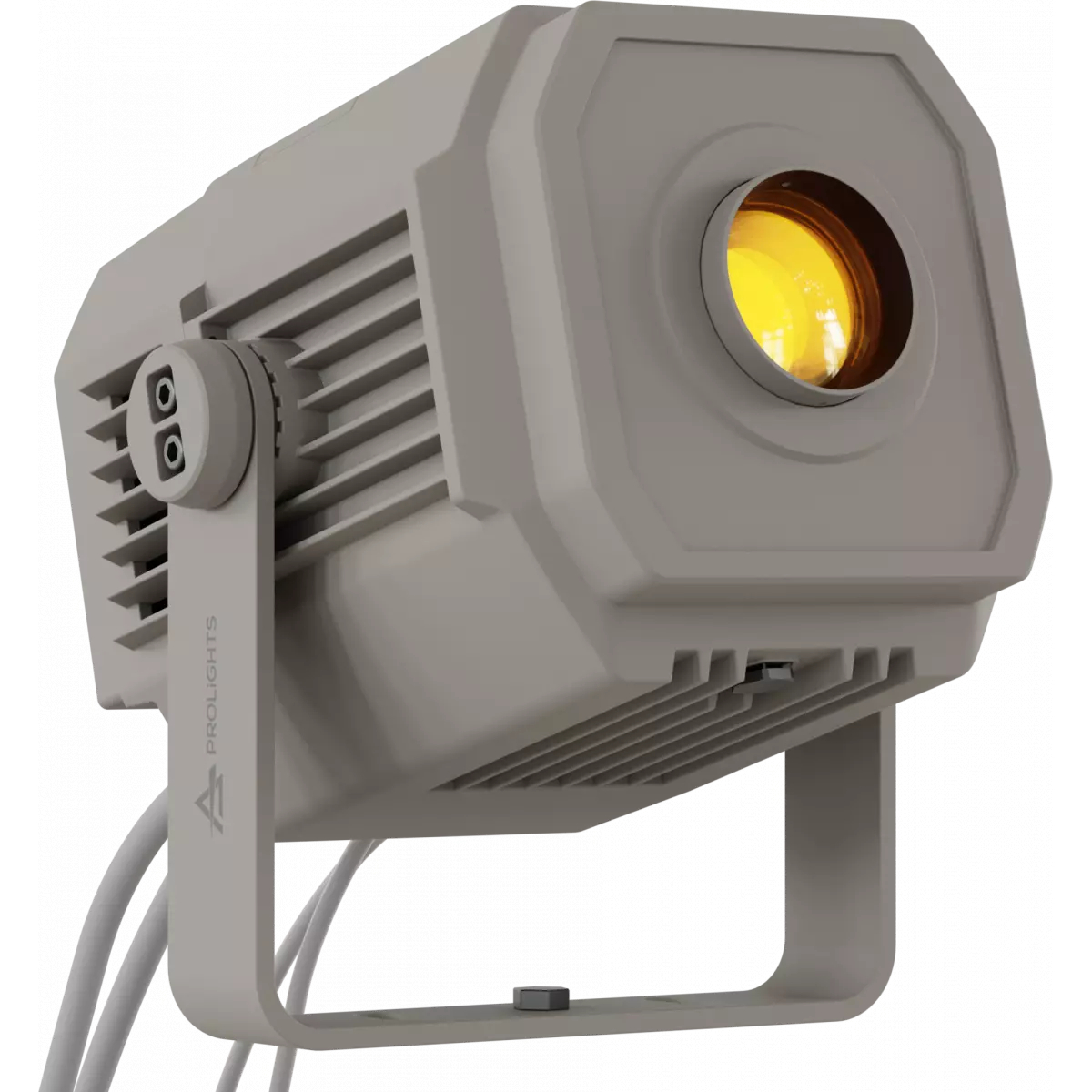

PROLIGHTS Mosaico Jr image projector
