Mosaico L

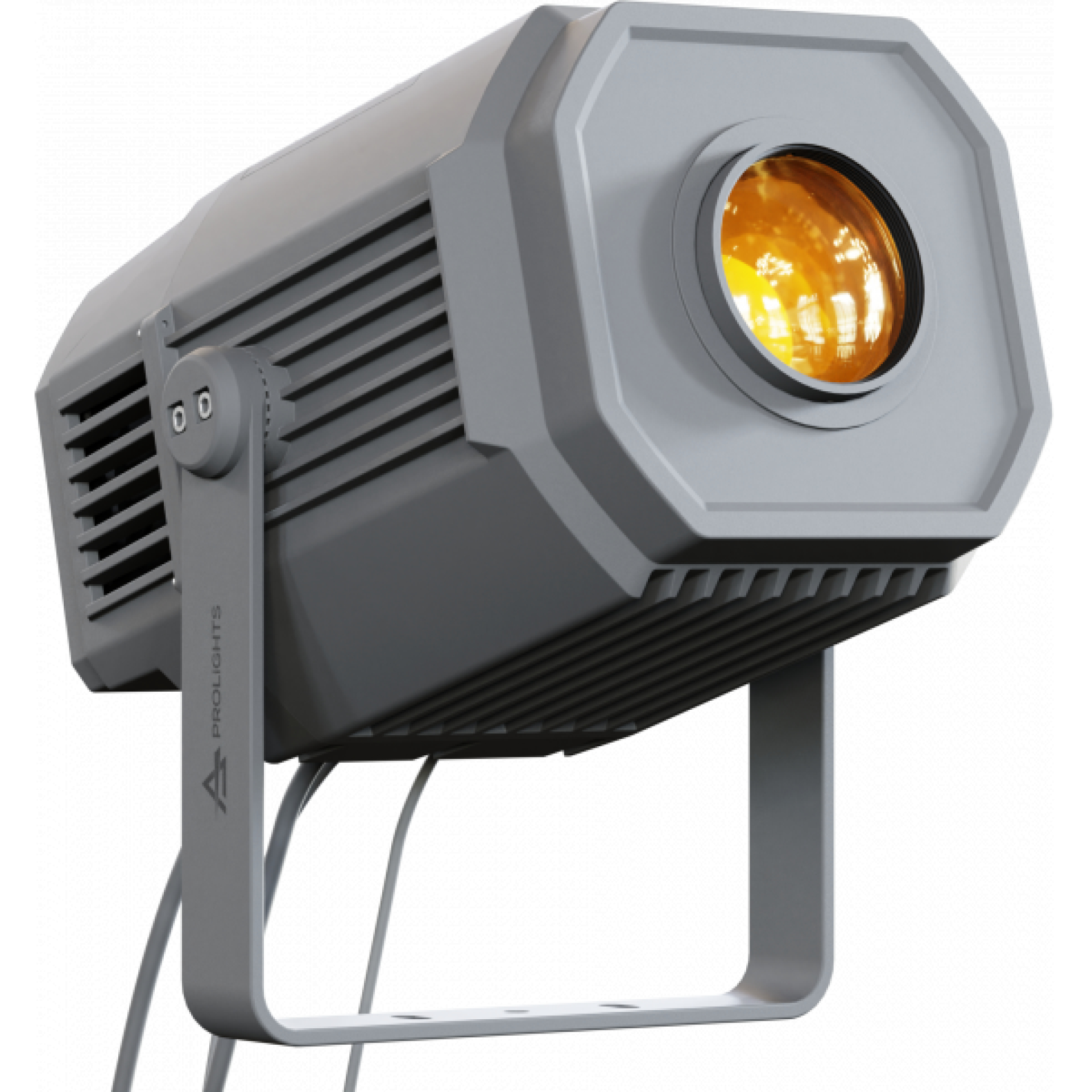

PROLIGHTS Mosaico L

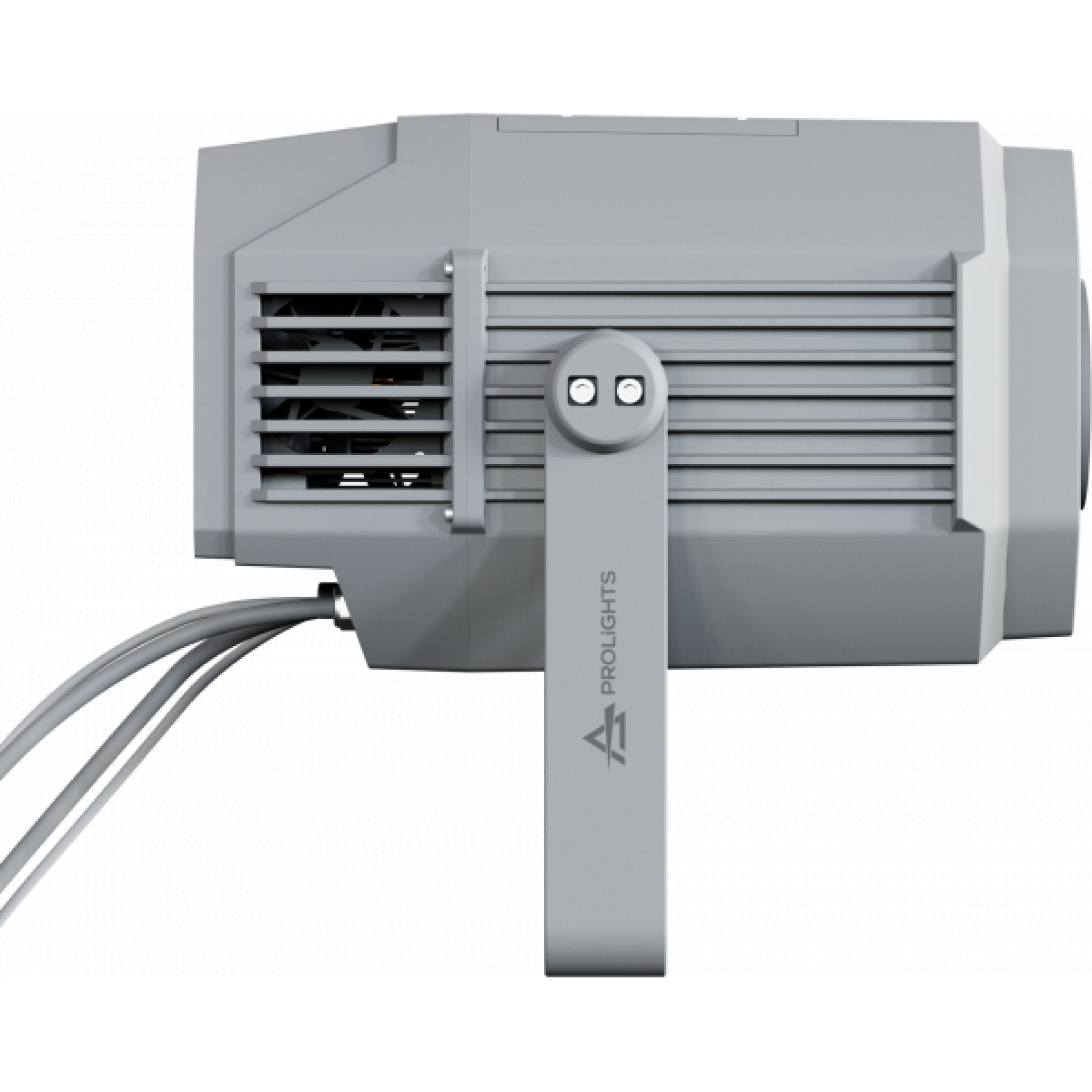

PROLIGHTS Mosaico L - side

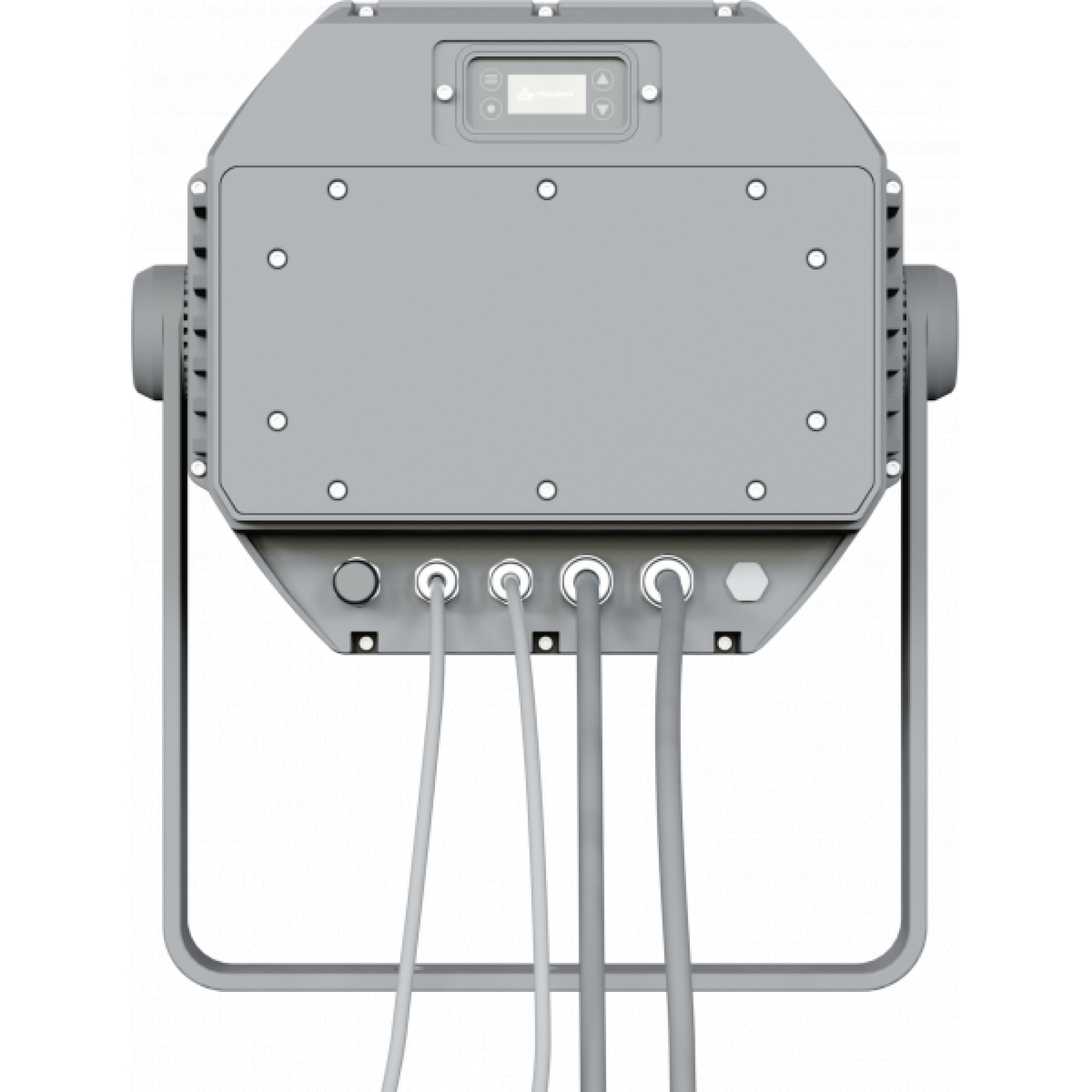

PROLIGHTS Mosaico L - back

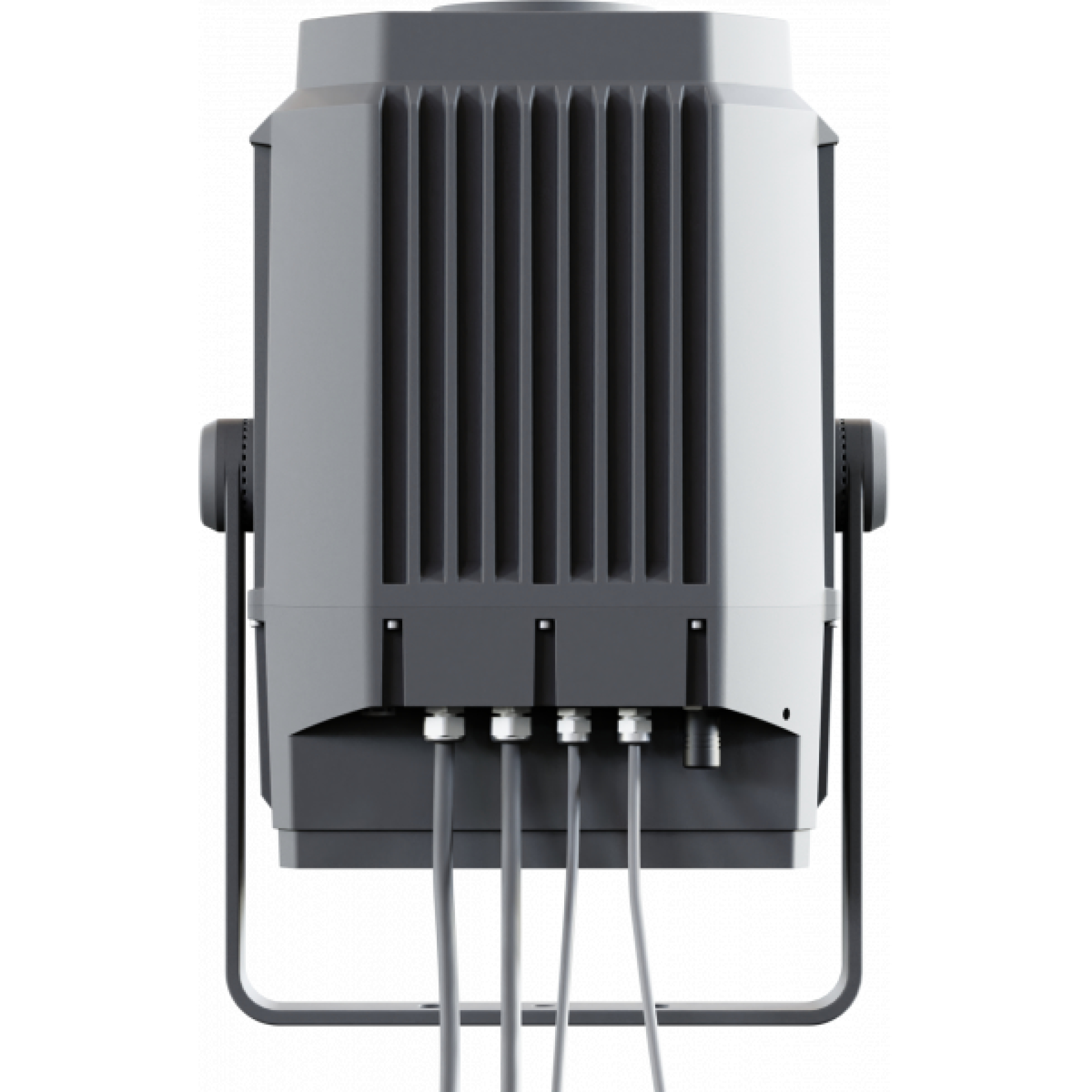

PROLIGHTS Mosaico L - top
PROLIGHTS Mosaico L - side
PROLIGHTS Mosaico L - back
PROLIGHTS Mosaico L - top

Mosaico L

PROMOSAICOL

Key Features:

  • IP66 for long-lasting installations, with minimal maintenance needed
  • 7°- 49° linear zoom system, for both near and long throw installation
  • 300W White LED engine (8,000K), with up to 11,700 lumen output
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Mosaico L

The PROLIGHTS Mosaico L is a bright outdoor LED image projector, designed for long-range image, textures and logo projections.

Built in a durable IP66 die-cast housing, the Mosaico L offers a phenomenal output of 11,700 lumens and an extensive set of features including a rotating animation wheel, 7 interchangeable gobos, and motorised framing shutters that precisely focus within a certain projection area.

It has an exceptional zoom range, from 7° to 49°, making it versatile in both near-field and long-throw installations, or even for static and animated façade building lighting.

  • Source: 300W high-power white LED

    CCT: 8,000K

    Luminous flux: (7°) 8,536lm; (49°) 11,729lm @ full

    Lux: (7°) 28,230lx; (49°) 867lx @ 5m full

    Source life expectancy: > 20,000 hr

    Zoom: 7°- 49° motorised linear zoom

    Lens diameter: 110mm

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised

  • Colour mixing: cold white LED with colour wheel

    Colour wheel: open + 7 colour filters

    Control resolution: 16-bit dimmer

    Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system

    Animation wheel: magnetic interchangeable animation wheel with CW and CCW rotation

    Rotating gobos: open + 7 rotating gobos + open, interchangeable, indexing

    Gobo size (BW): outer: 26.9mm; image: 23mm

    Gobo size (Color): outer: 26.9mm; image: 20.5mm

    FX generator: shutter macros with adjustable speed

    Circular prism: 3ff with bi-directional rotation, indexing

    Frost: linear 0-100% frost filter

    Special features: record scenes and create chases and shows throughout these scenes

  • Protocols: DMX512, RDM, W-DMX

    Stand alone: Stand alone programmer and playback

    DMX channels: 22 / 32 / 43 channel

    Wireless control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic user interface

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
