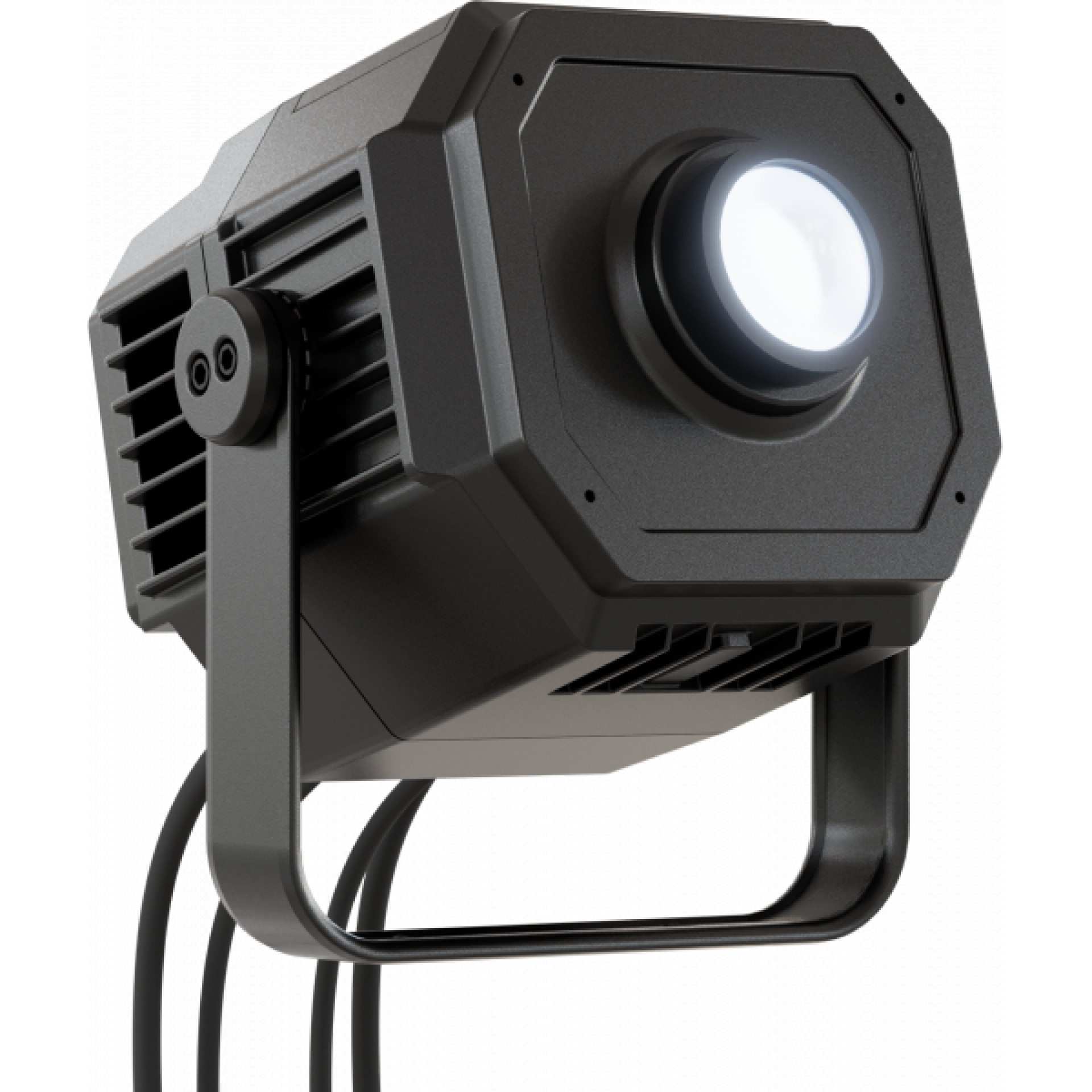

PROLIGHTS Mosaico FX100 Black

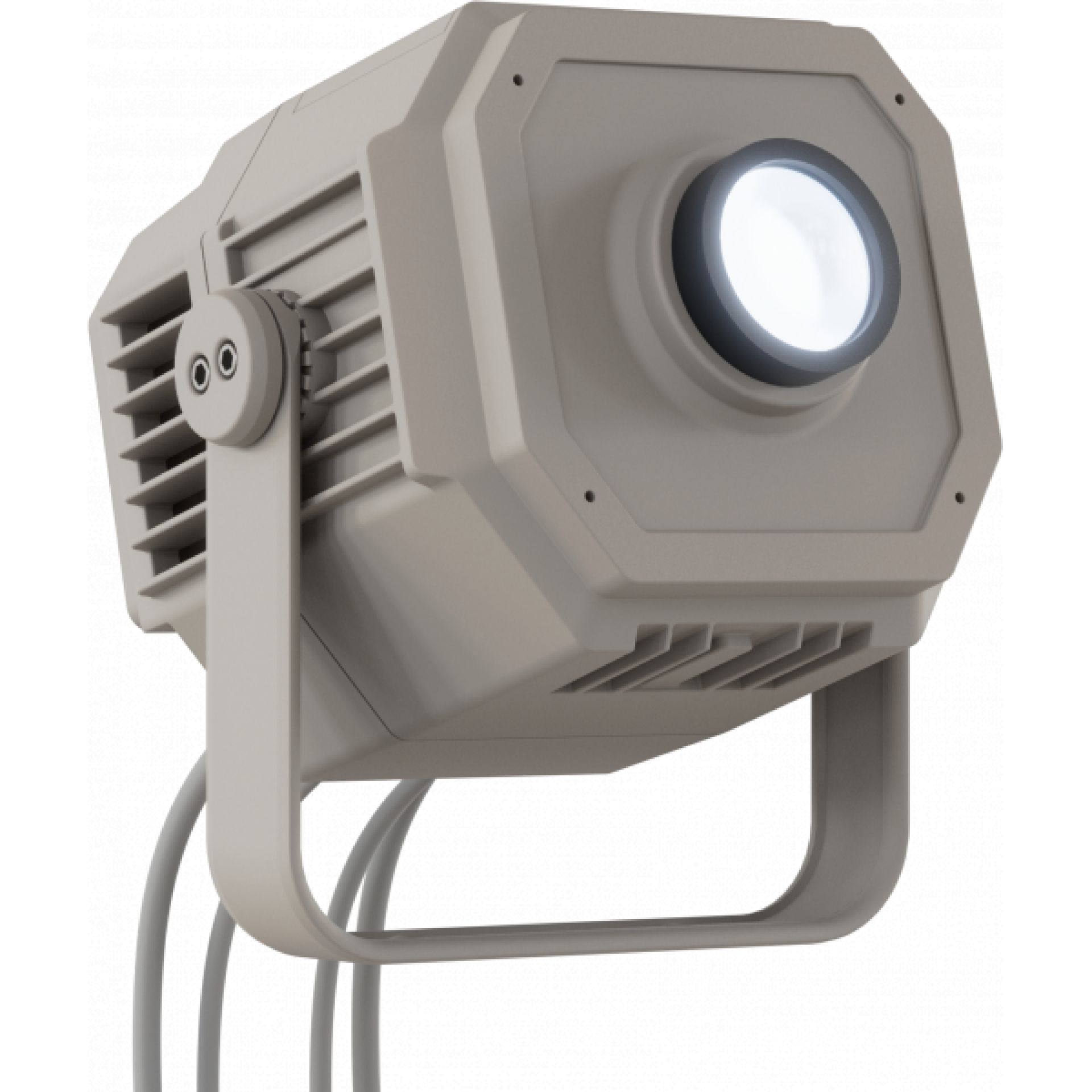

PROLIGHTS Mosaico FX100 - Grey

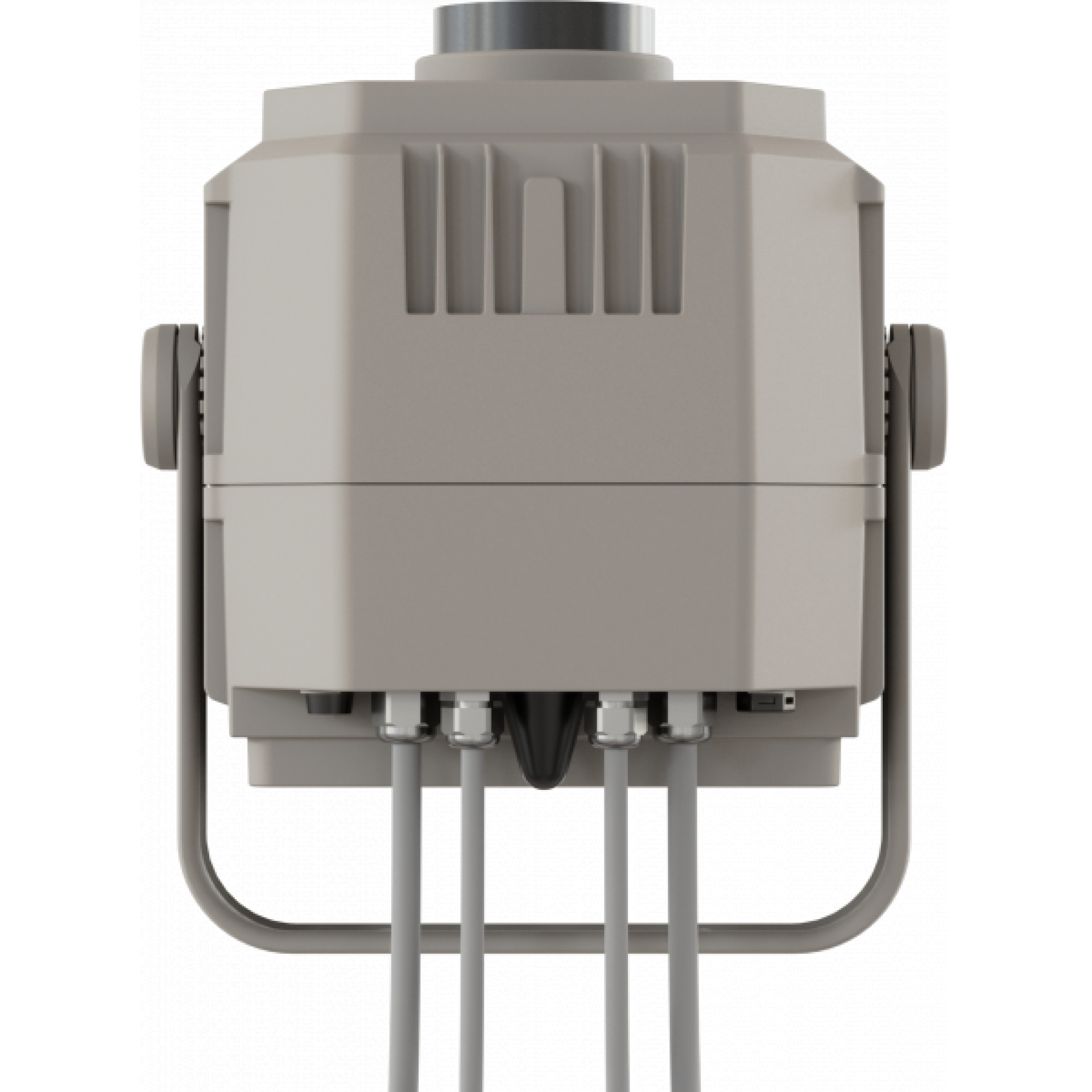

PROLIGHTS Mosaico FX100 - top

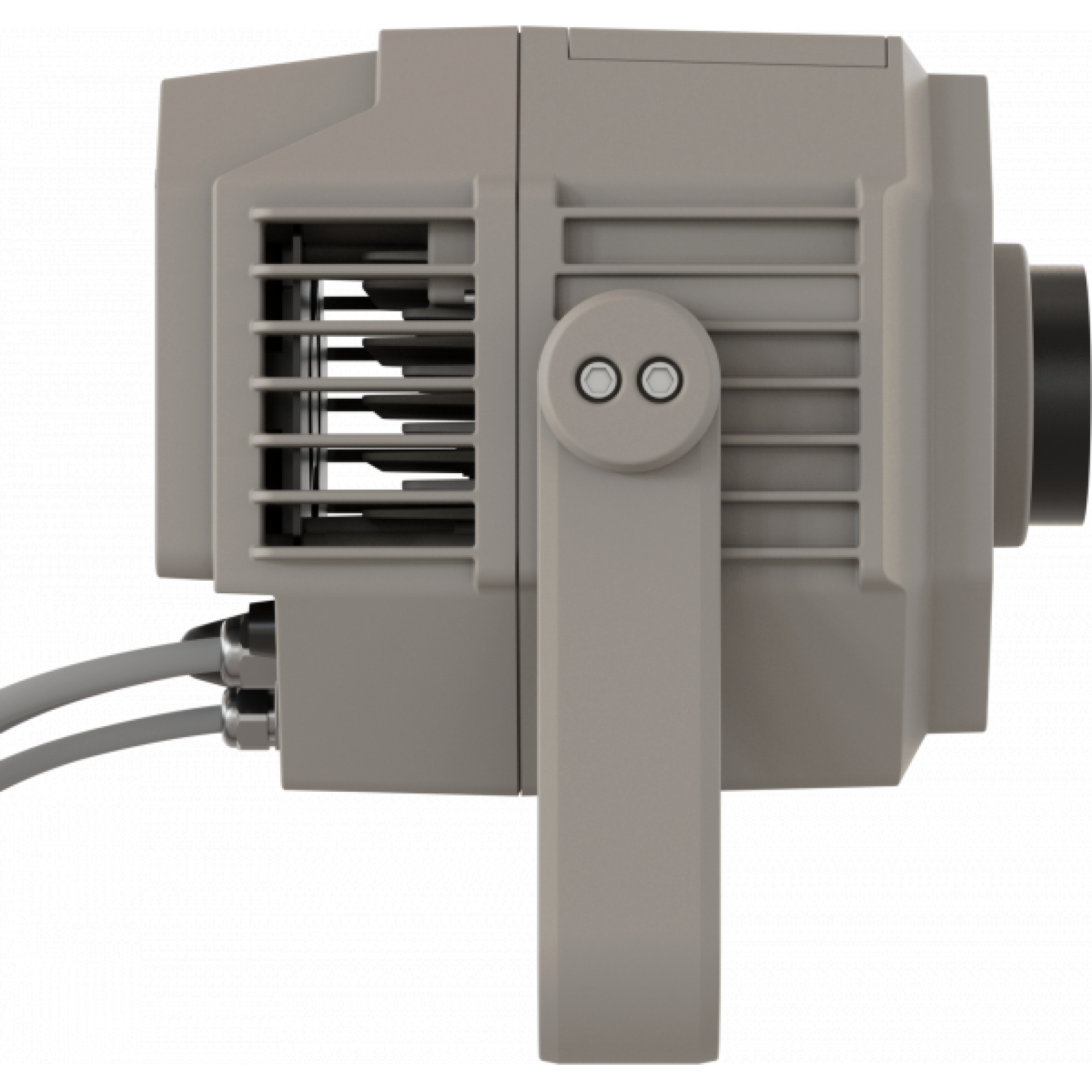

PROLIGHTS Mosaico FX100 - side

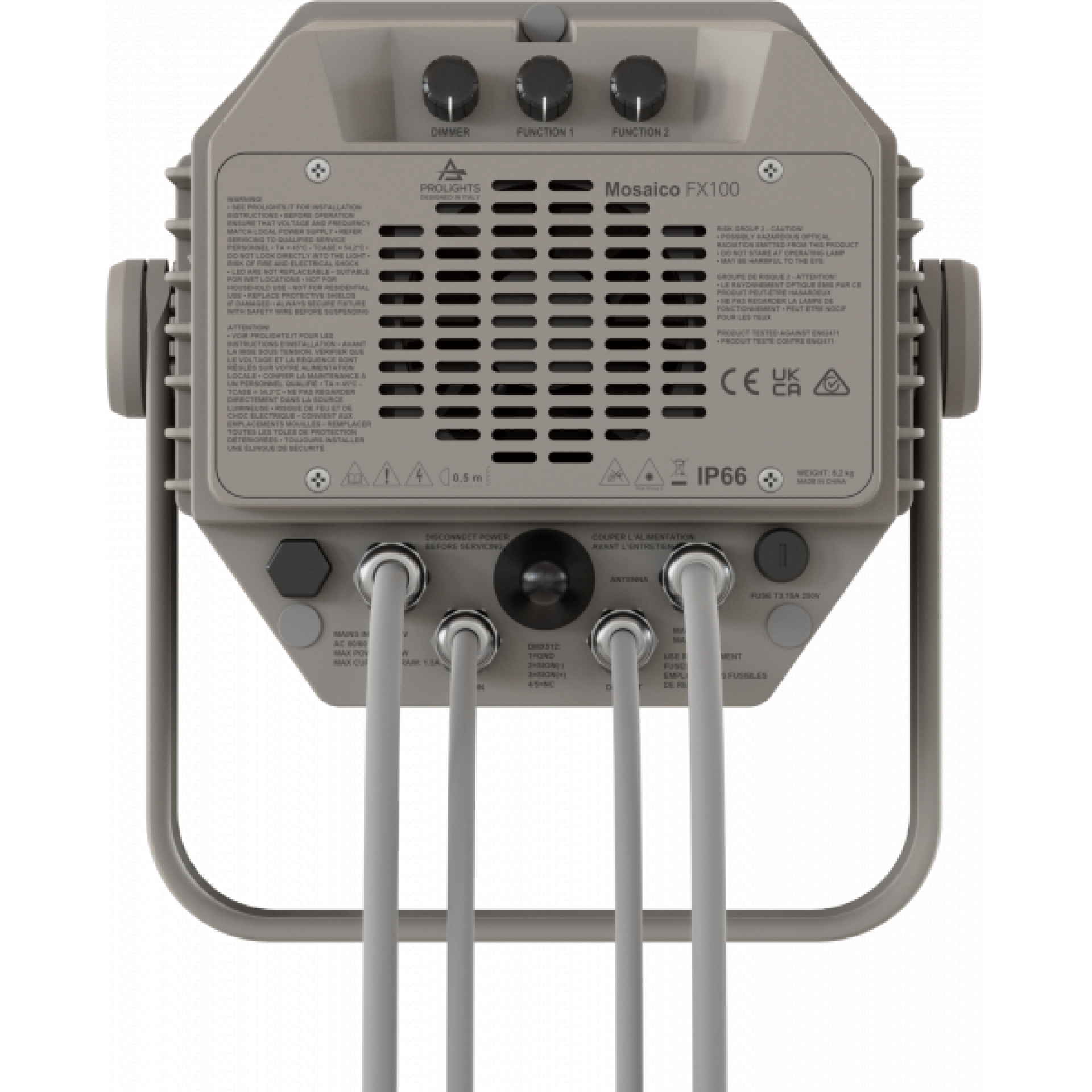

PROLIGHTS Mosaico FX100 - grey back

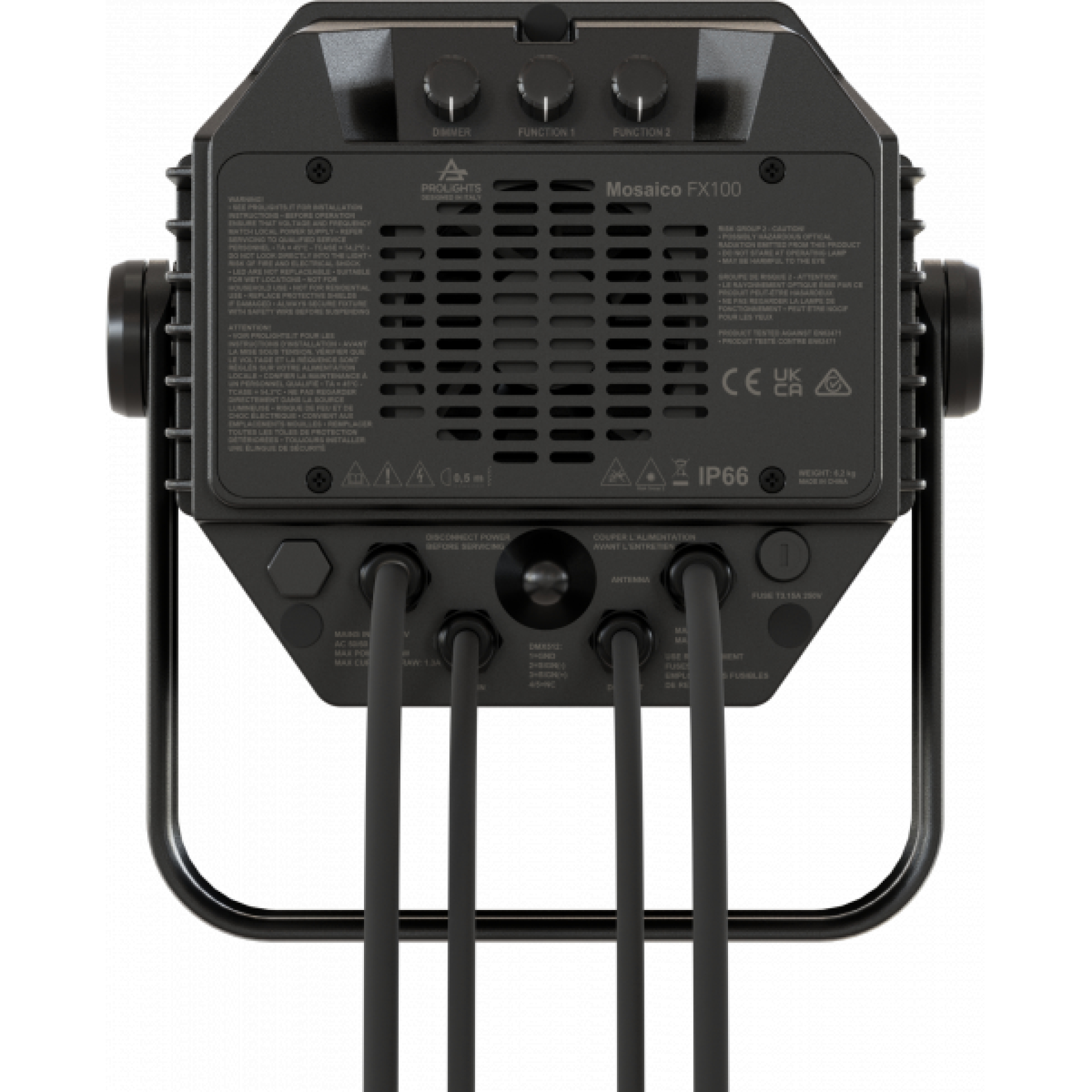

PROLIGHTS Mosaico FX100 - black back
PROLIGHTS Mosaico FX100 - Grey
PROLIGHTS Mosaico FX100 - top
PROLIGHTS Mosaico FX100 - side
PROLIGHTS Mosaico FX100 - grey back
PROLIGHTS Mosaico FX100 - black back

Mosaico FX100

Key Features:

  • 100W high-power white LED
  • 15°, 30°, 50° and 70° available optics (not included), Image or Effects optimised
  • DMX, CRMX Wireless and local stand alone control
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Mosaico FX100

The PROLIGHTS Mosaico FX100 is a 100W white source LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

Product Variants

PROLIGHTS Mosaico FX100 - Grey
Mosaico FX100
  • Unit colour: Grey

Enquiry Form

PROLIGHTS Mosaico FX100 Black
Mosaico FX100
  • Unit colour: Black

Enquiry Form

The Mosaico FX100 is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, fire or northern lights effects. The kit also contains one indexable gobo holder and a colour holder with a magnetic attachment.

The fixture is compatible with a wide range of high definition optics, each optimised for the required application (animation or image projection): 15°, 30°, 50° and 70°. This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.

Please note that Mosaico FX100 does not ship with a lens, other images or colours. Choose from the available lenses when ordering to meet your design requirements.

  • Source: 100W high-power white LED

    CCT: 8,000K

    Luminous flux: (15°) 3,174lm; (30° WT) 3,246lm; (30° GB) 3,029lm; (50° WT) 3,646lm; (50° GB) 2,217 lm; (70°) 2,367lm @ full

    Lux: (15°) 1,612lx; (30° WT) 954lx; (30° GB) 114lx; (50° WT) 345lx; (50° GB) 179lx; (70°) 176lx @ 5m full

    Source life expectancy: > 30,000hr (L70B10 @Ta 25° C / 77° F)

    Focus: manual

  • Colour wheel: available as accessory

    Other: included 1 static holder with magnetic positioning

    Control resolution: 16-bit dimmer

    Gobo size (BW): outer: 26.9mm; image: 22mm

    Gobo size (Color): outer: 26.9mm; image: 20.5mm

    Fixed gobos: Fix gobo wheel available as accessory

    Static mode: selection of static dimmer and effects rotation mode

    Other: included 1 static gobo holder with manual indexing gear and magnetic assembly

    Other: 2 rotating wheels with magnetic mounting (structured glass included, color/gobo/animation and other wheels available as optional accessories)

  • Protocols: DMX512, RDM, CRMX + WDMX, 3 push encoder

    Stand alone: 3 push encoder

    DMX channels: 8 channel

    Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: user interface through DATAMASTER external coder (not included)

    Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included

    Master/Slave: for synchronised operation of more units linked in a chain
