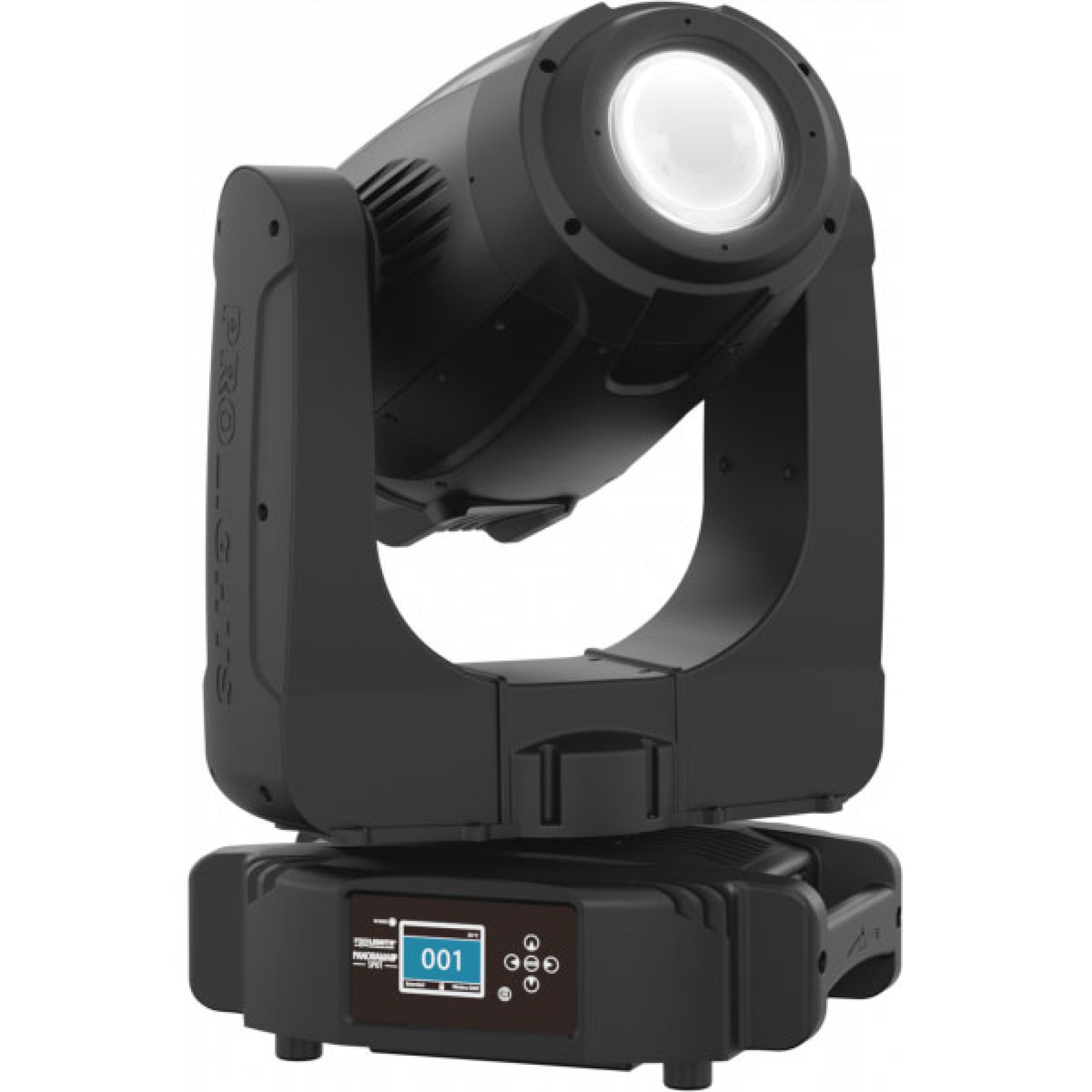

PROLIGHTS PanoramaIP Spot

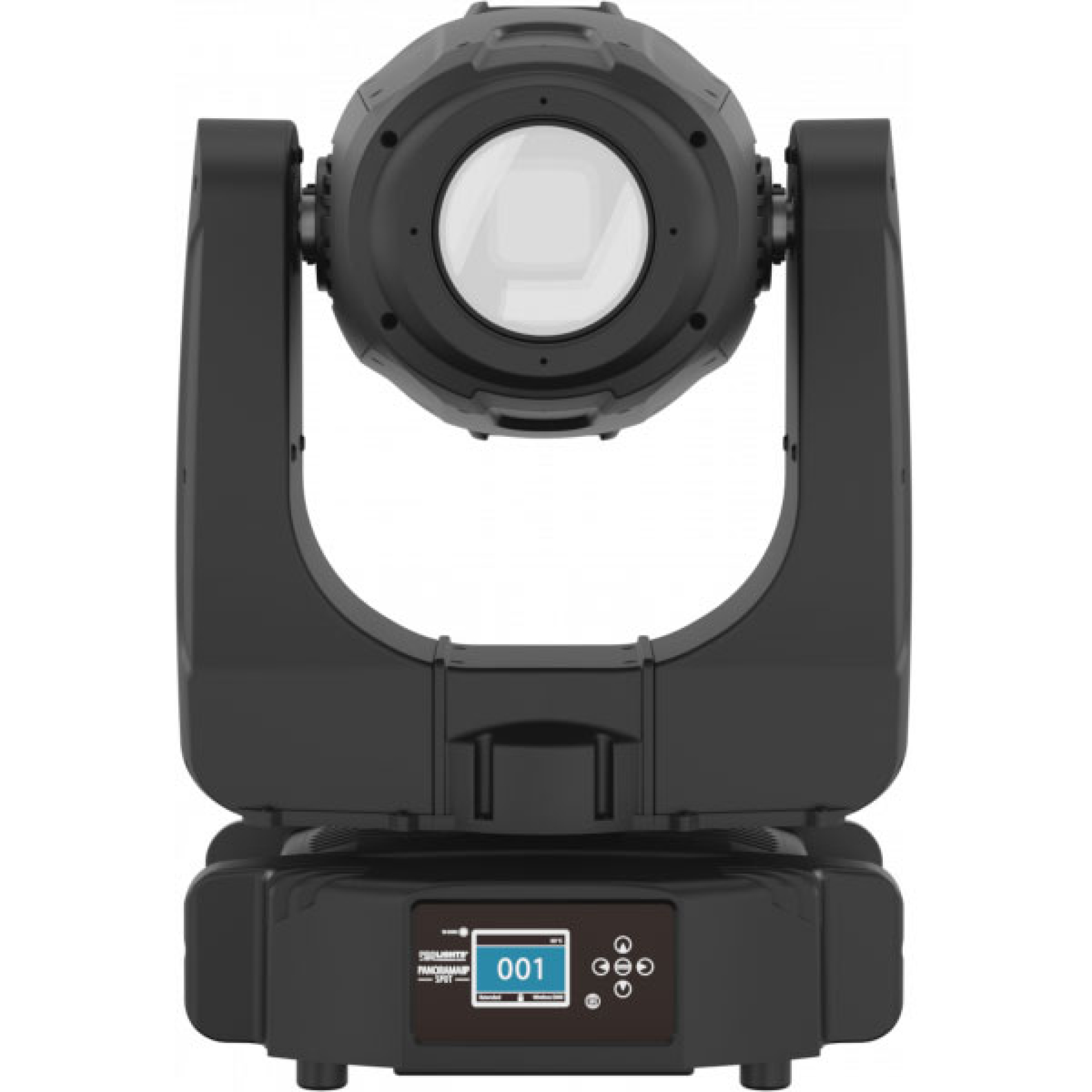

PROLIGHTS PanoramaIP Spot - front view

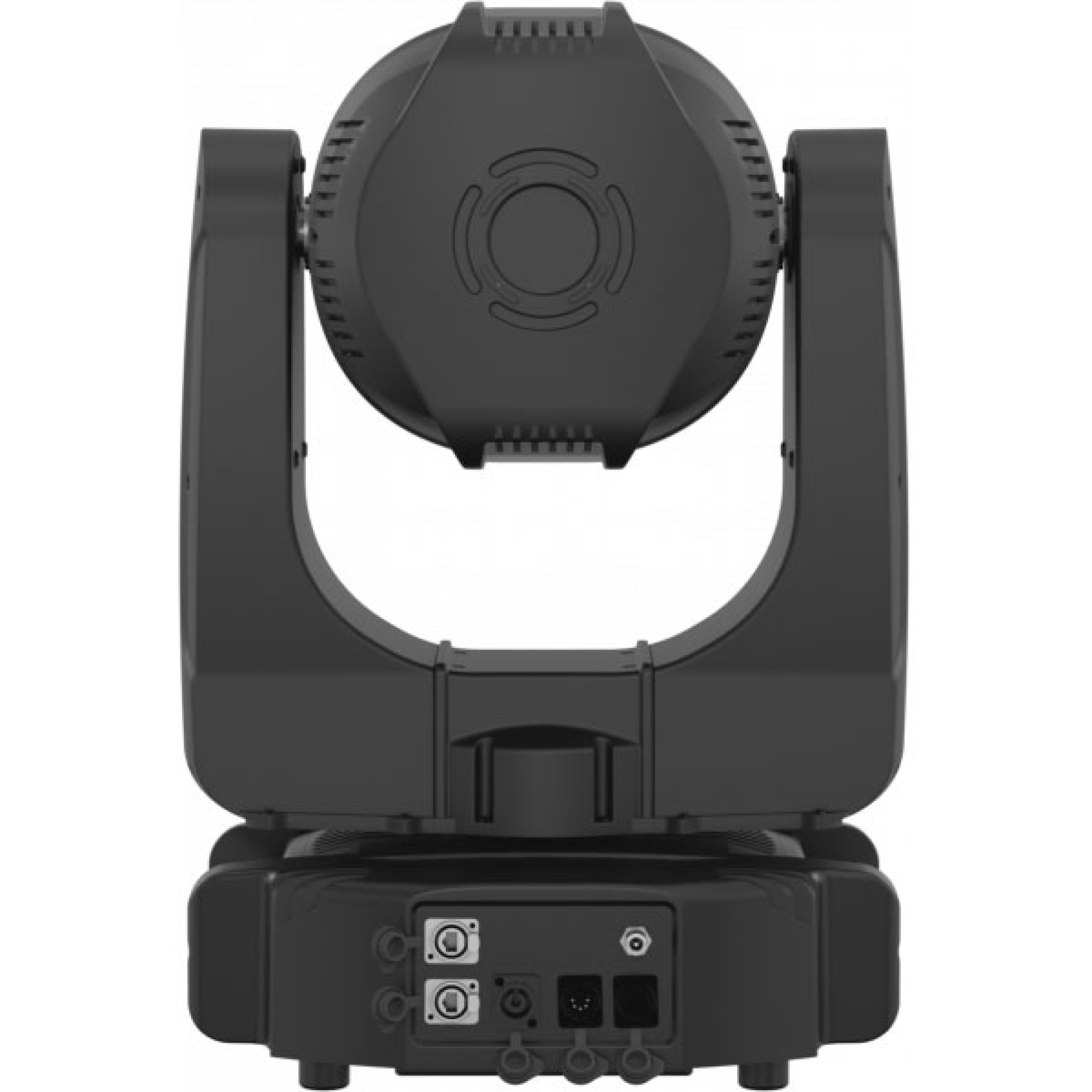

PROLIGHTS PanoramaIP Spot - rear view

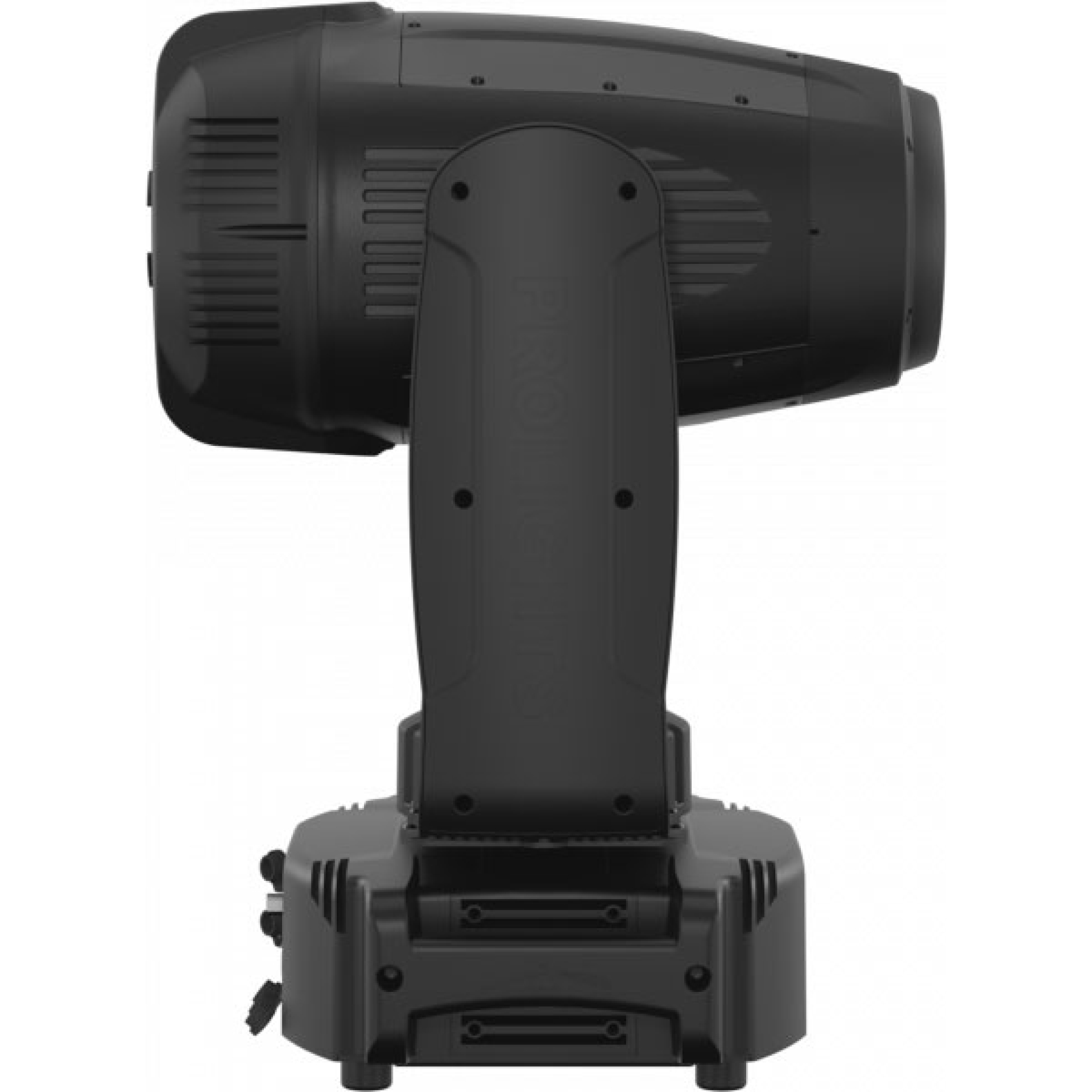

PROLIGHTS PanoramaIP Spot - side view
PROLIGHTS PanoramaIP Spot - front view
PROLIGHTS PanoramaIP Spot - rear view
PROLIGHTS PanoramaIP Spot - side view

PanoramaIP Spot

PROPANORAMAIPSPOT

Key Features:

  • 420W 7,000K LED source
  • IP65 rated for outdoor events and temporary installations
  • 5°-50° linear zoom, linear CMY mixing, colour wheel, rotating gobo wheel, static gobo wheel, circular prisms, linear frost and focus
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

PanoramaIP Spot

The PROLIGHTS PanoramaIP Spot is a powerful and flexible IP65 rated moving LED spot designed to deliver a stunning brightness level, all packaged in a compact housing.

Equipped with a 1:10 zoom and a complete feature set, PanoramaIP Spot really stands out in any environment, from festivals and arenas to large outdoor events.

  • Source: 420W high-power white LED

    CT: 7,000K

    Lux: (5°) 21362lux @5m

    Lux: (50°) 1173lux @5m full

    Source life expectancy: >20,000 hr

    Zoom: 5°-50° motorised linear zoom

    Lens diameter: 120mm

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised with auto-focus

  • Colour mixing: linear CMY

    CTC: linear CTO correction 2,700~6,000K

    Colour wheel: 8 dichroic filters + open

    Dynamic Effects

    Rotating gobos: 7 rotating gobos + open, interchangeable, indexing

    Gobo size: gobo Ø 27mm – img Ø 2 mm – 1.1mm

    Fixed gobos: 6 fixed gobos + open, interchangeable

    Gobo size: gobo Ø 27mm – img vØ 21mm – 1.1mm

    Circular prism: 3f with bi-directional rotation, indexing

    Frost: linear 0-100% frost filter

    Iris: 5-100% motorised linear iris

  • Protocols: DMX512, RDM, Art-Net,W-DMX

    DMX channels: 19 / 21 / 28 / 29 / 36channel

    W-DMX: included, wireless solution receiver

    RDM: RDM ready for fixture remote monitor and settings

    Display: LCD high resolution colour display

    Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included

    Hibernation: power safe mode when lost DMX
