PanoramaIP WBX

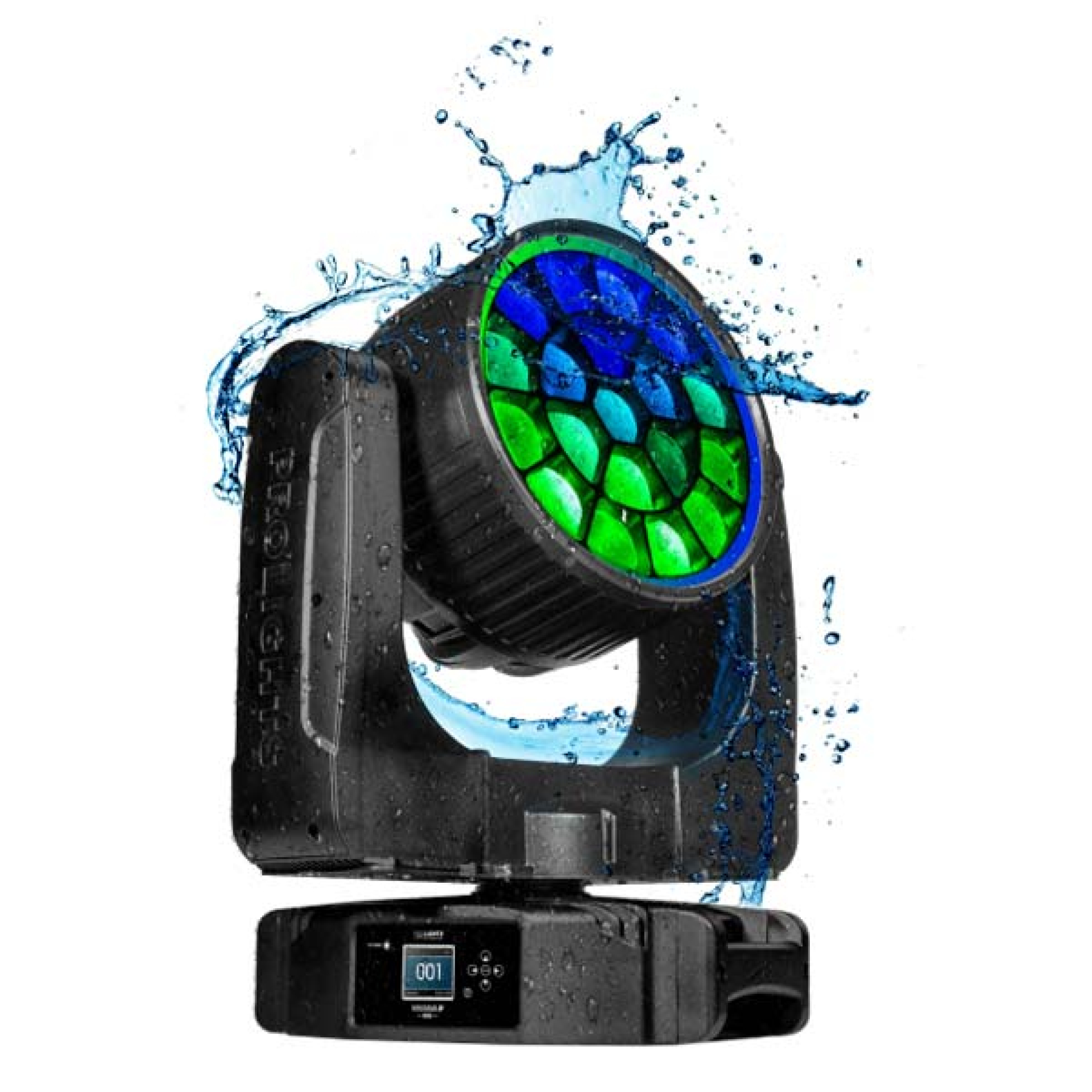

PROLIGHTS PanoramaIP WBX

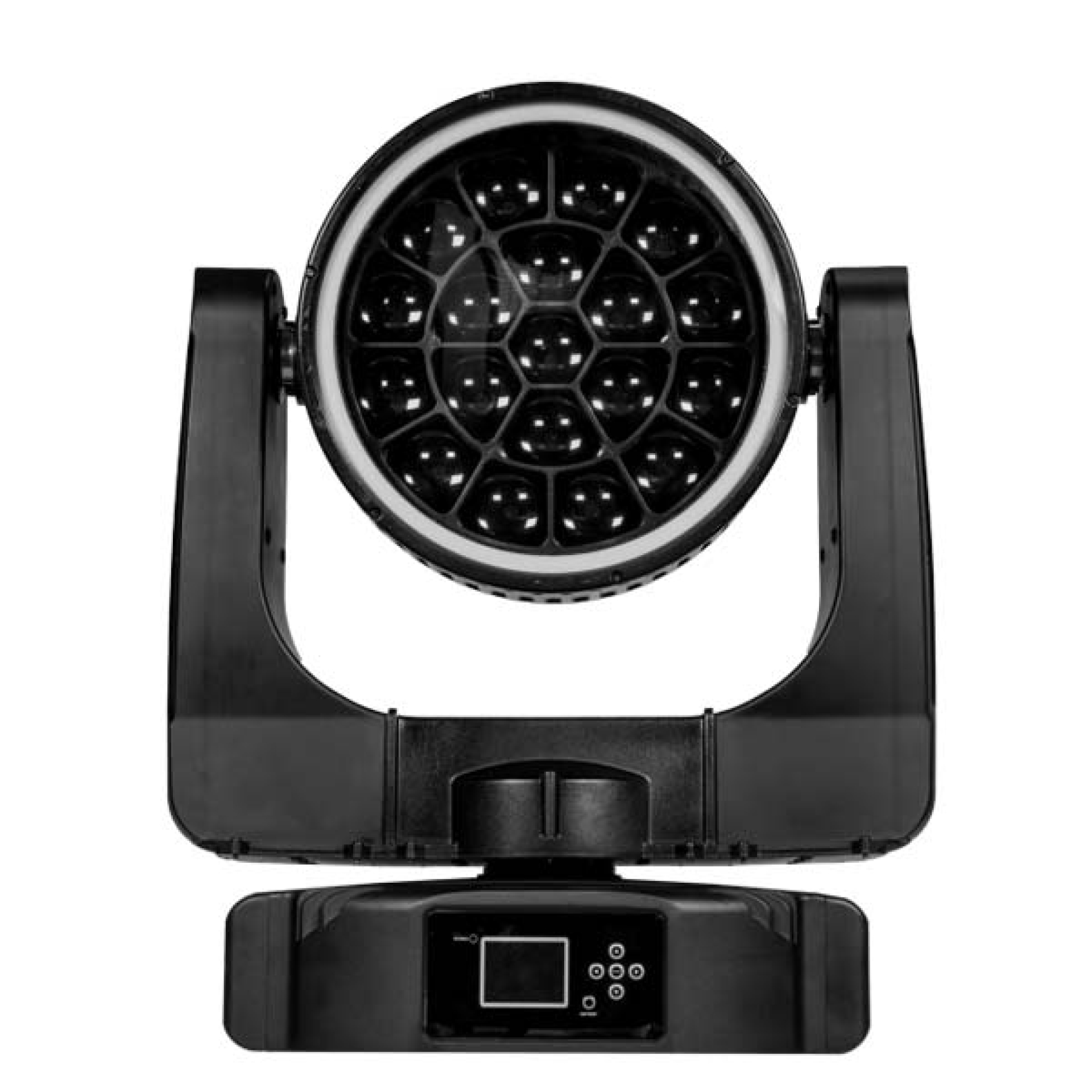

PROLIGHTS PanoramaIP WBX - front

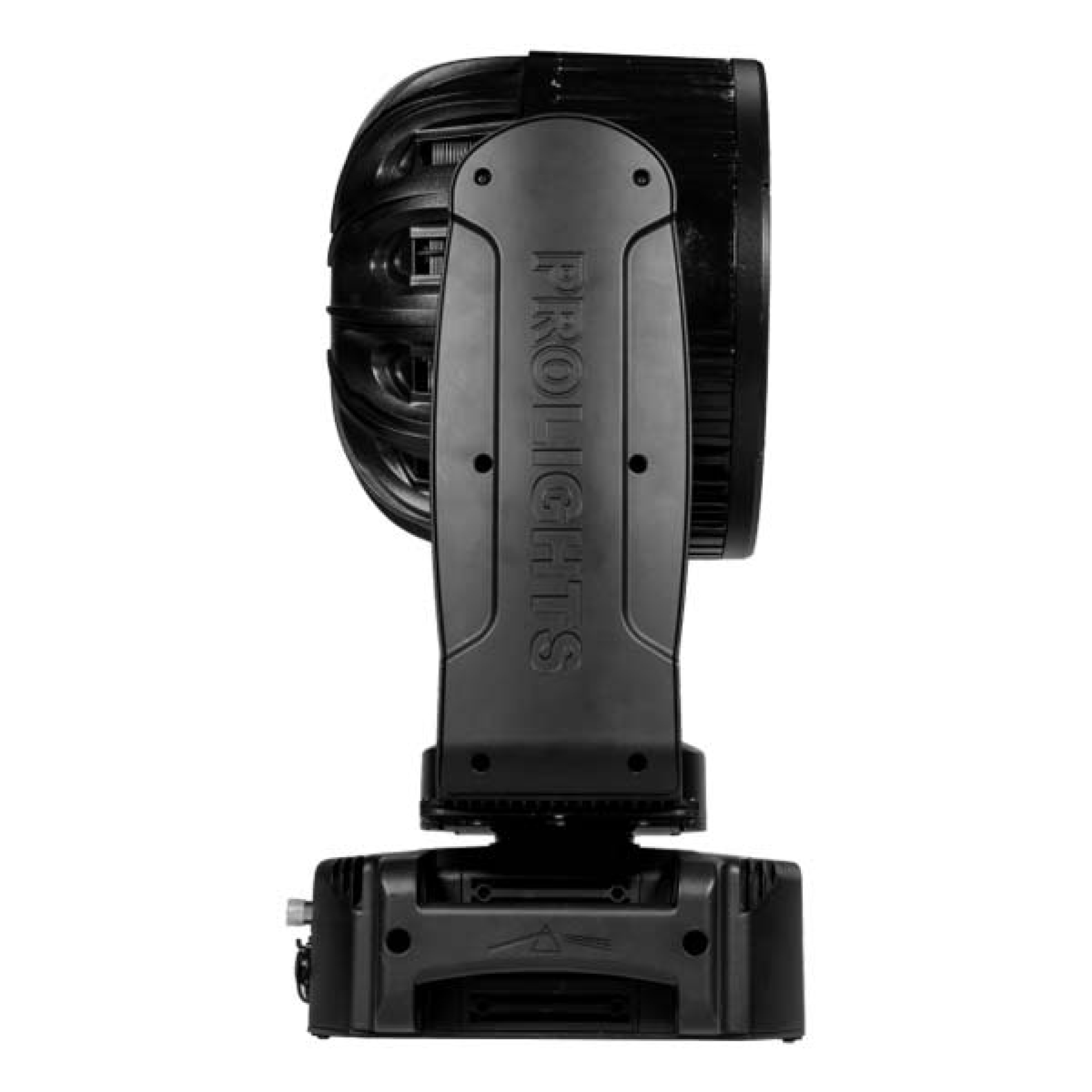

PROLIGHTS PanoramaIP WBX - side

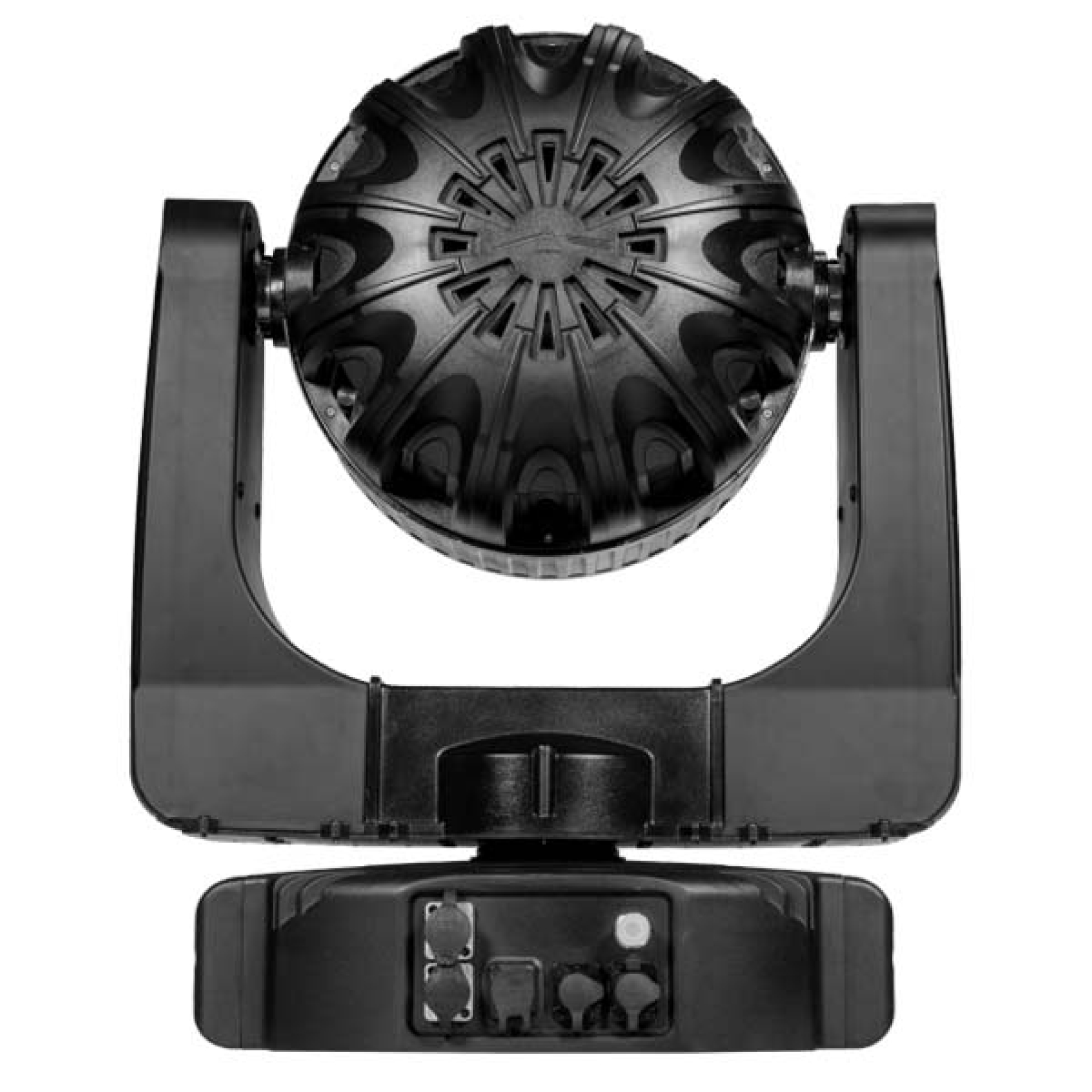

PROLIGHTS PanoramaIP WBX - back
PROLIGHTS PanoramaIP WBX - front
PROLIGHTS PanoramaIP WBX - side
PROLIGHTS PanoramaIP WBX - back

PanoramaIP WBX

PROPANORAMAIPWBX

Key Features:

  • IP65 for outdoor events
  • 19 LED RGBW/FC Osram 40W + outer RGB pixel ring
  • Massive 3° to 45° linear zoom range from beam to wash
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

PanoramaIP WBX

The PROLIGHTS PanoramaIP WBX moving wash light is a stunning IP65 high output, LED wash luminaire, with pixel ring effects, designed to bring the workhorse LED wash light to outdoor events.

Featuring 19 of Osrams new 40W RGBW Ostar LEDs it delivers a massive output with a huge colour range and extensive toolkit of effects.

The PanoramaIP WBX is rated at IP65 for temporary outdoor application. It delivers a massive output with a huge colour range and an extensive toolkit of effects.

  • Source: 19x40W RGBW Osram Ostar LED

    Lux: (3°) 60,000 lux (45°) 5,010lux @ 3m full

    Lux: (3°) 31,500 lux (45°) 2,000lux @ 5m full

    Source Life Expectancy: >50,000hr

    Other: outer RGB pixel ring with frost film

    Zoom: 3-45° motorised linear zoom

    Lens type: HQ glass lens optics

    Additional optics: diffuser on outer pixel ring

  • Colour mixing: RGBW/FC

    CTC: CTC control through independent DMX channel

    White presets: 2,000-10,000K

    Colour wheel: virtual colour wheel with presets

    Macros: several pre-build pixel macros with adjustable speed

    Pixel patterns: preprogrammed dynamic and static patterns

    FX generator: adjustable foreground/background colour, index, speed, direction

    Special features: outer RGB pixel ring with several built in customizable FX macros

  • Protocols: DMX512, RDM, Art-Net

    DMX channels: 18/44/120/42ch

    Pixel control: Pixel2Pixel control

    W-DMX: included, Wireless Solution receiver

    RDM: RDM ready for fixture remote monitor and settings

    Display: LCD high resolution colour display with autoflip

    Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included

You might like...

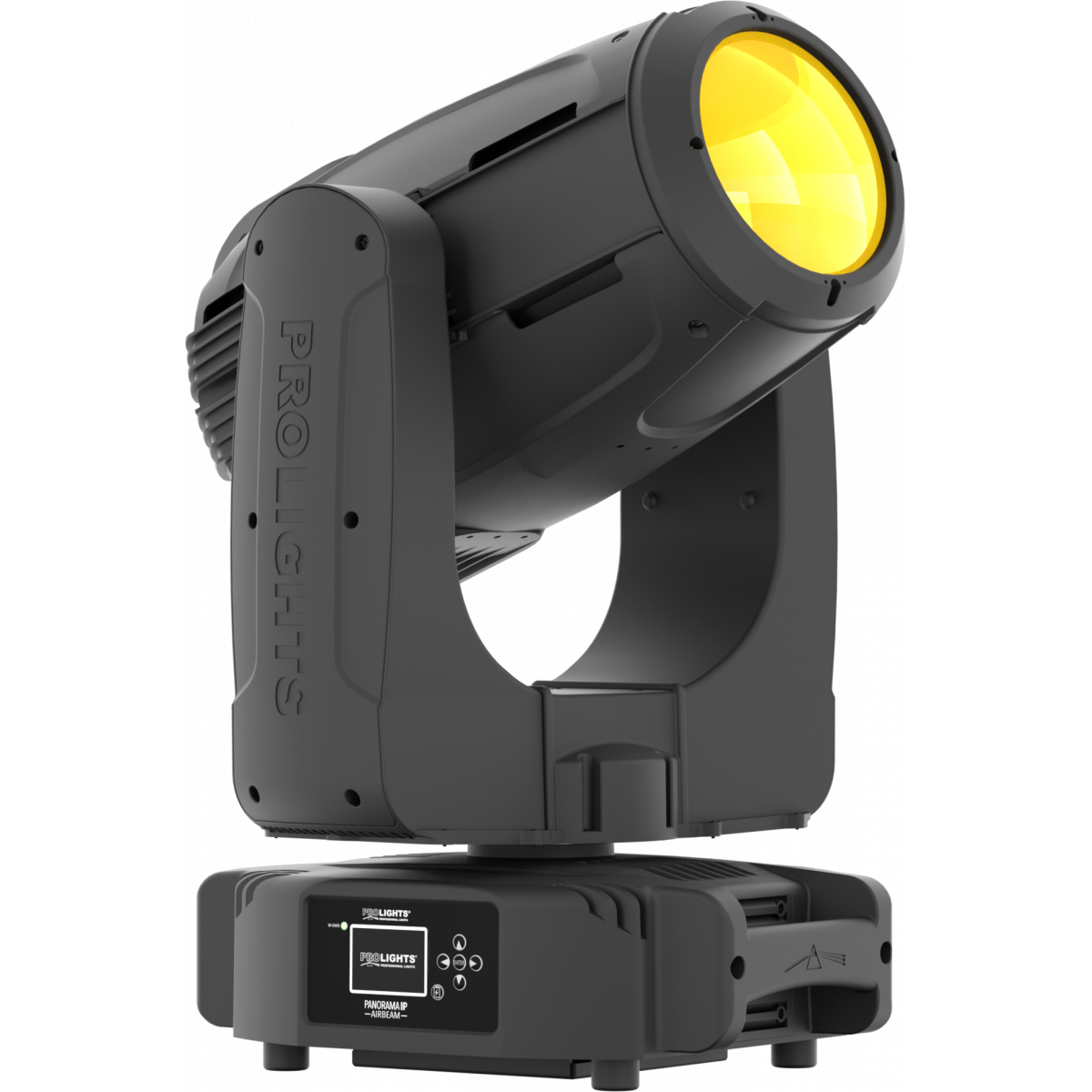

PROLIGHTS PanoramaIP AirBeam - front
Product - LIGHTING
PanoramaIP AirBeam
    • IP65 rated beam and searchlight with 2° beam
    • Powerful 440W Osram HTI discharge lamp combined with 167mm HD front lens for bright, tight, defined beam
    • Extensive set of effects including linear CMY mixing, rotating gobo wheel, static gobo wheel, circular and linear prisms, linear frost and focus
Find out more

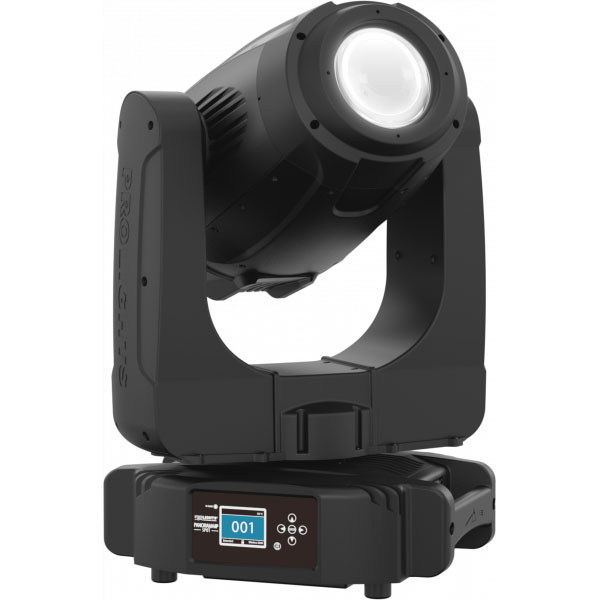

PROLIGHTS PanoramaIP Spot
