Smart BatPlusG2

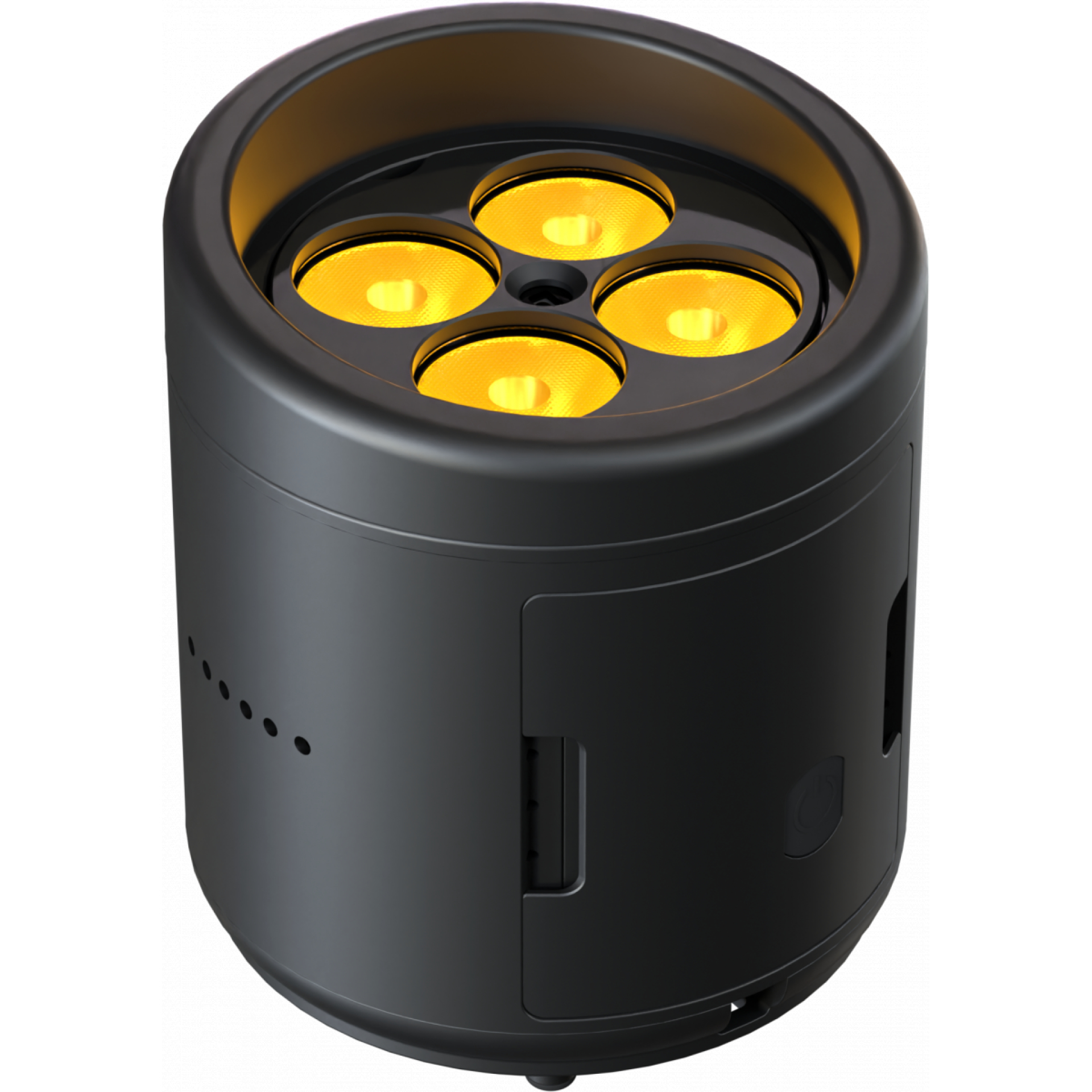

PROLIGHTS Smart BatPlusG2 front

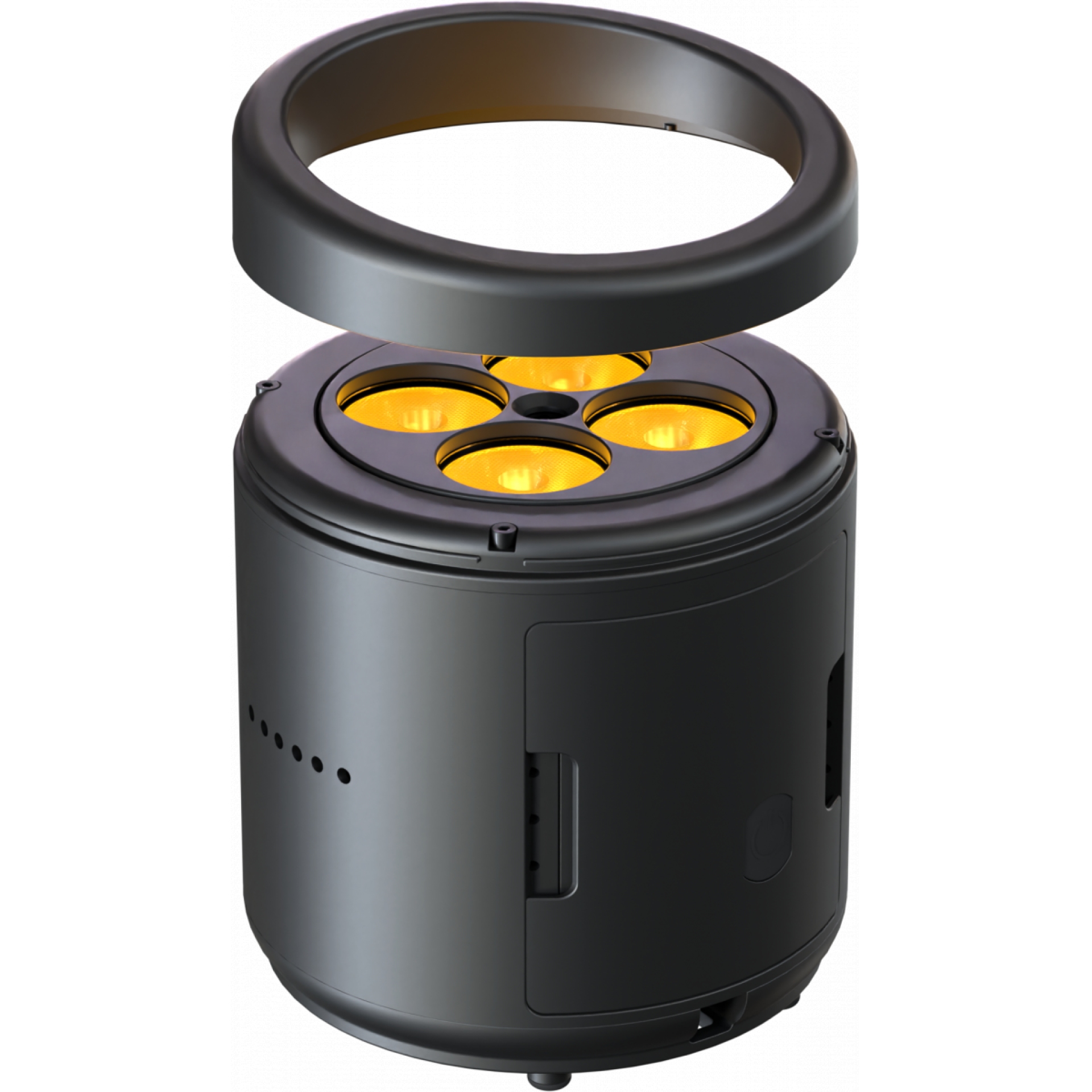

PROLIGHTS Smart BatPlusG2 collar

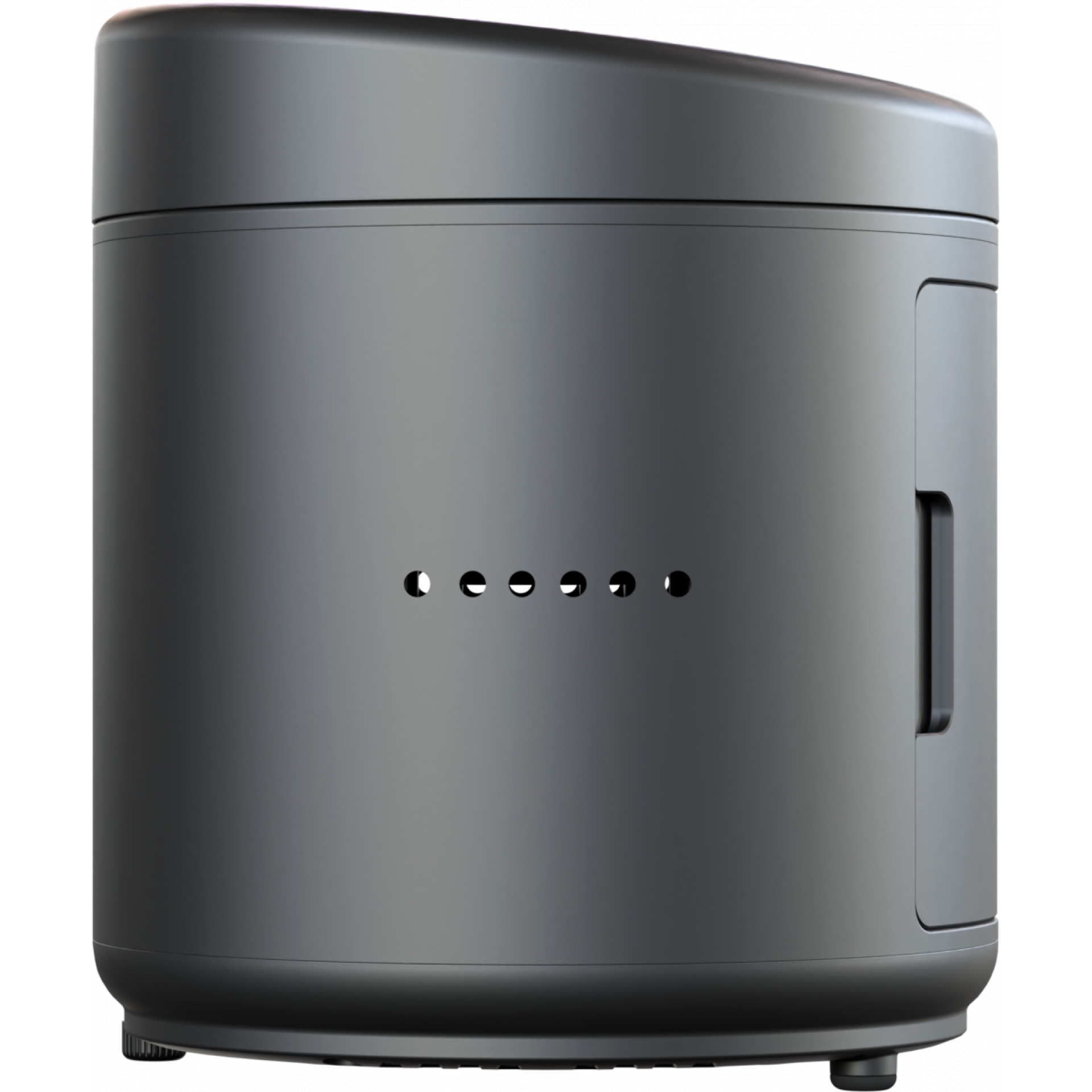

PROLIGHTS Smart BatPlusG2 side

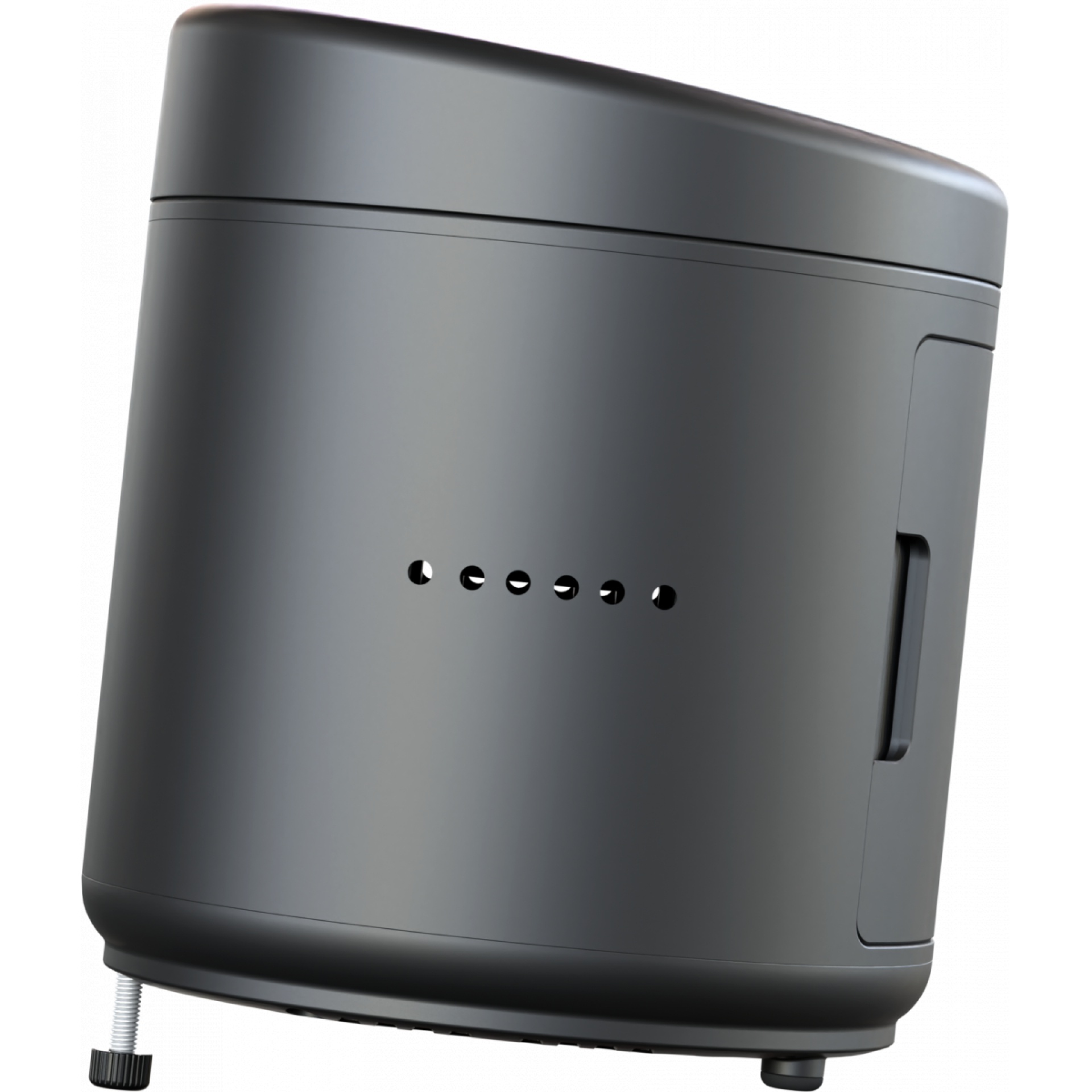

PROLIGHTS Smart BatPlusG2 tilted side

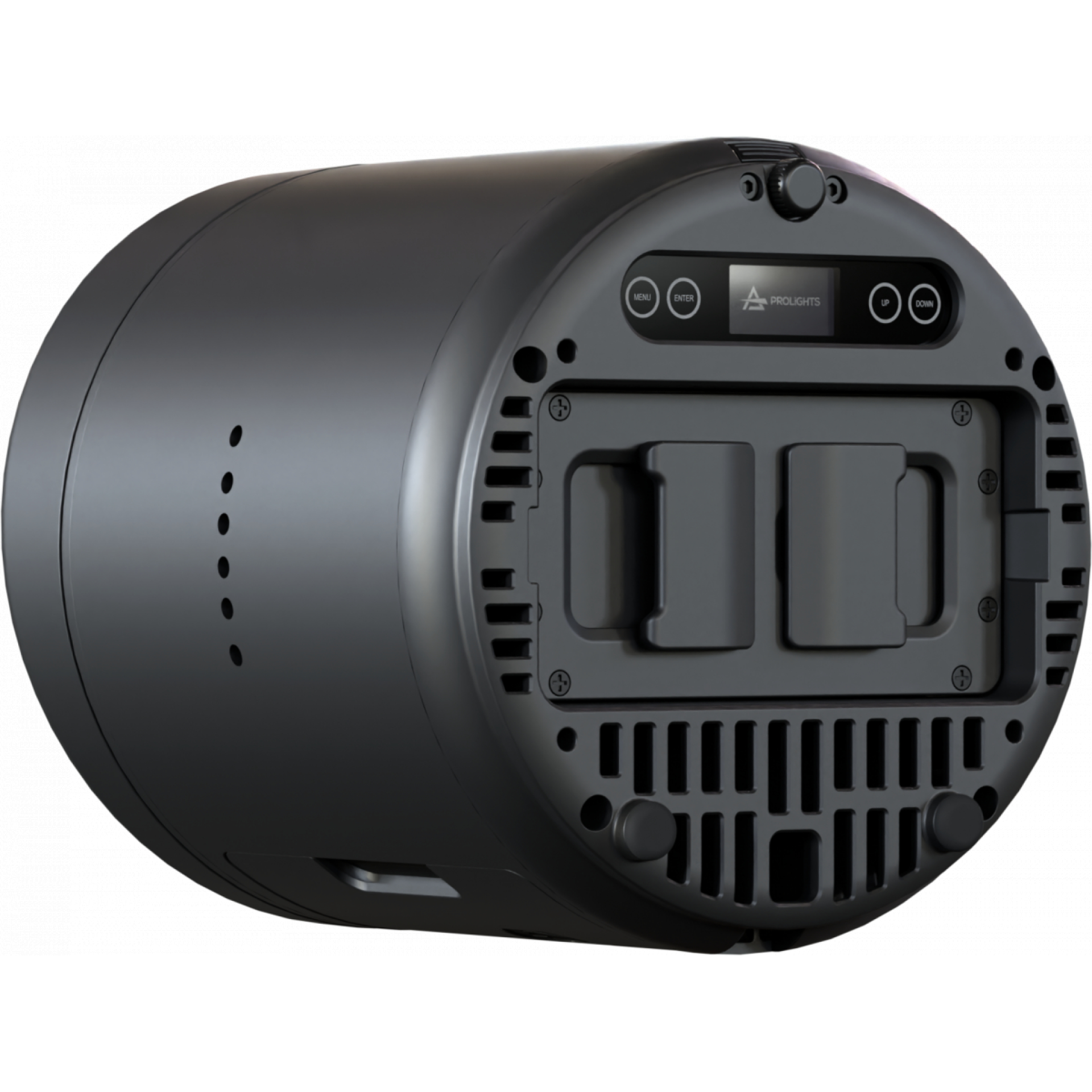

PROLIGHTS Smart BatPlusG2 base

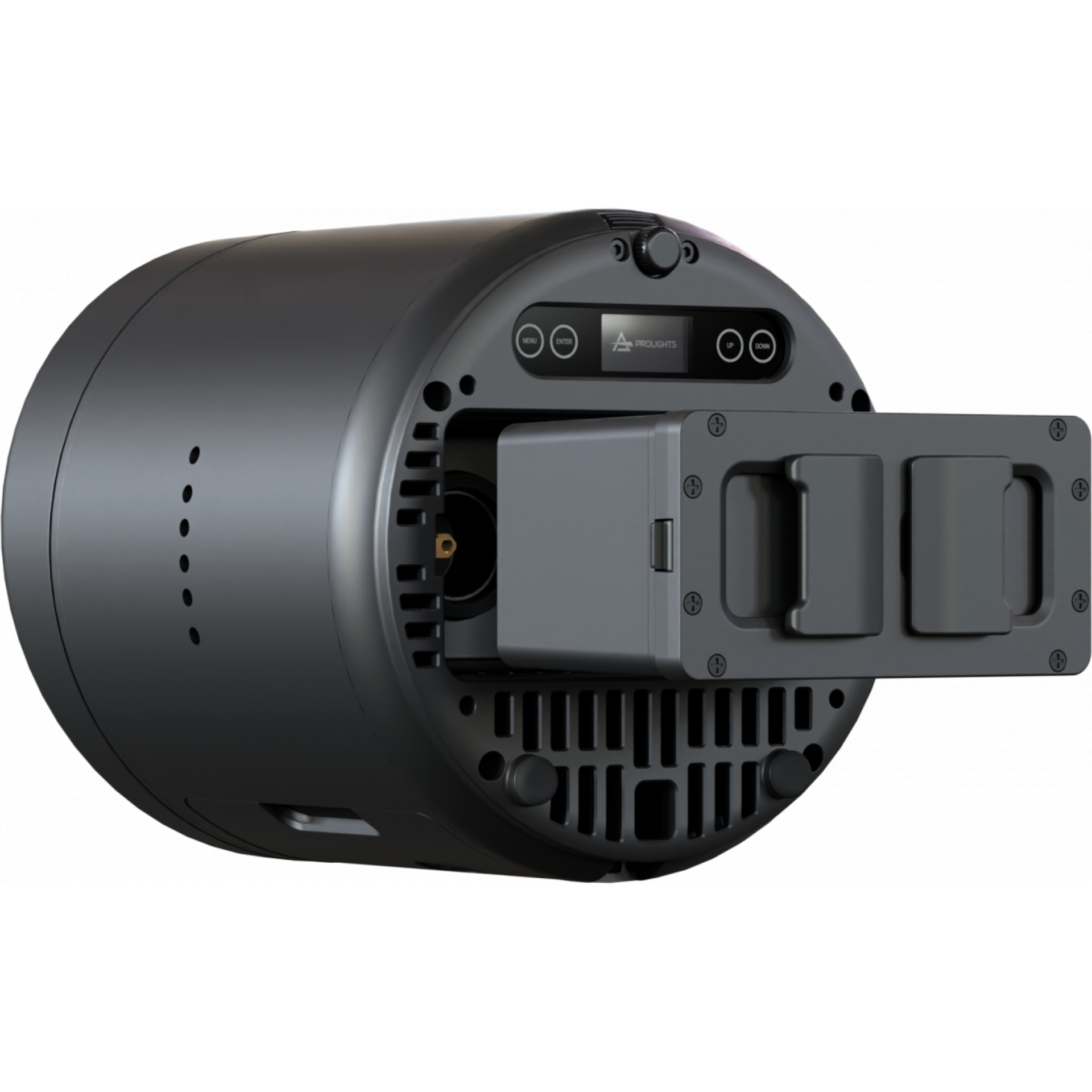

PROLIGHTS Smart BatPlusG2 battery

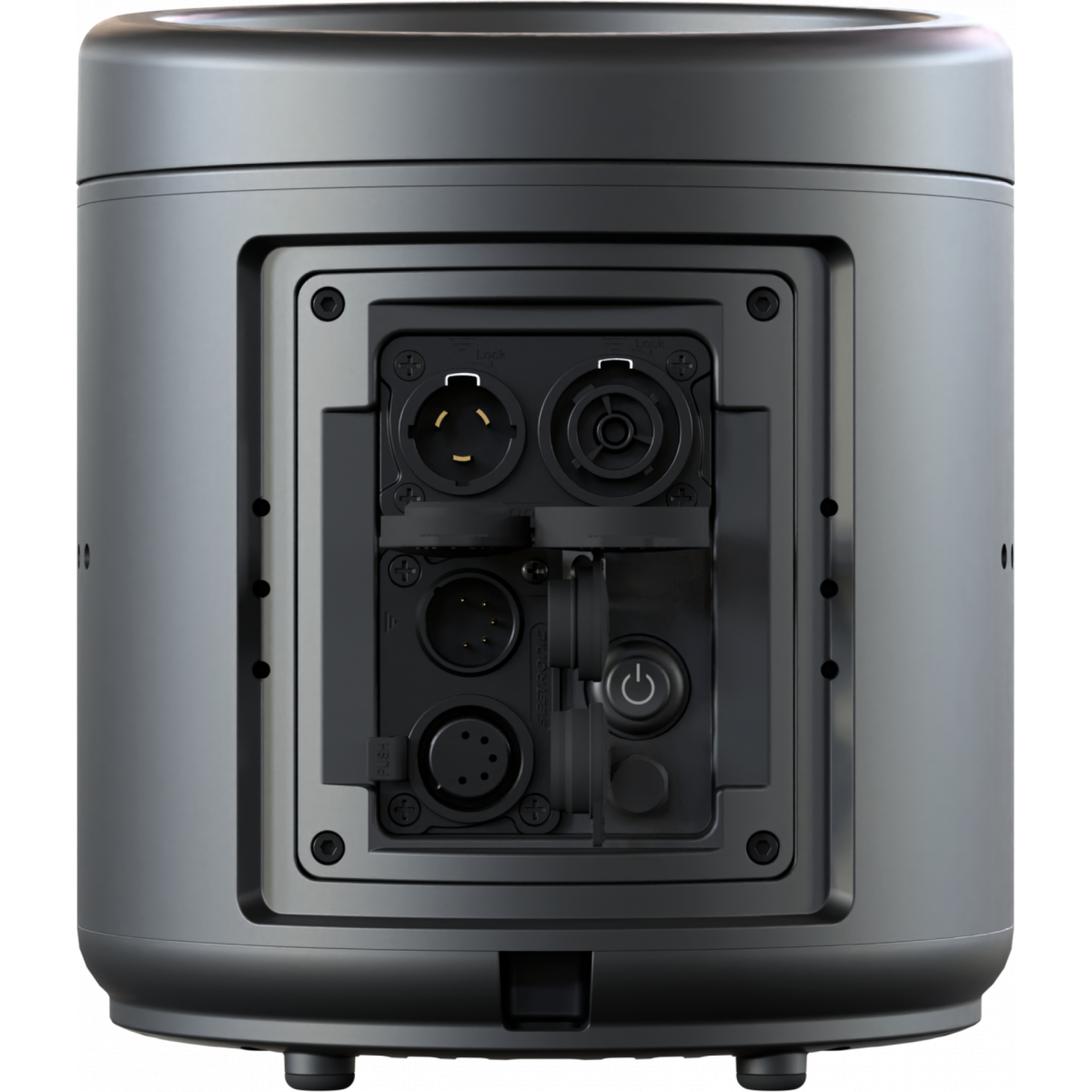

PROLIGHTS Smart BatPlusG2 back
PROLIGHTS Smart BatPlusG2 collar
PROLIGHTS Smart BatPlusG2 side
PROLIGHTS Smart BatPlusG2 tilted side
PROLIGHTS Smart BatPlusG2 base
PROLIGHTS Smart BatPlusG2 battery
PROLIGHTS Smart BatPlusG2 back

Smart BatPlusG2

PROSMARTBATPLUSG2

Key Features:

  • Hybrid fixture, uplighter/spotlight, Wireless DMX (CRMX+W-DMX) / wired control, battery/mains power
  • 4x20W RGB + Warm White LED source, powerful light output, and high CRI (>93)
  • Interchangeable battery and magnetic holographic filters for multiple beam angles
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Smart BatPlusG2

The Smart BatPlusG2 is a high-end version of the iconic Smart Bat uplighters designed to be IP65 rated with enhanced output and battery performance, all with a stunning new look.

The Smart BatPlusG2’s clever mechanical design allows to turn the unit from an uplighter into a spotlight, by using the suspension or floor bracket, without compromising the aesthetics of the fixture.

The four RGB + Warm White LEDs produce incredibly high-quality white tones (CRI>93) and twice the brightness when operating with the built-in battery (three times when connected to the mains). The beam angle is adjusted with multiple magnetic holographic filters.
The G2 introduces new features such as interchangeable batteries, as well as easy covers with multiple colours, allowing to change its looks as desired.

The PROLIGHTS Smart BatPlusG2 is extremely user-friendly, and it can be used wirelessly with a built-in battery, CRMX/W-DMX and RDM control, or also wired through the PSU and XLR connectors (bypassing the battery).

  • Source: 4x20W RGB + Warm White LED

    Luminous flux: 2,051lm @ full

    Lux: 1,723lx @ 5m without filter

    CRI: 94 @ 3,200K; 92 @ 5,600K

    Source life expectancy: > 50,000hr

    Beam angle: 10°

    Additional optics: filters to achieve 20°, 40°, 60°, 10°x60°

  • Colour mixing: RGBWW

    CCT: CCT control through dedicated DMX channel

    White presets: 2,800K - 10,000K

    Colour wheel: virtual colour wheel with macros

    Macros: built-in white presets

    Control resolution: 16-bit dimmer, colours

    Static mode: selection of static colour

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: CRMX+W-DMX, DMX512, RDM

    Wireless control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    IR: infrared sensor controlled by remote

    Master/Slave: for synchronised operation of more units linked in a chain

Smart BatPlusG2 - Downloads
Smartbatplusg2_A4_DATASHEET_EN.pdf
Download
Download
Download
