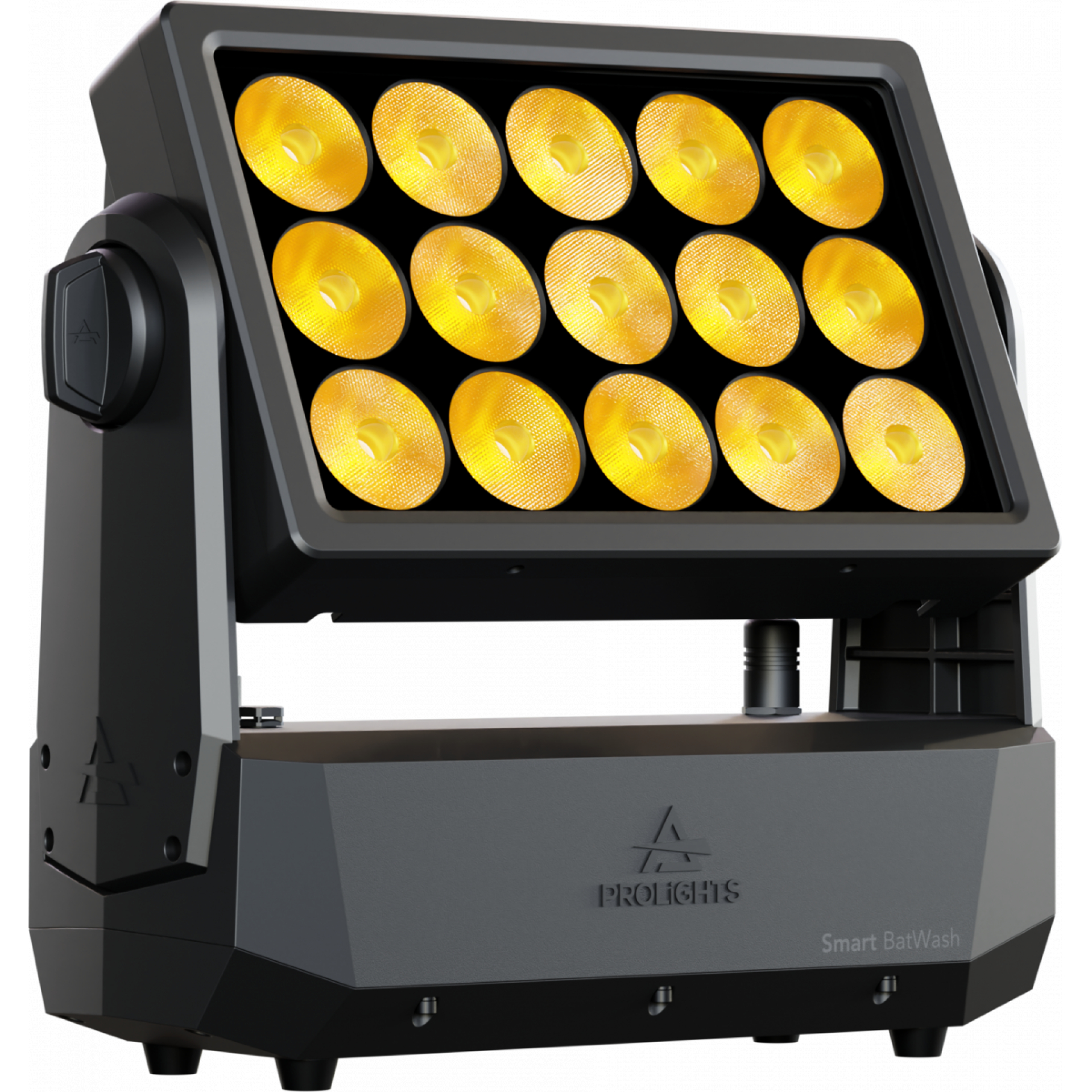

PROLIGHTS Smart BatWash front

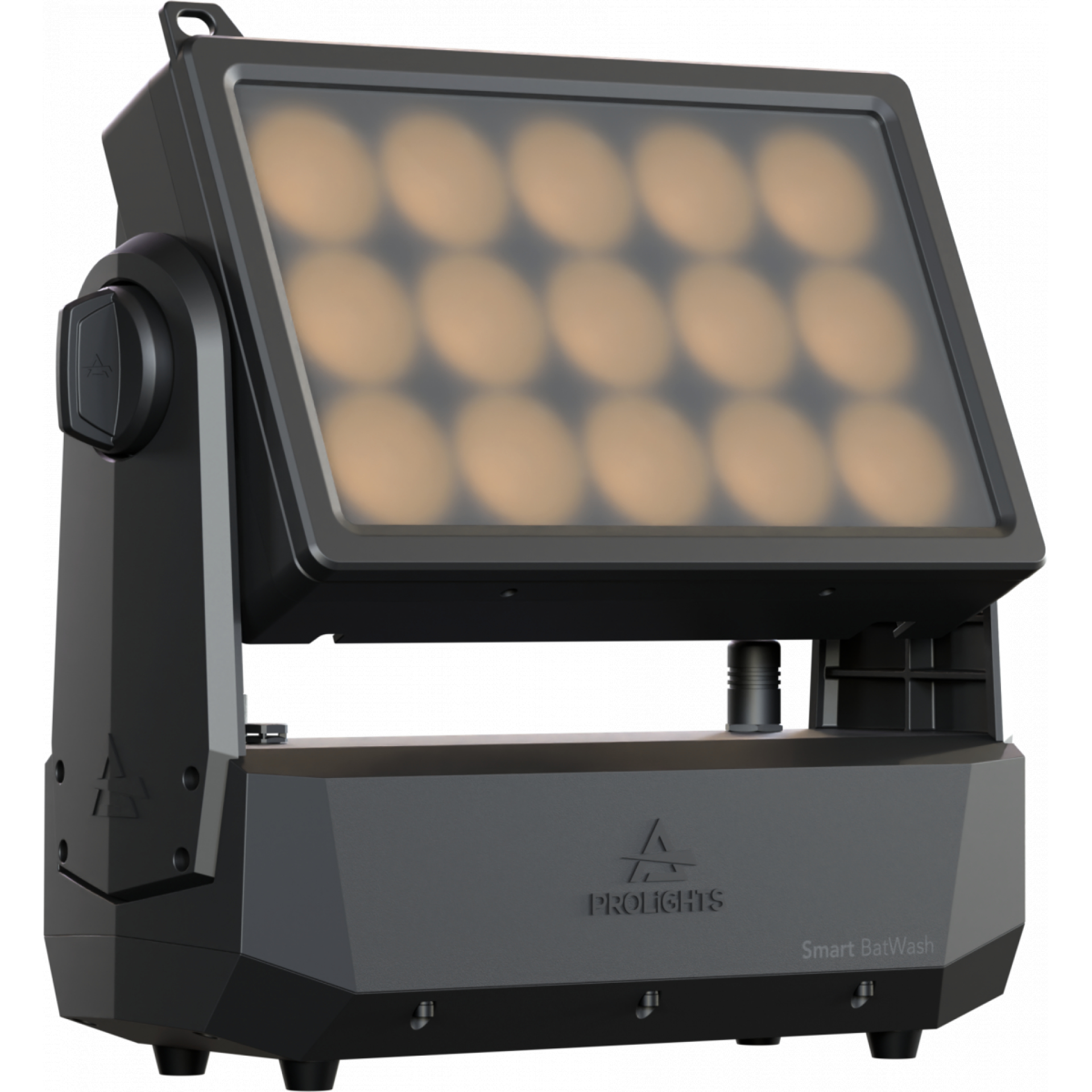

PROLIGHTS Smart BatWash with screen covering front

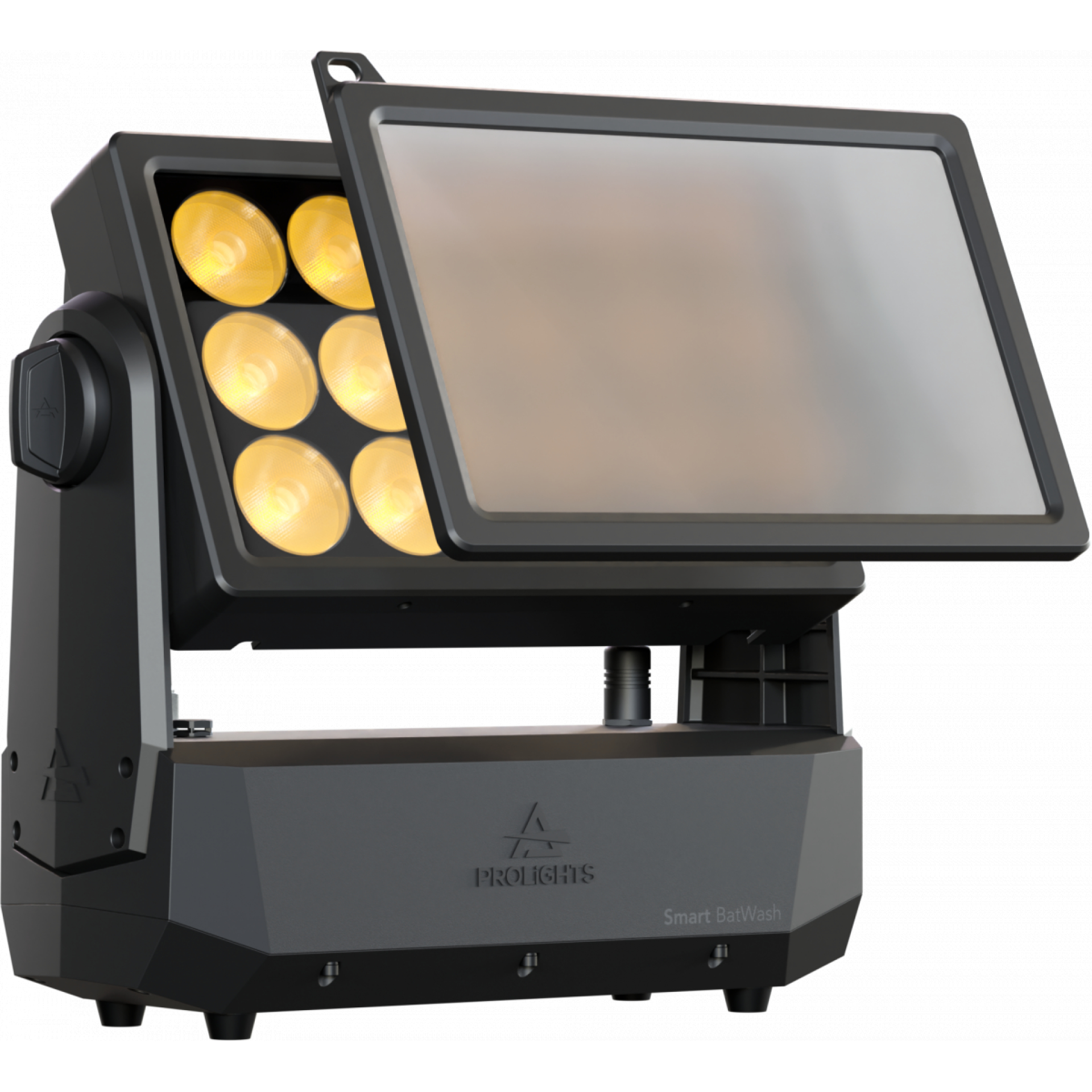

PROLIGHTS Smart BatWash screen detached

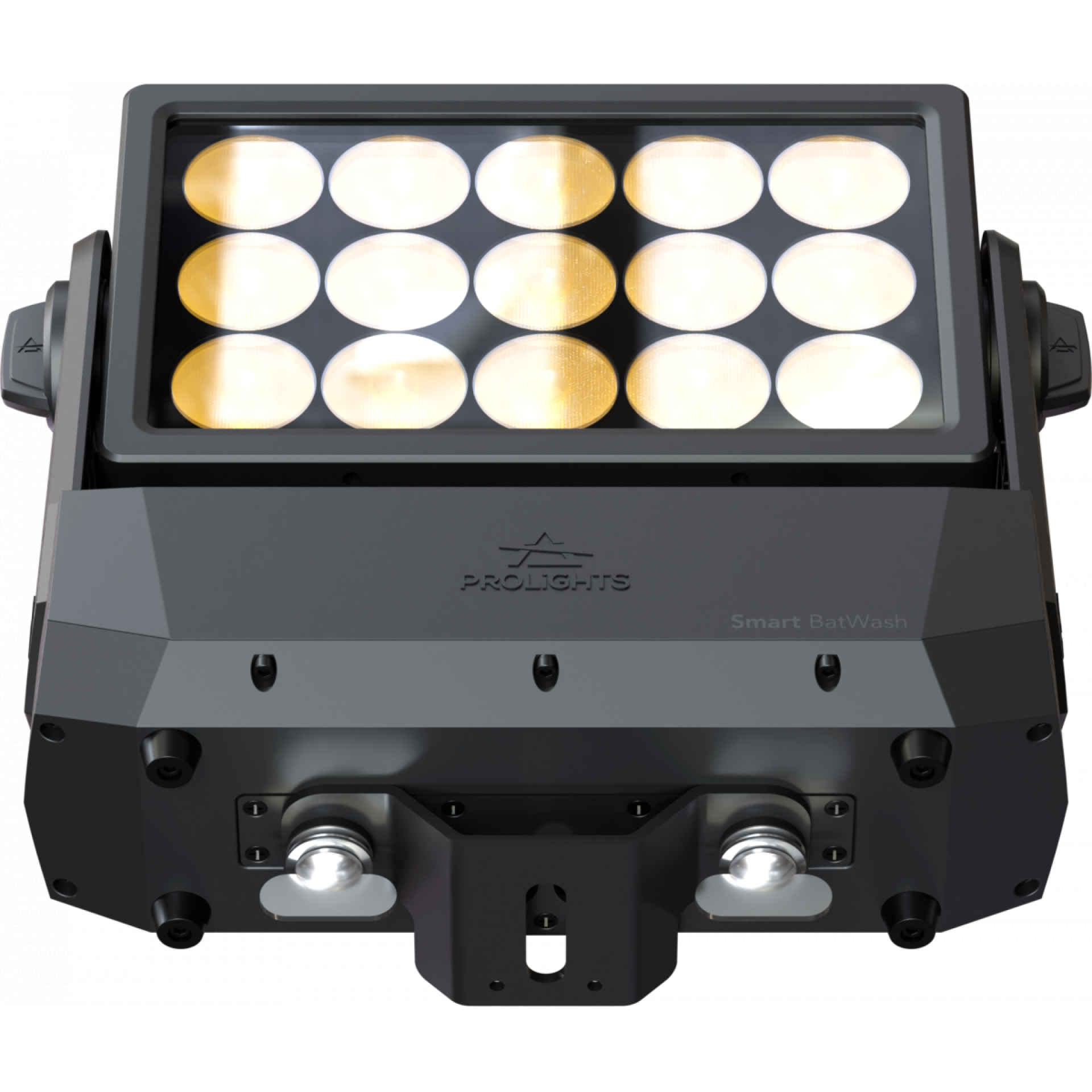

PROLIGHTS Smart BatWash Base

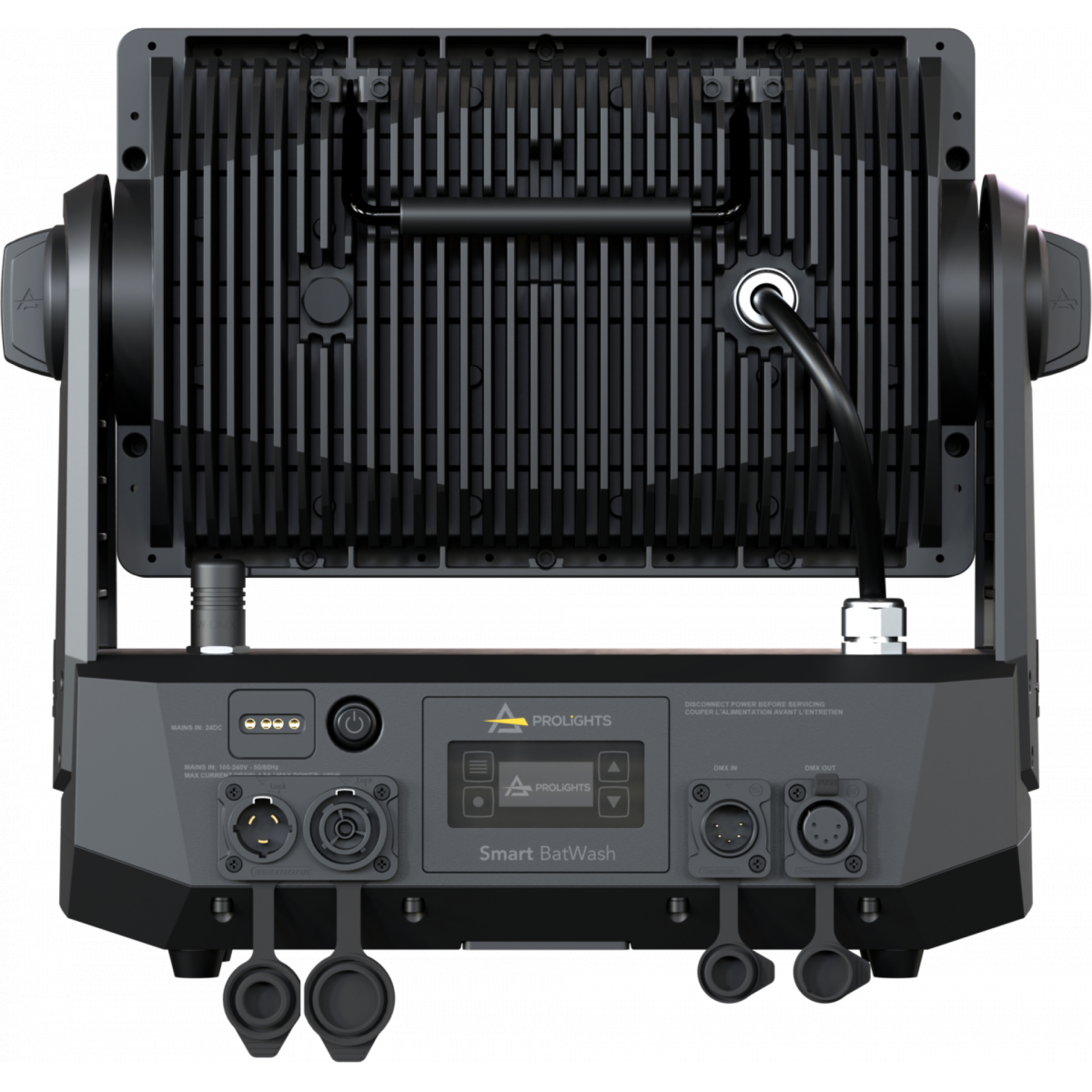

PROLIGHTS Smart BatWash back

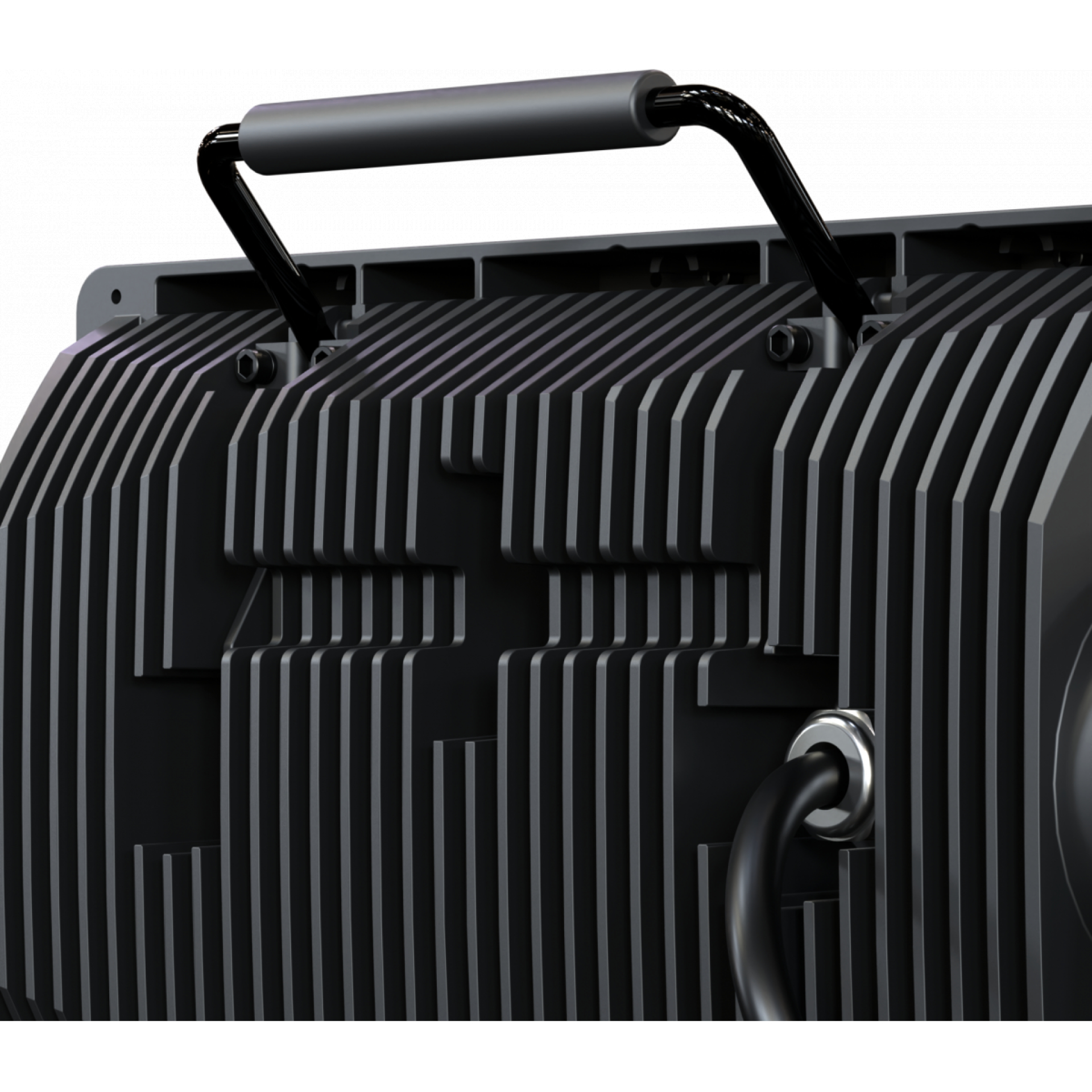

PROLIGHTS Smart BatWash handle close up

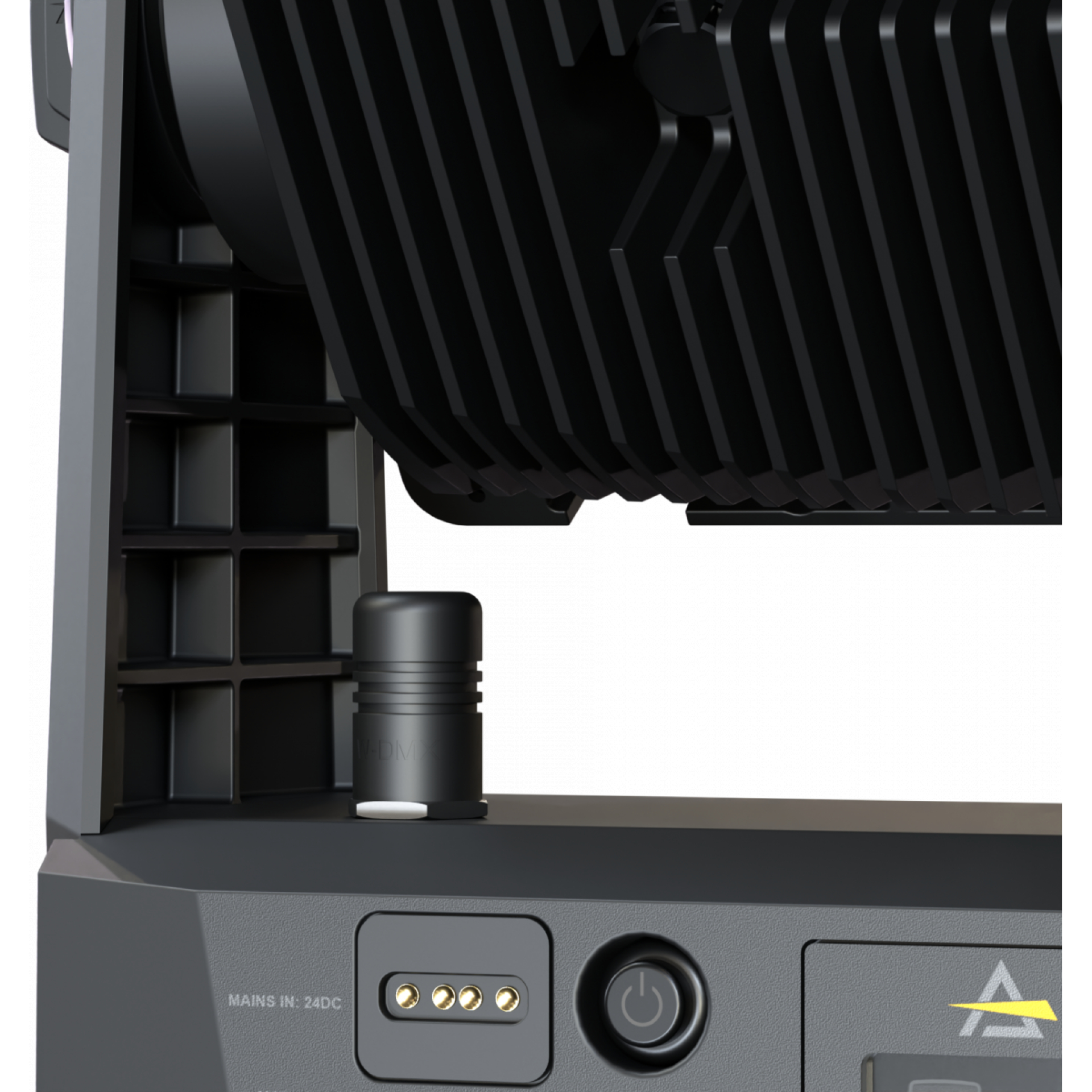

PROLIGHTS Smart BatWash Close up
PROLIGHTS Smart BatWash with screen covering front
PROLIGHTS Smart BatWash screen detached
PROLIGHTS Smart BatWash Base
PROLIGHTS Smart BatWash back
PROLIGHTS Smart BatWash handle close up
PROLIGHTS Smart BatWash Close up

Smart BatWash

PROSMARTBATWASH

Key Features:

  • High-powered IP65 LED Wash Light, wireless (CRMX+W-DMX)/wired control, battery/AC power
  • Range of holographic filters that manipulate the beam angle
  • 15x20W RGB + Warm White LED source, powerful 6,282 lumen output high CRI (>93)
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Smart BatWash

The PROLIGHTS Smart BatWash is an IP65 rated 15x20W LED Wash Light. This versatile fixture has an RGB + Warm White LED source and can be powered from its internal battery or from the mains.

The PROLIGHTS SmartBat Wash is extremely adaptable, the built-in battery offers a wireless option using CRMX, W-DMX and RDM. Alternatively, you can wire the fixture with power and data cables, bypassing the battery and enabling higher brightness levels.

The beam angle can be adjusted with ease through a magnetic beam shaper filter, allowing a wider coverage while maintain a high output. The PROLIGHTS SmartBat Wash is equipped with all the software features of the ECL range, sharing the same user settings and capabilities.

  • Source: 15x20W RGB + Warm White LED

    Luminous flux: 6,300lm @ full

    Lux: 4,451lx @ 5m full

    CRI: > 95 @ 3200K; > 93 @ 5600K

    Source life expectancy: > 50,000hr

    Beam angle: 10°

  • Colour mixing: RGBWW

    CCT: CCT control through dedicated DMX channel

    White presets: 2,800K - 10,000K

    Colour wheel: virtual colour wheel with macros

    Macros: built-in white presets

    Control resolution: 16-bit dimmer, colours

    Static mode: selection of static colour

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: CRMX+W-DMX, DMX512, RDM

    Wireless control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    IR: infrared sensor controlled by remote

    Master/Slave: for synchronised operation of more units linked in a chain

Smart BatWash - Downloads
SmartBat Wash - Spec Sheet
Download
General Battery Safety Information
Download
Handbook for Lithium Battery Products
Download

You might like...

PROLIGHTS Smart BatPlusG2 front
Product - LIGHTING
Smart BatPlusG2
    • Hybrid fixture, uplighter/spotlight, Wireless DMX (CRMX+W-DMX) / wired control, battery/mains power
    • 4x20W RGB + Warm White LED source, powerful light output, and high CRI (>93)
    • Interchangeable battery and magnetic holographic filters for multiple beam angles
Find out more
PROLIGHTS Smart BatPlus
Product - LIGHTING
Smart BatPlus
    • 4x12W RGBW LED with 11° beam angle for up-lighting
    • Chromed IP65 housing
    • W-DMX and IR remote control
Find out more

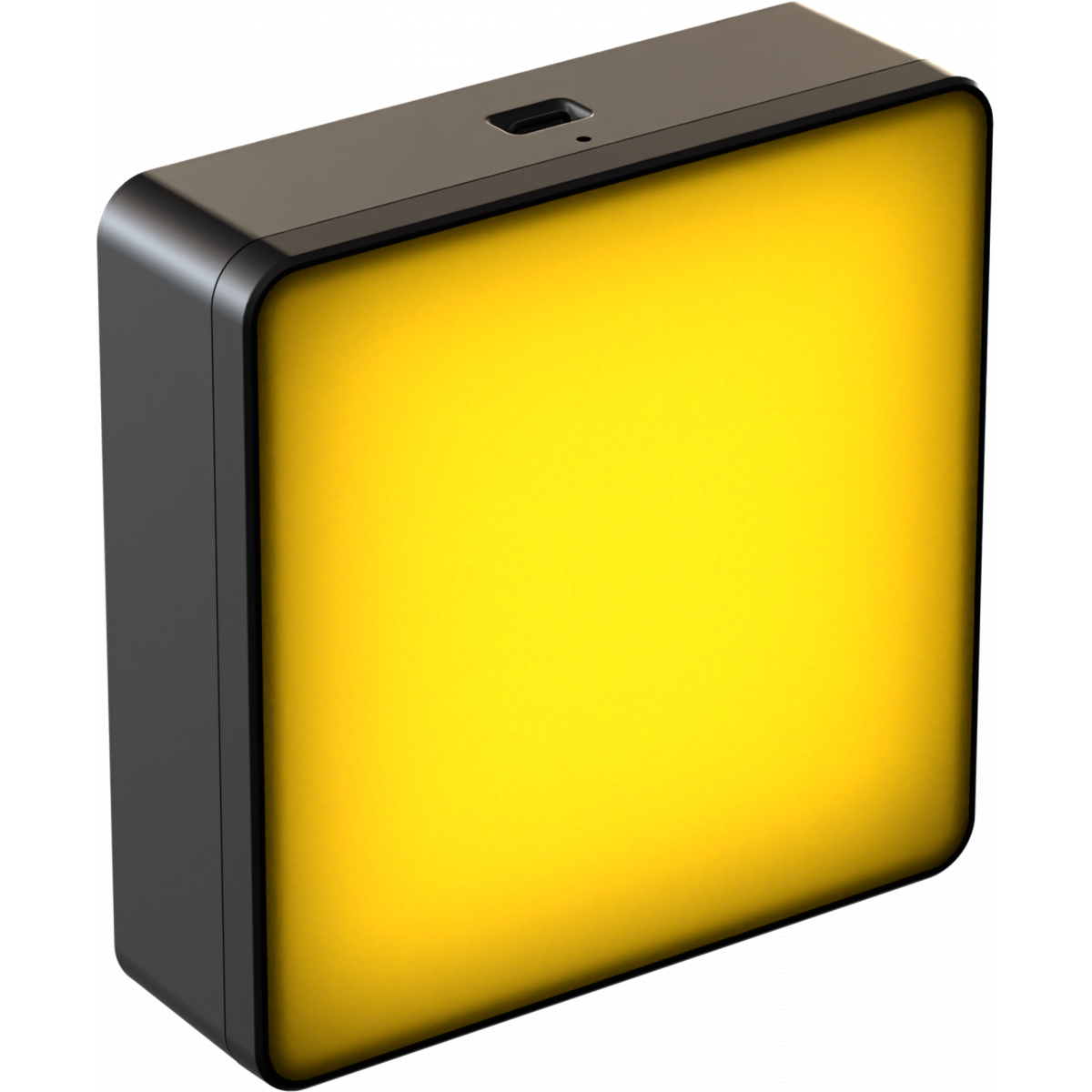

PROLIGHTS EclNanoPanel TWC - front
