LED Screen Support Structure
Sixty82 Video Wall Support

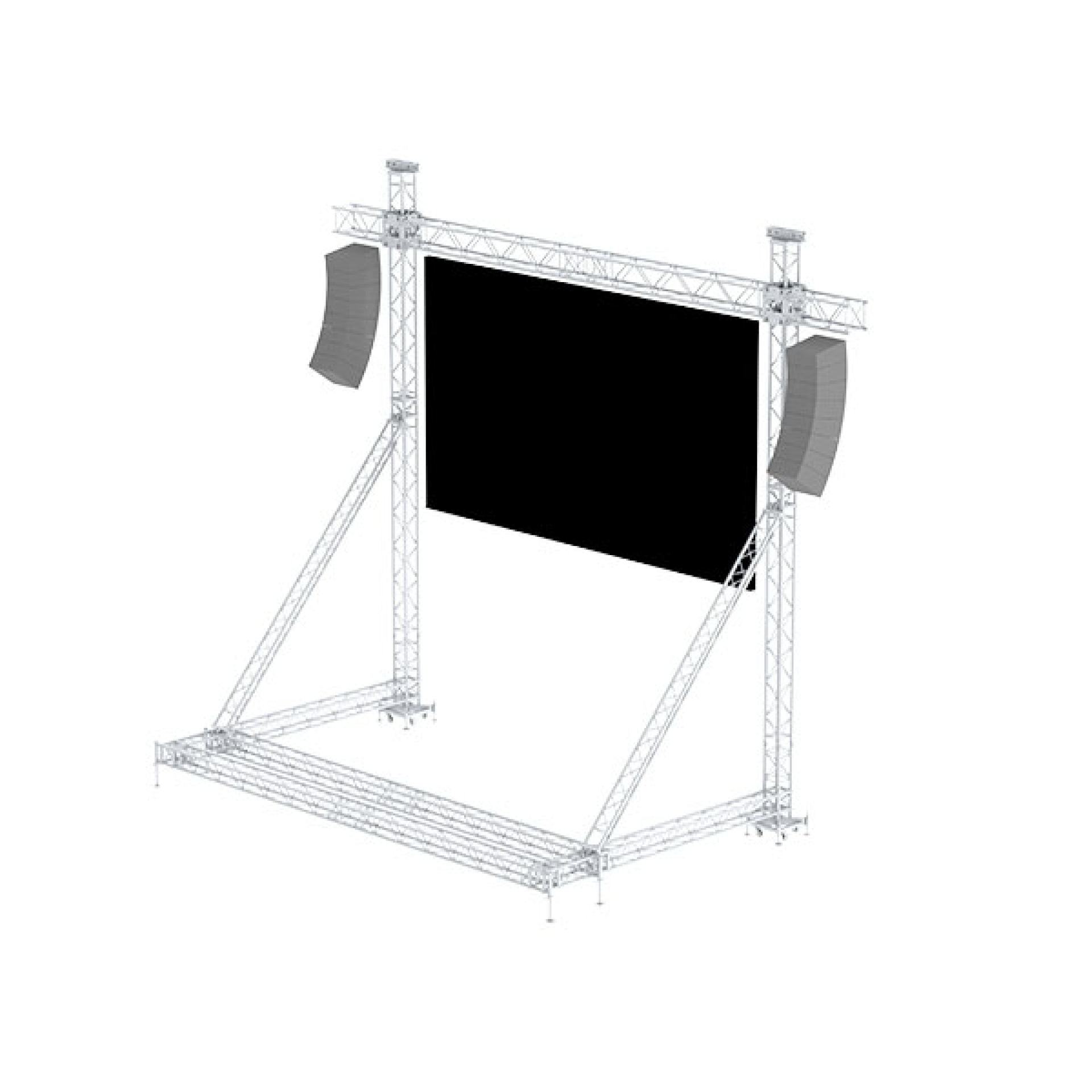

Sixty82 Video Wall Support Front

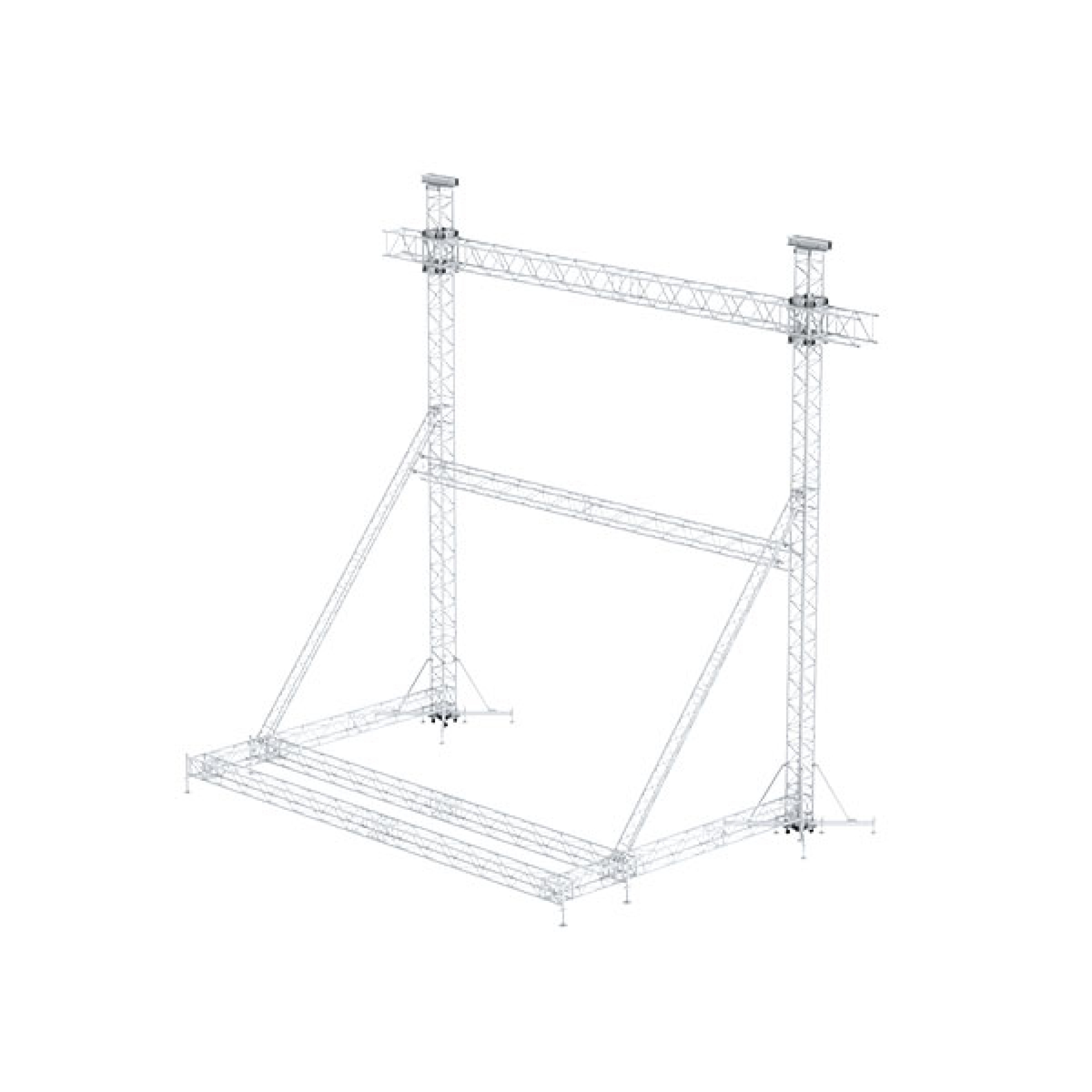

Sixty82 Video Wall Support Back

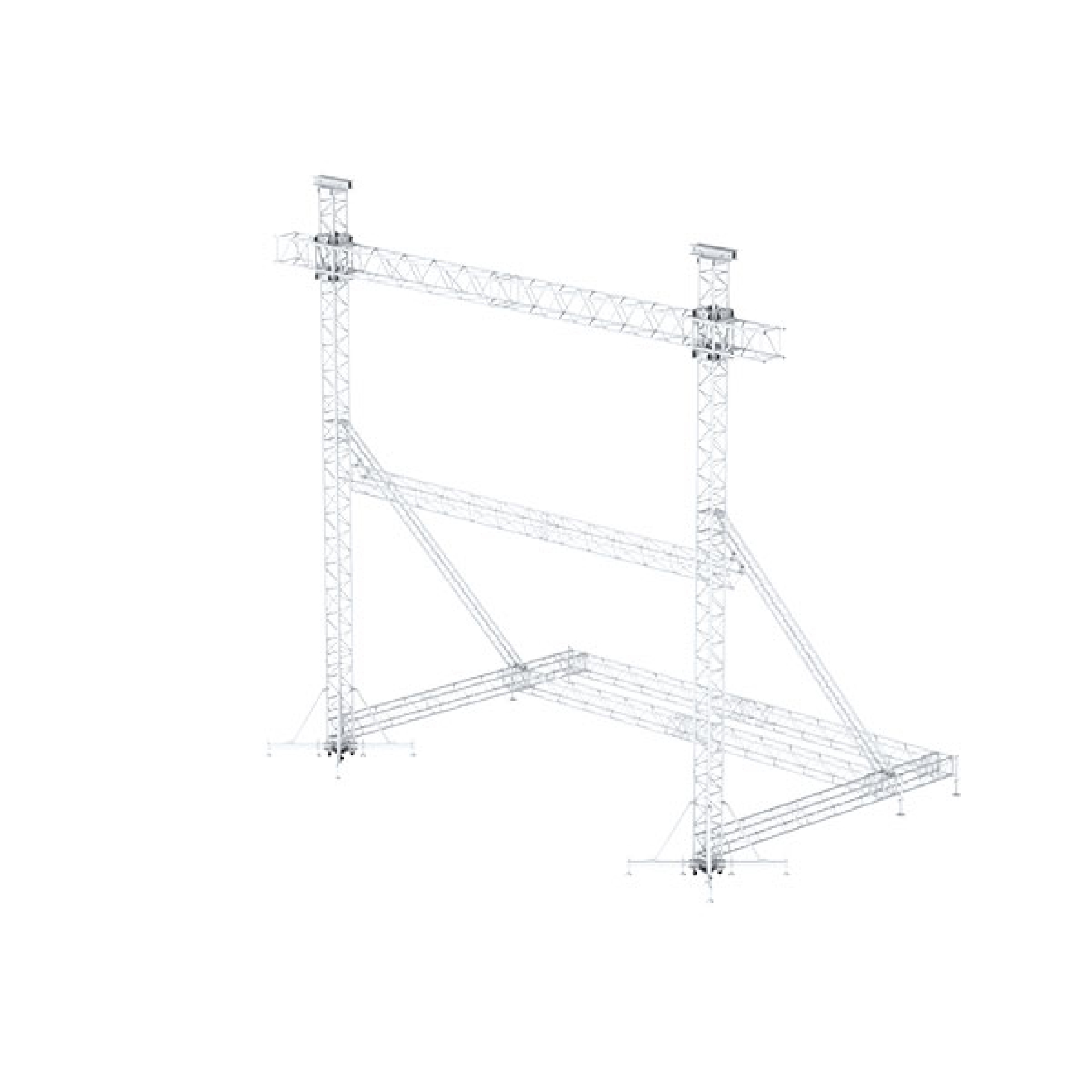

Sixty82 Video Wall Support Front
Sixty82 Video Wall Support Back

LED Screen Support Structure

Key Features:

  • Structurally calculated and proven concept
  • Full aluminium structure
  • Use of multibase for easy positioning of ballast
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

LED Screen Support Structure


SIXTY82 offer a versatile LED screen support structure based on standard trusses that is easy to set up due to its fixed base structure.

Product Variants

6×4 metre screen
  • Max PA size front: 1.5m sq
  • Max screen weight: 1500kg
  • Max PA weight: 2 x 250kg
  • Max peak gust wind speed in-service: 20m/s (measured at 10 m height)
  • Max peak gust wind speed out-of-service: 27m/s
  • Max peak gust during lifting: 8m/s
  • Ballast (if screen weight is 1500kg): 2 x 900kg
  • Trusses M29S / M29T / M39S

Enquiry Form

8×6 metre screen
  • Max PA size front: 2.5m sq
  • Max screen weight: 3000kg
  • Max PA weight: 2 x 500kg
  • Max peak gust wind speed in-service: 20m/s (measured at 10 m height)
  • Max peak gust wind speed out-of-service: 27m/s
  • Max peak gust during lifting: 8m/s
  • Ballast (if screen weight is 1500kg): 2 x 1000kg and 2 x 300kg
  • Trusses M39TOW / M39S / XL101

Enquiry Form

  • Rafters can be lifted together with erection of tower to save assembly time

    Bespoke head section with integrated brace connection for fast set up and less bespoke parts

    Possibility to deadhang at ground level which eliminates the need to climb the towers

LED Screen Support Structure - Downloads
Sixty 82 Video Wall Supports Cutsheet
LED Screen Support Structure - Variant Downloads

You might like...

Sixty82 Arc Roof 8x6m Sixty82 logo
Product - RIGGING
Arc Roof Structure
    • High loading compared to size
    • Competitively priced
    • Structurally calculated and proven concept

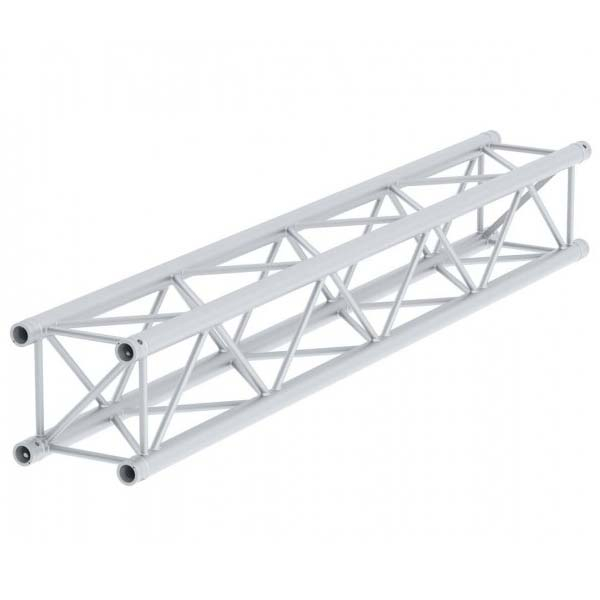

M29 General Purpose Sqaure Truss Sixty82 logo
Product - RIGGING
M29 General Purpose Truss
    • RFID tracked - integrated SIXTYTag, enabling RFID product tracking and traceability
    • All corners standard with 48.3 x 3mm main chords
    • Innovative industry leaders in the design and manufacture of trussing and staging systems

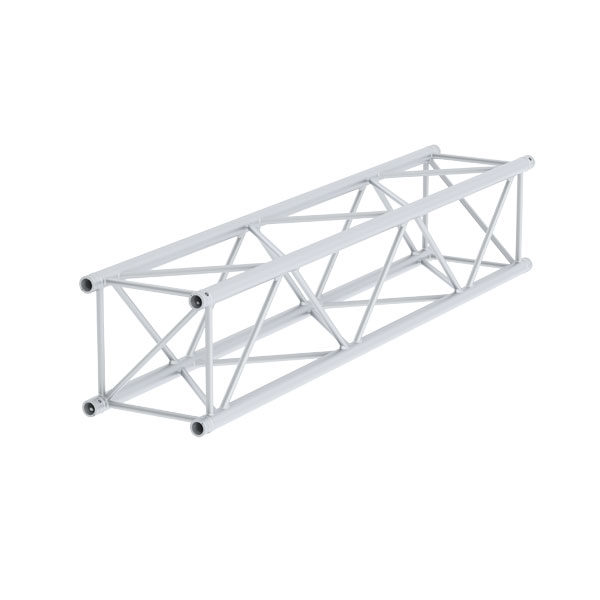

Sixty82 M39 Square Length 200cm Sixty82 logo
