Tascam Analogue Mixers

Tascam MZ-123BT

Tascam Analogue Mixers

Key Features:

Analogue Mixers

Zone Mixers

Matrix Mixers

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Tascam Analogue Mixers

Tascam mixers and mixing consoles – for installation, home studio and live operation. A mixer allows you to combine individual audio signals of a live event or a recording (audio tracks) to a master signal to feed a power amplifier for sound reinforcement or a stereo recorder for an audio recording.

Product Variants

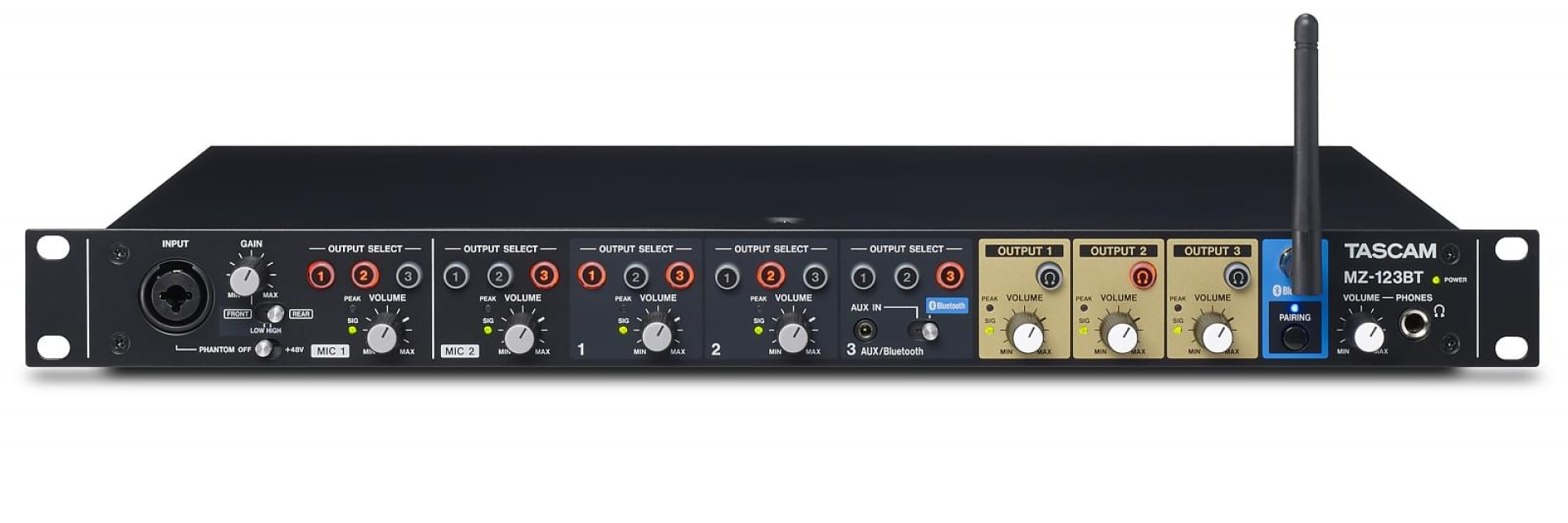

Tascam MZ-123BT

MZ-123BT

Slim rackmount mixer that can flexibly assign background music and mic announcements to three different output zones
Built-in Bluetooth receiver for wireless audio playback from smartphones or tablets
Three stereo line inputs and two mic inputs for announcements or moderation
Level controls and zone selection buttons on each mic and stereo line input
Signal and peak indicators on each mic and stereo line input
Three zone outputs with level controls, signal and peak indicators and monitor selection buttons

Enquiry Form

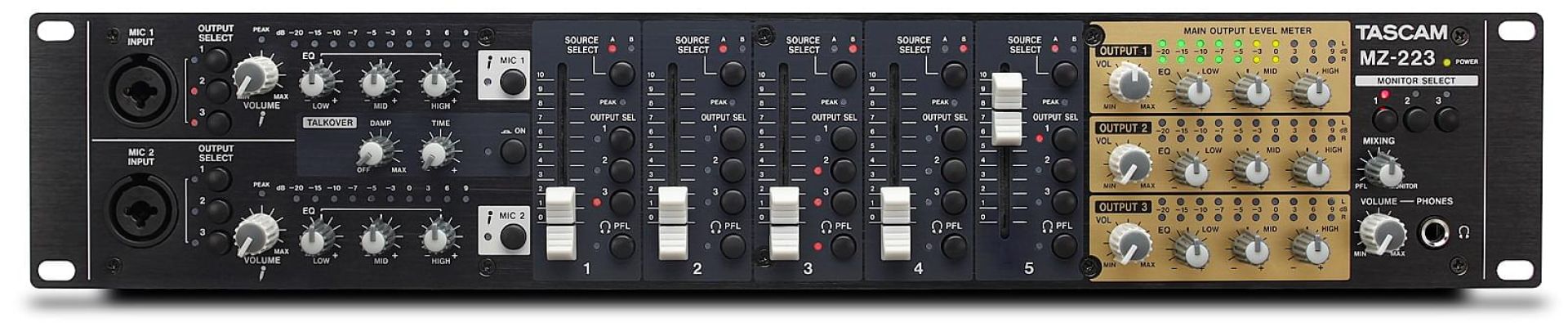

MZ-223

Rackmount 3-Zone installation Mixer that enables input channels to be routed to multiple outputs as desired
Five stereo input channels for line signals (two switchable to phono) with gain controls, peak LEDs, and faders
Two additional mic input channels with level controls, LED level meters and 3-band equalizers
Mic and line inputs can be mixed for output
Talkover function automatically lowers background music volume according to mic volume
Headphones output with level control can be used for pre-fader monitoring of selected input channels and the main output

Enquiry Form

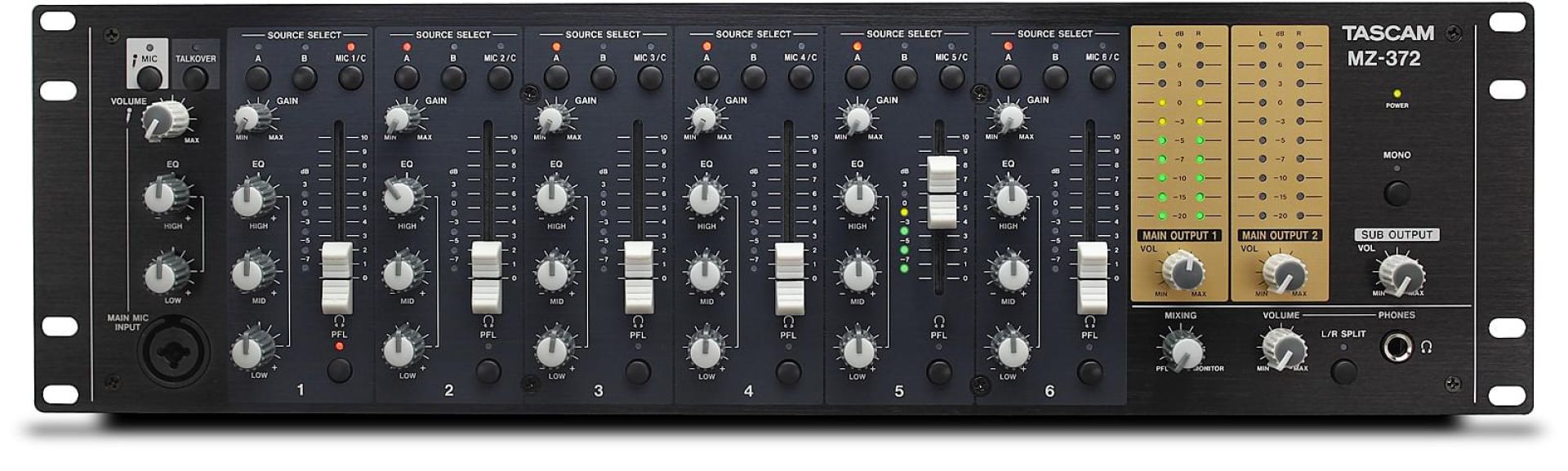

MZ-372

Rackmount installation mixer with seven input channels and two pairs of main outputs
Six mic/line input channels are equipped with gain controls, LED level meters, three-band equalizers and faders
Independent front mic input with level control and two-band equalizer
Talkover function automatically lowers background music volume according to mic volume

Enquiry Form

There are installation devices with few channels that are permanently installed in a city hall or a conference hall, for example. Such compact, professional mixers often have several outputs, so-called zone outputs, to supply several rooms with different signals. In addition, they are designed to process as many different source types as possible without distortion or feedback.

A mixing console for musicians and other artists (e.g. in the theatre), on the other hand, differs in its design. It usually offers significantly more input channels as well as more and better adjustment options such as parametric equalization and effects. Such a mixing console, which is used on stage, in the rehearsal room or in the home recording studio, mainly processes sources such as microphones and instruments, in addition to feeders such as CD players, MP3 players or smartphones. When mixing, artistic handwork is desired; automatic level control and other comfort functions that enable semi-automatic operation are reserved for rack-mount mixers for gyms, hotel lobbies and other event rooms. Mix and record at the same time? Using the Tascam Model series you can do both at the same time. With the built-in multitrack recorder, you can record any live event and mix it later whenever you want to create a delicate stereo track or an entire album.

Tascam Analogue Mixers - Downloads

Tascam System Design Guide
